Business Inkjet Multi-Function
- 22/20 ipm (Mono/Colour: based on ISO/IEC 24734)
- Automatic 2-Sided printing
- Wired and wireless network connectivity

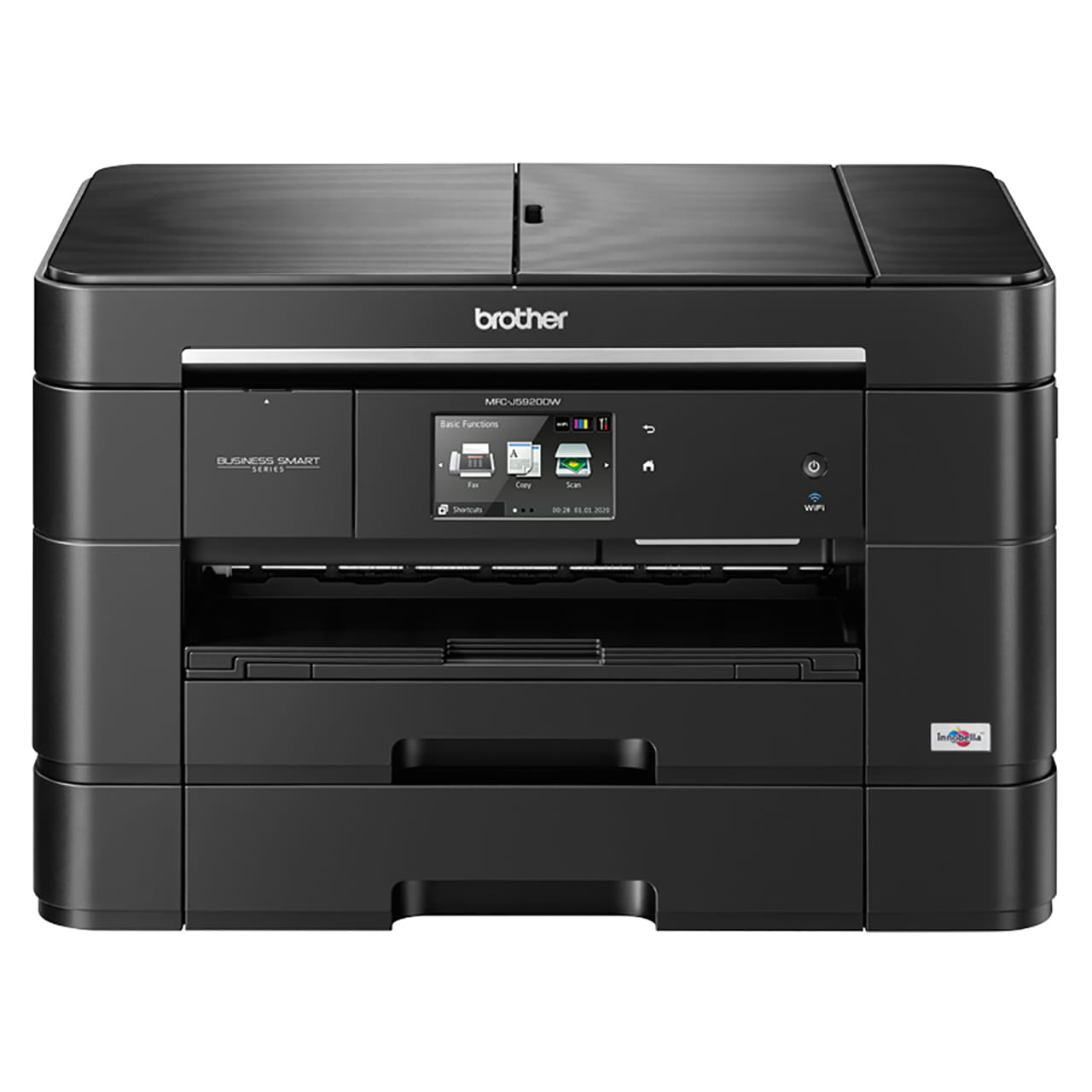

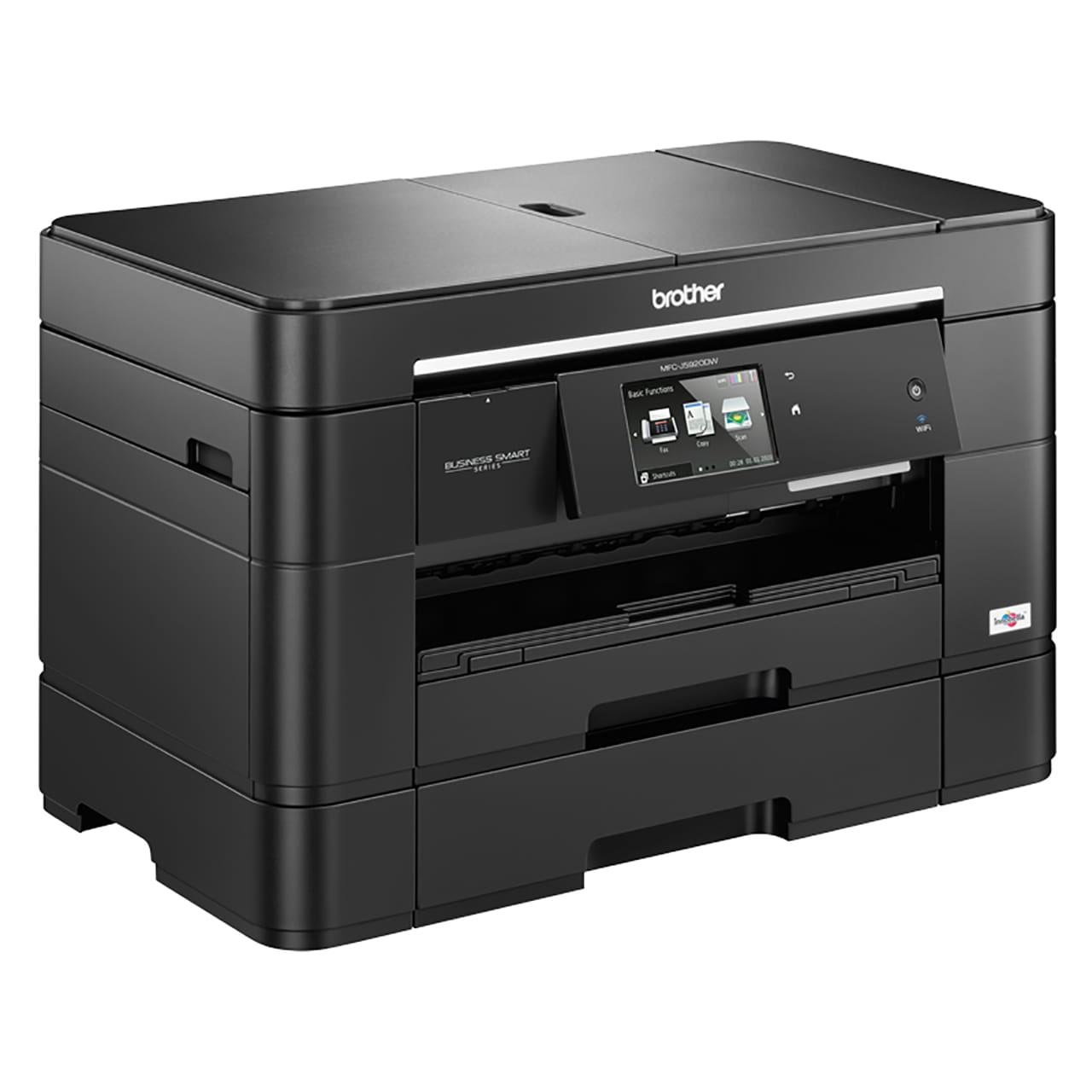

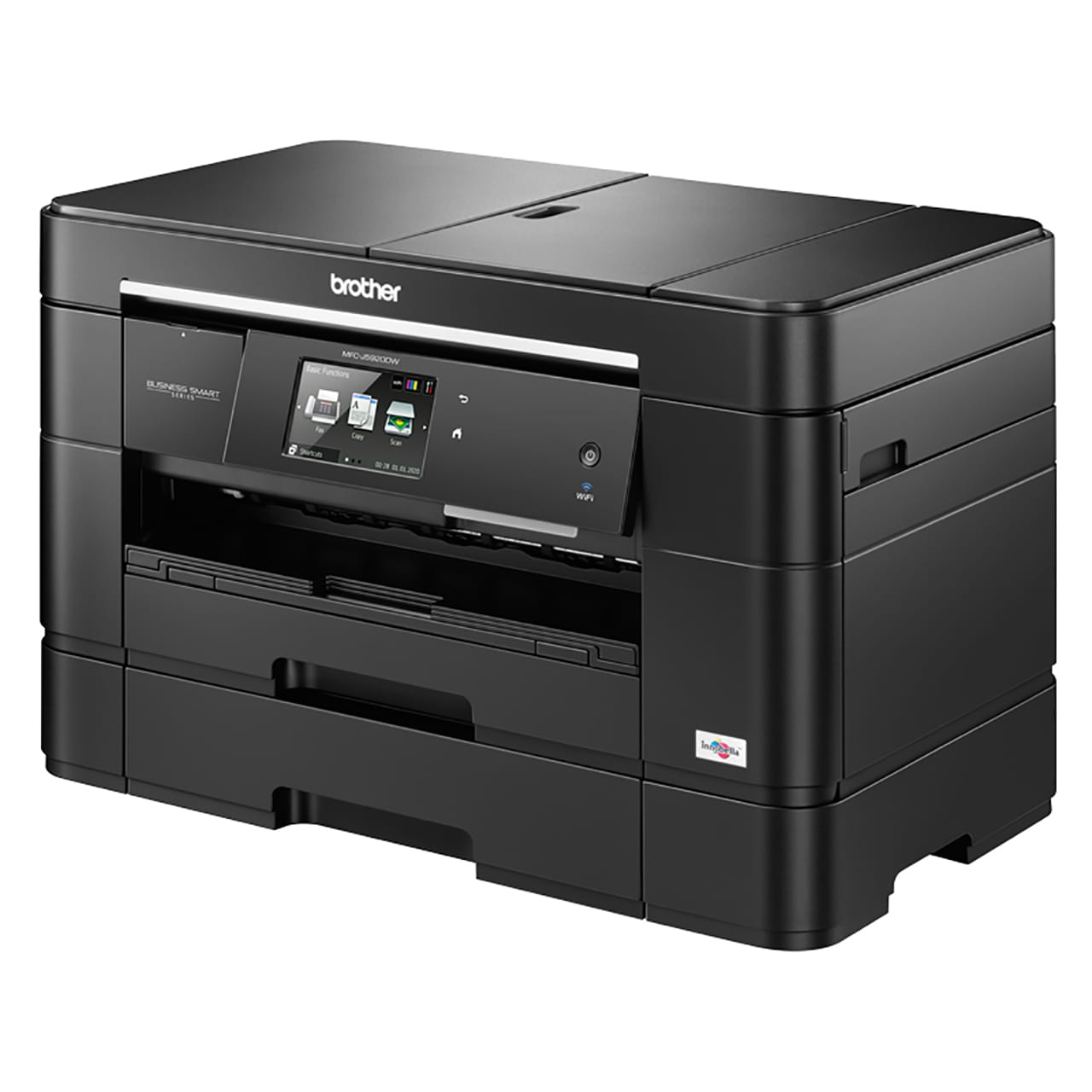

Brother’s Business Inkjet MFC-J5920DW is an A4 Multi-Function that provides a low total cost of ownership. Productivity enhancing features include A4 scan, copy and fax functions, 50-sheet ADF and A3 print capability via either of the two 250-sheet size adjustable paper trays or versatile rear multi-purpose tray. With high print speeds of up to 22/20ppm (laser comparable), low cost per page super high-yield Ink (up to 2,400 pages in black) and effective IT management tools for remote access and device updates, the MFC-J5920DW is the business.
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Inkjet
Product Dimensions (Width X Depth X Height)
490 mm × 345 mm × 308 mm
Weight
14.5 kg
Print Speed
22/20 ipm (Mono/Colour: based on ISO/IEC 24734)
Paper Size
Landscape: A4, LTR, EXE, Portrait: A3, LGR, LGL, A5, A6, Photo(102x152mm/4x6inch), Indexcard(127x203mm/5x8inch), Photo-L(89x127mm/3.5x5inch), Photo-2L(127x178mm/5x7inch), C5, Com-10, DL Envelope, Monarch Lower Tray Landscape: A4, LTR Lower Tray Portrait: A3, LGR, LGL
Maximum Paper Capacity
Upper Tray: Up to 250 Sheets, Lower Tray: Up to 250 Sheets
Warranty
1 year Return to Base Warranty
Resolution
Up to 1200x6000 dpi
2-Sided (Duplex) - Printing Paper Type
Plain
2-Sided (Duplex) - Paper Size
PC Print: A4, LTR, EXE, A5, Copy: A4, LTR, A5
Paper handling
Tray #1 - Paper Type
Upper Tray: Plain, Inkjet, Glossy(cast/resin - Not A3, LGR, LGL), Lower Tray: Plain
Tray #1 - Maximum Paper Capacity
Upper Tray: Up to 250 Sheets, Lower Tray: Up to 250 Sheets
Multi-purpose Tray - Paper Type
Plain, Inkjet, Glossy(cast/resin)
Multi-purpose Tray - Maximum Paper Capacity
Up to 80 Sheets (A4) or 5 Sheets (A3) from the rear
Manual Feed Slot - Maximum Paper Capacity
1 Sheet from the rear
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets
Paper Output
Up to 50 sheets
Copy
Colour / Monochrome
Yes
Yes
Enlarge/ Reduce
25 - 400 percent in 1 percent increments
Resolution
Mono: (Print) Max. 1200x2400 dpi, (Scan) Max. 1200x1200 dpi, Colour: (Print) Max. 1200x2400 dpi, (Scan) Max. 1200x1200 dpi
Scan
Resolution - Interpolated
up to 19200x19200 dpi with Scanner Utility
Resolution - Scanner Glass
Up to 1200 x 2400 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 1200 x 1200 dpi
Fax
Compatibility
Super G3
Modem Speed
33,600bps (Fax)
Out of Paper Reception
Up to 200 pages (ITU-T Test Chart)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, IEEE 802.11b/g/n (Wireless)
Network
Wireless Network Security
SSID (32 chr), WEP 64/128bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) **NO LEAP**
Display & Memory
Display Type
9.3cm Panel TFT TouchScreen Colour LCD
Memory Capacity
256MB
Operation
Power Consumption - Ready
Approx. 5.5W
Power Consumption - Sleep
Approx. 1.8W
Power Consumption - Power Off
Approx 0.04W
Noise Level
Sound Pressure Level: (Printing) Less than 50 dBA
Supported Operating Systems
Supported OS
Windows 10 (32&64bit), Windows 8/8.1 (32&64bit), Windows 7 (32&64bit), Vista (32&64bit), XP Home Edition, XP Professional (32&64bit), Windows Server 2012 (32&64bit), Windows Server 2008 (32&64bit), Windows Server 2008 R2, Windows Server 2003 (32&64bit) (All server Operating Systems are print only)
Mac OS X 10.7.5 or greater
Linux Cups/LPR
Software and Apps
Mobile Apps
21/12/2023
iPrint&Scan, Support Center, Print Service Plugin
