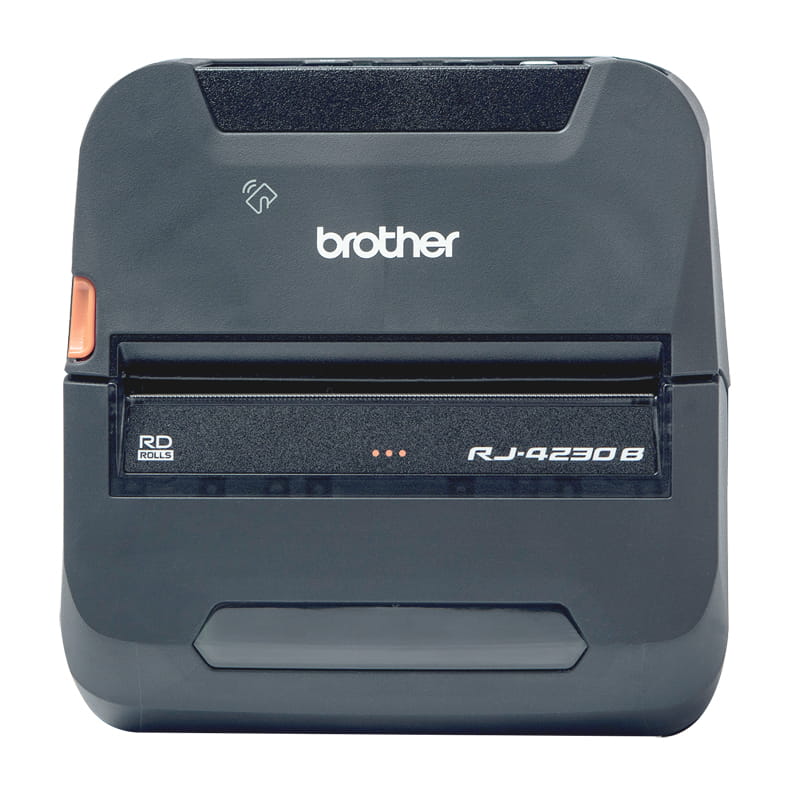

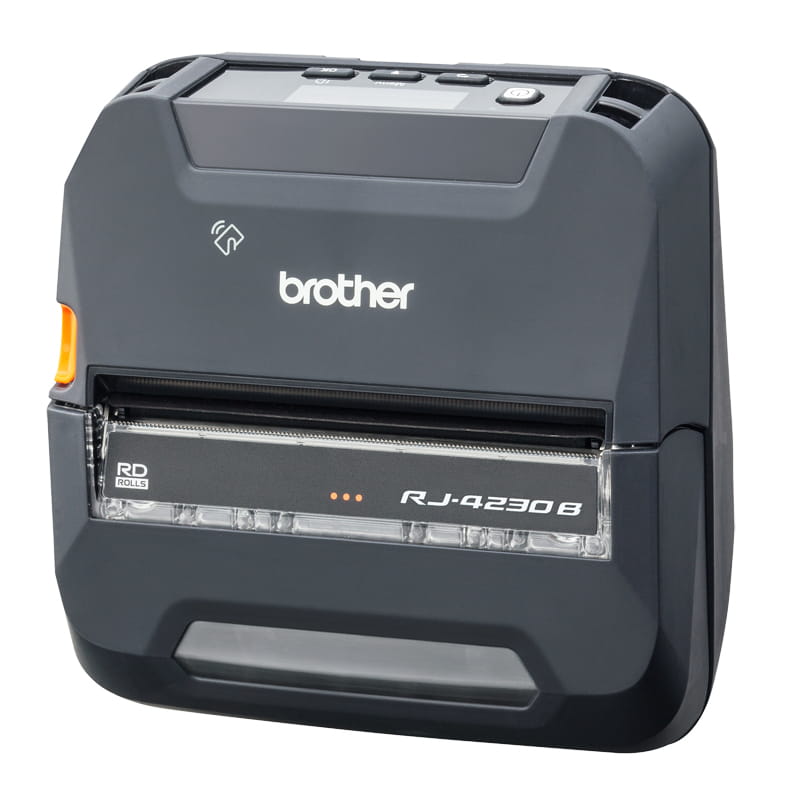

102mm Mobile Printer
- Max: 5ips or 127 mm/sec

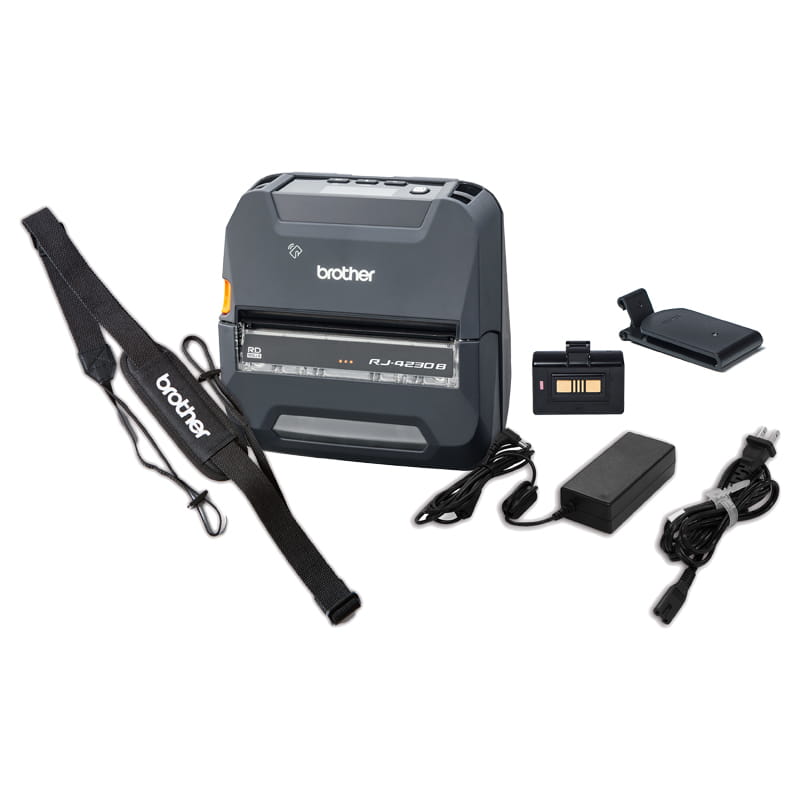

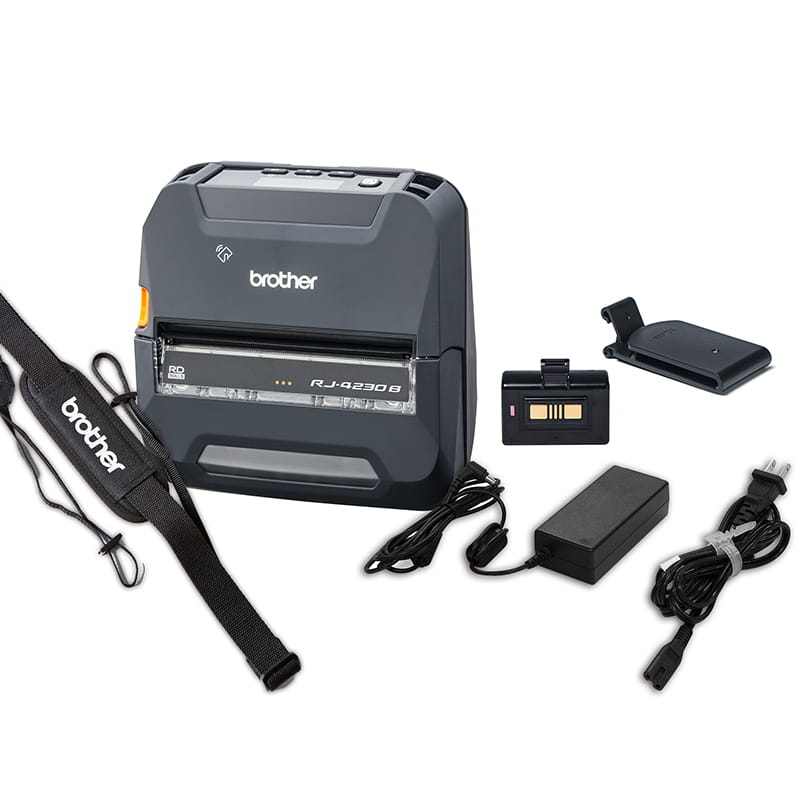

Bundle pack includes the printer, rechargeable Li-ion Battery, AC adapter, Shoulder Strap, Belt clip and receipt paper.
Information
Overview
Reliable connectivity
Provides multiple connectivity options for use in different environments, with USB, Bluetooth (low energy) with MFi capabilities and passive NFC
Robust design
The RJ-4230B has an IP54 rating and drop tested up to 2.1 metres, providing extensive durability
Easy to deploy
Using the new Mobile Deploy App, update your printer remotely from any location
Easy to use

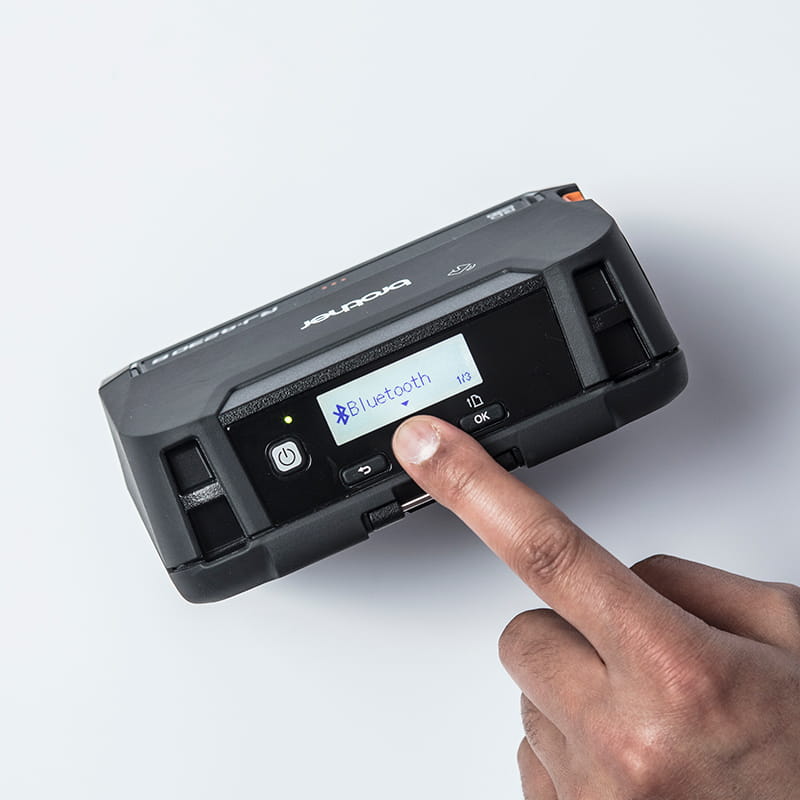

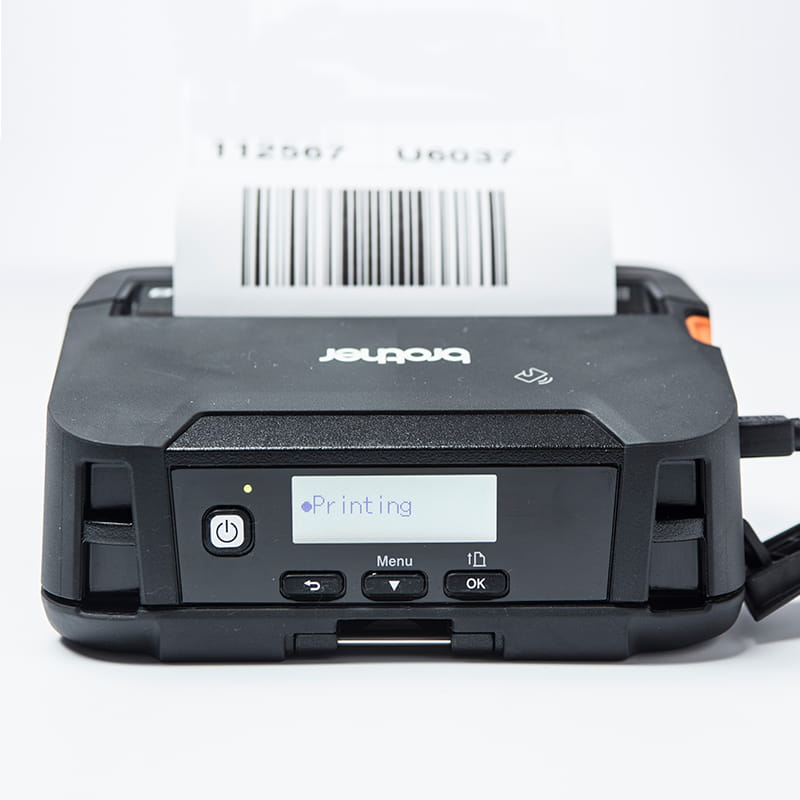

The LCD screen with menu options makes it easy to program as well as a backlight that ensures you can see it in dark conditions
Seamless integration
Printer drivers are available for Windows OS and software development kits can be downloaded to support Android and iOS operating systems
Customisation

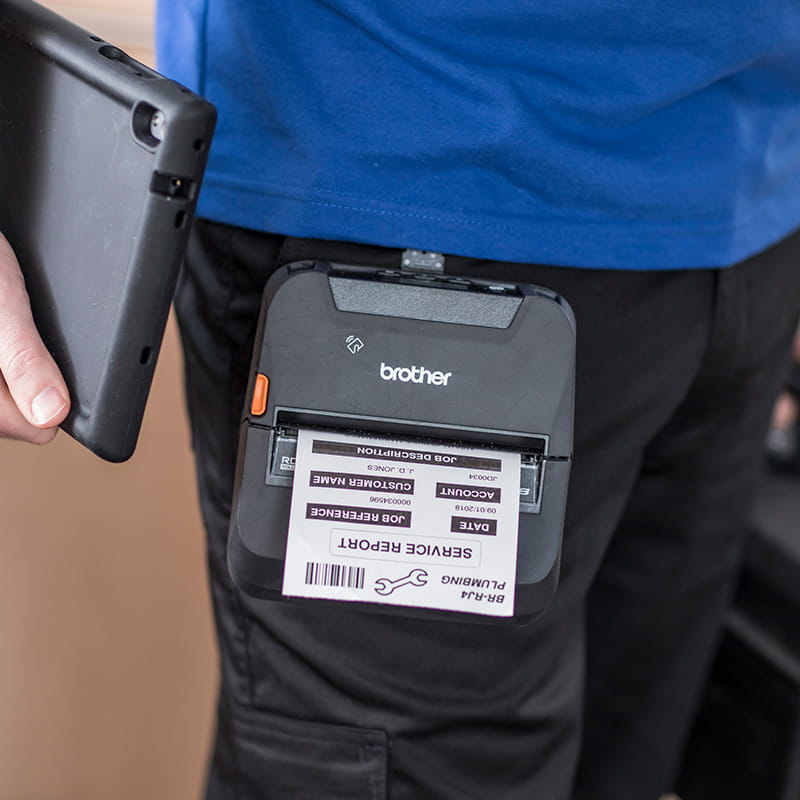

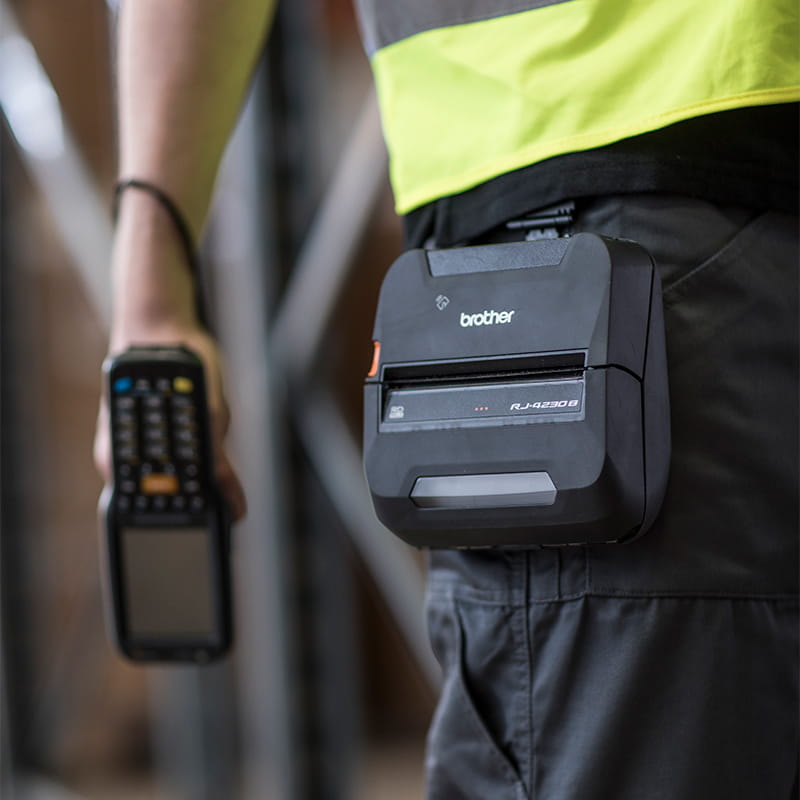

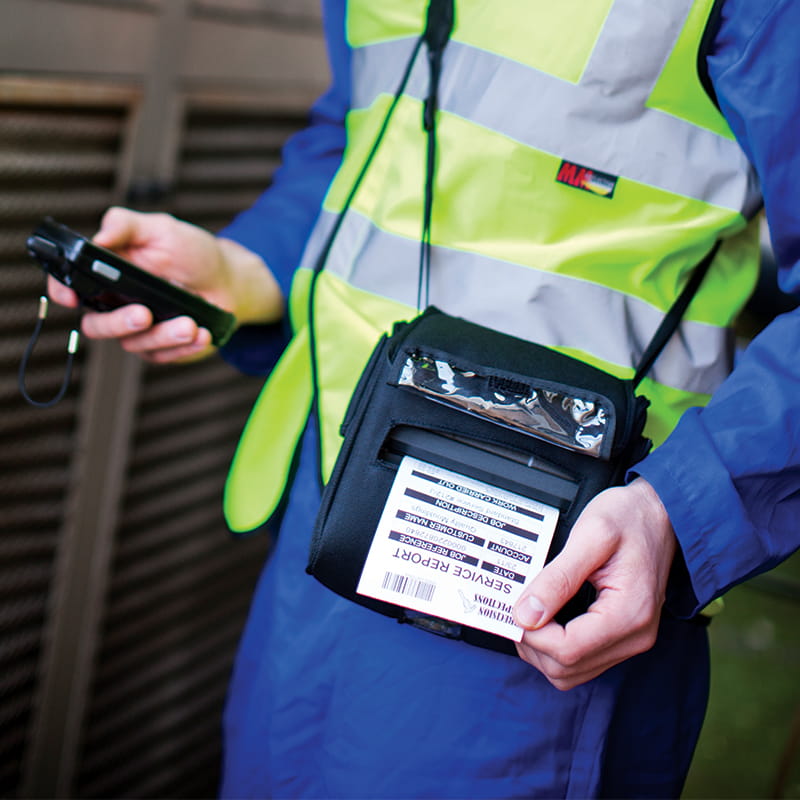

A wide range of in-vehicle and on-body accessories are available to meet your specific requirement for a customised solution
Industries we serve
Designed to meet the needs of specialist business sectors including warehouse, logstics, ticketing, retail and field sales and service
Brother Font Manager
Brother Font Manager can be used to convert and download fonts in characters or languages not supported by built-in fonts
These can then be stored on a RJ printer and recalled later when printing receipts and labels. For more information, visit brother.com.au/service-and-support/labelling-apps.html
Specifications
Basic Specs
Functions
Printer Type
Portable Printer
Product Dimensions (Width X Depth X Height)
153 mm × 159 mm × 68 mm
Weight
850 g
Print Speed
Max: 5ips or 127 mm/sec (under Brother standard environment)
Paper Size

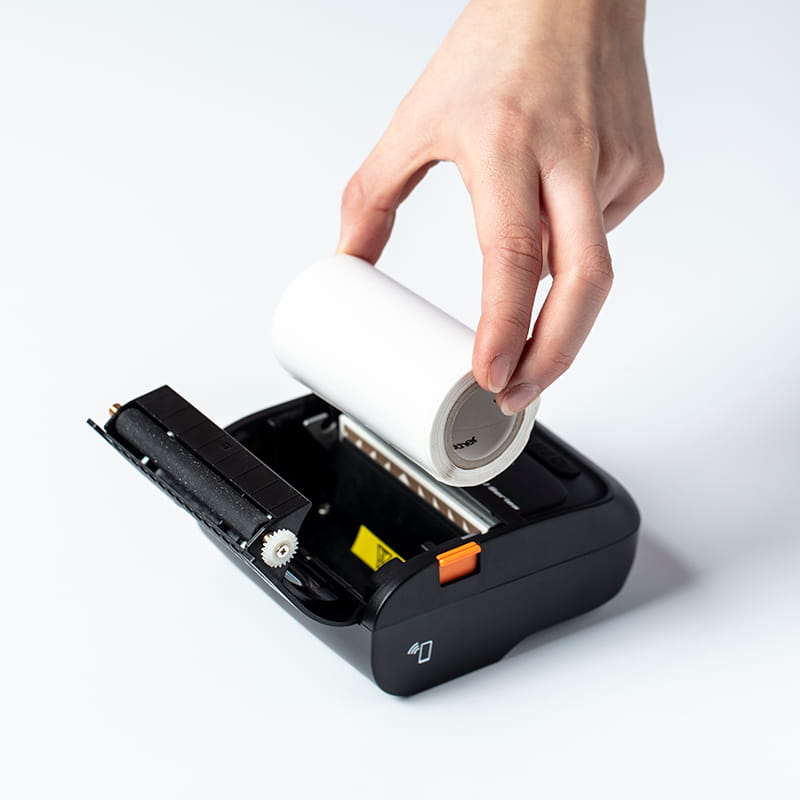

Roll size: Inner diameter 12.7mm / Outer diameter 58mm
Sealing
IP54
Maximum Paper Capacity
Non-coatd Thermal paper, Coated thermal paper, Direct Thermal die cut labels
Warranty
1 year Return to Base Warranty
What's in The Box
Printer, Belt clip, Adjuster Guide Lockers, Quick Set up Guide, Shoulder strap, AC Adapter, Rechargeable Li-ion smart battery
Resolution
203 dpi
Printing Width
Up to 114 mm
Barcode
Linear: Code39, Code93, Code128, EAN-8, EAN-13, UPC-A, UPC-E, UPC and EAN extensionv, Intlv 2 of 5, CODABAR, Postnet, GS1 Databar（RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection, GS1 Databar (RSS Limited), GS1 Databar（RSS Expanded、RSS Expanded Stacked), GS1-128(UCC/EAN 128), GS1 Databar（RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection), MSI/Plessey, Inteligent Mail Barcode
2D: QR Code(Model 1, Model 2, Micro QR), MaxiCode, PDF417(Standard, Truncate), MicroPDF417, DataMatrix(Square, Rectangular), AztecCode
Connectivity
Connectivity
USB version 2.0, Bluetooth Connection
Display & Memory
Display Type
Mono LCD
Memory Capacity
Ram: 256 MB, Flash: 64 MB
Operation
Temperature Operating
-20°C to 55°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation(CPCL page print mode / CPCL line print mode)
Supported Operating Systems
Supported OS
Windows Vista / 7 / 7 / 8.1 /10, iOS and Android
Software and Apps
Included Software
12/21/2023
Ptouch Editor, Driver Deployment Wizard, P-touch Transfer Express, P-touch Template Tools, P-touch Update Software, Printer Setting Tool, Windows BarTender printer Drivers by Seagull
Mobile Apps
12/21/2023
Mobile Transfer Express, Support Center, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
Windows 7 /8 /8.1/ 10/ 11 Android 4.0.3 or later IOS 7.0 or later
Software Development Kit (SDK) Last Updated
12/21/2023
