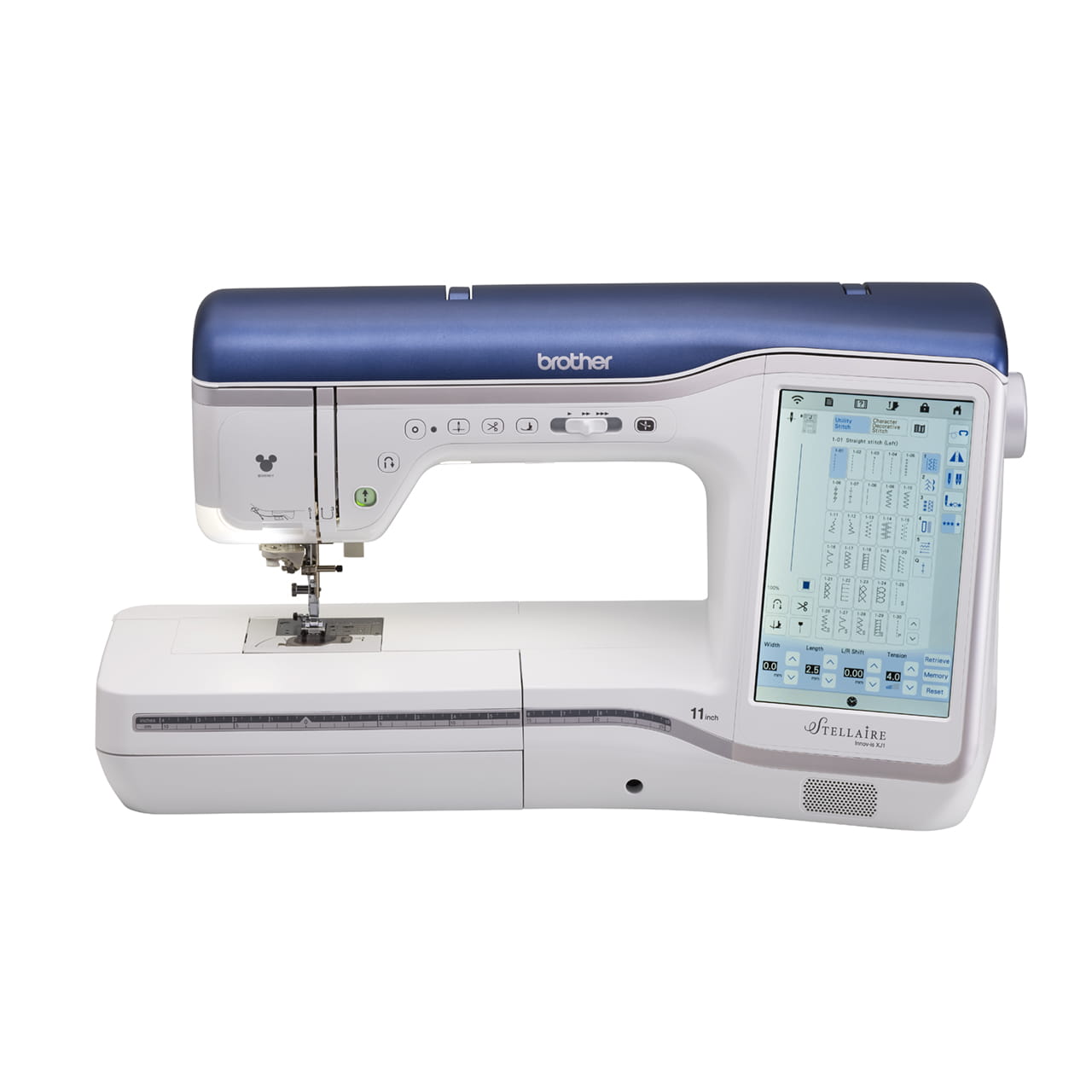

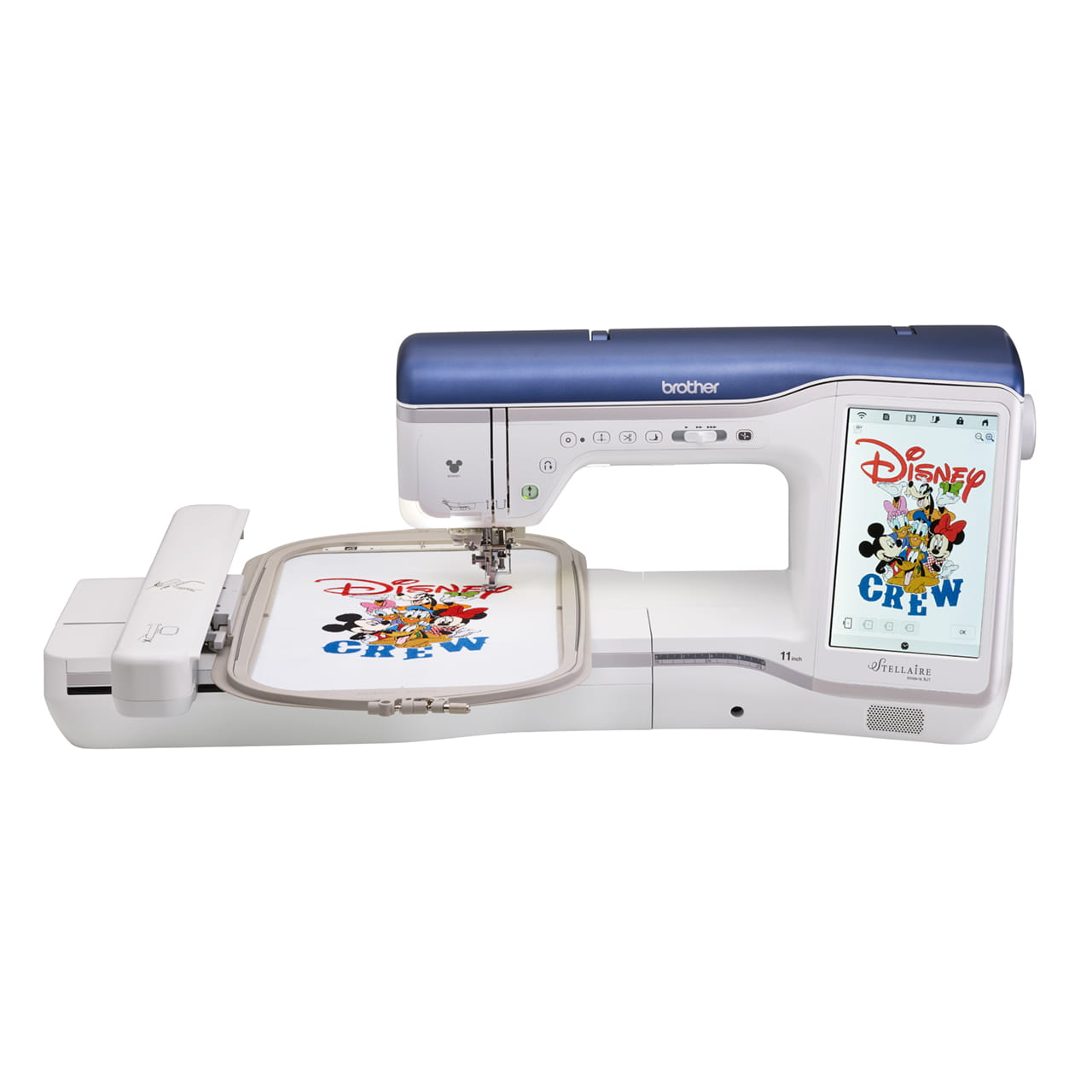

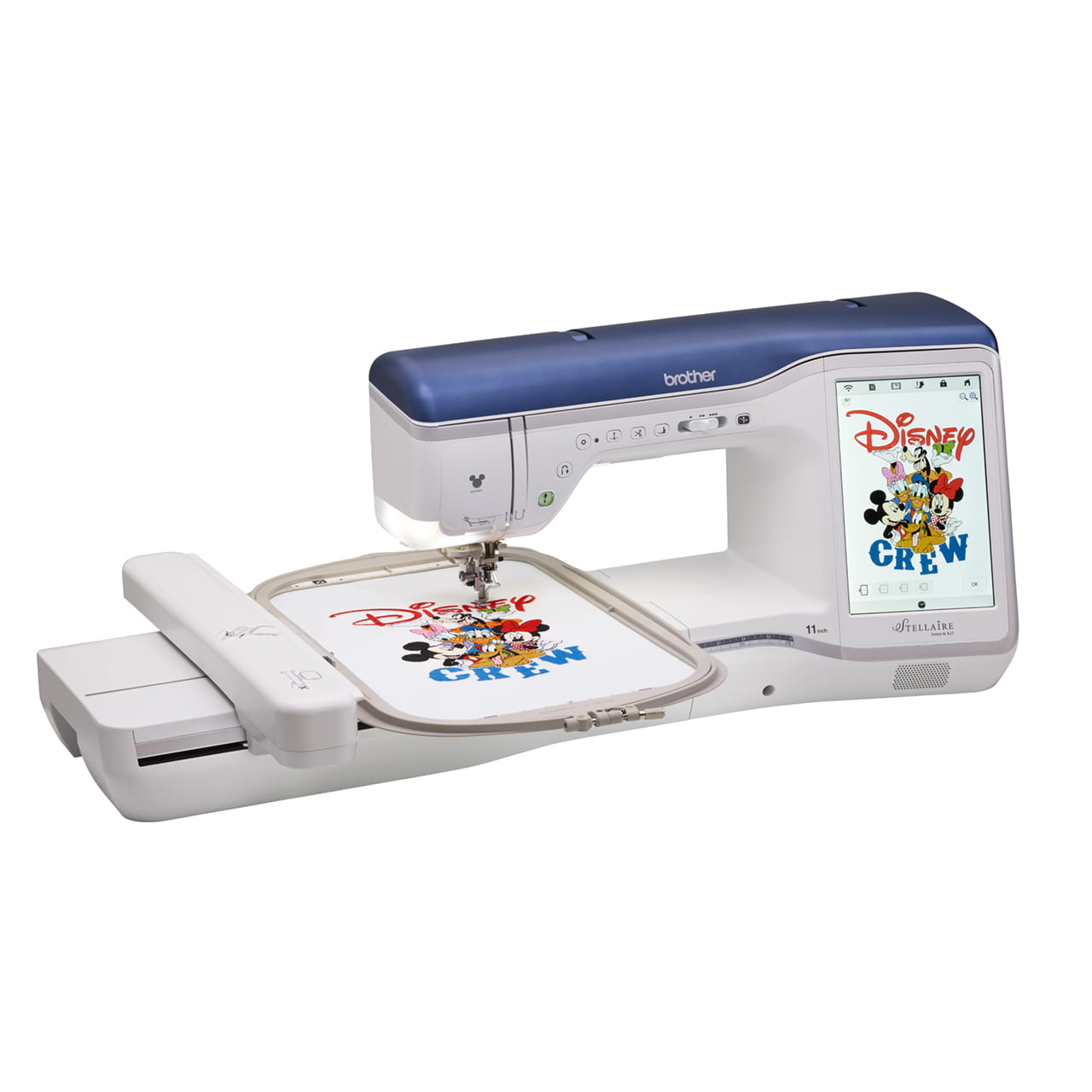

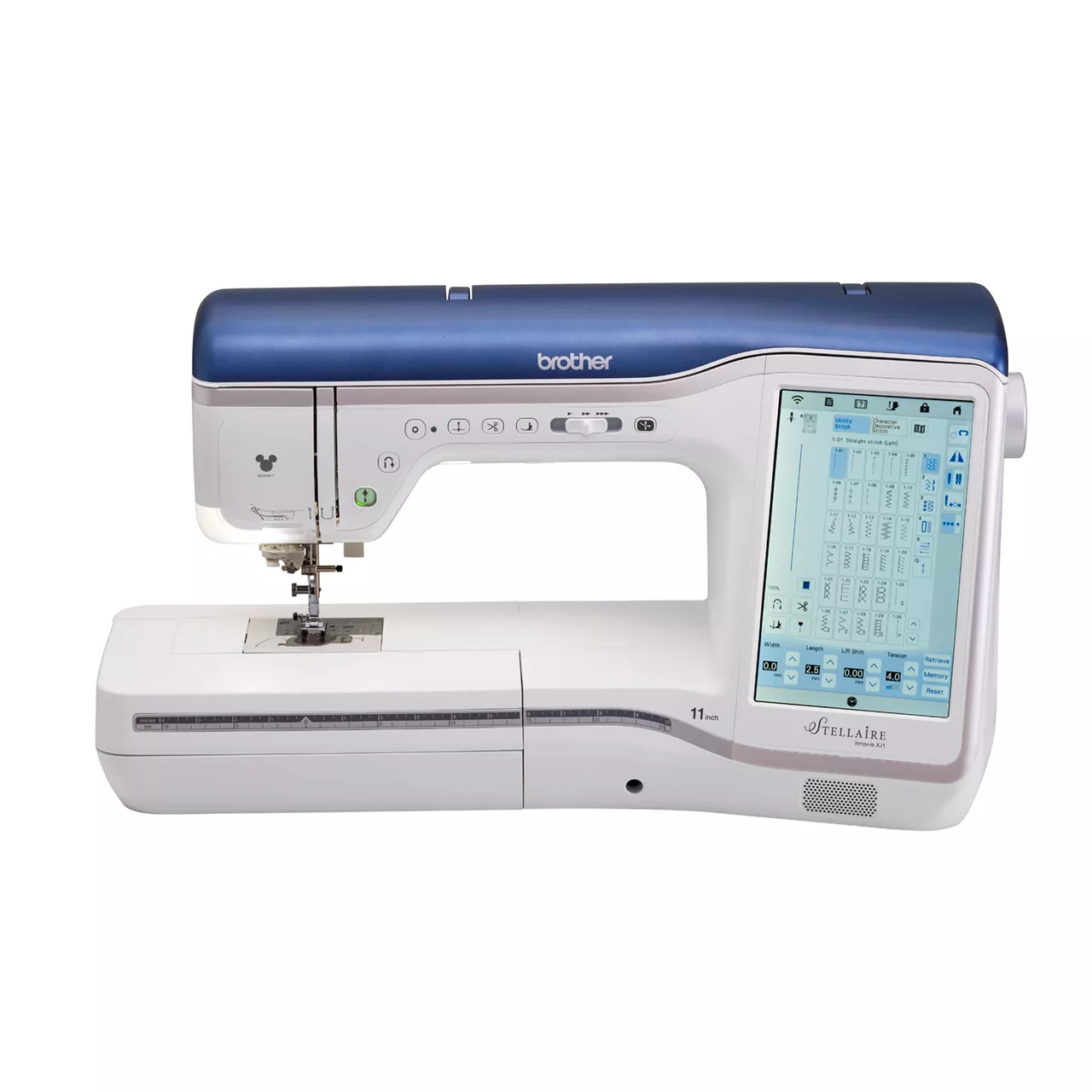

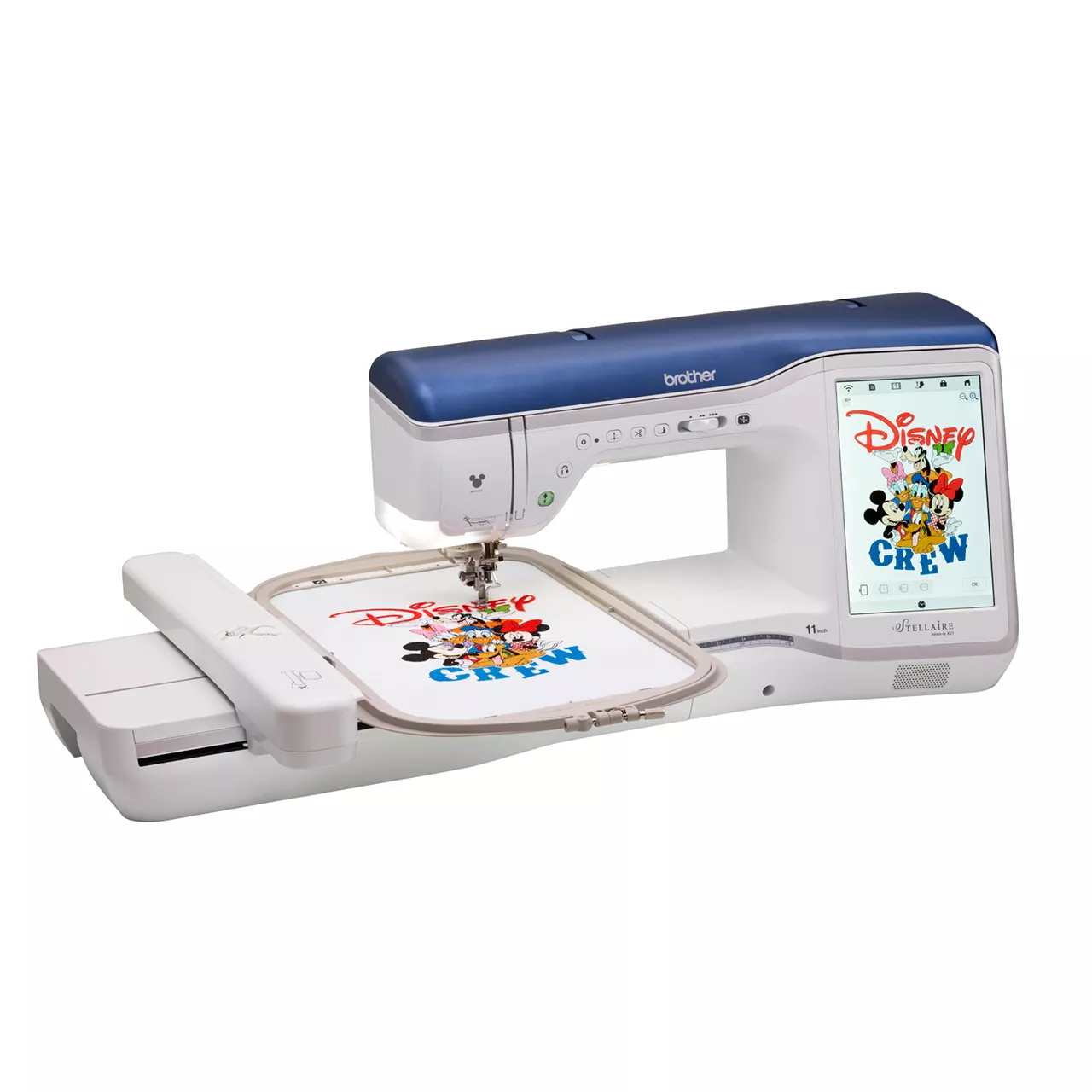

Stellaire XJ1 Sewing, Quilting and Embroidery Machine with My Design Snap Mobile App
- 9.5 x 14inch embroidery area
- Preview hooped fabric for precise positioning
- Create embroidery files from handwriting or a drawing, without a computer
- 727 built-in embroidery designs including 101 Disney designs
- My Design Centre with Fill Stitches
- 727 Sewing Stitches
Information
Overview

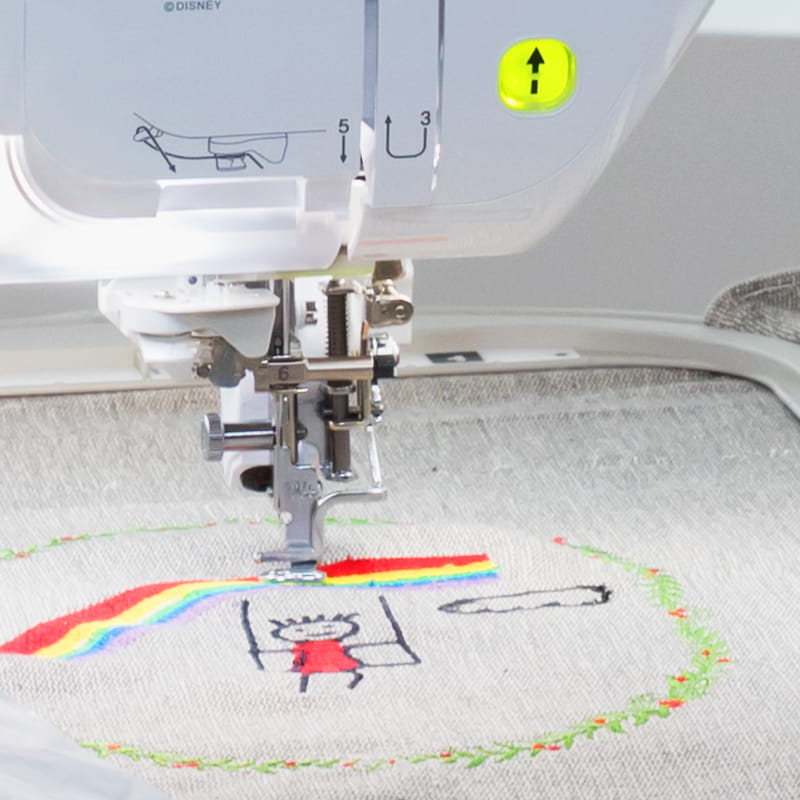

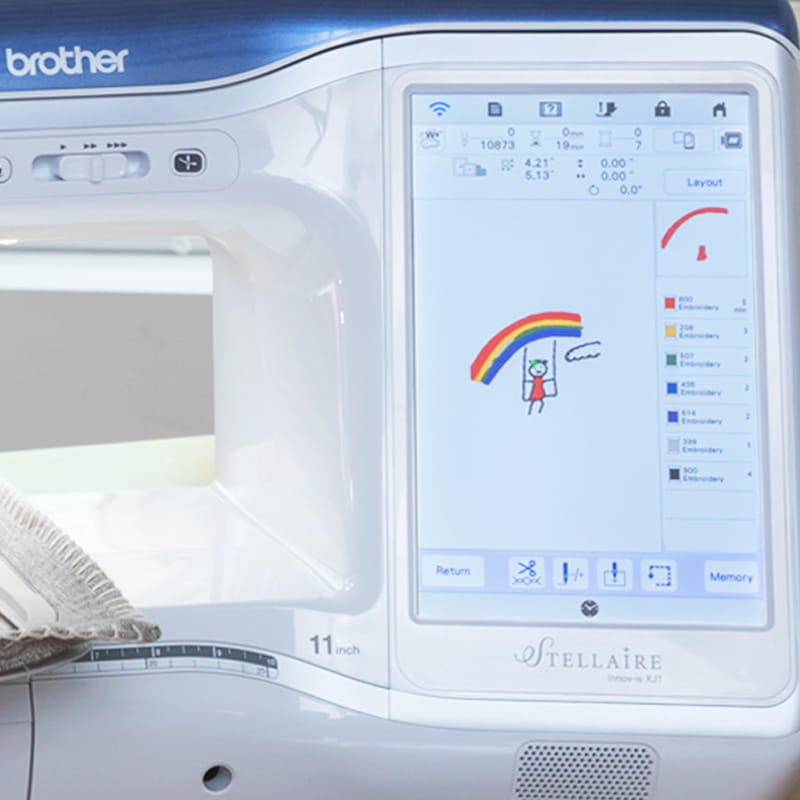

Digitise your own designs
Digitise without a computer. Use the built-in software to create embroidery data. Import a JPEG using the USB port, or use the free My Design Mobile App

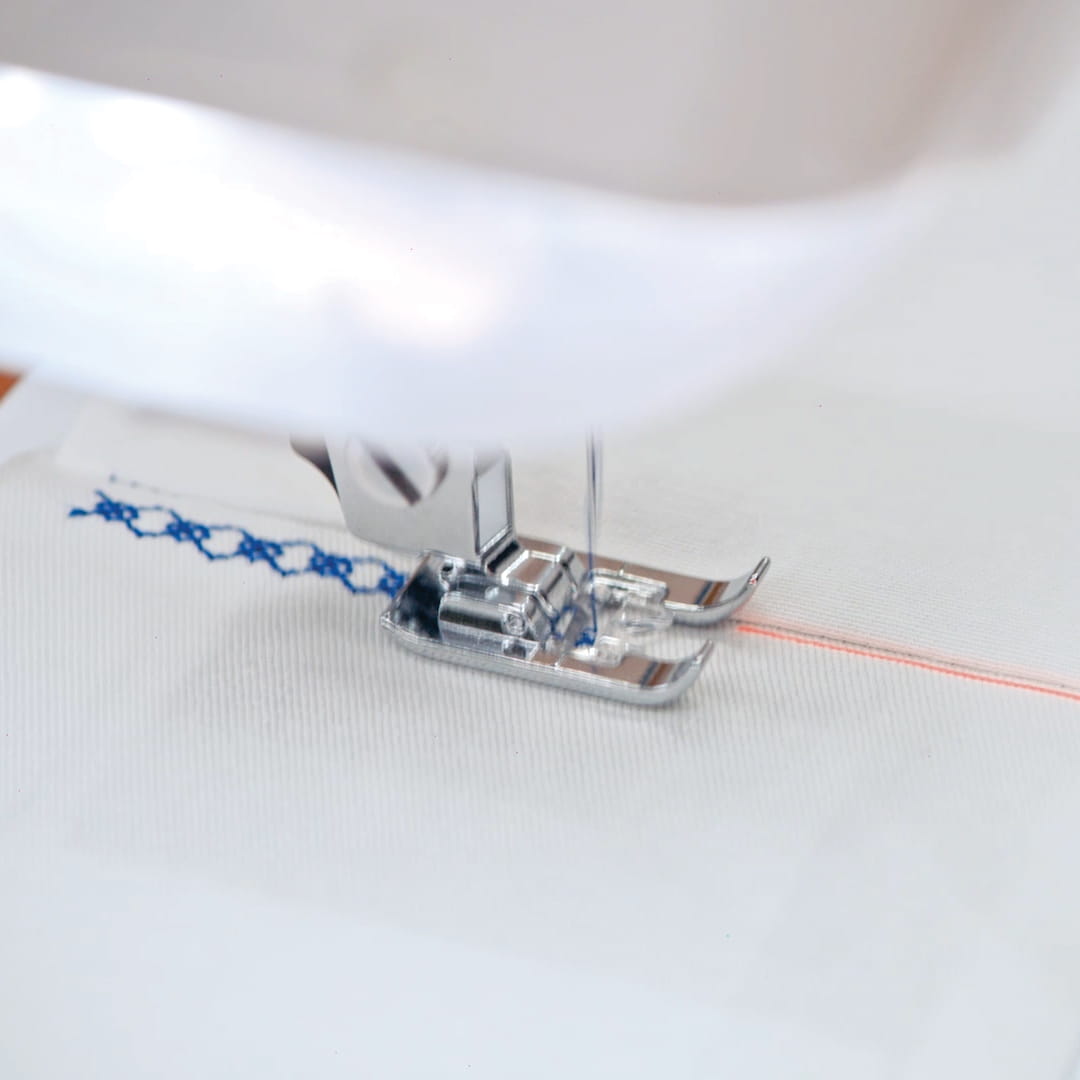

Laser guide
The bright built-in laser guide makes sewing straight easy. Create parallel rows of stitching by setting the laser guide and guiding the fabric along the laser guideline

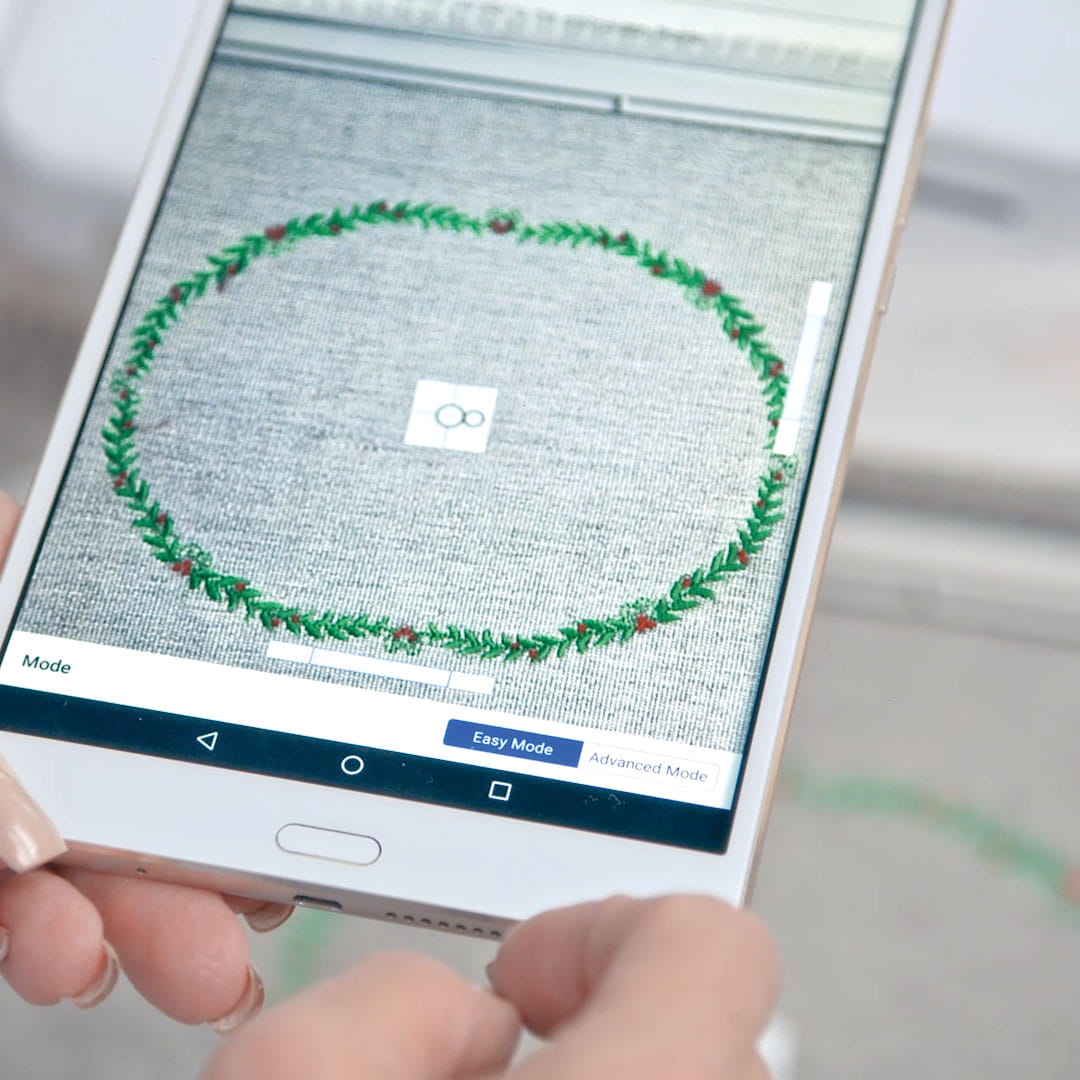

Easy app for positioning
Use the free My Design Snap app on your mobile device to send an image of the embroidery area to your machine so you can accurately position your embroidery designs

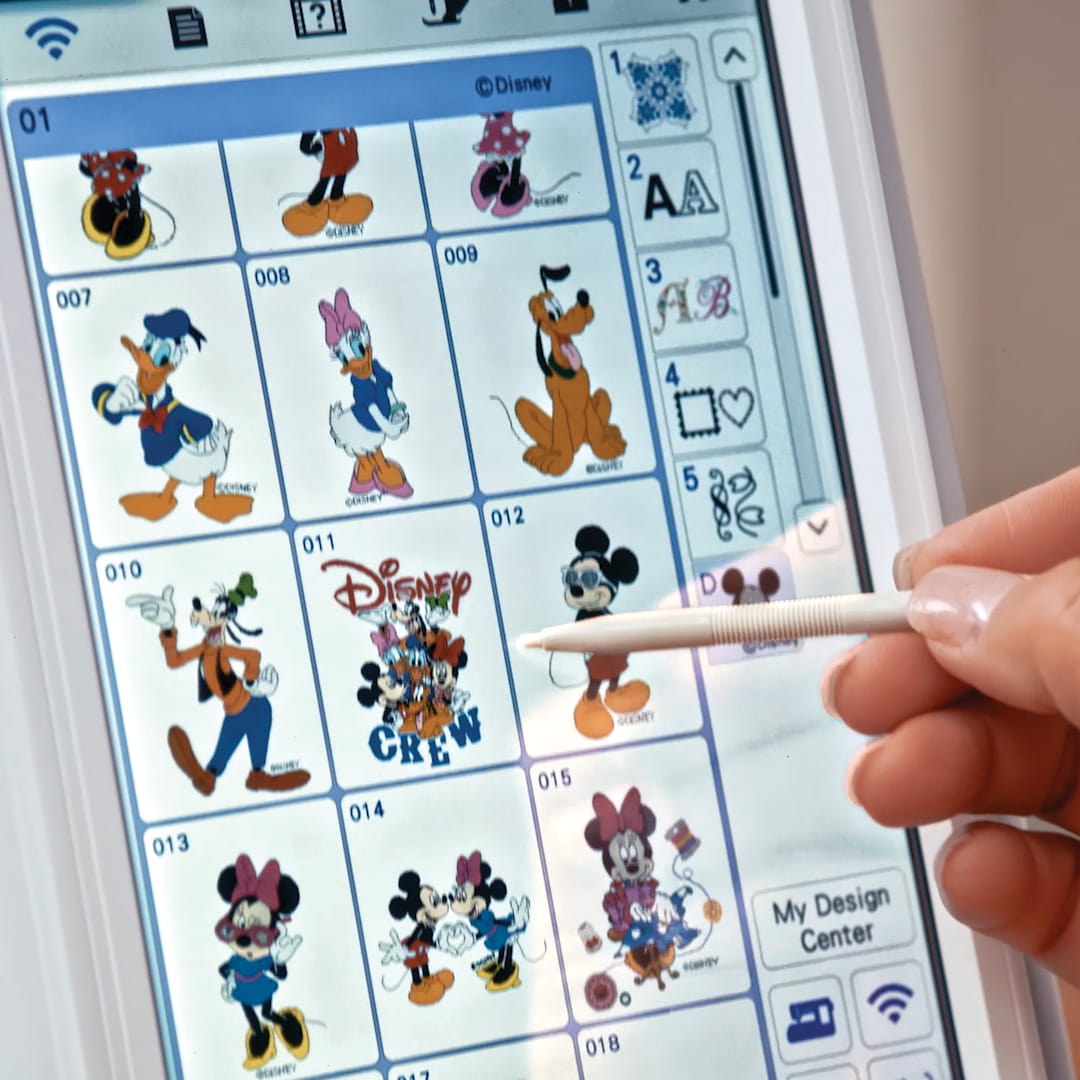

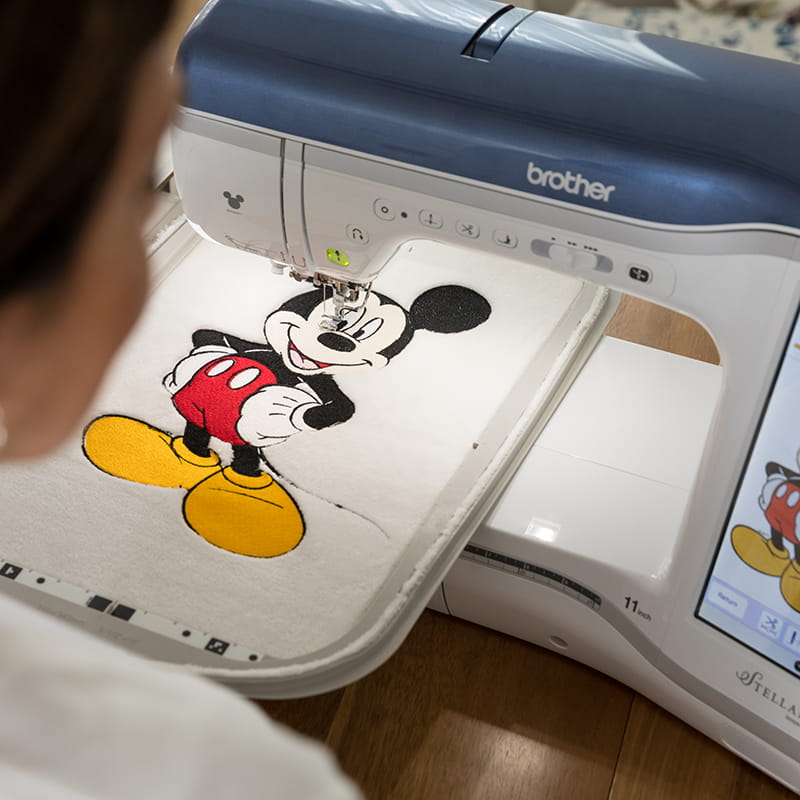

101 Disney Designs
The Stellaire has the magic of Disney embroidery designs built right in, featuring Mickey, Minnie, Goofy and Pluto. Plus, your favourite characters from Frozen, Finding Nemo and Cars!

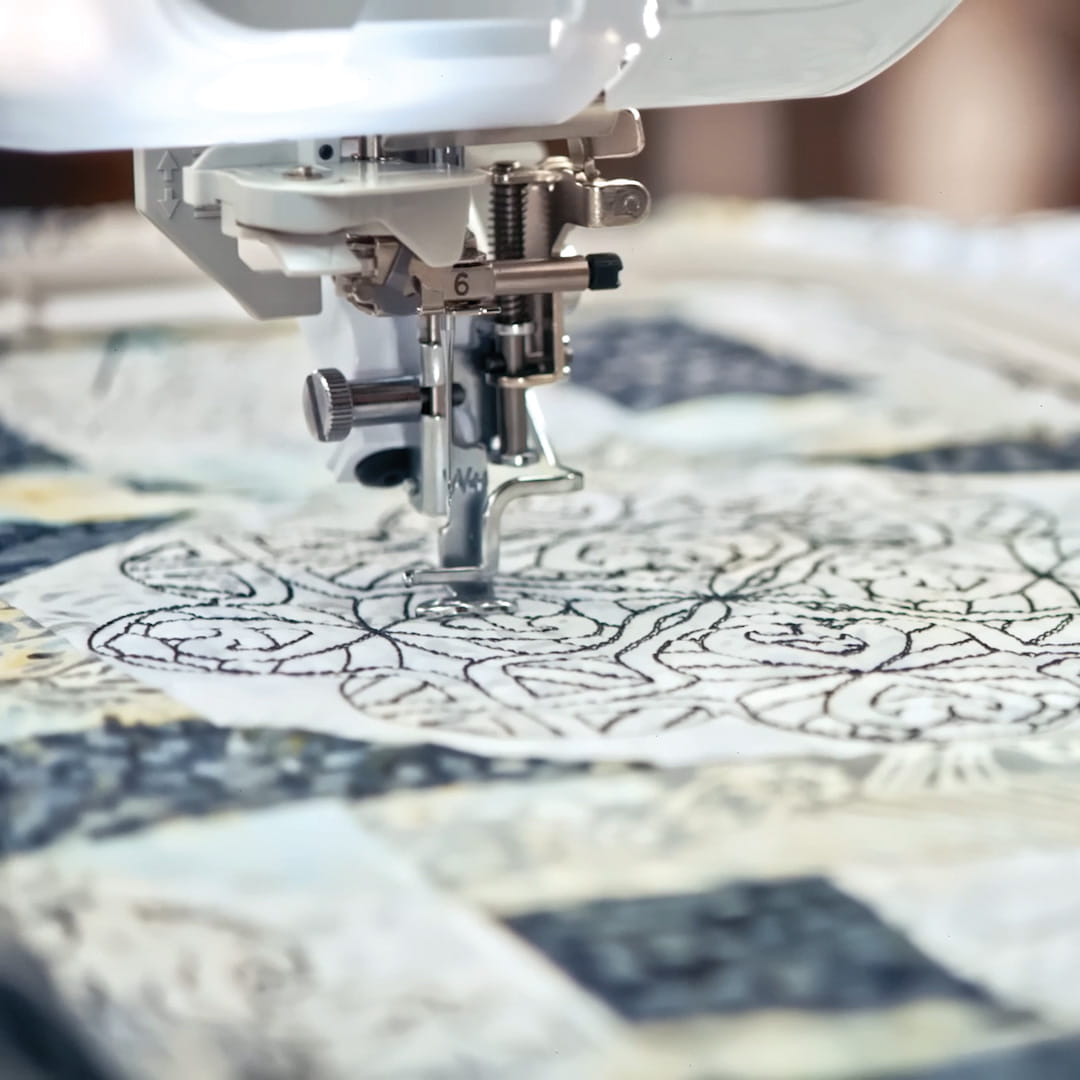

Expansive Workspace
Room for larger sewing or embroidery projects. 56 square inch workspace for quilting and 360mm x 240mm embroidery area. Combine designs and stitch them in just one hooping

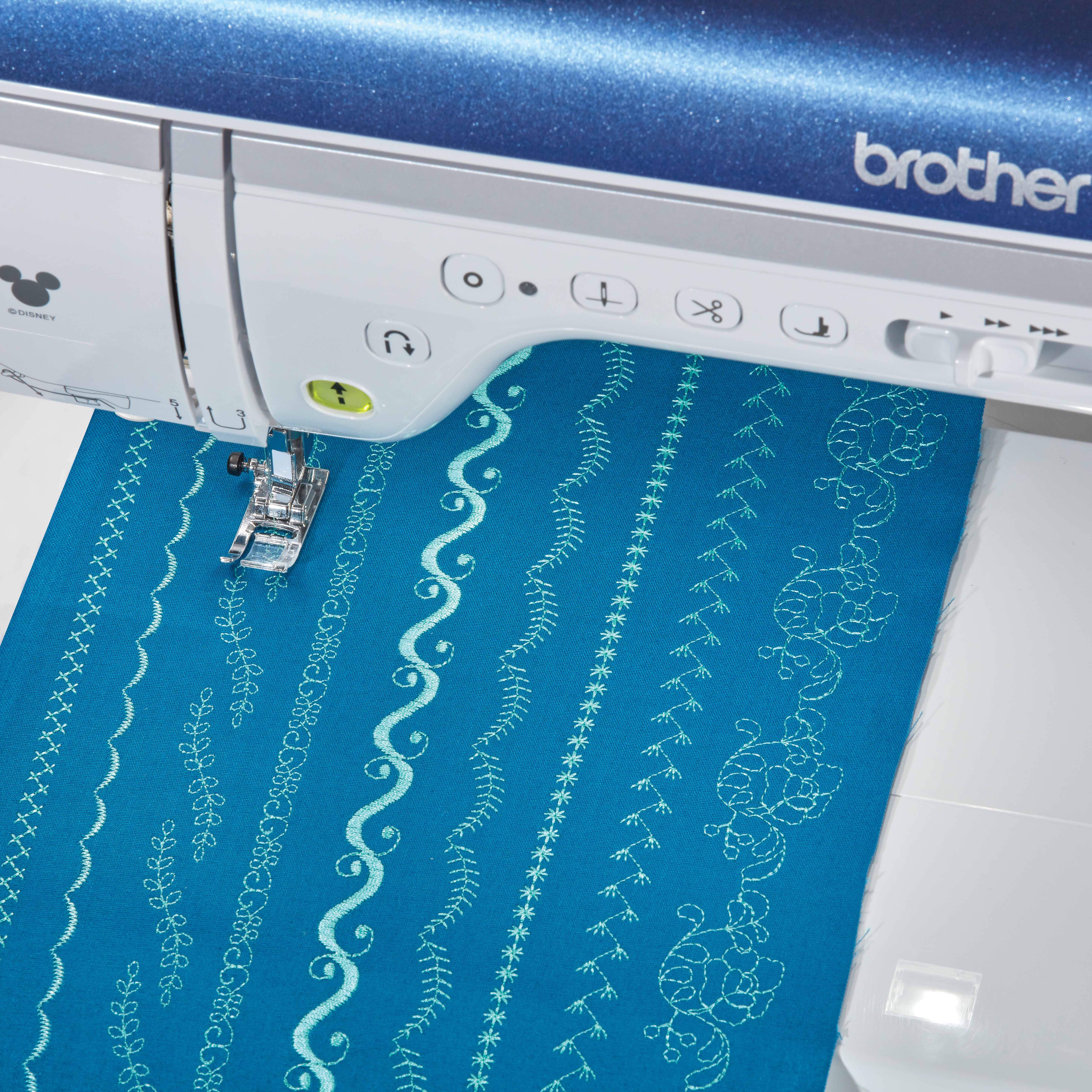

727 Sewing Stitches
Enjoy an expansive library of built-in decorative stitches and 4 sewing fonts. Combine stitches to create one-of-a-kind stitches and save for future use. Includes mirror image, length, width, and elongation tools
What’s included?
11 Sewing Presser Feet Including: Spring Action Zigzag Foot, Zipper Foot, Buttonhole Foot, Button Fitting Foot, Overcasting Foot, Monogramming Foot, Blind Stitch Foot, Dual Feed Foot, Straight Stitch Foot, Free Motion Open Toe Quilting Foot, 1/4 Inch Quilting Foot With Guide, Detachable Embroidery Unit, Embroidery Foot With Led Pointer, 2 Embroidery Frame With Decal Sets: (360mm × 240mm, 180mm × 130mm), 2 Embroidery Frame Sets: (100m x 100mm, 240mm x 240mm)
Plus
Touch Pen (Stylus), Foot Controller, Knee Lifter, Dust Cover, Operation Manual, Quick Reference Guide, Needle Set: 75/11 (2), 90/14 (2), Ball Point Needle 90/14 (2) , Twin Needle, Embroidery Ball Point Needle Set: 75/11 (2), Alternate Bobbin Case, Embroidery Needle Plate Cover, Embroidery Positioning Sticker Sheets (4), Lens Calibration Sheet, Grid Sheet Set, Stabilizer Material, Straight Stitch Needle Plate, Cord Guide Bobbin Cover (With Single Hole), Bobbin Cover (With Mark), Bobbin (10), Bobbin Clip (10), Eyelet Punch, Vertical Spool Pin, Thread Spool Insert (Mini King Thread Spool), Small Spool Cap , Medium Spool Cap (2), Large Spool Cap, Spool Felt , Spool Net, Small Screwdriver , Large Screwdriver, Disc-Shaped Screwdriver, Cleaning Brush, Seam Ripper, Scissors, Chalk Pencil, Accessory Bag
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Fully Automatic
Thread Cutter
Auto
Sewing Light
LED
Foot controller
Multi-Function FC (Option)
Start Stop Button
YES
Thread Tension Control
Auto
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Zigzag “J” / Monogramming “N” / Overcasting “G” / Zipper “I” / Buttonhole “A” / Blind Stitch “R” / Button fitting “M” / Dual feed / Straight stitch / Free motion quilting “C” / Free motion echo quilting “E” / Free motion open toe guilt “O” / Embroidery “W+” with LED pointer / ¼ quilting with guide / Embroidery Frames x 4 (360 x 240mm, 240 x 240mm, 180 x 130mm, 100 x 100mm) / Adapter / Screw (small) / Needle (Set / Twin needle) / Bobbin x 10 (One is on machine.) / Seam ripper / Scissors / Cleaning brush / Eyelet punch / Screwdriver (Small / Large / Disc-shaped) / Multi-purpose screwdriver / Spool cap (Small / medium x 2 (One is on machine.) / large) / Thread spool insert (mini king thread spool) / Kind Spool Thread Stand (2 pcs) / Vertical spool pin / Bobbin clip x 10 / Spool felt (on machine) / Spool net x 2 / Embroidery needle plate cover / Touch pen (stylus) / Knee lifter / Alternate bobbin case / Straight stitch needle plate / Cord guide bobbin cover (with single hole) / Bobbin cover (with mark / on machine) / Embroidery bobbin thread (#60, white) / Embroidery positioning sticker sheets x 4 / Mobile camera calibration sheet for App / Stabilizer material / Grid sheet set for MCS / Chalk pencil / Accessory Box / Foot controller / Operation manual / Quick Reference Guide / Standard bobbin case (green marking on the screw) (on machine) / Lens calibration sheet / Spool thread stand
Sewing Features Spec
Stitch No
727
Sewing Speed
1,050 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7mm
Number of Buttonholes
15 one-step, 1 four-step
Drop Feed
Yes
Knee Lifter
Yes
Feed Dog
7, longer ver.
Embroidery Features Spec
Embroidery Speed (Max)
1,050 spm
Embroidery Area Max
240(x) x 360(Y) mm
Built In Embroidery Patterns
727 designs including 101 Disney designs
Build In Embroidery Font
24（22 Alphabet, 2 Cyrillic)
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
