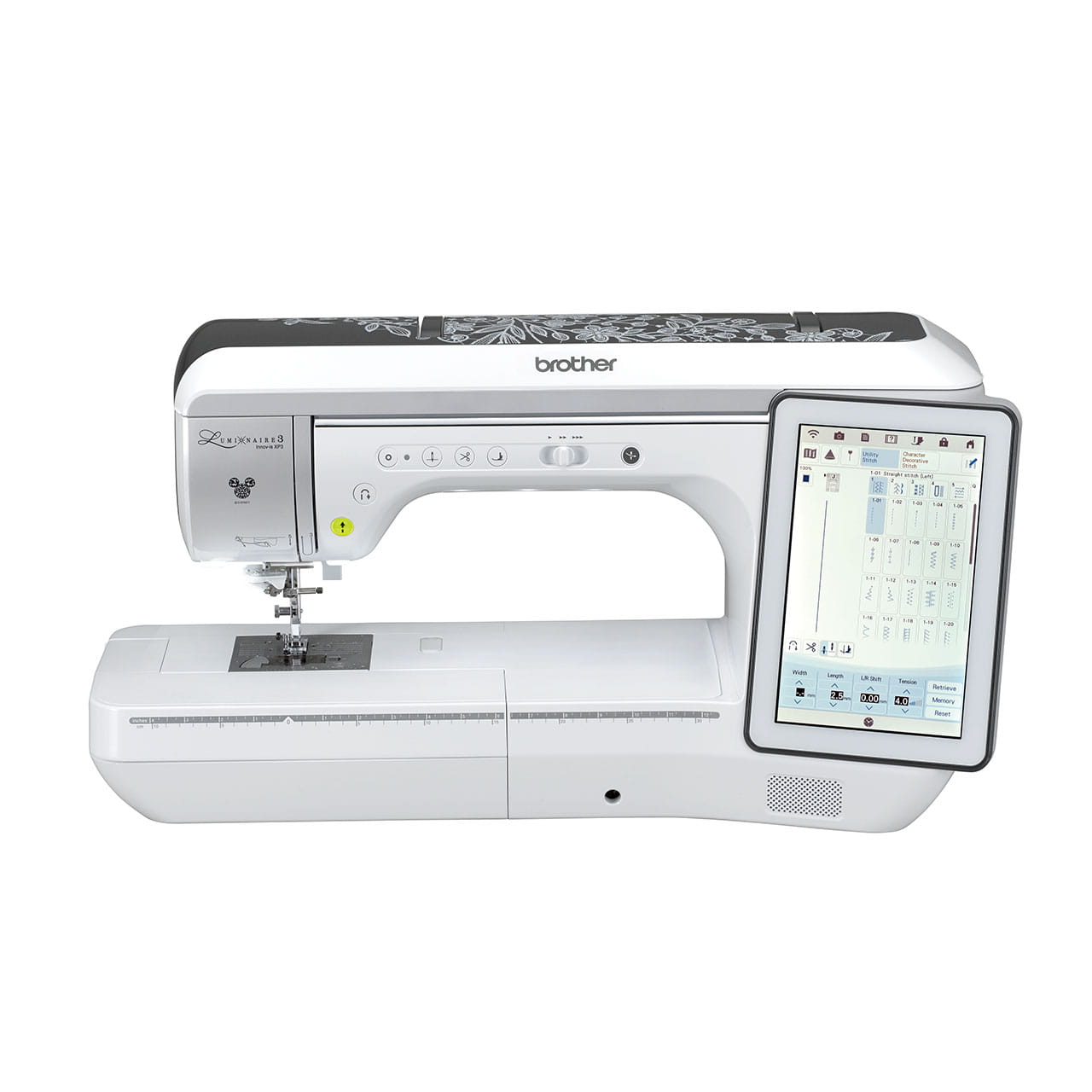

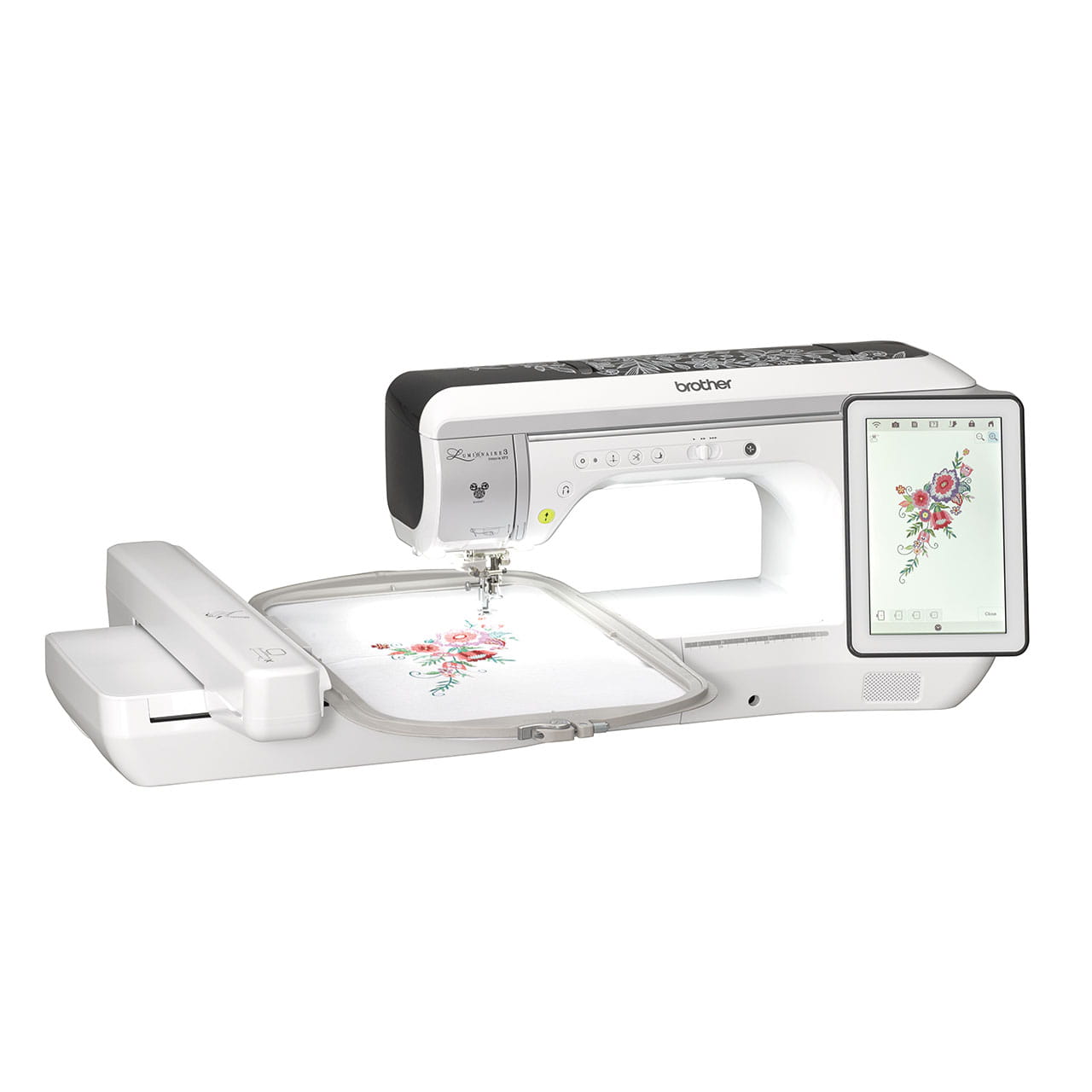

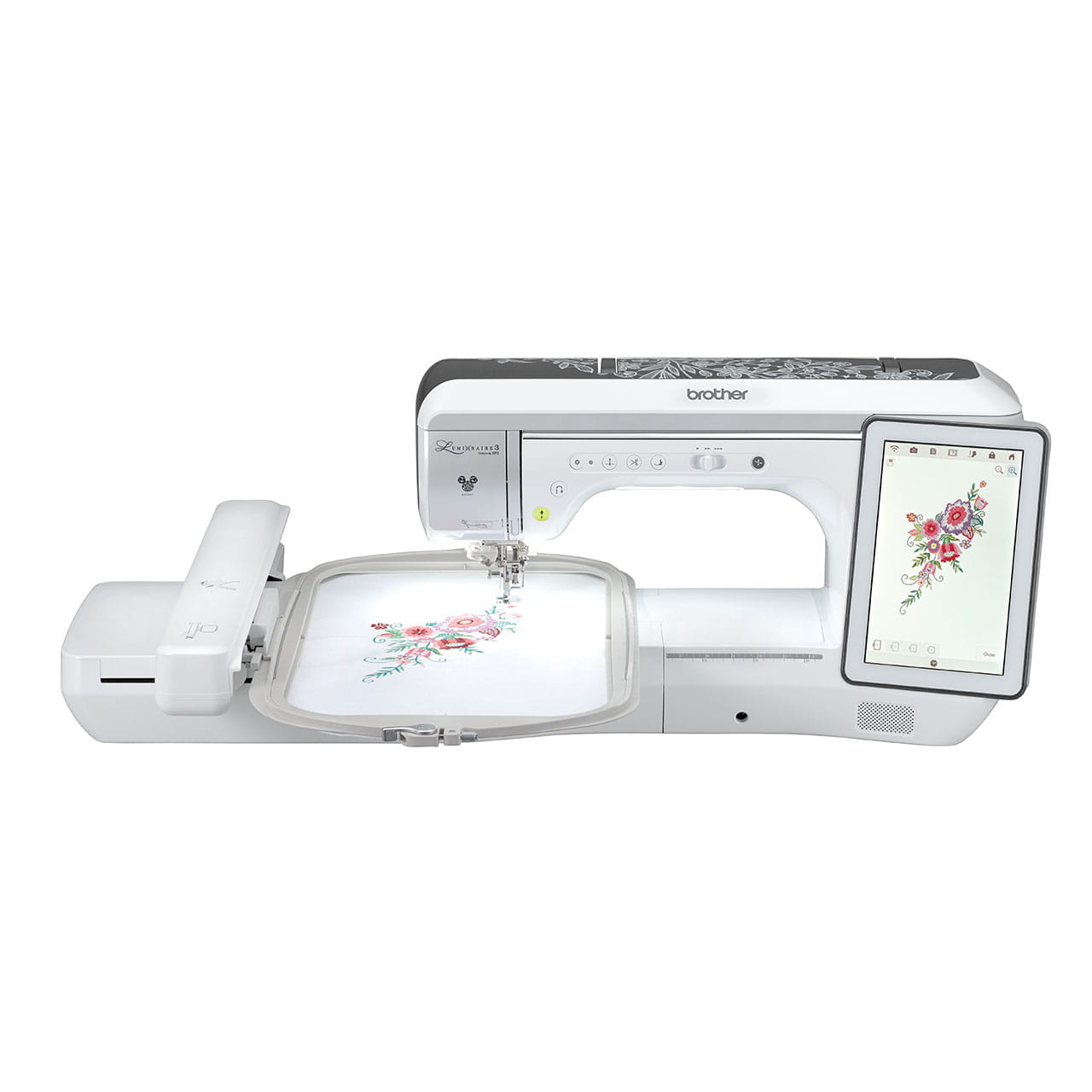

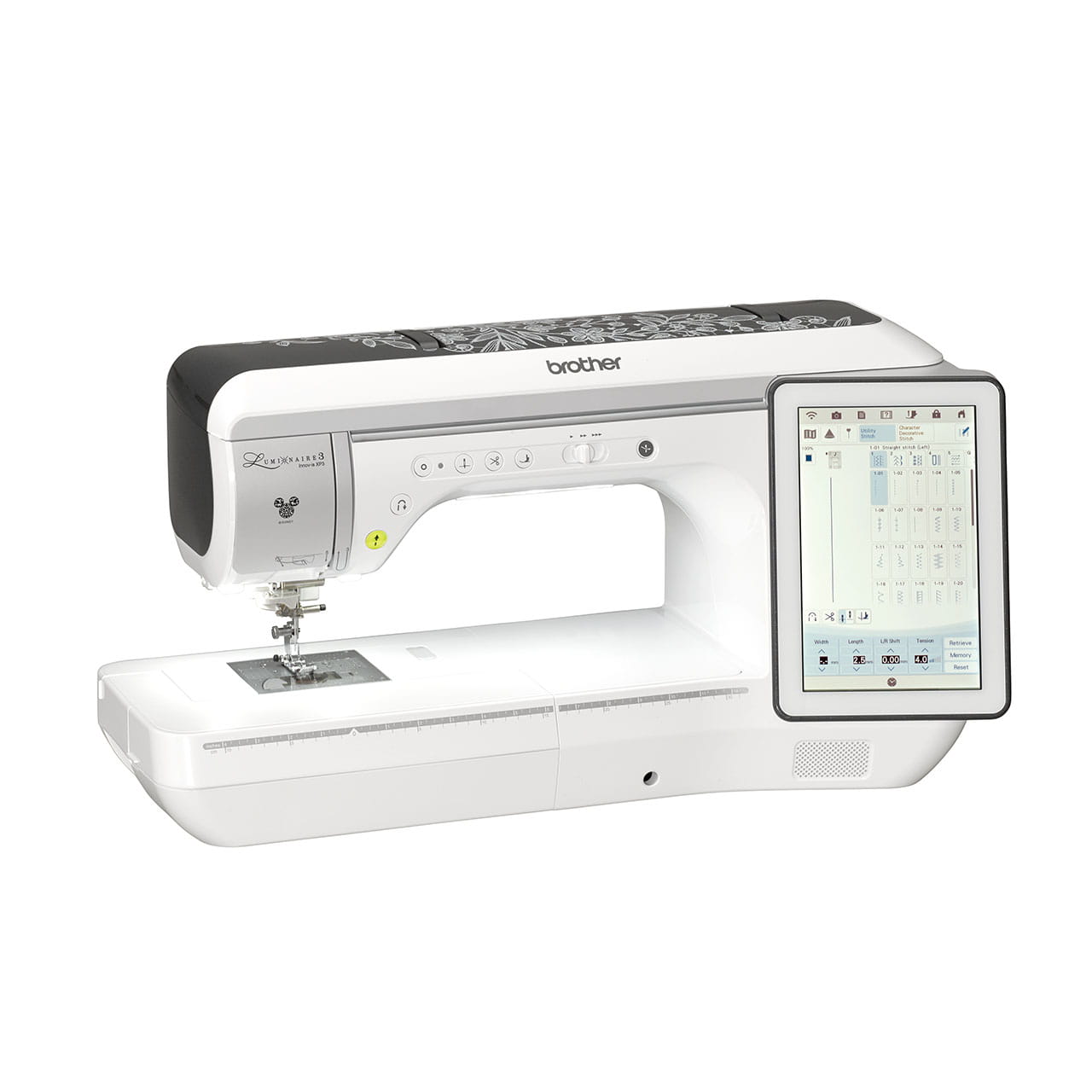

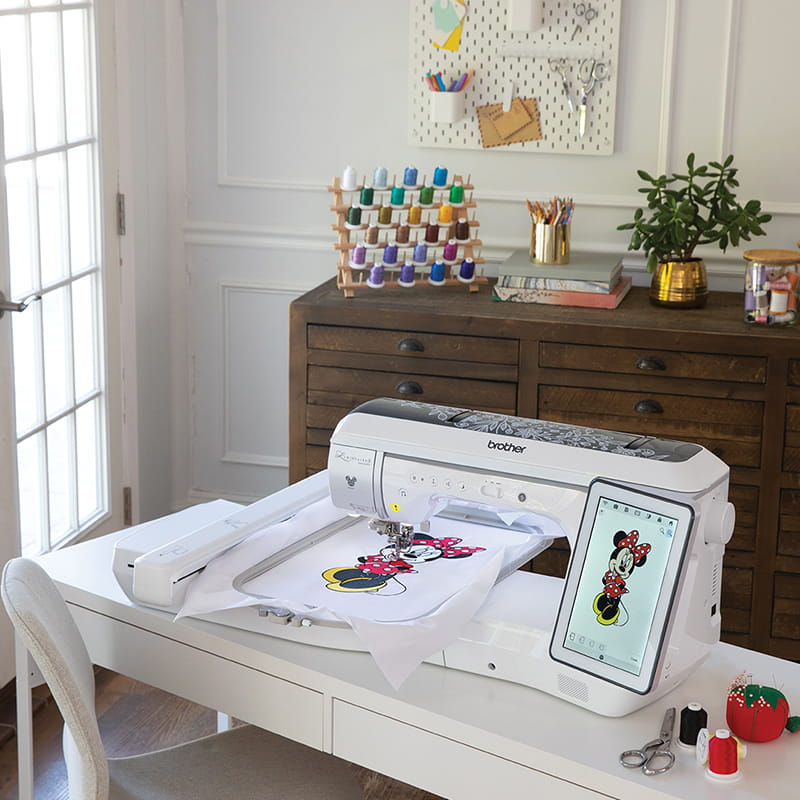

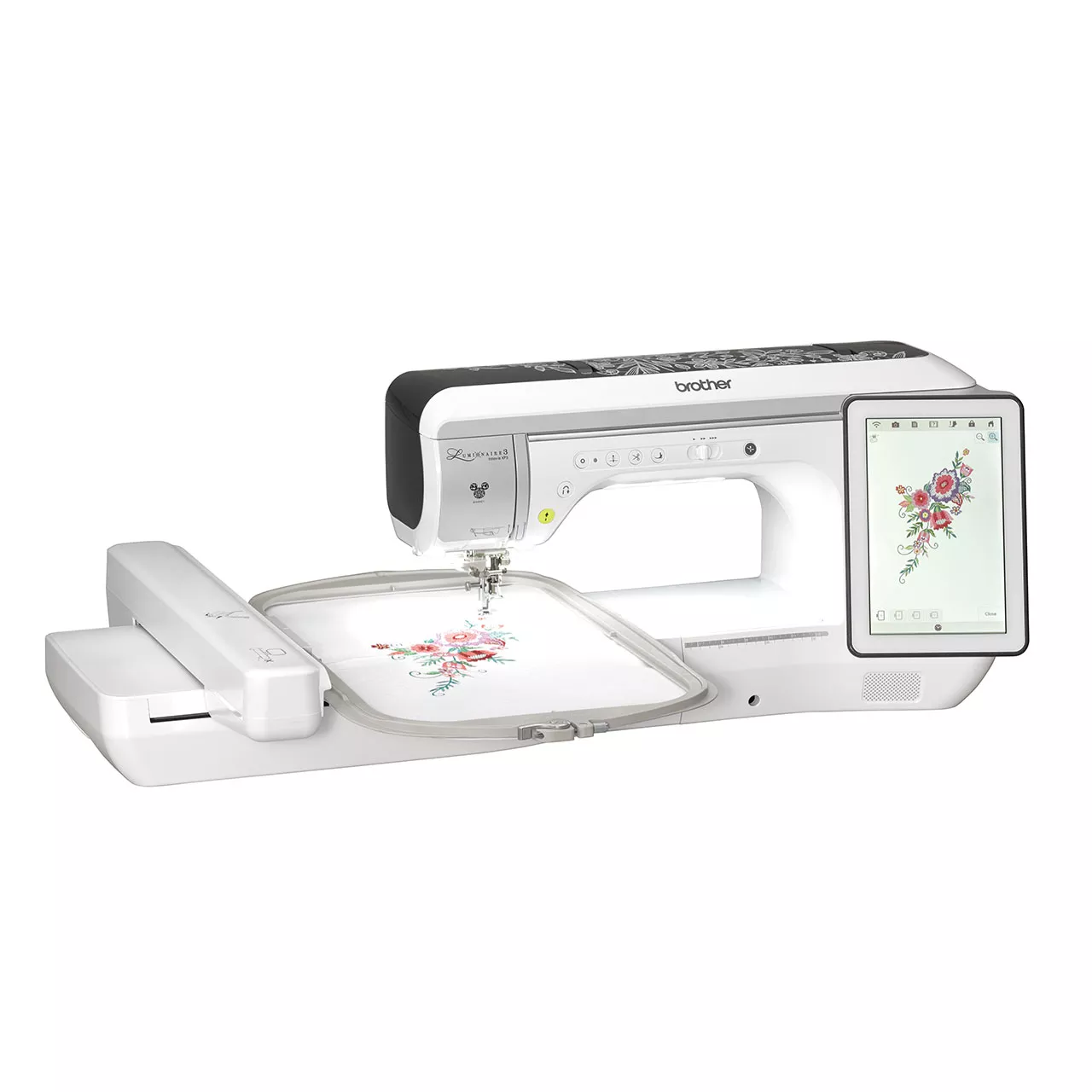

Luminaire 3 Innov-is XP3 Sewing, Quilting & Embroidery Machine
The ultimate quilting and embroidery machine with projector and digitizing
- Project stitches and designs for precise placement
- Large Embroidery Area (408mm x 272mm)
- Mobile-App connectivity for stitch monitoring & transferring of images
- 13.1“ from needle to arm
- My Design Centre for digitizing
- Quiltbroidery features including Edge to Edge
Discover Similar Products

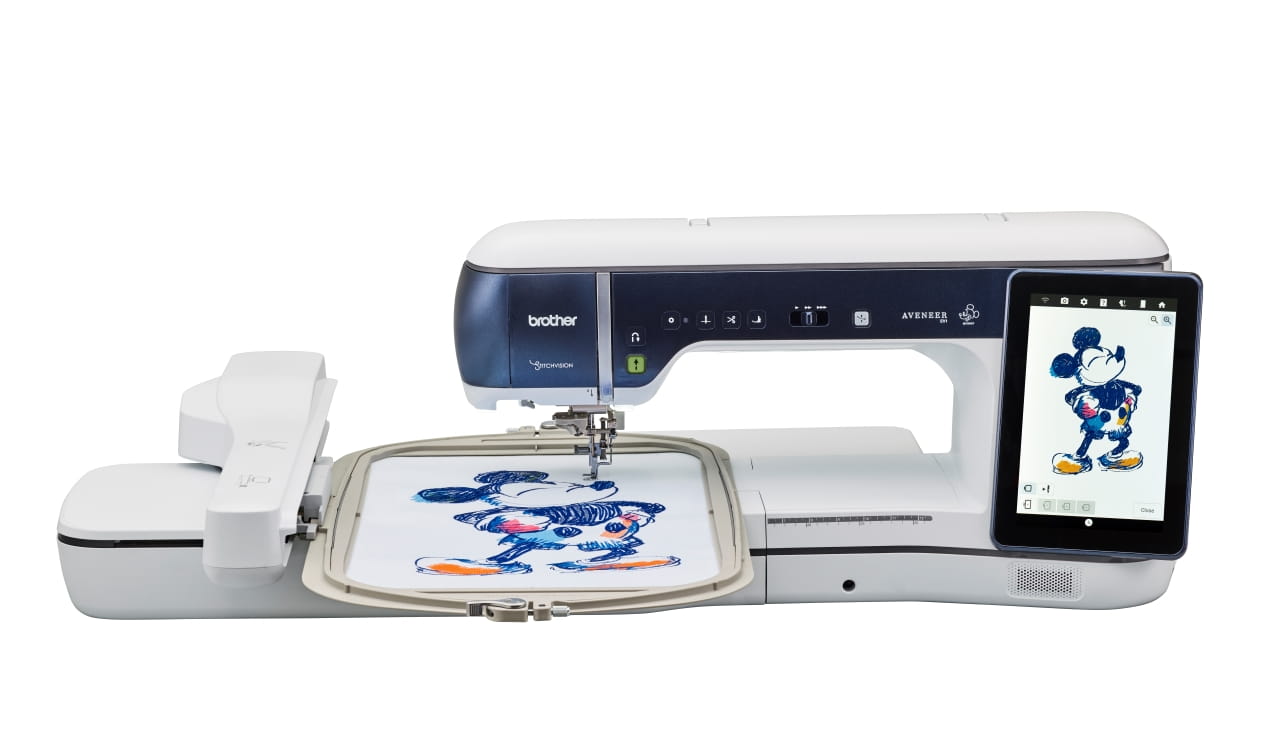

The intelligent sewing, quilting and embroidery machine with projector and stitch regulator
Information
Overview

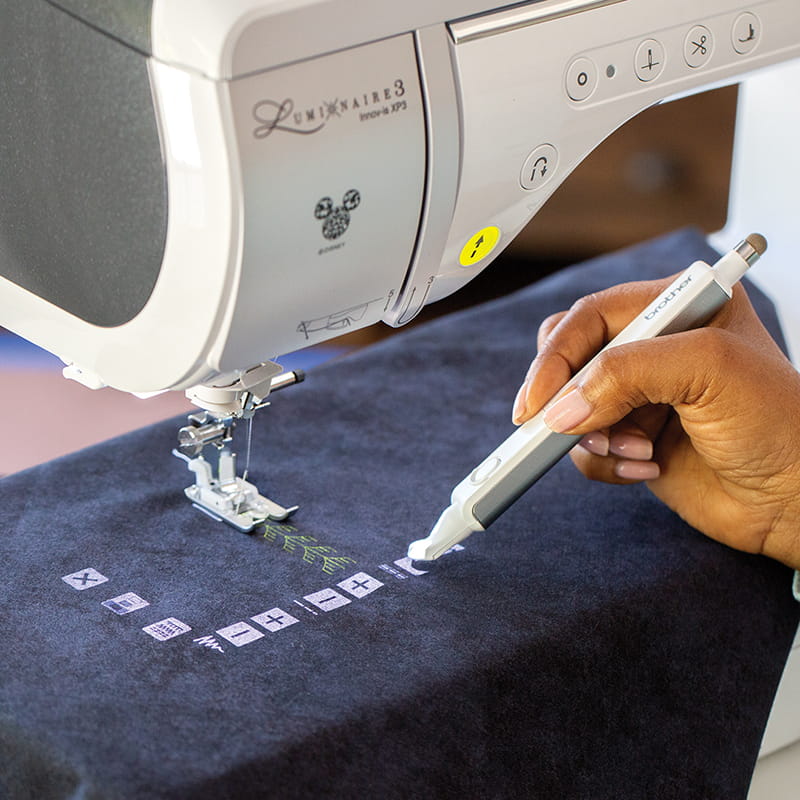

See Stitches Projected
Use the StitchVision Technology to preview your stitches on your fabric for virtually perfect placement of your sewing stitches and embroidery design

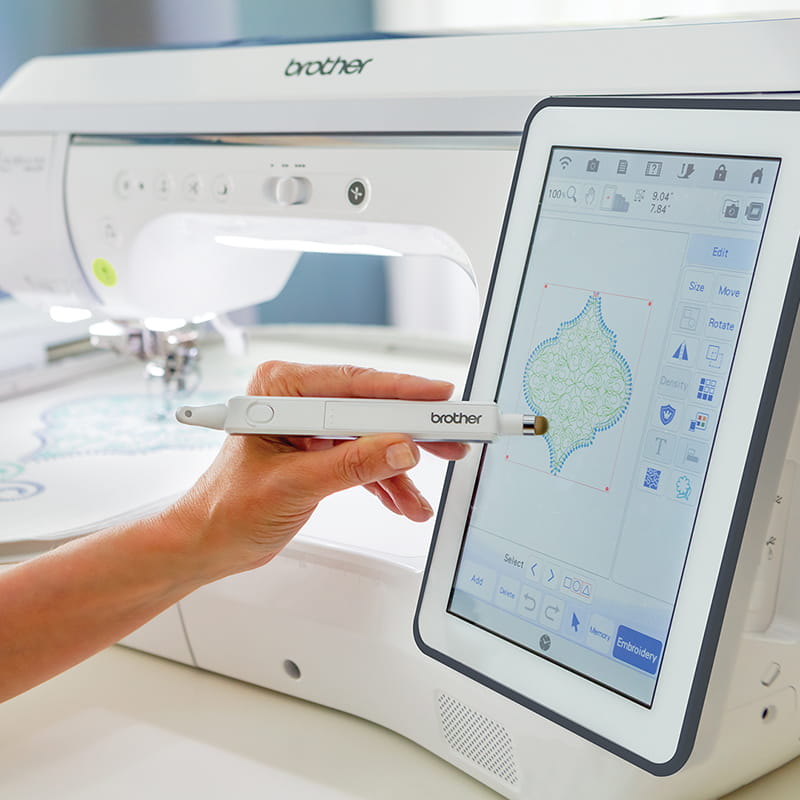

Create Your Own Files
Digitise without a computer. Use the built-in software to create embroidery data. Draw directly on the LCD display, import a JPEG using the USB port, or use the Scanning Frame

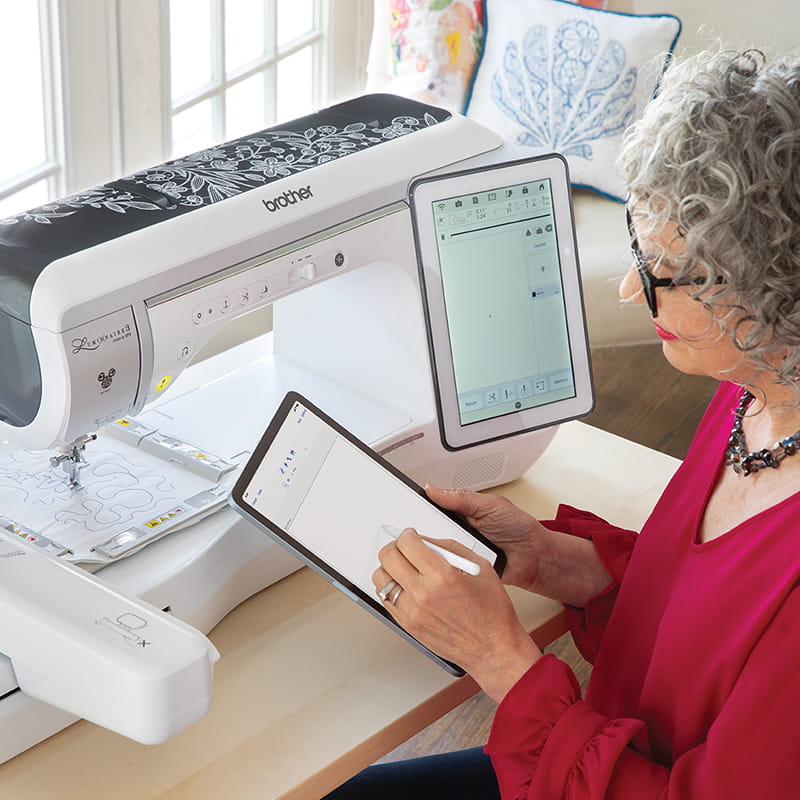

Free apps
Transfer images wirelessly with the My Design Snap mobile app, and keep track of your embroidery with the My Stitch Monitor mobile app

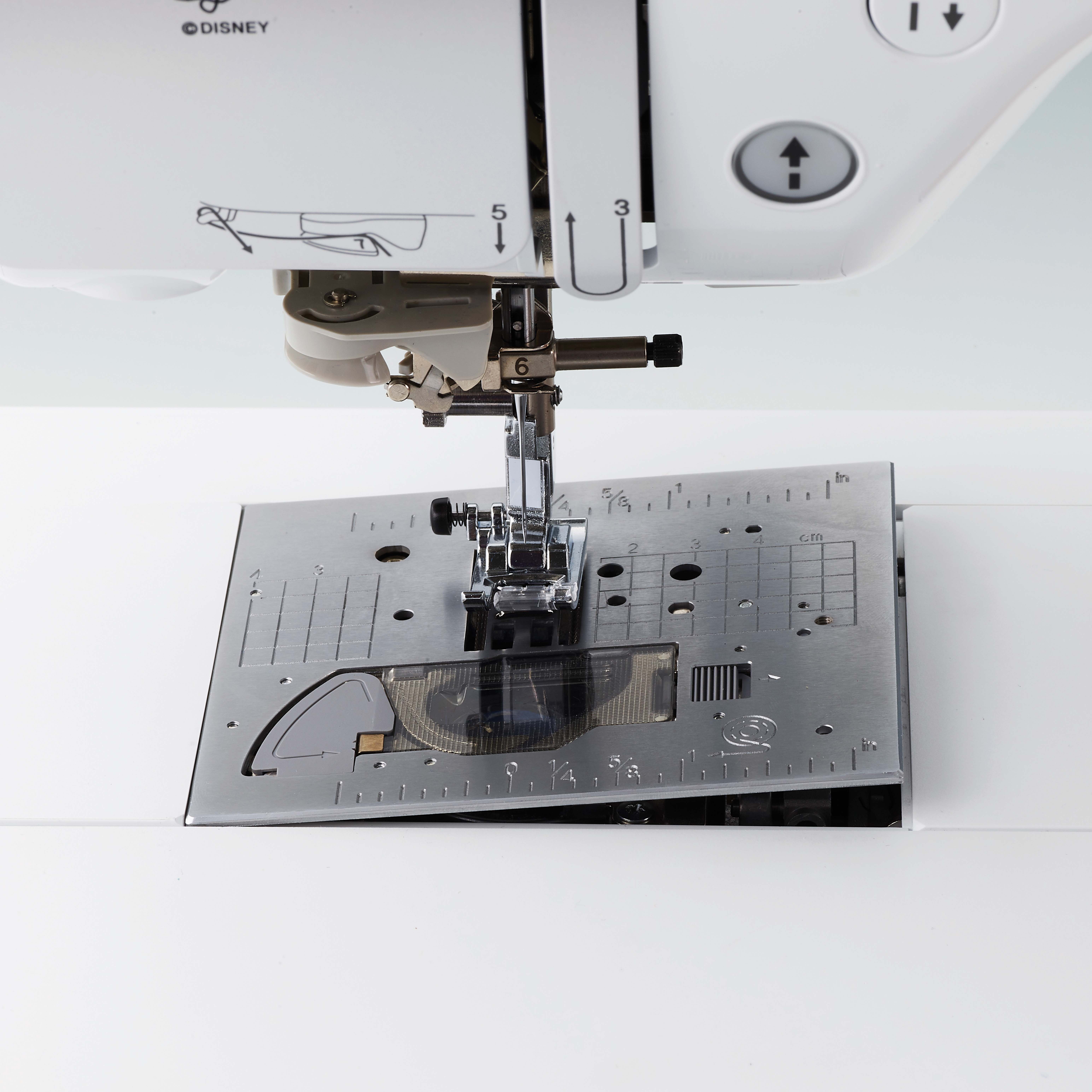

One-Action Release Needle Plate
With a simple press of a lever, switch plates for sewing or quilting. Includes angled lines for placement of fabric pieces in 45, 60, 90 and 120 degrees
Large Frame with Spring Lever Release
The jumbo 10 5/8" X 16" frame comes with an ergonomic Spring Lever Release for easier hooping

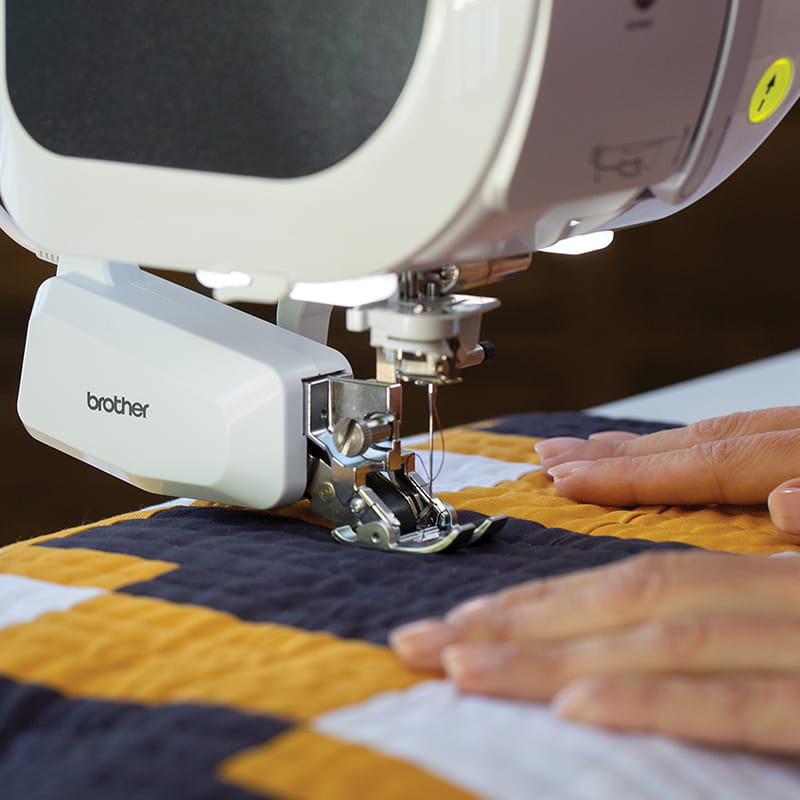

Compact Dual Feed Foot
Motorised foot to evenly feed quilt sandwiches and more. New design has greater clearance behind the foot. Stitches forward and backward for unprecedented versatility
Large Connect Designs
Five built-in large connect embroidery designs that range from 721mm x 383mm (28" x 15") and when combined, allow you to create a large ensemble

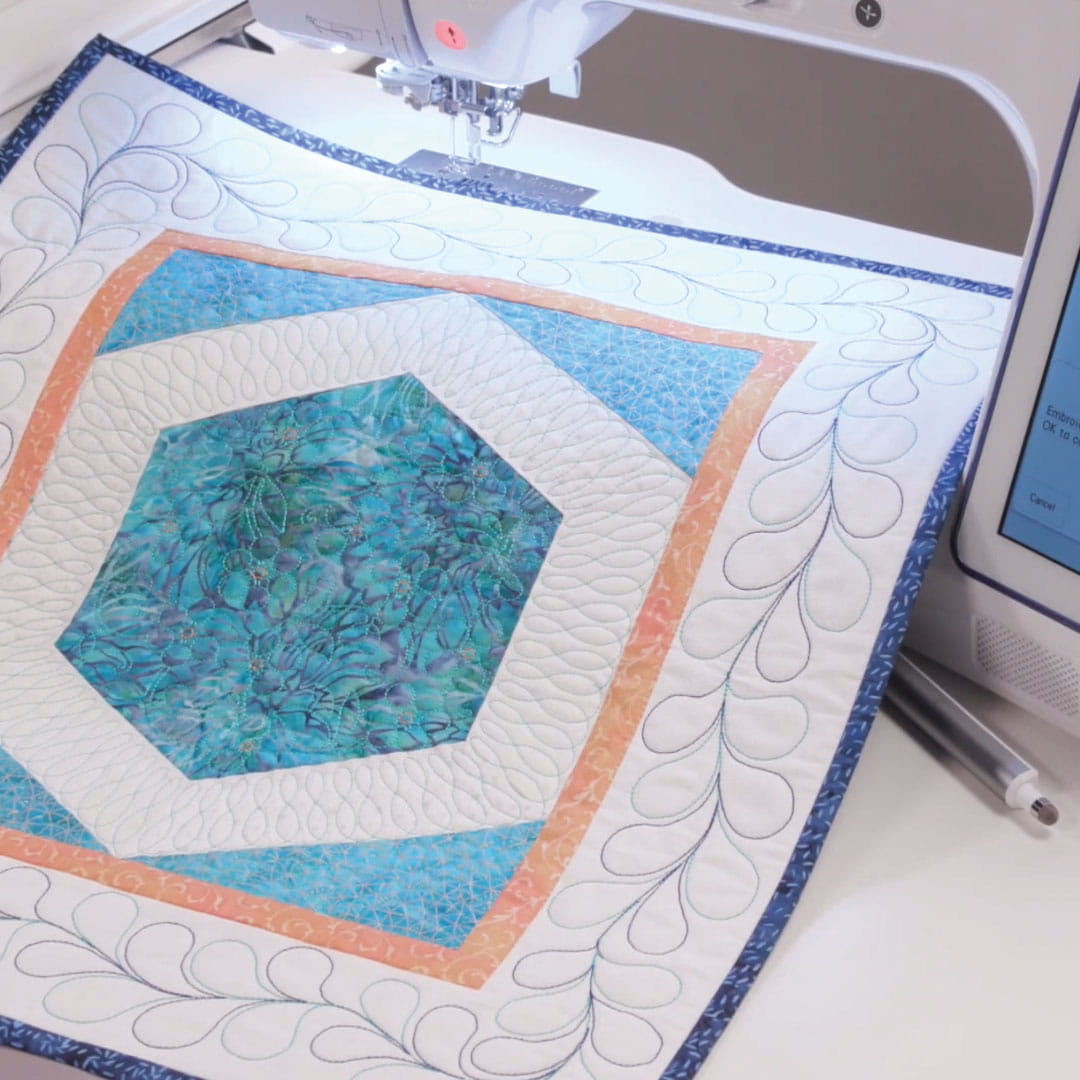

Edge-to-Edge Quilting
No need for a long arm, finish your quilt-top on your Luminaire 3. 10 patterns to choose from, and detailed instructions are clear and easy to follow
Disney is in our DNA
Only the Luminaire has the magic of 192 built-in Disney embroidery designs and 10 decorative Disney stitches
Auto Split Sashing's
Connect designs for beautiful quilt borders! Choose the border size and the size of your hoop, and the Luminaire 3 XP3 automatically splits the designs into multiple hooping's

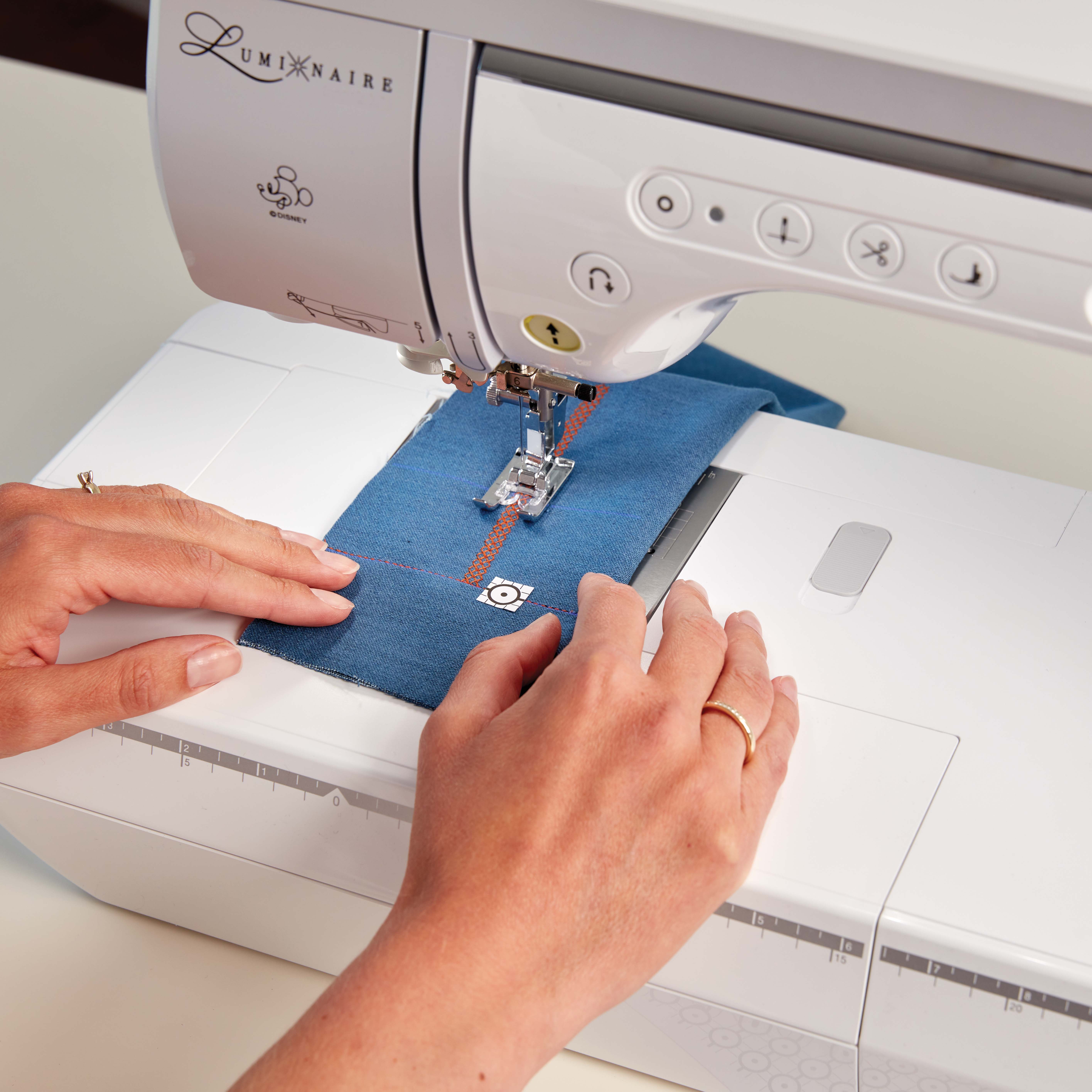

End Point Sewing
Utilising the built-in camera-like feature in the InnovEye Plus Technology, you can now stop your stitch in the perfect place by just placing the Snowball End Point Sticker on your project

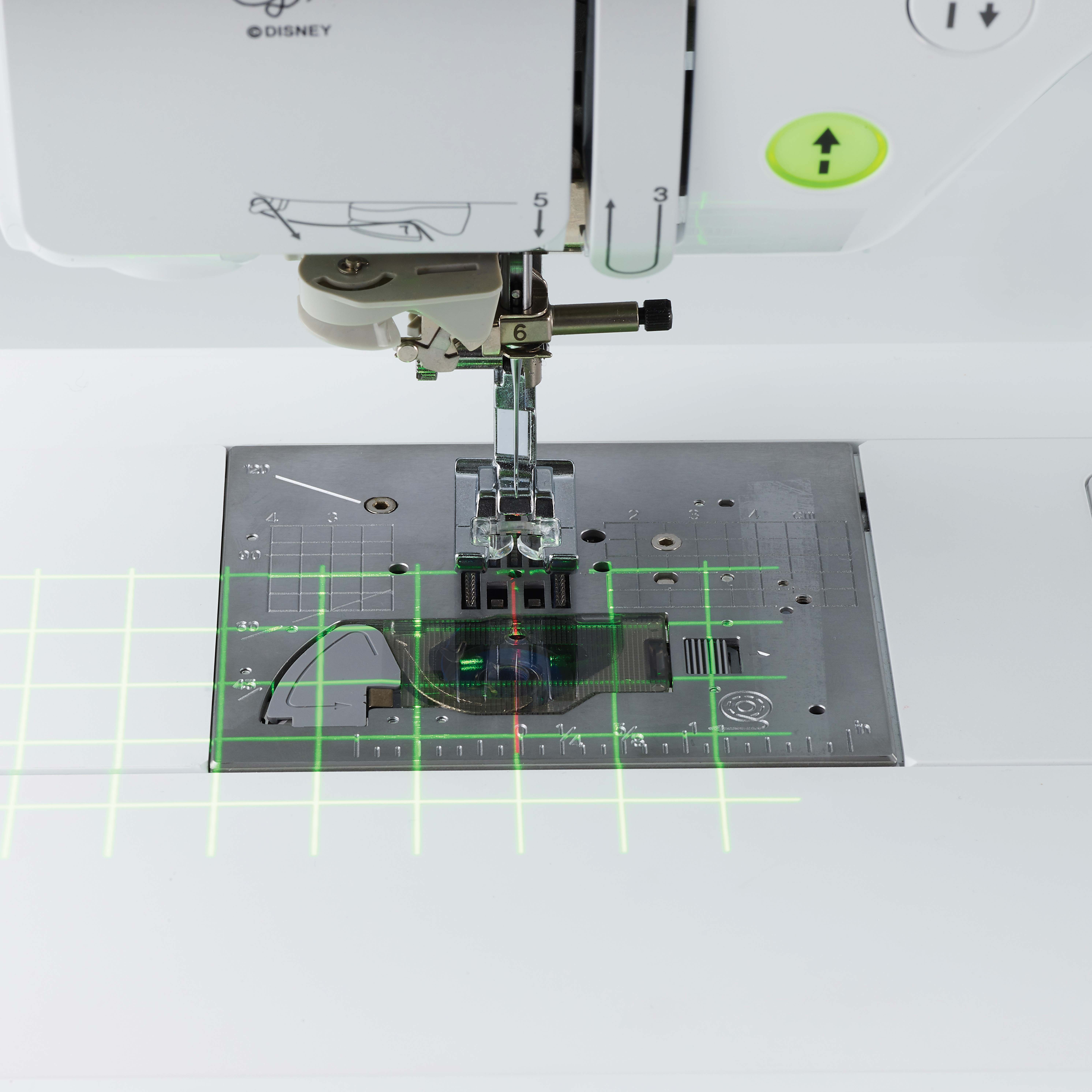

Laser Gridlines
The 5" X 3" virtual preview area displays a guideline marker in single, double, angled and grid lines. Create multiple rows of parallel stitching, pin tucks, hems, cross hatch quilting, or smocking
What’s included?
16 Sewing And Embroidery Presser Feet Including: Embroidery Foot, Advanced N+ Foot, Zigzag Foot With Self-Levelling Button, Overcasting Foot, Zipper Foot, Camera Detecting Buttonhole Foot, Button Sewing Foot, Blind Stitch Foot, Compact Dual Feed (Digital Dual Feed) Foot, Straight Stitch Foot, Free-Motion Quilting Foot, Free-Motion Echo Quilting Foot, Free-Motion Open Toe Quilting Foot, 1/4 Inch Quilting Foot with Guide, Couching Dual Feed Foot, Embroidery Couching Foot. Advanced Multi-Function Foot Controller, Fine-tip stylus pen, 4 Embroidery Frame Sets (408mm x 272mm, 272mm x 272mm, 180mm x 130mm, 100mm x 100mm)
Plus
Knee Lifter, Needle Set, Twin Needle, Bobbins (10), Bobbin Clips (10), Bobbin Centre Pin, Alternative Bobbin Case, Cord Guide Bobbin Cover (With Single Hole), Bobbin Cover (With Mark), Embroidery Bobbin Thread (#60 weight), Embroidery Positioning Stickers, Yarn Guide For Sewing Couching, Yarn Guide For Embroidery Couching, Yarn Threader, End Point Sewing Stickers, Grid Sheet Set, Scanimation Scanning Frame, Embroidery Needle Plate Cover, Dual Purpose Stylus, Dual Purpose Stylus Holder, Straight Stitch Needle Plate, Shank Adapter, Dual King Spool Thread Stand, Thread Spool Insert (Mini King Thread Spool), Small Spool Cap, 2 x Medium Spool Cap, Large Spool Cap, Extra large Spool Cap, Spool Felt, Spool Net, Multi-Purpose Screwdriver, Small Screwdriver, Large Screwdriver, Cleaning Brush, Seam Ripper, Scissors, Large Accessory Case
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Automatic
Thread Cutter
Automatic
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Automatic
Quick-set Bobbin
Yes
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Feet: Zigzag (J) / Advanced Monogramming (N+) / Overcasting (G) / Zipper (I) / Buttonhole (A+) / Buttonhole stabiliser / Blind stitch “R” / Button fitting “M” / Compact Dual feed / Regular dual feed / Straight stitch / Free motion quilting “C” / Free motion echo quilting “E” / Free motion open toe quilting “O” / Embroidery “W” / 1/4” quilting with guide/ Adapter/ Screw (small)/ Needle set/ Twin needle/ Ball point needle set/ Bobbin × 10 (One is on machine)/ Seam ripper/ Scissors/ Cleaning brush/ Eyelet punch/ Screwdriver (small)/ Screwdriver (large)/ Multi-purpose screwdriver/ Spool cap (small)/ Spool cap (medium) × 2 (One is on machine)/ Spool cap (large)/ Thread spool insert (mini king thread spool)/ Spool stand/ Spool cap (XL) x 2, Spool folder x 2, Spool cap base x 2, Bobbin clip × 10/ Spool felt (on machine)/ Spool net × 2/ Embroidery needle plate cover/ Knee lifter/ Alternate bobbin case (no colour on the screw)/ Standard bobbin case (green marking on the screw) (on machine)/ Straight stitch needle plate/ Cord guide bobbin cover (with single hole)/ Bobbin cover (with mark)/ Bobbin cover (on machine)/ Embroidery frame/sheet (medium) H 100 mm × W 100 mm/ Embroidery frame/sheet (large) H 180 mm × W 130 mm/ Embroidery frame/sheet H 272 mm × W 272 mm/ Embroidery frame/sheet (LL) H 408 mm × W 272 mm/ Scanning frame/ Magnet × 6/ Embroidery bobbin thread/ Embroidery positioning sticker sheets × 2/ White calibration stickers (solid)/ Stabiliser material/ Grid sheet set/ Chalk pencil/ Dual purpose stylus/ Dual purpose stylus holder/ Accessory case/ Advanced Multi-Function Foot Controller, Bobbin Centre Pin and Instruction Sheet, Couching Dual Feed Foot/ Yarn guide for sewing couching/ Embroidery couching foot “Y”/ Yarn guide for embroidery couching/ Yarn Threader/ End Point Stickers/ Fine Tipped Stylus Pen/ Operation manual (Sewing/Embroidery), Embroidery Design Guide, Disney Design Guide, Quick Reference Guide
Sewing Features Spec
Stitch No
824 (Disney; 10)
Sewing Speed
1,050 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
Auto
Number of Buttonholes
15 one-step BH + 1 four-step BH
Lettering
4 (3 Alphabet, 1 Cyrillic)
Drop Feed
Yes
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7, longer ver.
Embroidery Features Spec
Embroidery Speed (Max)
1050 spm
Embroidery Area Max
272 mm x 408 mm
Built In Embroidery Patterns
1,544 Designs (Disney; 192, Long stitch; 10)
Build In Embroidery Font
28 (26 Alphabet, 2 Cyrillic)
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
Camera Function
Yes
Needle number for Embroidery
1
