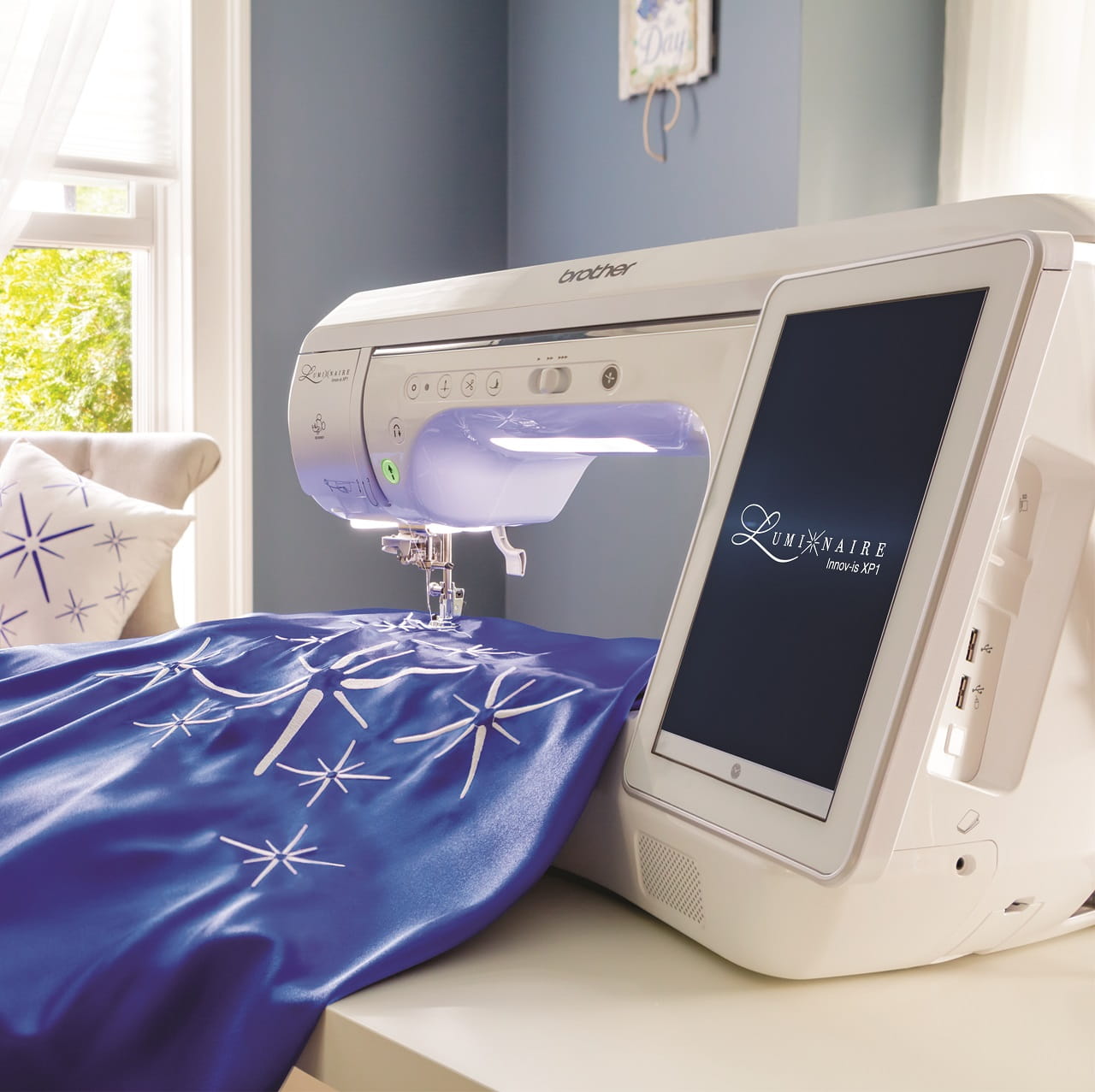

Luminaire Innov-is XP1 Sewing, Quilting and Embroidery Machine
See it before you sew it with the Innov-is XP1 Luminaire
- Project stitches and designs for precise placement
- Large Embroidery Area (408mm x 272mm)
- Mobile-App connectivity for stitch monitoring & transferring of images
- 13.1“ from needle to arm
- My Design Centre for digitizing
- Laser gridlines
We call it StitchVision technology and it's simply light years ahead. See stitches projected on your fabric for a realistic preview. Adjust stitched directly on fabric or screen with the dual-purpose stylus. Project guidelines and grids to sew precise lines, angles, corners and more. 1100 embroidery designs. 27 x 40cm embroidery area. 821 sewing stitches. WLAN data transfer. 13inches from needle to arm, large enough for a king-size quilt. 10.1inch touch screen with 34 built in movies. Available from Brother Luminaire XP1 dealers.
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Automatic
Thread Cutter
Automatic
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Automatic
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Colour LCD
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine / Feet: Zigzag (J) / Monogramming (N) / Overcasting (G) / Zipper (I) / Buttonhole (A+) / Blind Stitch (R) / Button fitting (M) / Dual feed / Straight stitch / Free motion quilting (C) / Free motion echo quilting (E)/ Free motion open toe quilting (O) / Embroidery (W) / quilting with guide / Buttonhole foot stabilizer / Adapter / Screw (small) / Needle Set: Twin needle / Ball point needle set / Bobbin x 10 (One is on machine.) / Seam ripper / Scissors / Cleaning brush / Eyelet punch / Screwdriver (Small / Large) / Multi-purpose screwdriver / Spool cap (Small / medium x 2 (One is on machine.) / large) / Thread spool insert (mini king thread spool) / Spool thread stand / Bobbin clip x 10 / Spool felt (on machine) / Spool net x 2 / Embroidery needle plate cover / Knee lifter / Alternate bobbin case / Straight stitch needle plate / Cord guide bobbin cover (with single hole) / Bobbin cover (with mark / on machine) / Embroidery Frames x 4 (408 x 272mm, 240 x 240mm, 180 x 130mm, 100 x 100mm) / Scanning frame / Magnet x 6 / Embroidery bobbin thread / embroidery positioning sticker sheets x 2 / White calibration stickers (solid) / Stabilizer material / Grid sheet set / Chalk pencil / Dual purpose stylus / Dual purpose stylus holder / Accessory case / Foot controller / Bobbin centre pin and instruction sheet
Sewing Features Spec
Stitch No
821
Sewing Speed
1,050 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Buttonhole Sewing
one-step
Number of Buttonholes
15
Drop Feed
Yes
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7 (longer ver.)
Embroidery Features Spec
Embroidery Speed (Max)
1050 spm
Embroidery Area Max
272 mm x 408 mm
Built In Embroidery Patterns
1,187 Designs (included 191 Disney character)
Build In Embroidery Font
24（22 Alphabet, 2 Cyrillic)
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
Camera Function
Yes
Needle number for Embroidery
1
