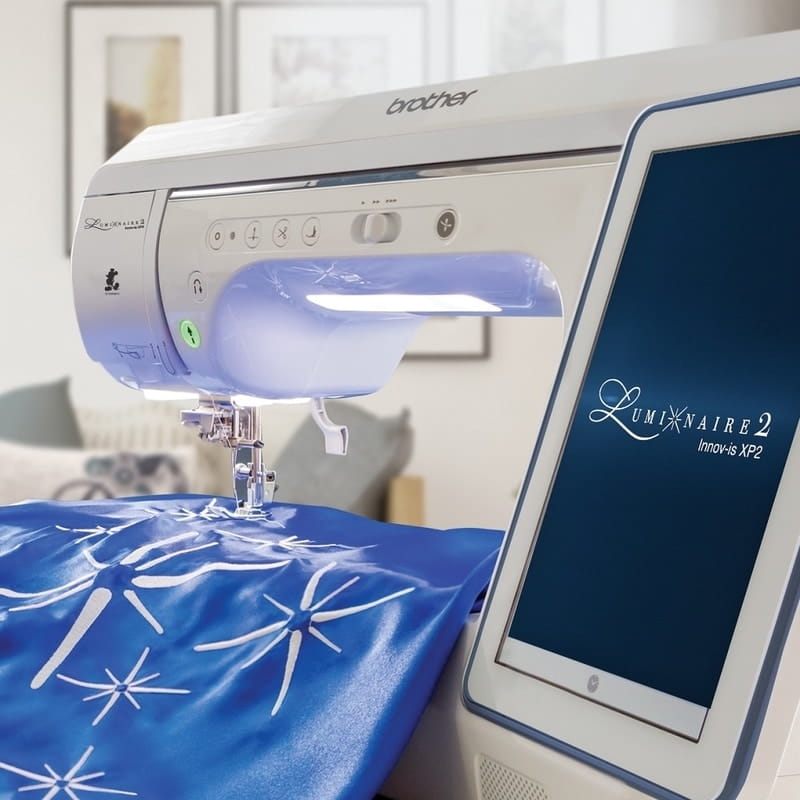

Computerised Sewing, Quilting and Embroidery Machine

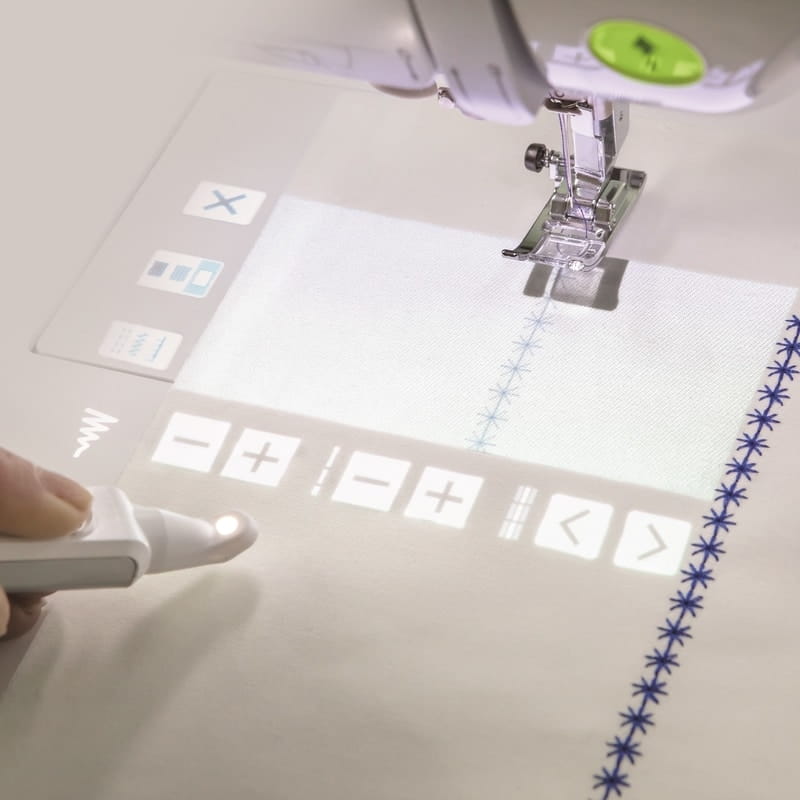

- Project stitches and designs for precise placement
- Large Embroidery Area (408mm x 272mm)
- Mobile-App connectivity for stitch monitoring & transferring of images
- 13.1“ from needle to arm
- My Design Centre for digitizing
- Quiltbroidery features including Auto Split Sashings
Find out more https://luminaire.brother.com.au
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Automatic
Thread Cutter
Automatic
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Automatic
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine / Feet: Zigzag (J) / Monogramming (N) / Overcasting (G) / Zipper (I) / Buttonhole (A+) / Buttonhole stabiliser / Blind stitch “R” / Button fitting “M” / Dual feed / Regular dual feed / Straight stitch / Free motion quilting “C” / Free motion echo quilting “E” / Free motion open toe quilting “O” / Embroidery “W” / 1/4” quilting with guide/ Adapter/ Screw (small)/ Needle set/ Twin needle/ Ball point needle set/ Bobbin × 10 (One is on machine)/ Seam ripper/ Scissors/ Cleaning brush/ Eyelet punch/ Screwdriver (small)/ Screwdriver (large)/ Multi-purpose screwdriver/ Spool cap (small)/ Spool cap (medium) × 2 (One is on machine)/ Spool cap (large)/ Thread spool insert (mini king thread spool)/ Spool stand/ Bobbin clip × 10/ Spool felt (on machine)/ Spool net × 2/ Embroidery needle plate cover/ Knee lifter/ Alternate bobbin case (no colour on the screw)/ Standard bobbin case (green marking on the screw) (on machine)/ Straight stitch needle plate/ Cord guide bobbin cover (with single hole)/ Bobbin cover (with mark)/ Bobbin cover (on machine)/ Embroidery frame/sheet (medium) H 100 mm × W 100 mm/ Embroidery frame/sheet (large) H 180 mm × W 130 mm/ Embroidery frame/sheet H 272 mm × W 272 mm/ Embroidery frame/sheet (LL) H 408 mm × W 272 mm/ Scanning frame/ Magnet × 6/ Embroidery bobbin thread/ Embroidery positioning sticker sheets × 2/ White calibration stickers (solid)/ Stabiliser material/ Grid sheet set/ Chalk pencil/ Dual purpose stylus/ Dual purpose stylus holder/ Accessory case/ Couching Dual Feed Foot/ Yarn guide for sewing couching/ Embroidery couching foot “Y”/ Yarn guide for embroidery couching/ Yarn Threader/ End Point Stickers/ Multi-Function Foot Controller
Sewing Features Spec
Stitch No
824
Sewing Speed
1,050 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Number of Buttonholes
15
Drop Feed
Yes
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7
Embroidery Features Spec
Embroidery Speed (Max)
1050 spm
Embroidery Area Max
272 mm x 408 mm
Built In Embroidery Patterns
1,322 Designs (included 192 Disney character)
Build In Embroidery Font
24 (22 Alphabet, 2 Cyrillic)
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
Camera Function
Yes
Needle number for Embroidery
1
