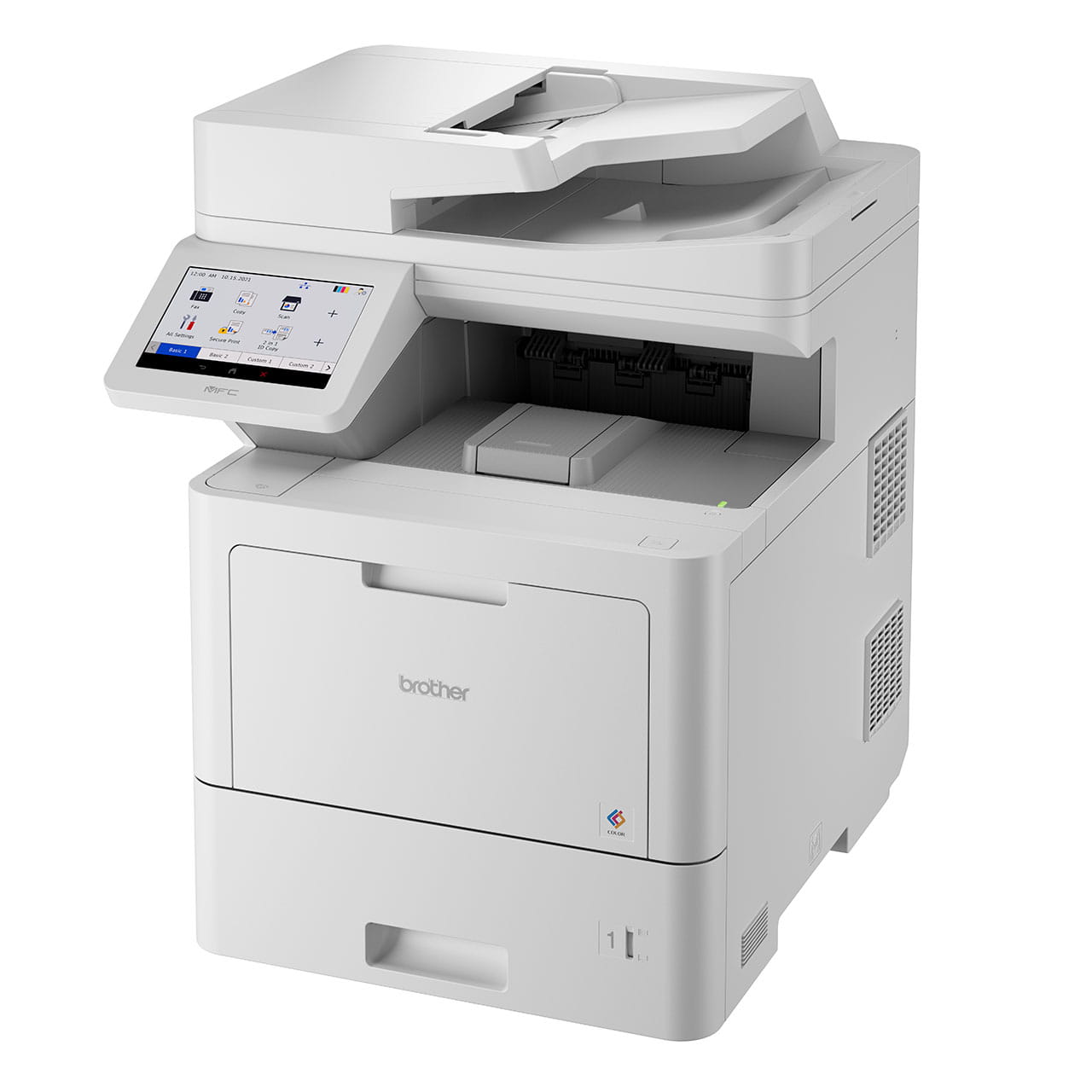

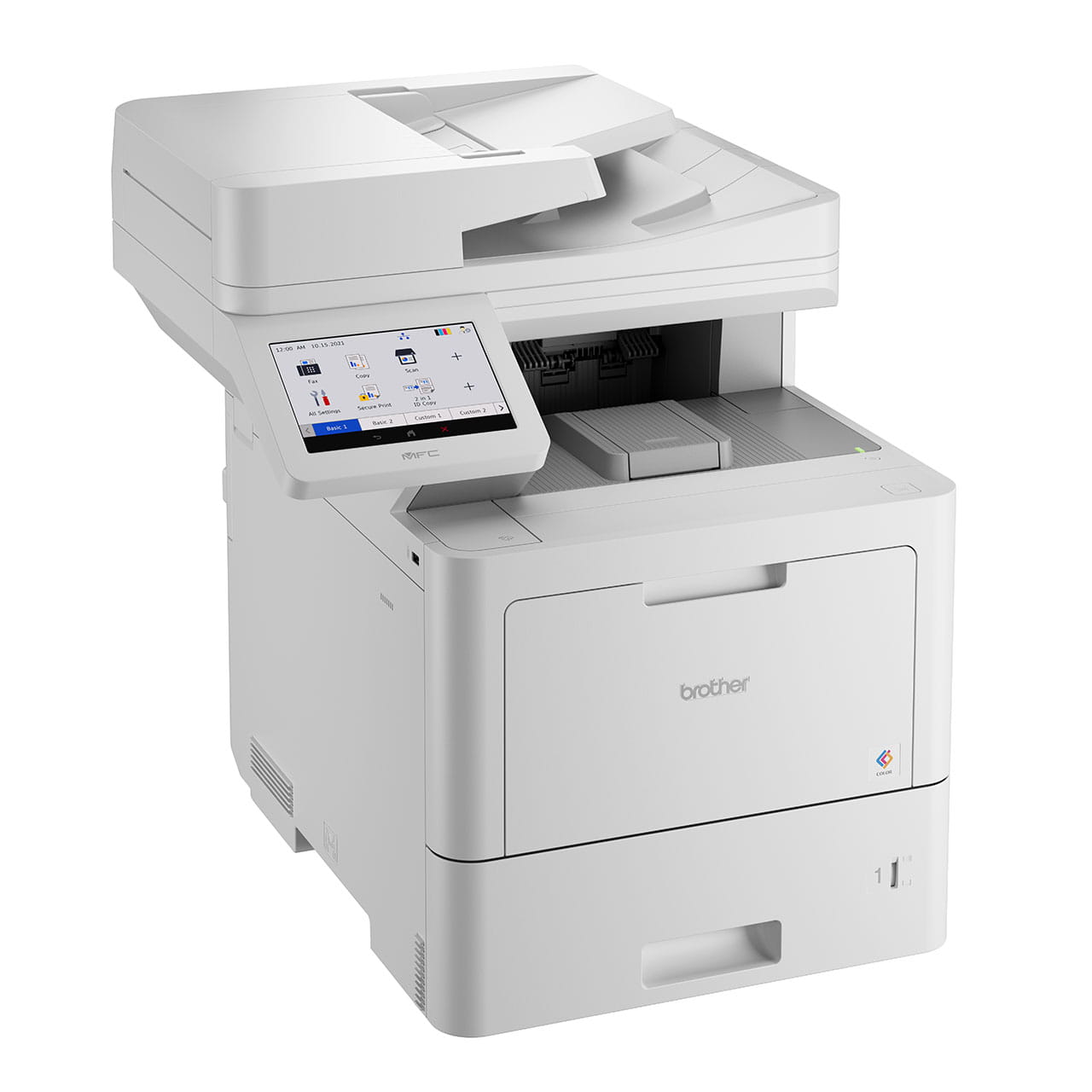

Professional Colour Laser Multi-Function printer with scanner for business
- Fast print speeds of up to 40ppm
- Automatic 2-sided (Duplex) Print & Automatic 2-sided (Duplex) Scan (Up to 100ipm)
- Paper capacity 520-Sheets (Standard) and up to 2,600 pages (Optional)
- NFC as standard for secure authentication and mobile printing
- Replaceable High-Yield Toners available, up to 12,000 black* pages, 9,000 colour*
- Interrupt Copy Function
Information
Overview
Make the right impression when it counts

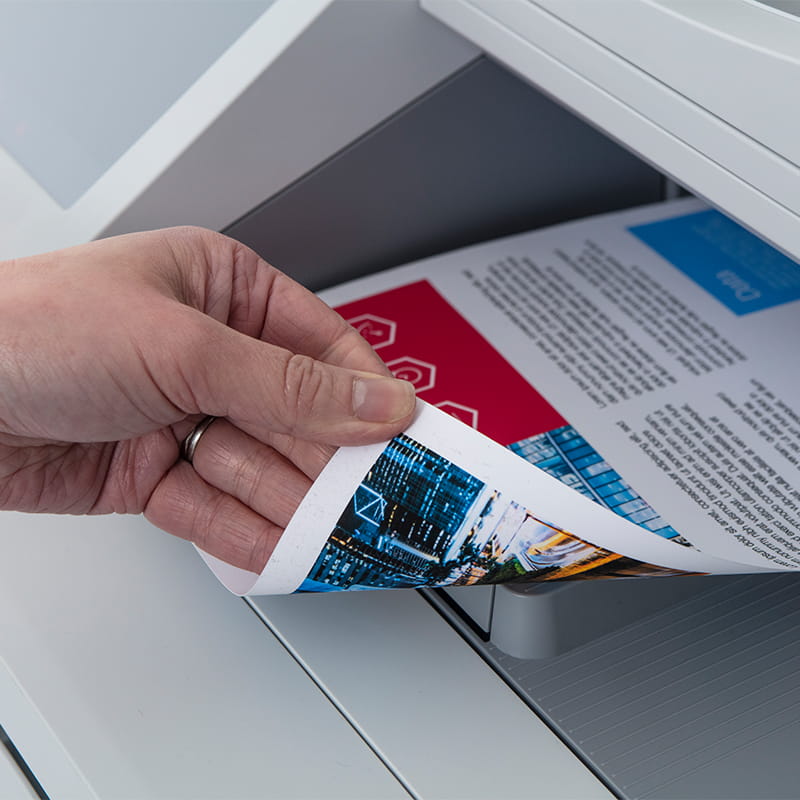

Experience vibrant, professional colour prints, fast print speeds of up to 40ppm and a robust design that makes this multi-function centre the perfect choice for businesses
Game-changing technology
The Interrupt Copy function allows you to Interrupt a print job in progress at any time to print another copy function job
Complete customisation
Automate complex workflows at the touch of a button and integrate third-party software for a tailored document management system
Designed to print for longer
The robust design that allows you to produce quality outputs consistently with components that have double the service life, including the belt, engine, and drum unit
Impressive scalability

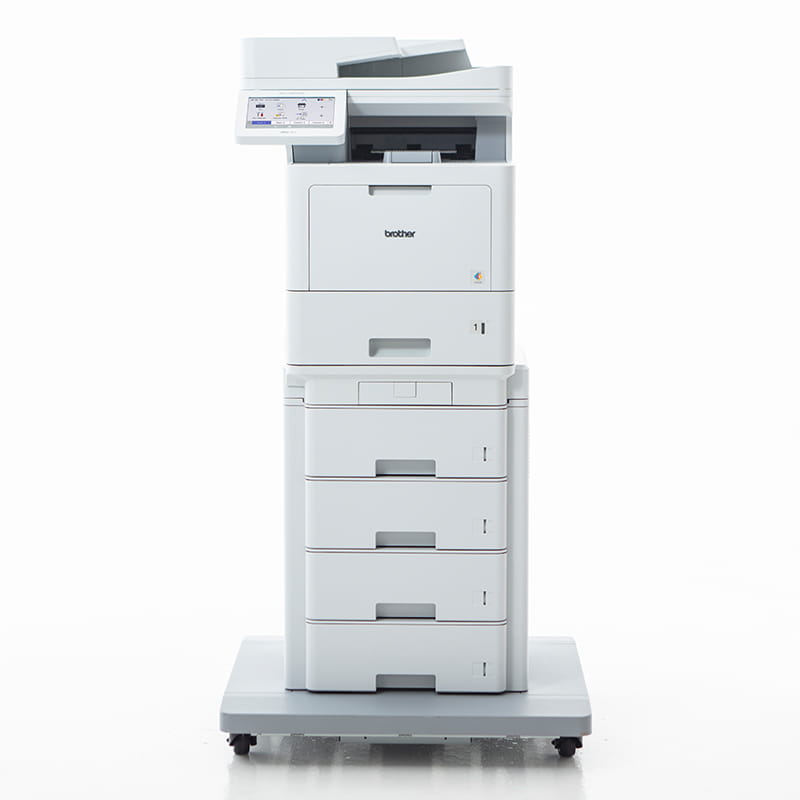

Engineered to fit into your workspace, the MFC-L9630CDN can be transformed from a desktop device to a highly efficient, floor-standing model
At your side support
Wherever you are in Australia, Brother offers free customer care for the lifetime of your product
Designed for workgroups
Built-in cloud apps help your team share documents by directly digitising to OneDrive, Google Drive or Dropbox

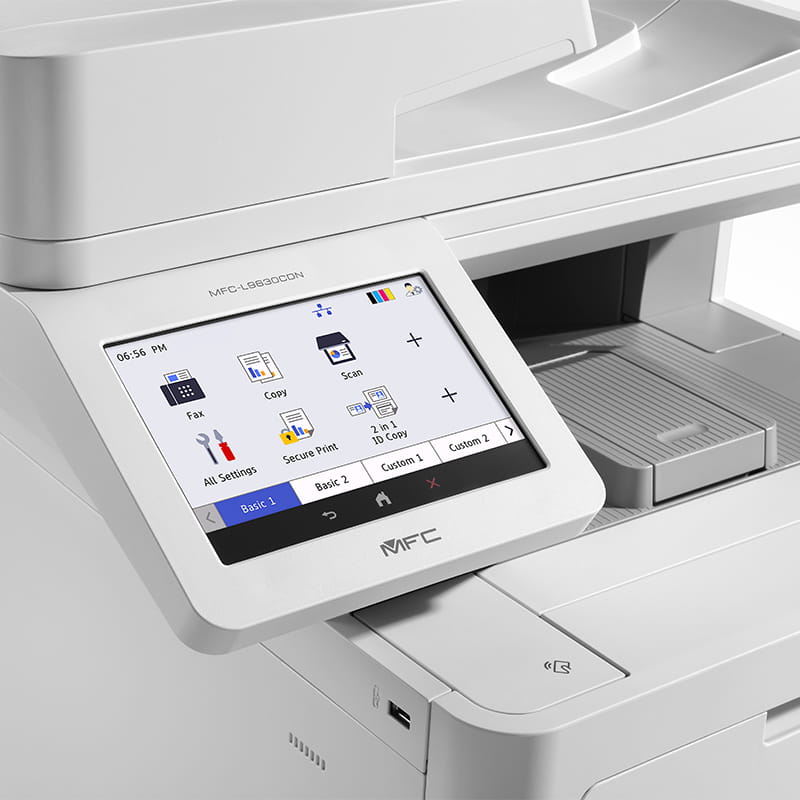

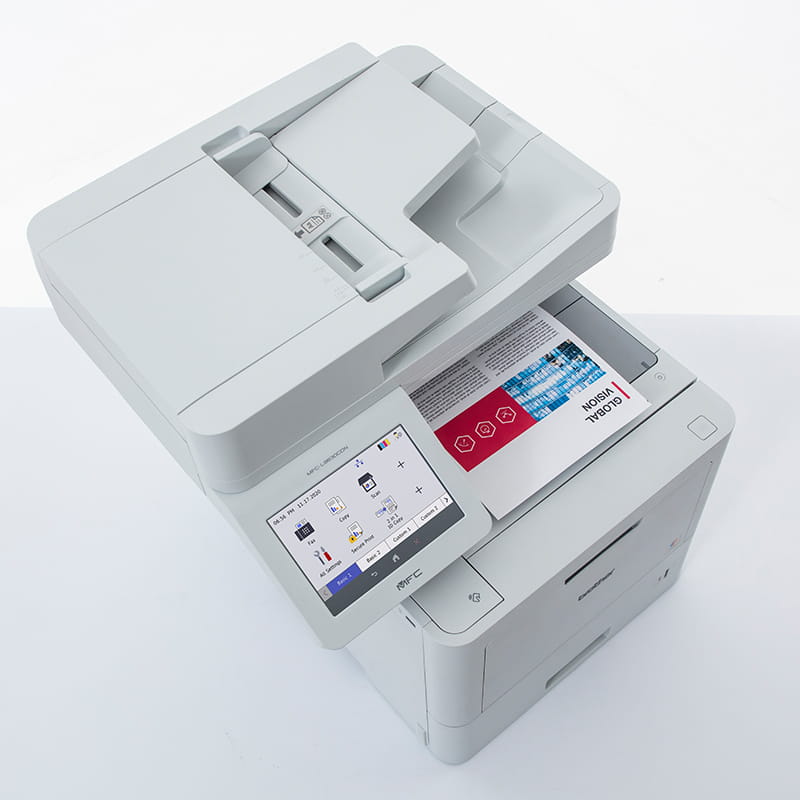

Our user interface is designed for teams - users can personalise a tab for each team member for quick and easy access to frequently used features
Flexible connectivity options
Connect your way with gigabit network and NFC as standard for secure authentication, mobile printing and scanning
Take advantage of the optional 2.4/5GHz Wi-Fi module for added convenience

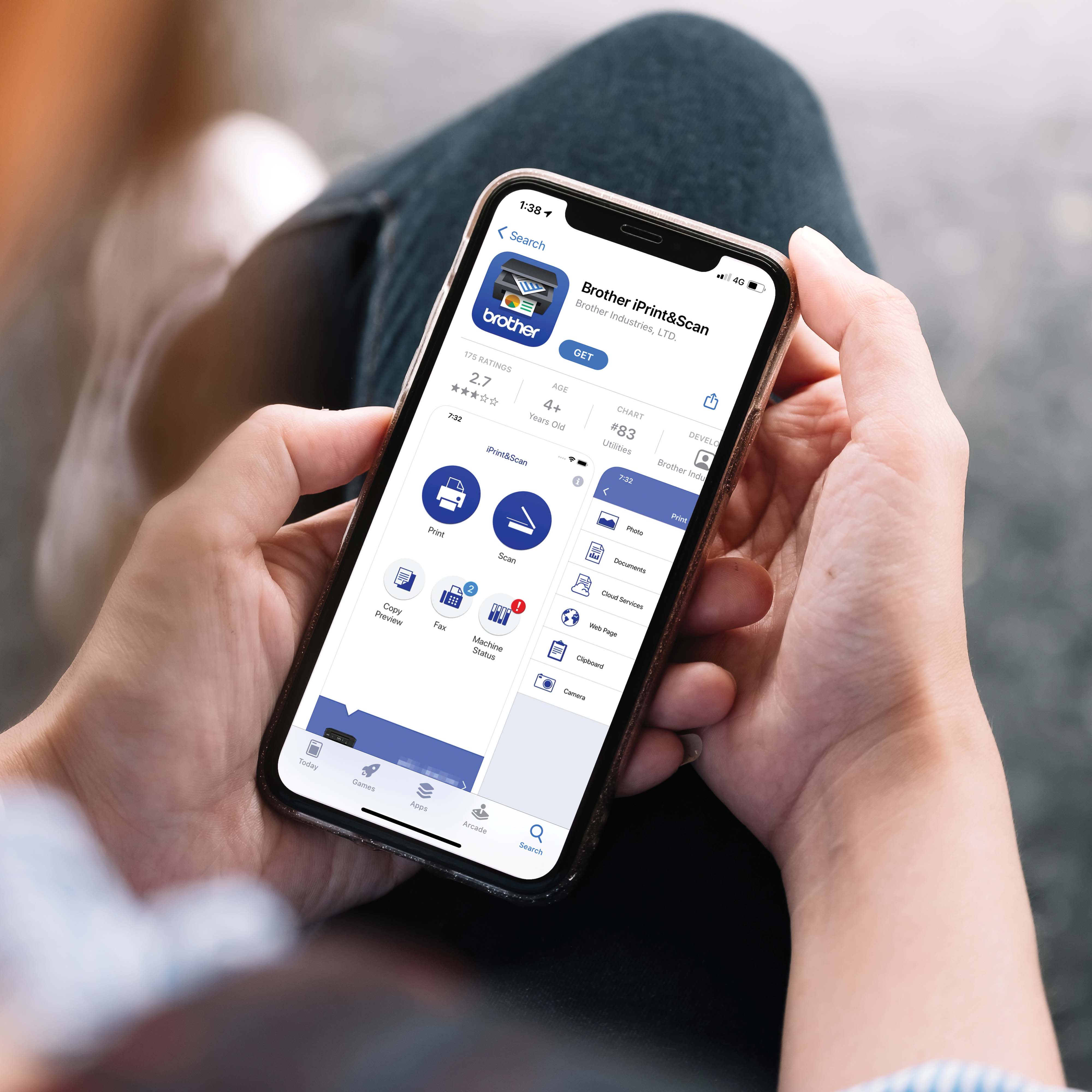

Free mobile apps
Brother mobile apps for Android & iOS provide the flexibilty of printing and scanning directly from your smartphone
Includes Apple Airprint support so you can simply connect and print without the hassle of installations
*Approx. declared yield value in accordance with ISO/IEC 19798
Specifications
Basic Specs
Functions
Fax, Print, Scan, Copy
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
503 mm × 541 mm × 586 mm
Weight
30.1 kg
Print Speed
A4: Up to 40 ppm
Letter: Up to 42 ppm
Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Warranty
1 year Return to Base Warranty
Resolution
Up to 600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
2-Sided (Duplex) - Paper Size
A4, A4 Short (270mm Paper), Letter, Legal, Mexico Legal, India Legal, Folio
Paper handling
Tray #1 - Paper Type
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Tray #2 - Paper Type
A4, Letter, B5 (JIS), A5, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Capacity
LT-330CL: Up to 250 sheets of 80 gsm plain paper
LT-340CL: Up to 500 sheets of 80 gsm plain paper
Multi-purpose Tray - Paper Type
Width: 76.2 to 215.9 mm / Length: 127 to 355.6 mm
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Envelope; 15 envelopes
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 100 sheets
Paper Output
Face Down Output Tray: Up to 250 sheets of 80 gsm Plain Paper
Face Up Output Tray: Up to 1 sheet
Copy
Colour/ Monochrome
Yes
Yes
Multiple Copies
Up to 999 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Print: Up to 600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19,200 × 19,200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 600 × 600 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 × 600 dpi
Fax
Compatibility
ITU-T Super Group 3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 500 pages (ITU-T Test Chart, JBIG)
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart, JBIG)
Connectivity
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
7.0" TFT ColorLCD
Memory Capacity
2 GB
Operation
Power Source
220 V to 240 V AC 50/60 Hz
Power Consumption - Ready
Approx. 85 W
Power Consumption - Sleep
Approx. 16.8 W
Power Consumption - Power Off
Approx. 0.04 W
Noise Level
56.5 dB (A)
Supported Operating Systems
Supported OS
Windows® Server 2008, Server 2008 R2, 7, 8.1, Server 2012, Server 2012 R2, 10, Server 2016, Server 2019
Software and Apps
Mobile Apps
21/12/2023
Support Center, Print Service Plugin, Mobile Connect
