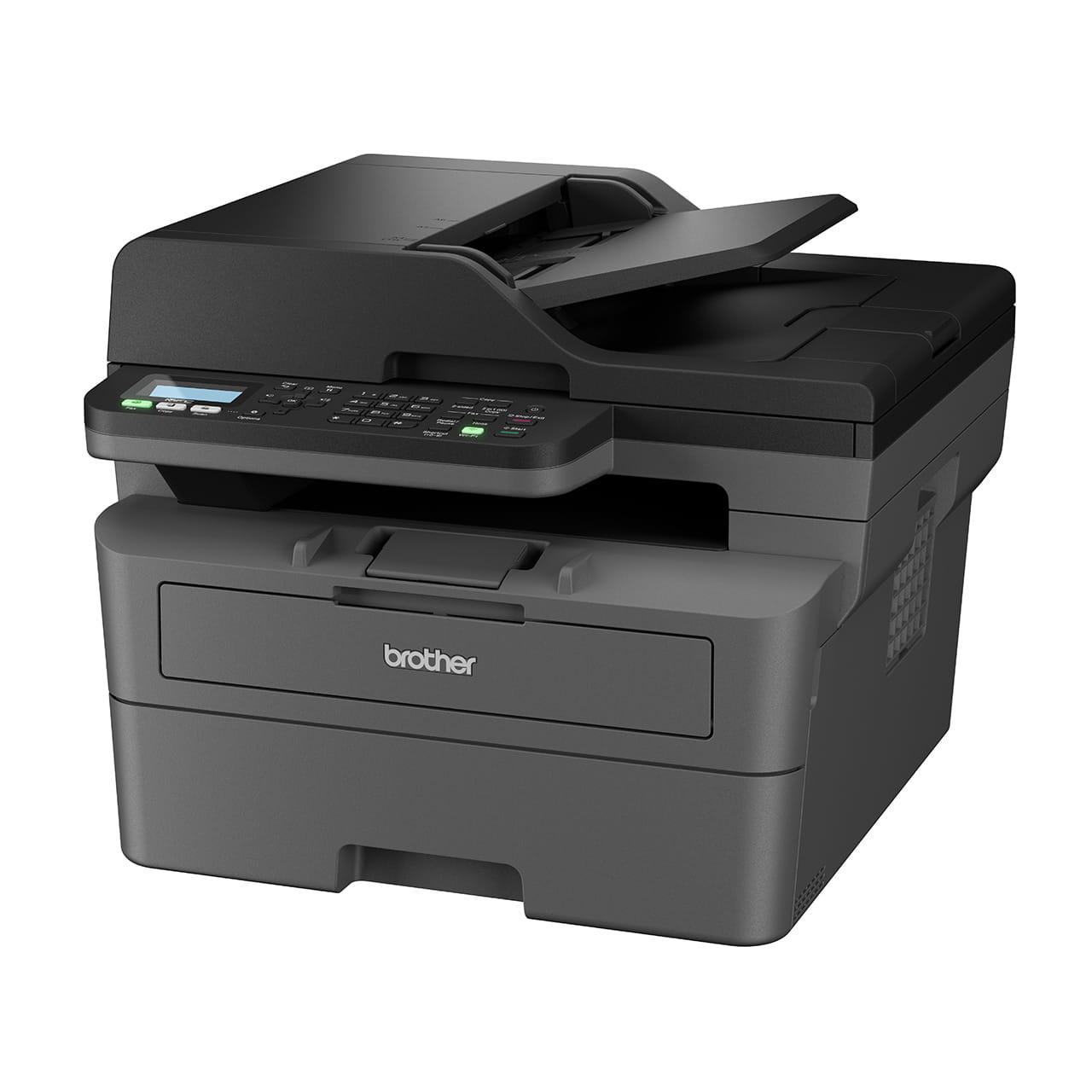

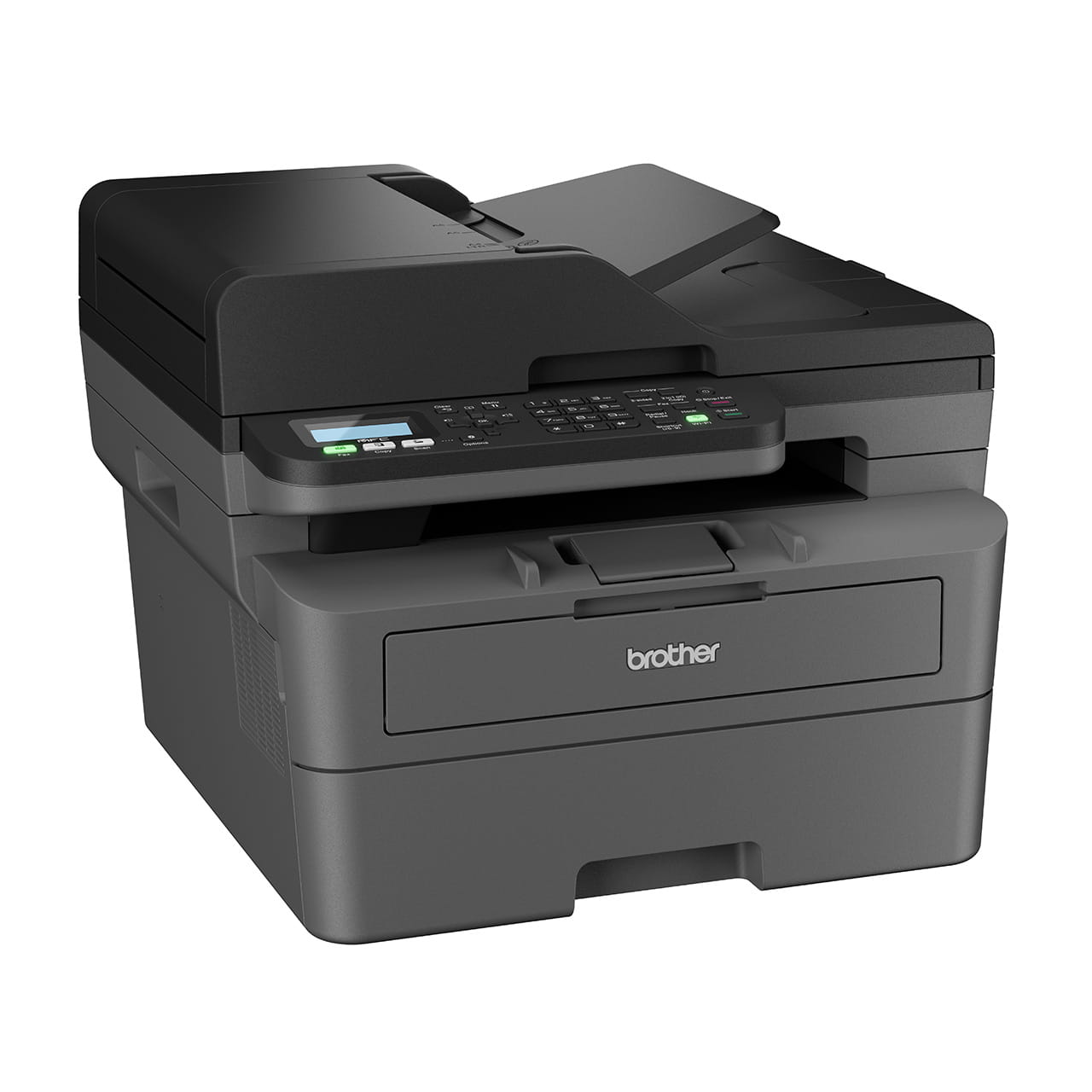

Compact Mono Laser Multi-Function Printer
- Up to 32 ppm
- USB & Wireless Connectivity
- Wired Connectivity
- Automatic 2-sided (Duplex) Print
- Replaceable High-yield Toners
Information
Overview
Work smarter

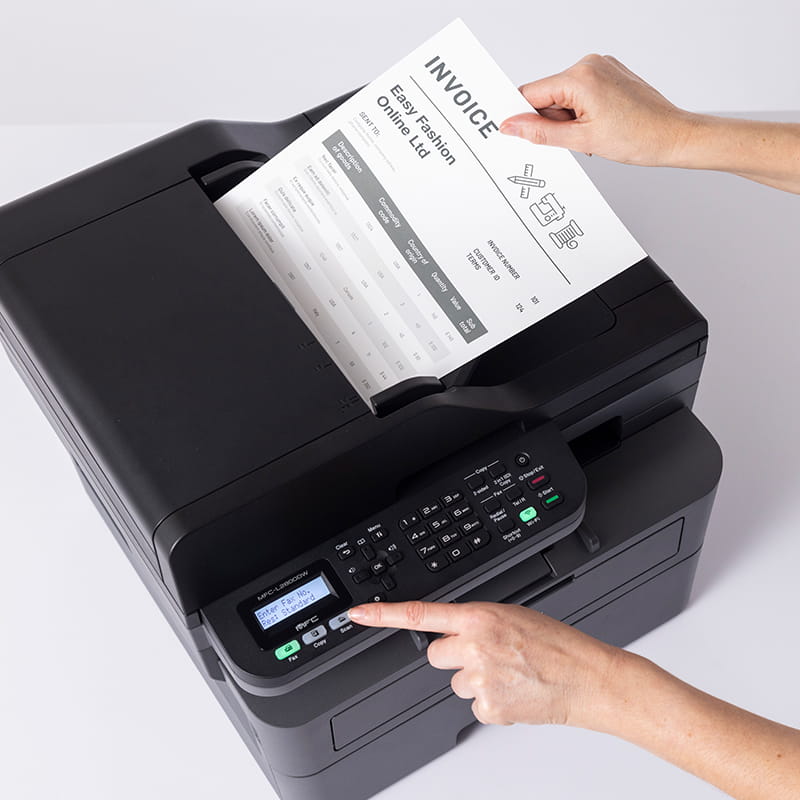

The 2-sided (duplex) print, high-capacity input and output tray and 50-sheet Automatic Document Feeder (ADF) help save you time, enabling you to get on with other tasks
Effortless

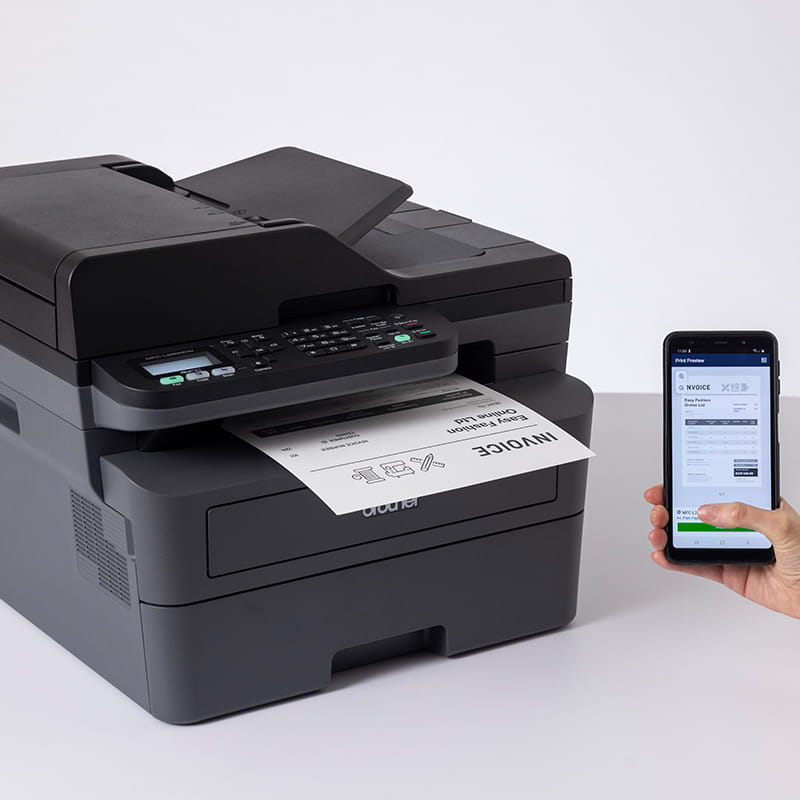

Make your day easier and your printing tasks a breeze, with simple set up using the Brother Mobile Connect app, enabling you to print and scan documents from your mobile devices.
Stay Connected
Make the most of 100Mbps Ethernet, 2.4/5GHz WiFi or USB connection

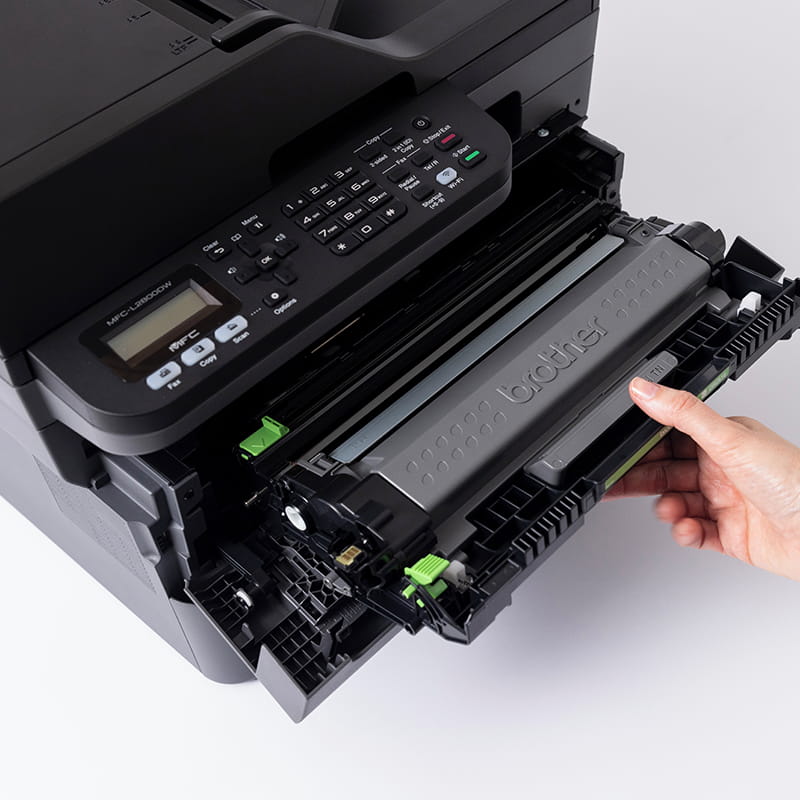

Print longer
Make the most of a generous 1,200 page in-box toner and easy to change high-yield replacement toners that print up to 3,000 pages, reducing your frequency to replace
At your side support
Wherever you are in Australia, Brother offers free customer care for the lifetime of your product
Secure by design
Keep pace with the ever-evolving legislation on privacy and data security - our devices offer the latest industry-standard security features to securely protect your data
Robust features include triple-layer security at a device, network and document level which is verified through external security certification

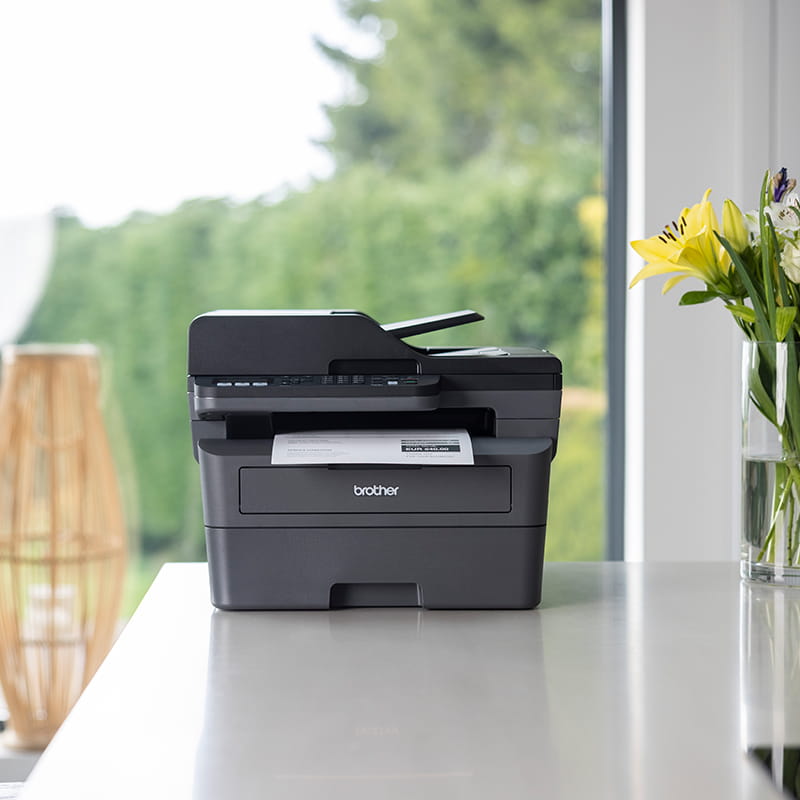

Compact and expertly engineered
Our most compact monochrome range delivers high-quality outputs in a small footprint, allowing you to make the most of your home or small office space
Every component has been optimised to reduce the overall size of the device without compromising on performance
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
410 mm × 399 mm × 399 mm
Weight
10.5 kg
Print Speed
Up to 32 (A4) / Up to 34 (Letter) ppm
Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Warranty
1 year Return to Base Warranty
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Maximum Paper Weight
1 sheet
Manual Feed Slot - Maximum Paper Capacity
1 sheet
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 120 sheets (face down delivery to the face down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Fax
Compatibility
ITU-T Super G3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 400 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
PC Fax - Sending
Yes (Mono)
PC Fax - Receiving
Yes (Color / Mono)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory

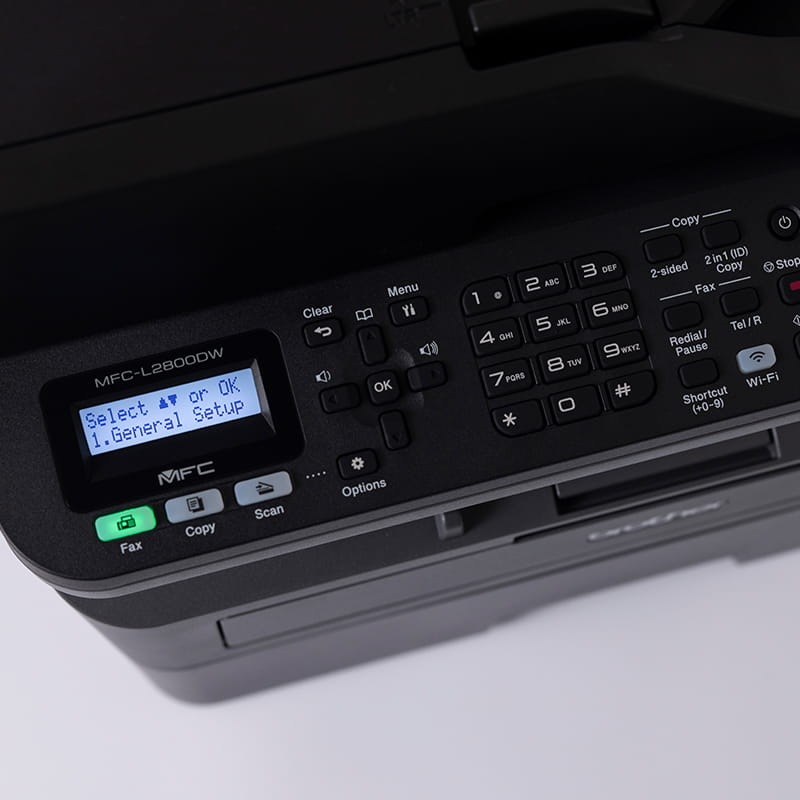

Display Type
2 Line LCD (16 characters)
Memory Capacity
128 MB
Operation
Power Source
220 to 240 V AC 50/60 Hz
Power Consumption - Ready
Approximately 43 W
Power Consumption - Sleep
Approximately 4.1 W
Power Consumption - Power Off
Approximately 0.08 W
Supported Operating Systems
Supported OS
Windows 10, 11, Server 2012, Server 2012 R2, Server 2016, Server 2019, Server2022
Software and Apps
Mobile Apps
21/12/2023
iPrint&Scan, Support Center, Print Service Plugin, Mobile Connect
