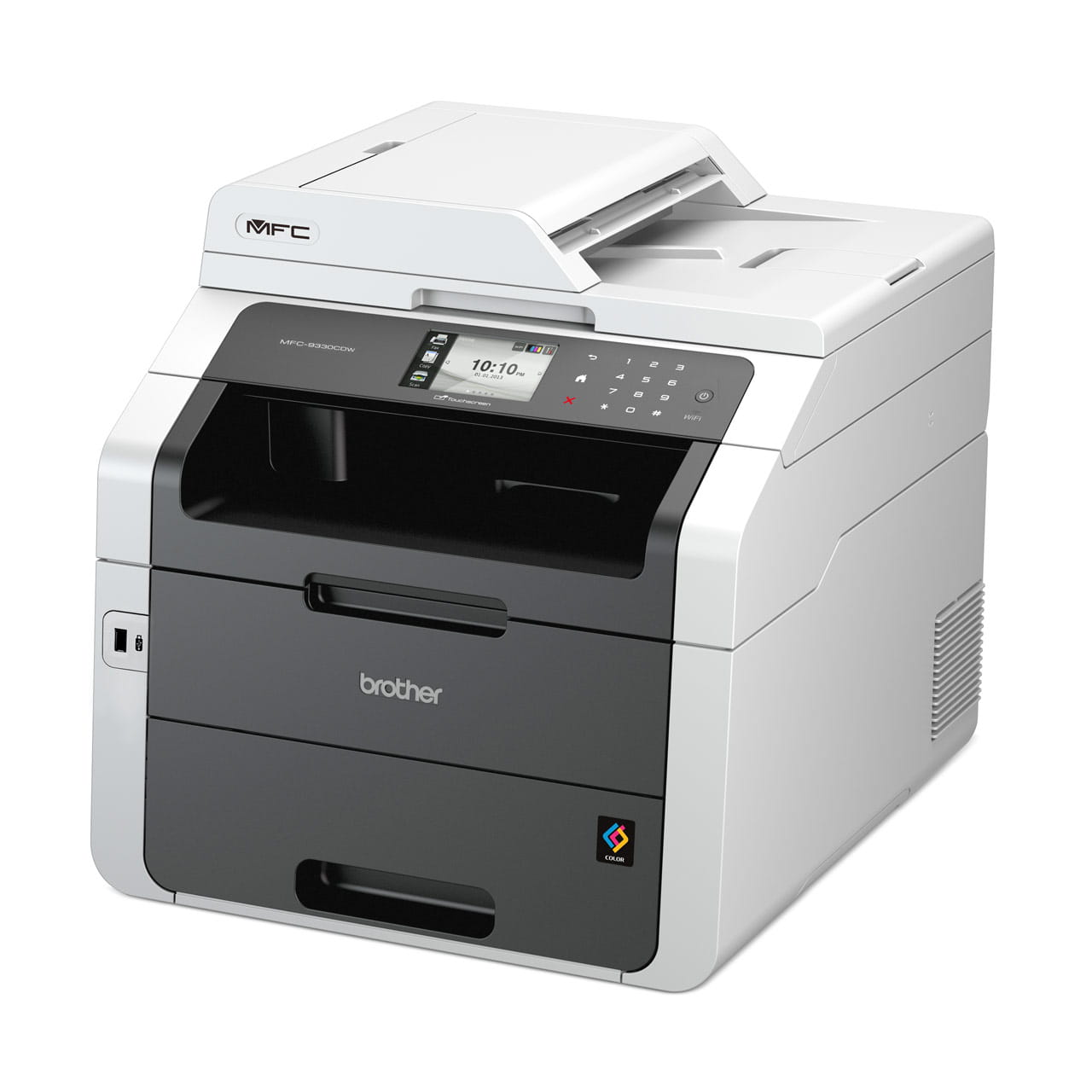

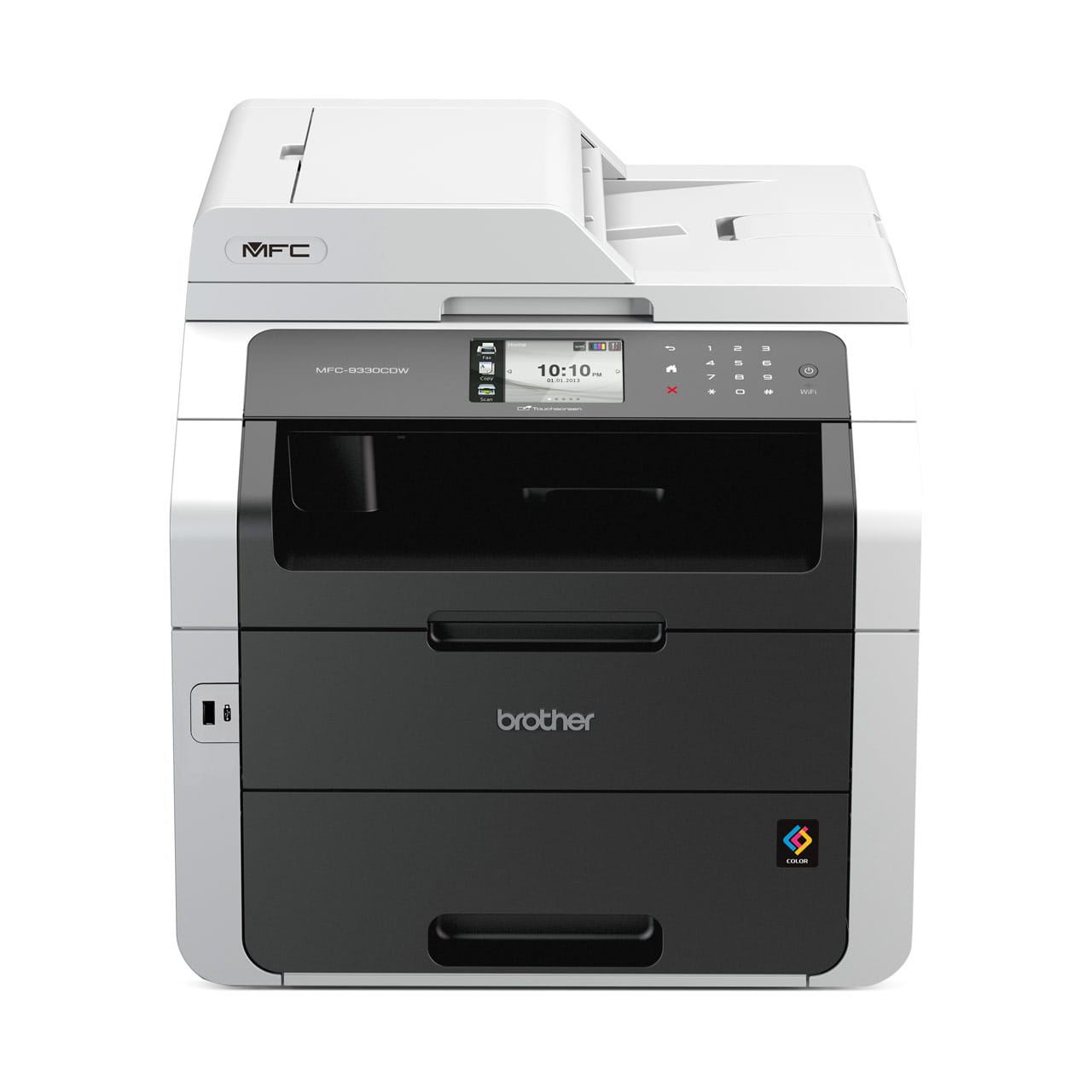

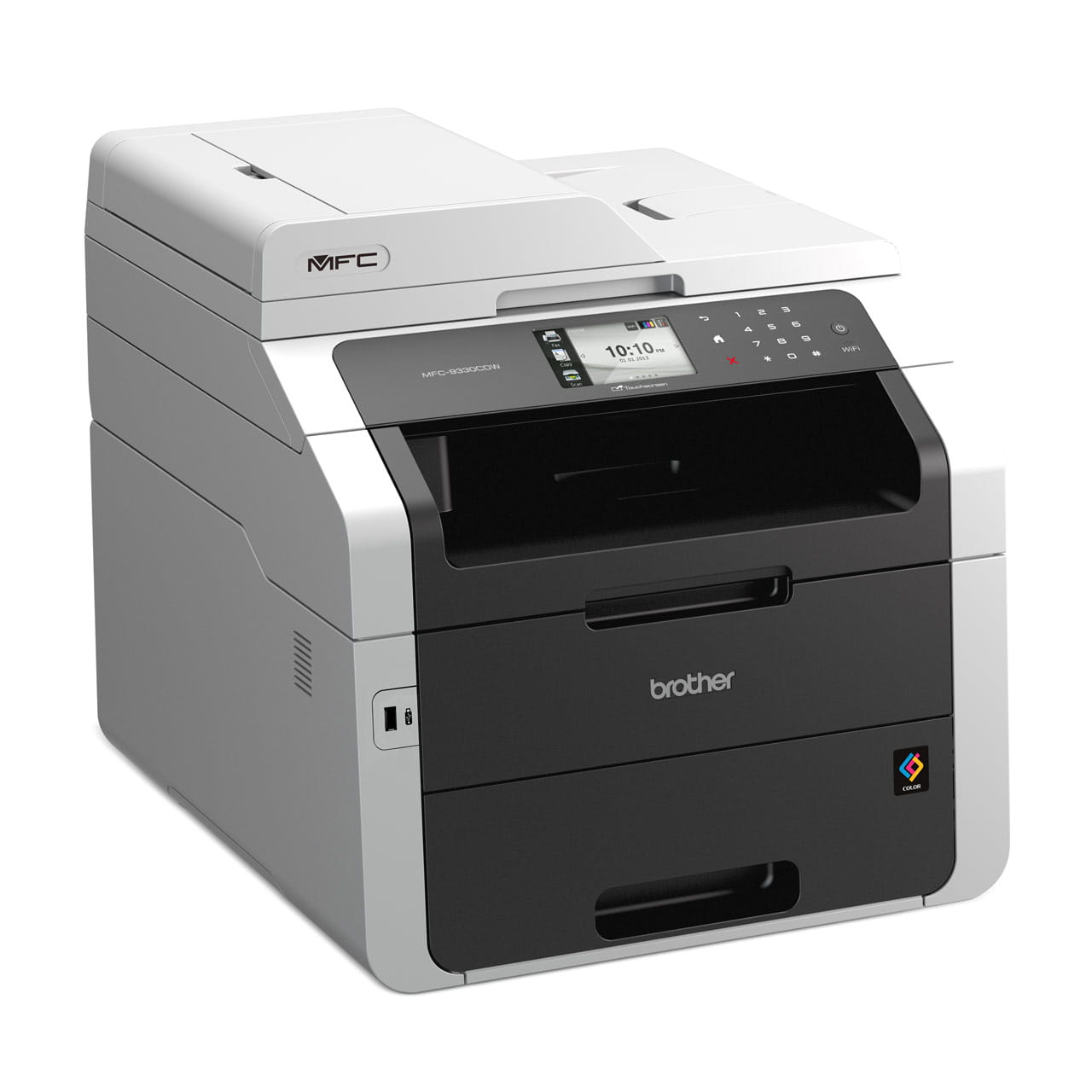

Colour LED Multi-Functional Centre
- High speed Colour Printing
- Wireless and Network Connectivity
- Automatic 2-sided printing
- 35 Sheets Auto Document Feeder
- Replaceable high-yield toners available
The MFC-9330CDW offers a wide range of features designed with you and your business in mind. Combined into a sleek, compact Multi-Function Centre with print speeds of up to 22ppm, wireless connectivity and 2-sided (duplex) printing, the MFC-9330CDW does it all with ease while also offering high-yield toner cartridges to help reduce your total printing costs.
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser
Product Dimensions (Width X Depth X Height)
410 mm × 483 mm × 410 mm
Weight
23.6 kg
Print Speed
Up to 22ppm
Paper Type
Paper Tray - Plain Paper, Thin Paper, Recycled Paper
Manual Feed Slot - Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond Paper, Label, Envelope, Env.Thin, Env.Thick, Glossy Paper
Paper Size
Paper Tray - A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Folio
Manual Feed Slot - Width: 76.2 to 215.9 mm | Length: 116.0 to 355.6 mm
Maximum Paper Capacity
Paper Tray - Up to 250 sheets of 80 gsm Plain Paper
Manual Feed Slot - One sheet at a time
Warranty
1 year Return to Base Warranty
Resolution
600 dpi x 600 dpi, 2400 dpi (600 dpi x 2400 dpi) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain Paper, Thin Paper, Recycled Paper
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm Plain Paper
Manual Feed Slot - Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond Paper, Label, Envelope, Env.Thin, Env.Thick, Glossy Paper
Manual Feed Slot - Maximum Paper Capacity
One sheet at a time
Paper Output
Up to 100 sheets of 80 gsm Plain paper (face-down delivery to the face-down output paper tray)
Copy
Multiple Copies
Stacks or Sorts up to 99 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19200 x 19200 dpi
Resolution - Scanner Glass
Up to 1200 x 2400 dpi (optical)
Resolution - Automatic Document Feeder (ADF)
Up to 1200 x 600 dpi (optical)
Fax
Compatibility
ITU-T Super Group 3
Modem Speed
33,600 bps (with Automatic Fallback)
Memory Transmission
Up to 500 pages
Out of Paper Reception
Up to 500 pages
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
3.7" Touch Screen LCD Panel
Memory Capacity
192 MB
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approx. 70 W at 25 °C
Power Consumption - Sleep
Approx. 8.5 W
Power Consumption - Power Off
Approx. 0.05 W
Noise Level
Lpam = 53.0 dB (A)
Supported Operating Systems
Supported OS
Windows 8 , Windows XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Windows Vista, Windows 7, Windows Server 2003 , Windows Server 2003 x64 Edition, Windows Server 2008, Windows Server 2008 R2 (Network Only), Windows Server 2012
Mac OS® X 10.6.8, 10.7.x and 10.8.x
Software and Apps
Mobile Apps
21/12/2023
iPrint&Scan, Support Center, Print Service Plugin
