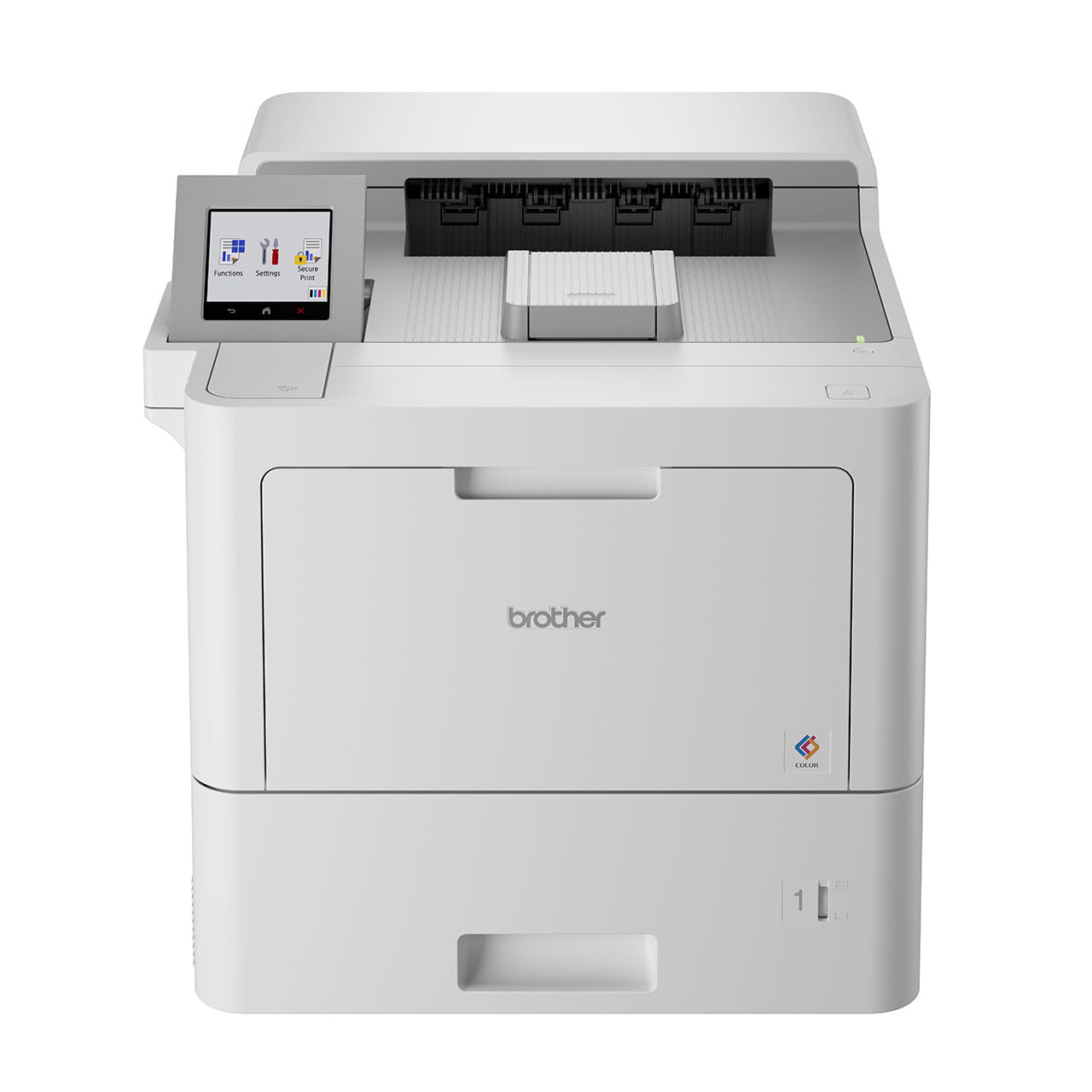

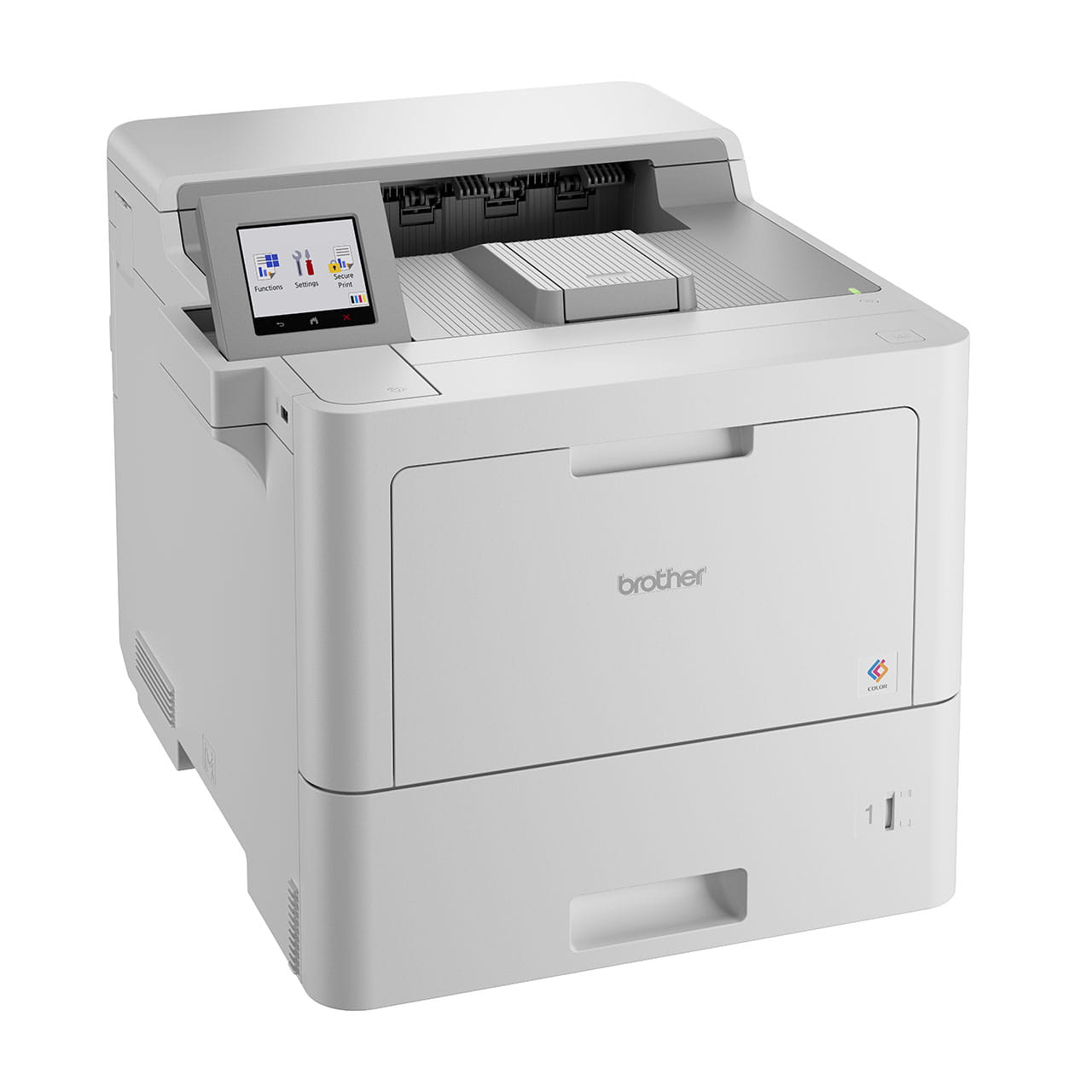

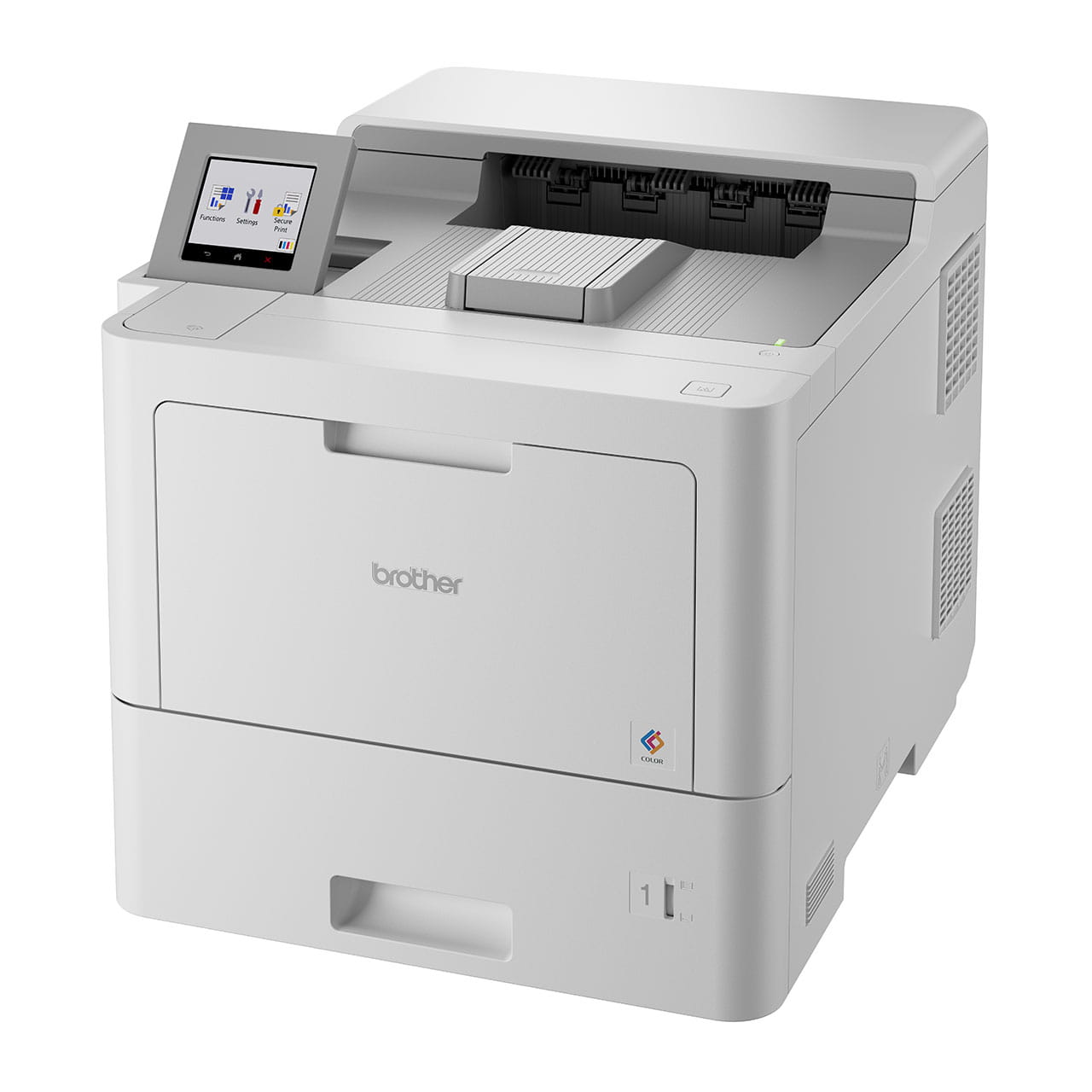

Professional Colour Laser Printer
- Automatic 2-sided (Duplex) Print (Up to 20ppm)
- Wireless and Wired Connectivity (Gigibit Ethernet)
- High-yield Toners In-box (Up to 12,000 pages black and 9,000 colour)
- Paper capacity 520-Sheets (Standard) and up to 2,700 pages (Optional)
- NFC as standard for secure authentication and mobile printing
Information
Overview

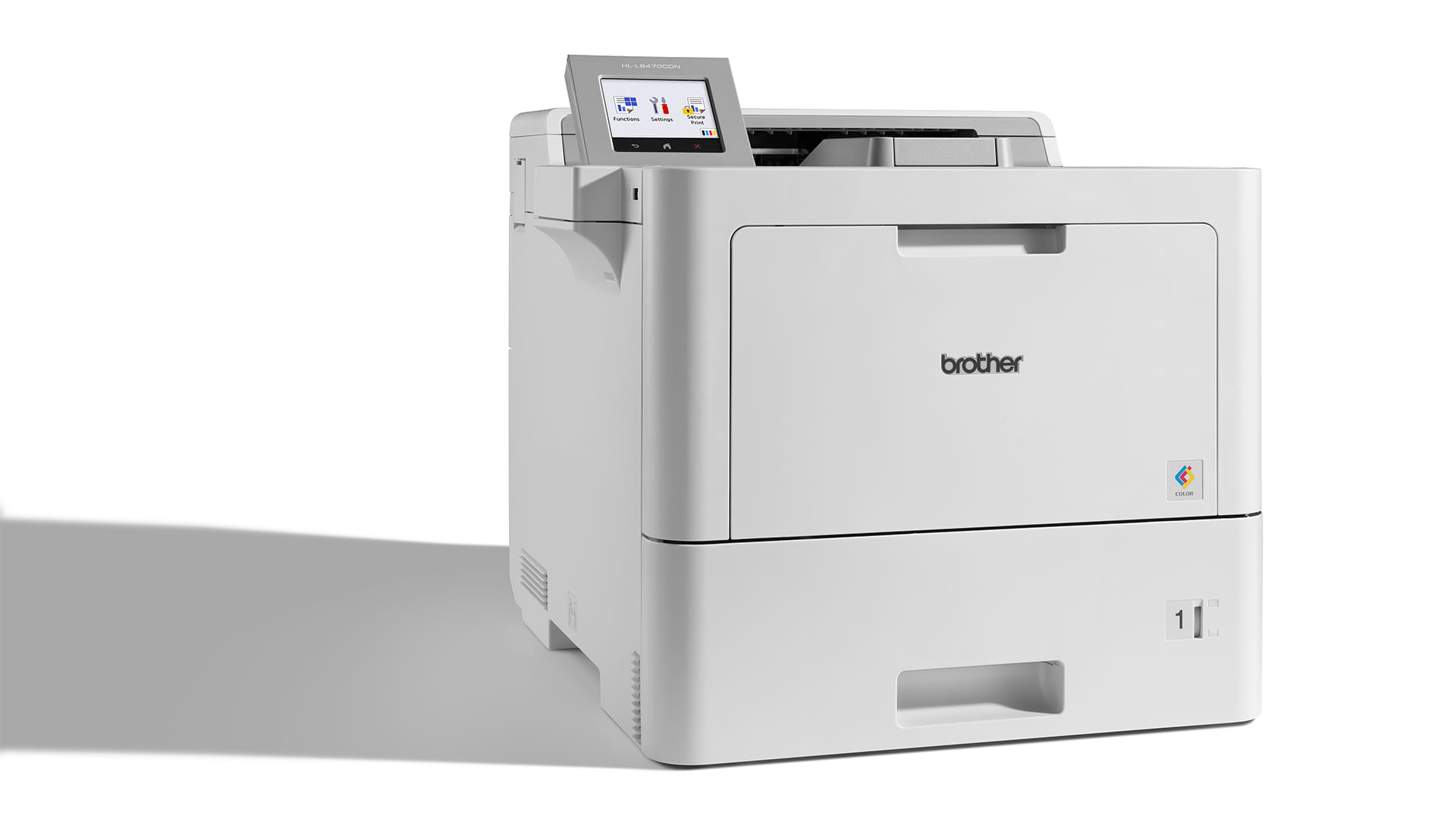

Make the right impression when it counts

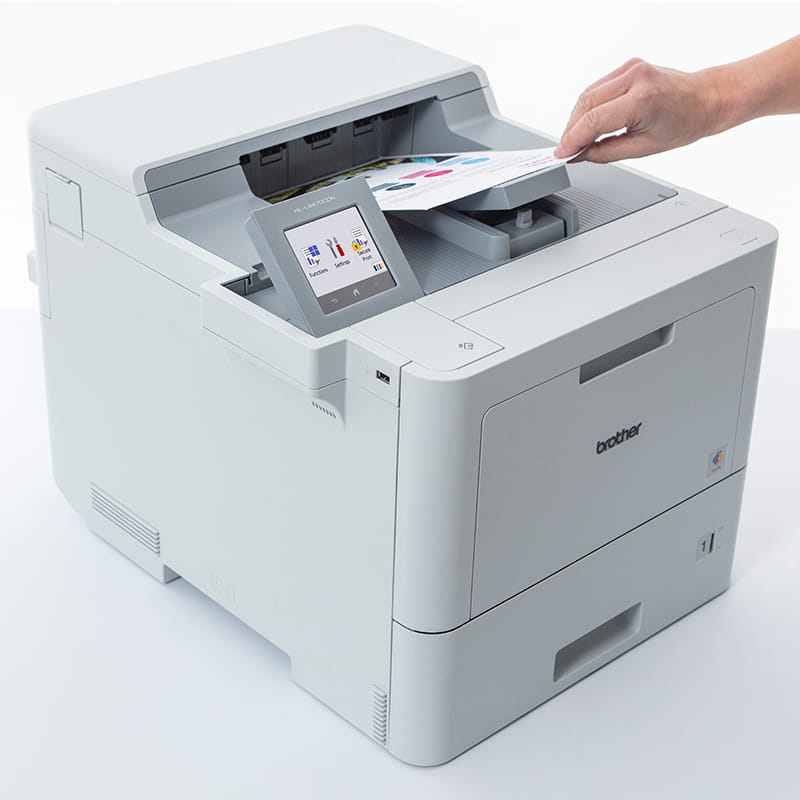

Experience vibrant, professional colour prints, fast print speeds of up to 40ppm and a robust design that makes this printer the perfect choice for businesses
Complete customisation
Automate complex workflows at the touch of a button and integrate third-party software for a tailored print management system
Designed to print for longer
The robust design allows you to produce quality outputs consistently with components that have double the service life including the belt, engine, and drum unit
Flexible connectivity options

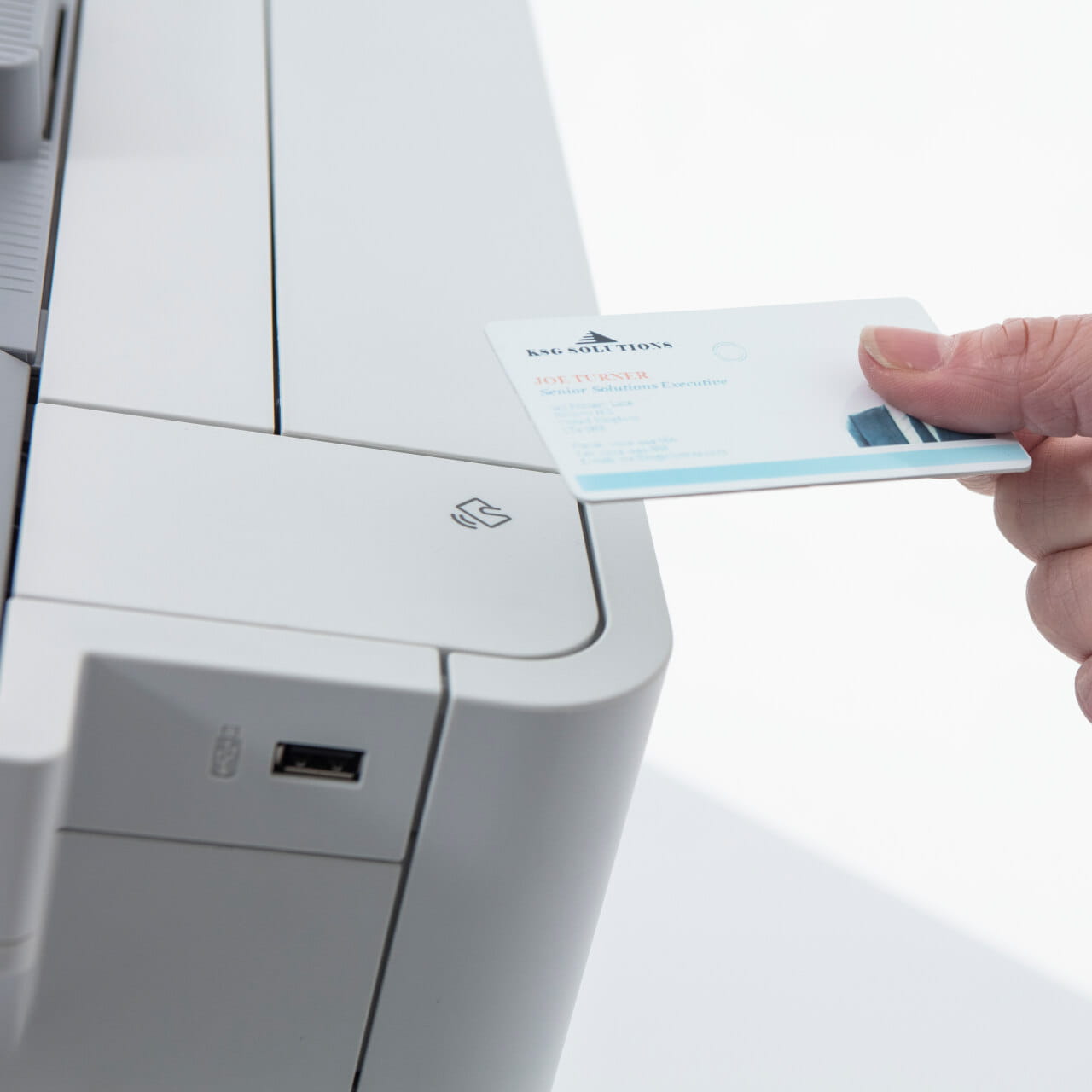

Connect your way with gigabit network and NFC as standard for secure authentication and mobile printing

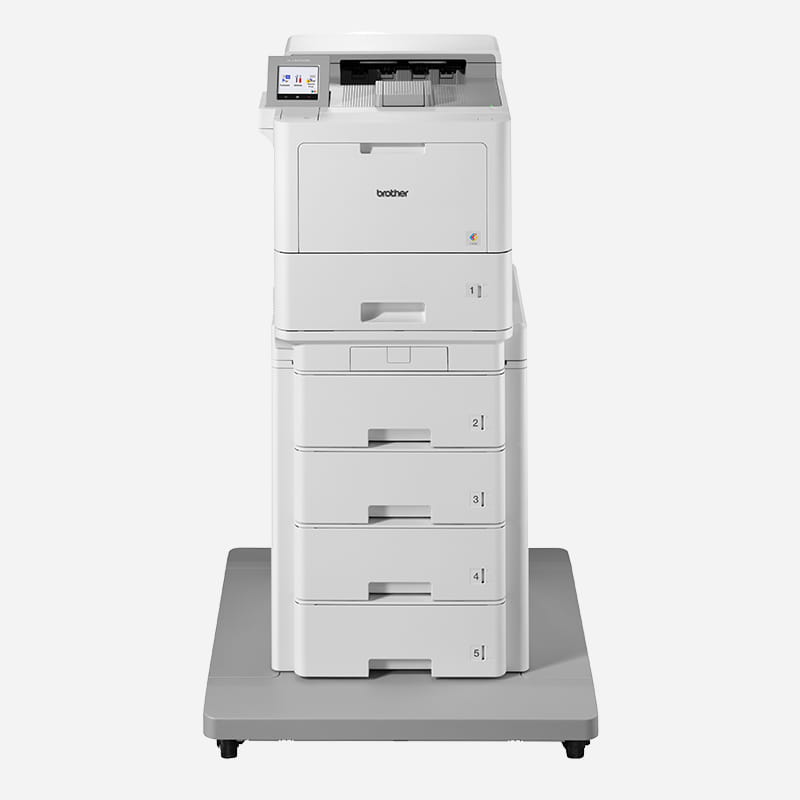

Impressive scalability
Engineered to fit into your workspace, the HL-L9470CDN can be transformed from a desktop device to a highly efficient, floor-standing model
At your side support
Wherever you are in Australia, Brother offers free customer care for the lifetime of your product

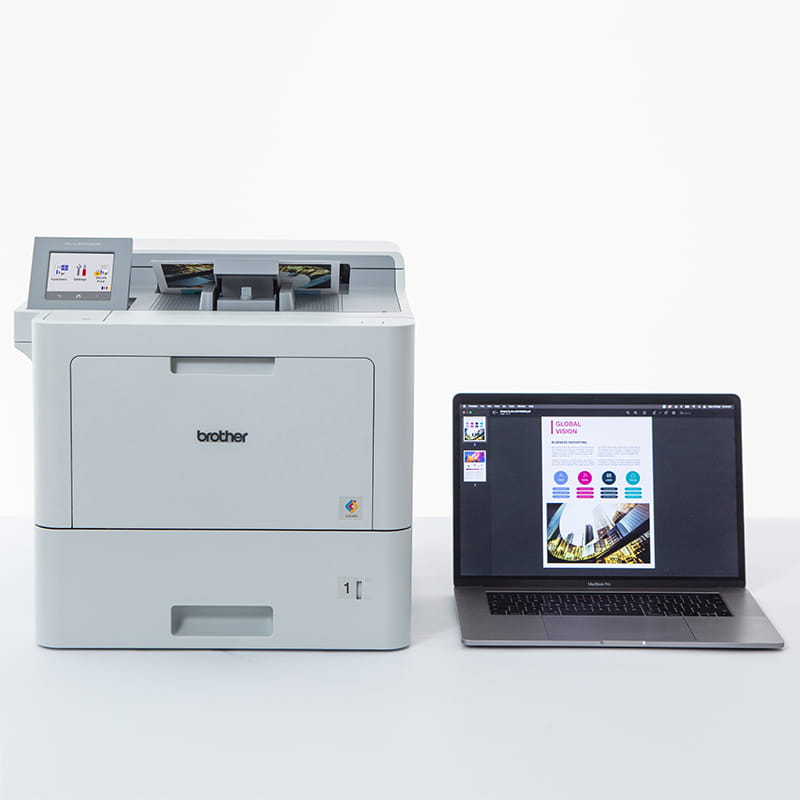

Designed for workgroups
Built-in cloud apps help your team share documents by directly digitising to OneDrive, Google Drive or Dropbox
Our user interface is designed for teams - users can personalise a tab for each team member for quick and easy access to frequently used features
Flexible connectivity options
Connect your way with gigabit network and NFC as standard for secure authentication and mobile printing
Take advantage of the optional 2.4/5GHz Wi-Fi module for added convenience

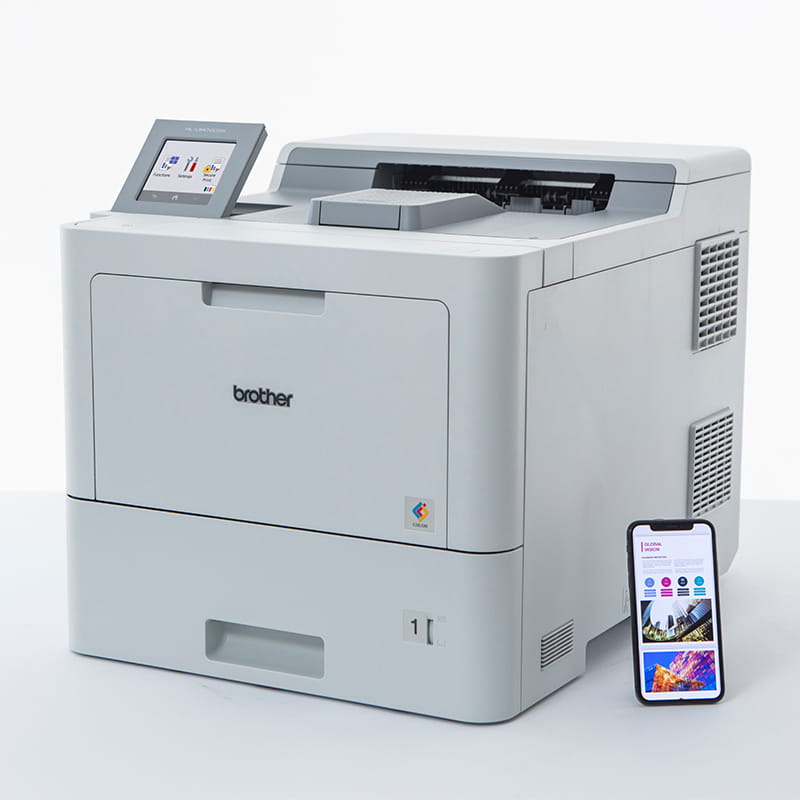

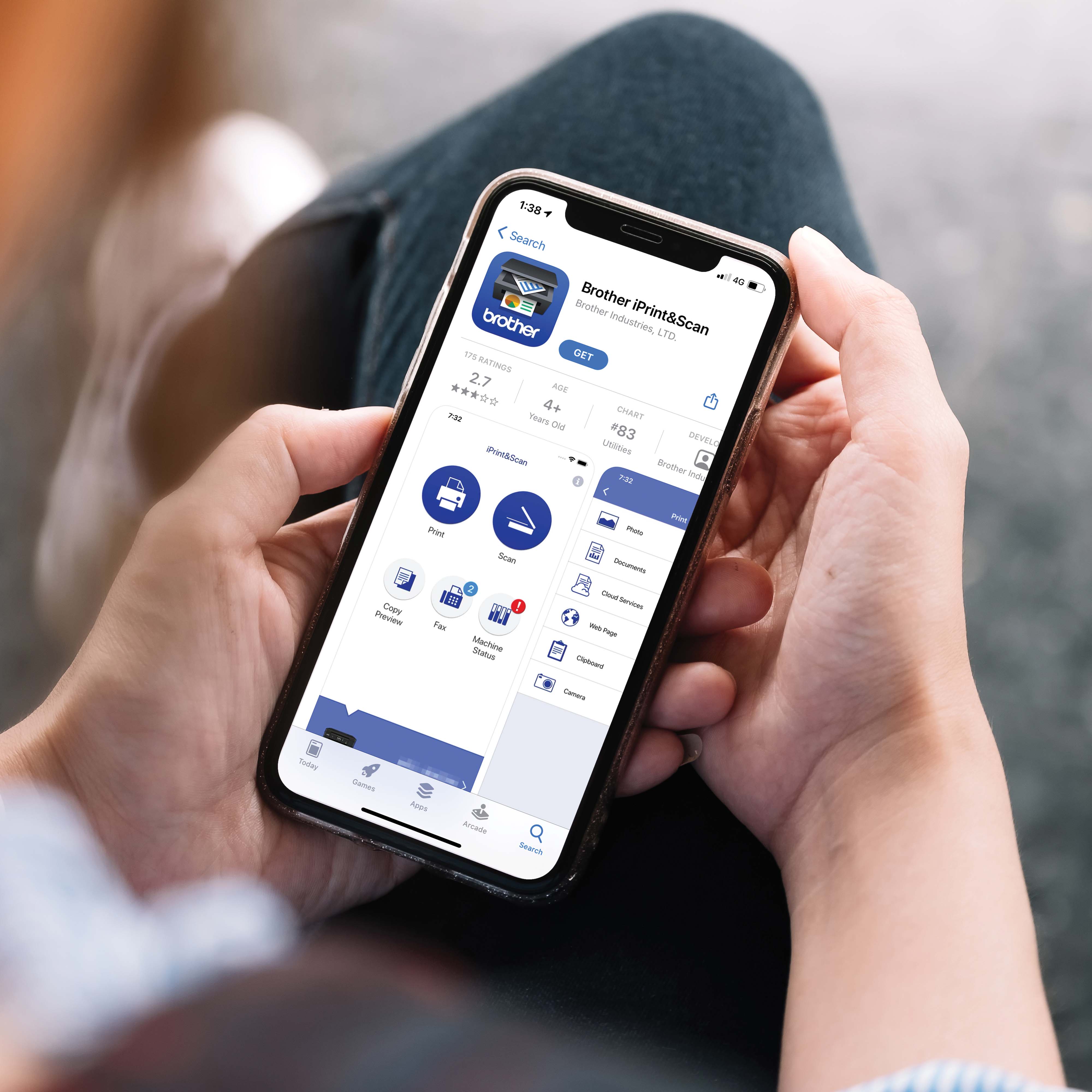

Free mobile apps
Brother mobile apps for Android & iOS provide the flexibilty of printing directly from your smartphone
Includes Apple Airprint support so you can simply connect and print without the hassle of installations
Specifications
Basic Specs
Functions
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
442 mm × 541 mm × 403 mm
Weight
29.2 kg
Print Speed
Up to 40 ppm (A4)
Up to 42 ppm (Letter)
Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper
Paper Size
A4, Letter, B5(JIS), B5(ISO), A5, A5(Long Edge), B6(JIS), A6, Executive, Legal, Mexico Legal, India Legal, A4 Short (270mm Paper), Folio, 16K
Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Warranty
3 years Return to Base Warranty
Resolution
Up to 600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Glossy Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, A4 Short, Folio
Paper handling

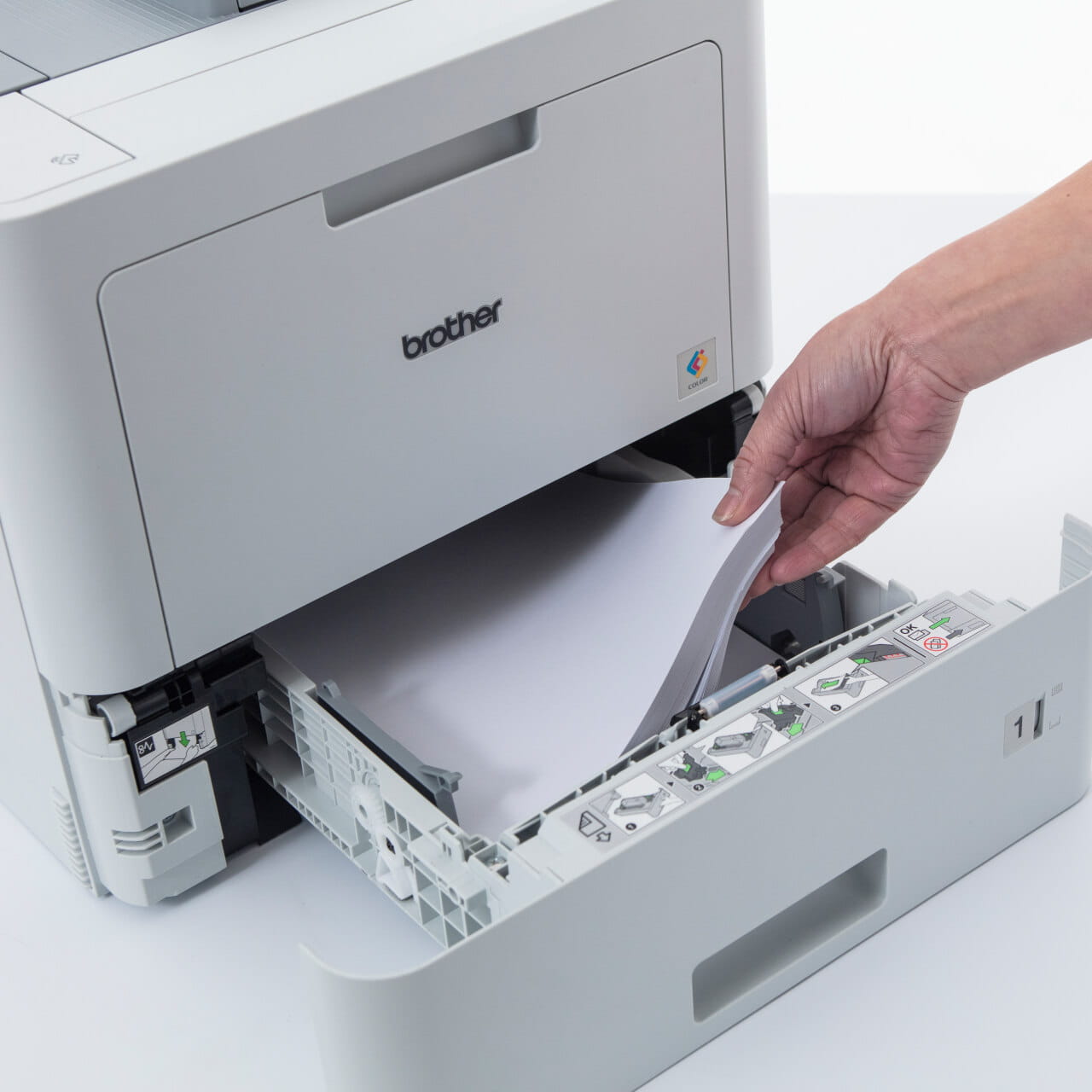

Tray #1 - Paper Type
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80gsm plain paper
Tray #2 - Paper Type
A4, Letter, B5 (JIS), A5, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Capacity
LT-330CL: Up to 250 sheets of 80 gsm plain paper
LT-340CL: Up to 500 sheetsof 80 gsm plain paper
Multi-purpose Tray - Paper Type
Width: 76.2 to 215.9 mm
Length: 127 to 355.6 mm
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Envelope; 15 envelopes
Paper Output
Up to 250 Sheets of 80 gsm plain paper (face down delivery to the face down output paper tray)
Up to 1 sheet (face up delivery to the face up output tray)
Connectivity
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes

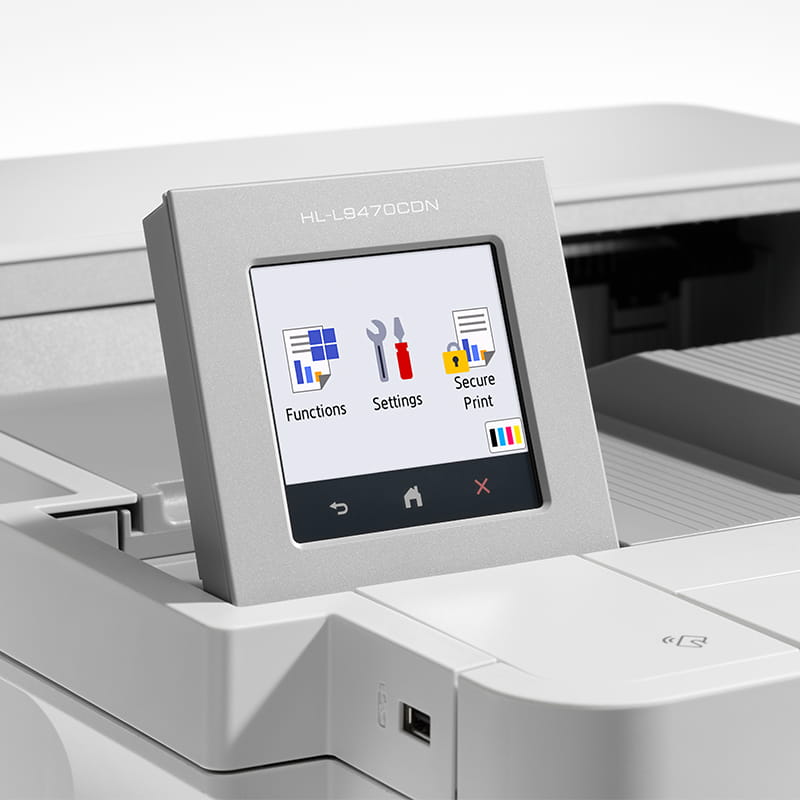

Display & Memory

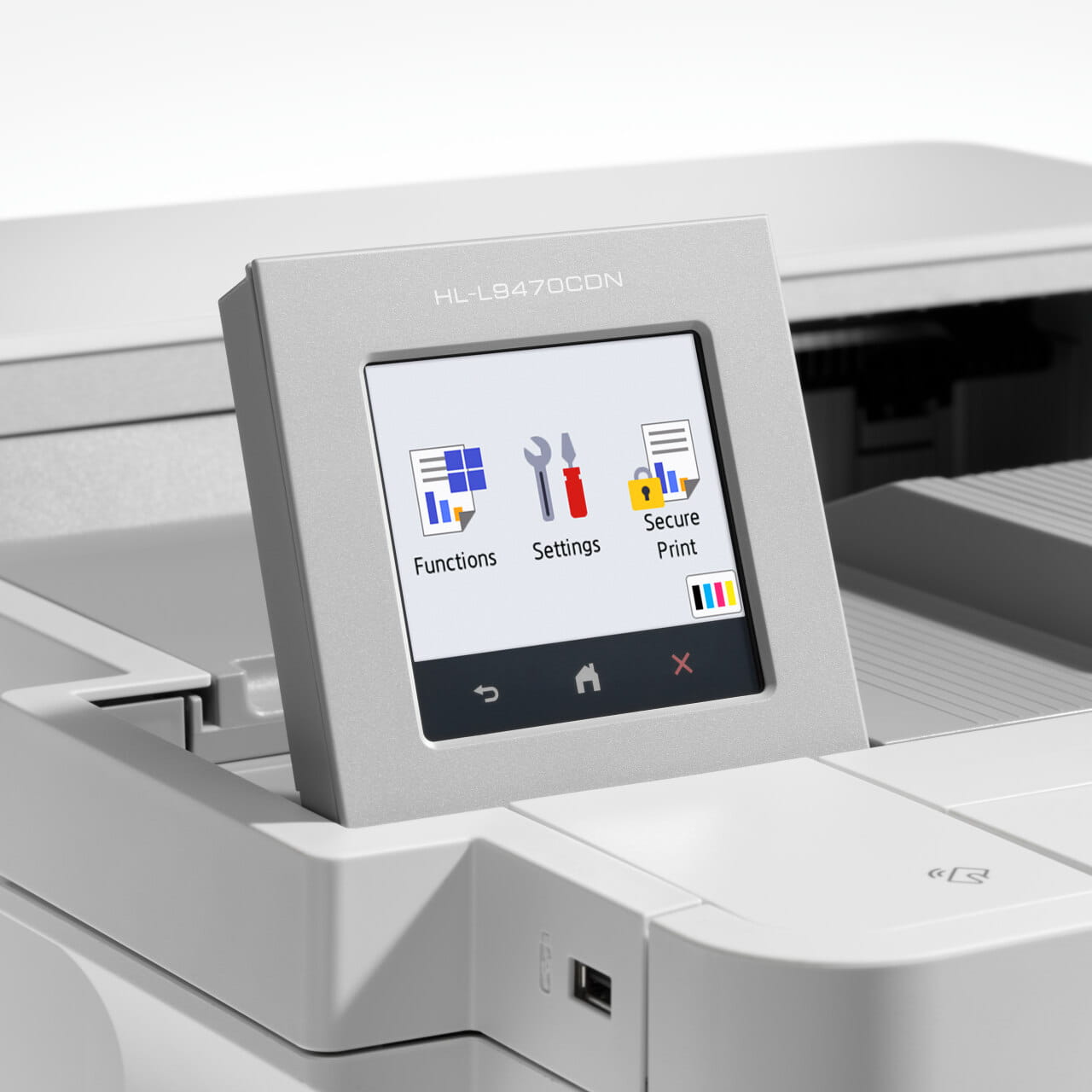

Display Type
7.25 x 6.87 cm (2.85" x 2.70") Colour Touchscreen LCD
Memory Capacity
1 GB
Operation
Power Source
220 V to 240 V AC 50/60 Hz
Power Consumption - Ready
Approximately 85 W at 25°C
Power Consumption - Sleep
Approximately 15.6 W
Power Consumption - Power Off
Approximately 0.04 W
Noise Level
56. 5dB (A)
Supported Operating Systems
Supported OS
Windows® Server 2008, Server 2008 R2, 7, 8.1, Server 2012, Server 2012 R2, 10, Server 2016, Server 2019
Software and Apps
Mobile Apps
21/12/2023
Support Center, Print Service Plugin, Mobile Connect
