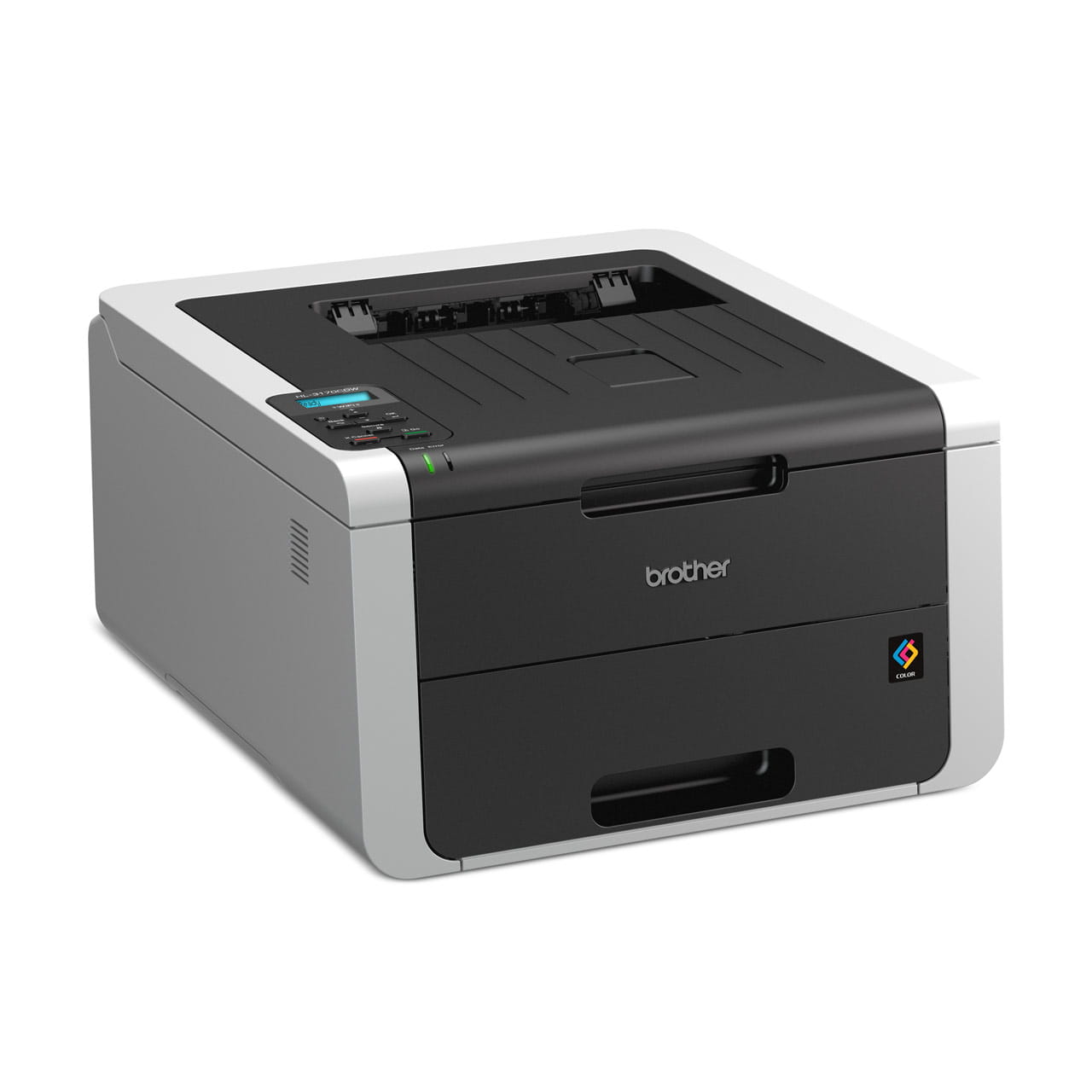

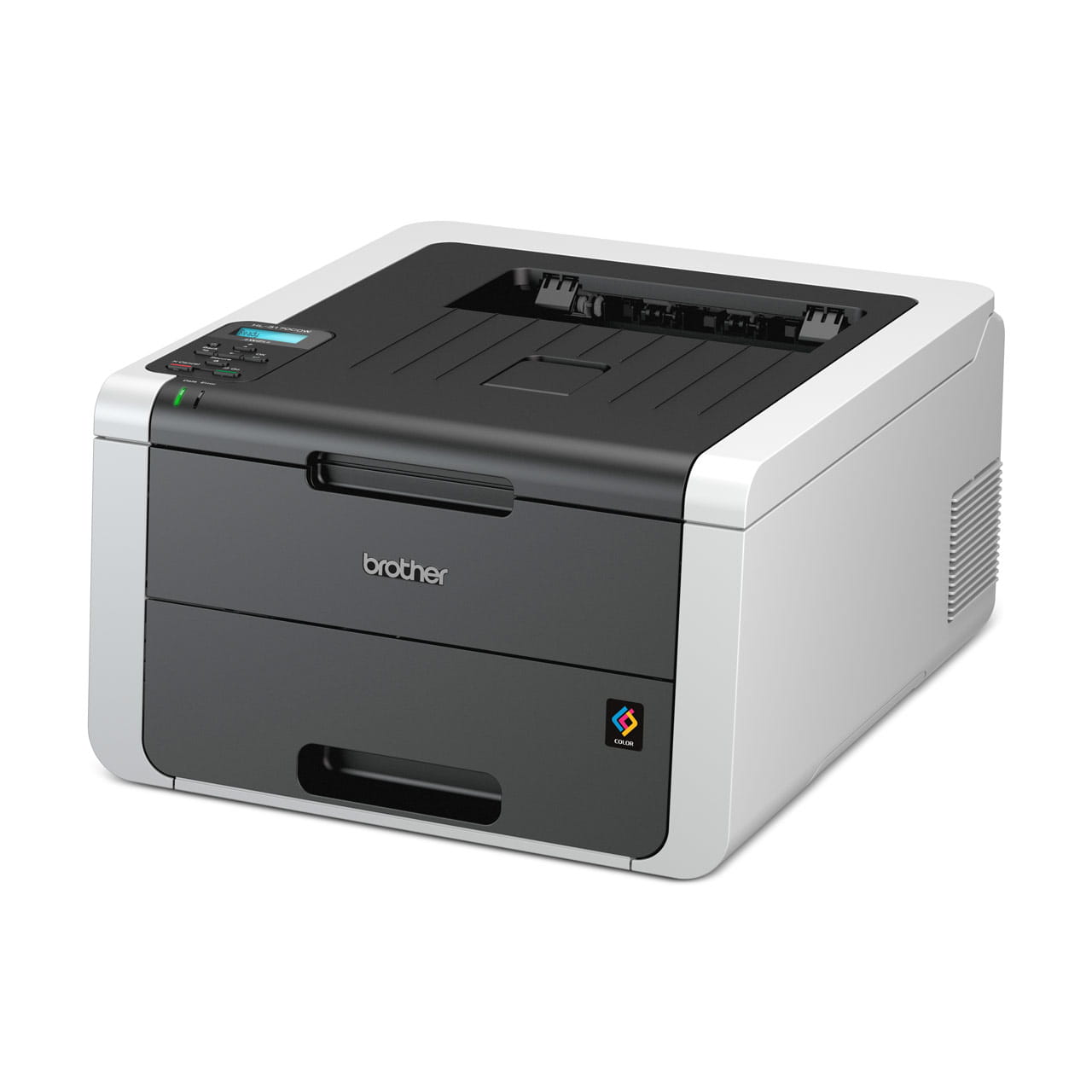

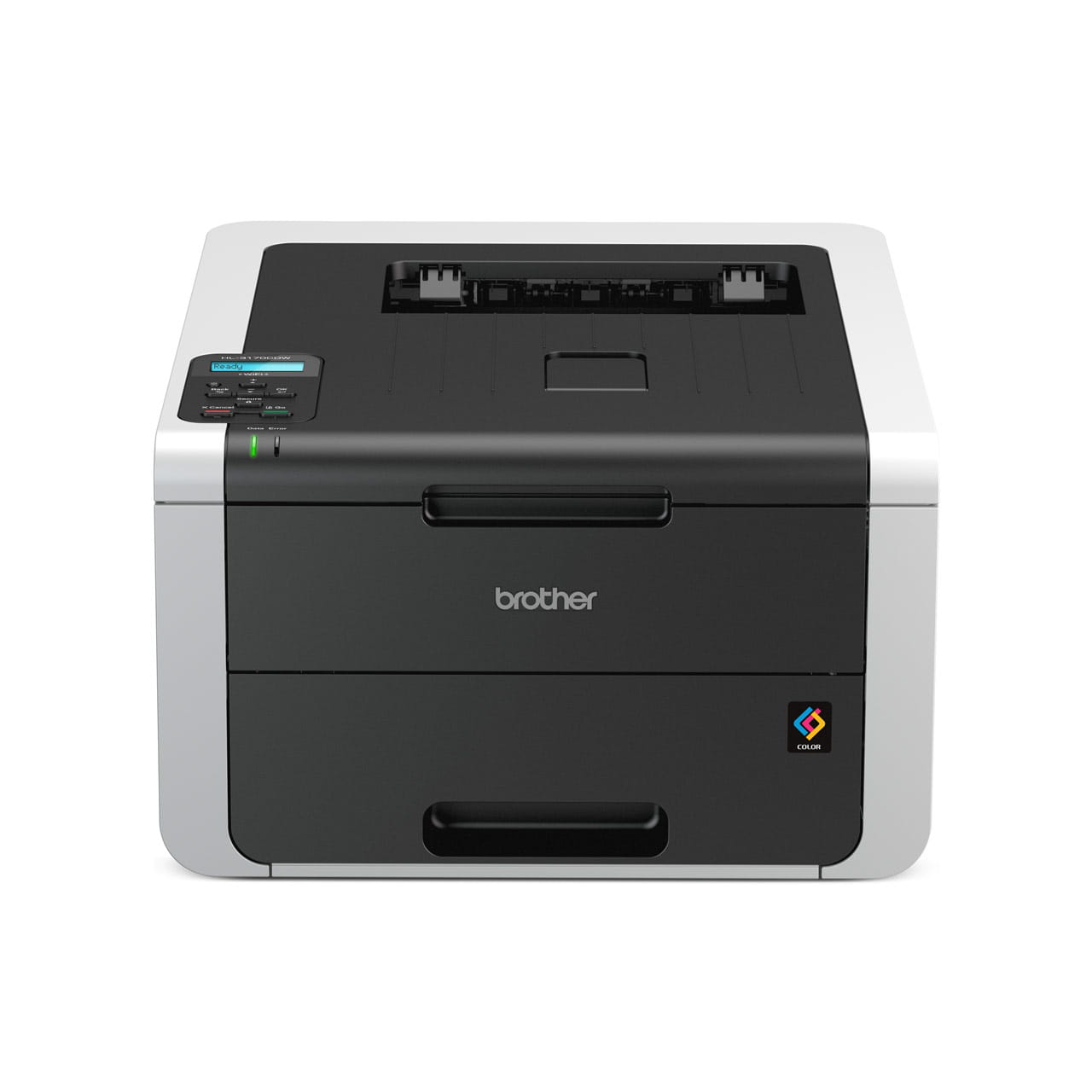

HL-3170CDW Printer
Discontinued Product
Discontinued Product
Discontinued Product
Colour LED Printer with automatic 2-sided printing and wireless connectivity
- High Speed Color Printing
- Wireless and Network Connectivity
- Automatic 2-sided Printing
- Replaceable high-yield toners available
Packed with new technology, the HL-3170CDW offers a wide range of features designed with you and your business in mind. Combined into a sleek, compact machine perfect for your office space, the HL-3170CDW offers high quality prints of up to 22 pages per minute, 2-sided (duplex) printing and wireless connectivity making it the perfect addition to any busy home office.
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Laser
Product Dimensions (Width X Depth X Height)
410 mm × 465 mm × 240 mm
Weight
18.4 kg
Print Speed
Up to 22ppm
Paper Type
Paper Tray (Standard) - Plain paper, recycled paper
Manual feed slot - Plain paper, Thin paper, Thick paper, Thicker paper, Recycled paper, Bond paper, Label, Envelope, Env.Thin, Env.Thick, Glossy Paper
Paper Size
Paper Tray (Standard) - A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Folio
Manual feed slot - Width: 76.2 to 216 mm | Length: 116 to 355.6 mm
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Warranty
1 year Return to Base Warranty
Resolution
Up to 600 x 600 dpi, 2400 x 600 dpi
2-Sided (Duplex) - Printing Paper Type
Plain paper, Thin paper, Recycled paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain paper, Thin paper, Recycled paper
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Paper Type
Plain paper, Thin paper, Thick paper, Thicker paper, Recycled paper, Bond paper, Label, Envelope, Env.Thin, Env.Thick, Glossy Paper
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
16 characters x 1 line
Memory Capacity
128 MB
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approx. 60 W at 25 °C
Power Consumption - Sleep
Approx. 6.5 W
Power Consumption - Power Off
Approx. 0.05 W
Noise Level
Lpam = 53.0 dB (A)
Supported Operating Systems
Supported OS
Windows 8 , Windows XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Windows Vista, Windows 7, Windows Server 2003 , Windows Server 2003 x64 Edition, Windows Server 2008, Windows Server 2008 R2 (Network Only), Windows Server 2012
Mac OS® X 10.6.8, 10.7.x and 10.8.x
Software and Apps
Mobile Apps
21/12/2023
iPrint&Scan, Support Center, Print Service Plugin
