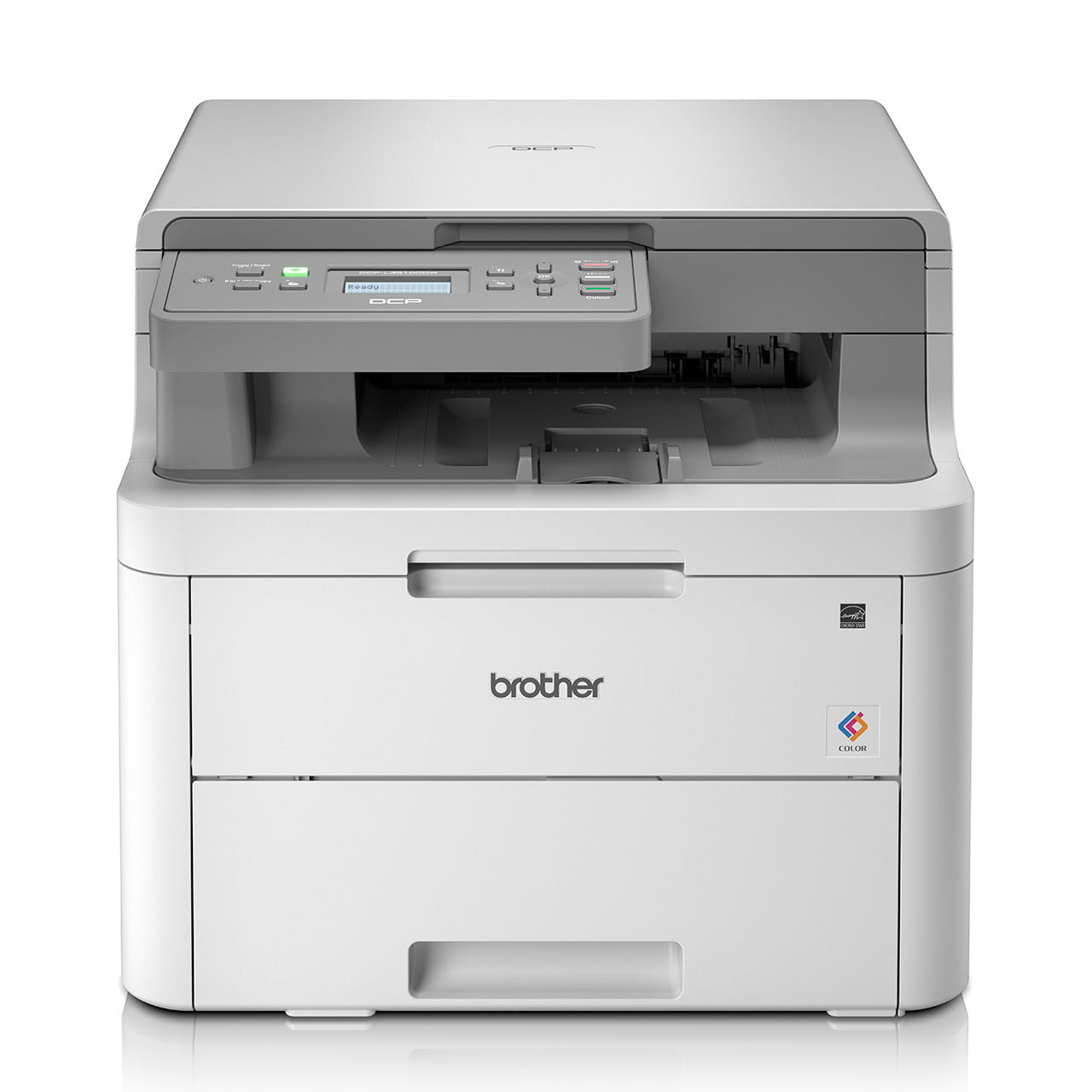

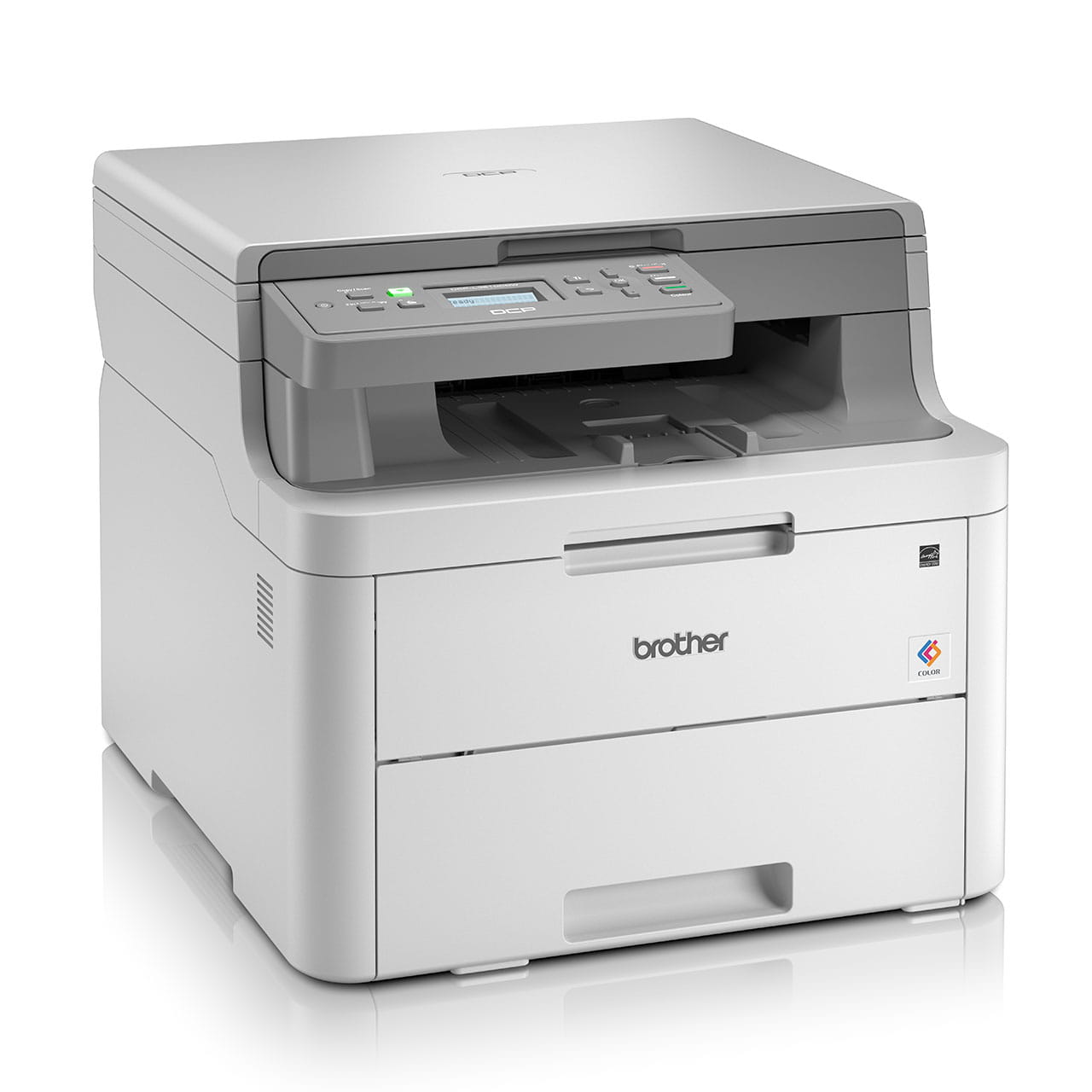

DCP-L3510CDW Colour Laser Multi-Function Printer
Colour LED Multi-Function Centre
- Up to 18 ppm (Colour & Monochrome)
- Wireless & WiFi Direct
- Automatic 2-sided (Duplex) Print
- Replaceable high-yield toners available
Exclusively available from:
Brother’s DCP-L3510CDW provides the best value and highest LED laser quality to small businesses. This printer/copier/scanner provides 2400dpi print quality by default delivering professional laser quality prints out of the box without the hassles of configuration. Along with a wide range of connectivity options so you can quickly and efficiently print and scan from your preferred devices and built with the same robust quality that has earned Brother continuous awards for reliability, you have an economical device that will maximise productivity, deliver professional quality prints and designed to go the distance.
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Colour LED
Product Dimensions (Width X Depth X Height)
410 mm × 475 mm × 368 mm
Weight
10.3 kg
Print Speed
Up to 18ppm
Maximum Paper Capacity
Up to 250 sheets
Warranty
1 year Return to Base Warranty
Resolution
2,400dpi (2,400 x 600) default
Borderless
N/A
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
Tray #1 - Maximum Paper Capacity
Up to 250 sheets
Tray #2 - Paper Type
N/A
Tray #2 - Maximum Paper Capacity
N/A
Multi-purpose Tray - Paper Type
N/A
Multi-purpose Tray - Maximum Paper Capacity
N/A
Manual Feed Slot - Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
Manual Feed Slot - Maximum Paper Capacity
1 sheet
Paper Output
Up to 150 sheets Face Down
Copy
Colour / Monochrome
Yes
Yes
Multiple Copies
Yes
Enlarge/ Reduce
25% - 400% in 1% increments
Resolution
Up to 600 dpi x 600 dpi
2-Sided (Duplex) - Paper Size
N/A
Scan
Resolution - Interpolated
Up to 19,200 dpi x 19,200 dpi (interpolated)
Resolution - Scanner Glass
Up to 1,200 dpi x 2,400 dpi (optical)
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi (optical)
Fax
Compatibility
N/A
Modem Speed
N/A
Memory Transmission
N/A
Out of Paper Reception
N/A
PC Fax - Sending
N/A
PC Fax - Receiving
N/A
Connectivity
Connectivity
Hi-SpeedUSB2.0, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
LED 16 characters x 2 lines
Memory Capacity
512 MB
Operation
Power Source
AC 220 to 240V 50/60Hz
Power Consumption - Ready
Approx. 80 W
Power Consumption - Sleep
Approx. 9.7 W
Power Consumption - Power Off
Approx.0.04 W
Noise Level
47 dB (A) (Approx.)
Supported Operating Systems
Supported OS
Windows 7, Windows 8 , Windows 8.1 , Windows 10, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac OS X 10.11.6 or greater
Linux
Software and Apps
Mobile Apps
21/12/2023
iPrint&Scan, Support Center, Print Service Plugin
