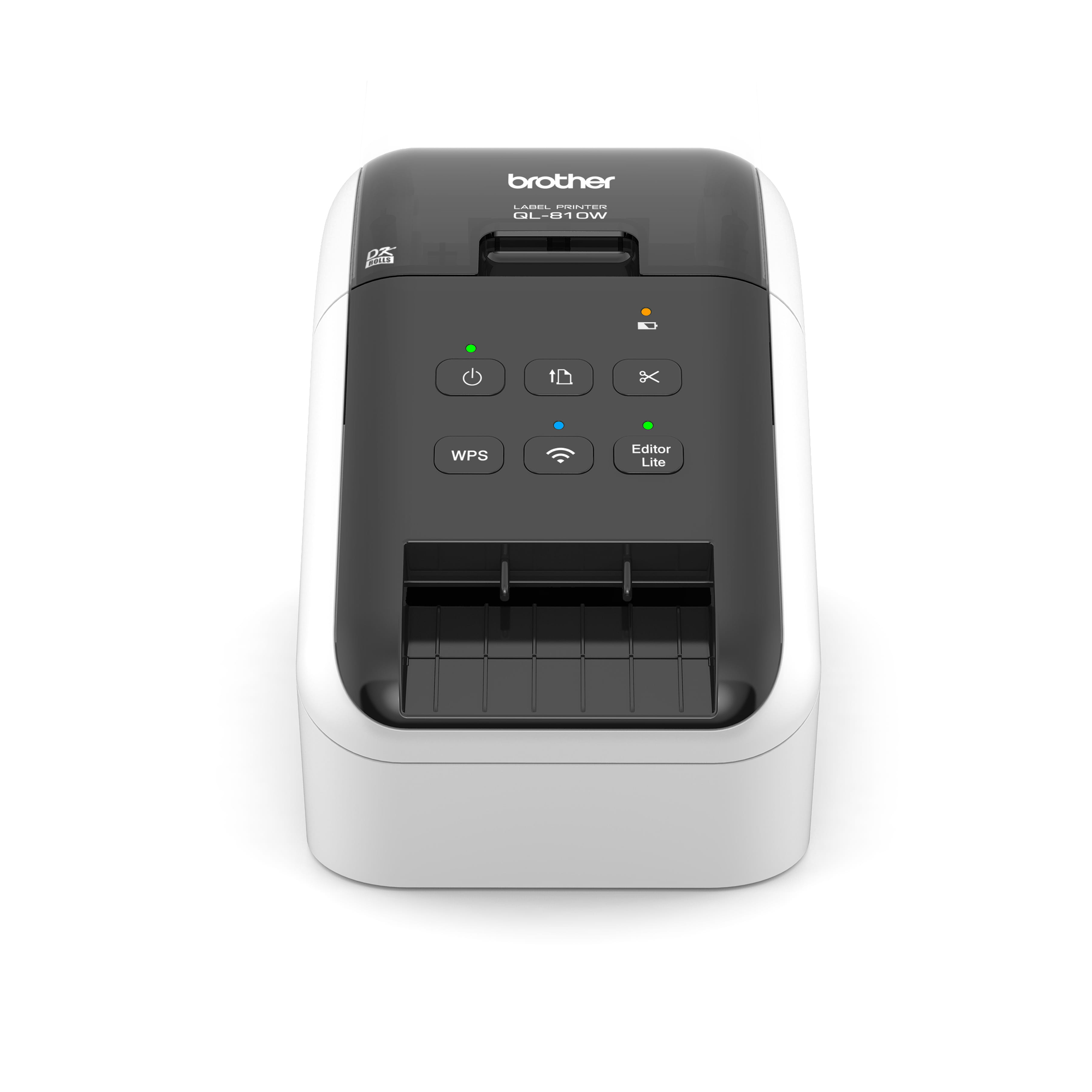

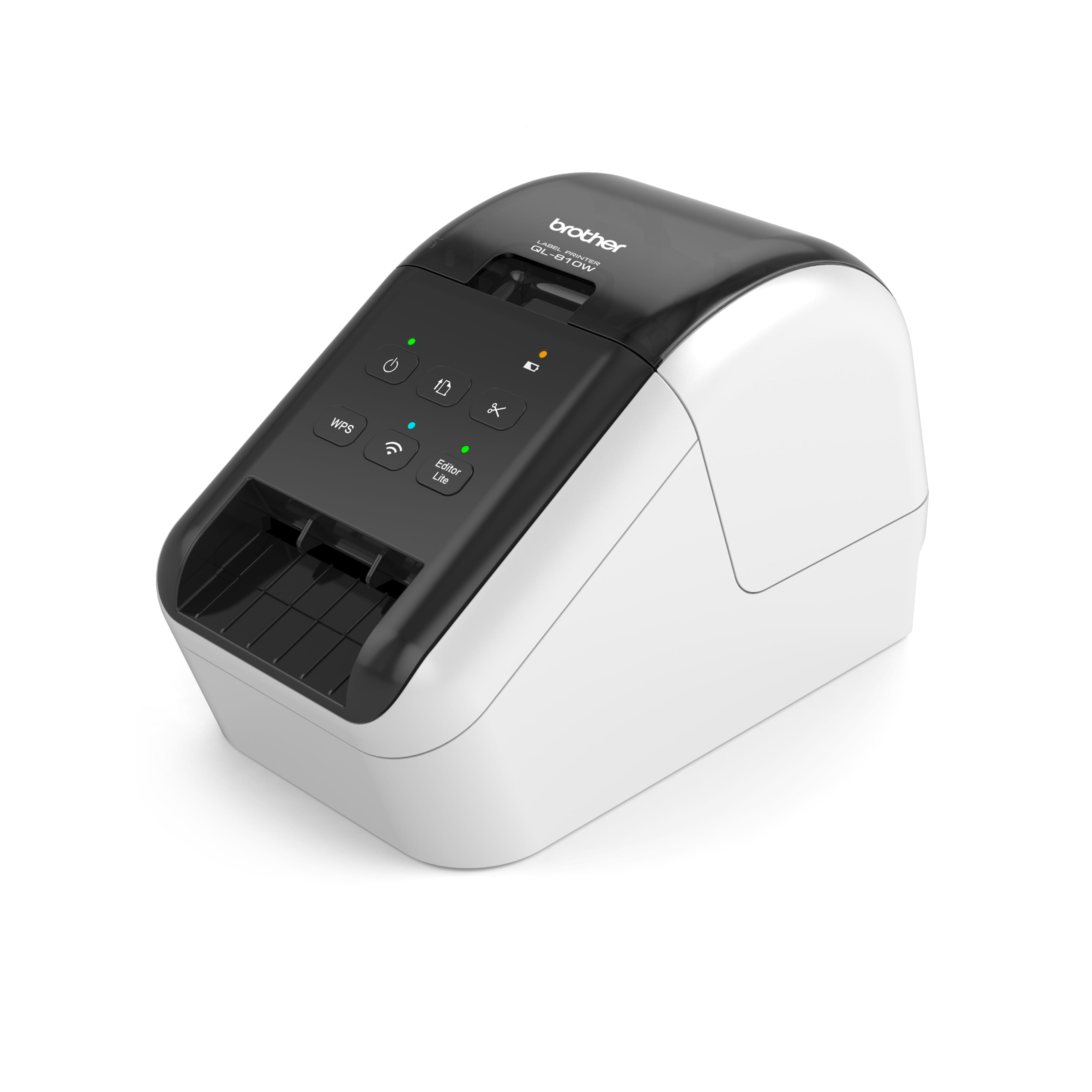

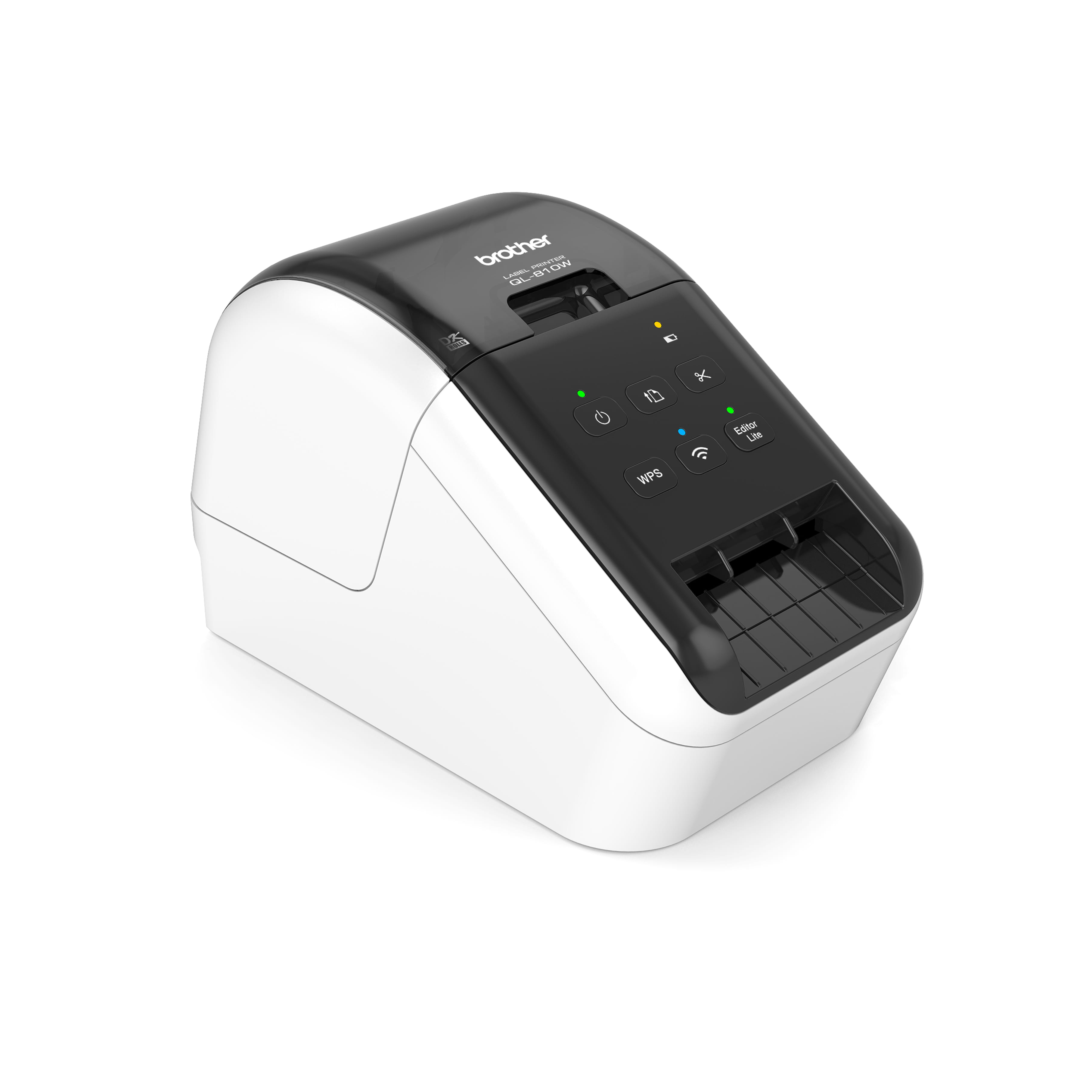

High Speed Professional Wireless Label Printer
$249.00
- High-resolution printing (up to 300 x 600 dpi)

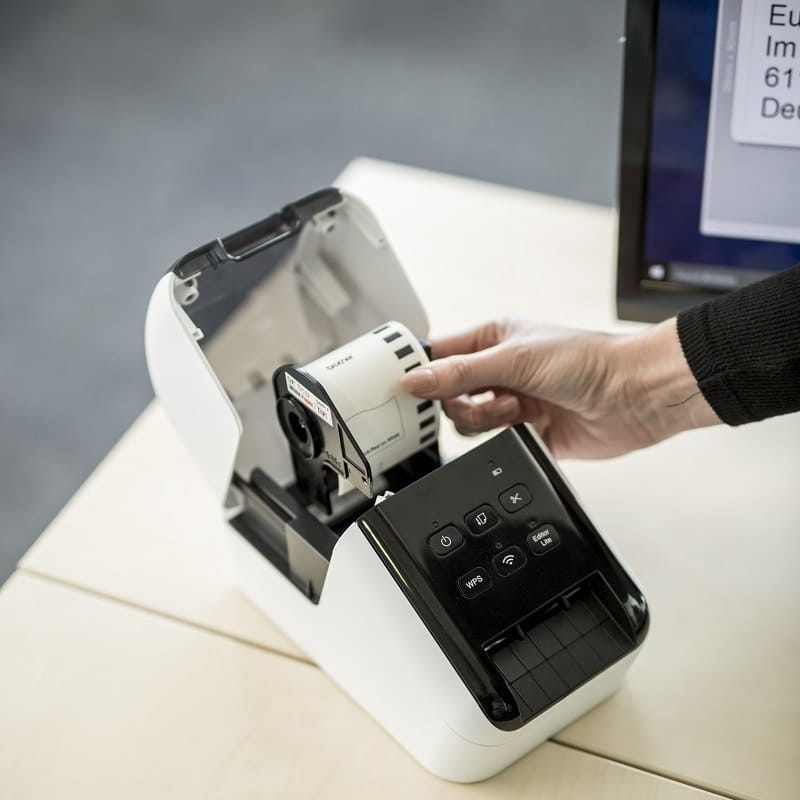

- Convenient, drop-in rolls. No ink or toner needed
- Print labels in both red and black text**
- Software Development Kits available for Microsoft Windows, iOS and Android devices to add label printing to your own solutions
- Remote template update via FTP
- Software Development Kits (SDKs) for Windows, iOS and Android
Information
Overview
Speedy Printing
High speed printing of up to 110 labels per minute

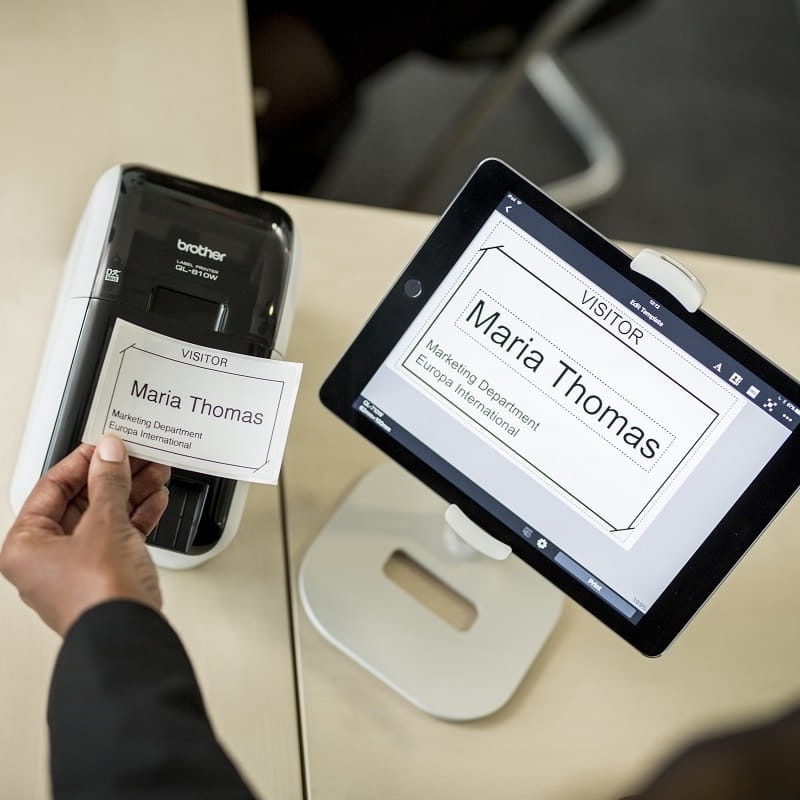

Stay Connected
Wide range of connectivity options, with PC, Mac, iOS and Android compatibility

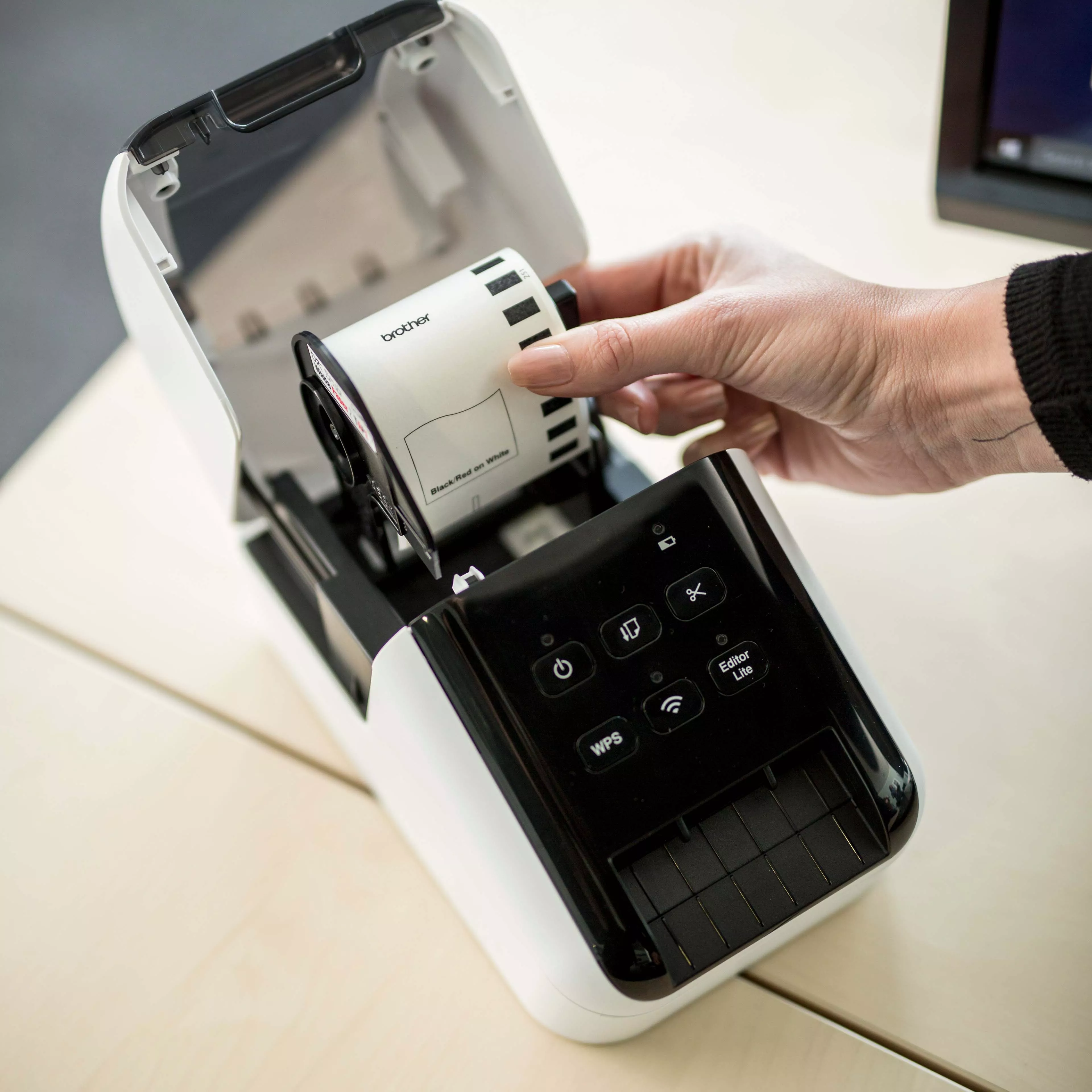

Various Label Options
Choose from a variety of die-cut or continuous labels and use the built-in cutter to trim your label to the precise length needed (up to one metre)

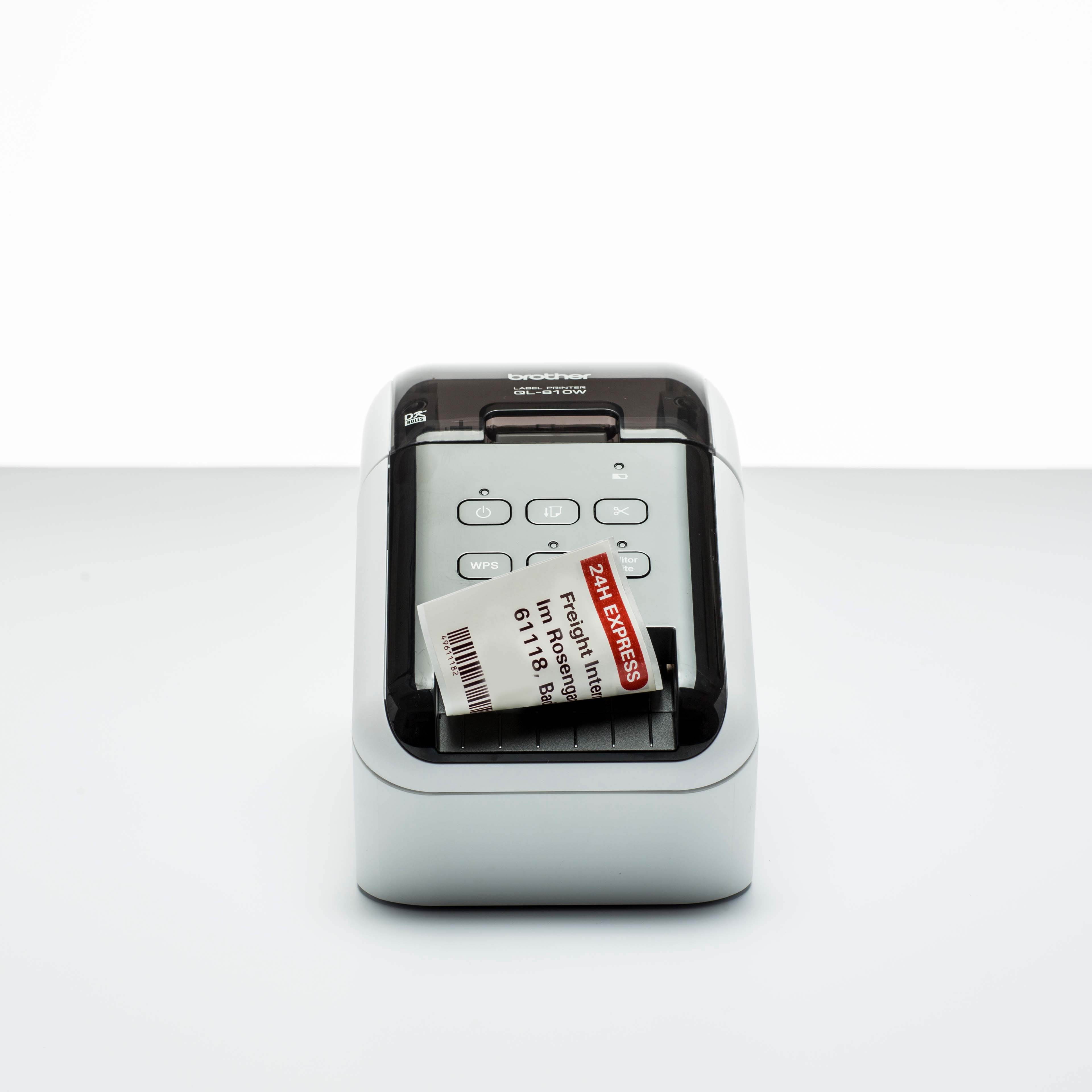

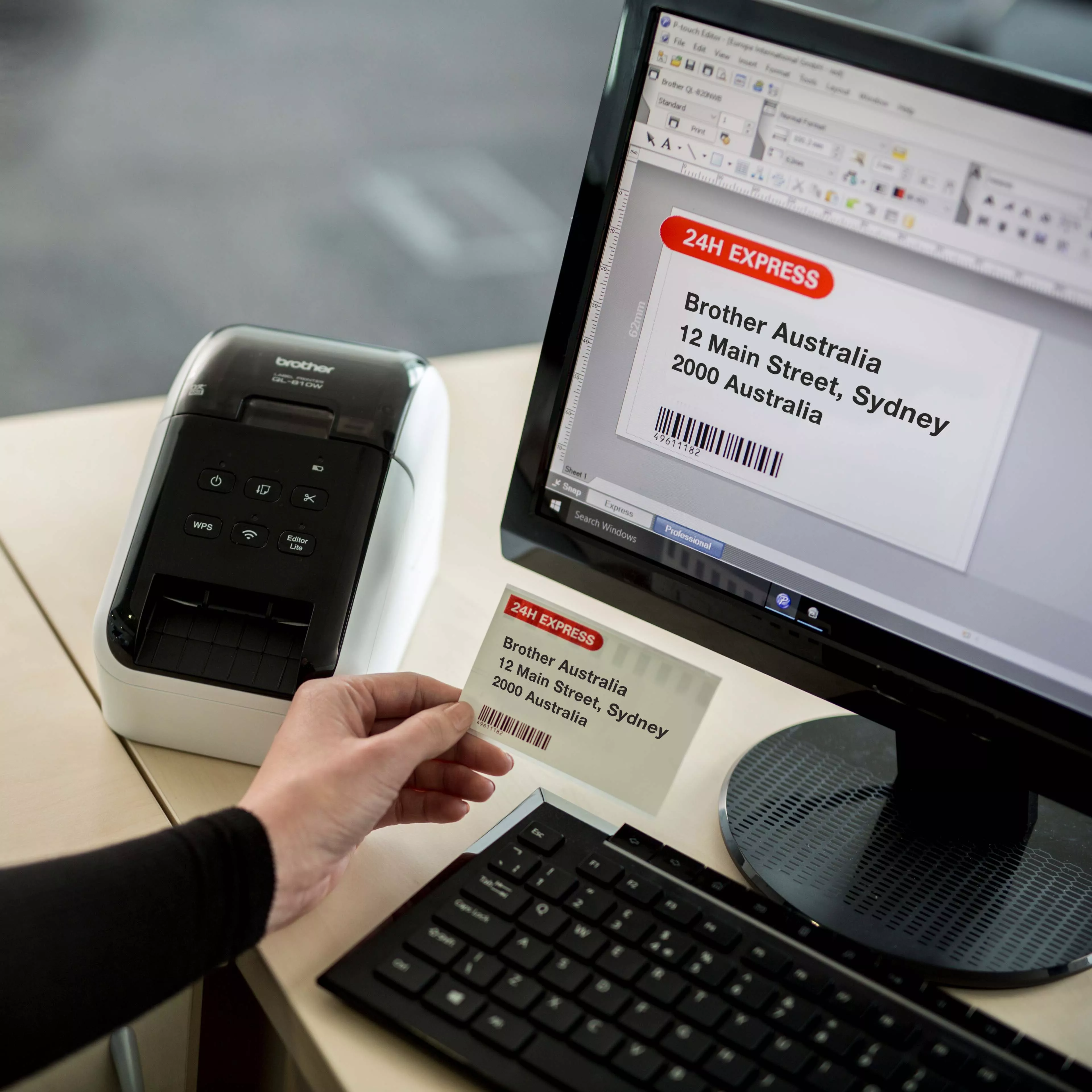

Colour It Your Way
Print in black and red** text to highlight important information

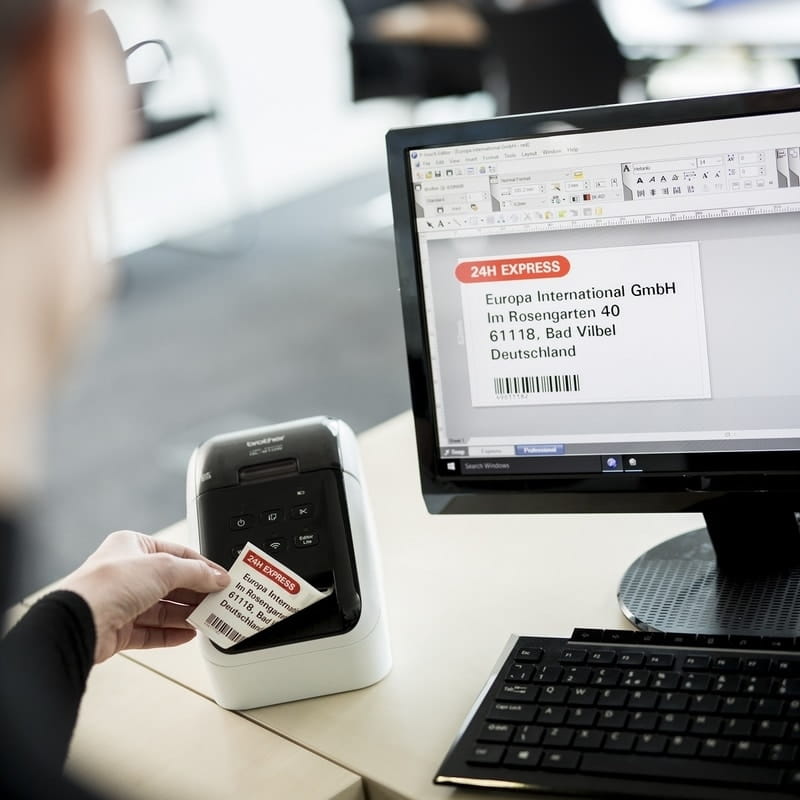

Advanced Label Design
Use the free P-touch Editor software for simple to advanced label design
Software Development Kits
Compatible with Microsoft Windows, you can use our SDK’s to add label printing to your own solutions
Custom Label-Making Software
The Microsoft Office add-in allows you to highlight, click, print and link to data contained in Excel, Word or Outlook

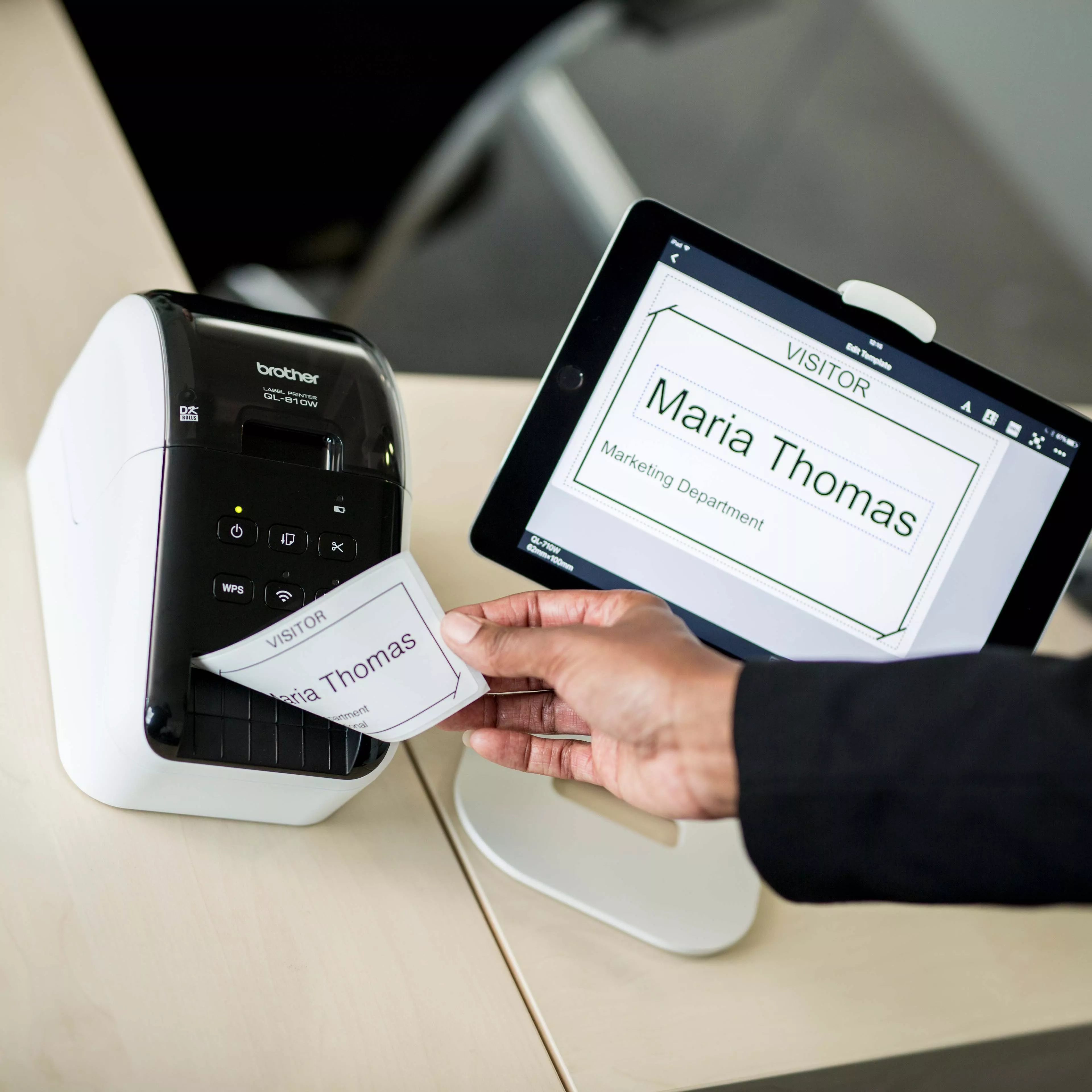

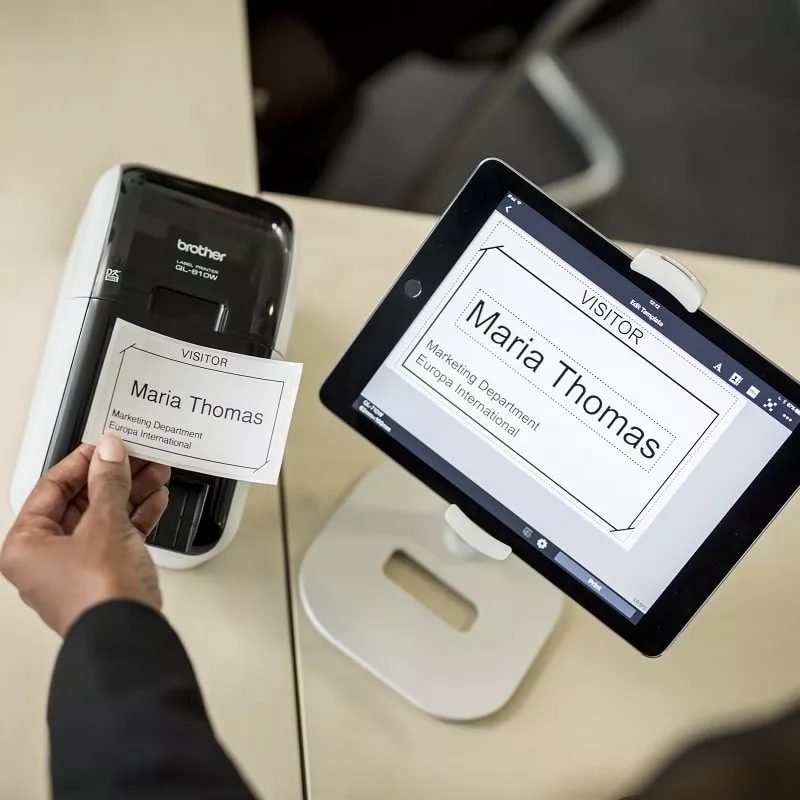

Advanced Connectivity Options

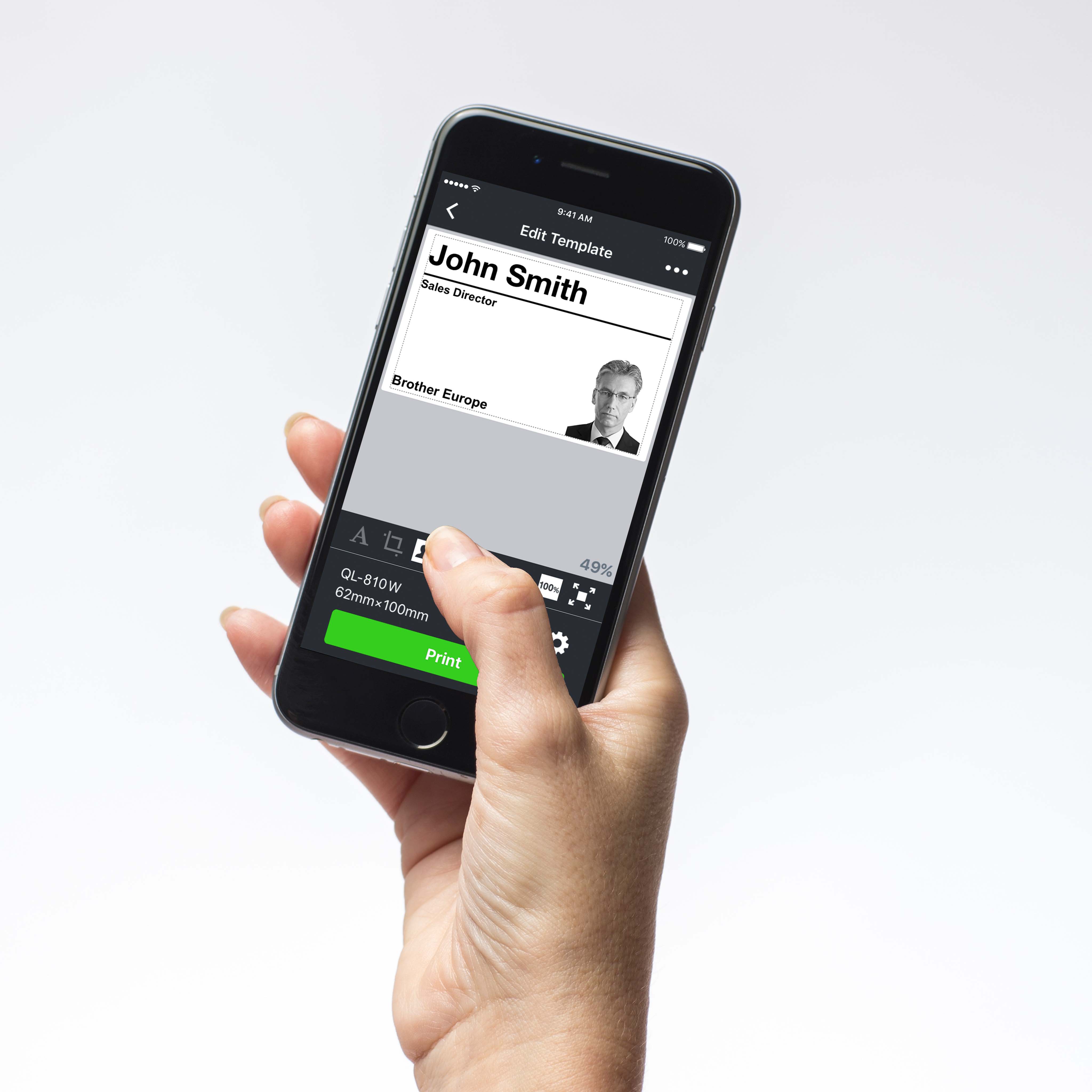

Made for iPod, iPhone and iPad with Apple AirPrint*, supported to enable printing from compatible apps on iOS devices and Mac
*iOS and macOS only supports black print when using the default AirPrint function, however red print capability is available from iOS devices when using AirPrint with apps developed using the Brother Software Development Kit
**Requires DK-22251 continuous roll to print in black and red
Specifications
Basic Specs
Media Type
DK rolls
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.15 kg
Print Speed
Max. 5.8"/sec. (148 mm/sec.)
2 color (black and red on white DK roll) Print: Max 0.9"/sec (24 mm/sec)
Actual print speed varies depending on the conditions.
Warranty
3 years Return to Base Warranty
What's in The Box
Labeler, CD-ROM (Software/Driver/User's Guide/Network Guide), Quick Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label (Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length Paper Tape (Starter roll, 5m), Power Cord and Adaptor
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
21 barcode protocols on P-touch Editor
Numbering
Yes

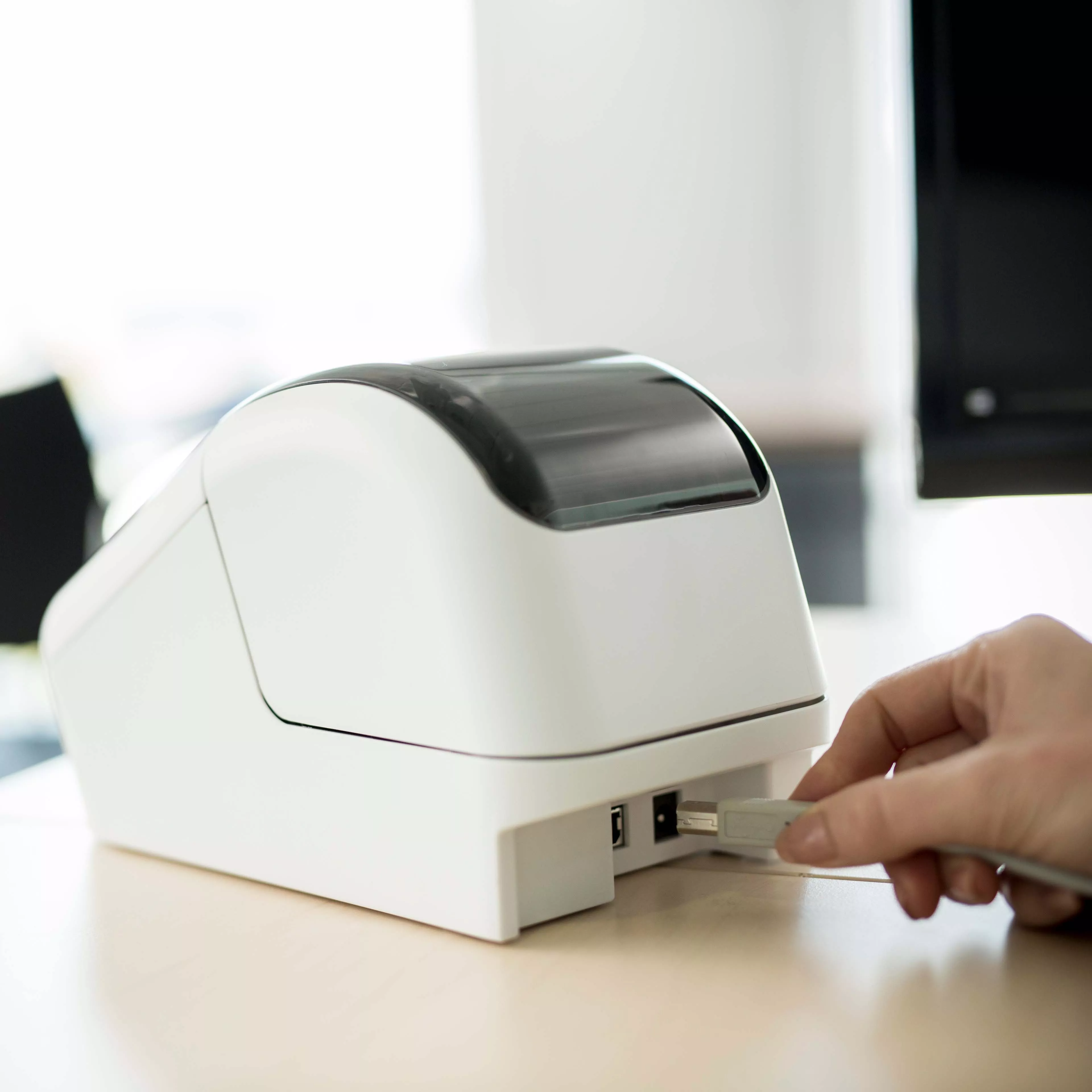

Connectivity
Connectivity
USB, Wireless LAN
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Durable automatic cutter
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
6MB, 99 templates
Power
Power Source
240V AC 60Hz 1.7A
Auto Power-Off
Off/10/20/30/40/50/60 Minutes
Software and Apps
Included Software
12/21/2023
Windows: P-touch Editor, Office Add-in (Word, Excel, Outlook), P-touch Address Book Mac: P-touch Editor
Mobile Apps
12/21/2023
iPrint&Label, Mobile Transfer Express, Support Center, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
iOS/Android
Template Transfer to Machine
99 Templates or 6MB
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template
