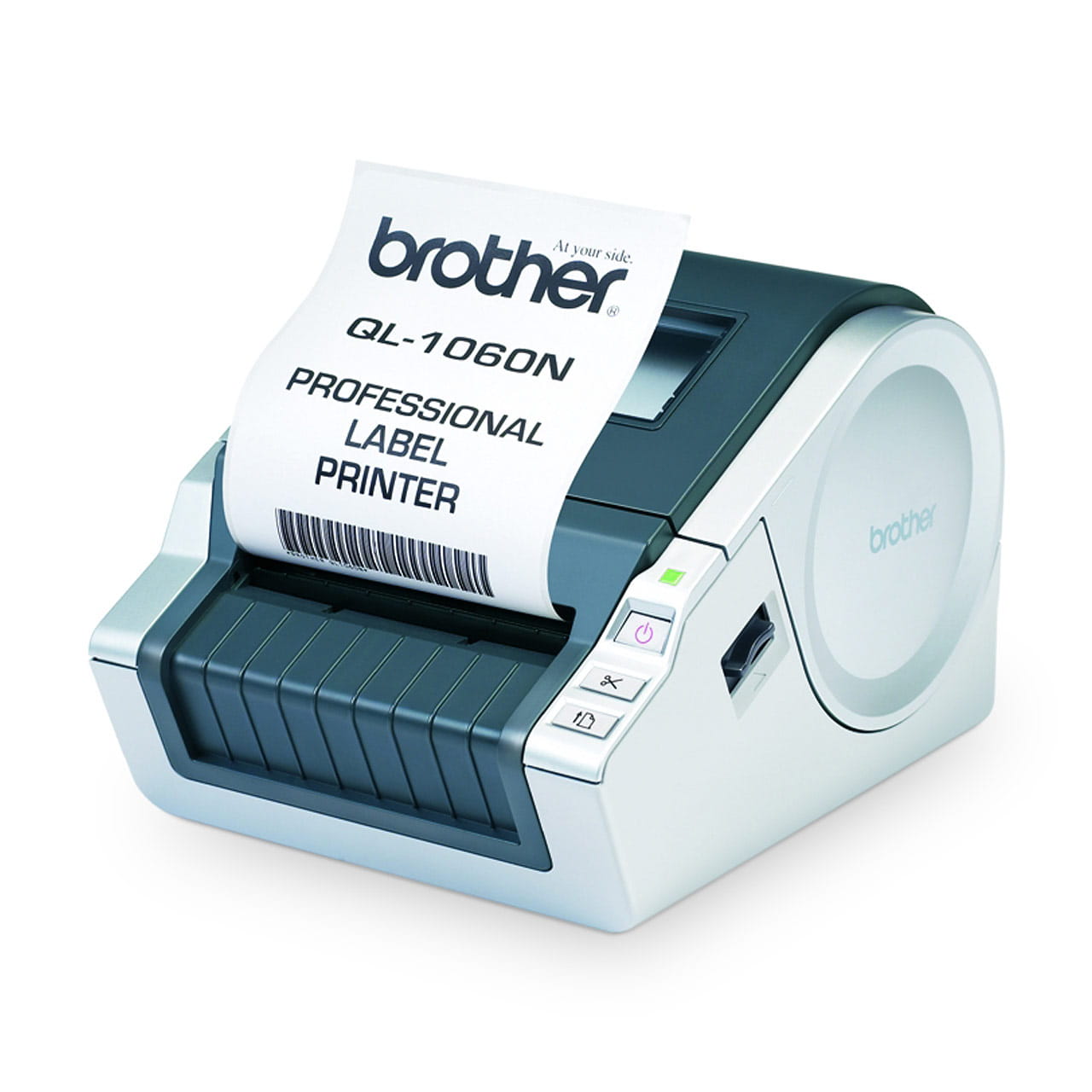

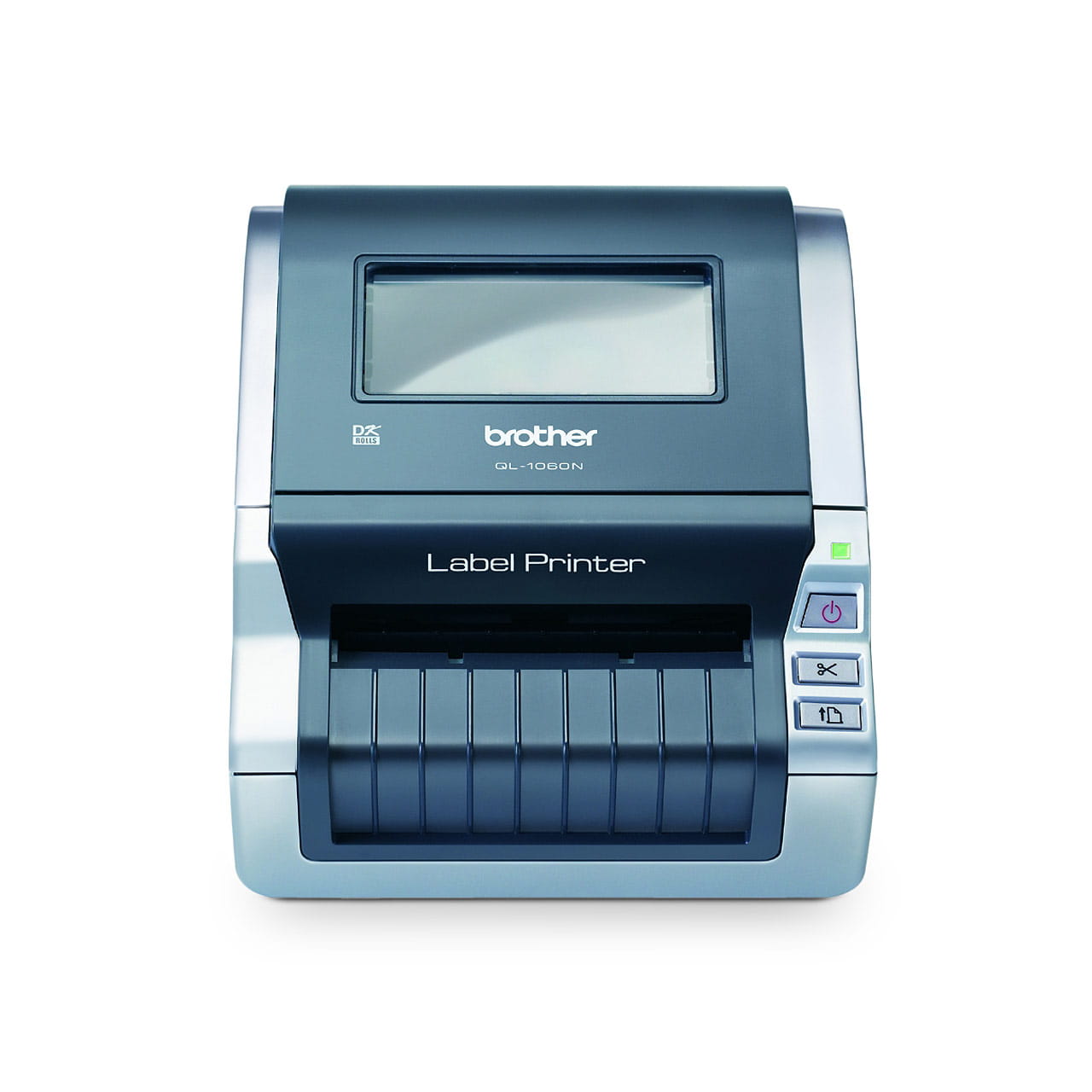

QL-1060N Professional Label Printer
Discontinued Product
Discontinued Product
Professional Label Printer
- Network ready for PC and Mac
- Print labels up to 102mm wide
- Print up to 69 labels per minute
Network Ready PC & Mac - Prints up to 102mm wide labels and a print speed of up to 69 standard address labels/min
The Brother QL-1060N label printer features a built-in Ethernet connection and dual interfaces (USB and RS-232 serial ports) as standard allowing multiple users to connect to the label printer. Printing up to 102mm wide labels with a print speed of up to 69 labels per minute, this network label printer for both PC and Mac is your business' new productivity partner.
The Brother QL-1060N label printer features a built-in Ethernet connection and dual interfaces (USB and RS-232 serial ports) as standard allowing multiple users to connect to the label printer. Printing up to 102mm wide labels with a print speed of up to 69 labels per minute, this network label printer for both PC and Mac is your business' new productivity partner.
Information
Overview
Specifications
Basic Specs
Display Type
LED with 3 colours: green, red and orange
Product Dimensions (Width X Depth X Height)
170 mm × 147.5 mm × 220 mm
Weight
1.73 kg
Print Speed
Up to 110 mm/sec, 69 standard address labels/min
What's in The Box
QL-1060N, CD-ROM (Software/Drivers/User's Guide, ESC/P tools), DK Rolls Line-up Guide, Label Tray, USB cable, DK-11241 (102mm x 152mm White Paper Labels) Starter roll (40 labels), DK-22205 (62mm Continuous Length Paper Tape) Starter roll (8 m), AC Power cord
Resolution
300 dpi, 1296 dots
Barcode
Software side: CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), POSTNET, Laser Bar Code, RSS Symbol(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix(ECC200 Square, ECC200 Rectangular), MaxiCode(Model2, Model3, Model4, Model5)
Machine side(*1): CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, RSS Symbol(RSS14, RSS-Limited, RSS Expanded), QR CODE (model 1, model 2, micro QR), PDF417 (Standard, Truncate, Micro PDF 417), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode
Numbering
PC
Connectivity
Connectivity
USB
Media
Maximum Roll Width
Up to 102 mm
Functions
Cutter
Auto
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
99 templates or 2,048 kB
Power
Power Source
Internal S/W power supply
Software and Apps
Included Software
12/21/2023
Windows: P-touch Editor, P-touch Address Book, BarTender Printer Drivers by Seagull Mac: P-touch Editor
Mobile Apps
12/21/2023
Support Center
Template Transfer to Machine
99 templates or 2048KB
