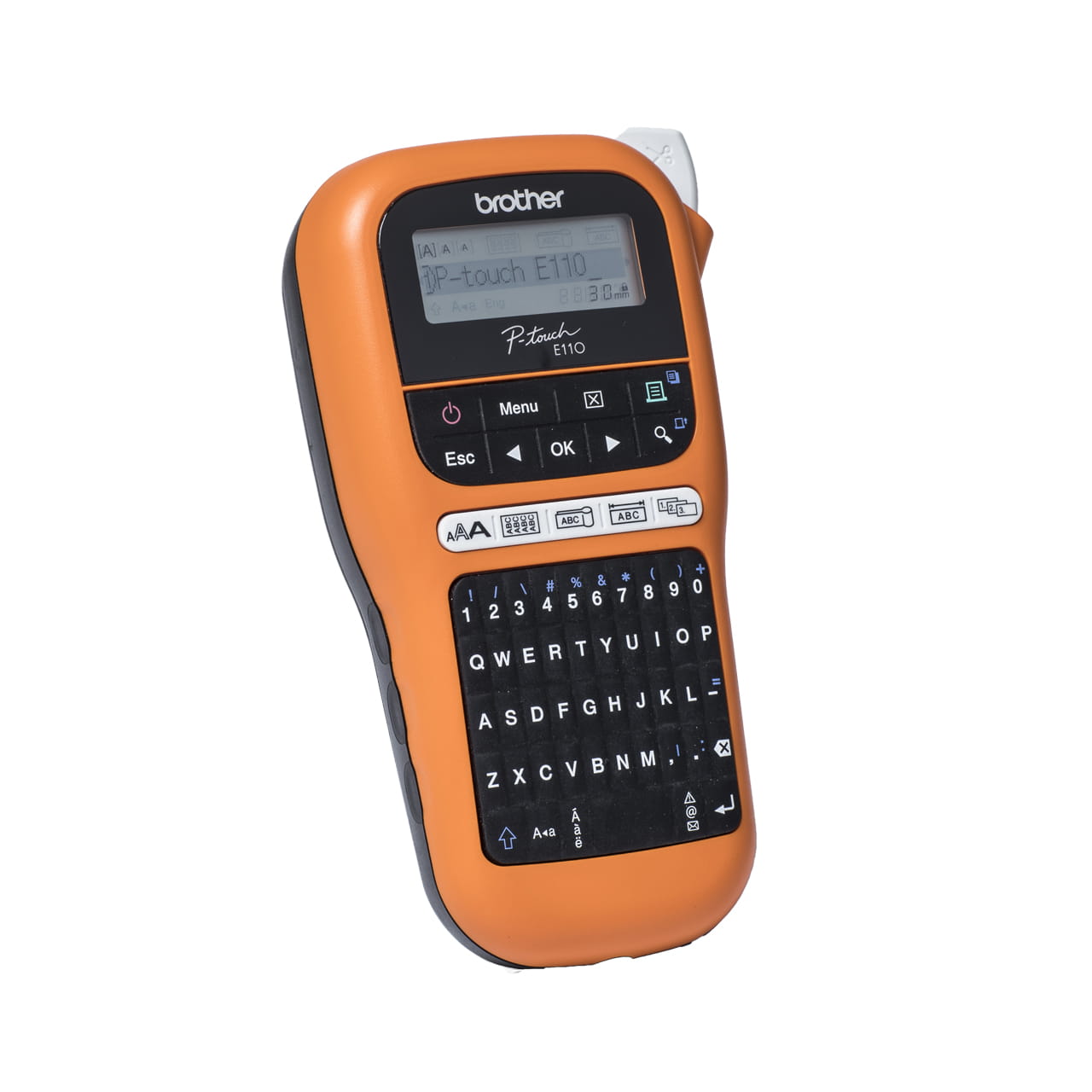

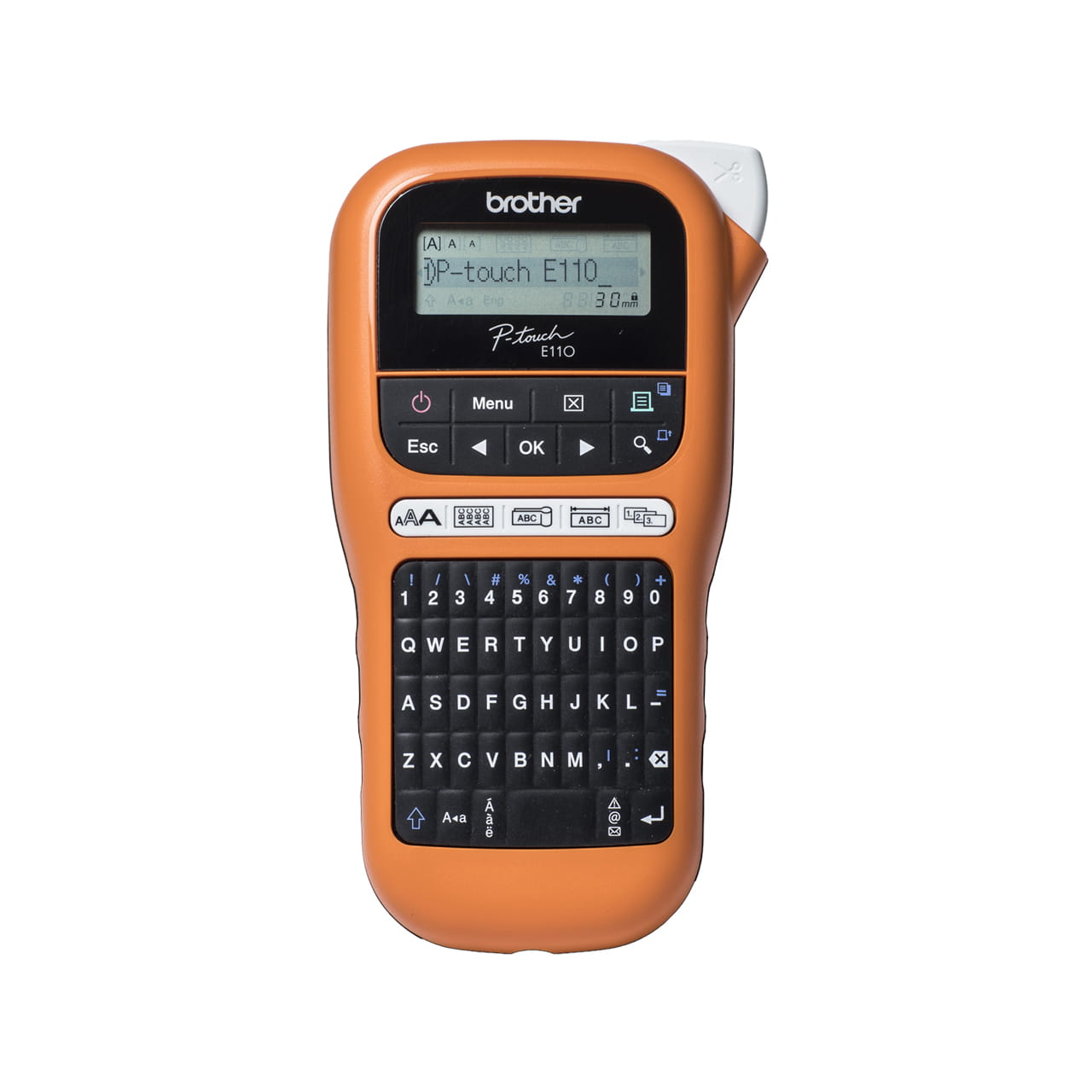

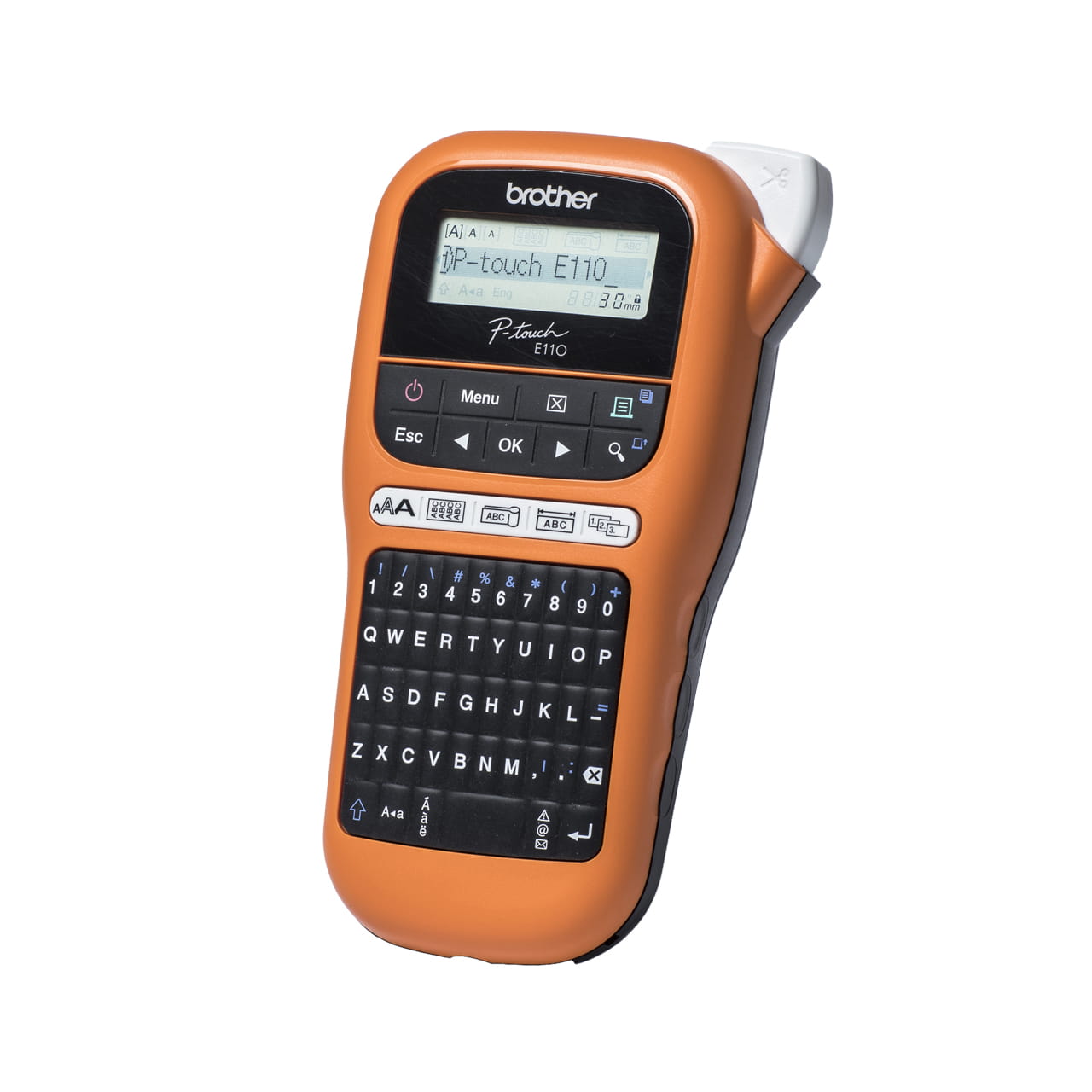

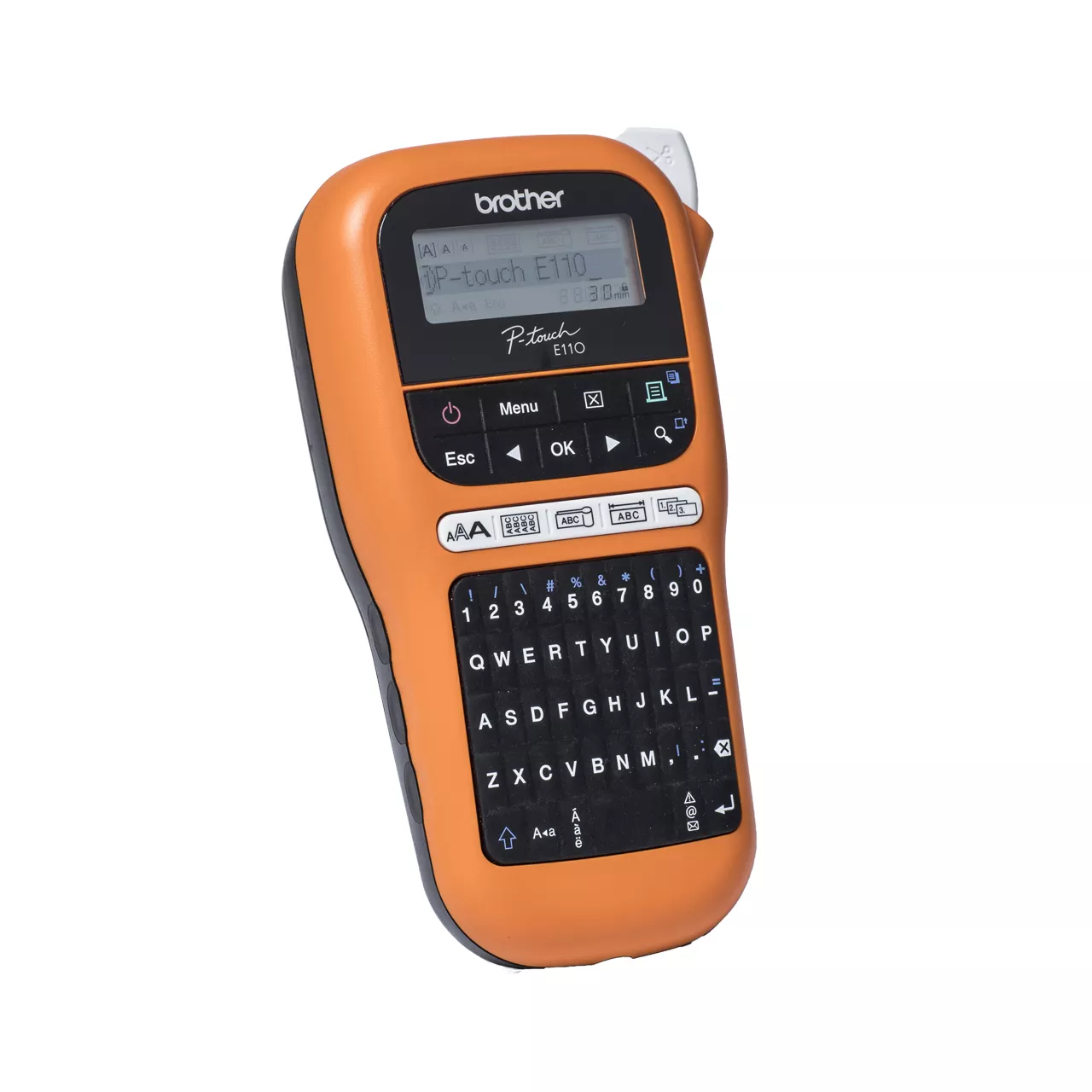

Label printer for electrical and datacom installations
$99.00
- QWERTY Keyboard
- 200 Electrical and Datacomm symbols
Information
Overview

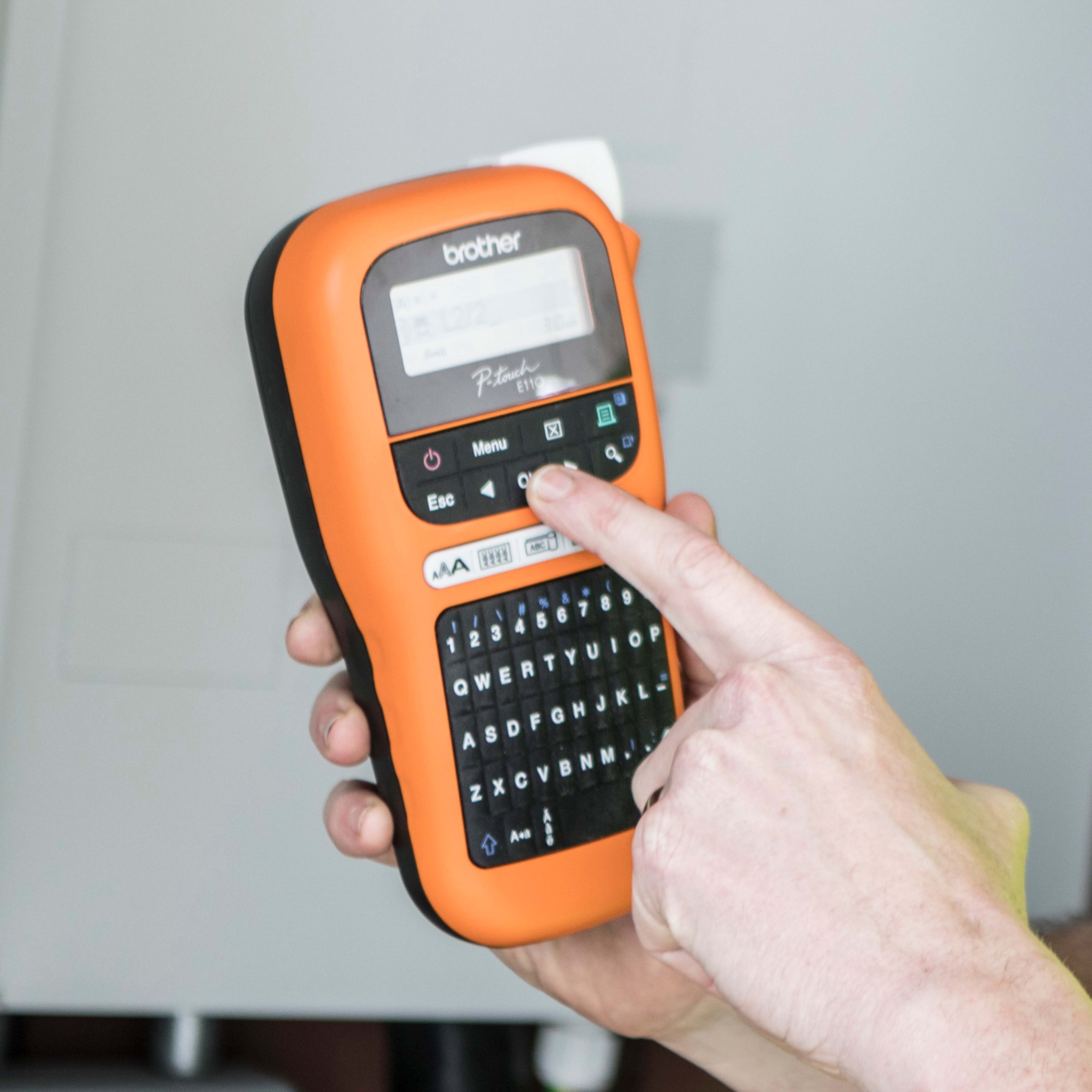

Sophisticated keypad with dedicated functions
200 symbols including common electrical, datacom, AV, security and safety symbols

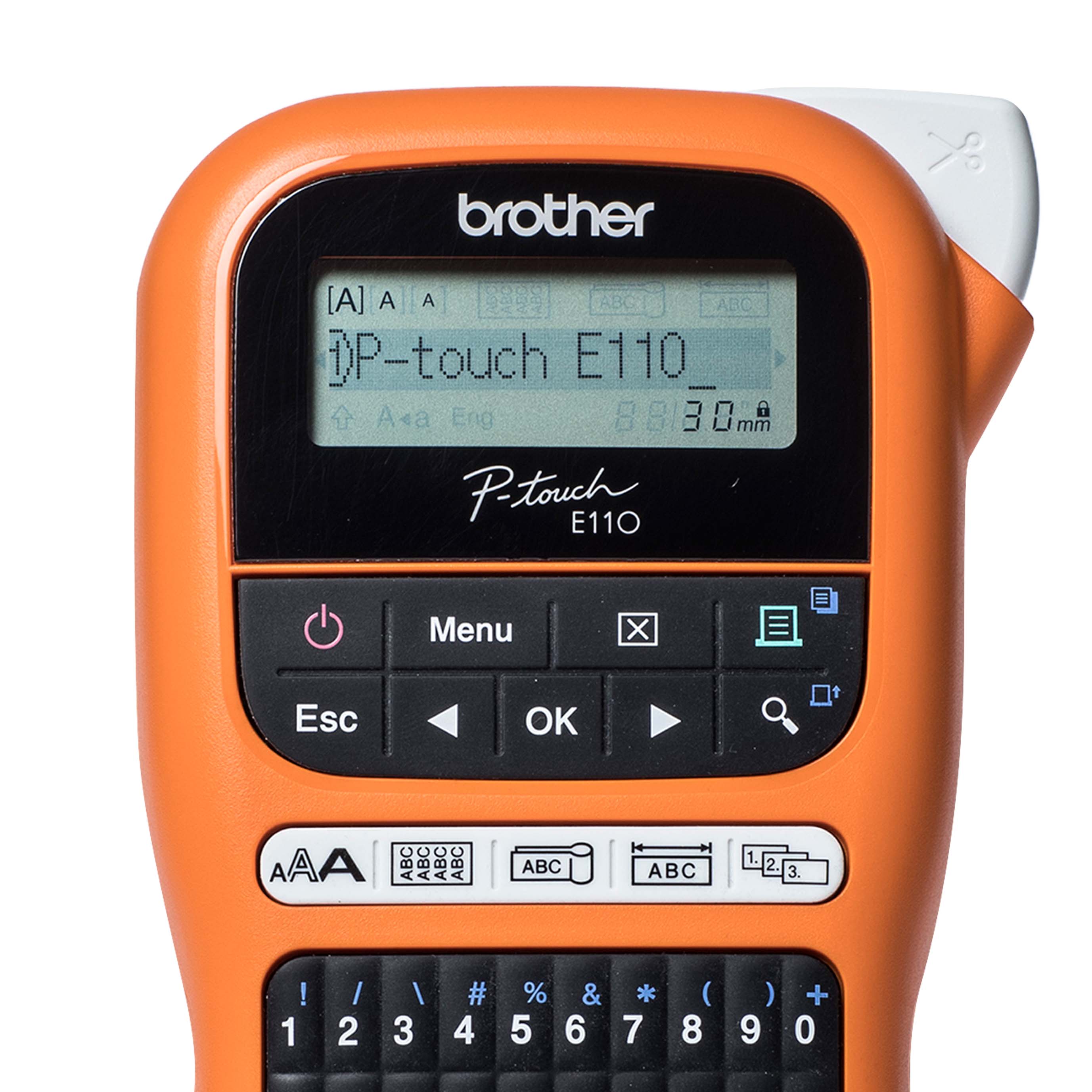

Preview before printing
Using large graphic display you can ensure your labels are exactly how you want them before you print

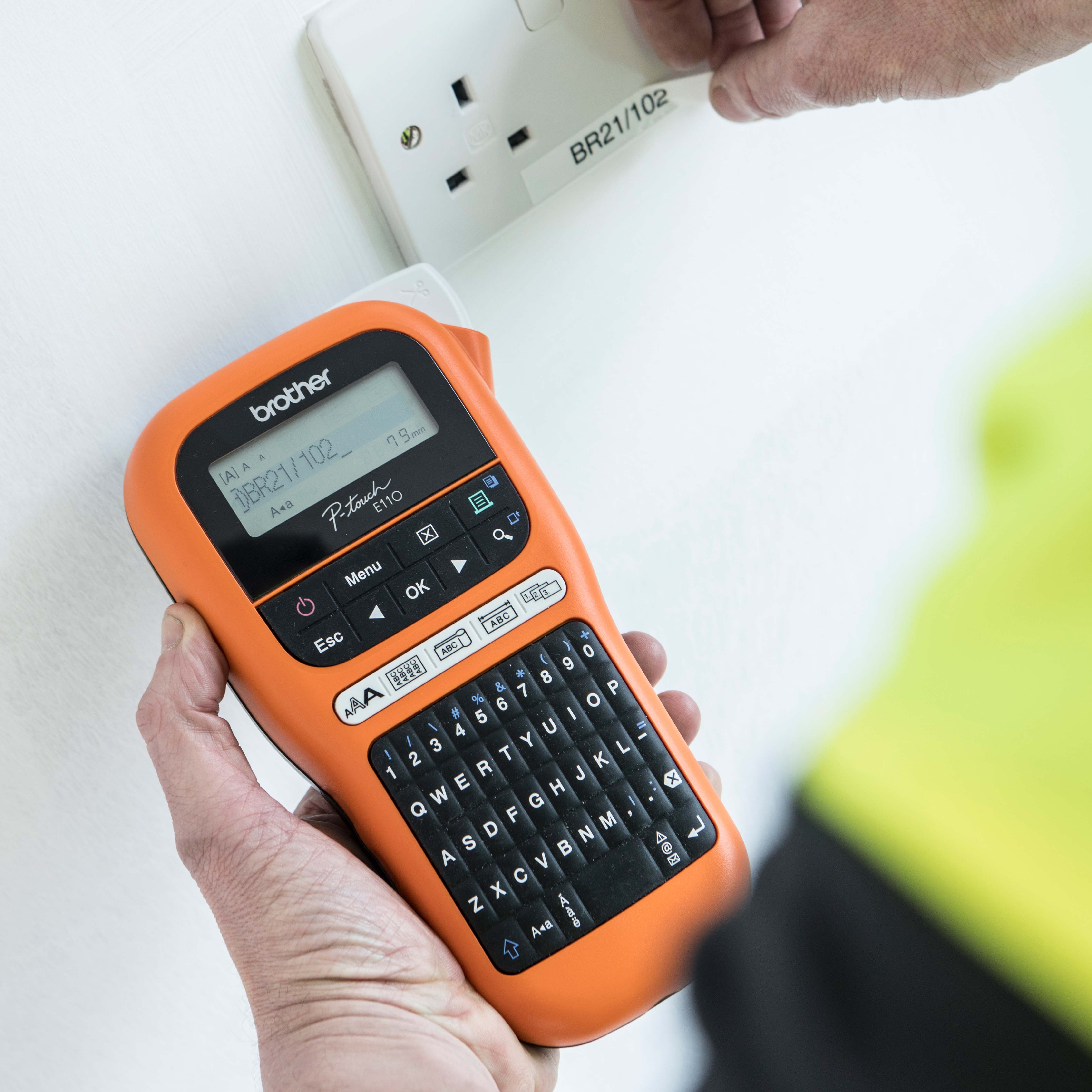

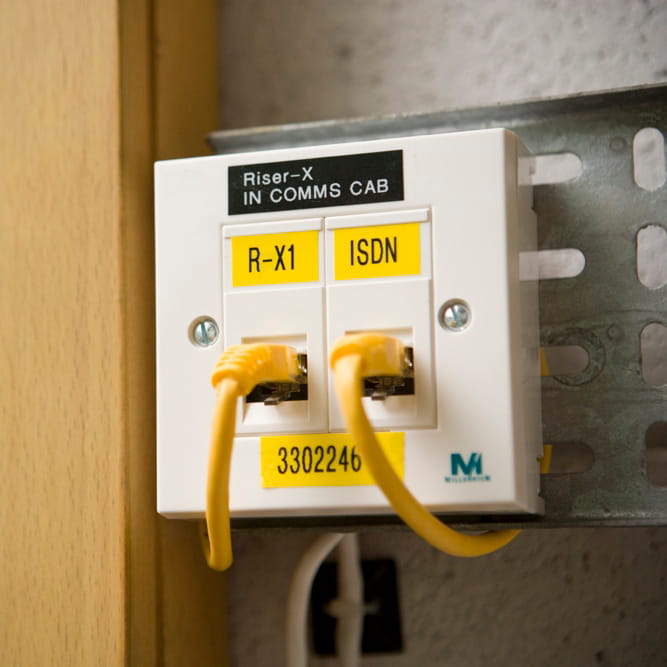

Label electrical components with ease
Use the cable, faceplate and sequential numbering shortcuts for quick function access
Portable and durable

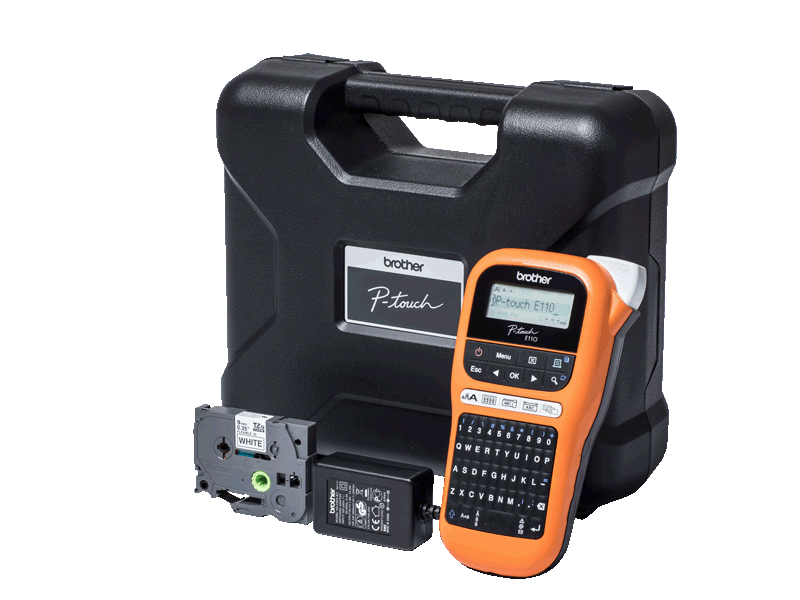

Protect and transport the PT-E110VP to any worksite with ease using the supplied hard carry case

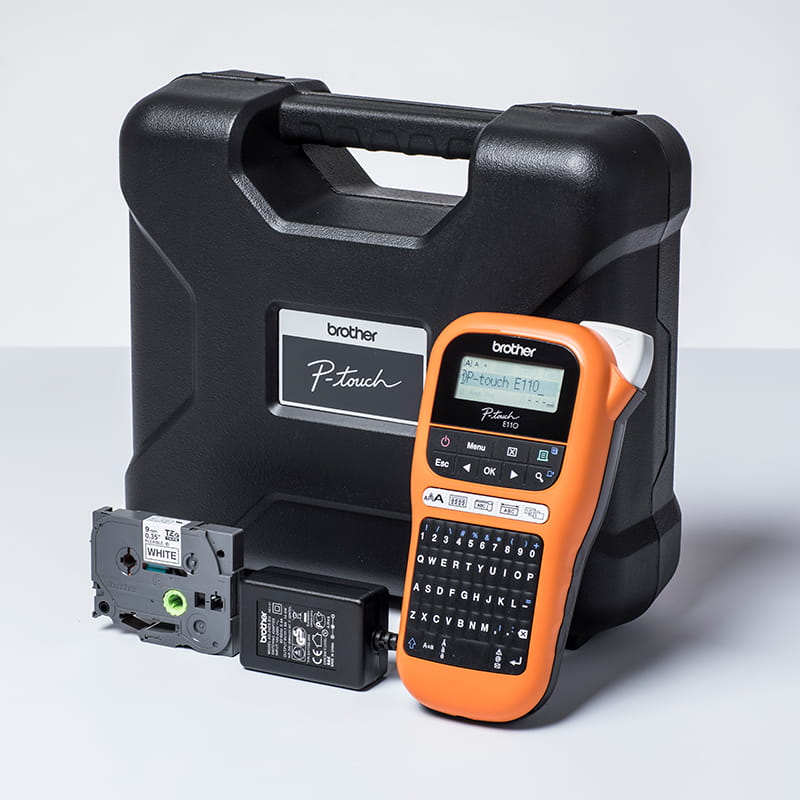

Handy accessories to get you started
With the availability of the starter cassette, AC adapter and electricians guide, the PT-E110VP is ready to work straight out of the box
High speed printing
Fast thermal label printing with 20mm/sec print speeds

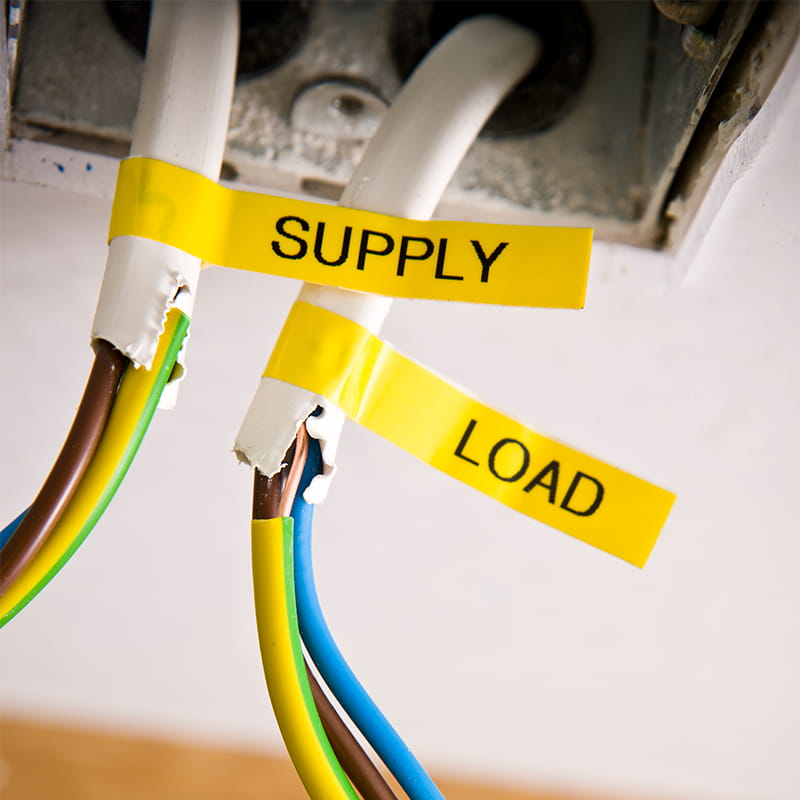

Fade resist labels made to last
Tested to the extreme, you can be confident that the TZe tape range will deliver a professional quality label that has been designed to last
Compatible with 3.5, 6, 9 and 12mm labels, the PT-E110VP is a versatile asset to your worksite
Professional Label Design

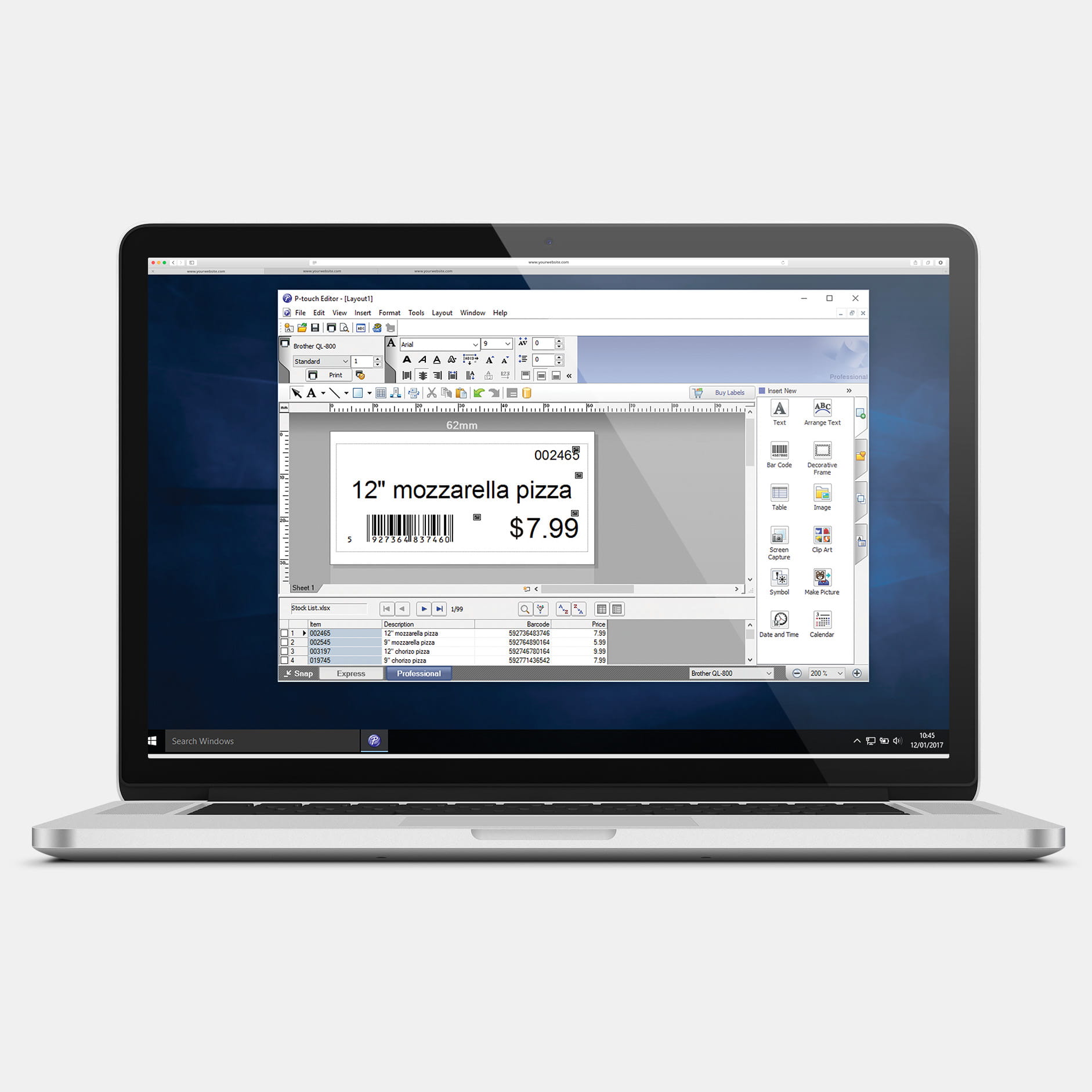

For more advanced label design, download the FREE P-touch Editor software for barcodes, graphics and other information on your labels
Offering integration with Microsoft Word, Excel and Outlook, you can print labels directly from these applications
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 1 line
(uses 15 characters x 1 line)
Media Type
TZe tape
Available Tape Widths
6 mm, 9 mm, 12 mm
Product Dimensions (Width X Depth X Height)
110 mm × 58 mm × 204 mm
Weight
0.4 kg
Print Speed
20 mm/sec
Warranty
3 years Return to Base Warranty
What's in The Box
PT-E110VP, Users Guide, TZe-Tape 9mm (Black on White, Flexble ID 8 Mtrs), AC Adaptor, Carry Case
Resolution
180 dpi
No. Of Printable Lines
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines
Number of Characters
377
Number of Symbols
200
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
1~50
Media
Maximum Tape Width
Up to 12 mm
Functions
Cutter
Manual
Multi Block Printing
No
Copy Printing
Yes ( 1 ~ 50 )
Mirror Printing
N/A
Preview
Yes
Memory
File Storage
9 files
Memory Buffer Size
up to 720 characters
Power
Power Source
6 AAA alkaline batteries (LR03), 6 AAA Ni-MH batteries (HR03), or AC adapter (AD-24ES)
Auto Power-Off
Yes ( Around 5 mins)
Software and Apps
Included Software
12/12/2023
This P-touch is not PC/Mac connectable
Mobile Apps
12/12/2023
