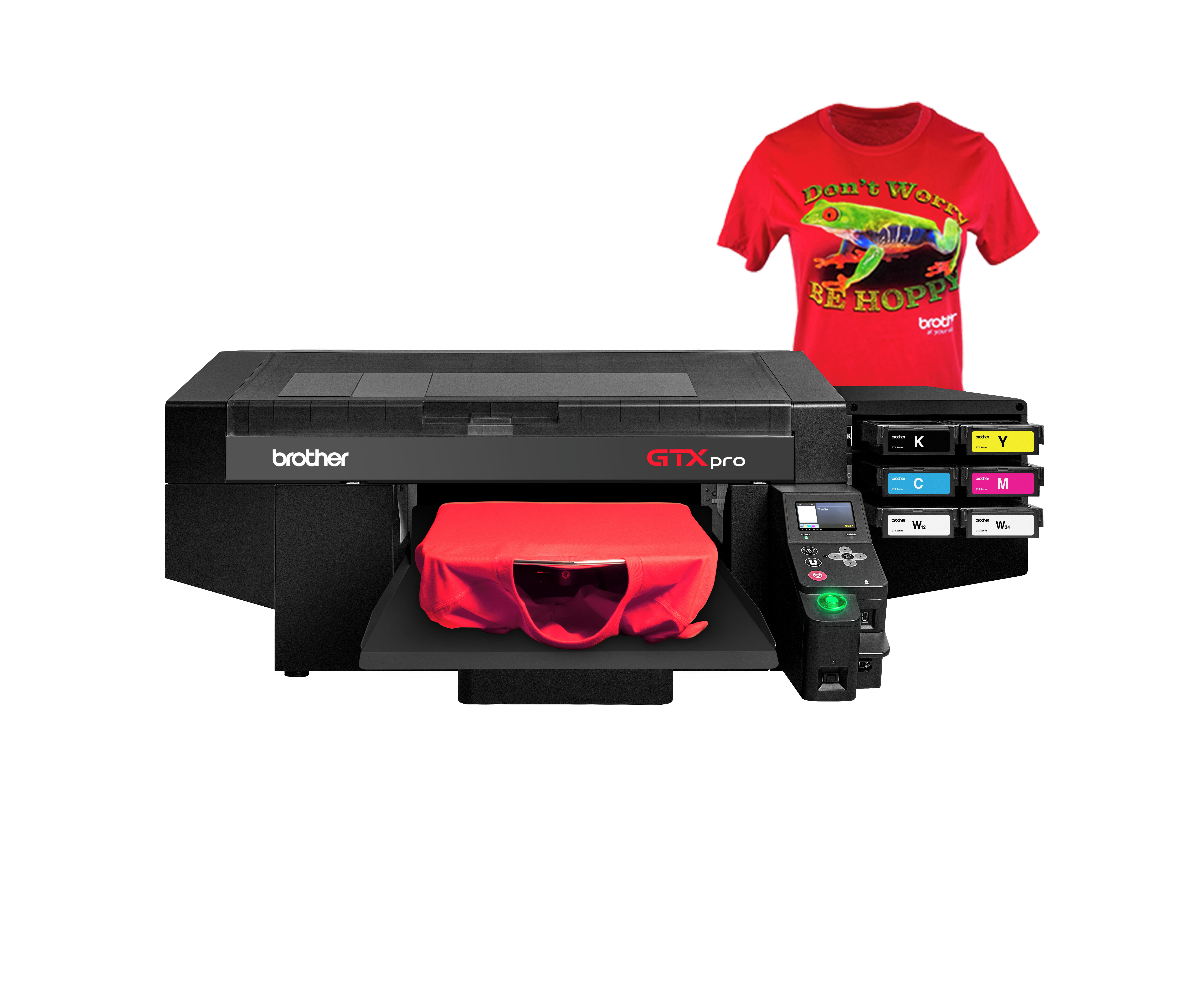

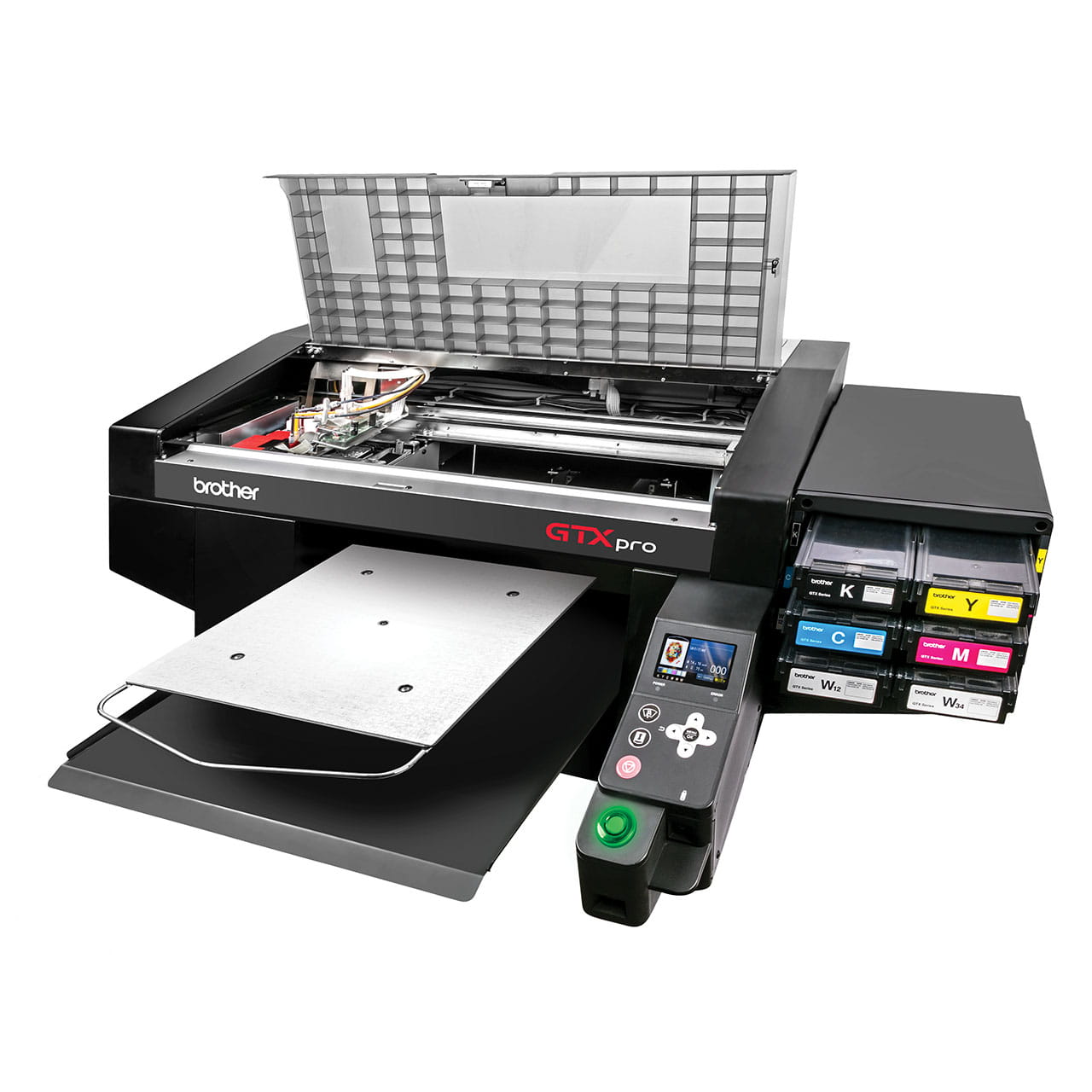

Hybrid Direct to Garment and Direct to Film Printer
- Direct to garment and direct to film printing
- User friendly operation
- 40.6cm x 53.3cm maximum print size
- Adjustable platen height system
- Brilliant colour reproduction
- OKEO-TEX® certified Innobella Textile Inks
Information
Overview
Dual Purpose Printing
Take advantage of both Direct to Garment and Direct to Film technology for versatile applications on various substrates.
Speed and Efficiency
The quicker you get products to market, the sooner you can start turning a profit. Accelerate your production with the GTXpro, delivering prints faster than ever before.
Precision Printing
Never sacrifice print quality for output speed. With a print resolution of 1200 x 1200 dpi combined with cutting edge Innobella Textile inks, your designs can incorporate the entire colour spectrum and even the most miute details will print with fantastic clarity.
One-Pass Printing
Print almost anything in a single pass with stacked white ink and CMYK channels.
Simplified Maintenance

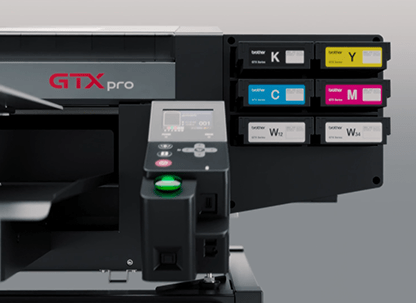

Enjoy hassle-free maintenance. The standard wet capping station minimises clogged nozzles while the white ink circulation system keeps the system primed and ready to print.
Versatile Printing
Expand your printing possibilities with the GTXpro's ability to print over seams, across zippers, and on various garment types.
Expanded Print Area

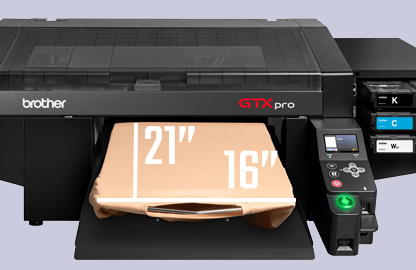

Make a statement with larger designs, thanks to the GTXpro's maximum print size of 16" x 21" and adjustable platen height system.
.png?rev=7c13df2d9cd64c37b5eba92e297996a1)
Environmentally Friendly Printing

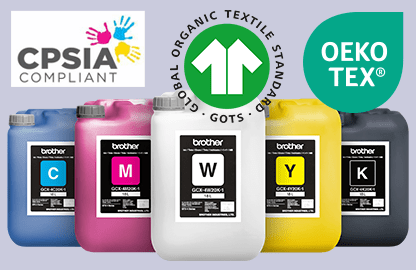

Embrace sustainability with eco-friendly Innobella Textile inks, certified for environmental safety, and packaged with replaceable pouches to minimise waste.
Confident Printing
Ensure lasting results with Innobella Textile inks, proven durable and washable with scores of $.0 or higher on AATCC wash tests, backed by Brother's comprehensive warranty and expert support.
Specifications
Basic Specs
Printing Method
Direct inkjet garment printer
Machine Size
1400mm x 1300mm x 550mm
Machine Weight
appox. 120kg include. Include Platen, not include stand
Platen Sizes
Maximum Print Size is 16” x 21” / 40,6cm x 53,3cm For a list of all available platen sizes, contact a Brother DTG Specialist.
Included Platen Size
14” x 16” (35,6cm x 40,6cm)
Ink Type
Water-based pigment ink | C, M, Y, K, W
Ink-Head Type
On demand piezo head
Number of Ink-Heads
2 print heads / 8 ink channels
Print Resolution
1200 dpi x 1200 dpi
Print Mode
Single or double for CMYK. Underbase and highlight for white.
Data output
Printer driver (USB, File output)
Power supply
AC 100V-240V, 50/60Hz ± 1Hz
Power consumption
0.8A(average) (Reference: 0.4A - during circulation)
Ink cure
Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320°F (160°C)for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.
Pre-treatment
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.
Software
Supported OS
Windows 8.1(32 bit/64 bit), Windows 10(32 bit/64 bit), macOS® 10.14 Mojave, macOS 10.15 Catalina
Interface
USB2.0, LAN(10 BASE-T, 100 BASE-TX), USB Flash Memory(Under 32GB, FAT32 format)
Driver operating conditions
2GHz CPU (minimum recommendation) 4GB RAM
Display resolution
XGA(1024x768) (minimum recommendation)
Recommended applications
Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC,CorelDRAW® 2018/2019 (Windows) GTX Grpahics Lab
