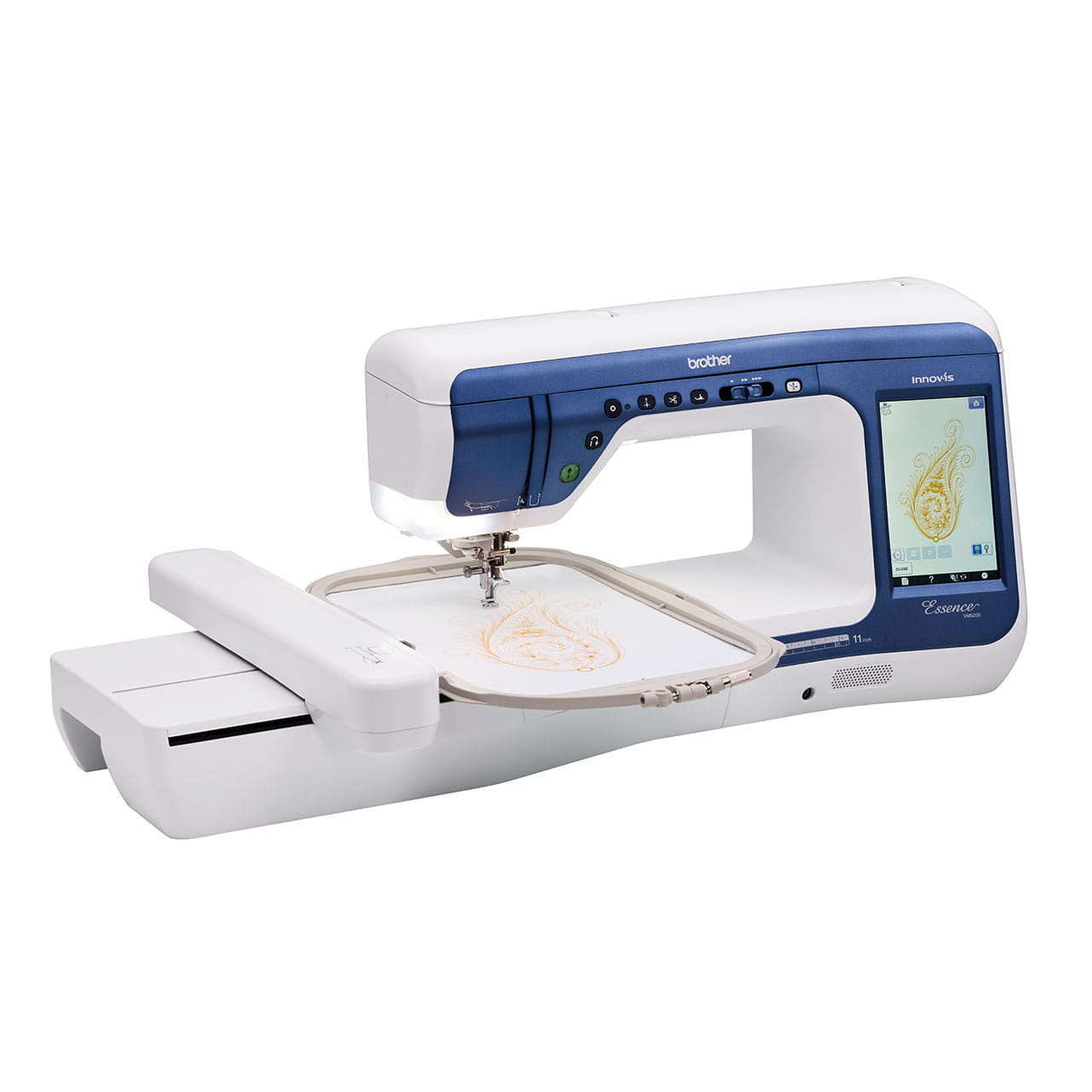

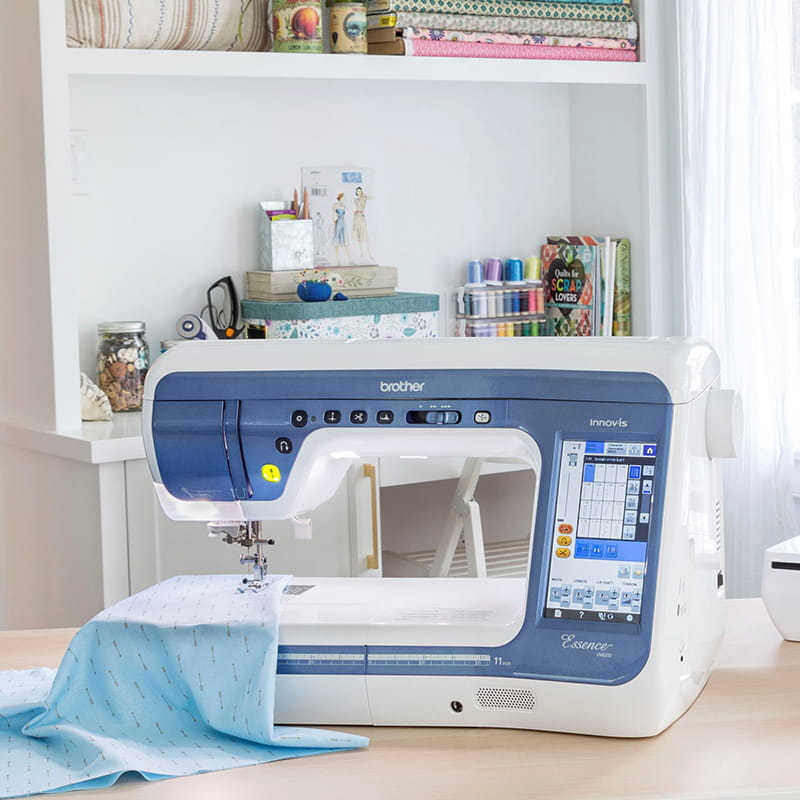

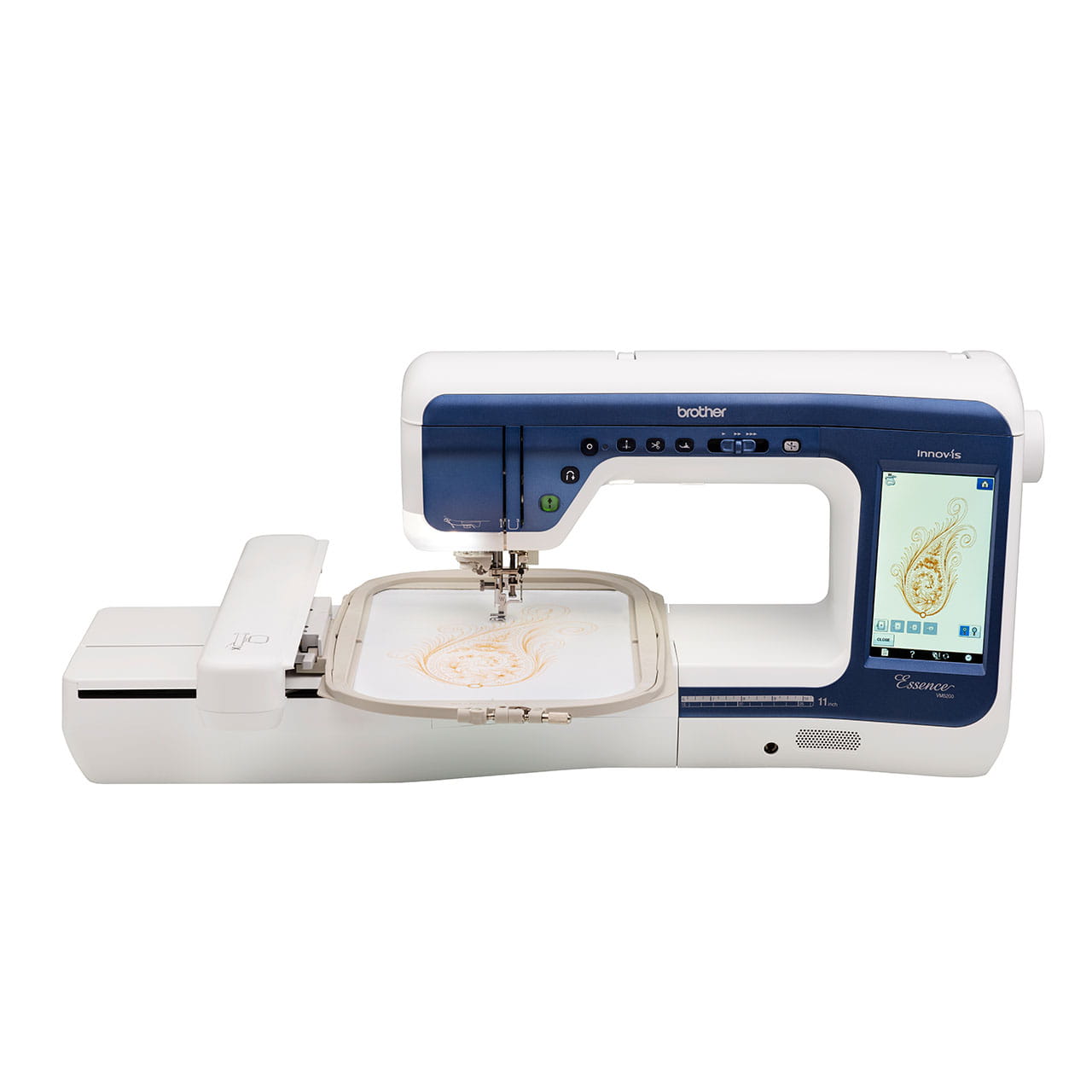

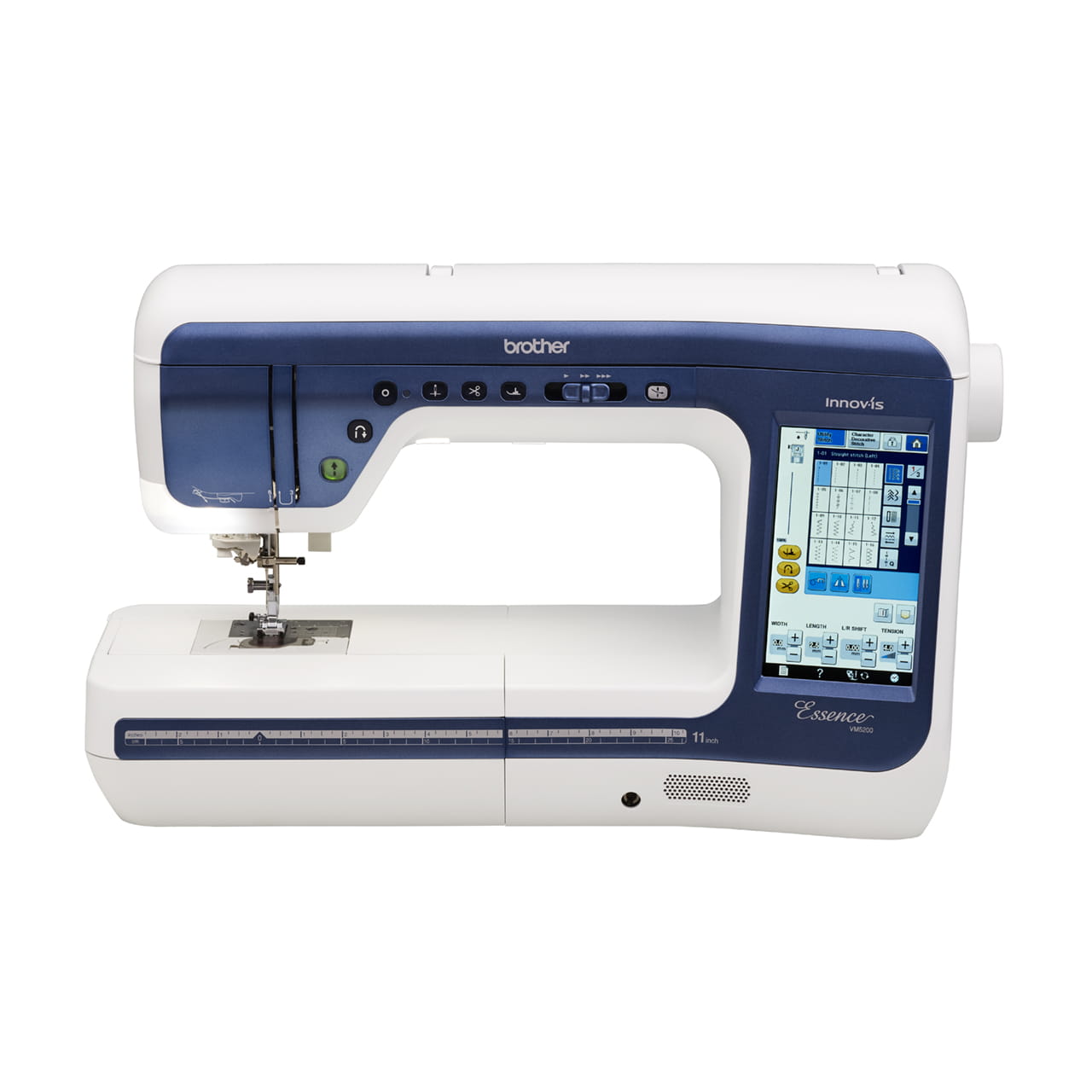

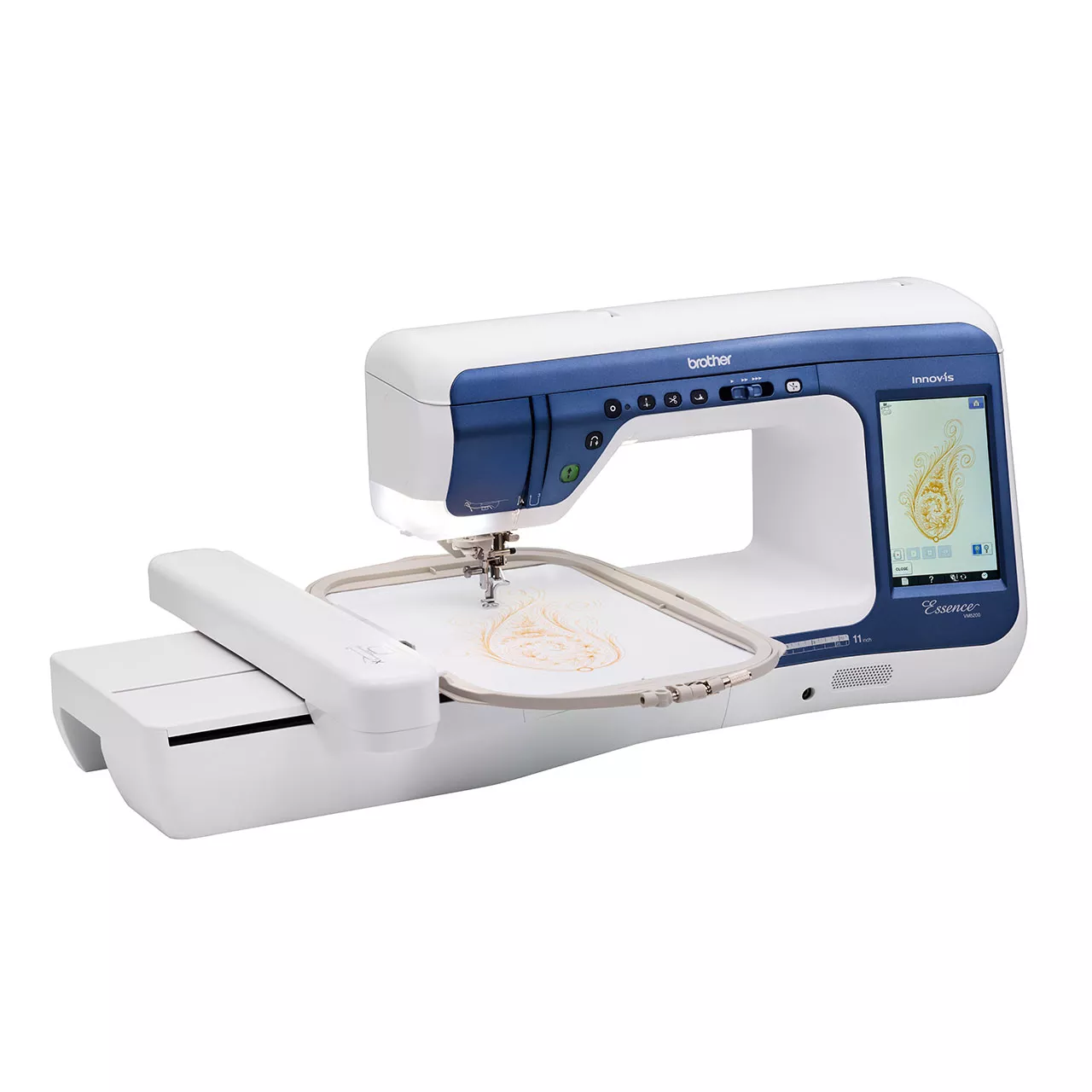

Sewing, embroidery and quilting combination machine
$6,179.00
- 300 x 200mm Embroidery Area
- 11 ¼“ Needle to Arm
- Large 7in LCD touch screen display
- 318 built-in embroidery designs and 17 embroidery fonts
- 715 stitches including one-step buttonhole styles
- Pivot Function
Information
Overview

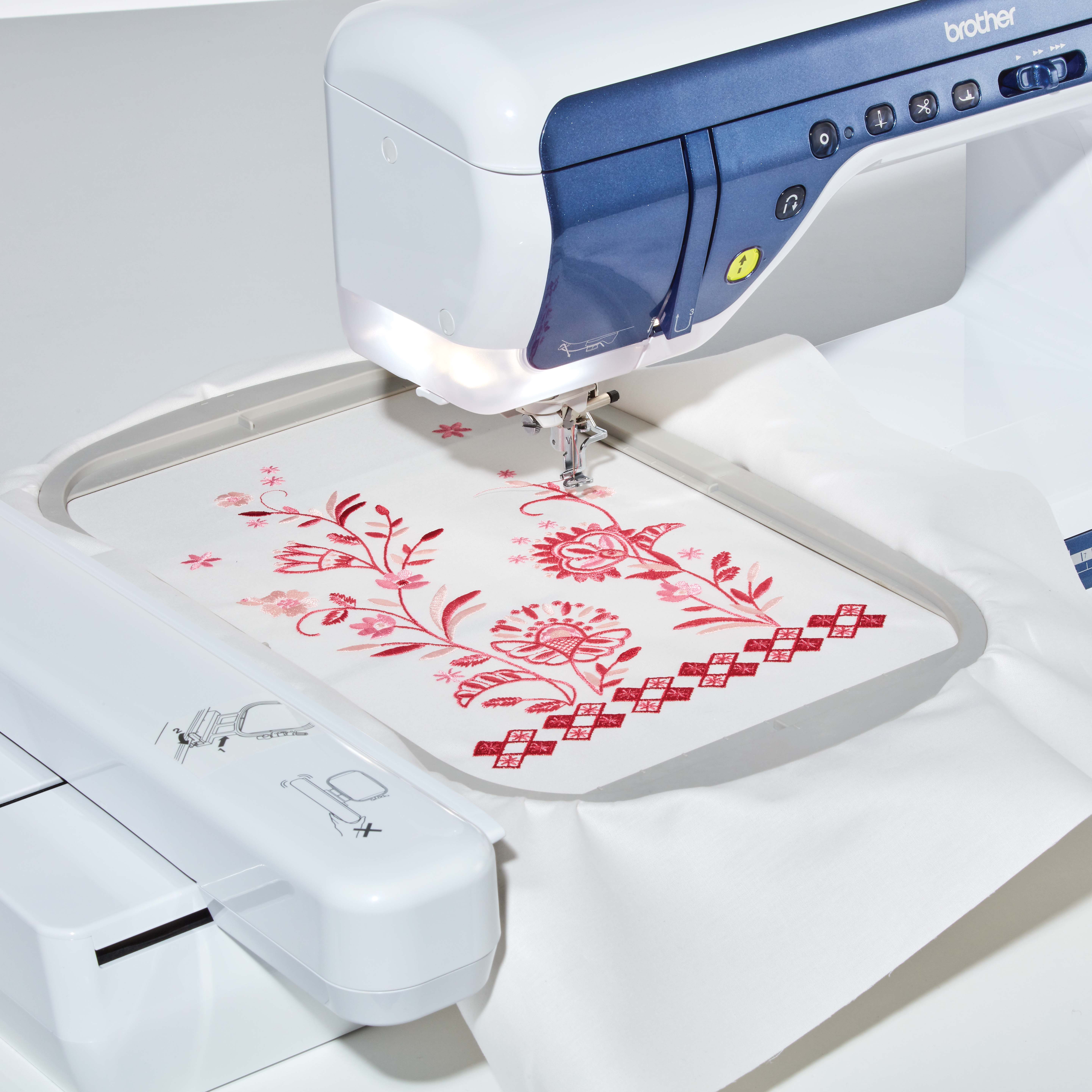

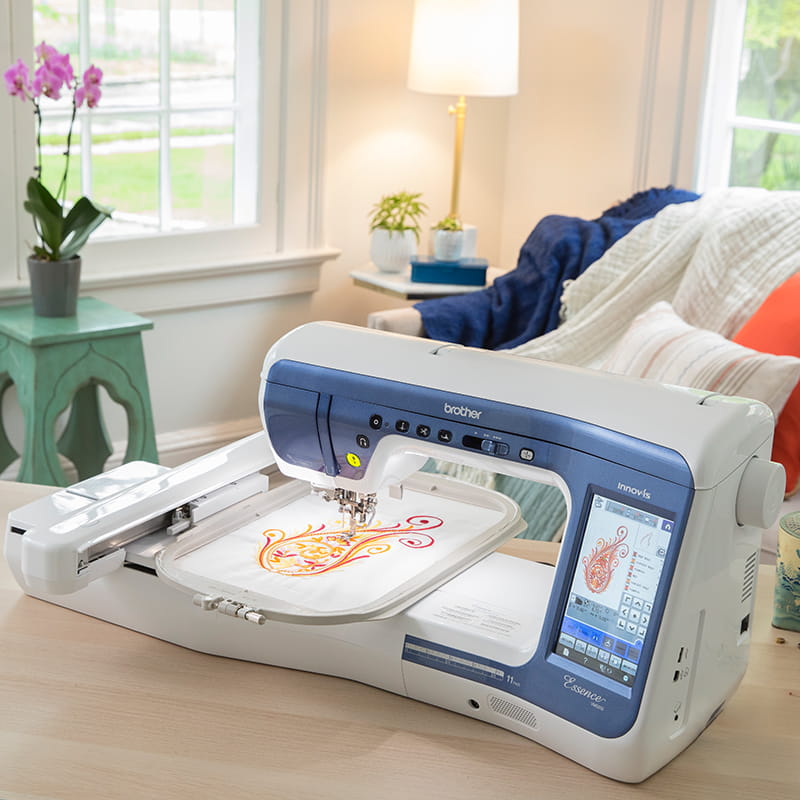

300 x 200mm Embroidery Area
Add beautiful embroidery designs to your fashion, quilting and home decor projects. Choose from over 200 built-in designs with 17 embroidery fonts
11 ¼“ Needle to Arm
Made for quilters, the large workspace features a long arm and generous throat space that makes handling fabric and full-sized quilts easier

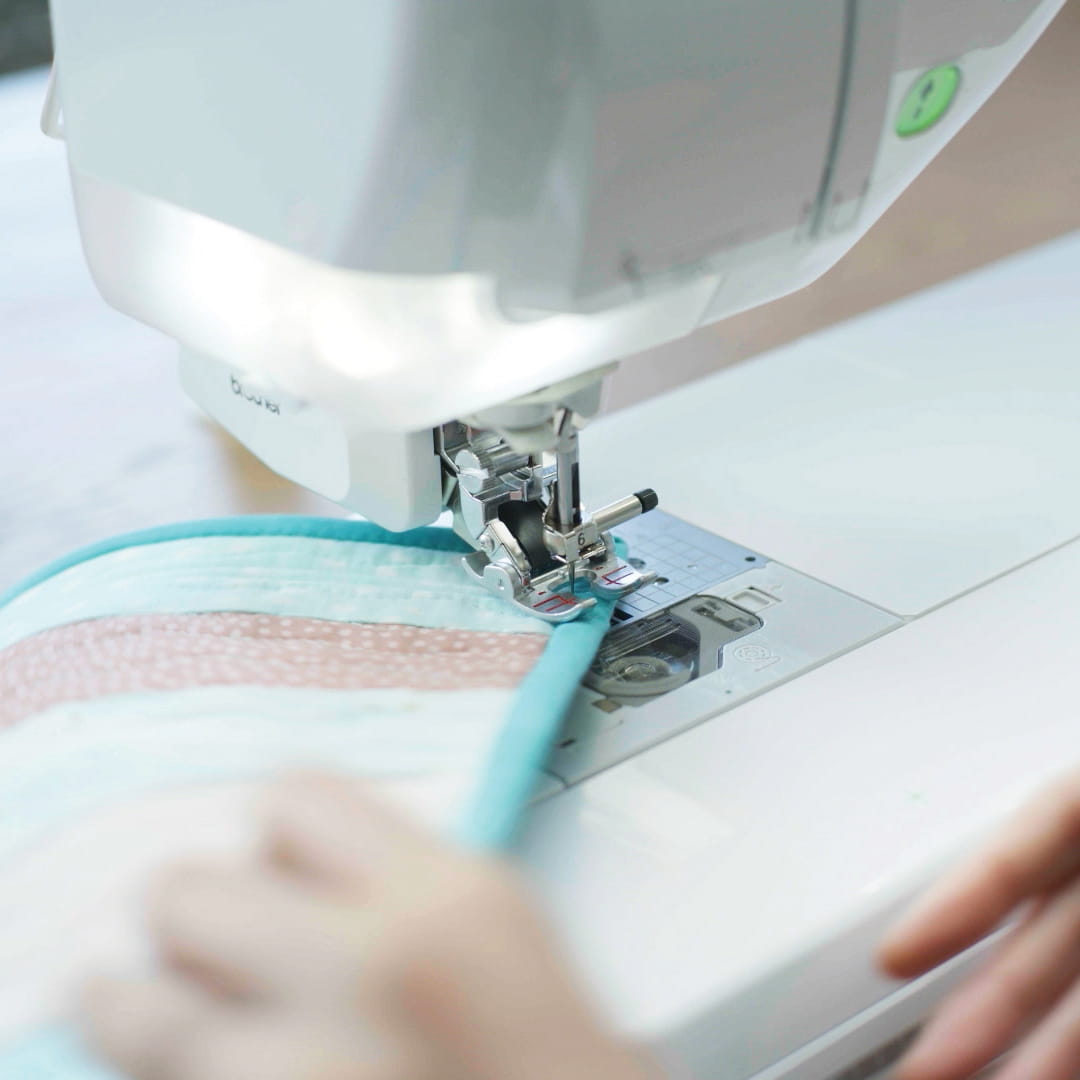

Pivot Function
Save time. Use Pivot function for precise corners, smoother circles, and easier chain piecing. Compact Dual Feed Foot is optional accessory

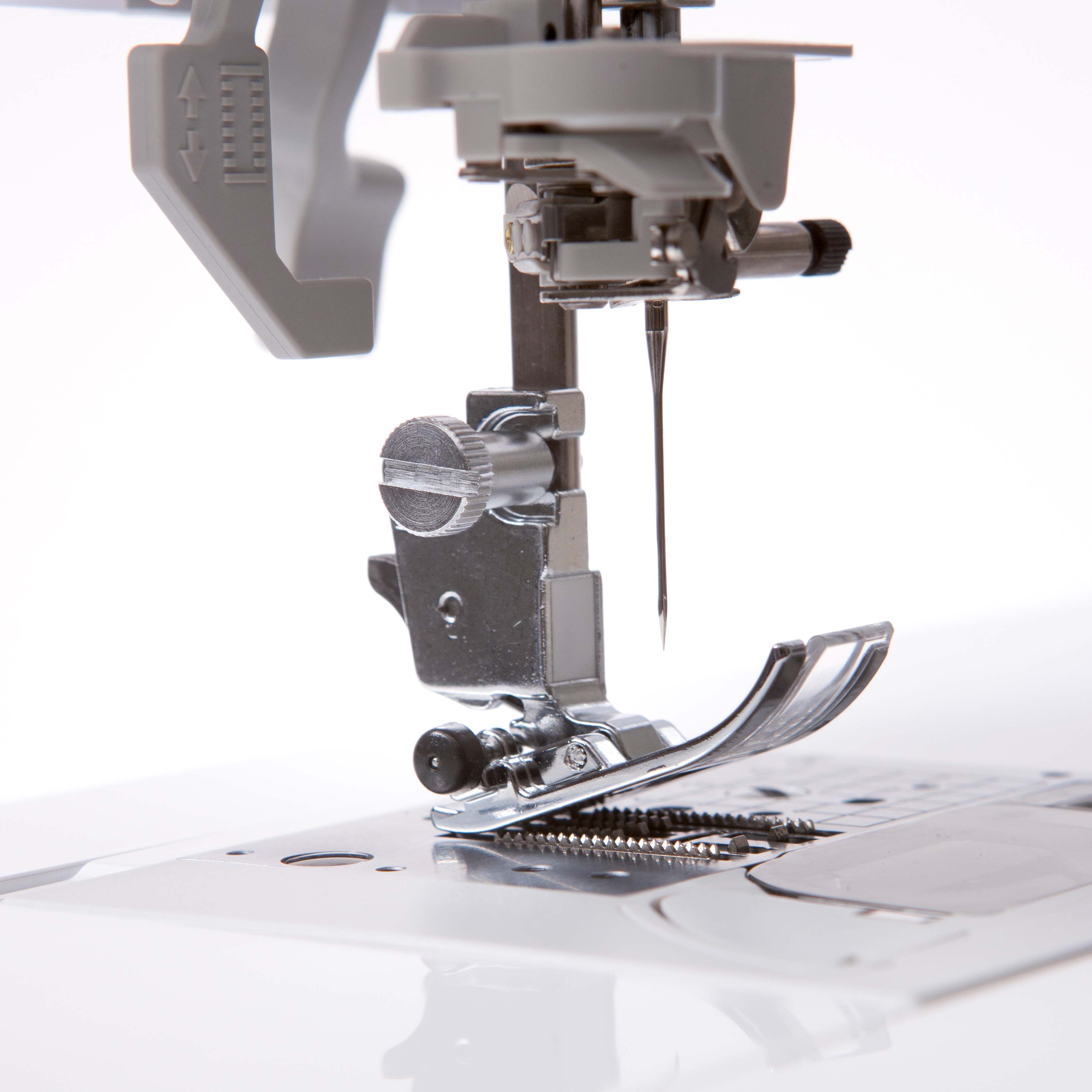

Automatic Height Adjuster
Maintain a steady stitch length on all fabric thicknesses by keeping the presser foot pressure consistent
7” Colour Touch Screen
Work easily with the brilliant and sharp 7”colour touch screen. Manage stitch selection, stitch adjustments and save personalised stitch settings
USB Port for Importing Designs
Use the USB port for importing and exporting designs or performing machine updates. A second port connects a mouse or second USB
What’s included?
Zigzag Foot, Zipper Foot, Buttonhole Foot, Button Sewing Foot, Monogramming Foot, Overcasting Foot, Blind Stitch Foot, Free-Motion Open Toe Quilting Foot, Embroidery Foot, Embroidery Frame Set 180 x 130mm, Embroidery Frame Set 300 x 200mm
Plus
Detachable Embroidery Unit, Foot controller, Knee lifter, Soft cover, Operation Manual, My Custom Stitch CD, Needle set, Twin needle, Bobbin (4), Embroidery needle plate cover, Straight stitch needle plate, Cord guide bobbin cover, Specialty thread bobbin cover, Bobbin case for bobbin work, Eyelet punch, Embroidery bobbin thread, Stabilizer material, Grid sheet set, Extra spool pin, Specialty Spool cap, Small Spool cap, Medium Spool cap, Large Spool cap , Spool net, Small screwdriver, Large screwdriver, Disc-shaped screwdriver, Cleaning brush, Seam ripper, Accessory bag
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Fully Automatic
Thread Cutter
Auto
Foot controller
Multi-Function FC (Option)
Thread Tension Control
Auto
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Case
Soft cover
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Zigzag “J” / Monogramming “N” / Overcasting “G” / Zipper “I” / Buttonhole “A” / Blind Stitch “R” / Button fitting “M” / Embroider “W” / Free motion open toe quilting “O” Adapter, Screw (small), Needle set / Twin needle / Ball point needle set, Bobbin x 10, Seam ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (Small & Large) / Disc-shaped screwdriver, Vertical spool pin, Spool cap (Small x 1 & Medium x 2, large x 1, Special x 1), Bobbin Clip x 10, Spool felt / Spool net x 2, Embroidery needle plate cover, Touch pen (stylus), Knee lifter, USB cable, Alternate bobbin case (no colour on the screw) / bobbin case (grey, for bobbin work), Foot controller, Embroidery frame set (300 x 180mm, 180 x 130mm), Embroidery bobbin thread, Cord guide bobbin cover (with single hole) / Bobbin cover (with mark) / Bobbin cover (on machine), Stabilizer material, Grid sheet set, Chalk pencil, Dust cover, Accessory bag, Straight stitch needle plate, Operation manual, Quick Reference Guide.
Sewing Features Spec
Stitch No
715
Sewing Speed
1,050 spm
Stitch pattern selection
Touch Panel
Maximum Stitch Width
7mm
Drop Feed
Yes
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Feed Dog
7, longer ver.
Embroidery Features Spec
Embroidery Speed (Max)
1,050 spm
Embroidery Area Max
200(x) x 300(Y) mm
Built In Embroidery Patterns
318
Build In Embroidery Font
17（12 Alphabet, 2 Cyrillic)
USB
Yes
Jump Stitch & Wiper Function
Yes
