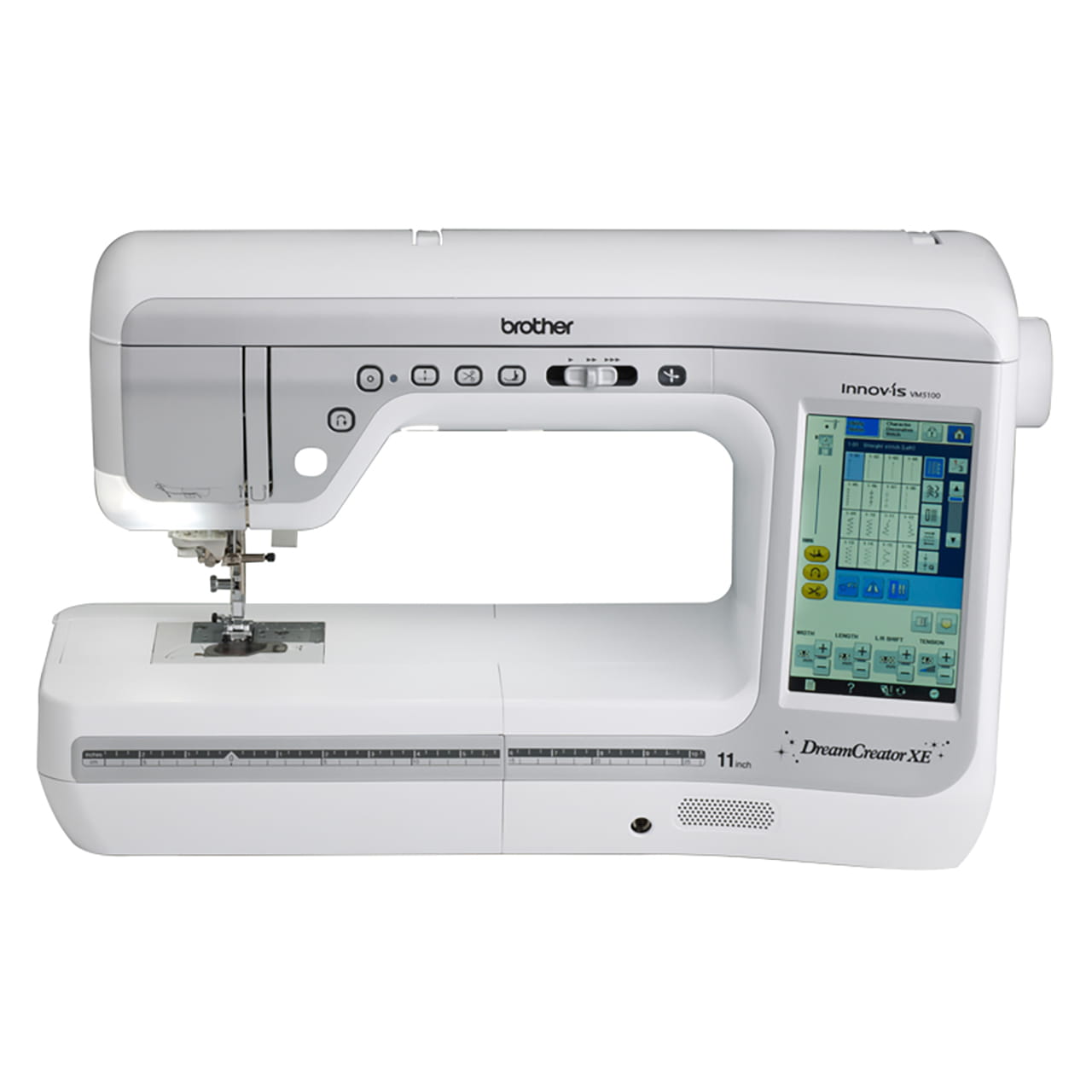

VM5100 Sewing, Quilting and Embroidery Machine
Big embroidery plus sewing. V Series.
- 11 ¼ inches needle to arm
- Automatic Needle Threader
- My Custom Stitch™ - create your own unique sewing stitch
- LCD Touchscreen
- Pivot Function
- 561 sewing/quilting stitches. 318 built-in embroidery designs
This versatile combination machine offers the trifecta of creativity and is jam packed with revolutionary features included in the V-Series range; 11 ¼inch needle to arm of workspace, ultra bright LED lighting and up to 1,050 stitches per minute. 561 sewing stitches, 318 built-in embroidery designs, 14 embroidery fonts, a large embroidery area – 300 x 180mm and fully automatic needle threading. Let your creativity explode with the DreamCreator XE!
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Fully Automatic
Thread Cutter
Auto
Sewing Light
LED
Foot controller
Multi-Function FC (Option)
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Colour LCD
Case
Soft cover
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Zigzag “J” / Monogramming “N” / Overcasting “G” / Zipper “I” / Buttonhole “A” / Blind Stitch “R” / Button fitting “M” / Embroider “W” / Free motion open toe quilting “O”Adapter, Screw (small), Needle set / Twin needle / Ball point needle set, Bobbin x 10, Seam ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (Small & Large) / Disc-shaped screwdriver, Vertical spool pin, Spool cap (Small x 1 & Medium x 2, large x 1, Special x 1), Bobbin Clip x 10, Spool felt / Spool net x 2, Embroidery needle plate cover, Touch pen (stylus), Knee lifter, USB cable, Alternate bobbin case (no colour on the screw) / bobbin case (grey, for bobbin work), Foot controller, Embroidery frame set (300 x 180mm, 180 x 130mm), Embroidery bobbin thread, Cord guide bobbin cover (with single hole) / Bobbin cover (with mark) / Bobbin cover (on machine), Stabilizer material, Grid sheet set, Chalk pencil, Dust cover, Accessory bag, Straight stitch needle plate, Operation manual, Quick Reference Guide.
Sewing Features Spec
Stitch No
561 (531 built-in, 30 on CD)
Sewing Speed
1,050 spm
Stitch pattern selection
Touch Panel
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
one-step
Number of Buttonholes
14
Lettering
5
Drop Feed
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7 (longer ver.)
Embroidery Features Spec
Embroidery Speed (Max)
1,050 spm
Embroidery Area Max
180 x 300 mm
Built In Embroidery Patterns
318
Build In Embroidery Font
17
USB
Yes
Needle number for Embroidery
1
Show More
Show Less
