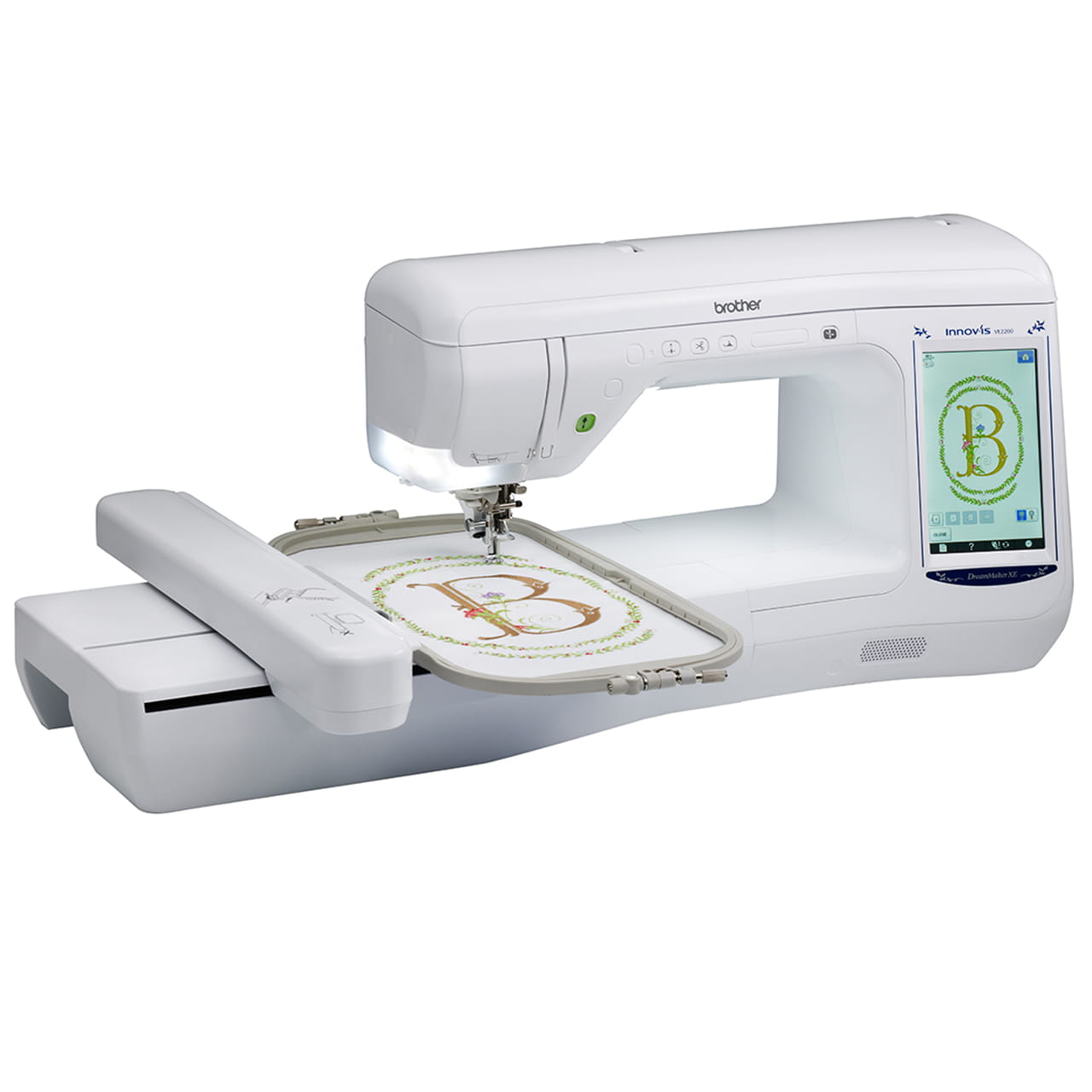

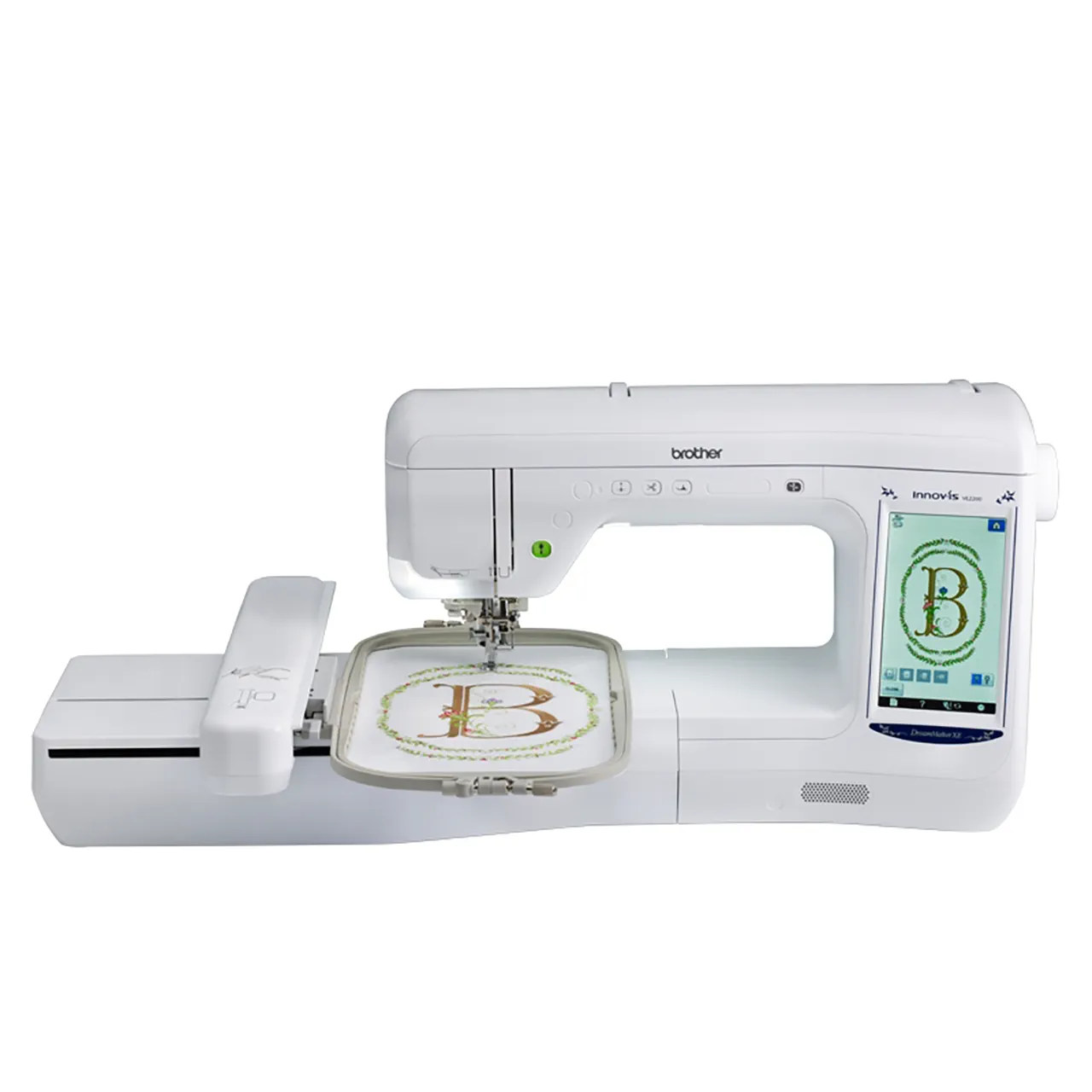

VE2200 Embroidery Machine
Room for big embroidery. V Series.
- 300 x 200mm Embroidery Area
- Automatic Needle Threader
- Stitch Jumping
- LCD Touchscreen
- V-sonic pen for embroidery
- 318 built-in embroidery designs
With its industry first features, the VE2200 is the ultimate dream machine for embroidery lovers. The V-Sonic Pen will help you automatically place your embroidery pattern and the droplight embroidery positioning marker will show you the needle drop position with pinpoint accuracy – obtaining perfect embroidery results. Even better, the VE2200 has a large embroidery area (300x180mm) and is fully loaded with 318 built-in embroidery designs and 14 embroidery fonts.
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Automatic
Thread Cutter
Auto
Sewing Light
LED
Thread Tension Control
Auto
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Colour LCD
Case
Soft cover
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Embroider foot ""W+"" with LED pointer (on machine) / Needle set / Ball point needle set / Bobbin x 10 (one is on machine) / Seam ripper / Scissors / Cleaning brush / Screwdriver (small, large, Disc-shaped) / Vertical spool pin / Spool cap (large, special) / Bobbin clip x 10 / Spool felt (on machine) / Spool net x 2 / Emb. needle plate cover / Touch pen (stylus) / USB cable / Bobbin case (gray, for bobbin work) / Bobbin cover (on machine) / Emb frame 100 x 100 mm (EF74) /Emb frame 180 x 130 mm (EF75) / Emb frame 300 x 180 mm (EF76) /Emb. frame 300 x 200 mm (EF92) / Brother poly #90 bobbin thread / Stablilizer material / Sensor pen / Pen holder / Dust cover / Accessory bag / Operation manual / Quick reference guide
Embroidery Features Spec
Embroidery Speed (Max)
1,050 spm
Embroidery Area Max
180(x) x 300(Y) mm
Built In Embroidery Patterns
318
Build In Embroidery Font
17
USB
Yes
Needle number for Embroidery
1
Show More
Show Less
