Sewing & embroidery. All the essentials and more.
- Large Embroidery Area (160mm x 260mm)
- Full Colour Touch Screen Control
- Built-in USB port to import designs from your memory stick
- Advanced Needle Threading System
- 173 built-in embroidery designs including 35 Disney designs
- 290 built-in stitches

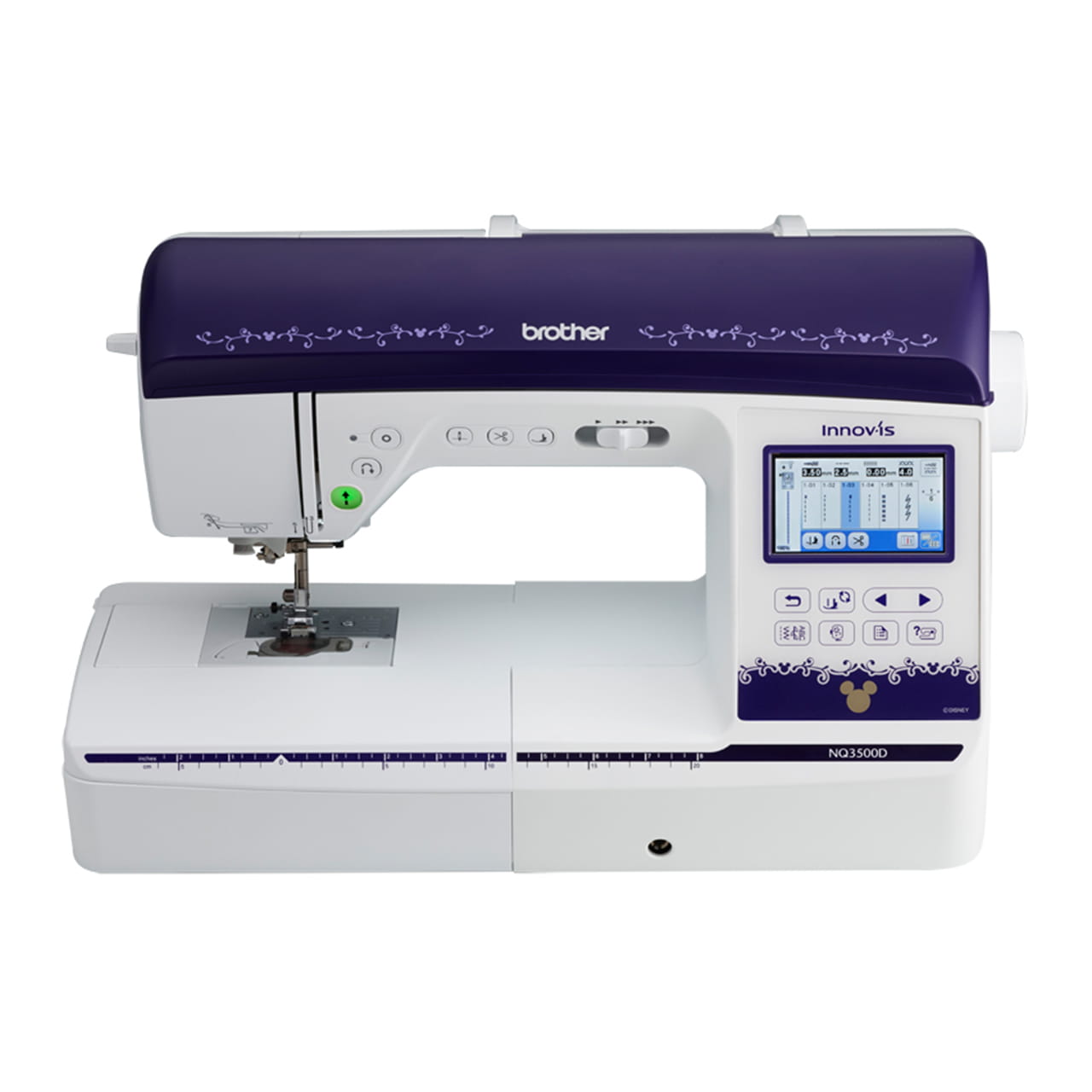

The Innov-is NQ3500D computerised sewing and embroidery machine is ideal for hobbyists of all skill levels. Take advantage of the 290 built-in sewing stitches, or make your own with the Brother-exclusive My Custom Stitch feature. A large workspace and embroidery area, Automatic Height Adjuster (AHA) feature and Pivot function all make for easy sewing, quilting and embroidery projects. A built-in USB port allows you to easily import designs from your USB memory stick, expanding your design capabilities beyond the generous 173 built-in embroidery designs, including 35 designs featuring Disney characters. Large 260 x 160mm (10"x6") embroidery area. 8.3'' from needle to arm. 3.7'' colour LCD touch screen display. On-screen editing includes letter editing, enhanced zoom, resizing, rotating, repositioning and combining designs.
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Yes
Thread Cutter
Yes
Sewing Light
2 LEDs
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Case
Hard
Wide Table
Option
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine / Acc / Hard case / manual / Zigzag “J” / Monogramming “N” / Overcasting “G” / Zipper “I” / Buttonhole “A” / Blind Stitch “R” / Button fitting “M” / Embroidery “U” / Open toe / Free motion open toe quilting “O” / Non stick / Stitch guide “P” / Adjustable zipper / Walking foot / ¼” quilting foot / Side cutter / Needle (Set / Twin needle) / Quilt guide / Bobbin x 4 / Seam ripper / Scissors / Cleaning brush / Eyelet punch, Screwdriver (Small / Large / L-shaped / Disc-shaped) / Horizontal spool pin / Spool cap (small / medium / large) / Thread spool insert (mini king thread spool) / Spool net / Knee lifter / Standard bobbin case (Green marking on the screw) / Alternate bobbin case (No color on the screw) / Foot controller / Embroidery Frames x 2 (260 x 160mm, 180 x 130mm) / Embroidery bobbin thread / Accessory bag / Hard case / Grid sheet set / Operation manual / Quick reference guide / Embroidery Design Guide
Sewing Features Spec
Stitch No
290
Sewing Speed
850
Stitch pattern selection
Touch panel
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
one-step
Number of Buttonholes
10
Lettering
5
Drop Feed
Manual
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Feed Dog
7 (longer ver)
Embroidery Features Spec
Embroidery Speed (Max)
850
Embroidery Area Max
160 mm x 260 mm
Built In Embroidery Patterns
173 (incl. 35 Disney)
Build In Embroidery Font
11
On Screen Editing
Yes
USB
Yes
Needle number for Embroidery
1
Show More
Show Less
