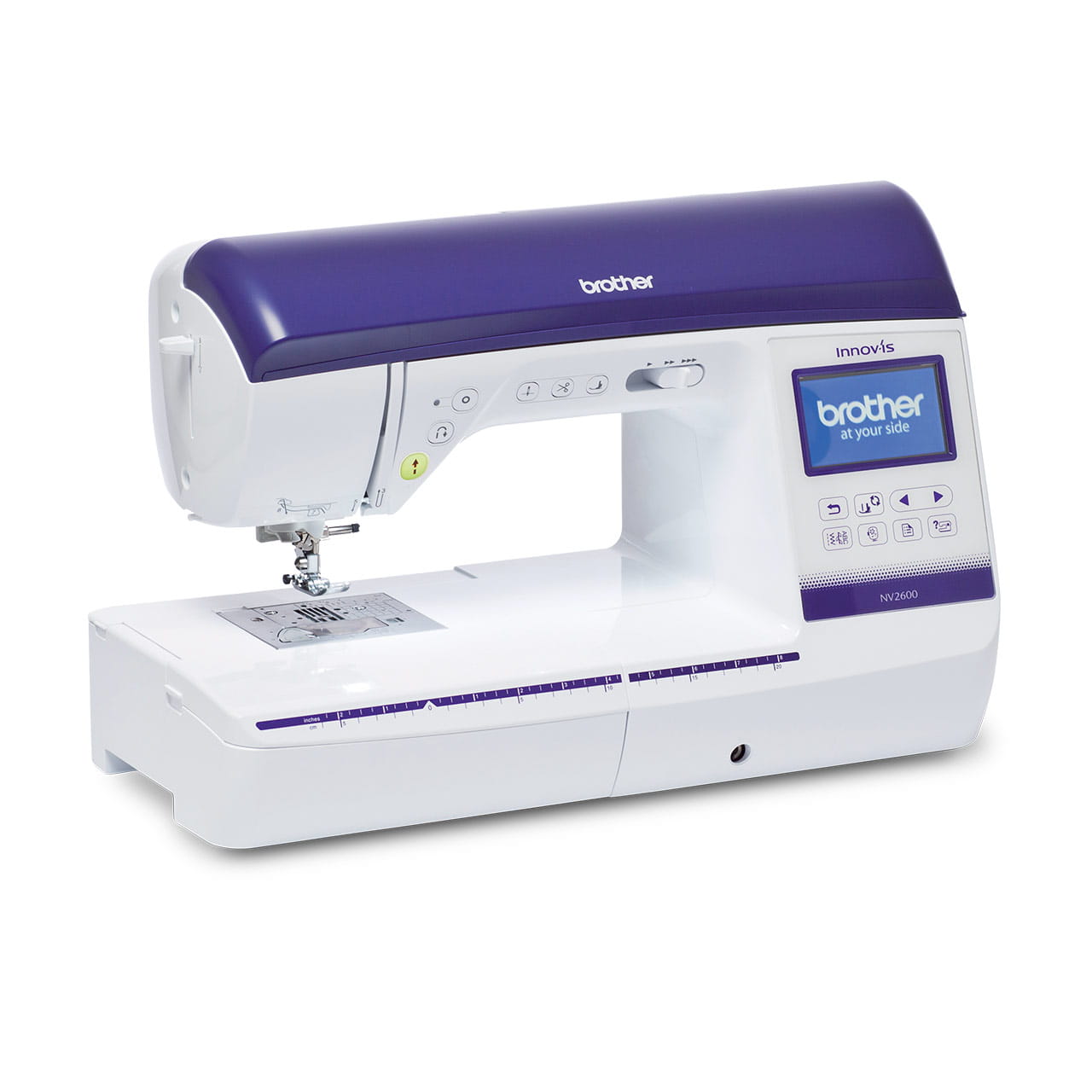

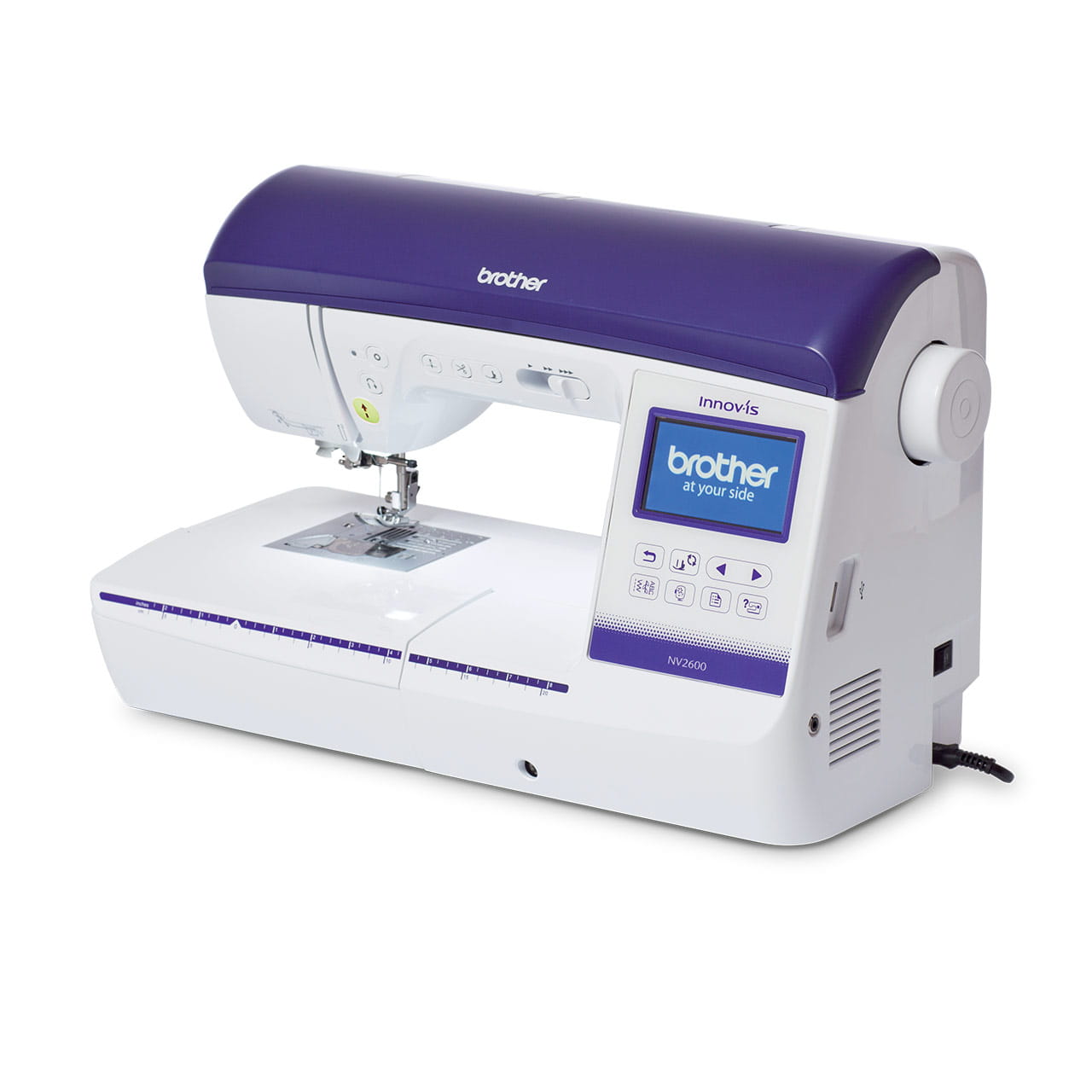

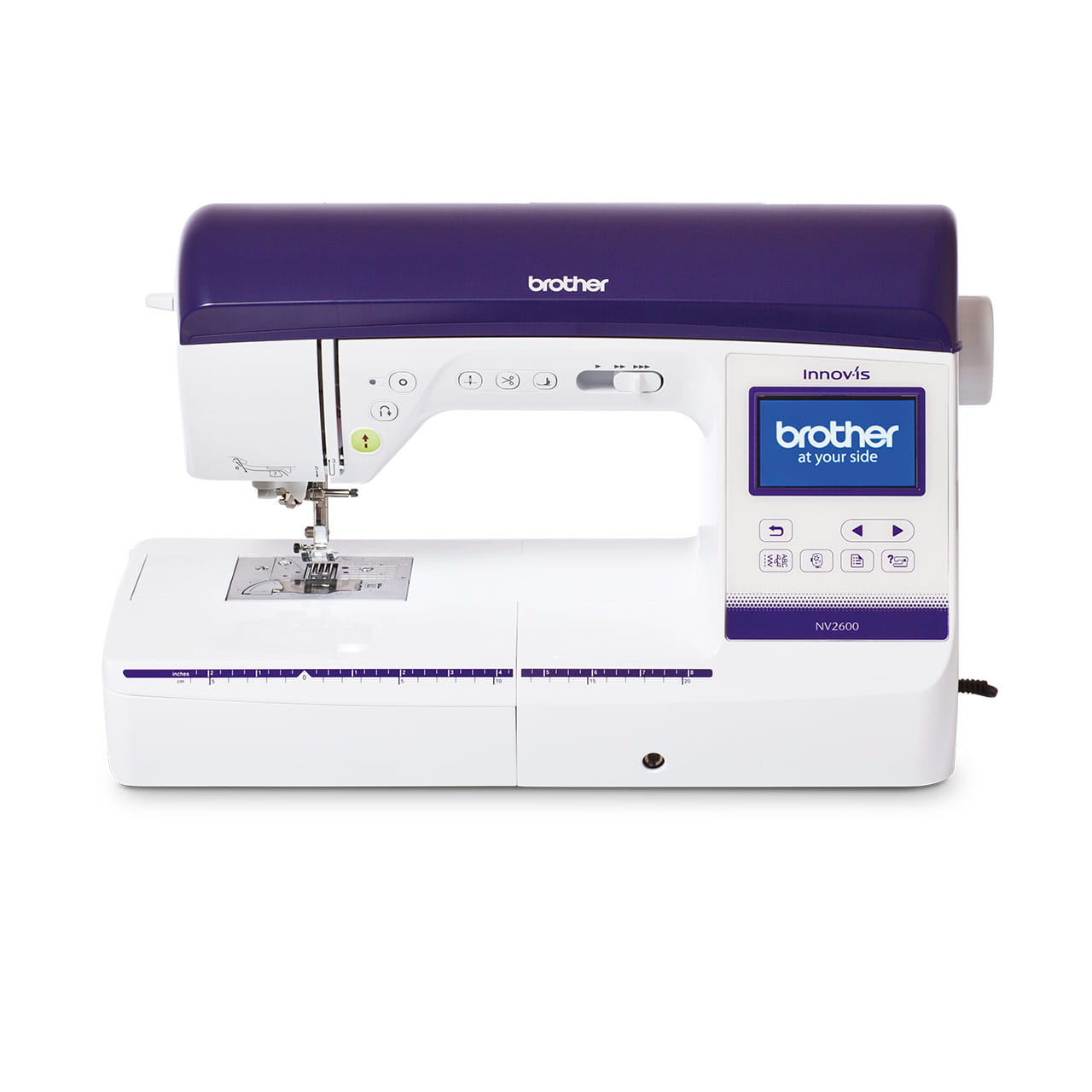

Innov-is NV2600 Sewing, Quilting and Embroidery Machine
Fast and accurate computerised machine for sewing, quilting and embroidery.
- 138 built-in embroidery designs
- Advanced Needle Threading System
- 290 Built-in Stitches including 10 one-step buttonholes
- Large Embroidery Area (160mm x 260mm)
- Thread Trimming
- My Custom Stitch™ - create your own unique sewing stitch
The Innov-is NV2600 computerised sewing and embroidery machine has some big features for beautiful results. Take advantage of the 290 built-in sewing stitches, or make your own with the Brother exclusive enhanced My Custom Stitch feature. A large workspace and embroidery area, Automatic Height Adjuster (AHA) feature and Pivot function all make for easy sewing, quilting and embroidery projects. A built-in USB port allows you to easily import designs from your USB memory stick, expanding your design capabilities beyond the generous 138 built-in embroidery designs. The Innov-is NV2600 gives you creativity and control to enjoy sewing, quilting and embroidery projects.
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Yes
Thread Cutter
Yes
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Case
Hard
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Zigzag “J” / Monogramming “N” / Overcasting “G” / Zipper “I” / Buttonhole “A” / Blind Stitch “R” / Button fitting “M” / Embroidery “U” / Open toe / Free motion open toe quilting “O” / Non stick / Stitch guide “P” / Adjustable zipper / Walking foot / ¼” quilting foot / Side cutter, Needle (Set / Twin needle), Quilt guide, Bobbin x 4, Seam ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (Small / Large / L-shaped / Disc-shaped), Horizontal spool pin, Spool cap (small / medium / large), Thread spool insert (mini king thread spool), Spool net, Knee lifter, Standard bobbin case (Green marking on the screw), Alternate bobbin case (No color on the screw), Foot controller, Embroidery Frames x 2 (260 x 160mm, 180 x 130mm), Embroidery bobbin thread, Accessory bag, Hard case, Grid sheet set, Operation manual, Quick reference guide, Embroidery Design Guide
Sewing Features Spec
Stitch No
290
Sewing Speed
850 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
one-step
Number of Buttonholes
10
Lettering
5
Drop Feed
Yes
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7 (longer ver.)
Embroidery Features Spec
Embroidery Speed (Max)
850 spm
Embroidery Area Max
160 mm x 260 mm
Built In Embroidery Patterns
138
Build In Embroidery Font
11
On Screen Editing
Yes
USB
Yes
Needle number for Embroidery
1
Show More
Show Less
