Sewing, Quilting & Embroidery Machine
- 135 Built-in Embroidery Patterns
- Advanced Needle Threading System
- Easily combine designs or letters and edit on-screen
- Online how-to videos
- Maximum embroidery area 100mm x 100mm
- Easily import designs via WLAN or USB
Information
Overview

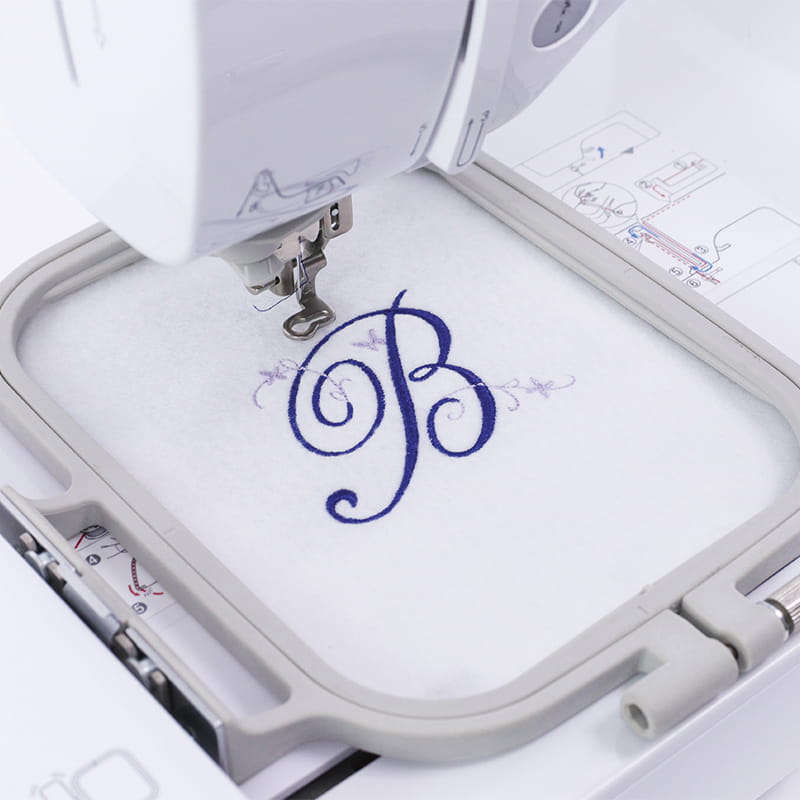

100 x 100mm Embroidery Area
Add appeal and personalisation to your projects using the built-in designs and fonts. Includes one 4” x 4” embroidery frame

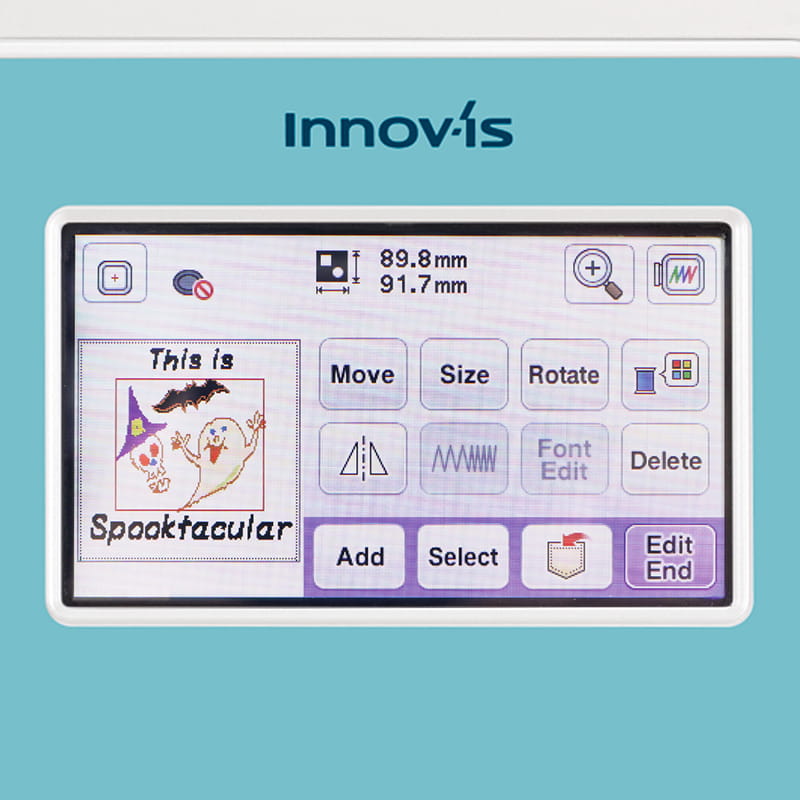

On-Screen Editing
Change individual thread colours, place lettering in an arc, and more. Move designs on the touch screen display with the touch of a finger

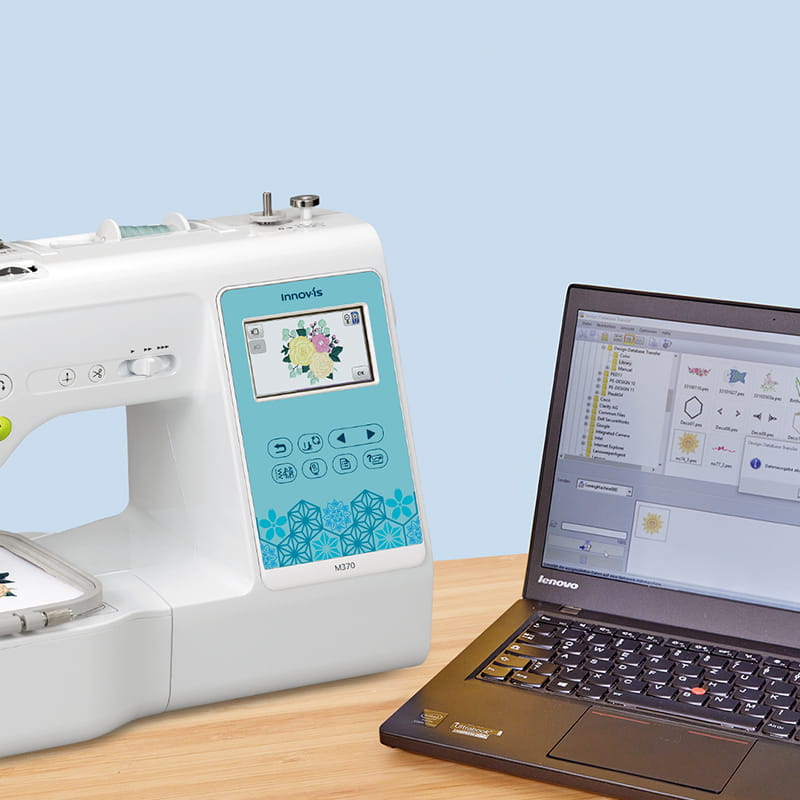

WLAN and USB Connectivity
Send embroidery files from your PC to your machine with free downloadable DesignDatabase Transfer software or use USB

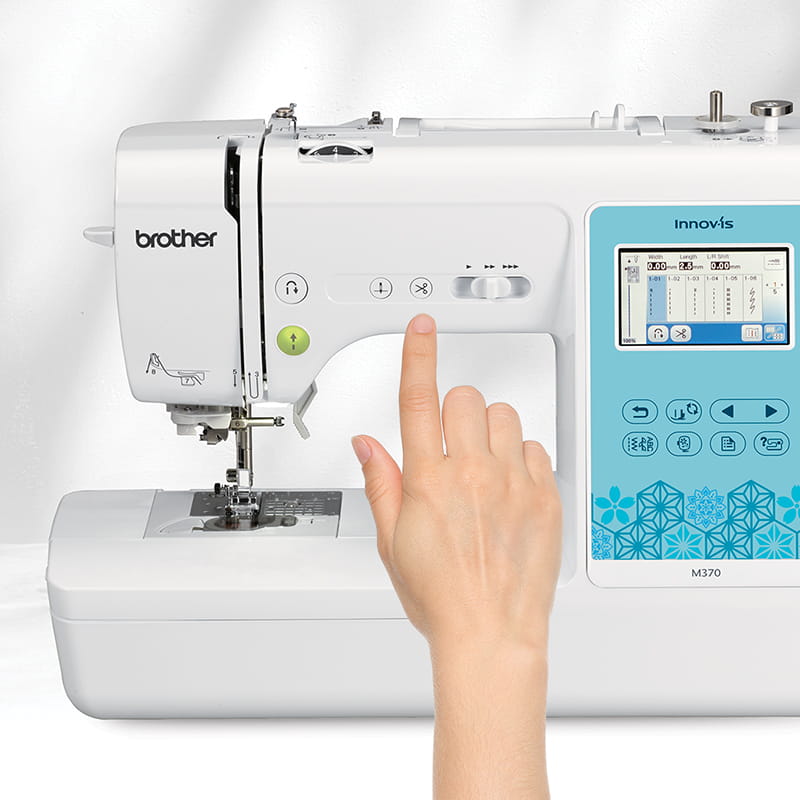

Thread trimming
Save time. Upper and lower thread can be trimmed at the touch of a button or programmed to trim at the end of sewing

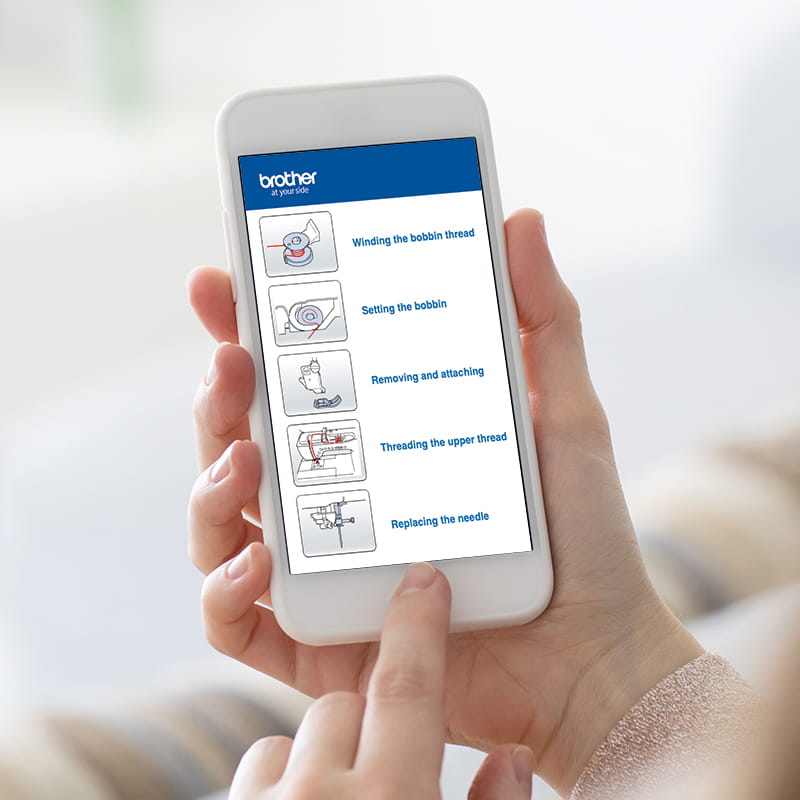

Online How–to Videos
Watch step by step videos and access troubleshooting for free whenever you need to on your mobile device or desktop

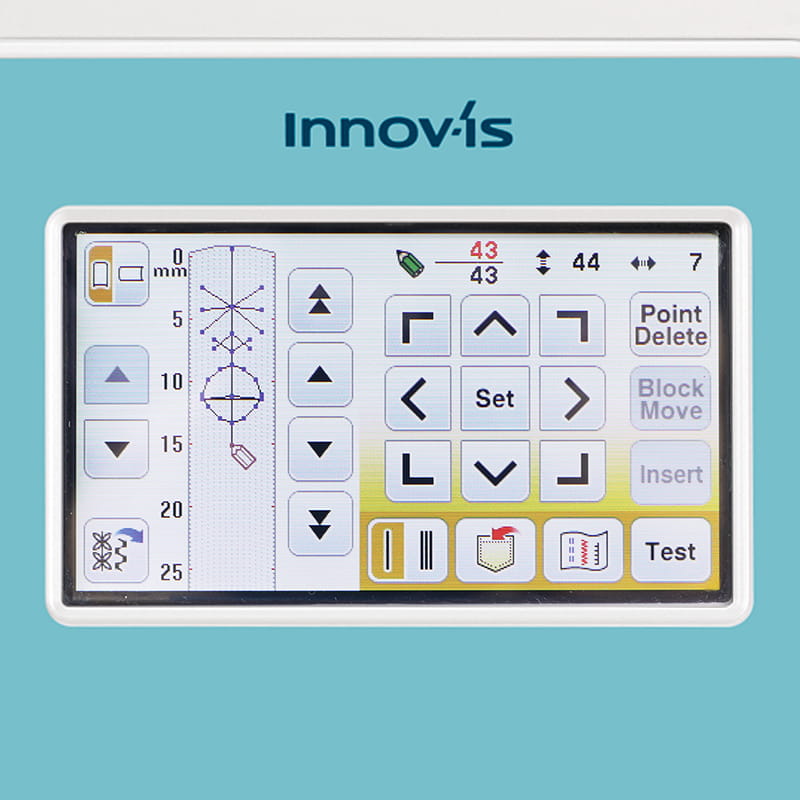

My Custom Stitch
Edit and create your own sewing or decorative stitch designs and save them for future projects directly on the easy-to-read LCD panel
What’s included?
Zigzag Foot, Zipper Foot, Buttonhole Foot, Button Sewing Foot, Overcasting Foot, Monogramming Foot, Blind Stitch Foot, Embroidery Foot
Plus
Detachable Embroidery Unit, Embroidery Frame (10 x 10cm/4 x 4 inch), Grid Sheet Set, Embroidery Design Guide, 3 Pre-wound Bobbins (60 Weight White Embroidery Bobbin Thread), 4 Bobbin Clips, Needle Set, Twin Needle, 2 Bobbins, Seam Ripper, Scissors, Cleaning Brush, Eyelet Punch, Disc-Shaped Screwdriver, Screwdriver, Extra Spool Pin, Spool Cap (Large/Medium/Small), Spool Net, Thread Spool Insert (Mini King Thread Spool), Bobbin Case, Foot Controller, accessory Bag, Hard Case, Operation Manual, Quick Reference Guide
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Advance
Thread Cutter
Yes
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes(Easy)
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Case
Hard cover
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Zigzag foot "J", Monogramming foot "N", Overcasting foot "G", Zipper foot "I", Blind stitch foot "R", Button fitting foot "M", Buttonhole foot "A", Embroidery foot "Q", Needle Set / Twin needle, Bobbin (on machine), Pre-wound bobbin - (60 weight white emb bobbin thread), Bobbin clip, Seam ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver, Disc-shaped screwdriver, Extra spool pin, Thread spool insert (mini king thread spool), Bobbin case (on machine), Spool net, Foot controller, Embroidery Frame (100 x 100mm), Accessory bag, Hard case, Grid sheet set, Operation manual, Quick reference guide, Embroidery Design Guide
Sewing Features Spec
Stitch No
181
Sewing Speed
850 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
Auto
Number of Buttonholes
10
Lettering
4 (3 Alphabet, 1 Japanese)
Drop Feed
Manual
Knee Lifter
No
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
No
Feed Dog
7, longer ver.
Embroidery Features Spec
Embroidery Speed (Max)
400
Embroidery Area Max
100 mm x 100 mm
Built In Embroidery Patterns
135
Build In Embroidery Font
11 (8 alhpabet + 3 Japanese)
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
No
Camera Function
No
Needle number for Embroidery
1
