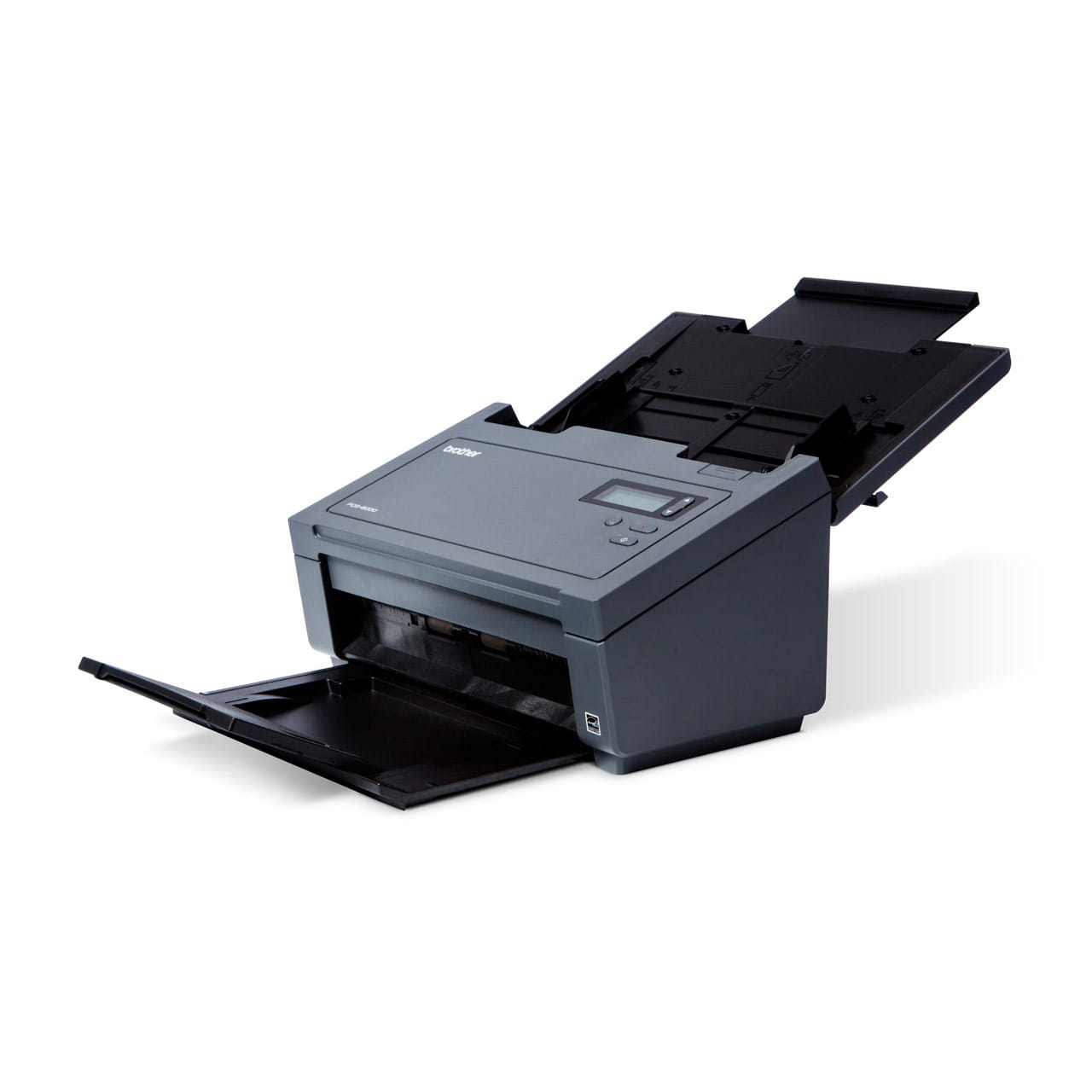

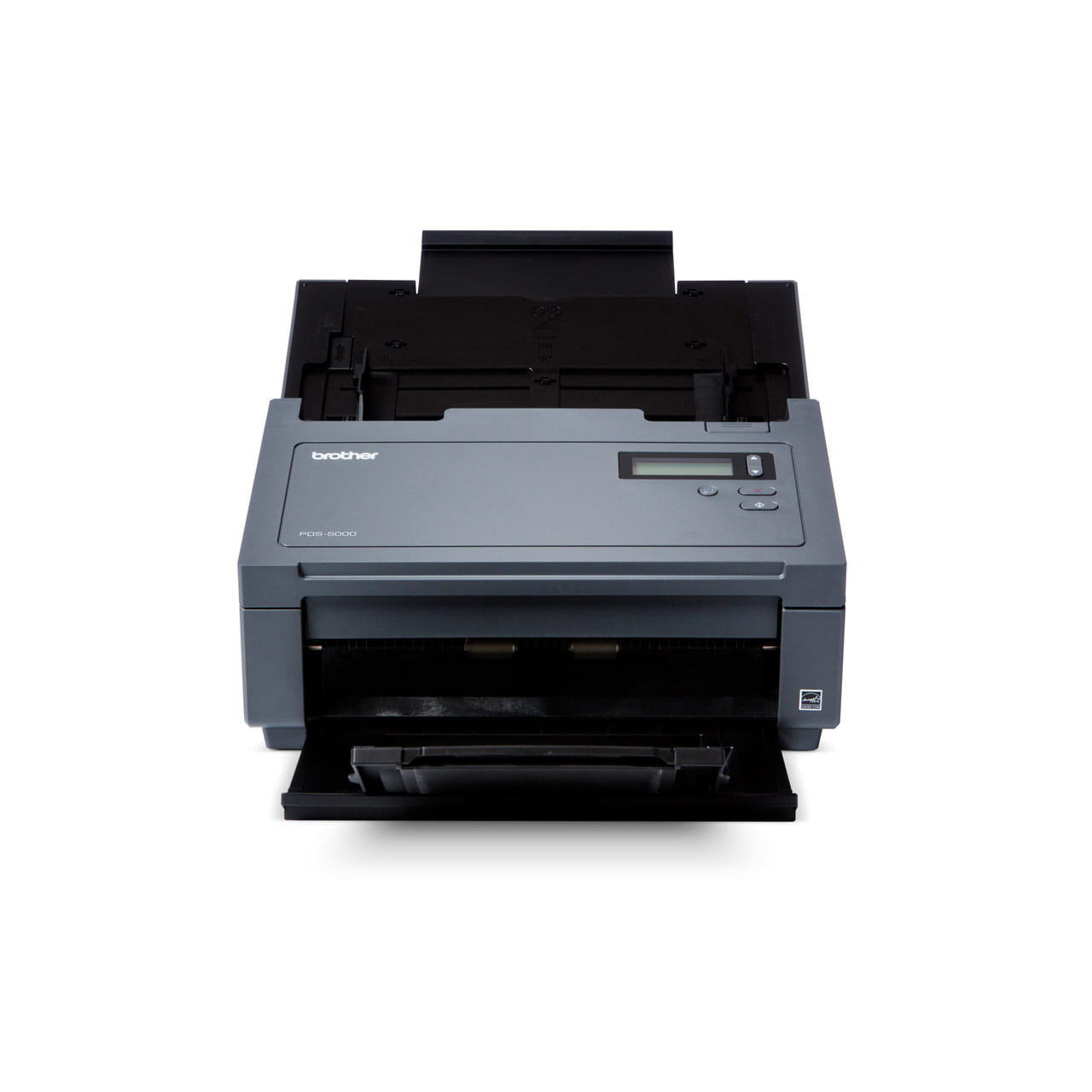

PDS-6000 Professional Desktop Scanner
Professional High Speed Desktop Scanner
- 100 sheet ADF
- Up to 80ppm (160ipm) 2-sided A4 scan speed
- Achieve optimum performance with TWAIN, WIA, ICA, SANE and ISIS drivers
- Scan-to email, image, OCR,file, FTP, network, SharePoint and printer
The Brother PDS-6000 is a robust and accurate professional document scanning solution with an ultra-fast 2-sided (duplex) scan capability of up to 80ppm/(160ipm) that offers efficiency-enhancing benefits for medium to large-size businesses. Featuring a large 100-sheet A4 Automatic Document Feeder (ADF), this scanner is capable of capturing a wide range of documents from multi-page reports to business cards and receipts. Boasting various image optimisation features including an advanced roller and ultrasonic multi-feed detection systems, the PDS-6000 ensures your important documents are of the highest professional standard, making it the ideal business choice to achieve fast and reliable workflow integration.
Information
Overview
Specifications
Basic Specs
Scanning Speed
80ppm ＠200/300dpi, (A4) 20ppm ＠600dpi
Document Size - Multiple Sheets - Width
51 mm to 218 mm
Document Size - Multiple Sheets - Length
54 mm to 356 mm
Document Size - Single Sheet - Width
51 mm to 218 mm
Document Size - Single Sheet - Length
1-sided scan: 54 mm to 5,994 mm
2-sided scan: 54 mm to 356 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 600 dpi × 600 dpi
Document Scanning Width / Length
Max. 216 mm
Product Dimensions (Width X Depth X Height)
316 mm × 187 mm × 187 mm
Weight
4.7 kg
ADF (Automatic Document Feeder)
Up to 100 pages (Paper: 280 g/m²)
Memory Capacity
512 MB
Warranty
3 years Return to Base Warranty
What's in The Box
Scanner, Quick Setup Guide, User's Guide, DVD (Windows), AC Adaptor, Power Cord, USB 3.0 cable
Network
Wireless Network Security
-
Setup Support Utility
-
Display Type
Touchscreen LCD
-
LCD
16 characters × 2 lines
Operation
Power Source
AC: 220 - 240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 59.0W
Power Consumption - Ready
Approx. 19.0W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.6W
Power Consumption - Power OFF
Approx. 0.3W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7, 8, 8.1
TWAIN Compliant - Macintosh
OS X v10.8.x, 10.9.x, 10.10.x or later
WIA Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7, 8, 8.1
ICA Compliant - Macintosh
OS X v10.8.x, 10.9.x, 10.10.x or later
ISIS™ Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7, 8, 8.1
Software and Apps
Included Software
12/21/2023
Windows: Button Manager V2, DS Capture, OmniPage SE 18, QuickScan Pro Trial
Mobile Apps
12/21/2023
