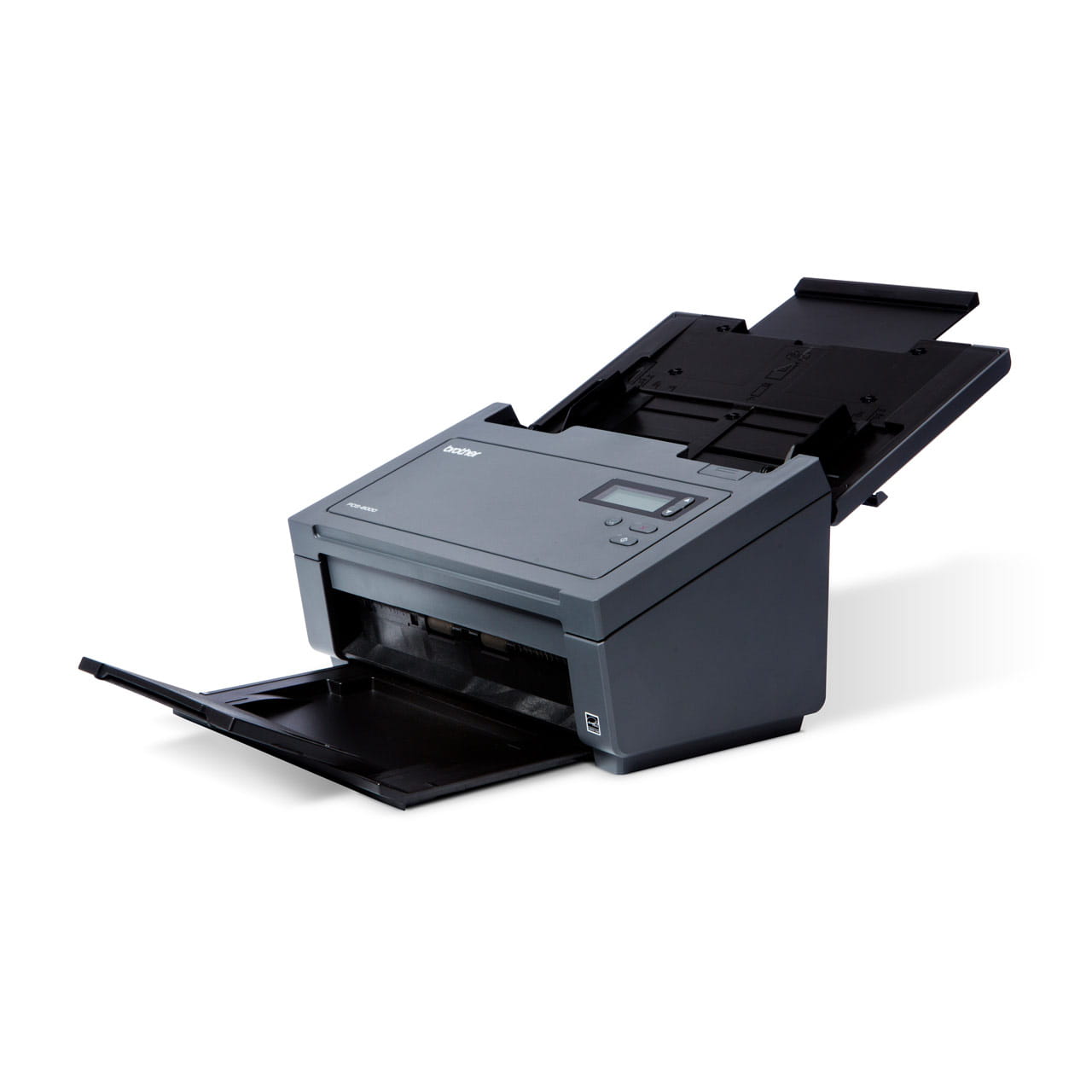

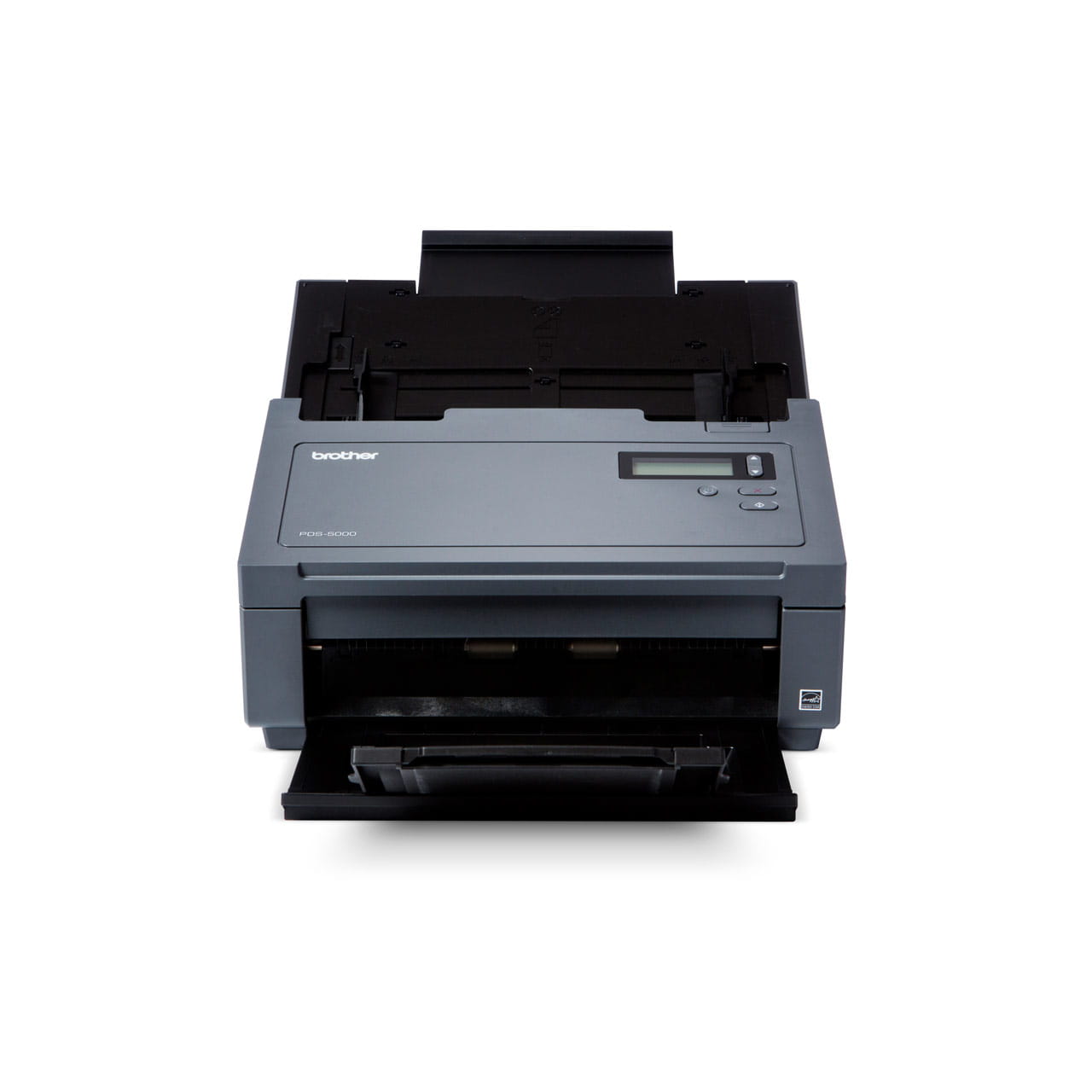

Professional High Speed Desktop Scanner with Duplex 100-Sheet A4 Automatic Document Feeder
- 100 sheet ADF
- Up to 60ppm (120ipm) 2-sided A4 scan speed
- Achieve optimum performance with TWAIN, WIA, ICA, SANE and ISIS drivers
- Scan-to email, image, OCR,file, FTP, network, SharePoint and printer
With reliable paper handling functions and a range of advanced image processing capabilities, the Brother PDS-5000 makes repetitive workflow processes more efficient. Expert paper handling abilities - achieved from the ultrasonic multi-feed detection and reverse roller features - enables the gentle handling of important business documents and ensures the retainment of original appearance. With super-fast 2-sided (duplex) scan capability of up to 60ppm/(120ipm) and a large 100-sheet A4 Automatic Document Feeder (ADF) providing the ability to batch scan, the PDS-5000 is the reliable and smart choice for high volume scanning and digital archiving.
Information
Overview
Specifications
Basic Specs
Scanning Speed
60ppm ＠200/300dpi, (A4) 15ppm ＠600dpi
Document Size - Multiple Sheets - Width
51 mm to 218 mm
Document Size - Multiple Sheets - Length
54 mm to 356 mm
Document Size - Single Sheet - Width
51 mm to 218 mm
Document Size - Single Sheet - Length
1-sided scan: 54 mm to 5,994 mm
2-sided scan: 54 mm to 356 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 600 dpi × 600 dpi
Document Scanning Width / Length
Max. 216 mm
Product Dimensions (Width X Depth X Height)
316 mm × 187 mm × 187 mm
Weight
4.7 kg
ADF (Automatic Document Feeder)
Up to 100 pages (Paper: 280 g/m²)
Memory Capacity
512 MB
Warranty
3 years Return to Base Warranty
What's in The Box
Scanner, Quick Setup Guide, User's Guide, DVD (Windows), AC Adaptor, Power Cord, USB 3.0 cable
Network
Wireless Network Security
-
Setup Support Utility
-
Display Type
Touchscreen LCD
-
LCD
16 characters × 2 lines
Operation
Power Source
AC: 100 - 240 V, 50/60 Hz
DC: 24 V 2 A
Power Consumption - Scanning
Approx. 59.0W
Power Consumption - Ready
Approx. 19.0W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.6W
Power Consumption - Power OFF
Approx. 0.3W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7, 8, 8.1
TWAIN Compliant - Macintosh
OS X v10.8.x, 10.9.x, 10.10.x or later
WIA Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7, 8, 8.1
ICA Compliant - Macintosh
OS X v10.8.x, 10.9.x, 10.10.x or later
ISIS™ Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7, 8, 8.1
Software and Apps
Included Software
12/21/2023
Windows: Button Manager V2, DS Capture, OmniPage SE 18, QuickScan Pro Trial
Mobile Apps
12/21/2023
