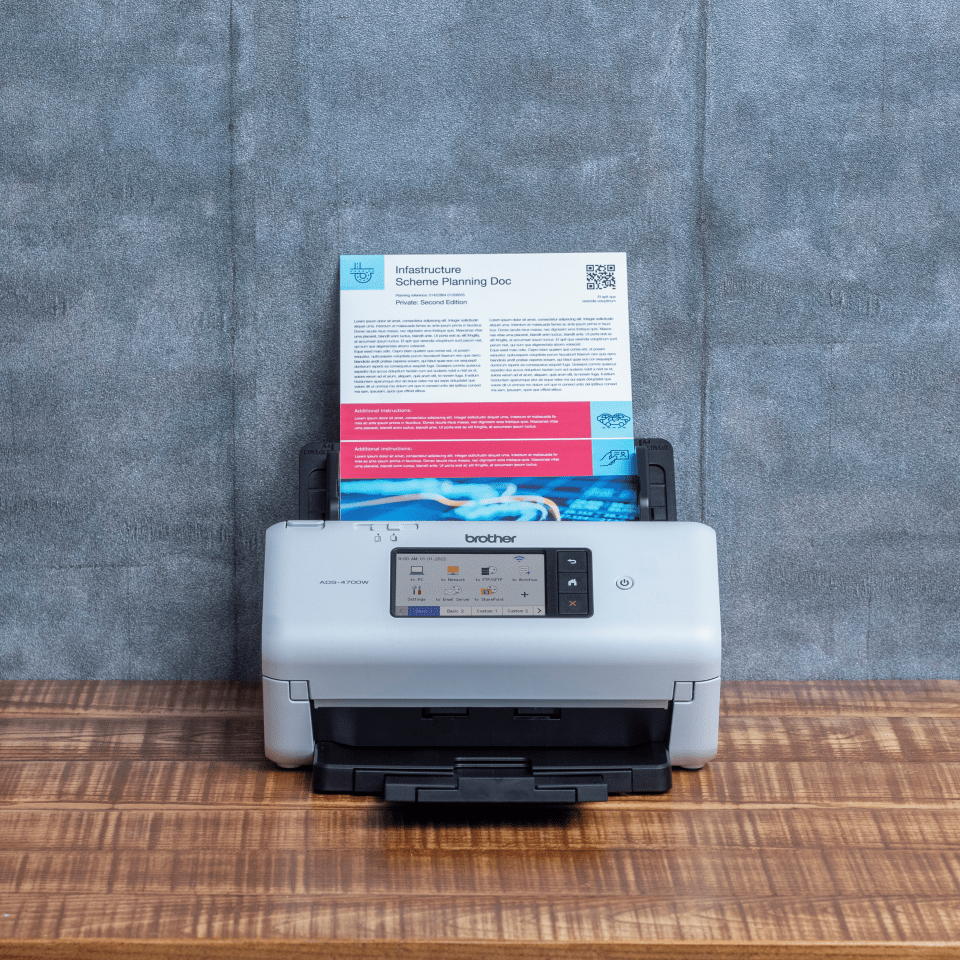

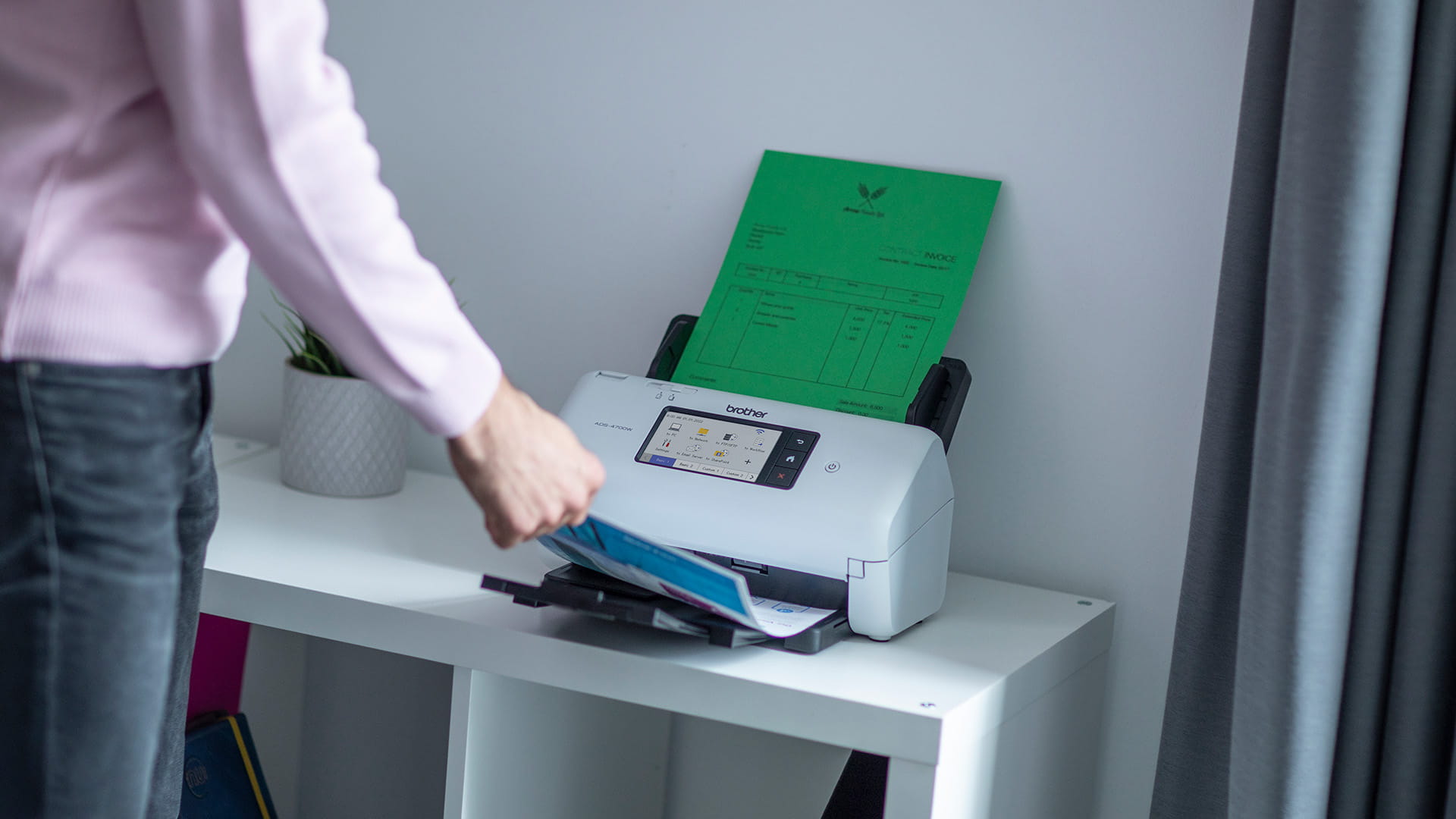

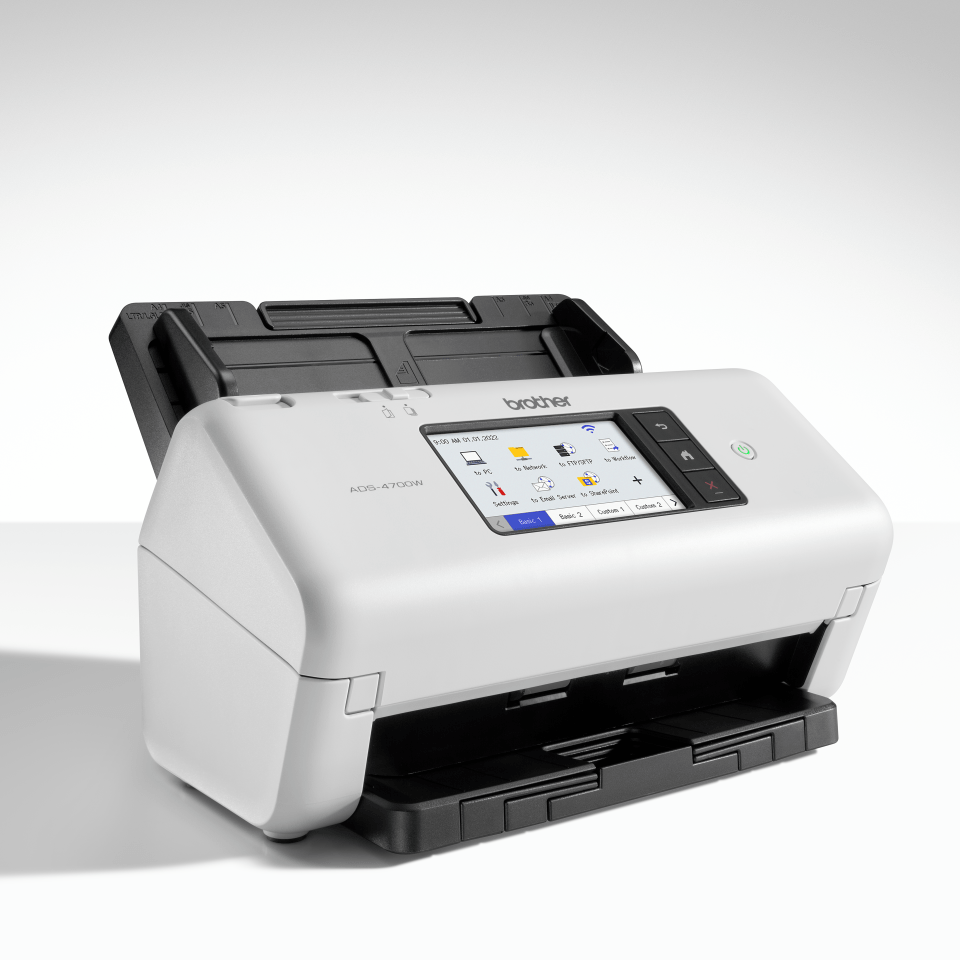

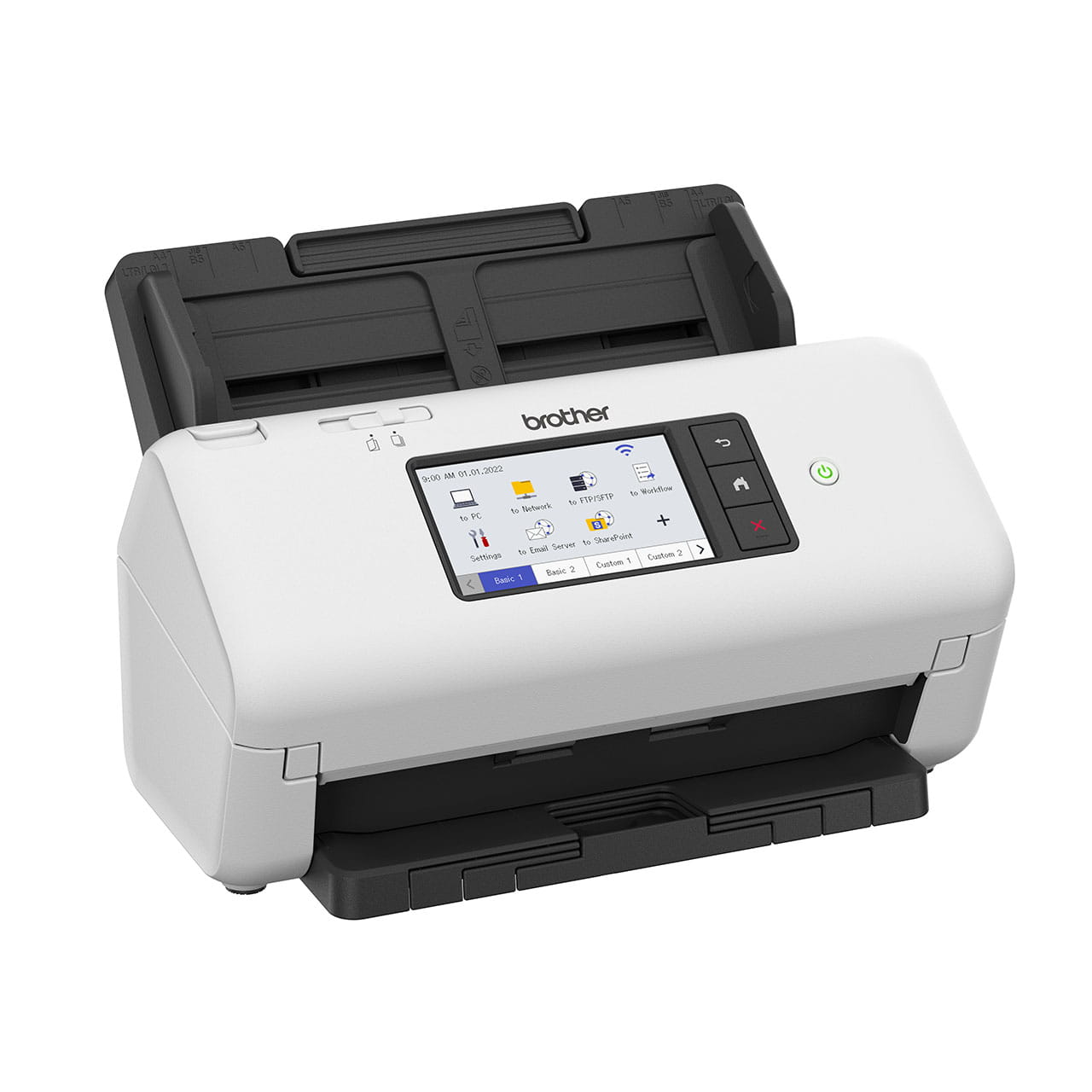

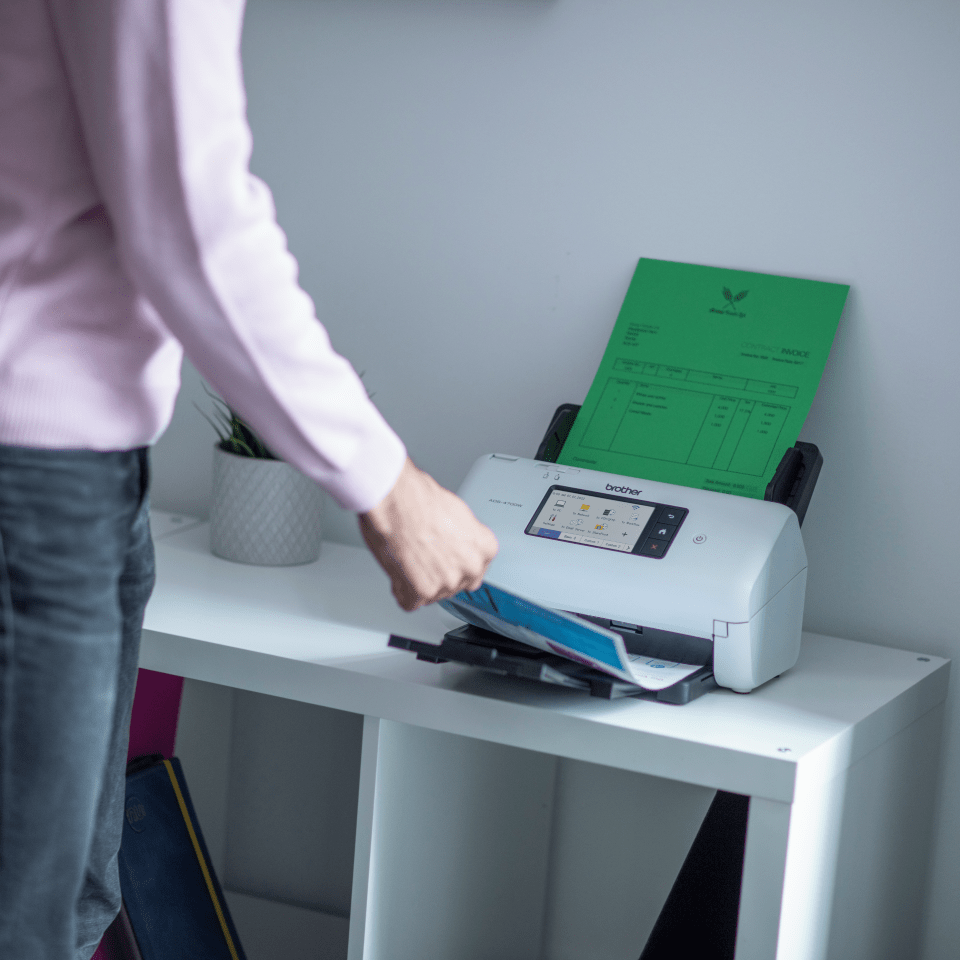

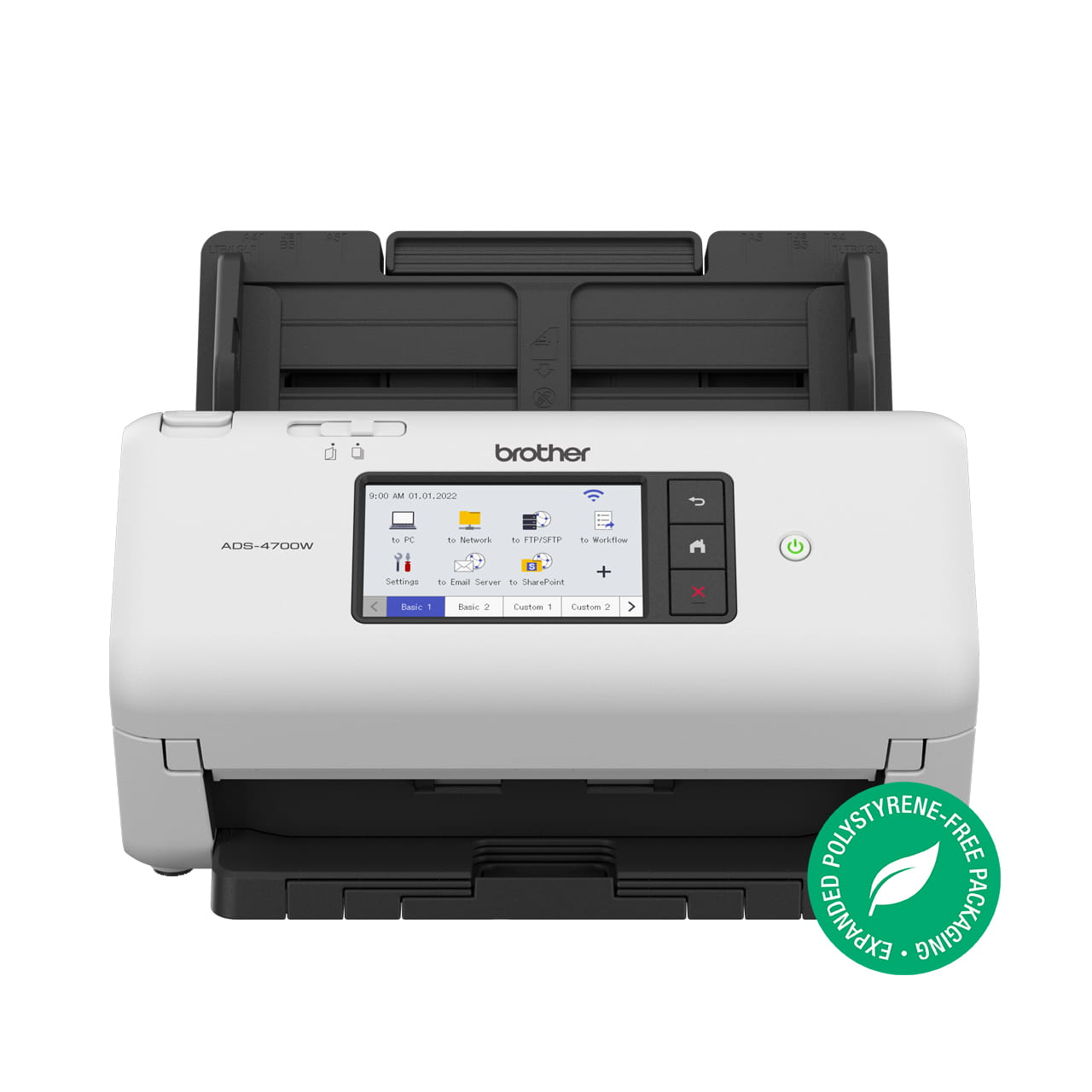

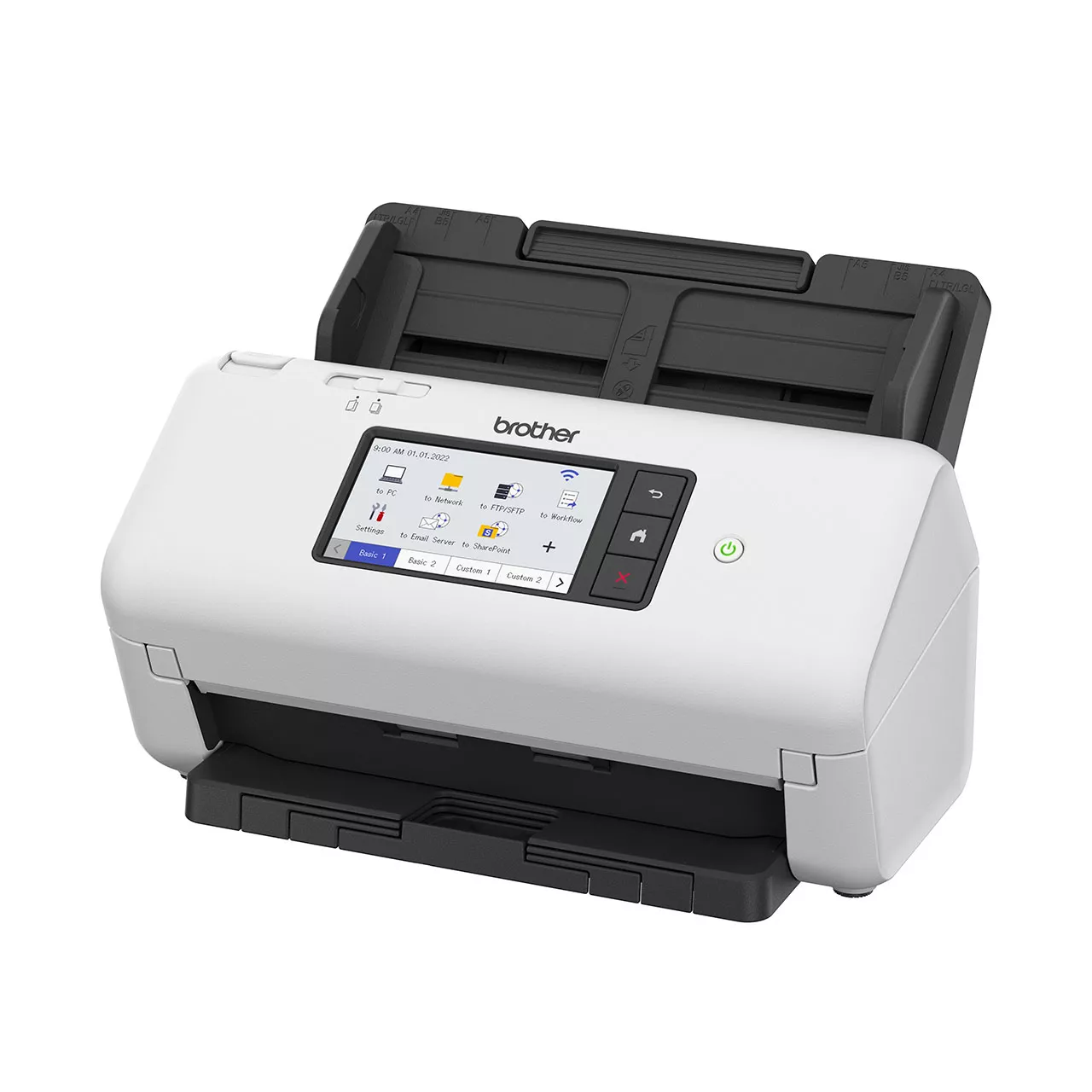

Professional High Speed Desktop Scanner

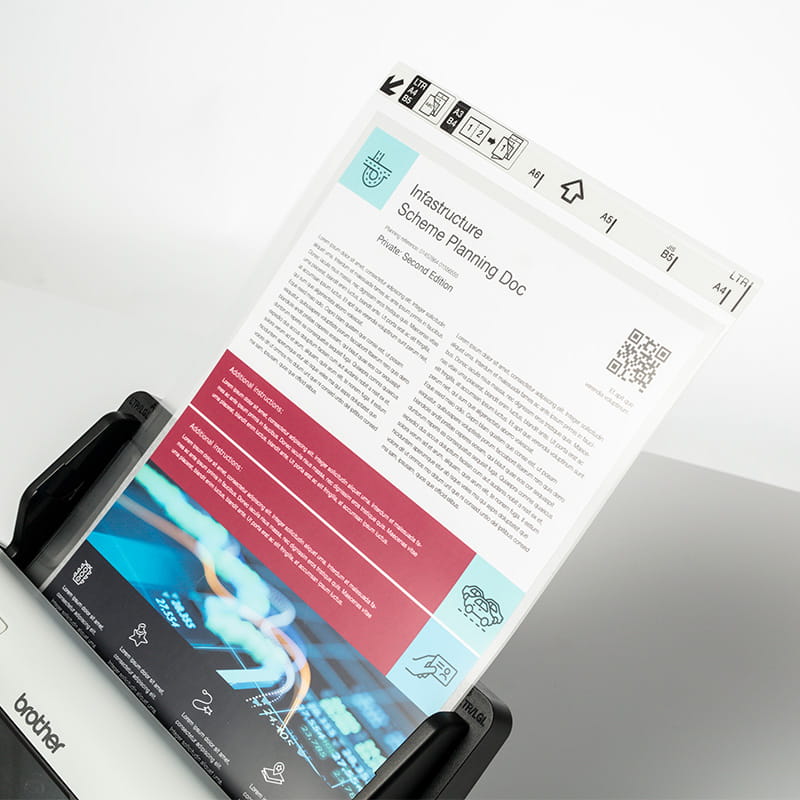

- 80-sheet Automatic Document Feeder (ADF)
- 2-sided scanning up to 80ipm
- Optical character recognition (OCR)
- Optimise workflows with Kofax, NewSoft and ScanEssentials software
- Connect and scan using USB 3.0, USB host, Wi-Fi and network

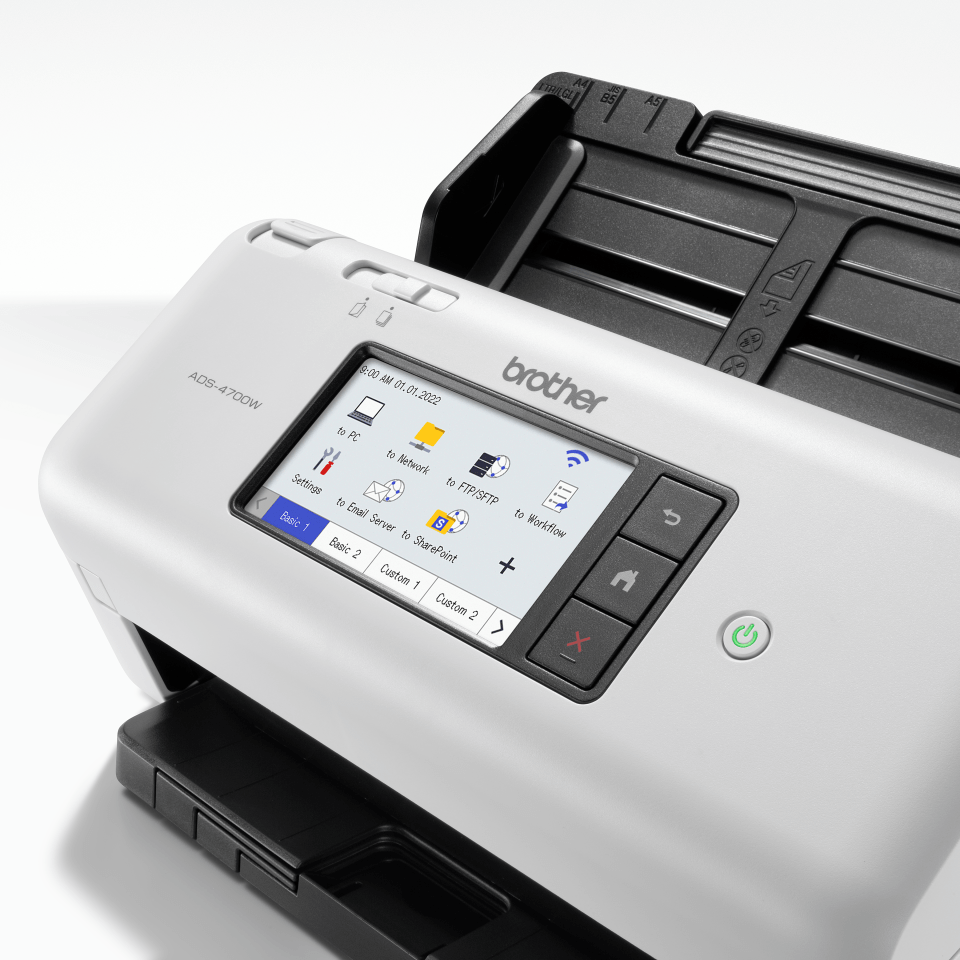

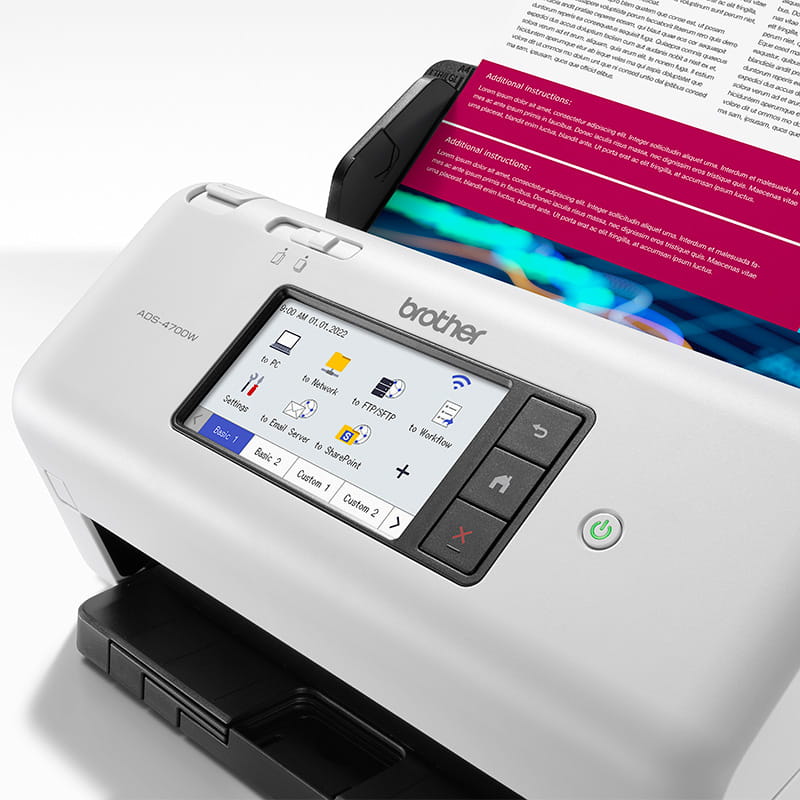

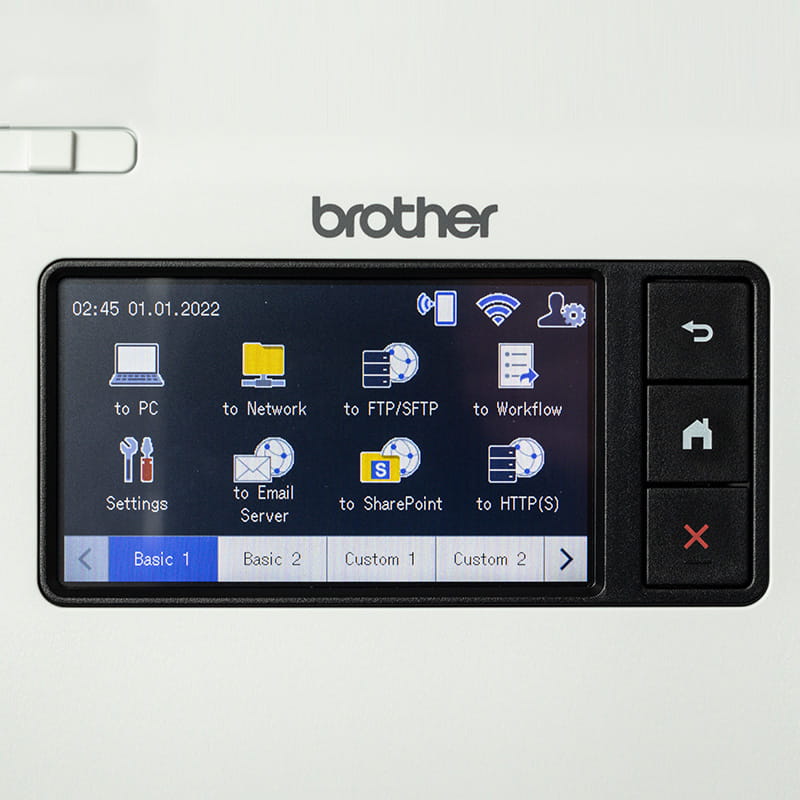

- 10.9cm touchscreen
Information
Overview
![](https://www.brother.com.au/-/media/ap2/australia/products/scanner/ads-4700w/800-x-800px/ads-4700w_800x800_row1_1.jpg?rev=6be413fcdf1c441193654ae32c829f10)

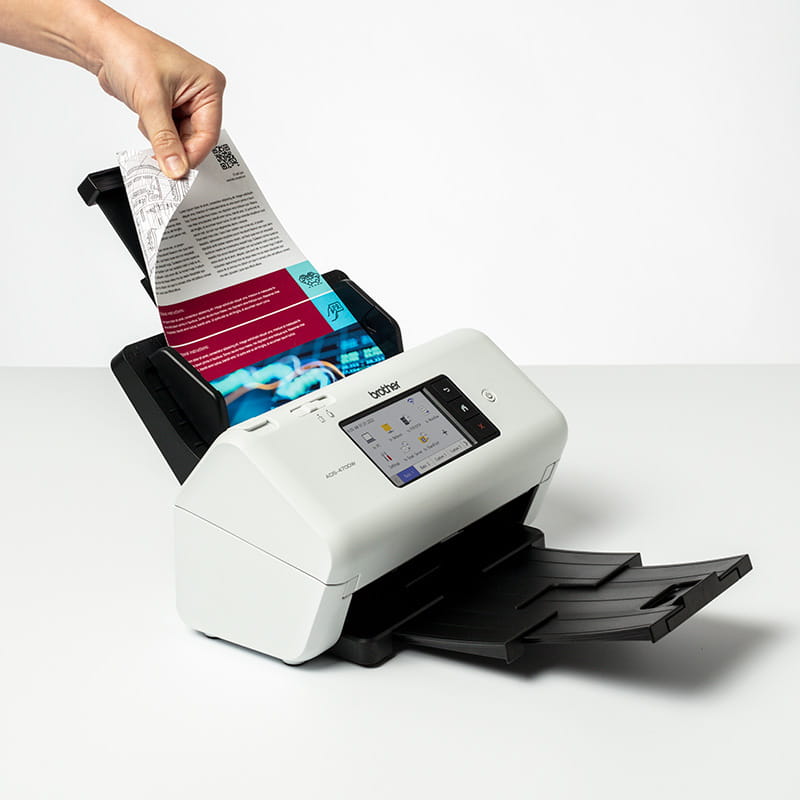

Fast and reliable
![](https://www.brother.com.au/-/media/ap2/australia/products/scanner/ads-4700w/800-x-800px/ads-4700w_800x800_row1_2.jpg?rev=5e7f0a6a7c84421c896716cd1ac04336)
Simple and intuitive
![](https://www.brother.com.au/-/media/ap2/australia/products/scanner/ads-4700w/800-x-800px/ads-4700w_800x800_row1_3.jpg?rev=f7e13914654f499f965f2d300d885e11)

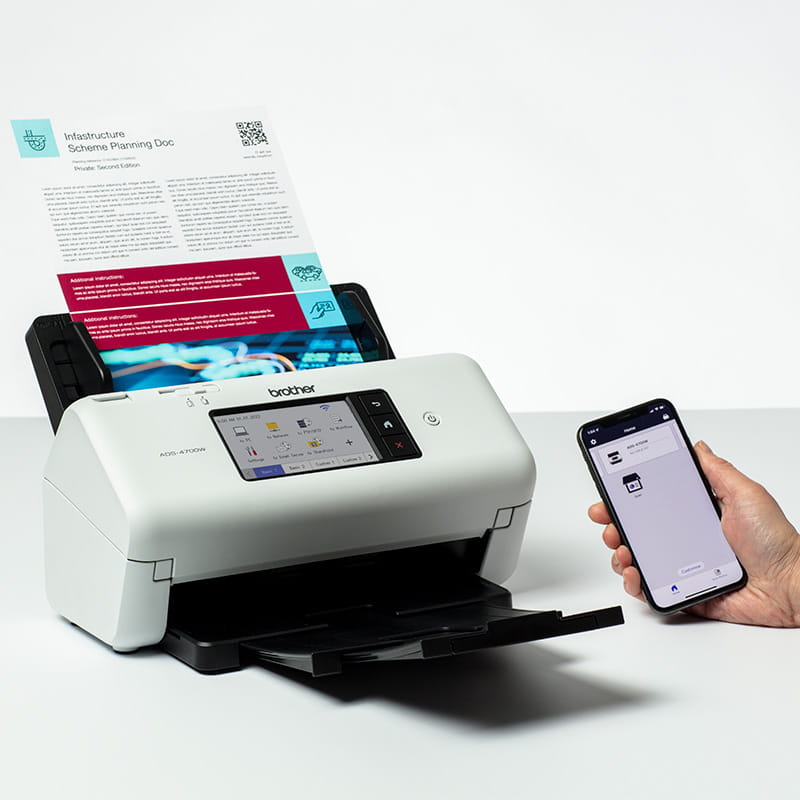

Convenient connectivity options
![](https://www.brother.com.au/-/media/ap2/australia/products/scanner/ads-4700w/800-x-800px/ads-4700w_800x800_row2_1.jpg?rev=083e8725c1e14a5aaae6d359e0ced05d)
Advanced image capture and processing
![](https://www.brother.com.au/-/media/ap2/australia/products/scanner/ads-4700w/800-x-800px/ads-4700w_800x800_row2_2.jpg?rev=26ebbeef4a474b27b6b18b594996b8f9)
At your side support
![](https://www.brother.com.au/-/media/ap2/australia/products/scanner/ads-4700w/800-x-800px/ads-4700w_800x800_block1.jpg?rev=9bb9d39be7534c7da38a8646b04c5305)
High-performance scanning tools backed by Brother
ScanEssentials is a high-performance scanning tool that allows you to not only scan documents, but also create workflows and save them securely to your network without fuss
![](https://www.brother.com.au/-/media/ap2/australia/products/scanner/ads-4700w/800-x-800px/ads-4700w_800x800_block2.jpg?rev=f215b6b11c25432187e8c76ee2bbfe88)
Industry recognised software
The availaibility of Kofax and NewSoft at your fingertips maximises your post-scanning productivity with software that integrates seamlessly with your scanner
Specifications
Basic Specs
Scanning Speed
40 ppm
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
50.8 mm to 355.6 mm
Document Size - Single Sheet - Width
50.8 mm to 215.9 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Product Dimensions (Width X Depth X Height)
299.5 mm × 190.5 mm × 215.9 mm
Weight
2.75 kg
ADF (Automatic Document Feeder)
Up to 80 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
Memory Capacity
512 MB
Warranty
1 year Return to Base Warranty
What's in The Box
Scanner, Quick Setup Guide, User's Guide, Network Guide, CD-ROM's, ADF Document Output Support, AC Adaptor, USB Cable
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Setup Support Utility
WPS
WLAN Assistant
Display Type
Touchscreen LCD
4.3 in. (109.2 mm) TFT colour LCD screen
Operation
Power Source
AC: 100-240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 26W
Power Consumption - Ready
Approx.8.6W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.7W
Power Consumption - Power OFF
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
TWAIN Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
Software and Apps
Included Software
12/21/2023
Windows: iPrint&Scan¹, ScanEssentials (Standard), PaperPort 14 SE¹, Kofax Power PDF¹, Remote Setup¹ Mac: iPrint&Scan¹, Remote Setup¹ Mobile: iPrint&Scan iOS/Android¹
Mobile Apps
12/21/2023
Support Center, Mobile Connect
