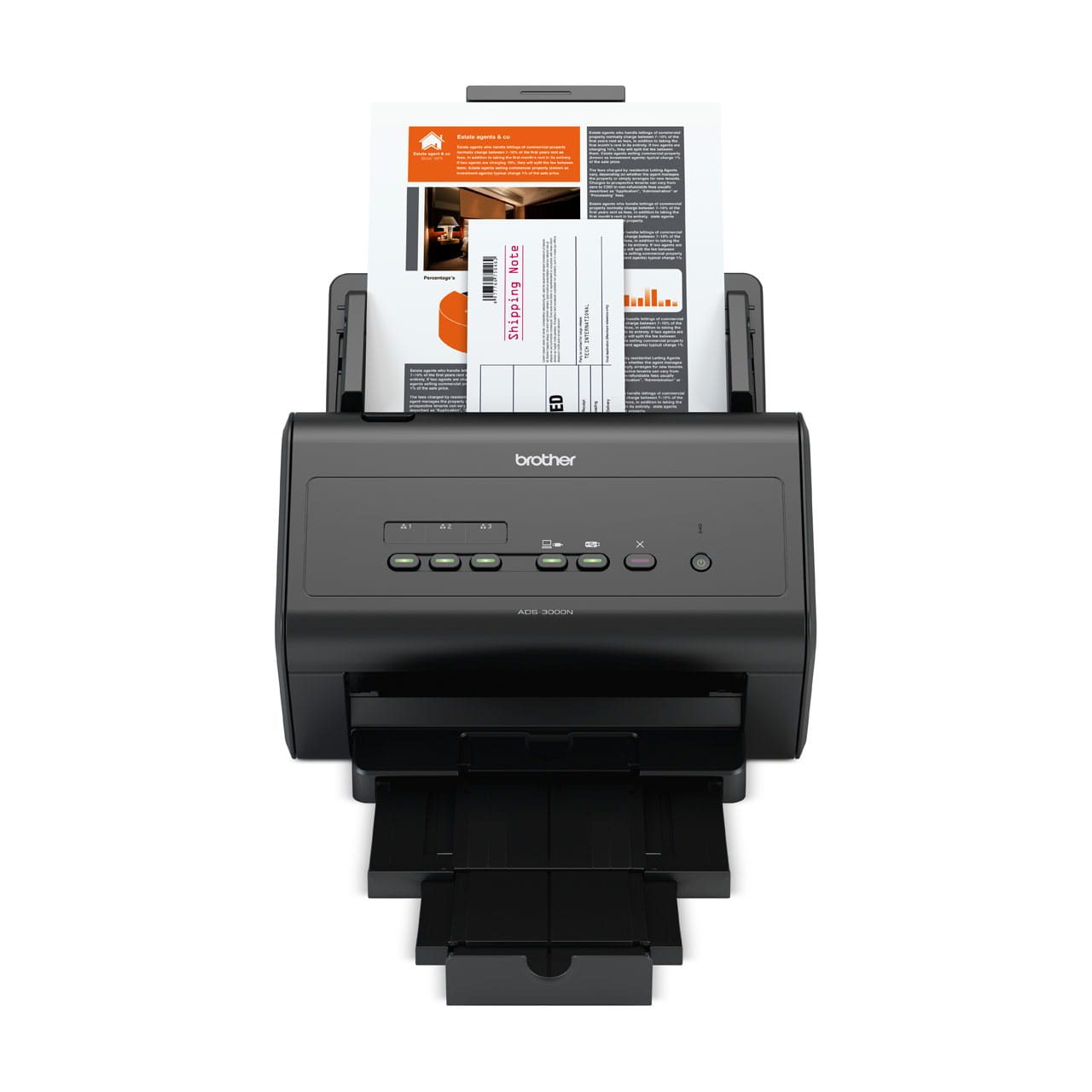

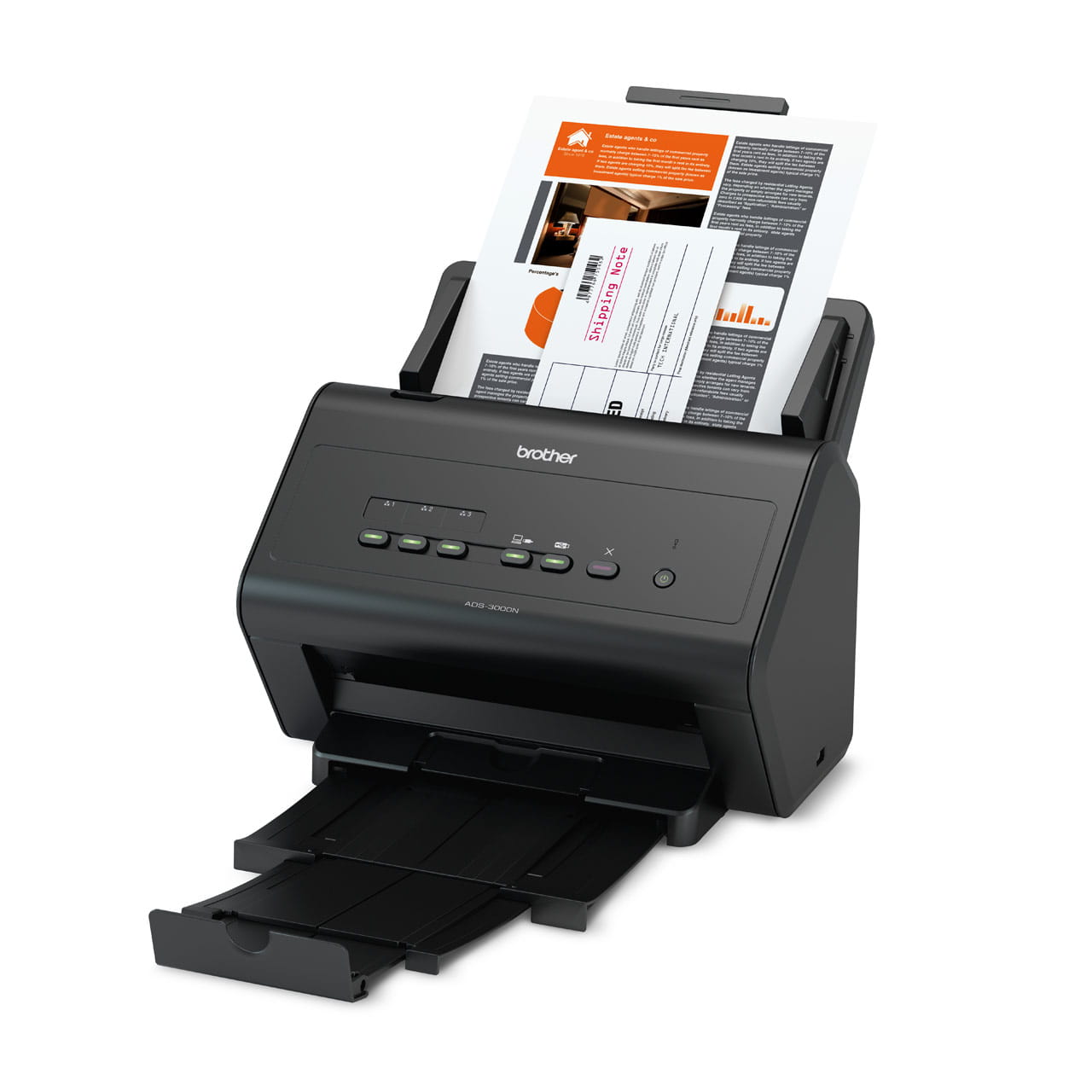

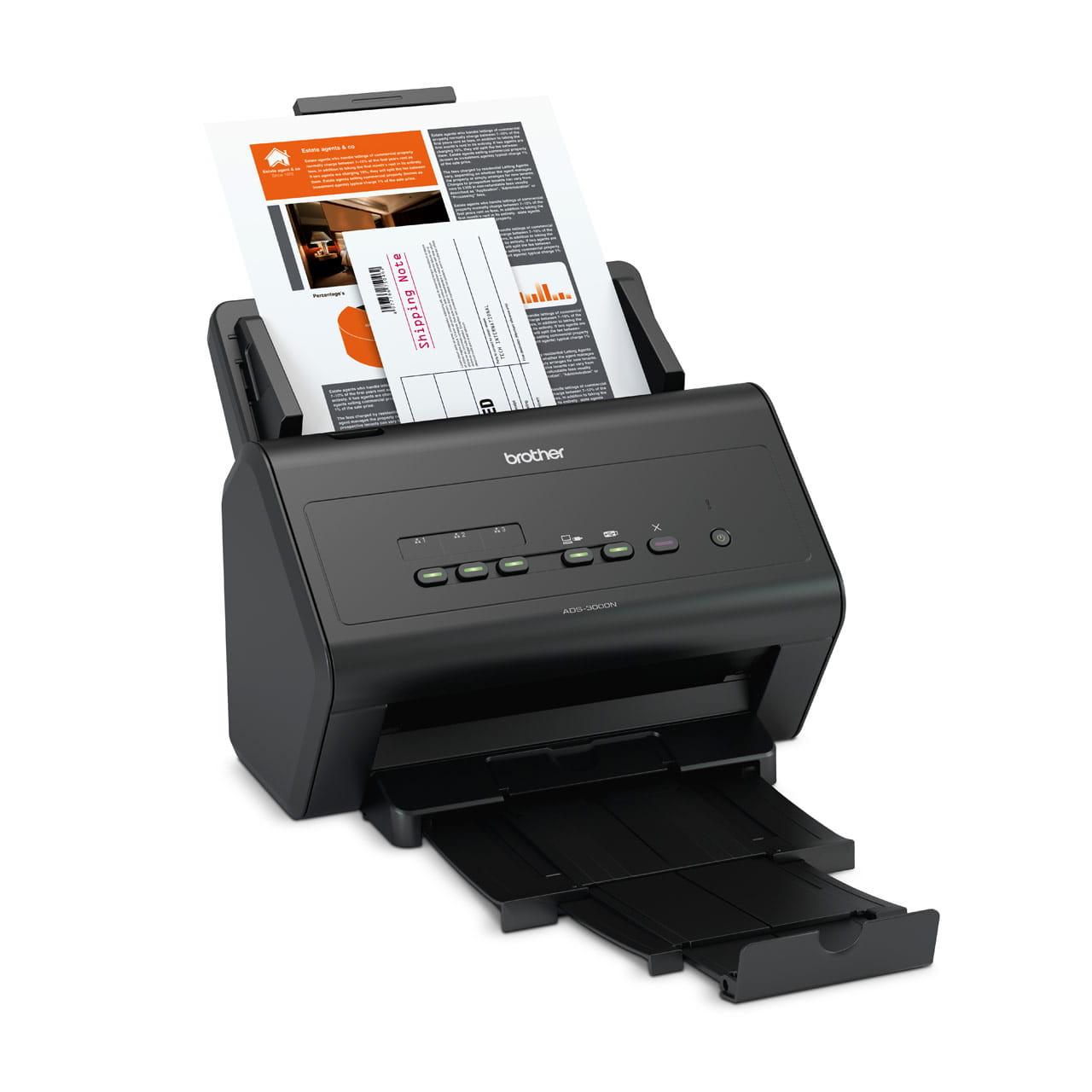

ADS-3000N Desktop Document Scanner
High-Speed Network Document Scanner
- 50 sheet mixed batch document capacity from long paper to embossed plastic cards
- Fast double sided-scans
- Achieve optimum performance with TWAIN, WIA, ICA, SANE drivers
- Free premium software bundle, including ABBYY FineReader Sprint and Nuance PaperPort
Information
Overview
Specifications
Basic Specs
Scanning Speed
50 ppm 300dpi (1.2 seconds (A4/LTR))
Document Size - Multiple Sheets - Width
51 mm to 215.9 mm
Document Size - Multiple Sheets - Length
51 mm to 355.6 mm
Document Size - Single Sheet - Width
51 mm to 215.9 mm
Document Size - Single Sheet - Length
51 to 5,000 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
30-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Max. 215 mm
Product Dimensions (Width X Depth X Height)
306 mm × 250 mm × 258 mm
Weight
4.5 kg
ADF (Automatic Document Feeder)
Up to 50 pages (Paper: 80 g/m²)
Memory Capacity
256 MB
Warranty
1 year Return to Base Warranty
What's in The Box
Scanner, Quick Setup Guide, User's Guide, Network Guide, CD-ROM's, ADF Document Output Support, Power Cord, USB cable
Operation
Power Source
AC: 220 - 240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 30W
Power Consumption - Ready
Approx. 4.1W
Power Consumption - Power Saving / Deep Sleep
Approx. 2.9W
Power Consumption - Power OFF
Approx. 0.12W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows® XP Home (SP3) / Windows® XP Professional (SP3, x32 only) / Windows Vista® / Windows Server® 2003 (only 32 bit) / Windows Server® 2008 / Windows Server® 2008 R2 / Windows Server® 2012 / Windows Server® 2012 R2 / Windows® 7 / Windows® 8 / Windows® 8.1
TWAIN Compliant - Macintosh
OS X 10.8.5, 10.9.x, 10.10.x
WIA Compliant - Windows®
Windows® XP (SP3) / Windows Vista® / Windows® 7 / Windows® 8 / Windows® 8.1
ICA Compliant - Macintosh
OS X 10.8.5, 10.9.x, 10.10.x
ISIS™ Compliant - Windows®
Windows Vista® / Windows® 7 / Windows® 8 / Windows® 8.1
Software and Apps
Included Software
12/21/2023
Windows: iPrint&Scan¹, PaperPort 14 SE¹, ABBYY FineReader Professional, ABBYY PDF Transformer Plus, Control Centre 4, BRAdmin Professional 4¹, Brother Meter Read Tool¹, Mass Deployment Tool¹, ISIS Driver¹ Mac: ABBYYFineReader Professional¹, iPrint&Scan Push Scan Tool¹
Mobile Apps
12/21/2023
iPrint&Scan, Support Center
