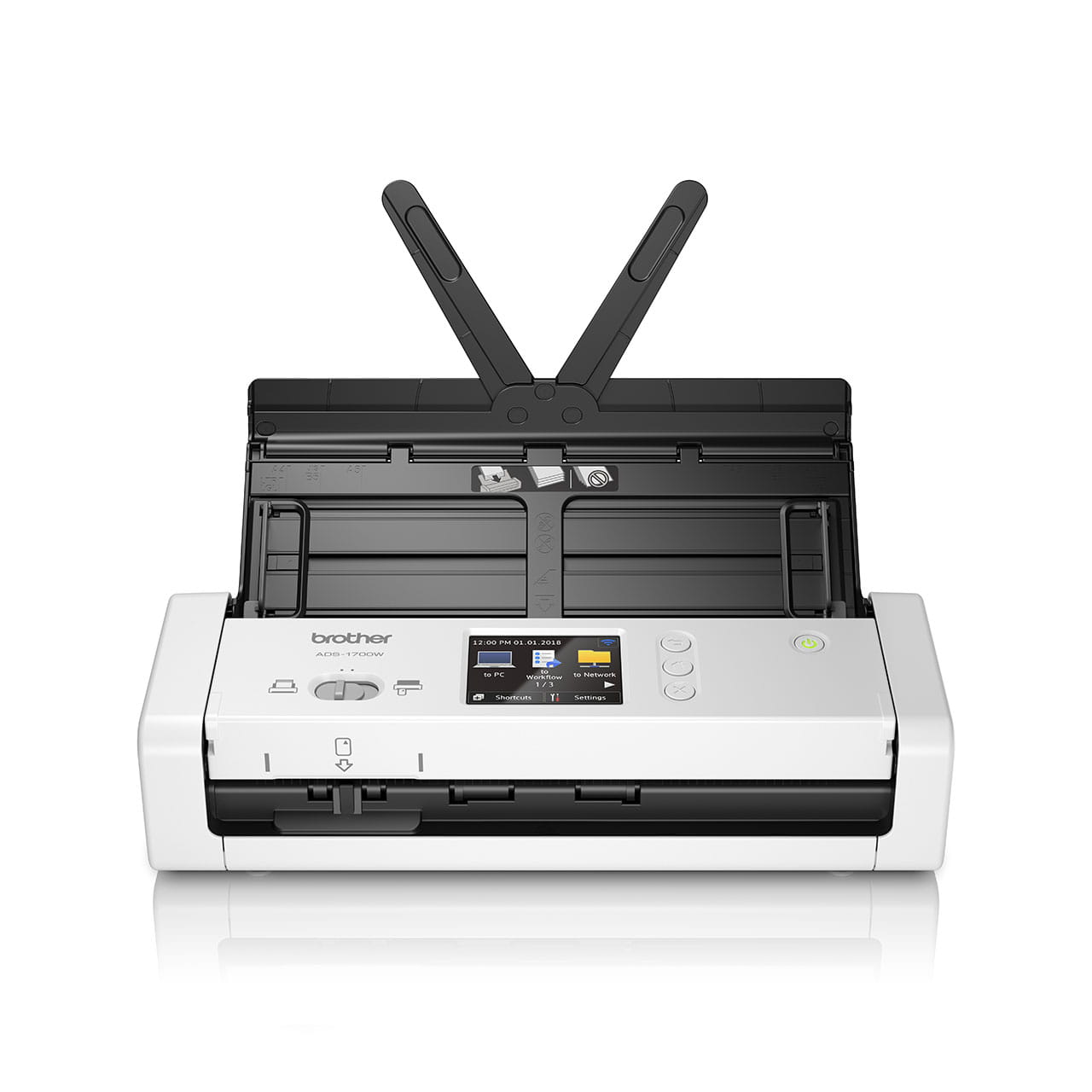

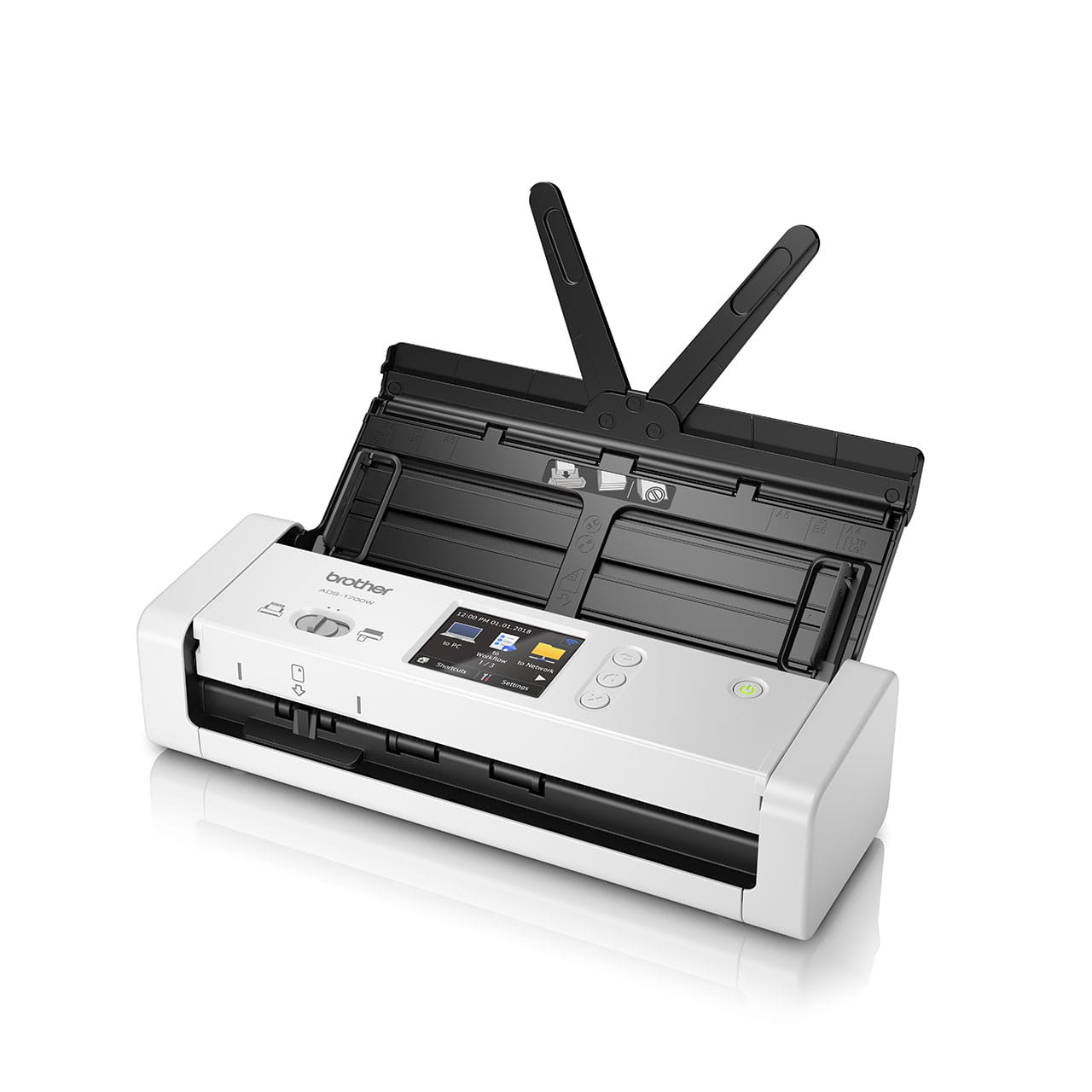

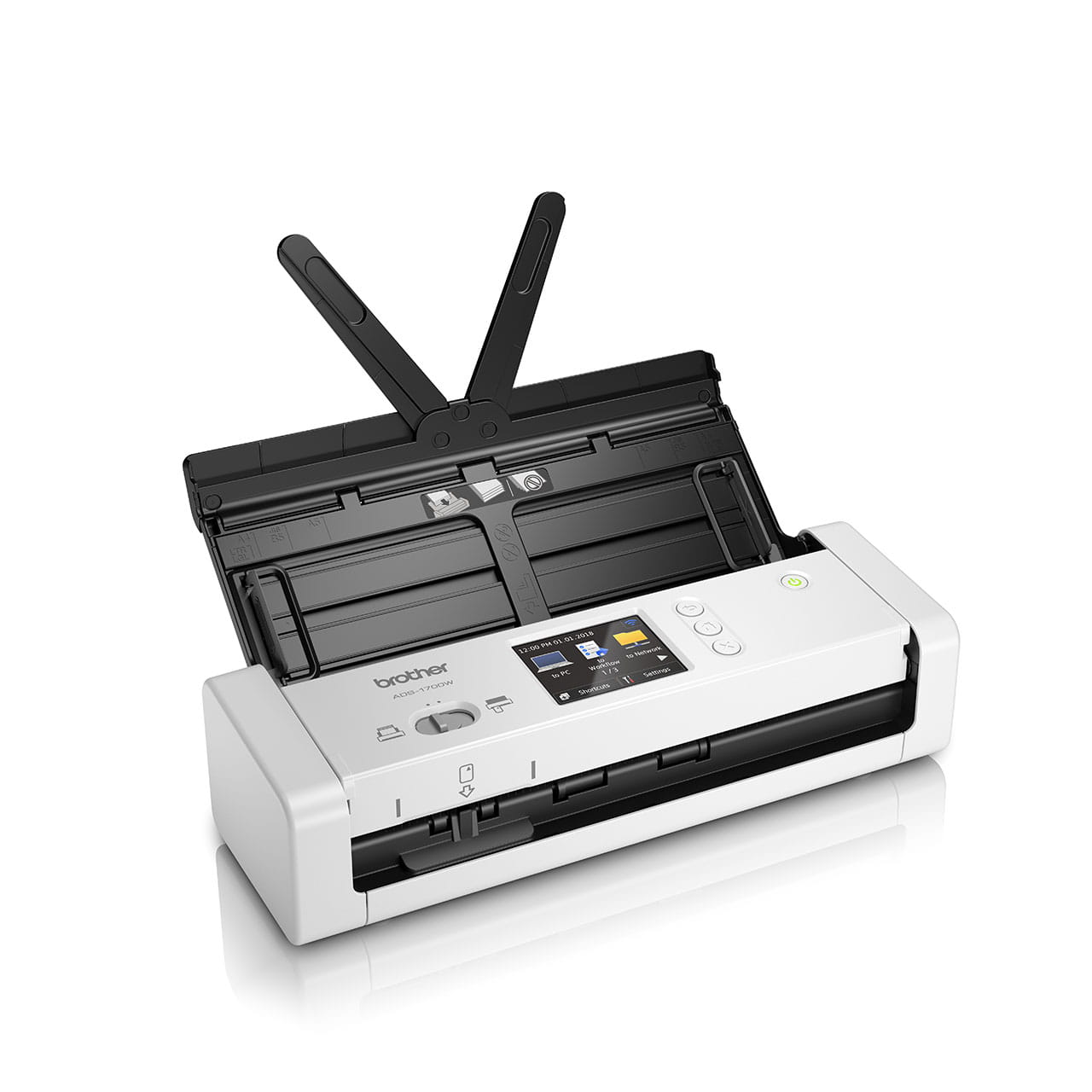

ADS-1700W Compact Document Scanner

ADS-1700W Video

Compact wireless document scanner

Compare

25ppm/50ipm, 2-sided colour scan speed
20 sheets Automatic Document Feeder (ADF)
Wireless network connectivity

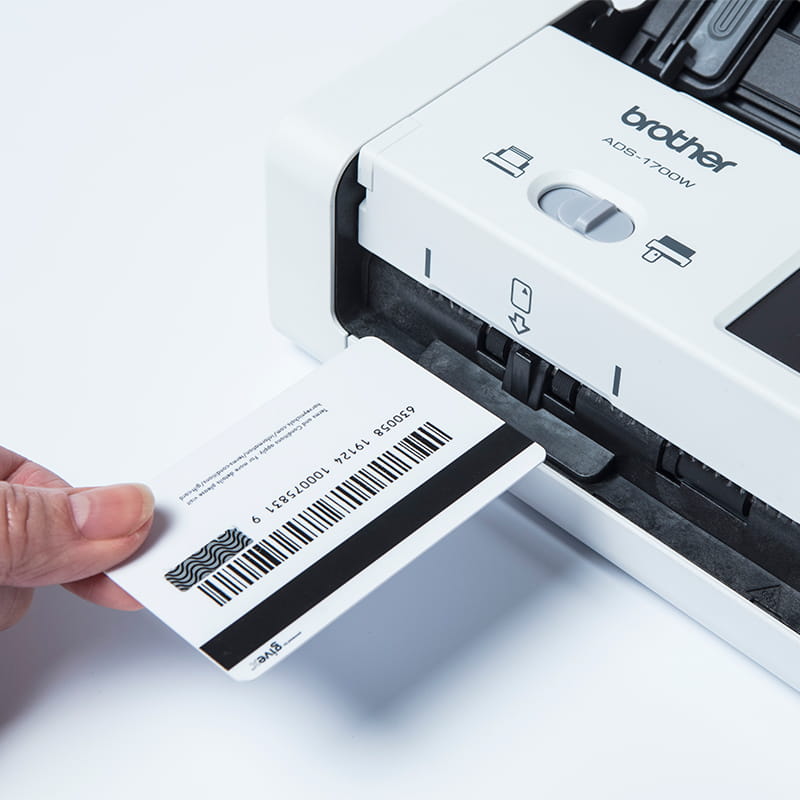

Dedicated plastic ID card slot
Zero-touch scanning with auto start scan

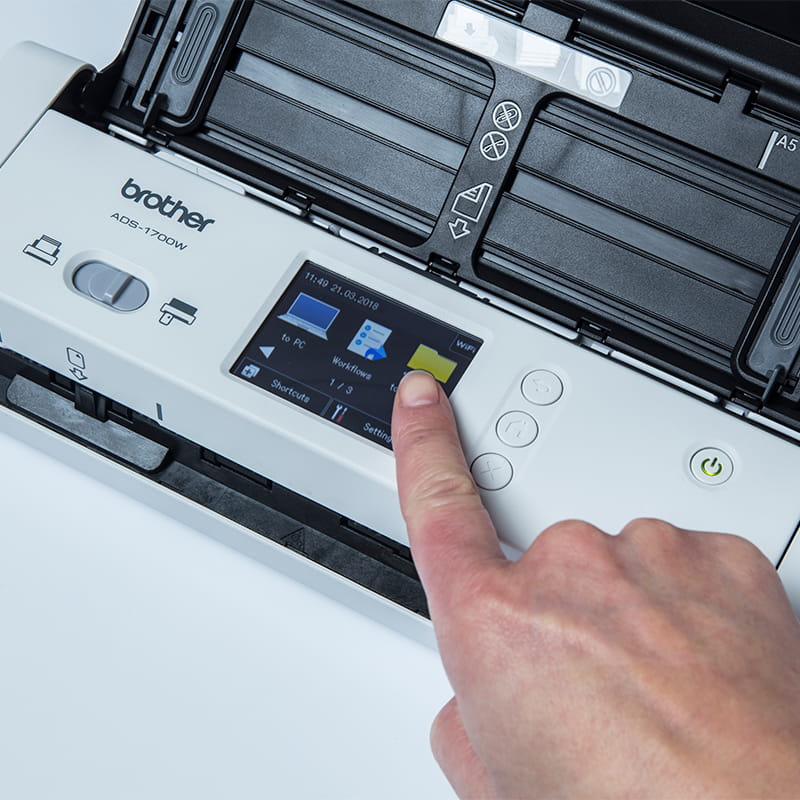

Create up to 20 shortcuts on the easy to use 7.1cm colour touchscreen

Brochure

Information

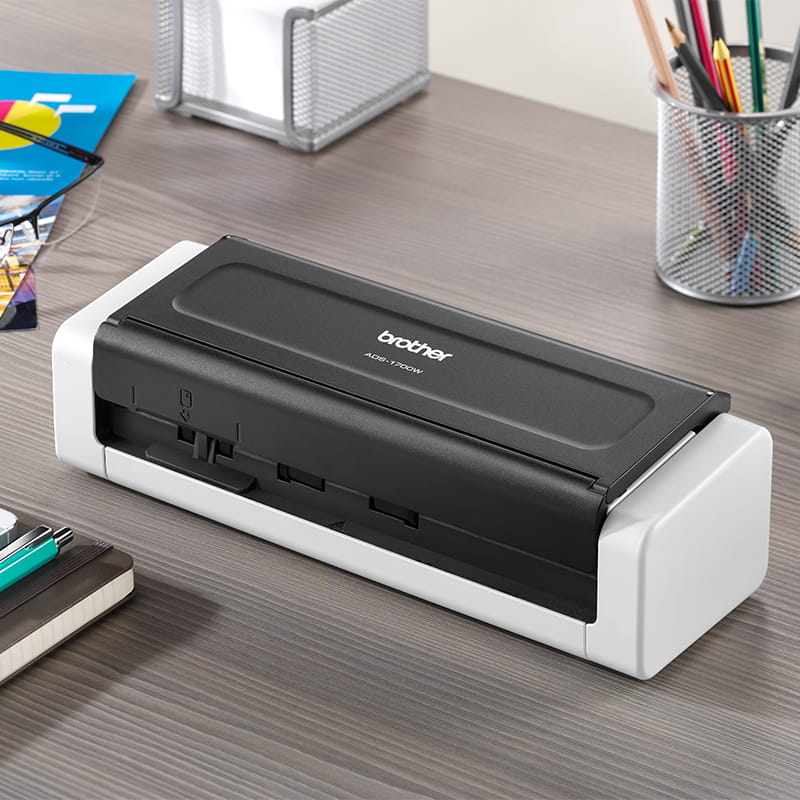

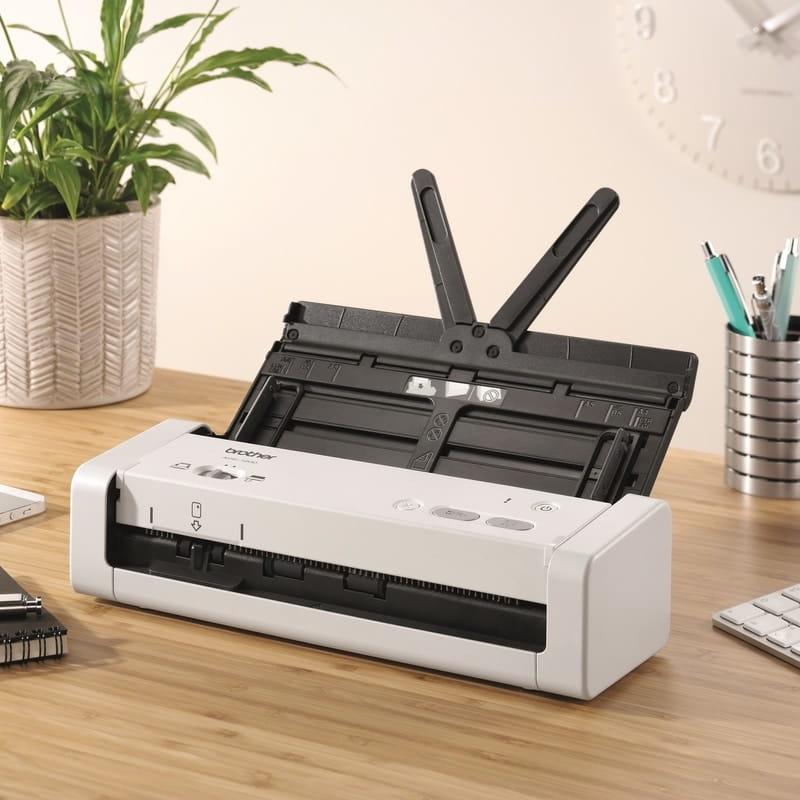

Practical and compact

Measuring slightly wider than a sheet of A4 paper, you can free-up desk space and reduce clutter

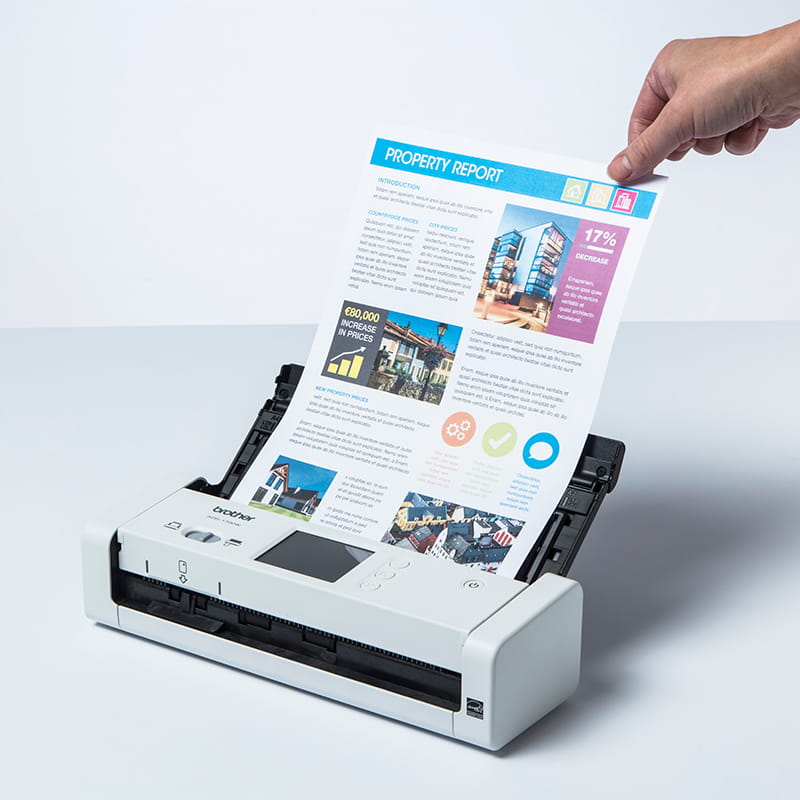

Versatile media handling

The 20-sheet Automatic Document Feeder (ADF) manages paper up to 128gsm with ease whilst a dedicated card slot comfortably handles plastic ID cards up to 1.02mm

High performance

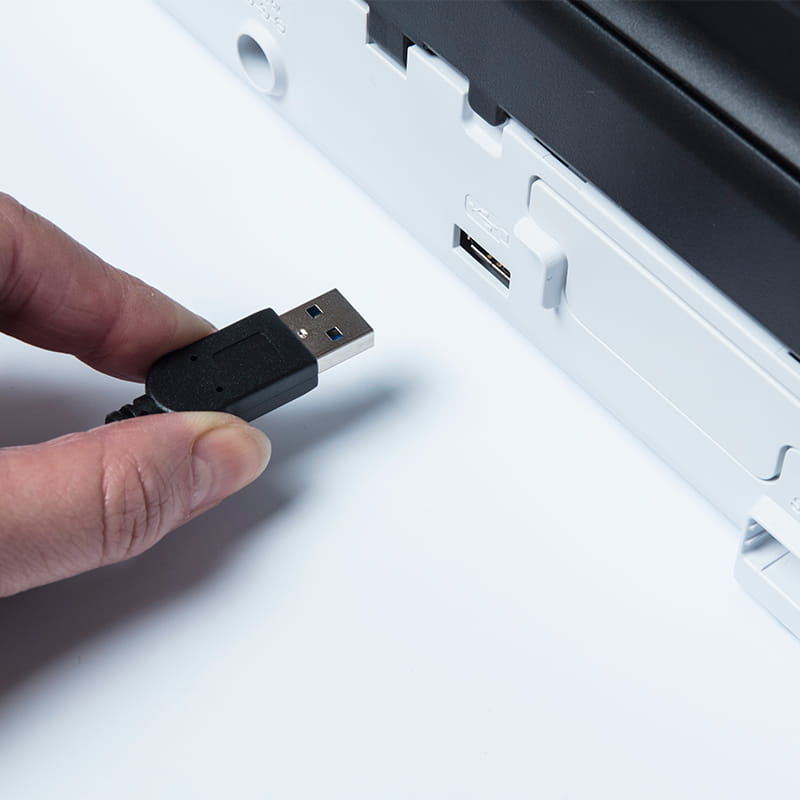

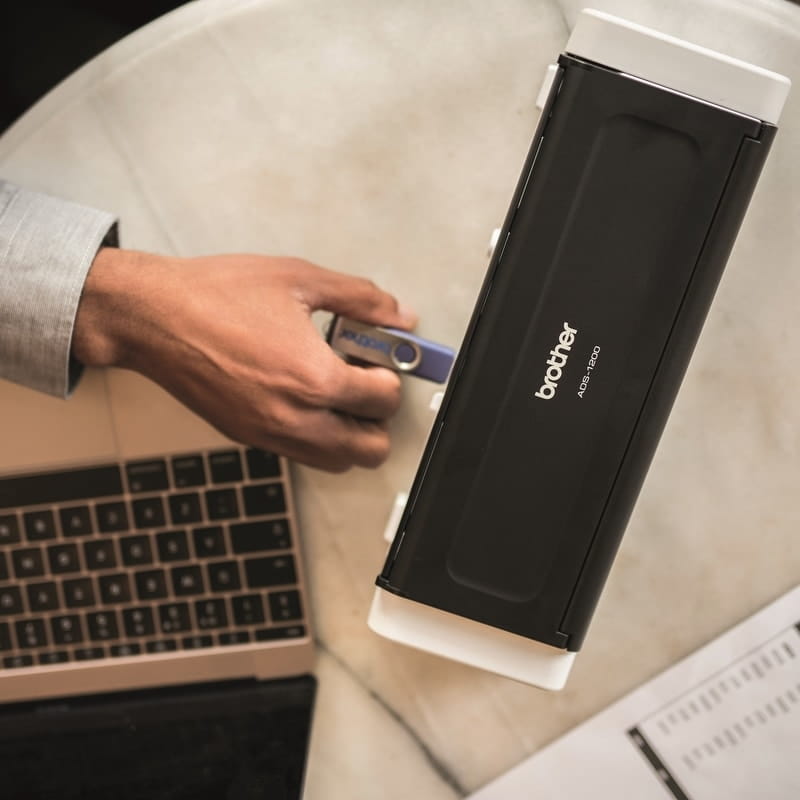

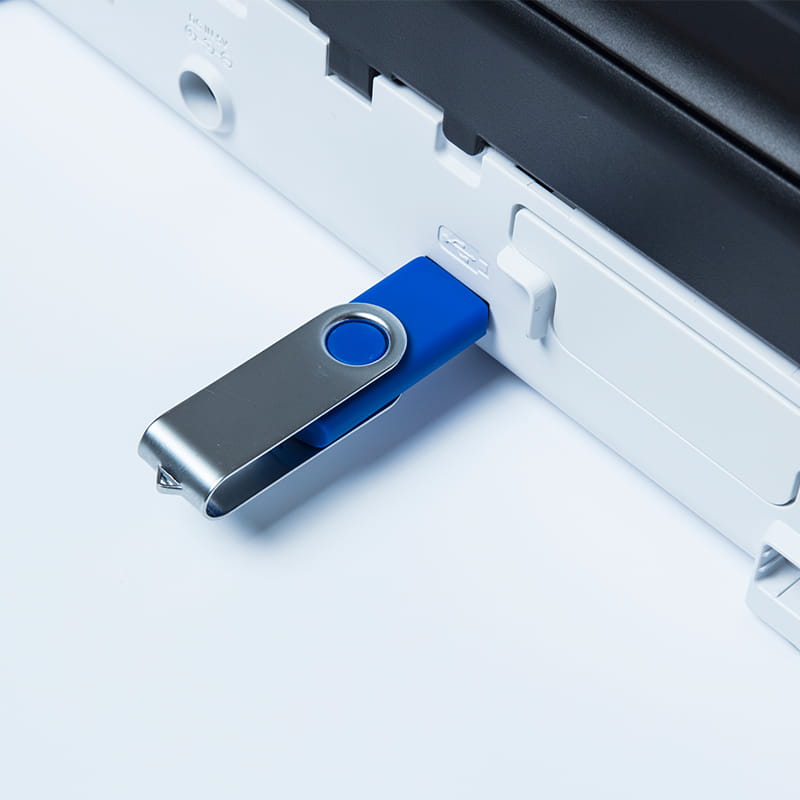

Scanning up to 25 sheets per minute, your documents can be saved quickly to file, email server, USB host, network or direct scan to PC

Scan in half the time

With single pass 2-sided scanning, you can scan both sides of a document at the same time, allowing you to digitse your paperwork quicker

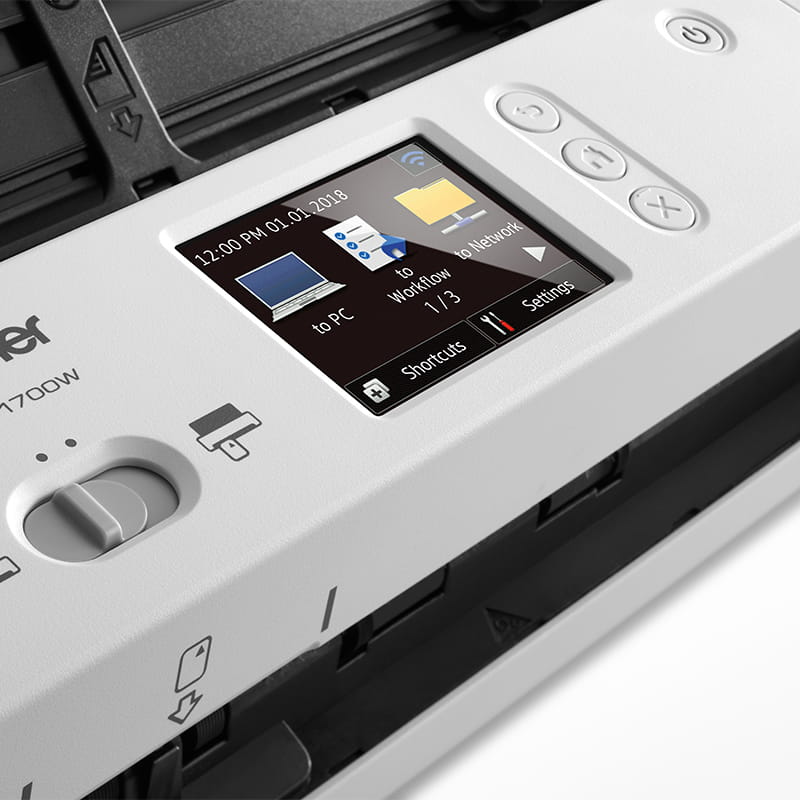

Time-saving shortcuts

Reduce the time you spend on repetitive tasks with auto start scan and frequently used scan-to destinations available at the touch of a button

Bundled with industry leading software

Easily convert, edit and share documents with Nuance Power PDF and Paperport

Basic Specs

Scanning Speed

25ppm/50ipm, (A4) 2-sided colour scan speed

Document Size - Multiple Sheets - Width

51 mm to 215.9 mm

Document Size - Multiple Sheets - Length

70 mm to 863 mm

Document Size - Single Sheet - Width

51 mm to 215.9 mm

Document Size - Single Sheet - Length

70 mm to 863 mm

Colour / Monochrome

Yes/Yes

2-Sided (Duplex) Scan

Yes

Colour Depth - Input

48-bit colour processing

Colour Depth - Output

24-bit colour processing

Resolution - Optical

Max. 600 dpi × 600 dpi

Resolution - Interpolated

Max. 1,200 dpi × 1,200 dpi

Document Scanning Width / Length

Max.216 mm

Product Dimensions (Width X Depth X Height)

300 mm × 103 mm × 83 mm

Weight

1.4 kg

ADF (Automatic Document Feeder)

Up to 20 sheets

Memory Capacity

SDRAM: 512 MB

Warranty

1 year Return to Base Warranty

What's in The Box

Scanner, Quick Setup Guide, User's Guide, Network Guide, CD-ROM's, AC Adaptor, Power Cord, USB cable

Network

Wireless Network Security

WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)

Setup Support Utility

WPS

Display Type

Touchscreen LCD

7.1cm LCD colour touchscreen

Operation

Power Source

AC: 220 - 240 V, 50/60 Hz

Power Consumption - Scanning

Approx. 9W

Power Consumption - Ready

Approx. 4.5W

Power Consumption - Power Saving / Deep Sleep

Approx. 1.5W

Power Consumption - Power OFF

Approx. 0.1W

Temperature Operating

5°C to 35°C

Humidity - Operating

20% to 80%

Humidity - Storage

10% to 90%

Compliance

TWAIN Compliant - Windows®

Windows 7 SP1/8/8.1/10
Server2008 R2 SP1/2012/2012 R2/2016

TWAIN Compliant - Macintosh

MacOS v10.11.6/10.12x/10.13x

WIA Compliant - Windows®

Windows 7 SP1/8/8.1/10
Server2008 R2 SP1/2012/2012 R2/2016

ICA Compliant - Macintosh

MacOS v10.11.6/10.12x/10.13x

Software and Apps

Included Software

12/21/2023

Windows: iPrint&Scan¹, PaperPort 14 SE¹, Kofax Power PDF¹, Remote Setup¹ Mac: iPrint&Scan¹, Kofax Power PDF¹, Remote Setup¹ Mobile: iPrint&Scan iOS/Android¹

Mobile Apps

12/21/2023

iPrint&Scan, Support Center
