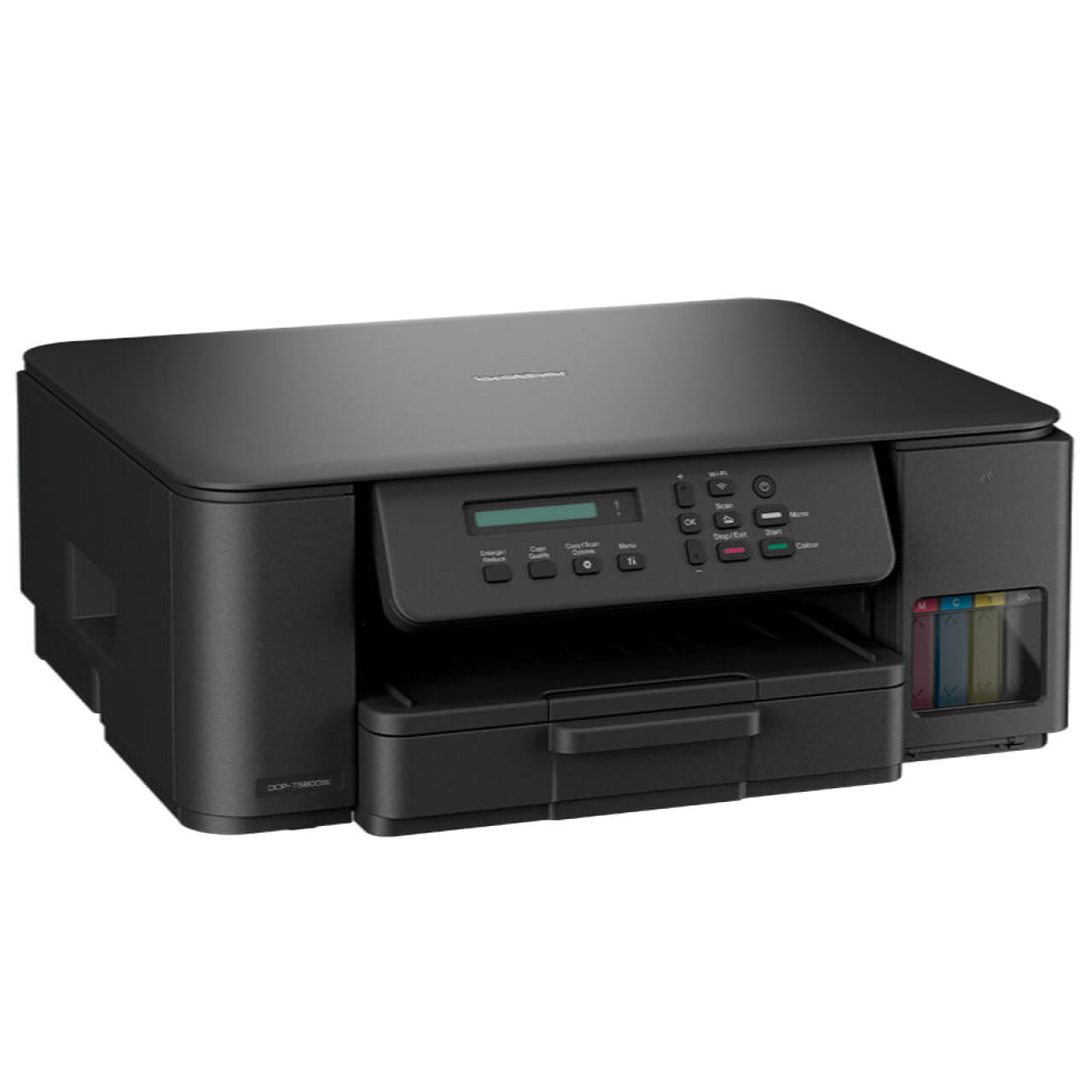

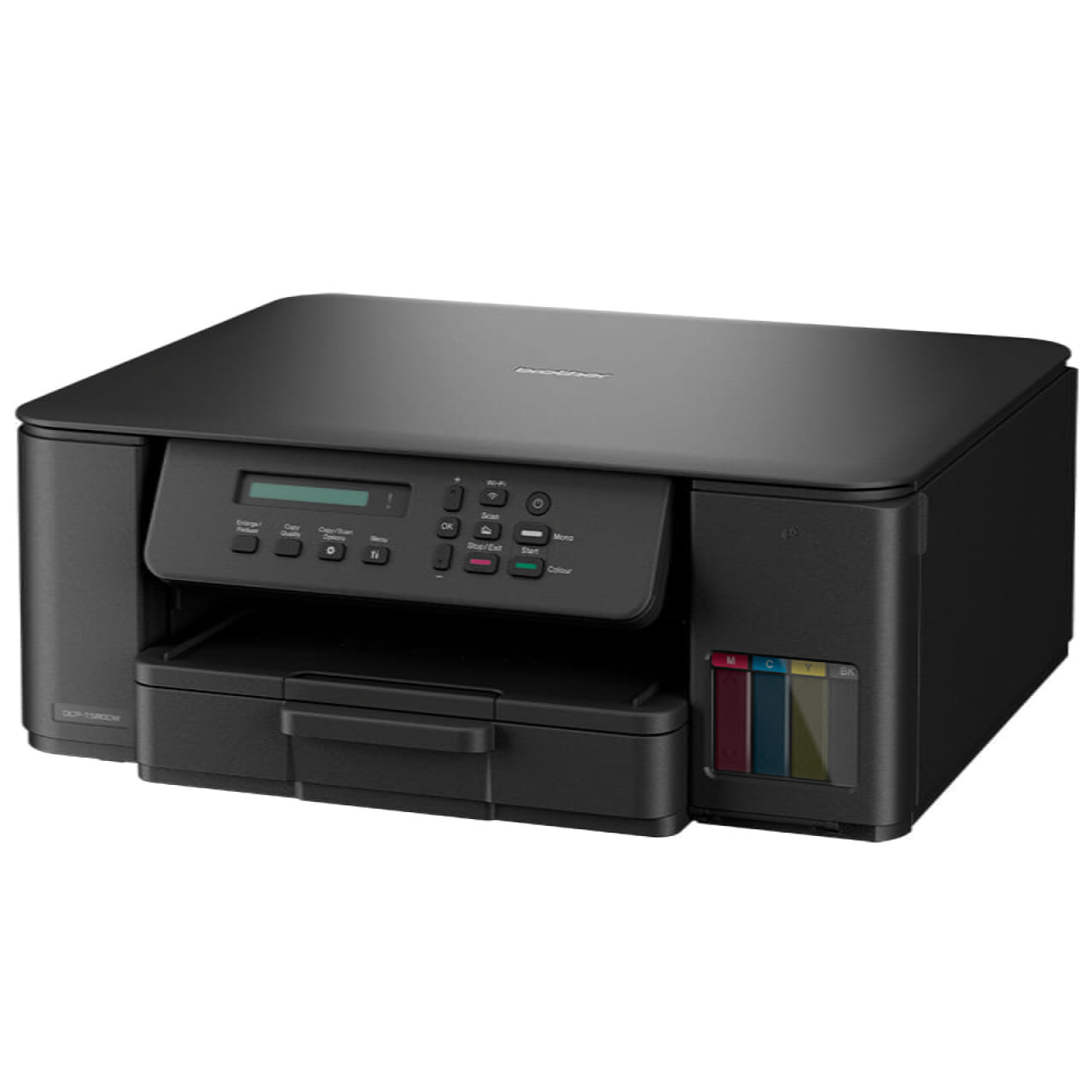

High-Yield, Wireless and Compact Refillable Inkjet Printer
- Printing speeds of up to 16ppm, a First Page Out Time (FPOT) from 6.2s
- Wireless, Wi-Fi Direct, and USB connectivity
- Automatic 2-sided (duplex) print
- Paper capacity up to 150-sheet
- Mobile compatible with the Brother Mobile Connect app
- Generous in-box ink, and affordable replacement high-yield ink bottles
Information
Overview
Exceptional Value

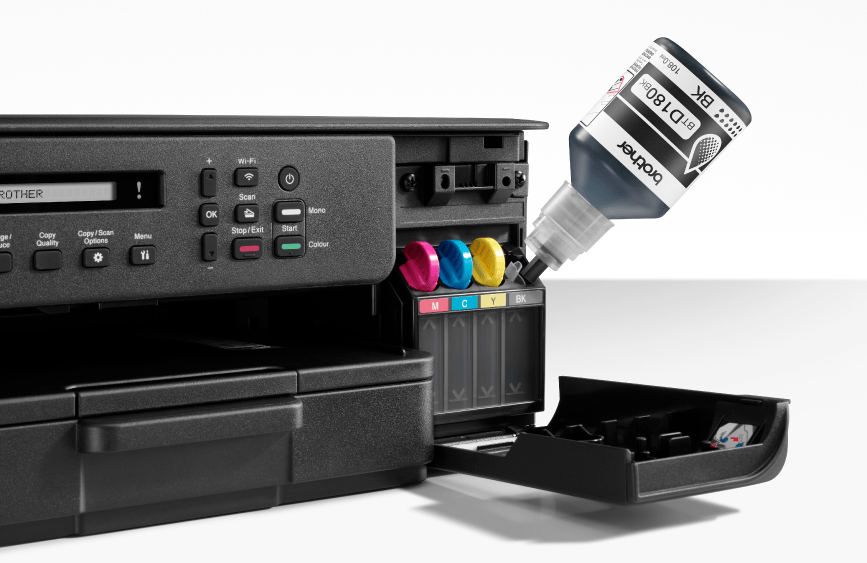

Dramatically lower your printing costs with the massive up to 7,500 black / 5,000 colour page yield ink bottles4 in the box and refill far less often with the refillable high yield tanks.
Efficient

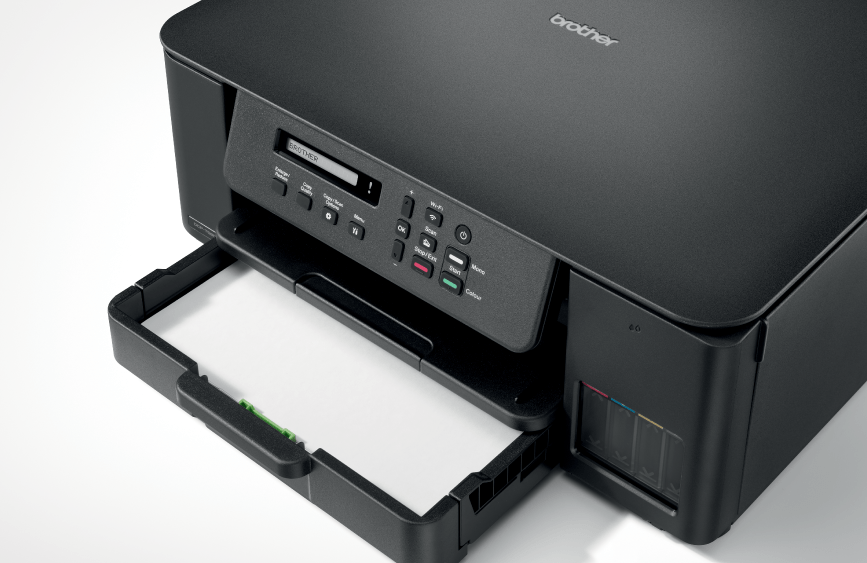

Power through your printing with speeds up to 16 pages per minute2. The 150-sheet paper tray means less refilling, while the manual feed slot provides the flexibility to print on cards, envelopes, and more.
Simple to use

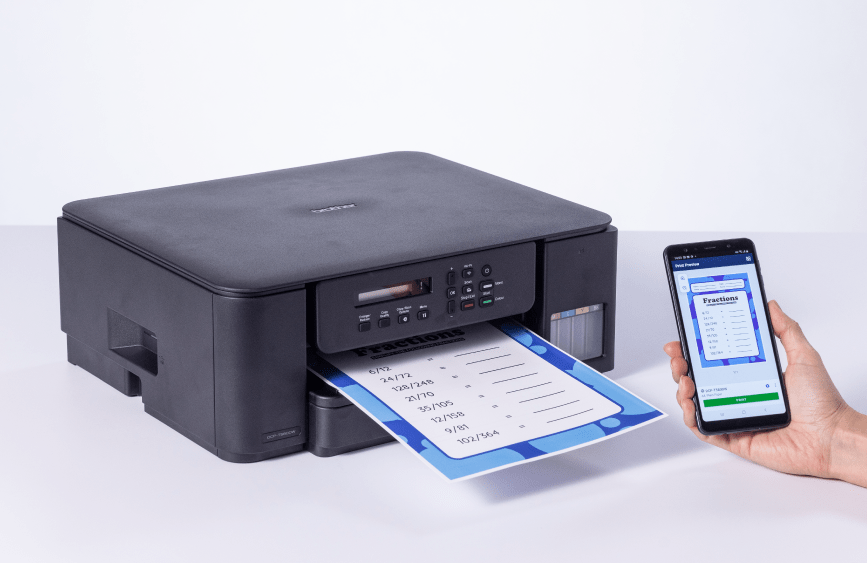

Set up in minutes using dual-band Wi-Fi or USB and manage it all from your phone. The Brother Mobile Connect app simplifies the installation process and gives you full control to print, scan, check ink, and personalise features.
Compact

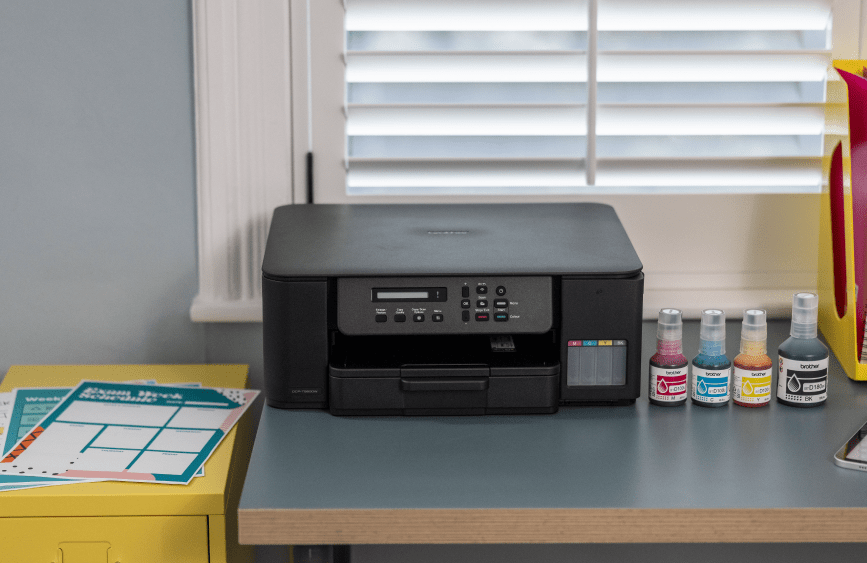

Designed to keep your space yours, the DCP-T580DW fits neatly on a bookshelf, sideboard or study nook. This low-profile inkjet refillable printer stays out of the way and blends seamlessly into your space until you need it.

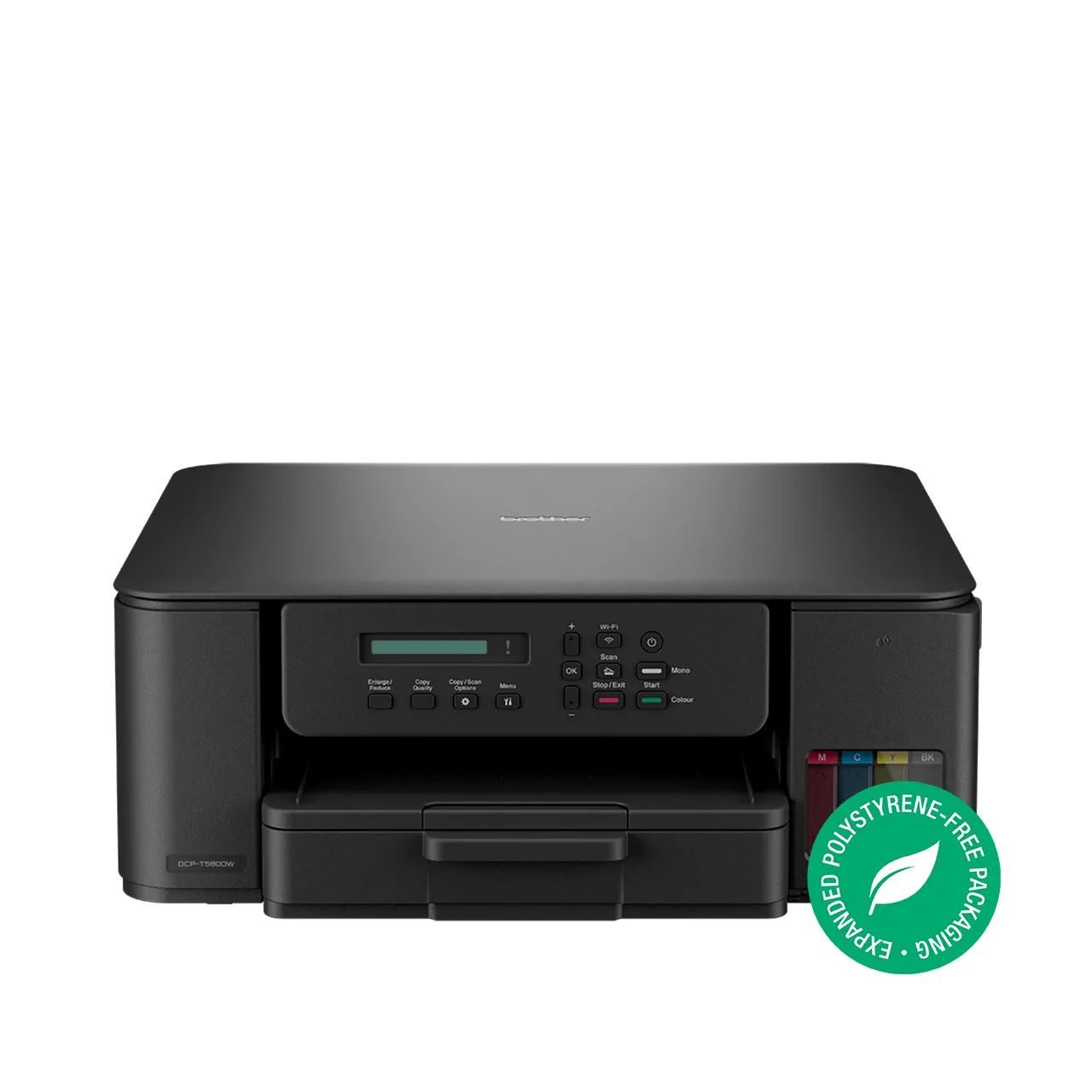

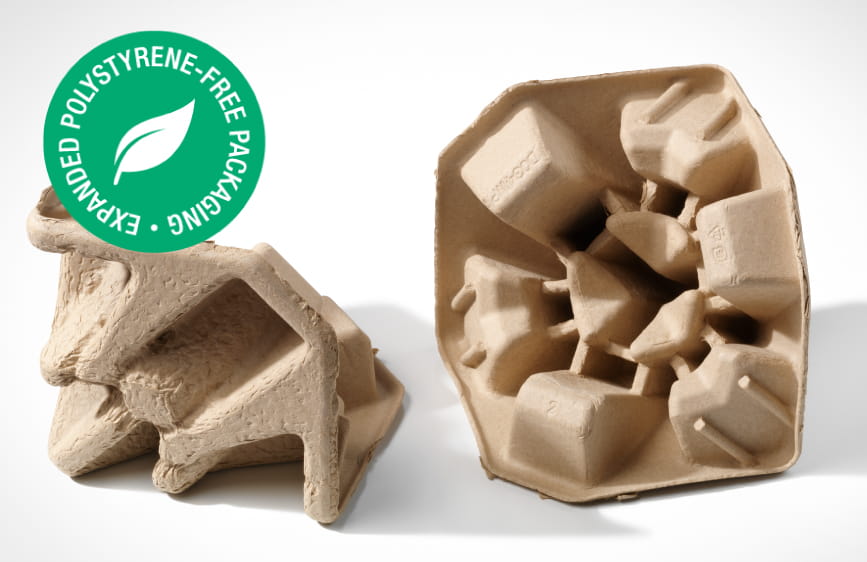

EPS-free packaging
Our award-winning moulded pulp packaging replaces Expanded Polystyrene (EPS), offering durable, flexible protection for safe product delivery.
Brother at your side
Wherever you are in Australia, Brother offers free Customer Care for the lifetime of your product.
1: Approx. page yield is calculated in accordance with ISO/IEC 24711
2: Print Speeds based on ISO/IEC 24734
3: The first time you use a set of ink bottles the machine will use an amount of ink to fill the delivery tubes. This process will only
happen once. The amount of ink remaining will be approximately 7,125 pages BK and 4,450 pages CMY in accordance with ISO/IEC 24711
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Inkjet
Product Dimensions (Width X Depth X Height)
390 mm × 343 mm × 148.5 mm
Print Speed
16.0/9.0 ipm
Paper Type
Plain Paper, Inkjet Paper, Glossy Paper (cast/resin), Recycled Paper
Paper Size
A4, LTR, LGL, Folio, EXE, A5, A6, Photo(102x152mm/4x6"), Indexcard(127x203mm/5x8"), Photo-2L(127x178mm/5x7"), C5 Envelope, Com-10, DL Envelope, Monarch, Photo-L(89x127mm/3.5x5"), Mexico Legal, India Legal
Maximum Paper Capacity
150 (80 g/m2)
Resolution
Up to 1200x6000 dpi Windows® only (Mac: Up to 1200x3600 dpi)
Borderless
2-Sided (Duplex) - Paper Size
Yes (up to A4/LTR)
Paper handling
Tray #1 - Paper Type
Plain Paper, Inkjet Paper, Glossy Paper (cast/resin), Recycled Paper
Tray #1 - Maximum Paper Weight
64 to 220 g/m2 (17 to 58 lb.) *260 g/m2 with Brother BP71 glossy paper only
Tray #1 - Maximum Paper Capacity
150
Tray #1 - Paper Size
A4, LTR, LGL, Folio, EXE, A5, A6, Photo(102x152mm/4x6"), Indexcard(127x203mm/5x8"), Photo-2L(127x178mm/5x7"), C5 Envelope, Com-10, DL Envelope, Monarch, Photo-L(89x127mm/3.5x5"), Mexico Legal, India Legal
Multi-purpose Tray - Maximum Paper Weight
NA
Manual Feed Slot - Paper Type
Plain, Inkjet, Glossy(cast/resin), Recycled
Manual Feed Slot - Maximum Paper Weight
64 to 300 g/m2 (17 to 79 lb.)
Manual Feed Slot - Paper Size
A4, LTR, LGL, Folio, EXE, A5, A6, Photo(102x152mm/4x6"), Indexcard(127x203mm/5x8"), Photo-2L(127x178mm/5x7"), C5 Envelope, Com-10, DL Envelope, Monarch, Photo-L(89x127mm/3.5x5"), Mexico Legal, India Legal
Manual Feed Slot - Maximum Paper Capacity
1
Automatic Document Feeder (ADF) Maximum Paper Capacity
NA
Paper Output
50 (80 g/m2)
Copy
Colour / Monochrome
YES/YES
Multiple Copies
YES
Enlarge/ Reduce
25% - 400% in 1% Increments
Resolution
Color: Print: Max. 1,200 x 1,800 dpi Scan: Max. 1,200 x 600 dpi Mono: Print: Max. 1,200 x 1,800 dpi Scan: Max. 1,200 x 1,200 dpi
2-Sided (Duplex) - Paper Size
NA
Scan
Colour / Monochrome
YES/YES
Resolution - Interpolated
For Windows 10/Windows 11, up to 19200x19200 dpi with TWAIN
Resolution - Scanner Glass
1,200 x 2,400 dpi
Resolution - Automatic Document Feeder (ADF)
NA
Document Scanning Width / Length - Scanner Glass
FB: 213.9 mm (8.42 inch) / 295 mm (11.61 inch)
Document Scanning Width / Length - Automatic Document Feeder (ADF)
NA
2-Sided (Duplex) - Scanning Paper Type
NA
2-Sided (Duplex) - Paper Size
NA
1-Sided (Simplex) - Scan Speed
NA
2-Sided (Duplex) - Scan Speed
NA
Connectivity
WiFi Direct
YES
Connectivity
Hi-Speed USB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct), IEEE 802.11a/n (Infrastructure Mode)
Network
Wireless Network Security
WEP 64/128bit, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
YES
Display & Memory
Display Type
1-Line (16 characters)
Memory Capacity
128 MB
Operation
Power Source
AC 220-240 V, 50/60 Hz
Power Consumption - Printing
Approx. 16W
Power Consumption - Ready
Approx. 2.5W
Power Consumption - Sleep
Approx. 0.6W
Power Consumption - Power Off
Approx. 0.15W
