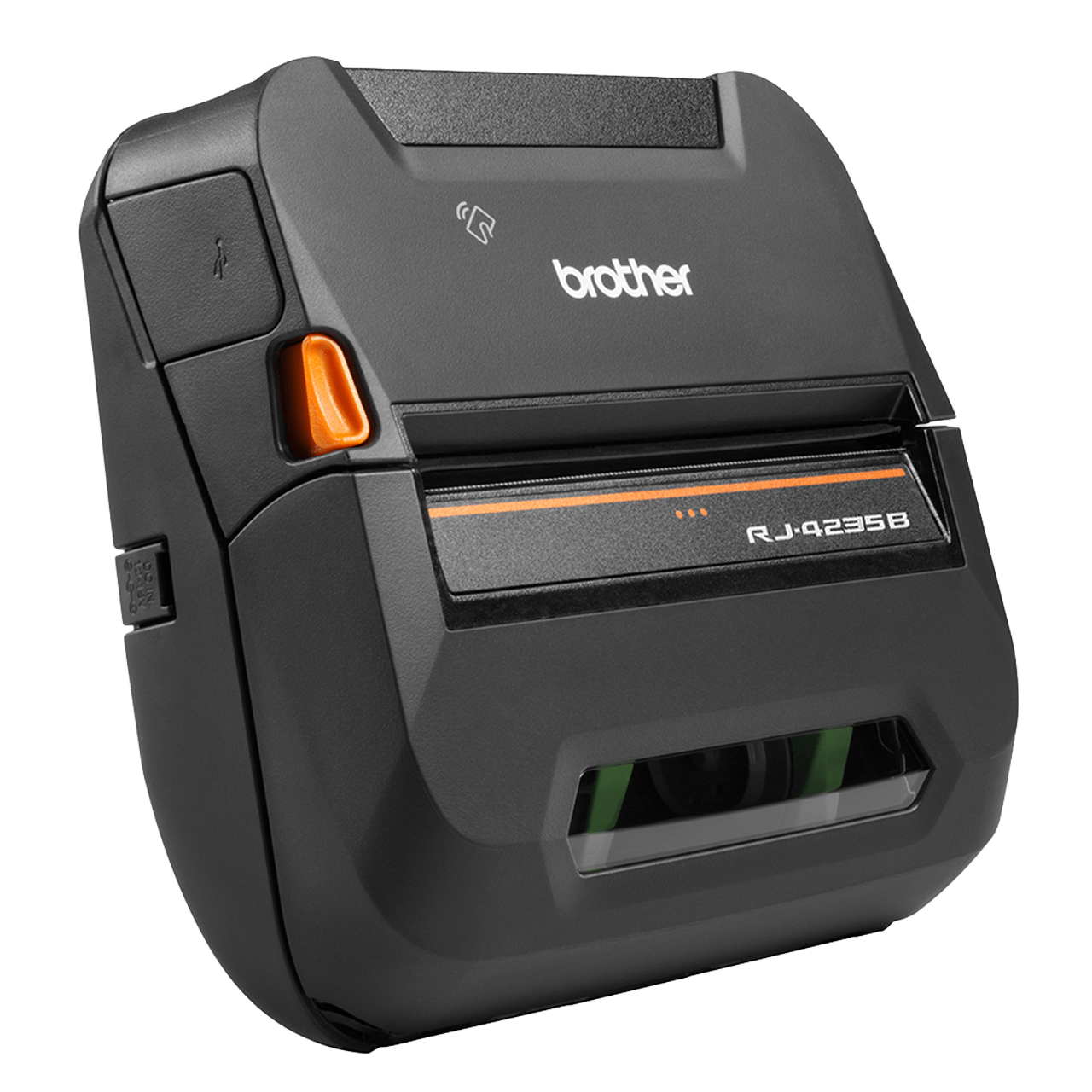

Mobile Printer with MFi and Bluetooth Wireless Connectivity
- Rugged, Compact and Portable with drop protection of up to 2 metres
- Prints up to 4 inches or 114mm width (Receipt, Label and Tag)
- USB, MFi and Bluetooth wireless connection
- 127mm per second, 5ips fast print speed
- 203dpi print resolution
- Cost saving with direct thermal printing technology with no ink or toner required
Information
Overview

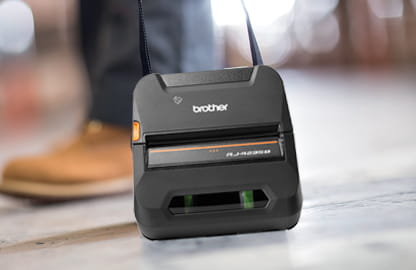

Rugged Design
The rugged design of the RJ-4235B can endure drops from up to 2m in height (IP54 certified), and is protected from any bumps, drops or collisions with a built-in elastomer covering. It’s built to last – even in the toughest conditions.

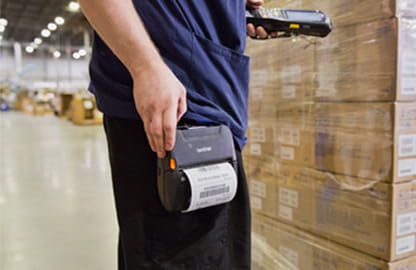

Smart Mobility
The RJ-4235B makes on-site printing simple, with USB-C, MFi and Bluetooth wireless connectivity to deliver fast, reliable performance for labels and receipts, without the need to download or install drivers. Plus, the added benefit of MAC and Bluetooth addresses included on printer hardware for easier pairing and deployment.

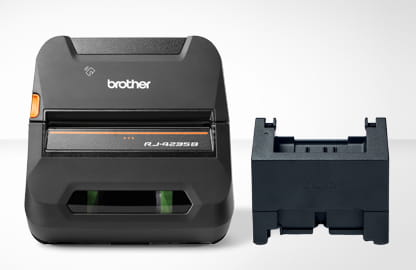

Batteries that can keep up
The smart 3000mAh Li-Ion battery comes as standard with the RJ-4235B and is designed to last a full shift without needing to be charged. You can also engage power-save mode to preserve battery life.

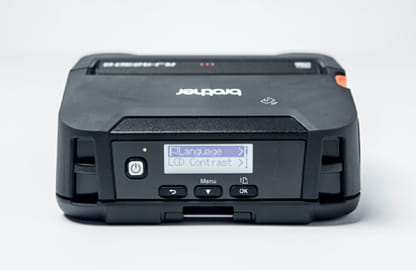

Operate with ease
Equipped with an illuminated LCD screen, easily navigate through menu options, even in low-light environments with limited visibility.

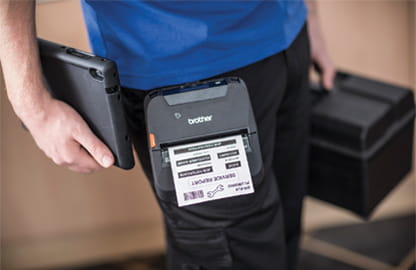

Print without limits
Easily integrate the RJ-4235B into your existing systems with printer drivers for Windows operating systems and downloadable Software Development Kits, including b-PAC SDK and Mobile SDK, to support Android and iOS operating systems.

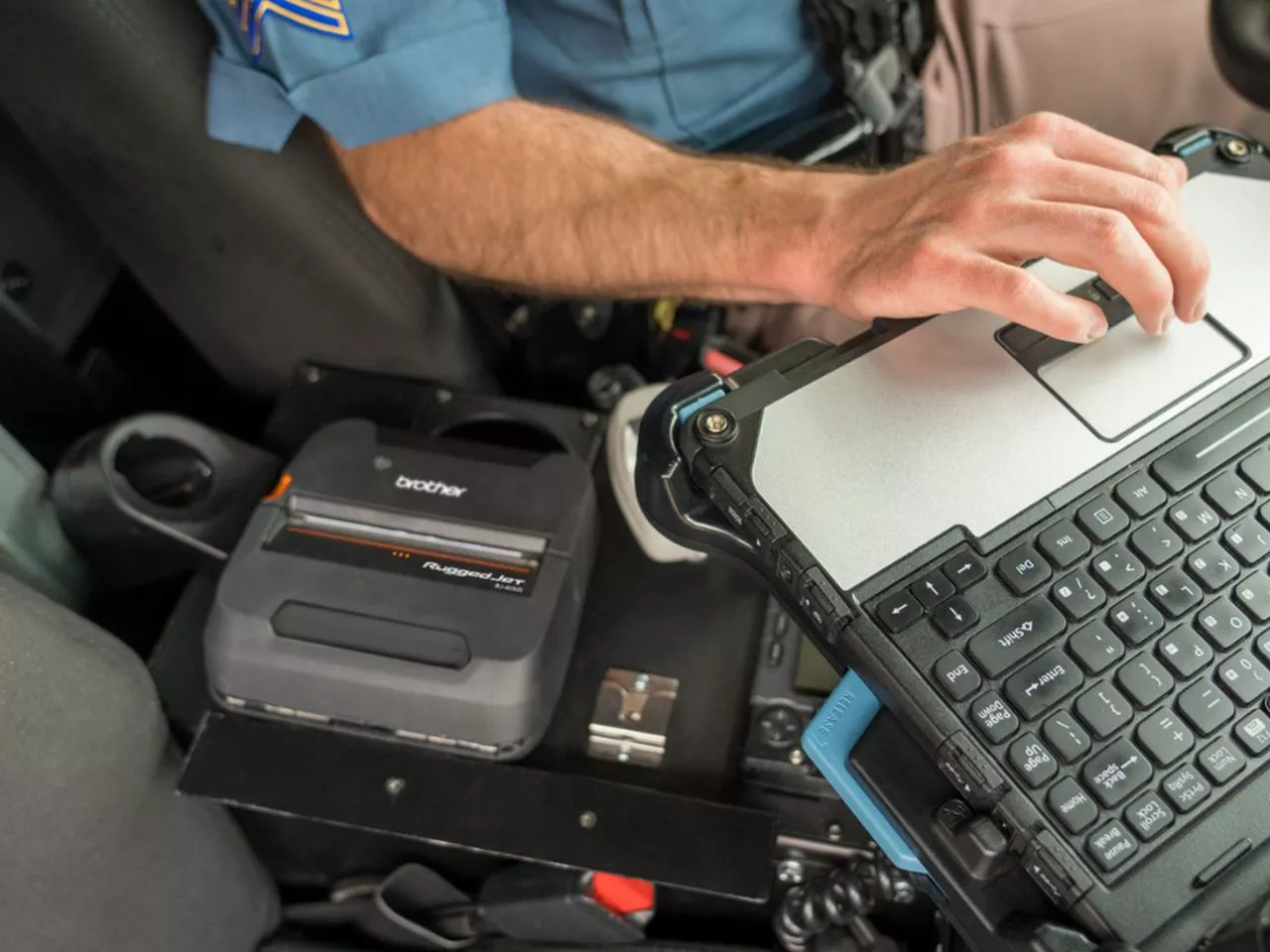

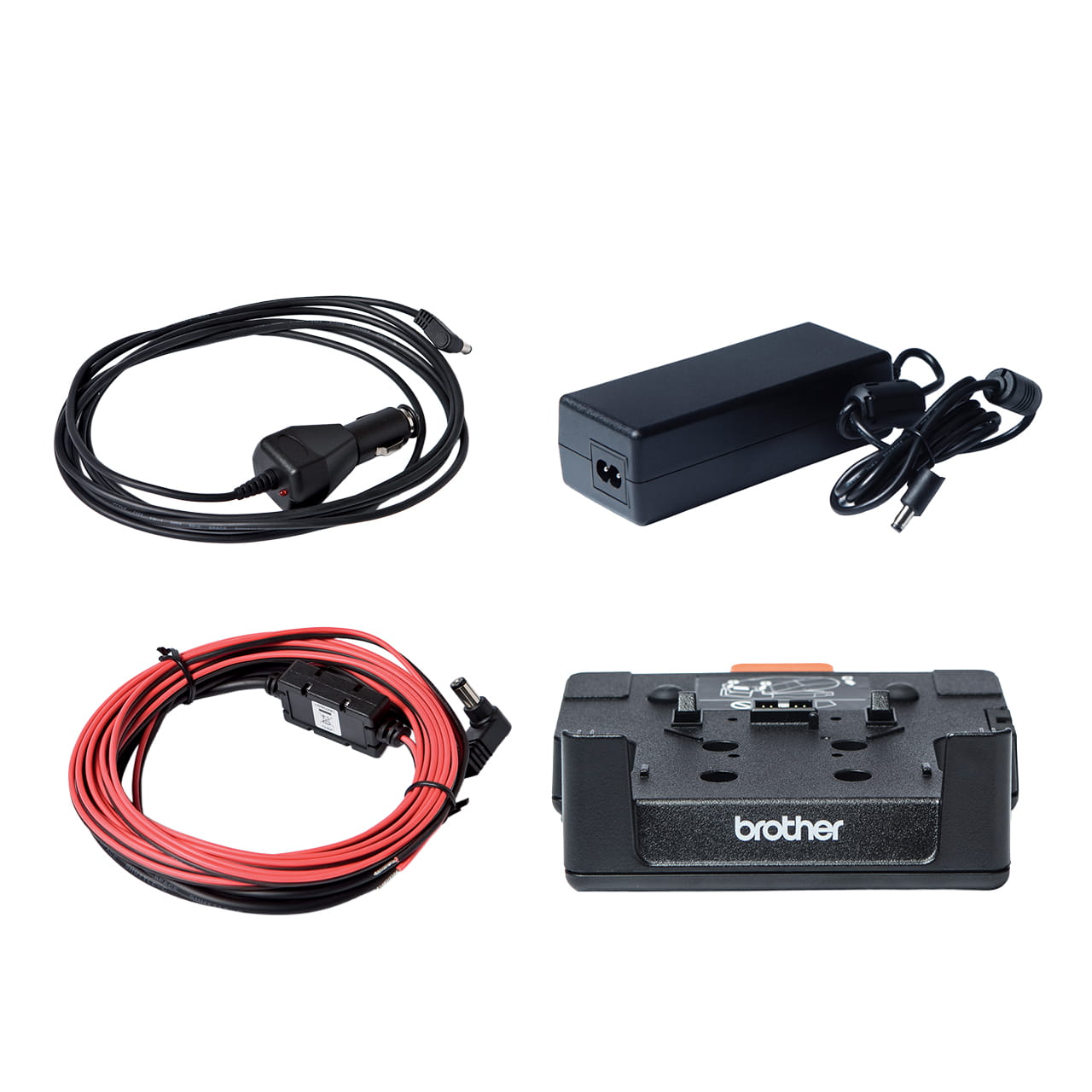

Greater mobility
The RJ-4235B delivers a versatile mobile printing solution, with a fleet of optional accessories including cradle charger, carrying cases, belt clips, rechargeable Li-ion battery and battery chargers with up to four connectable units, it can be customised to suit your workflow.

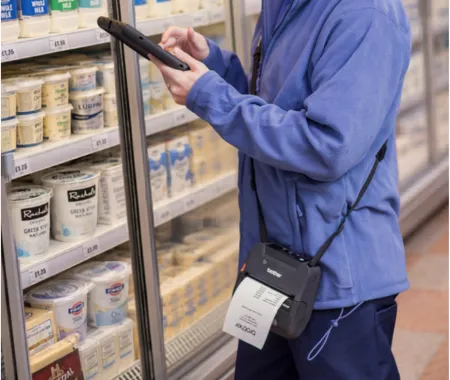

Industries we serve
Brother Font Manager
For more information, visit brother.com.au/service-and-support/labelling-apps.html
Specifications
Basic Specs
Functions
Printer Type
Mobile Printer
Product Dimensions (Width X Depth X Height)
153 mm × 159 mm × 68 mm
Weight
850 g
Print Speed
127mm/sec, 5ips
Paper Type
Label, Receipt, Tag
Paper Size
Up to 114mm
Receipt (inner diameter): 12.7mm, (outer diameter): 58mm,
Minimum Label width: 25.4mm
Sealing
IP54
Maximum Paper Capacity
-
Warranty
1 year Return to Base Warranty
Resolution
203 dpi
Printing Width
Up to 104 mm
Barcode
1. CODE 39
2. CODE 128
3. CODE 93
4. ITF (I-2/5)
5. EAN-8 (JAN-8)
6. EAN-13 (JAN-13)
7. UPC-A
8. UPC-E
9. UPC and EAN 2-digit or 5-digit extensions
10. CODABAR (NW-7)
11. GS1-128 (UCC/EAN-128)
12. GS1 Data Bar (Omni, Truncated, Stacked, Stacked Omni, Limited, Expanded, Expanded Stacked)
13. POSTNET
14. Intelligent Mail Barcode
15. QR Code (model 1, model 2, micro QR)
16. PDF417 (Standard, Truncate, MicroPDF417)
17. MaxiCode
18. MSI
19. Data Matrix (ECC200 Square, ECC200 Rectangular)
20. Aztec
Connectivity
Connectivity
USB 2.0 Full Speed Type C, Bluetooth® Dual-Mode (Classic + LE), NFC Passive Only
Display & Memory
Display Type
Monochrome LCD
Memory Capacity
Ram: 256MB
Flash: 64MB
Operation
Power Source
PA-BT-006 Rechargeable Li-ion Smart Battery
Optional Accessories (Purchase separately)
PA-AD-600A UK AC Power Adapter, PA-CD-600CG Car Adapter (Cigarette Socket Type), PA-CD-600WR Car Adapter (Permanent Wired Type), PA-BC-003 Battery Charger, PA-CR-002A Car Mount Charging Cradle
Temperature Operating
-15°C to 50°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation (CPCL page print mode / CPCL line print mode)
Network
Wireless Network Security
-
