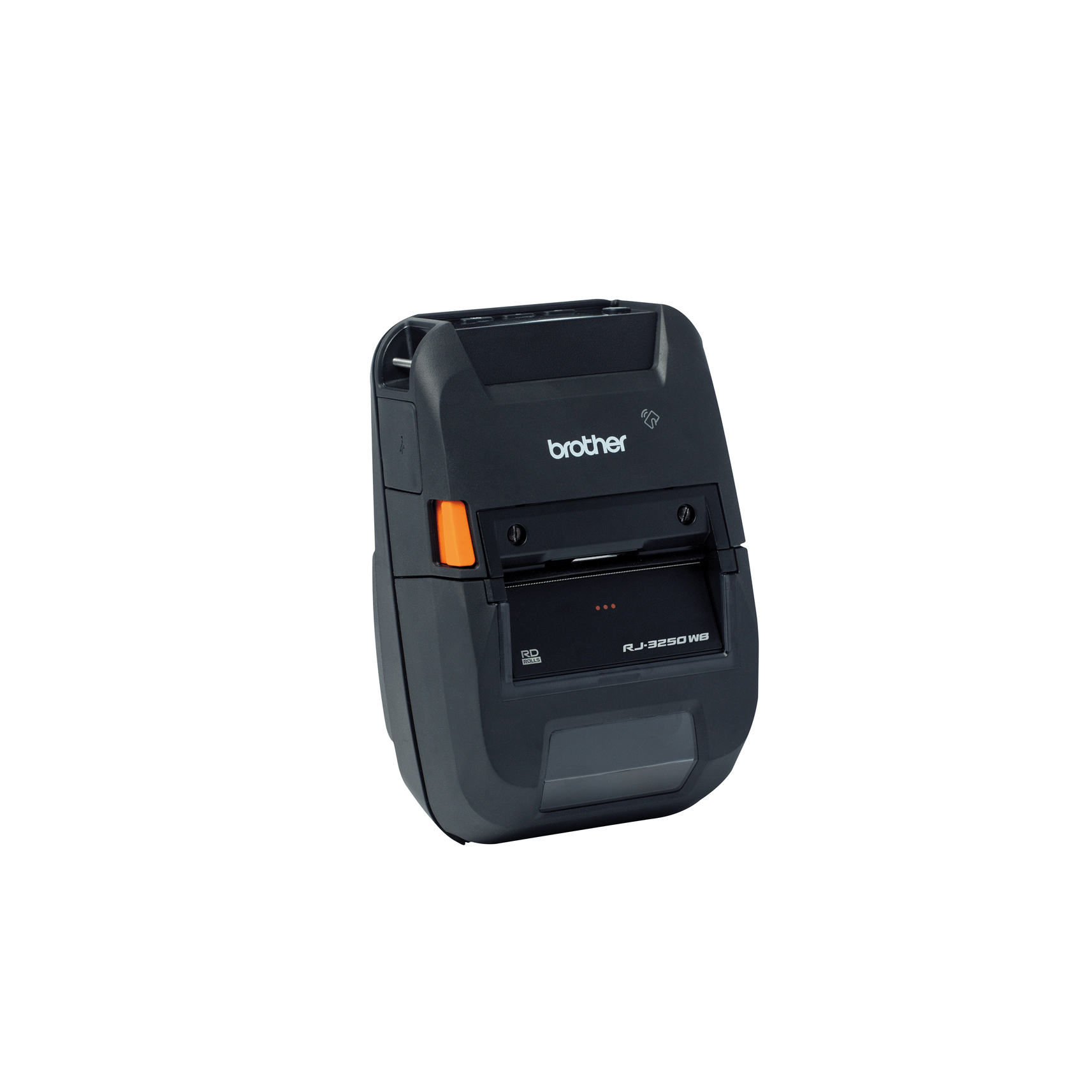

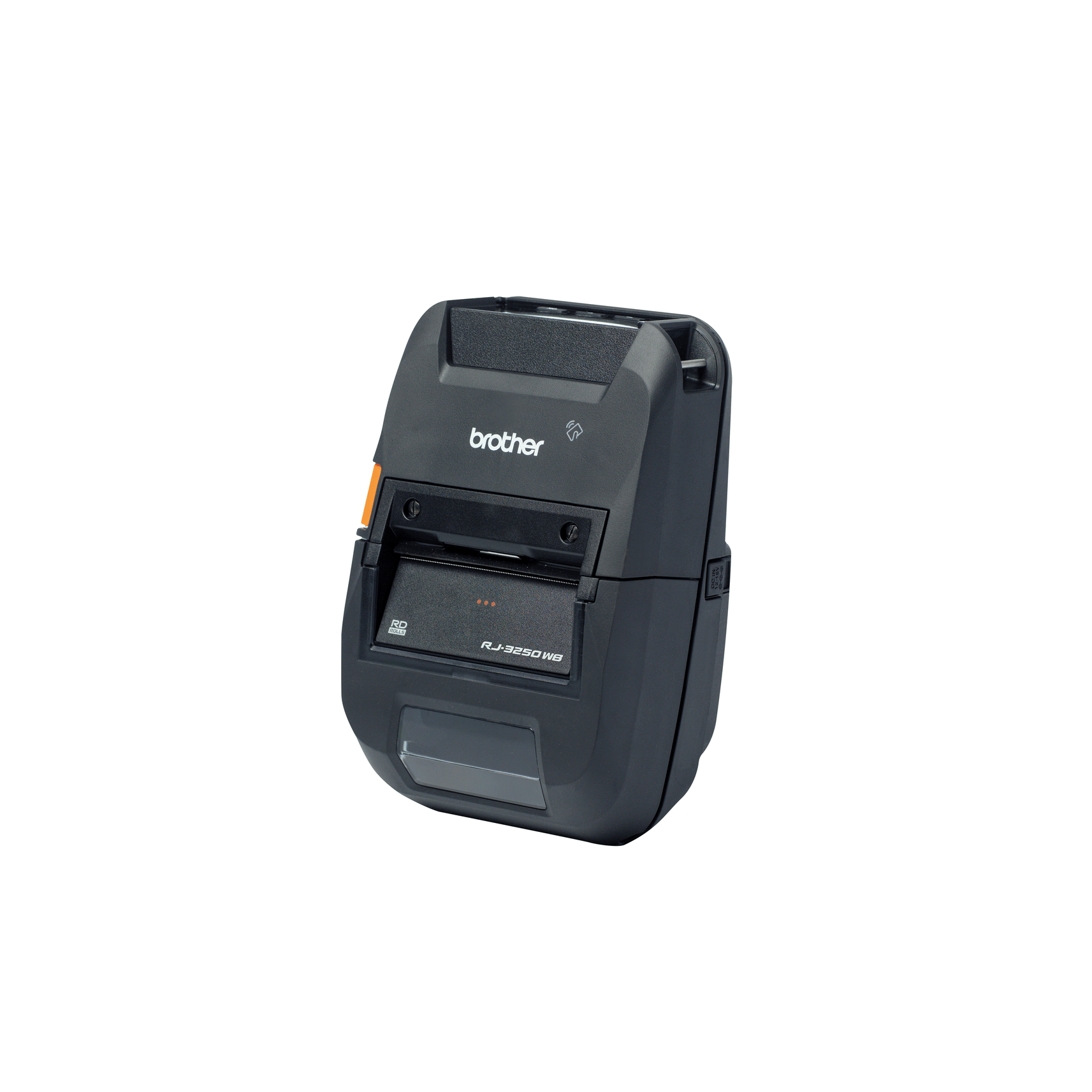

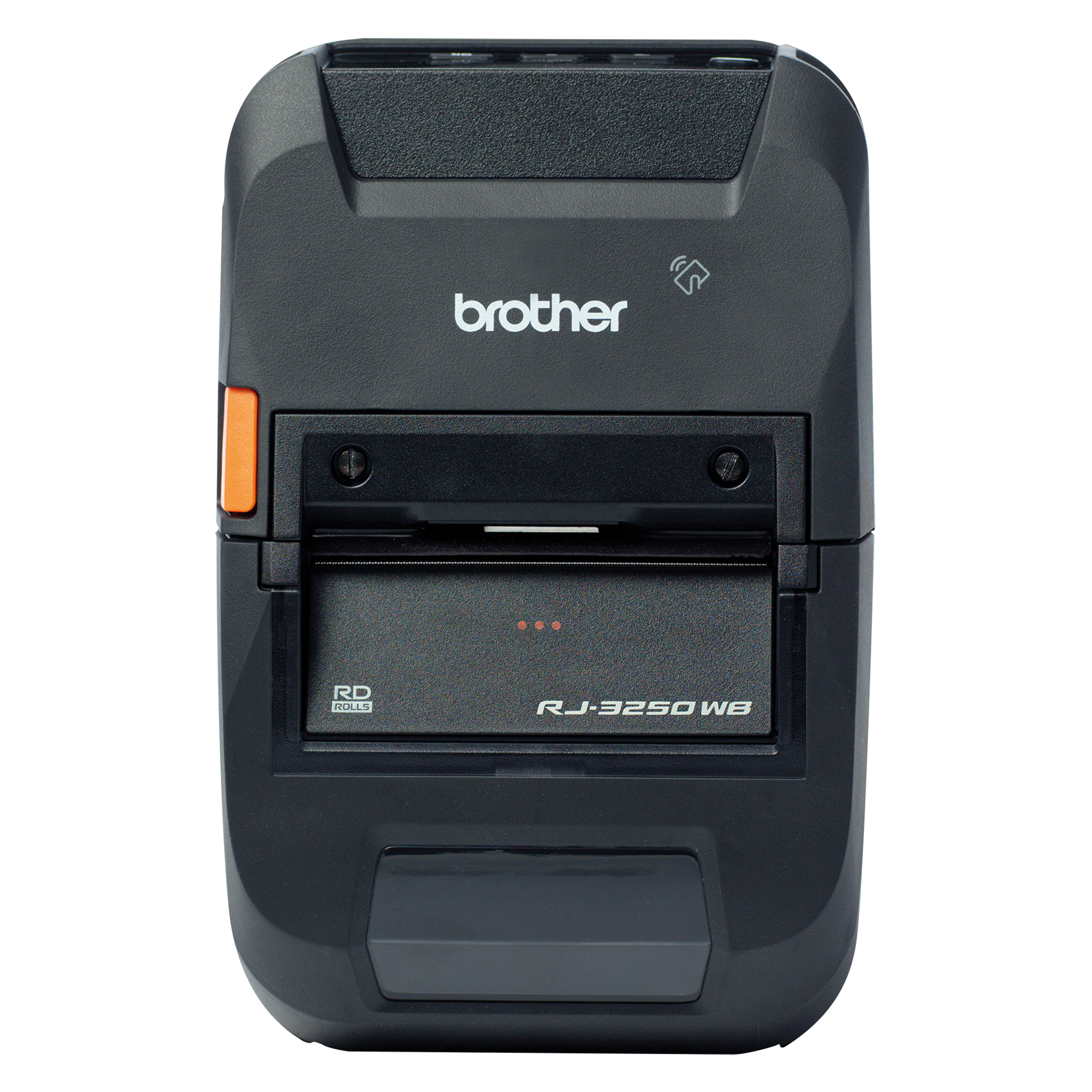

3-Inch Label & Receipt Mobile Printer
- A rugged design that’s built to last
- Prints up to 3-inch or 72mm width (Receipt/Label)
- Can endure drops from up to 2m in height (IP54 rated)
- USB-C, NFC, Bluetooth, WiFi and AirPrint connectivity
- Smart Li-ion battery
- 12-month return-to-base warranty
Information
Overview
Optimised mobile printing

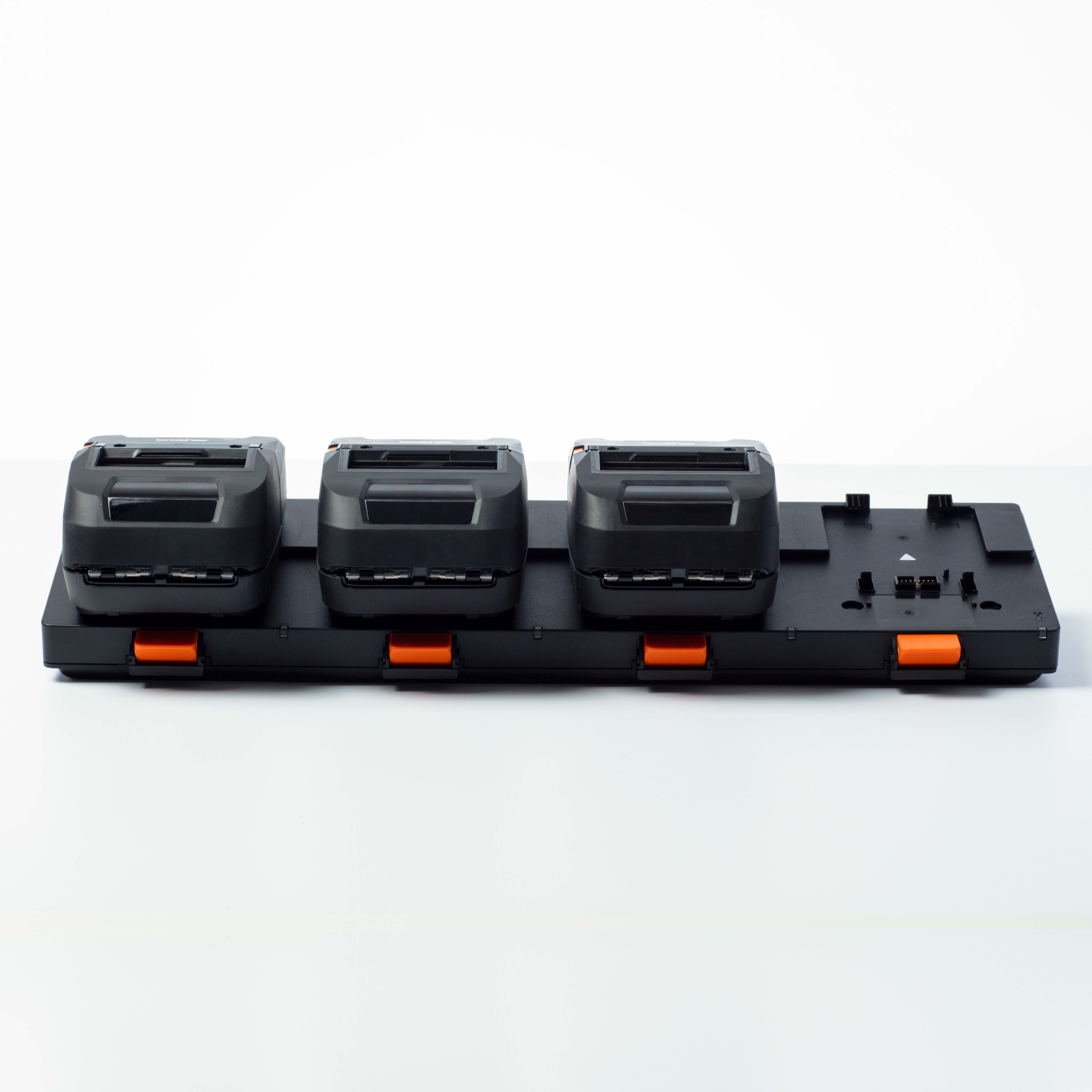

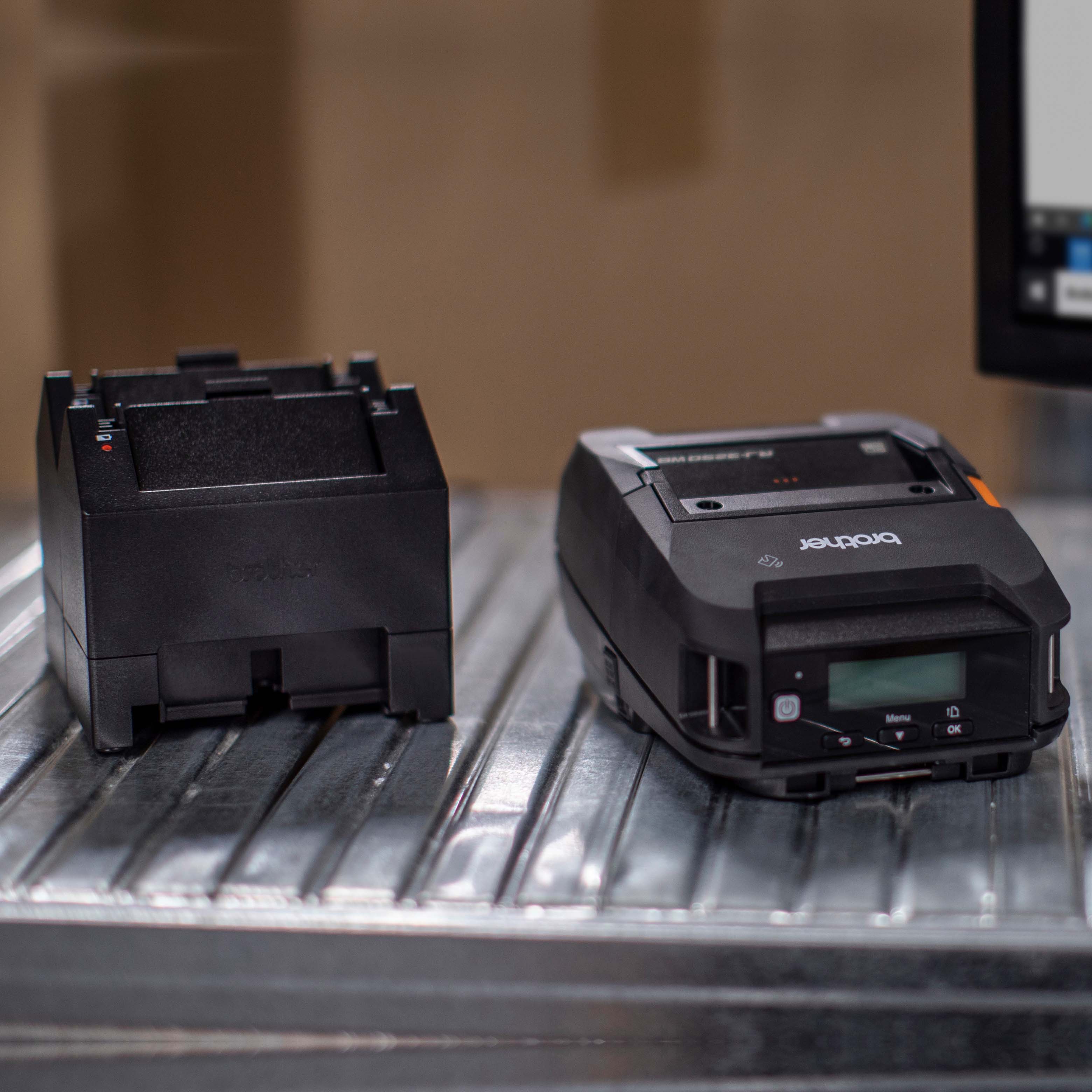

Ensure you have a solution that works for your business with optional accessories including a peeler, charging cradles with Ethernet connectivity, a linerless platen kit, vehicle adaptors and more.
Rugged design

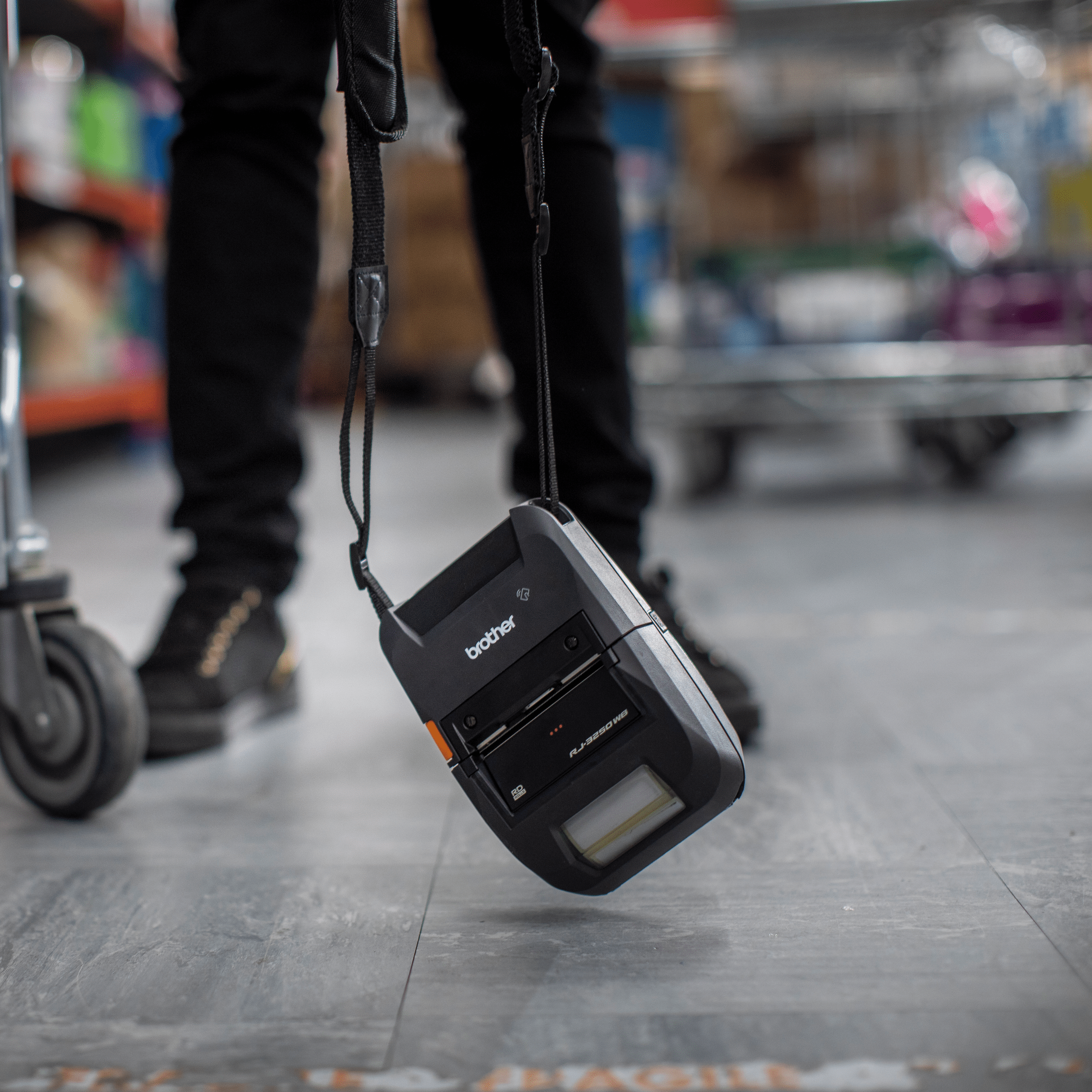

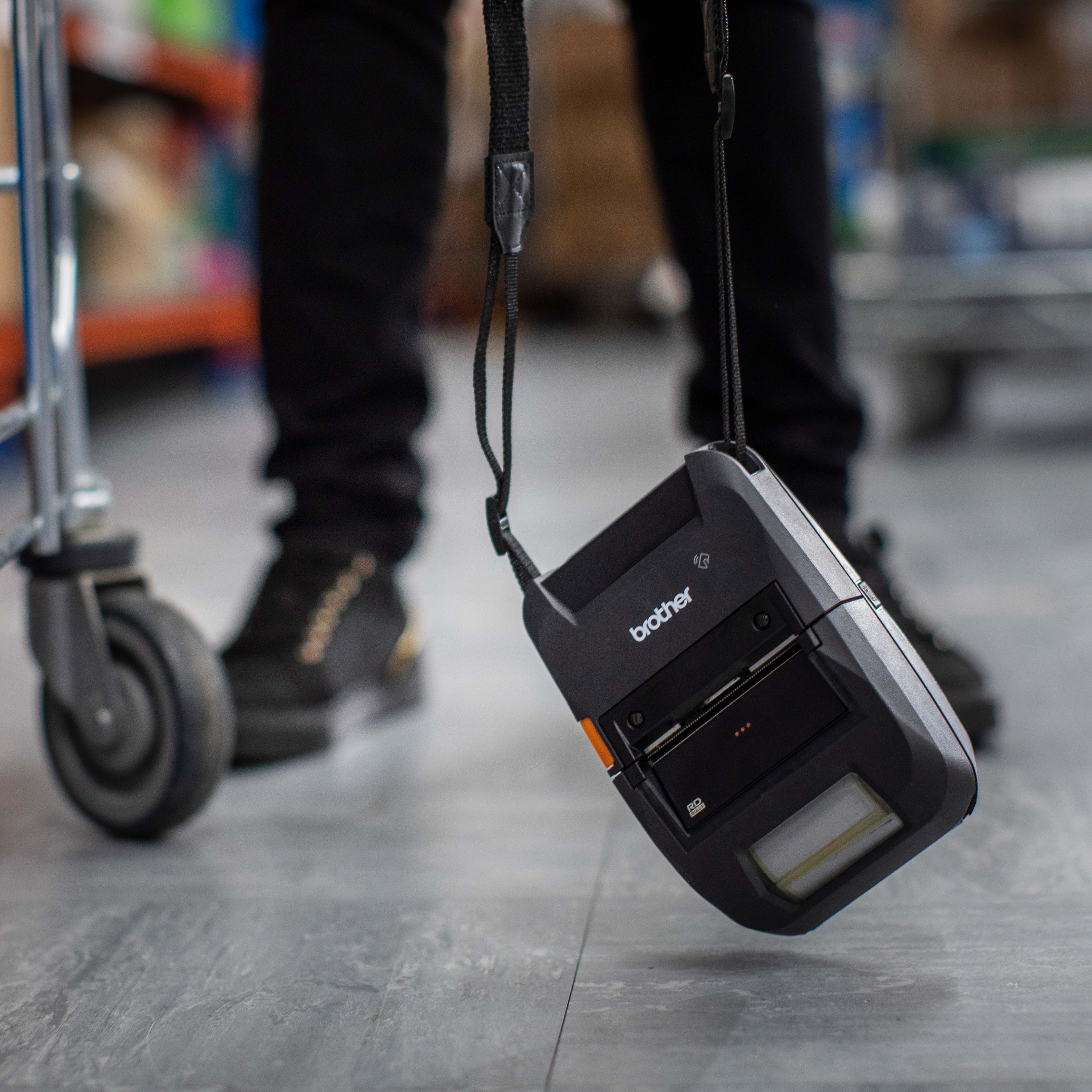

Its rugged design can endure drops from up to 2m in height (IP54 rated), and is protected from any bumps, drops or collisions with its elastomer covering.
Easy firmware updates

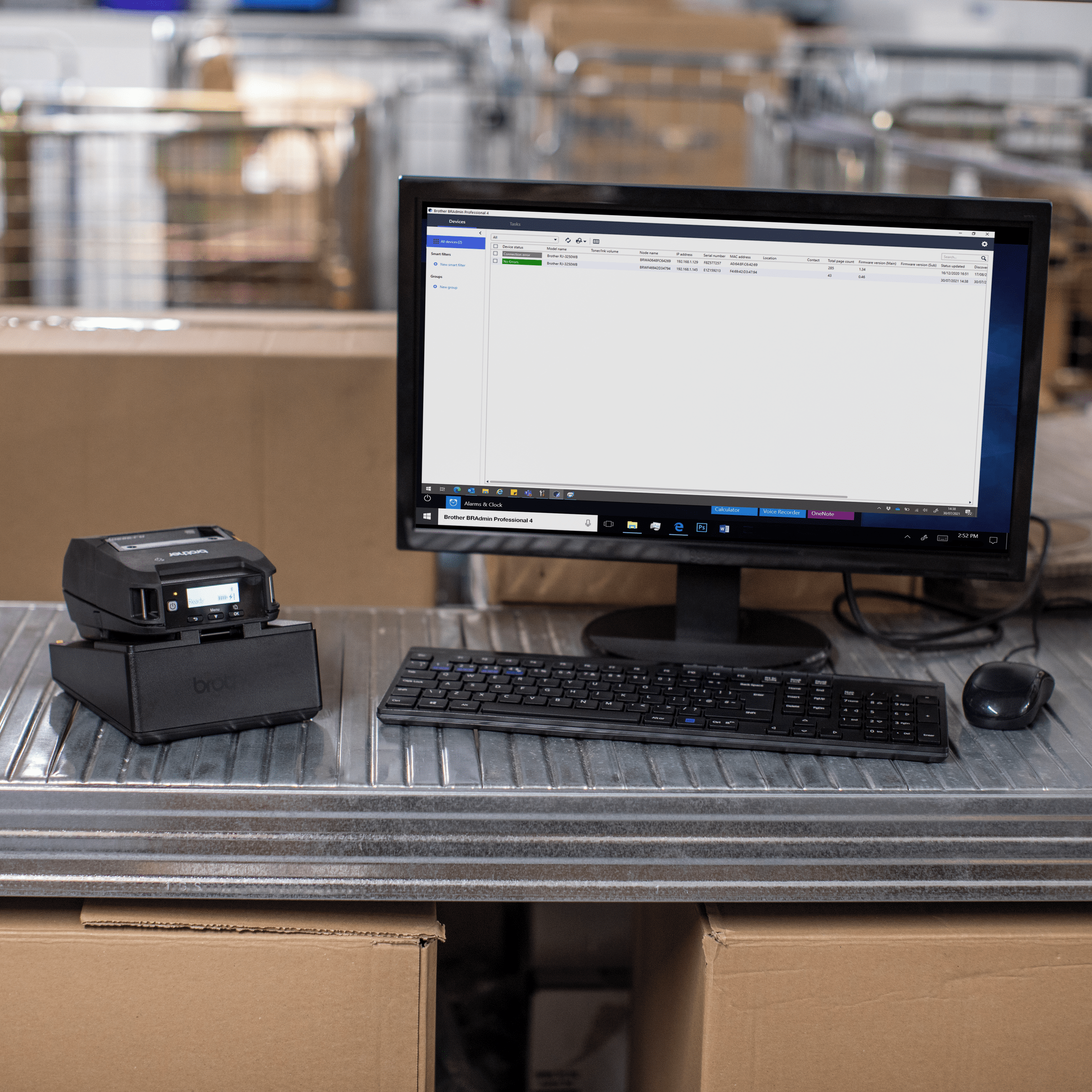

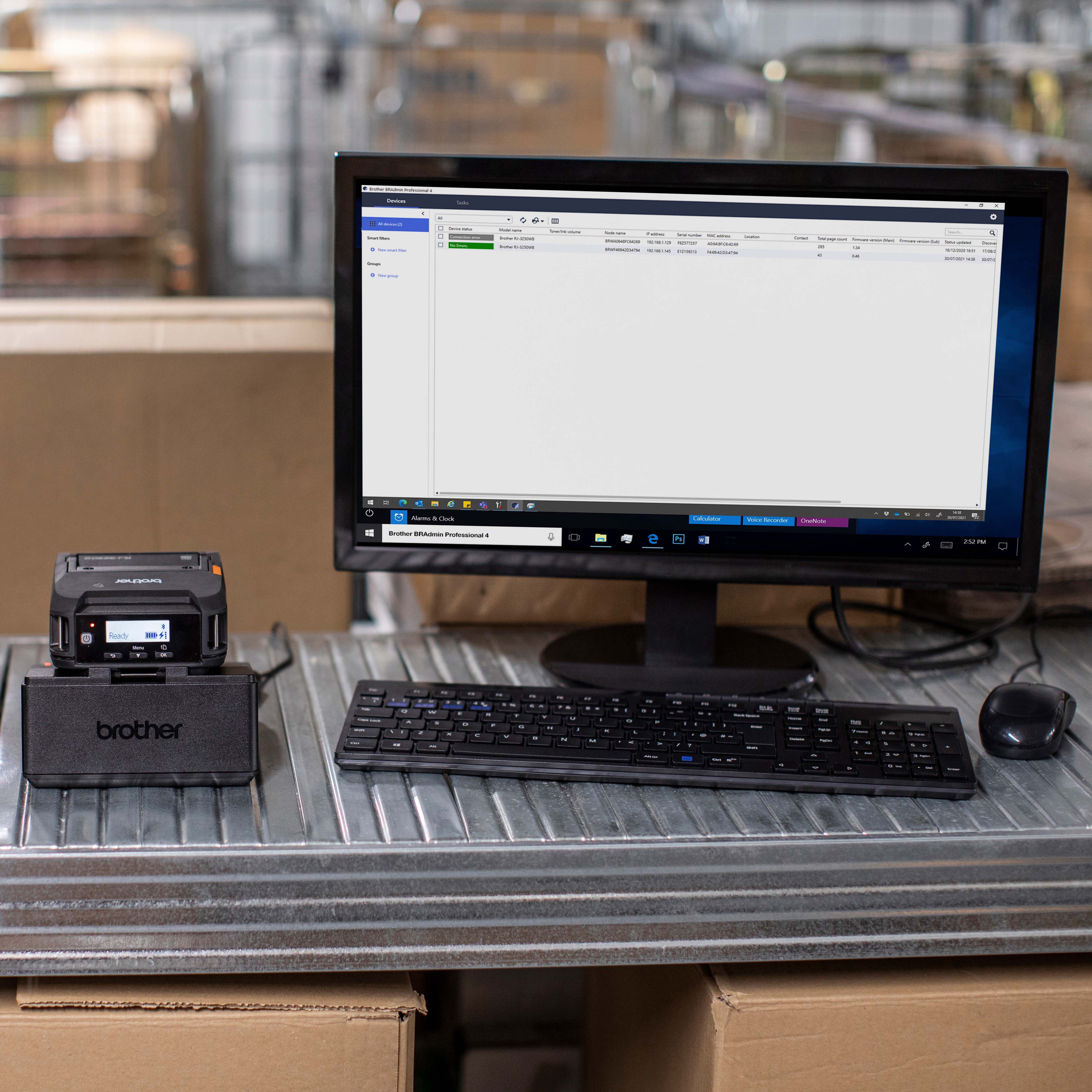

Experience easy firmware updates that you can initiate overnight while your printer is charging. This means less downtime during your work day.
Batteries that can keep up
The smart Li-Ion battery that comes as standard is designed to last a full shift without needing to be charged. You can also engage power-save mode to preserve battery life.
Connect and go
Compatible with a variety of connectivity options including USB-C, NFC and Bluetooth, the RJ-3230B allows you to produce high quality outputs without the need to download or install printer drivers.
At your side support
Wherever you are in Australia, Brother offers free product support for the lifetime of your device.
Warranty you can rely on
The RJ-3250WB comes with a 12 month return-to-base warranty as standard, so you can have peace of mind knowing that Brother is at your side.
Easy AirPrint connectivity
With Brother Web Connect, you can print and scan directly to your cloud storage such as OneDrive or Dropbox without the need for your computer.
Specifications
Basic Specs
Functions
Printer Type
Mobile Printer
Product Dimensions (Width X Depth X Height)
117 mm × 180 mm × 77 mm
Weight
807 g
Print Speed
Up to 5 ips (127 mm/sec)
Paper Type
Receipt, Gap/Black mark Label, Tag, Linerless (Optional)
Paper Size
Up to 80mm
Sealing
IP54 dust- and water-resistance rating (without case)
Maximum Paper Capacity
Non-coatd Thermal paper, Coated thermal paper, Direct Thermal die cut labels
Warranty
1 year Return to Base Warranty
What's in The Box
Machine, Quick Set up Guide, Belt Clip, Lithium-ion Battery, Roll Holder Stop, Shoulder strap, AC Adapter
Resolution
203 dpi
Printing Width
Up to 72 mm
Barcode
Linear: CODE39, CODE93, CODE128, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW-7), GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar(RSS), MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
2D: QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix, GS1 Databar Composite
Connectivity
Connectivity
Wireless LAN IEEE 802.11a/n (5GHz)
Display & Memory

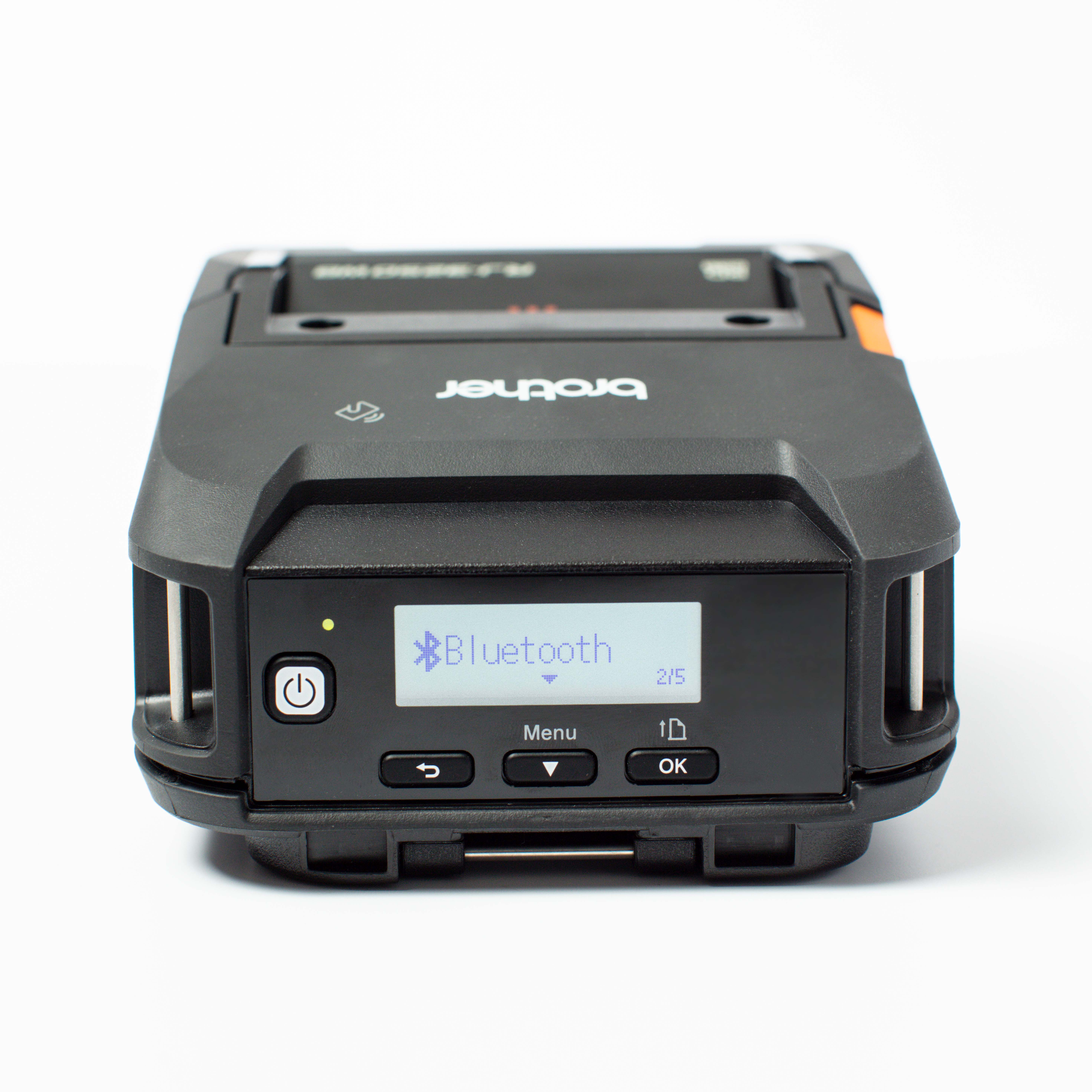

Display Type
Mono LCD wtih Back Light
Memory Capacity
Ram: 256 MB
Flash: 128 MB
Operation
Power Source
AC adapter (Optional): 15 V Car adapter (Optional): 12 V (DC)
Temperature Operating
-20°C to 55°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation (CPCL page print mode / CPCL line print mode)
Supported Operating Systems
Supported OS
Windows 7, Windows 8.1, Windows 10, Windows Server 2012/2012 R2/2016/2019
Software and Apps
Included Software
12/21/2023
Ptouch Editor, Driver Deployment Wizard, P-touch Transfer Express, P-touch Template Tools, P-touch Update Software, Printer Setting Tool, Windows BarTender printer Drivers by Seagull SOTI (MDM), NiceLabel (for label print), Teklynx (for lable print), SAP (for label print)
Mobile Apps
12/21/2023
Mobile Transfer Express, Support Center, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
Windows 7 /8 /8.1/ 10/ 11 Android 4.0.3 or later IOS 7.0 or later
Software Development Kit (SDK) Last Updated
12/21/2023
Network
Wireless Network Security
SSL/TLS1.0/1.1/1.2 (HTTPS, IPPS) SNMPv3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3-SAE (AES)
