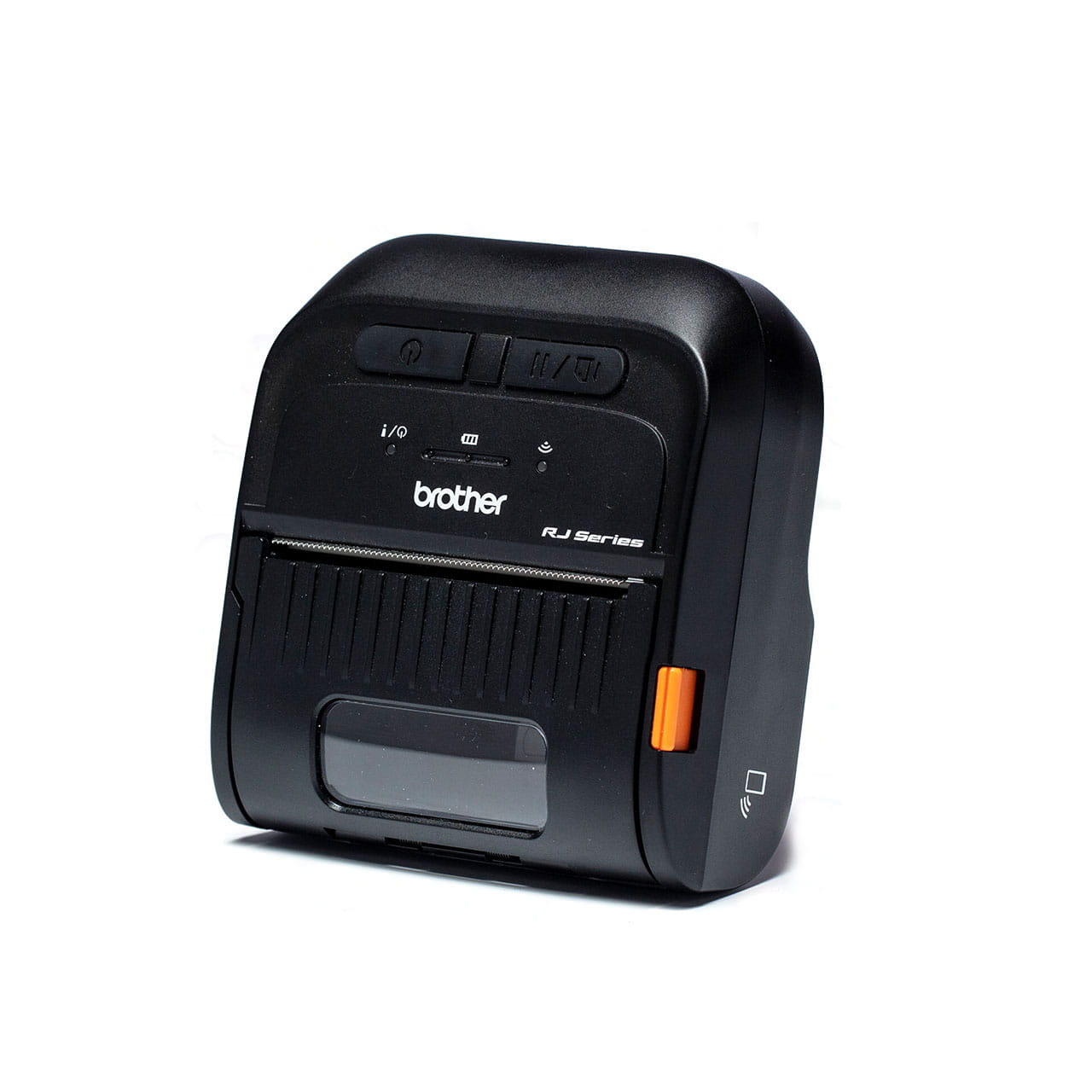

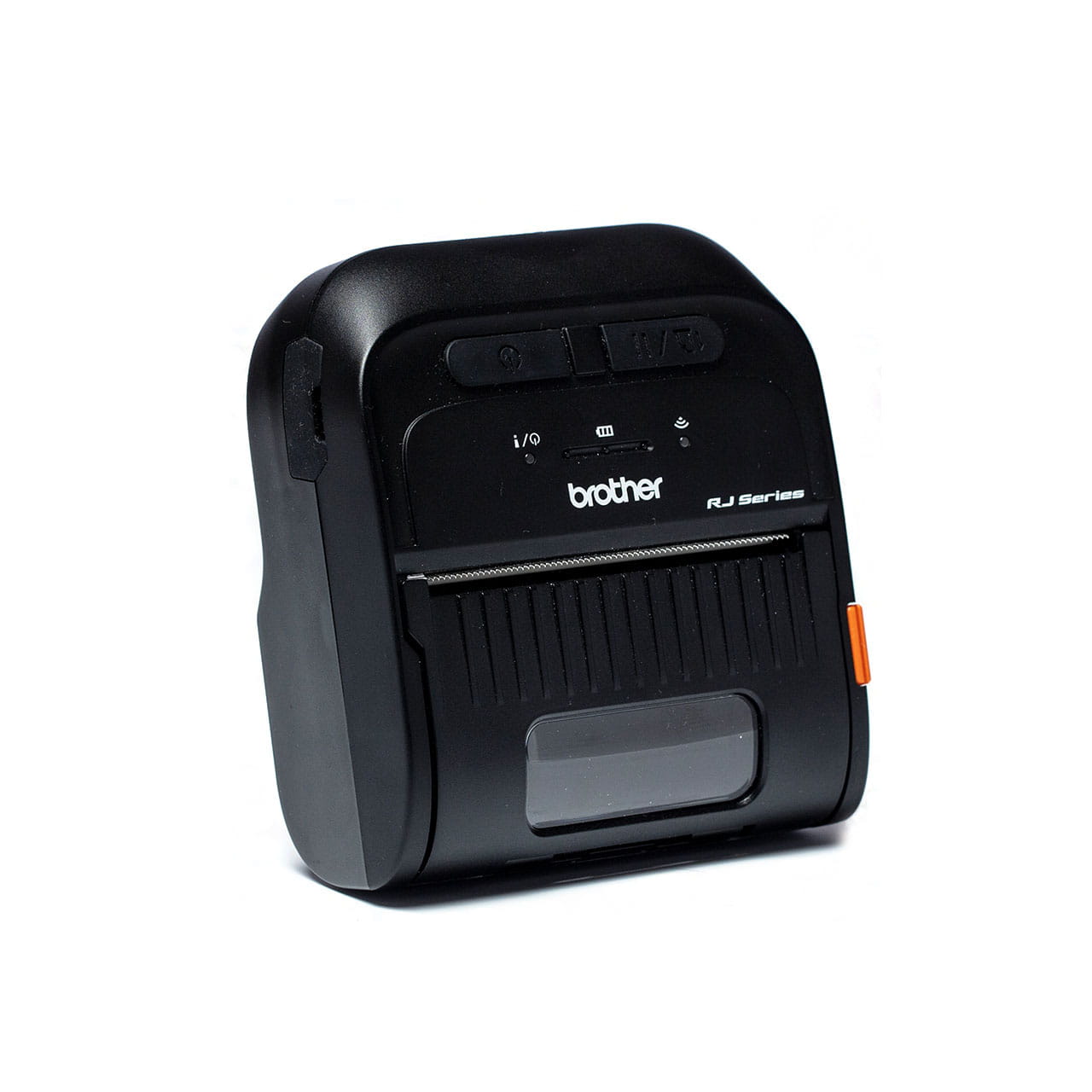

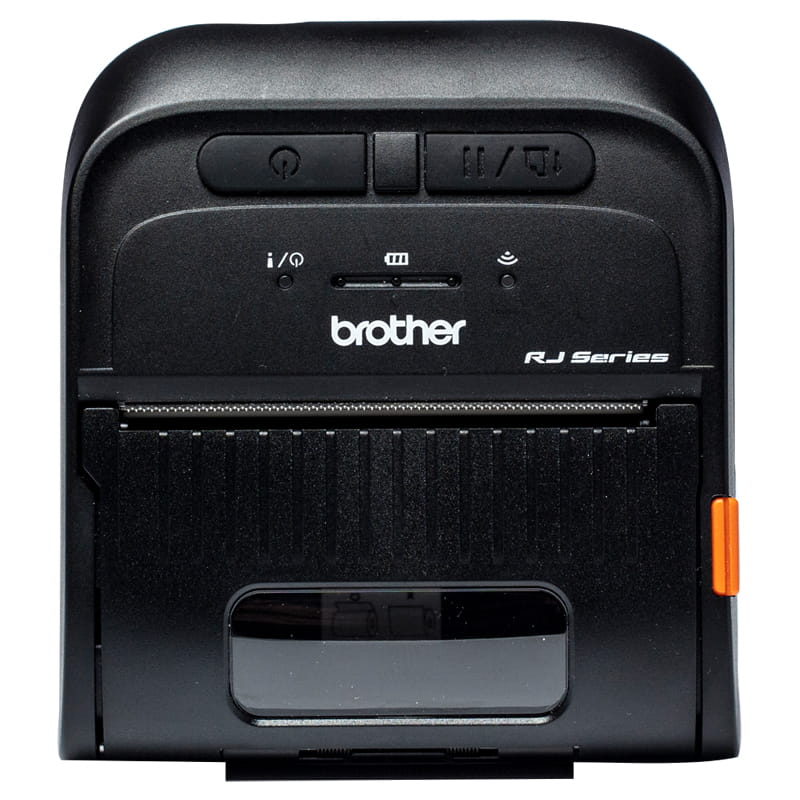

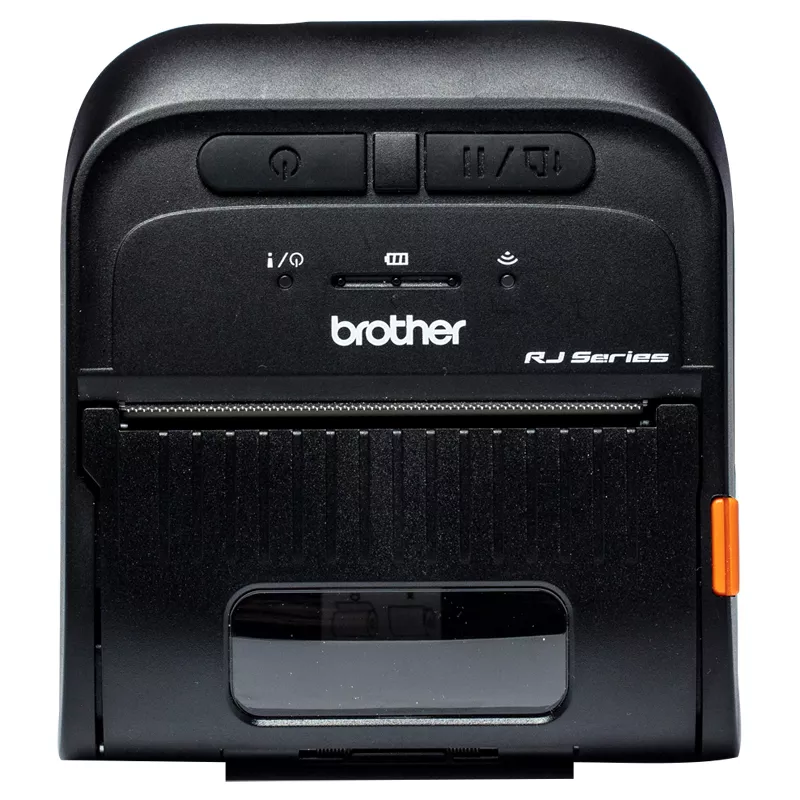

3inch Portable Receipt Printer
- Print speed of up to 4 ips
- Bluetooth, USB and NFC
- Long lasting battery, proven technology, and a 12 month return to base warranty
Information
Overview

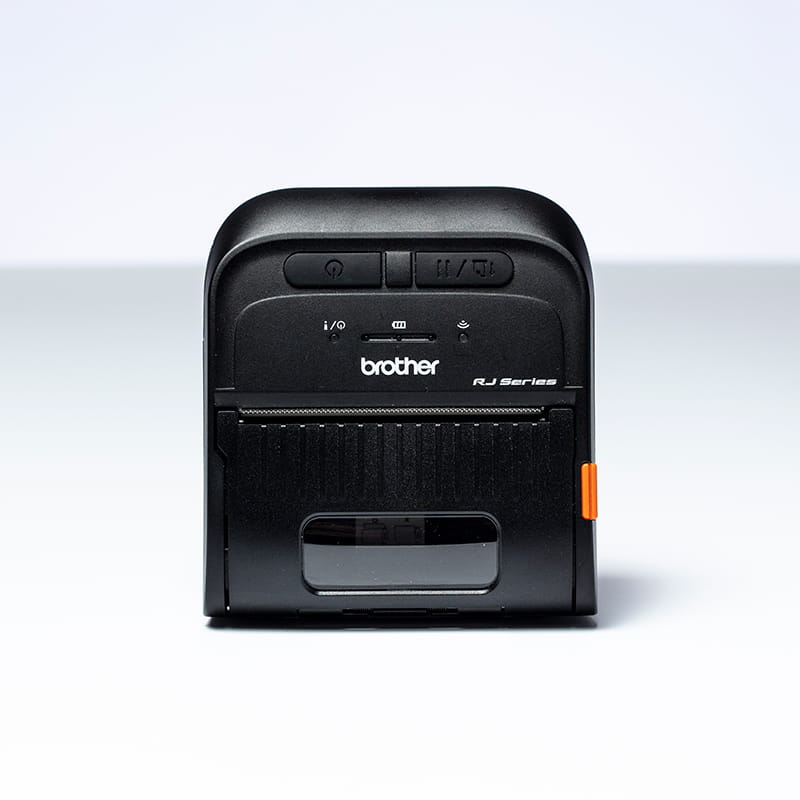

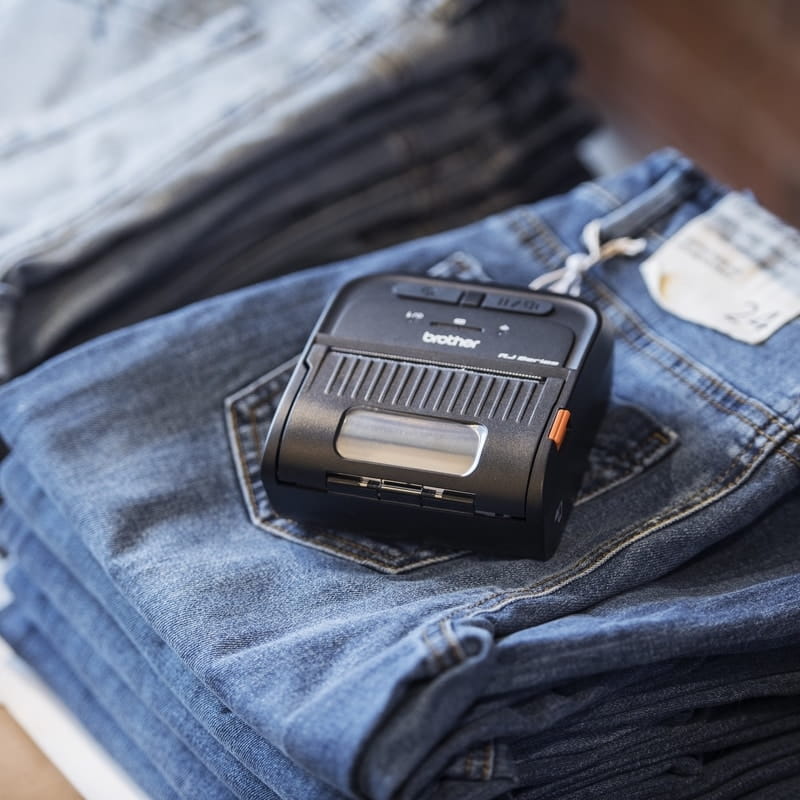

Lightweight and compact
At only 357g and so small that it almost fits in the palm of your hand, there’s no need for extra space to accommodate this new addition into your kit of work devices
Reliable connectivity
Provides multiple connectivity options for use in different environments, with USB, Bluetooth (low energy) with MFI capabilities and passive NFC
Robust design
The RJ-3035B has an IP42 rating and drop tested up to 1.8 metres, providing extensive durability
Seamless integration
With ZPL, EPL and ESC/POS support and Software Development Kits (SDK’s) to support Android and iOS operating systems, it can seemlessly integrate with the systems you need.
Customisation
A wide range of in-vehicle and on-body accessories are available to meet your specific requirement for a customised solution
Industries we serve
Designed to meet the needs of specialist sectors including warehouse, logstics, ticketing, retail and field sales and service

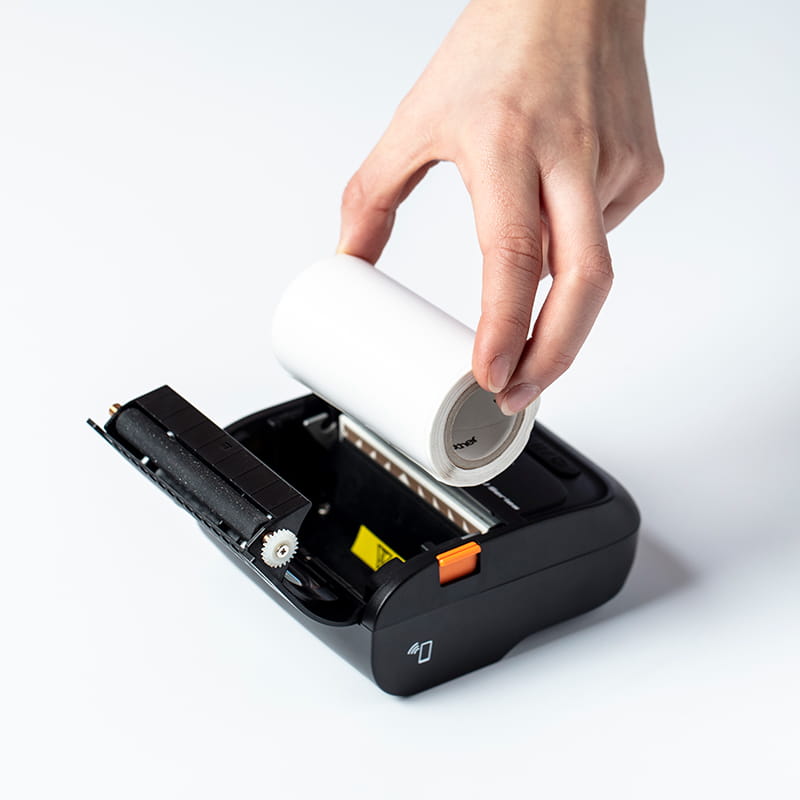

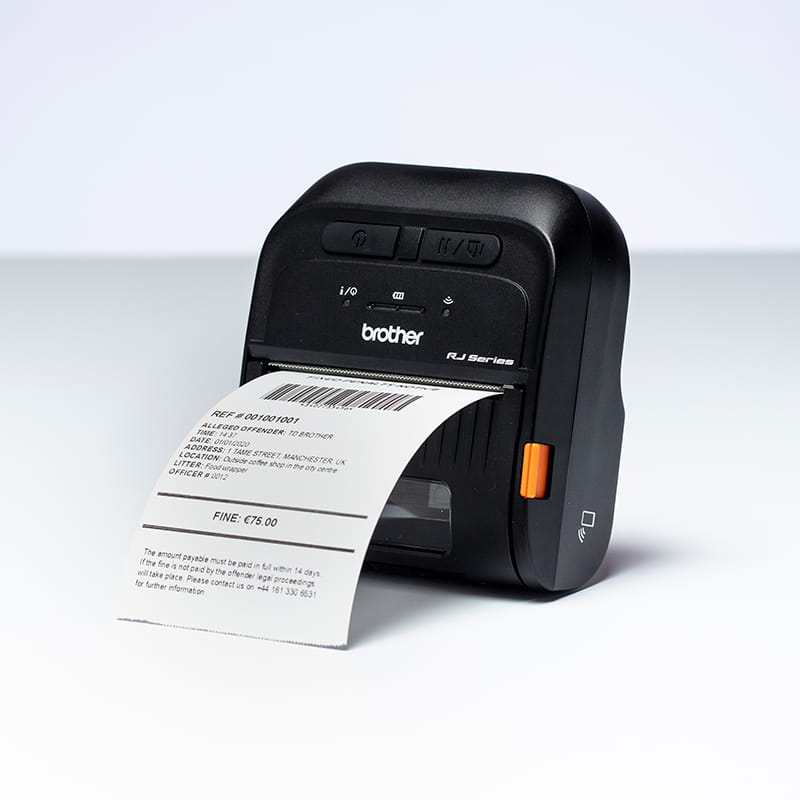

Direct Thermal Technology
Low-cost, high-volume receipts can be created through this process, which uses a heat-sensitive coating and thermal print head, meaning traditional printing ribbons and ink are not required
Ideal for shorter term and less permanent receipt requirements
Software Support Features
With apps for desktop PC’s and mobile devices, and SDK’s to integrate the RJ-3035B into your own applications, you can choose the best option for your printing needs
Software developers can integrate printing into their applications with printer drivers available for Windows OS, and SDKs to support Windows Mobile, Android and iOS operating systems
Specifications
Basic Specs
Functions
Printer Type
Mobile Printer
Product Dimensions (Width X Depth X Height)
105 mm × 116 mm × 49.5 mm
Weight
385 g
Print Speed
Up to 4ips
Paper Type
Continuous, black mark, label, Specific liner free label
Paper Size
Up to 80 mm
Warranty
1 year Return to Base Warranty

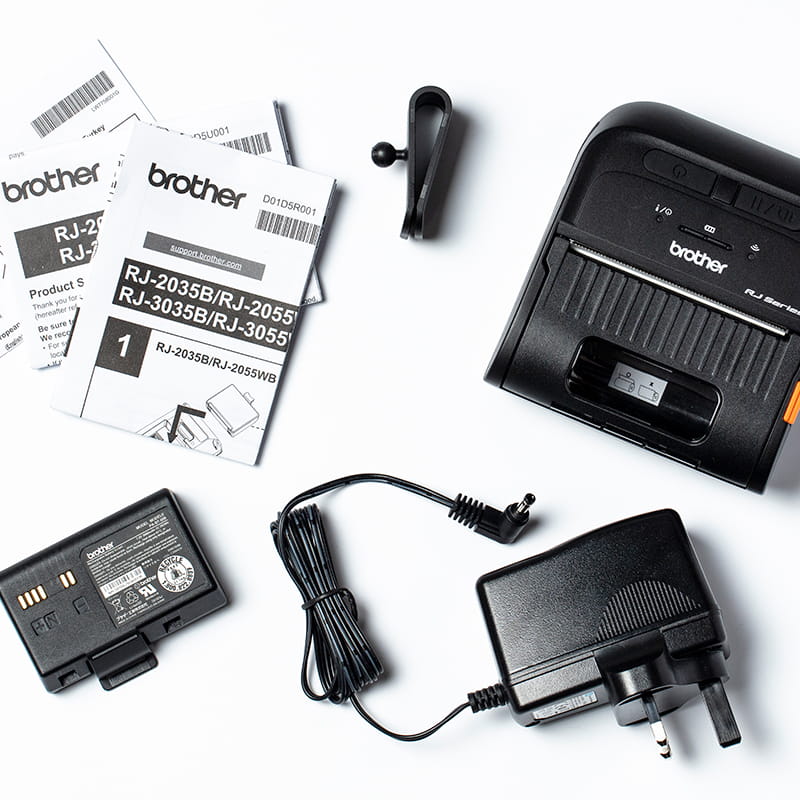

What's in The Box
Printer, Quick Set up Guide, Li-ion Battery, AC Adaptor, Belt clip
Resolution
203 dpi
Printing Width
Up to 72 mm
Barcode
Linear: Code 39, Code93, Code128, ITF(I-2/5), EAN-8, EAN-13, UPC-A, UPC-E, UPC/EAN EXTENSION CODABAR, GS1-128(UCC/EAN 128), POSTNET, GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked), MSI/Plessey, Inteligent Mail Barcode
2D:
QR Code (model 1, model 2, micro QR), Maxi code, PDF417 (Standard, Truncate), MicroPDF417, Data Matrix(Square, Rectangular) AztecCode
Connectivity
Connectivity
Micro USB 2.0 (High Speed)
Display & Memory
Memory Capacity
Ram: 32 MB, Flash: 16 MB
Operation
Temperature Operating
-15°C to 50°C
Supported Commands
Supported Commands
FBPL-EZC (EPL2, ZPL2, CPCL), ESC-POS (downloadable)
Supported Operating Systems
Supported OS
Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2008/2008R2, Windows Server 2012/2012 R2/2016
Software and Apps
Included Software
12/21/2023
Windows: BarTender UltraLite, Brother Printer Management Tool (BPM), Brother CommTool, Brother Printer driver, OPOS Printer Driver, Seagull Driver Mac: Printer driver Linux: Printer driver Android/iOS: Label Print for brother (KuO)
Mobile Apps
12/21/2023
Support Center
Software Development Kit (SDK)
Windows 7 /8 /8.1/ 10/ 11 Android 4.0.3 or later IOS 7.0 or later
Software Development Kit (SDK) Last Updated
12/21/2023
