Overview
Fast printing
Printing at 152mm per second,
your receipt and labelling requirements will be completed in no time
Robust design
The RJ-2140 has an IP54 rating
and drop tested up to 2.5 metres, providing extensive durability
Reliable connectivity
Provides multiple connectivity
options for use in different environments, with USB and Wi-Fi support
Seamless integration
With ZPL, ESC/POS and CPCL support and
Software Development Kits (SDK’s) to support Android and iOS operating systems, it can seemlessly integrate with the systems you need
Customisation

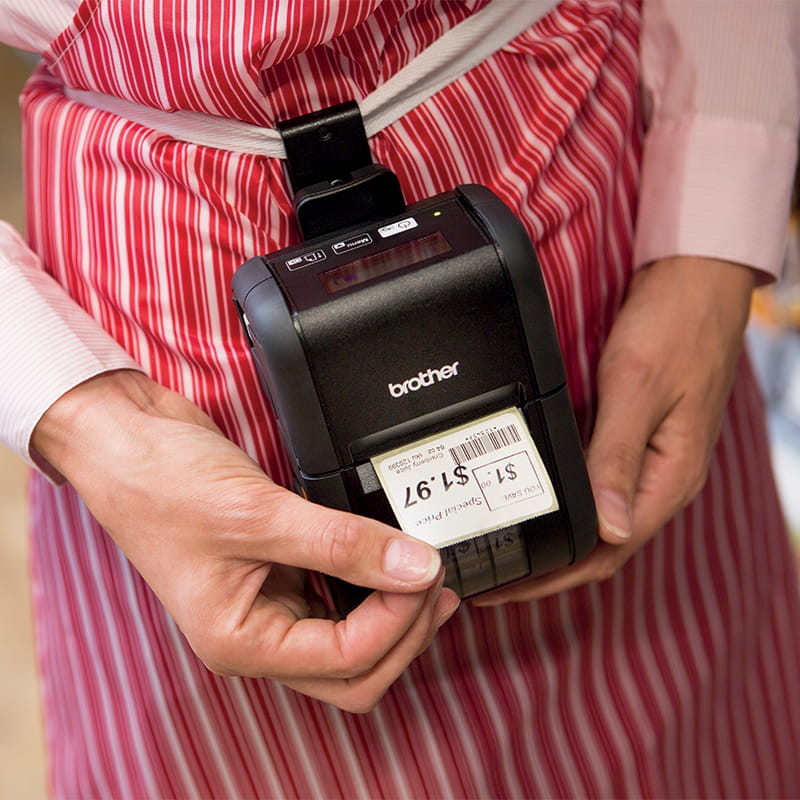

A wide range of in-vehicle and on-body
accessories are available to meet your specific requirement for a customised solution
Industries we serve
Designed to meet the needs of specialist
sectors including healthcare, warehouse, logstics, ticketing, retail and field sales and service
Specifications
Basic Specs
Functions
Product Dimensions (Width X Depth X Height)
151 mm × 100 mm × 73 mm
Weight
545 g
Print Speed
Ave: 6ips or 152 mm / sec (under Brother standard environment)
Paper Type
Label Roll: Inner Diameter 10.2mm / Outer Diameter 60mm
Sealing
IP54
Maximum Paper Capacity
Receipt, Label, Tag Label
Warranty
1 year Return to Base Warranty

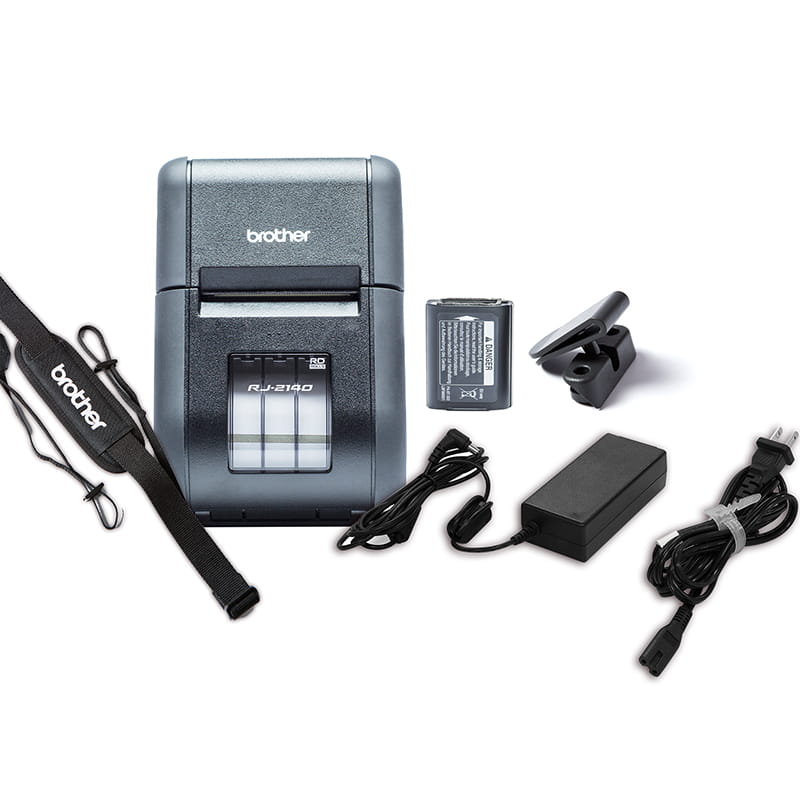

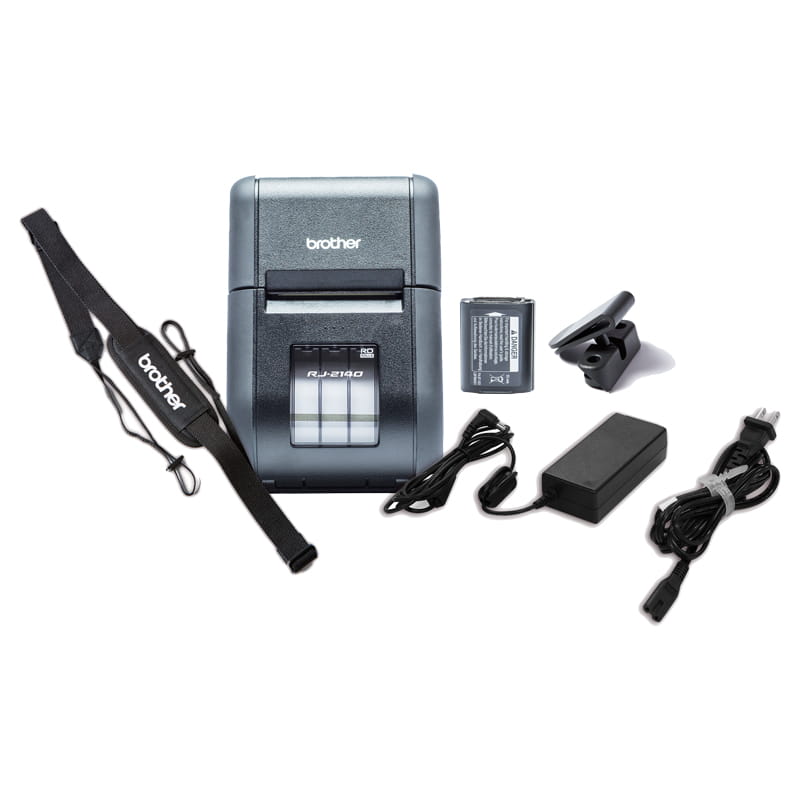

What's in The Box
Printer, Li-ion battery, Belt clip(2 screws), Quick Set up Guide, Ac Adapter, Shoulder Strap
Resolution
203 dpi
Printing Width
Up to 58 mm
Barcode
Code39, Code93, Code128, ITF(I-2/5), EAN-8, EAN-13, UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR, GS1-128(UCC/EAN-128), RSS symbols, POSTNET, MSI, QR Code (Model 1, Model 2, Micro QR), PDF417 (Standard, Truncate, MicroPDF417), Data Matrix(ECC200 Square, ECC200 Rectangular), MaxiCode, Aztec
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN IEEE 802.11b/g/n
Display & Memory
Display Type
Mono LCD
Memory Capacity
32 MB
Operation
Temperature Operating
-10°C to 35°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touchTemplate, ZPL emulation, CPCL emulation
Supported Operating Systems
Supported OS
Windows Vista / 7 / 7 / 8.1 /10, iOS & Android
Software and Apps
Included Software
12/21/2023
P-touch Editor, P-touch Transfer Manager, BRAdmin Light, BRAdmin Pro, Network setting tool, Windows BarTender printer Drivers by Seagull
Mobile Apps
12/21/2023
Mobile Transfer Express, Support Center, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
Windows Mobile 6.x Professional / Classic / Standard Windows Mobile 5.0 for Pocket PC Phone Edition Windows CE 5.0 / 6.0 Windows XP /Vista /7 /8 /8.1 /10 Android 4.0.3 or later IOS 6.0 or later
Software Development Kit (SDK) Last Updated
12/21/2023
