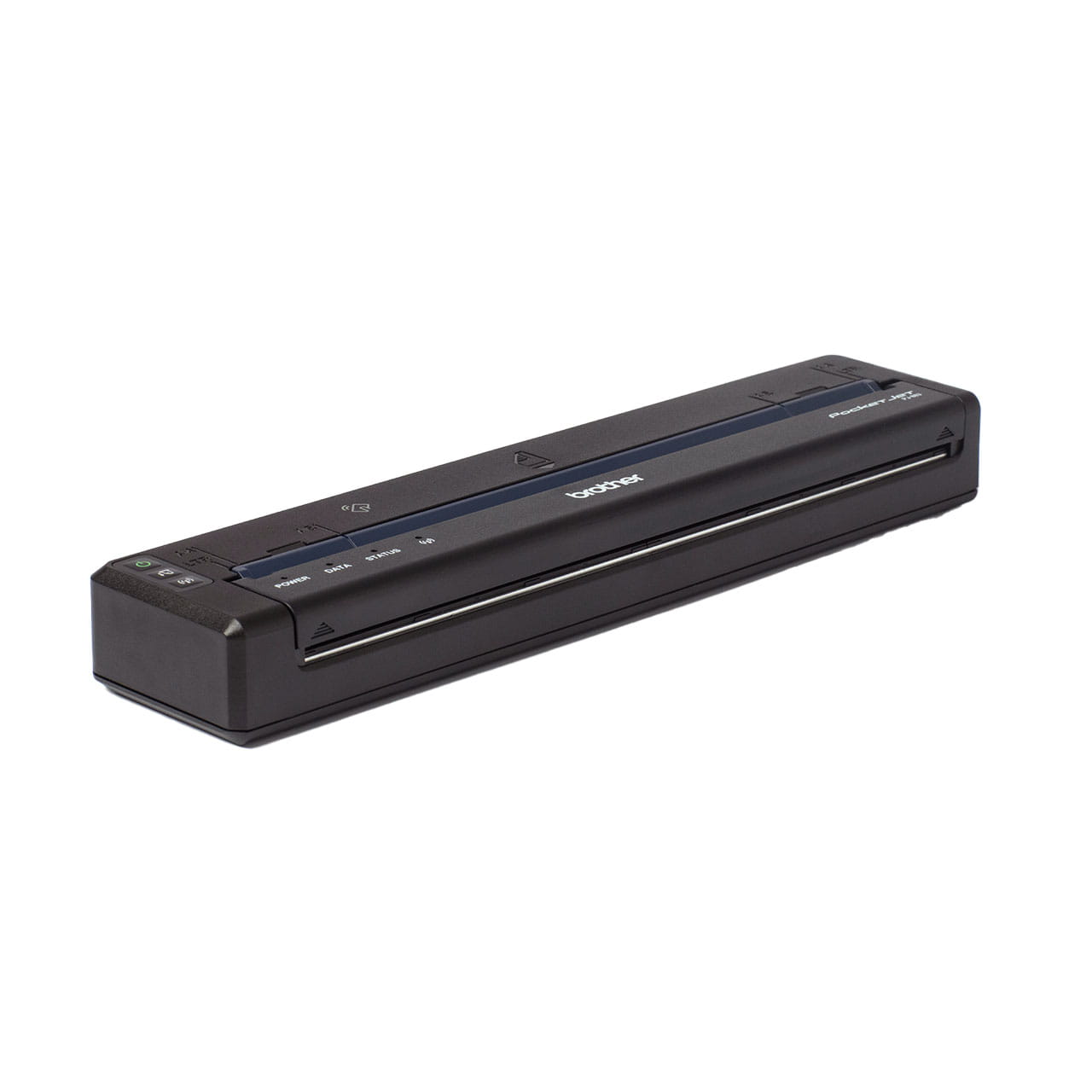

A4 Mobile Thermal Printer with MFi Bluetooth and Wi-Fi Connectivity
- Compact, lightweight and portable
- Prints up to A4 size
- 13.5ppm print speed*
- 300dpi print resolution
- MFi Bluetooth, NFC, USB and Wi-Fi connectivity
- Reliable, direct thermal printing technology and with no ink or toners required
Information
Overview
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_row1_1.jpg?rev=6adca3e942004950b47ef447a1b6e9c4)

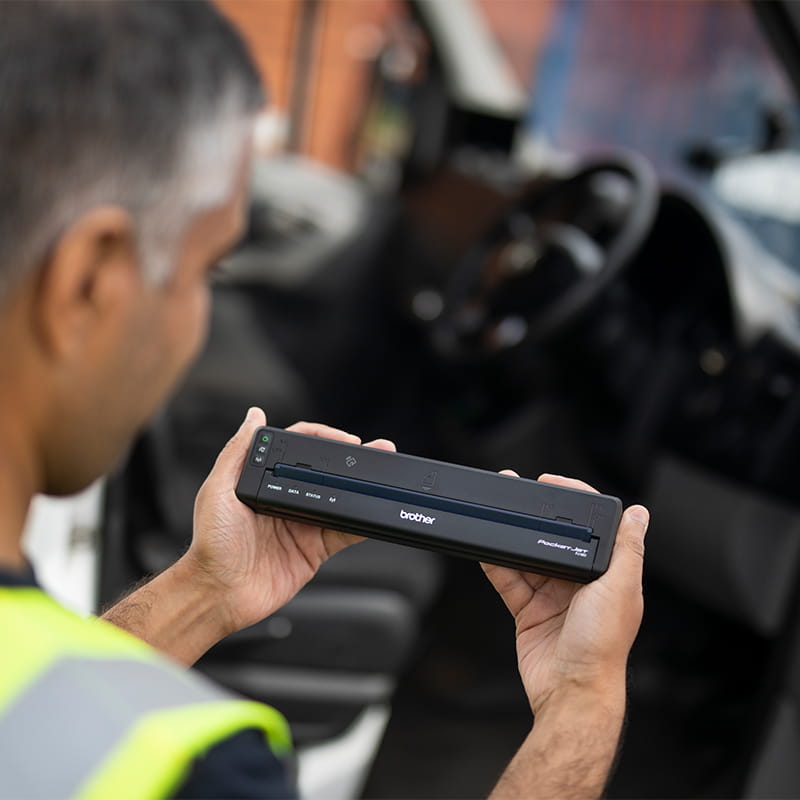

Print anywhere, anytime
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_row1_2.jpg?rev=4586927799ab49d4a98e87f4812ba59d)

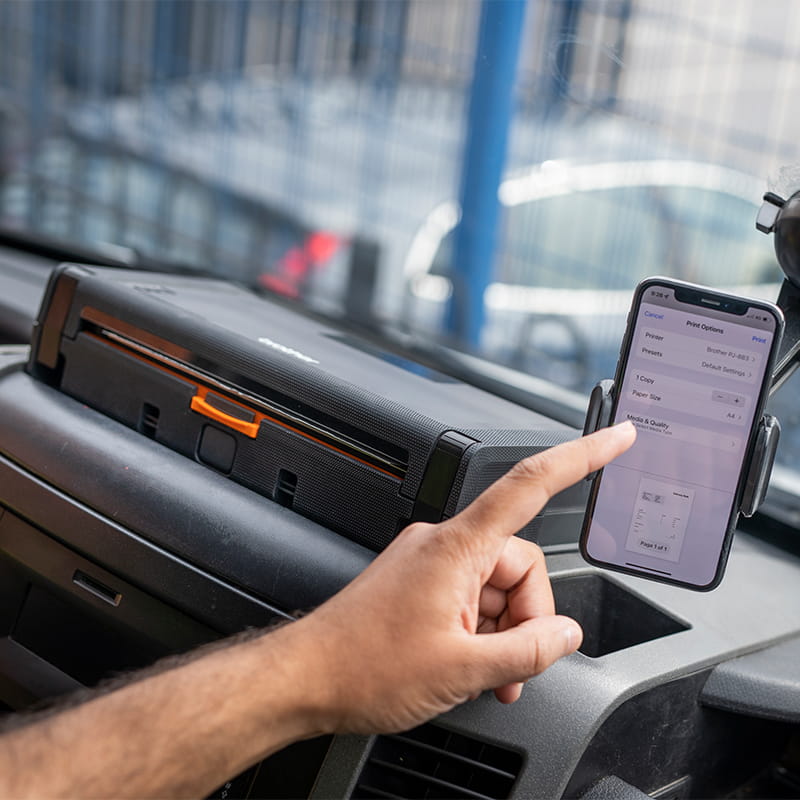

Connect your way
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_row1_3.jpg?rev=66d9dedb62104bdd983afd4f881654d6)

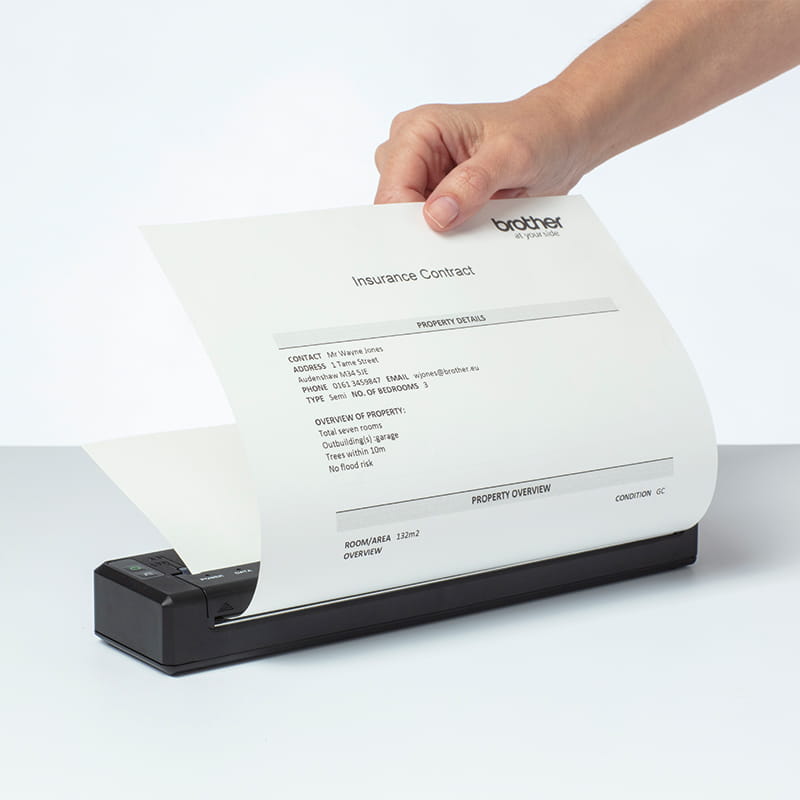

High-quality printing
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_row2_1.jpg?rev=5e8921eadd3d453194ee7c2444a993cd)

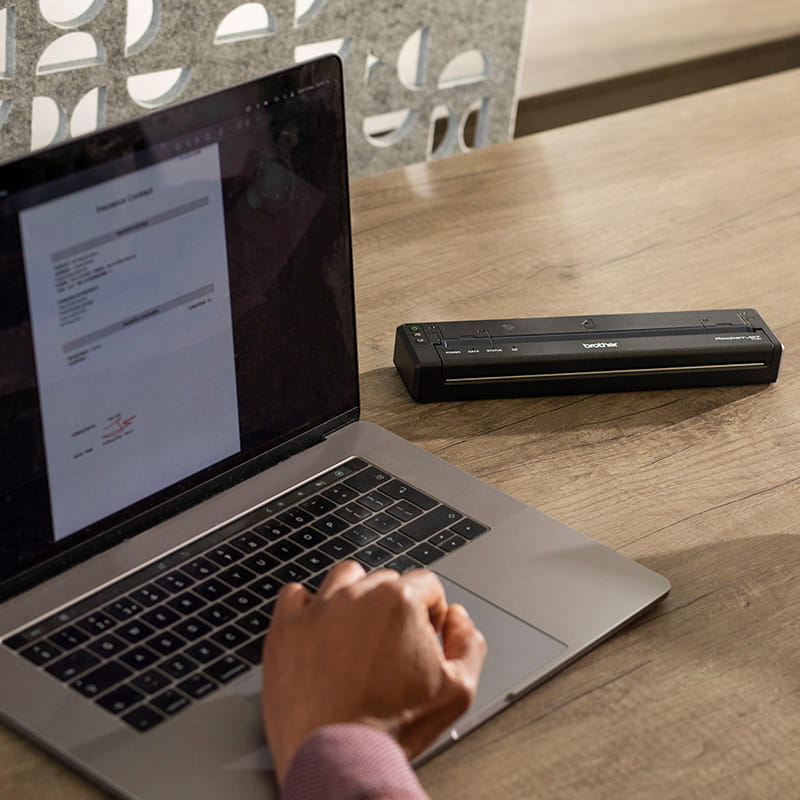

Seamless integration and setup
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_row2_2.jpg?rev=e05070ae162b4af29db4b0f6702140e4)

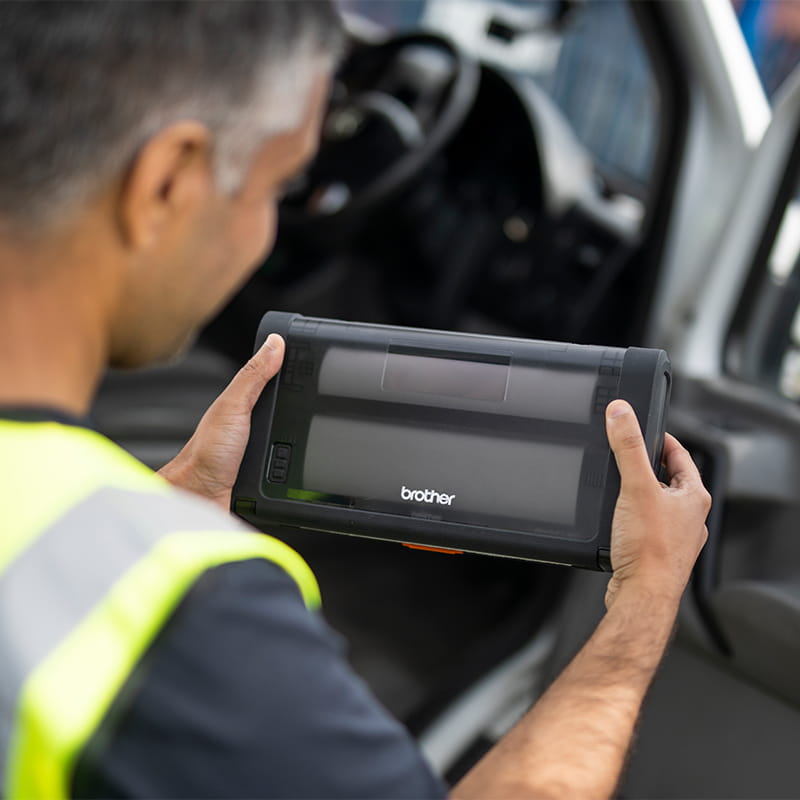

A complete mobile printing solution
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-822/overview-tab/pj-822_800-x-800px_row2_3.jpg?rev=40b81f1bc21d4c17b074be6ec5a204b9)
<i>At your side</i> support
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_block1.jpg?rev=e2b21c4a8c0d47c78798ea546272e028)

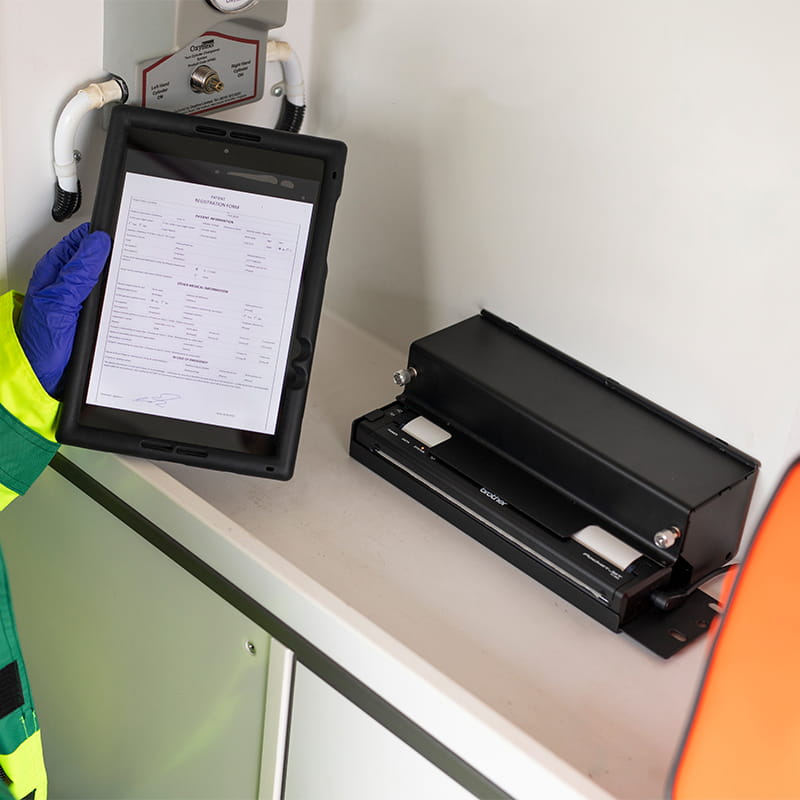

Backward compatibility
If you're upgrading your fleet from our PJ-700 series, most accessories are backward compatible
Continue using accessories that have been tried and tested within your business to minimise downtime and maximise convenience
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_block2.jpg?rev=3cbfdf73196540c786fcdc89e3546724)

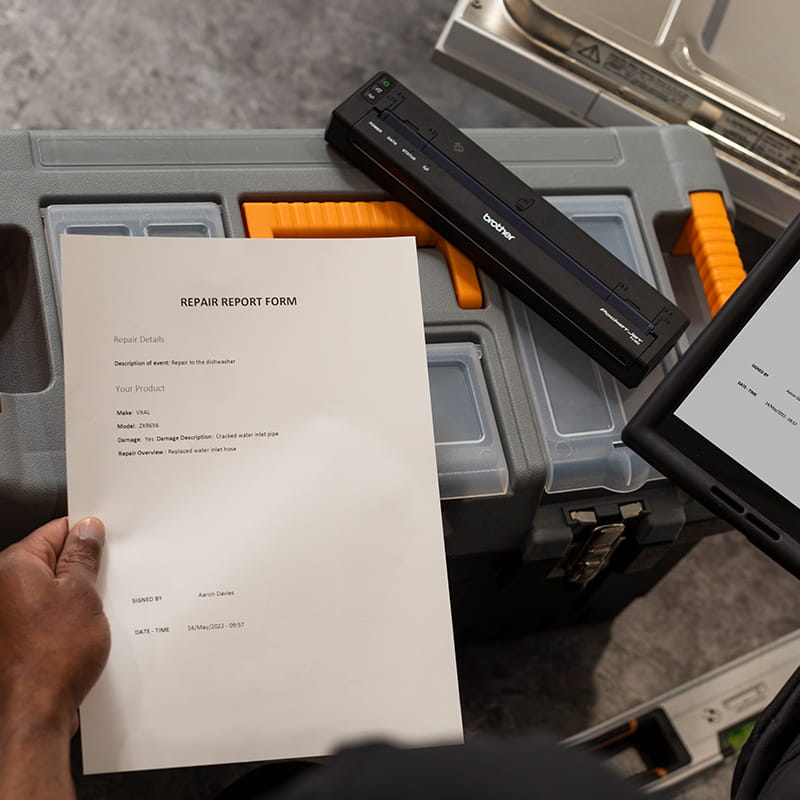

Reliable thermal technology
Using advanced, direct thermal technology offers the most reliable mobile printing solution without needing to purchase ink, toner or ribbons to maintain productivity
![](https://www.brother.com.au/-/media/ap2/australia/products/portable-printers/pj-863/pj-863_800-x-800px_block3.jpg?rev=0cb54db4217545d5875b32b2cf90163f)
Free mobile apps
Use Bluetooth to easily connect to your Apple, Android or Windows devices to streamline your workflows
Specifications
Basic Specs
Functions
Printer Type
Portable printer
Product Dimensions (Width X Depth X Height)
255 mm × 55 mm × 30 mm
Weight
480 g
Print Speed
Up to 13.5ppm, 3ips fast print speed
Paper Type
Paper and Synthetic
Full-page: Cut Sheet, Continuous Roll, Perforated Roll, Fan-Folded
Labels: Cut Sheet, Fan-Folded
Paper Size
A4, A5, Letter, Legal, and Continuous length
Maximum Paper Capacity
Cut paper and Roll paper: 215.9mm, 8.5 inches (Letter, Legal)
Warranty
1 year Return to Base Warranty
What's in The Box
Machine, Rechargeable Li-ion Battery 10.8V 1750mAh (PA-BT-002), AC Adapter 15 V/ Charger (PA-AD-600A), USB Type C cable, 100 x A4 Sheets Thermal Paper, Quick Setup Guide, Product Safety Guide, Head Cleaning Sheet
Resolution
300×300dpi
Printing Width
Up to 203.2mm
Barcode
Linear: Code39, Code93, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar(RSS), MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
2D: QR Code, Micro QR Code, PDF417, MicroPDF417, MaxiCode, Aztec, DataMatrix, GS1 Databar Composite
Connectivity
Connectivity
USB version 2.0 (Full Speed) (Type C), Wireless LAN IEEE 802.11g/n, 802.11d, 802.11i (Wireless Direct Mode), Wireless LAN IEEE 802.11a/n, 802.11i WPS2.0 (Infrastructure Mode/5GHz), IEEE 802.11b/g/n, 802.11i, WPS2.0 (Infrastructure Mode/2.4GHz), Wireless Ad hoc mode (No), NFC
Display & Memory
Memory Capacity
RAM: 256MB, Flash: 64MB
Operation
Power Source
PA-BT-002 Rechargeable Li-ion Battery, PA-AD-600A AC Power adapter, PA-CD-600CG Car adapter (Cigarette socket type), PA-CD-600WR Car adapter (Permanent wired type) (Purchase separately).
Temperature Operating
Rechargeable Li-ion battery, Car Adapter: -10°C to 50°C,
AC Power adapter: -10°C to 40°C
Supported Commands
Supported Commands
Raster graphic, ESC/P Legacy (ESC/P_P), ESC/P Brother (ESC/P_B), P-touch Template, ZPL II emulation
Software and Apps
Included Software
12/21/2023
Windows: Ptouch Editor, Printer Driver, Printer Setting Tool, Transfer Express Mac: Ptouch Editor, Printer Driver, Printer Setting Tool, Transfer Express Linux: Printer Driver
Mobile Apps
12/21/2023
iPrint&Scan, Mobile Transfer Express, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
iPhone/iPad Android
Software Development Kit (SDK) Last Updated
12/21/2023
Network
Wireless Network Security
Authentic method (encryption scheme)
Wireless Infrastructure mode
Open system (None/WEP64/WEP128),
Common key authentication (WEP),
WPA/WPA2-PSK/WPA3-SAE (TKIP+AES),
WPA3-SAE (AES),
TLS 1.0/1.1/1.2/1.3
Authentic method (encryption scheme)
Wireless Direct mode
WPA2-PSK (AES)
WPS (Wi-Fi Protected Setup)
802.11i"
