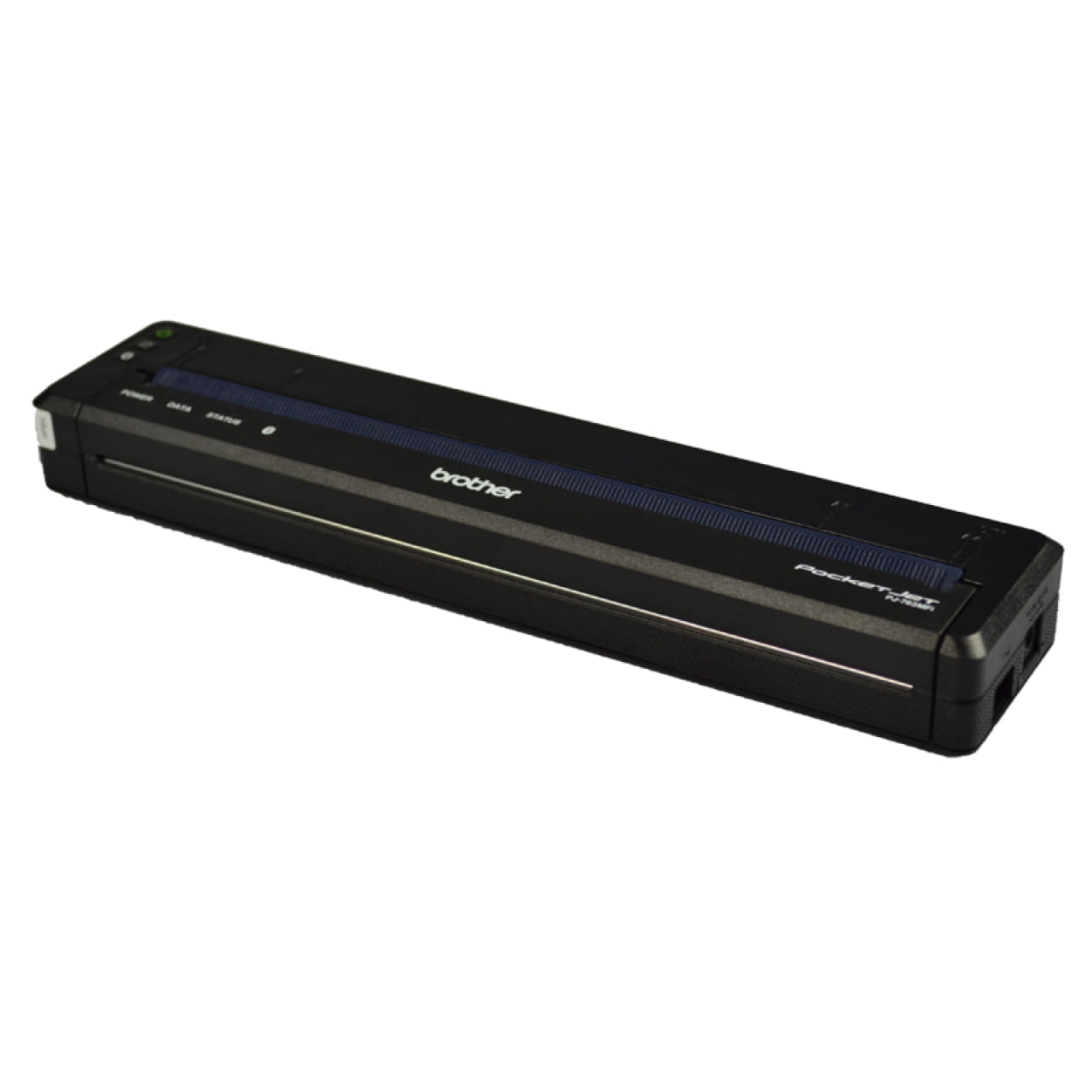

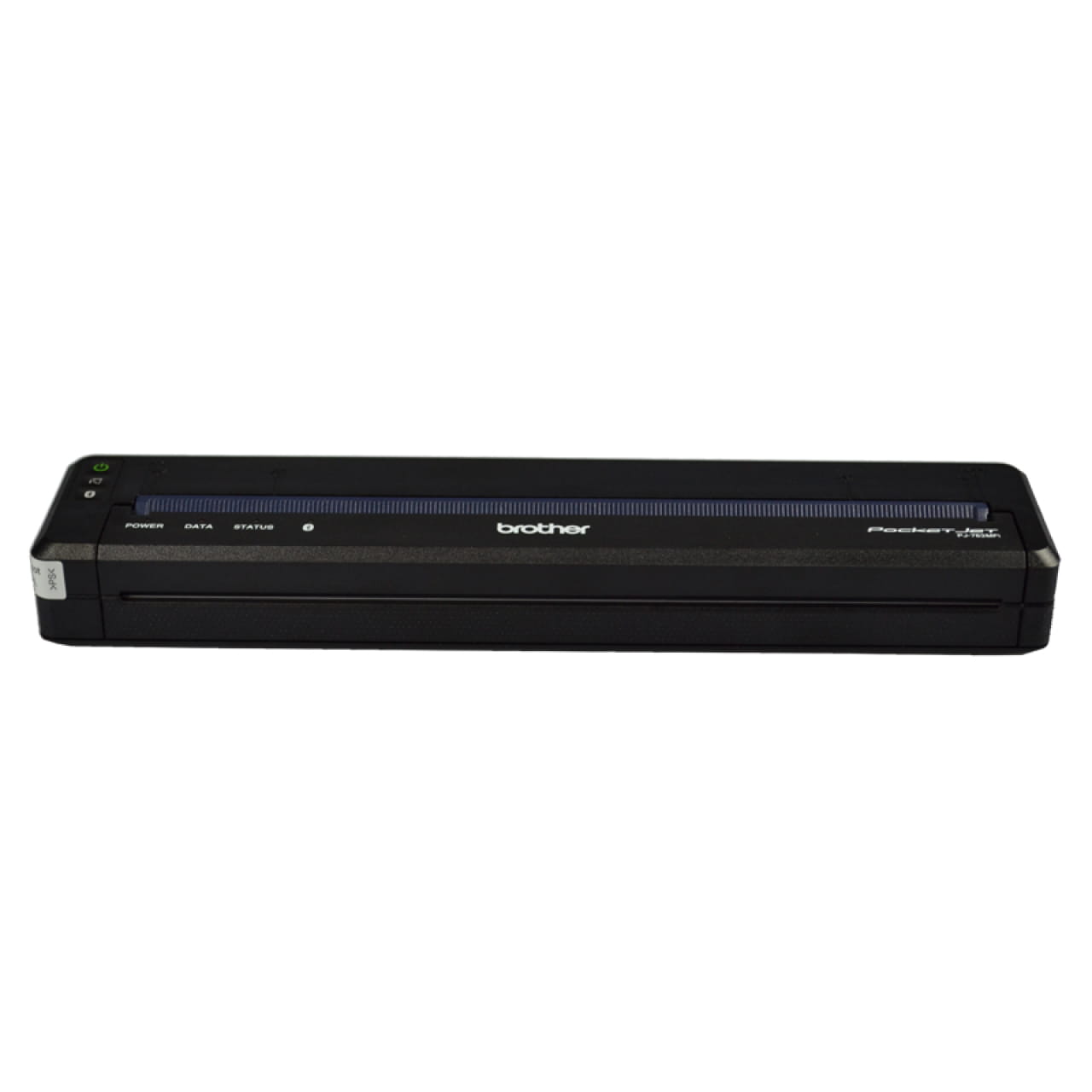

PJ-763MFI Portable Printer -Bundle-Pack
A4 Mobile Printer with Bluetooth
- 8 ppm fast print speed
- Wireless

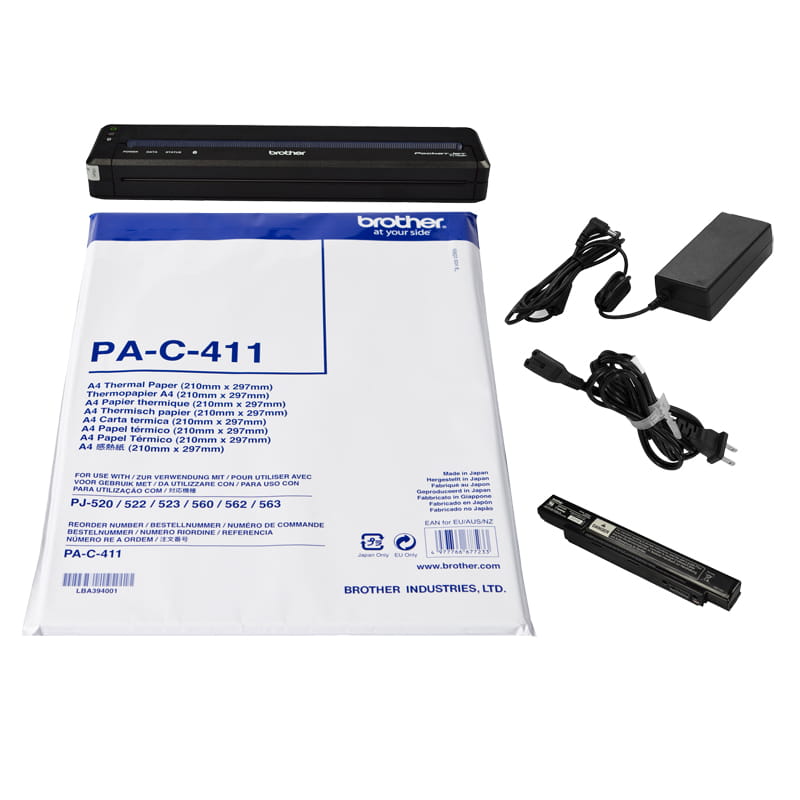

Bundle pack includes the printer, rechargeable Li-ion Battery, AC adapter and A4 thermal paper.
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Portable Thermal Printer
Product Dimensions (Width X Depth X Height)
255 mm × 55 mm × 30 mm
Weight
480 g
Print Speed
8 ppm
Paper Type
Thermal paper
Paper Size
A5, A4, Letter, Legal, Infinite, Custom size: min. 105 mm x 25.4 mm ～ max. 216 mm x 5.49 m
Maximum Paper Capacity
A4 (100 sheet / pack), A4 width x 30M Roll paper (6 pcs / box)
Warranty
1 year Return to Base Warranty
What's in The Box
Machine, Quick Setup Guide, CD-ROM (Including users guide, printer driver), USB cable, Head cleaning sheet, Li-ion battery, AC Adapter, A4 thermal paper
Resolution
300 x 300 dpi
Printing Width
Maximum 204.2mm
Barcode
Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Postnet
2D: PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec
Connectivity
Connectivity
USB version 2.0 (Full Speed), Bluetooth Connection
Display & Memory
Memory Capacity
32 MB
Operation
Power Source
AC Adapter (PA-AD-600), Li-Ion Battery, Car Adapter
Temperature Operating
-10℃ to 50 ℃
Supported Commands
Supported Commands
ESC/P Legacy (ESC/P_P), ESC/P Brother (ESC/P_B), Raster_P, P-touch Template
Supported Operating Systems
Supported OS
Windows Vista / 7 / 8 / 8.1 / 10, Windows Server 2008 / 2008 R2, Windows Server 2012 / 2012 R2
OSX 10.8 to 10.10
Linux deb, rpm
Software and Apps
Included Software
12/21/2023
Windows: Ptouch Editor, Printer Driver, Printer Setting Tool, Transfer Express Mac: Ptouch Editor, Printer Driver, Printer Setting Tool, Transfer Express Linux: Printer Driver
Mobile Apps
12/21/2023
iPrint&Scan, Mobile Transfer Express, Support Center, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
Windows Mobile 6.x Professional / Classic / Standard Windows Mobile 5.0 for Pocket PC Phone Edition /for Pocket PC Windows CE 5.0 / 6.0 Windows XP /Vista /7 /8 /8.1 /10 Android 2.2 or later IOS 5.0 or later
Software Development Kit (SDK) Last Updated
12/21/2023
