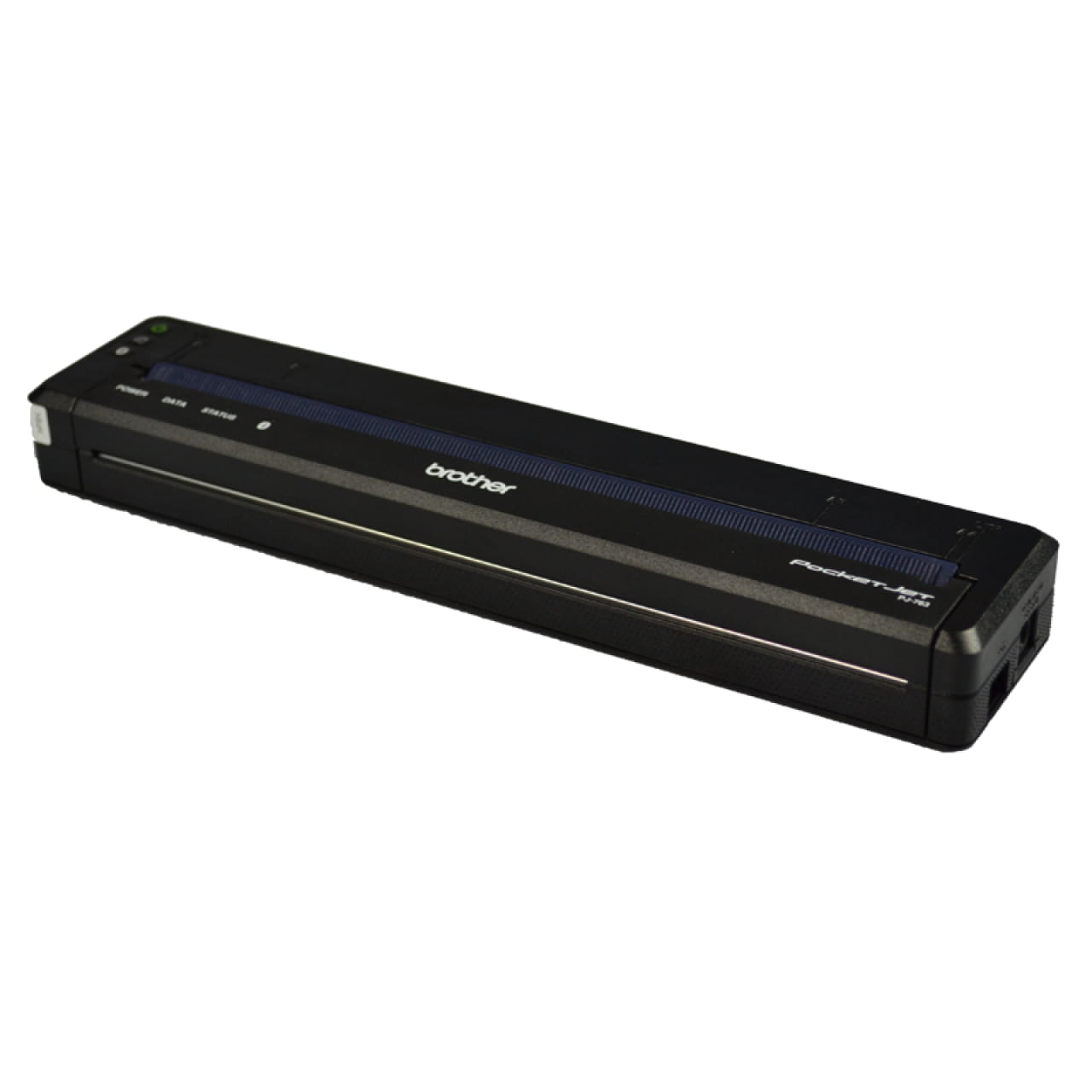

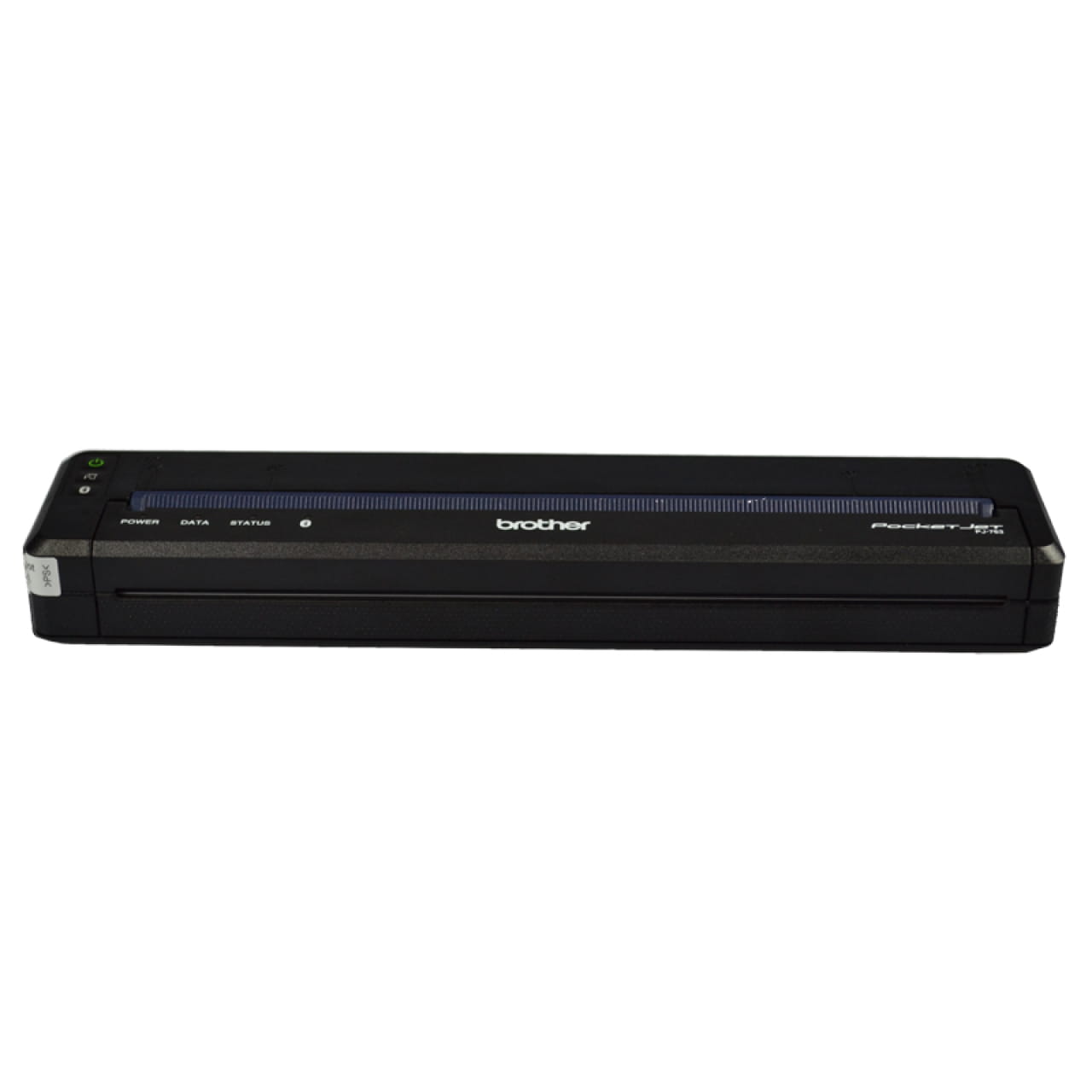

PJ-763 Portable Printer -Bundle-Pack
USB and Bluetooth A4 Mobile Printer
- 8 ppm fast print speed

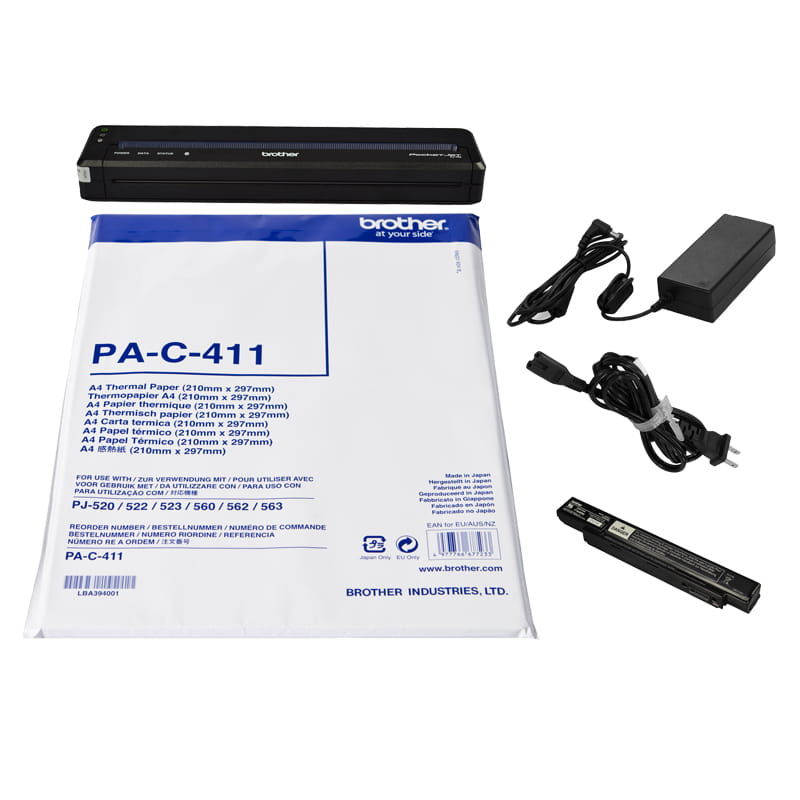

Bundle pack includes the printer, rechargeable Li-ion Battery, AC adapter and A4 thermal paper.
Discover Similar Products

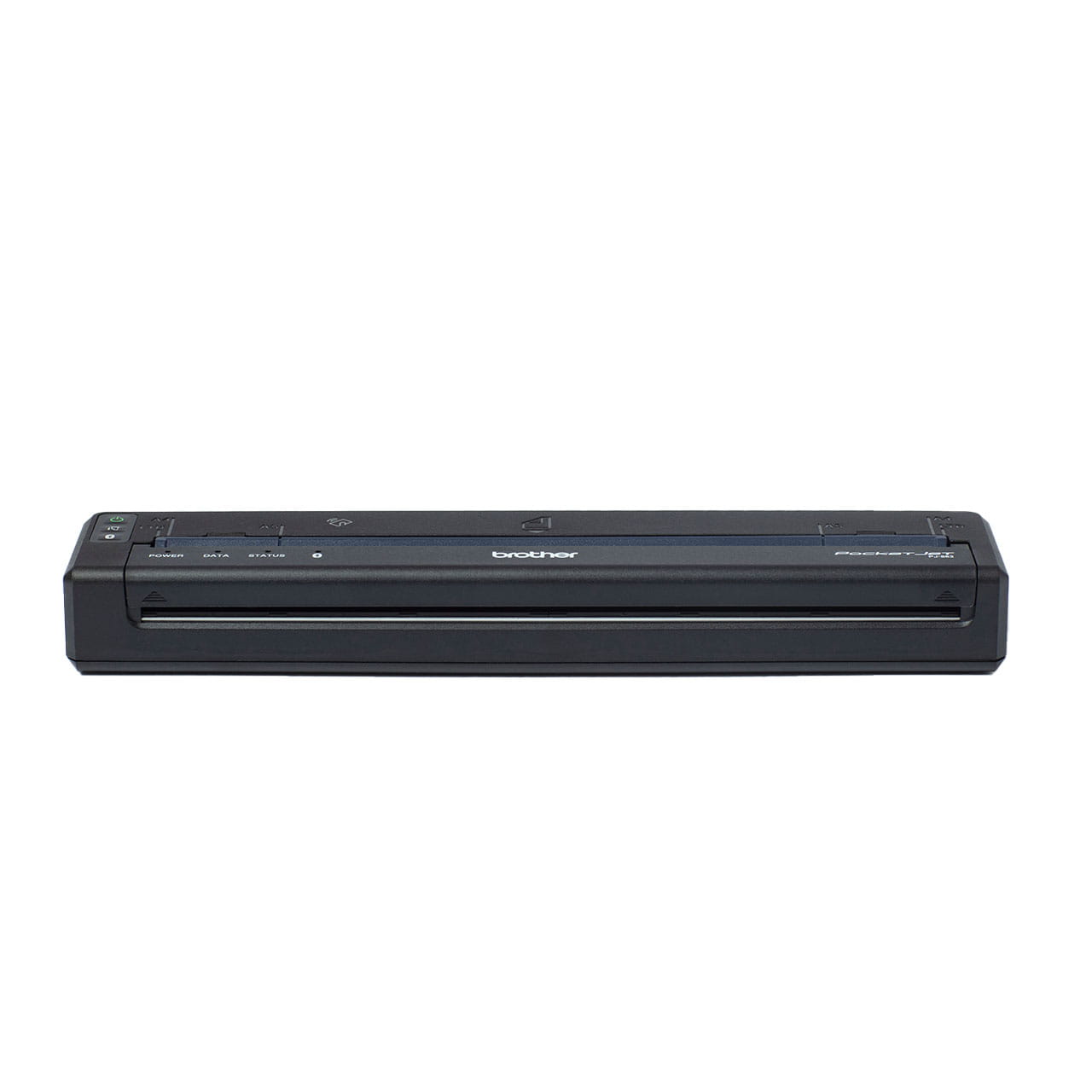

A4 Mobile Thermal Printer with MFi Bluetooth and Wi-Fi Connectivity
Information
Overview

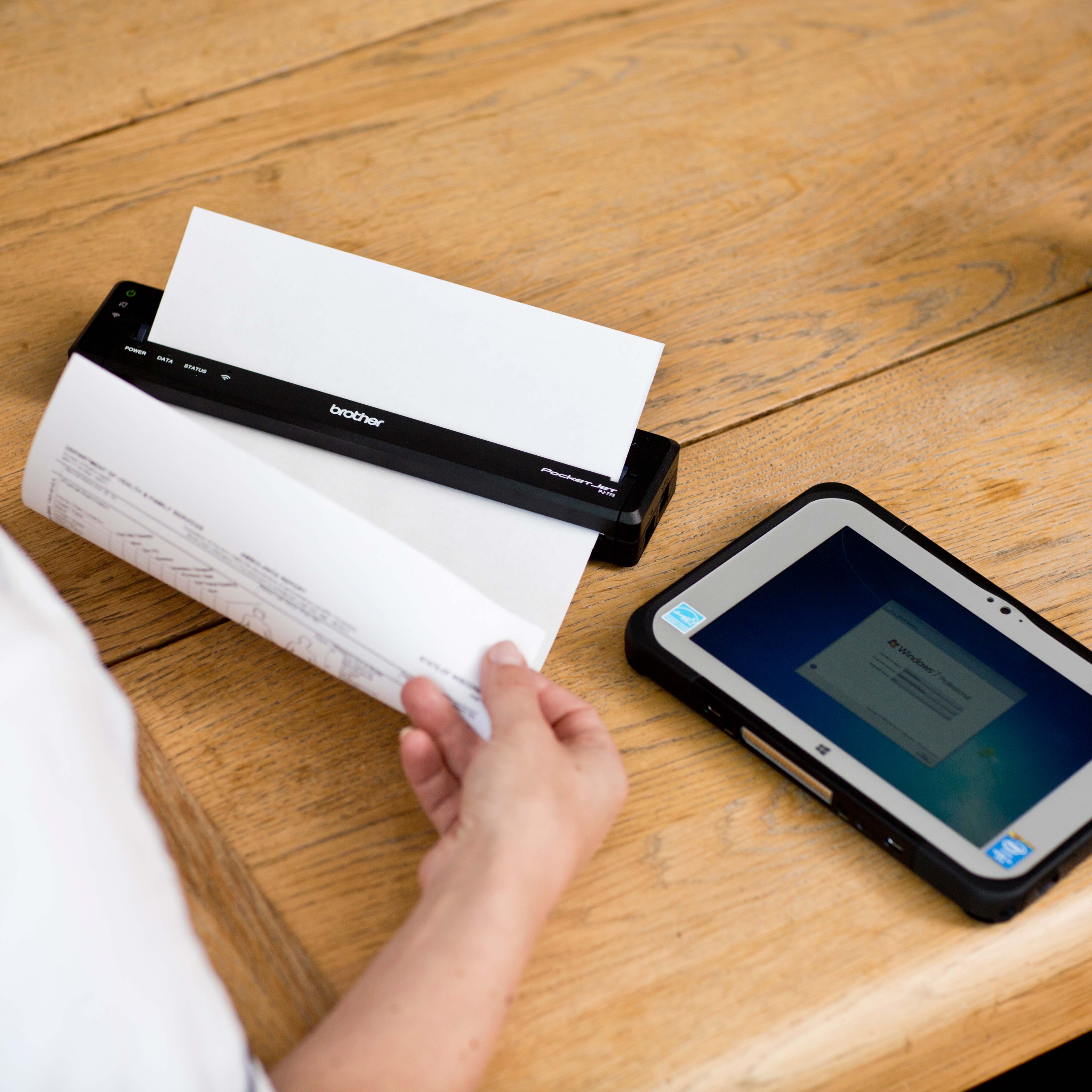

Reliable printing anywhere
Direct thermal printing is the most reliable technology for mobile printing, letting you print in any environment
Connect your way
Connect via Bluetooth to your Android or Windows devices using Google Cloud Print, Mopria, iPrint&Scan and Brother Print Service aps

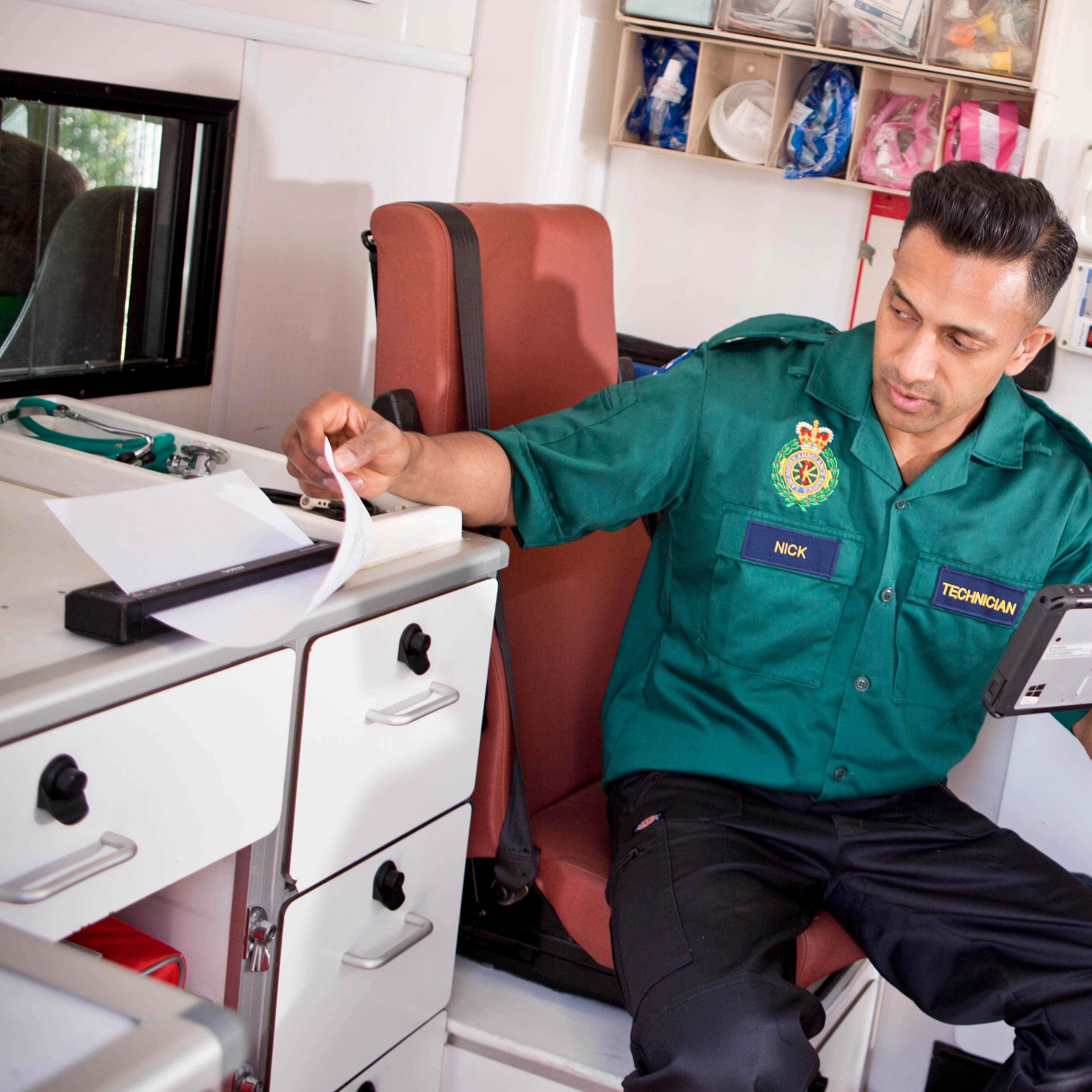

Compact and light
Its compact and lightweight design makes it ideal for your employees out in the field
Durable and dependable

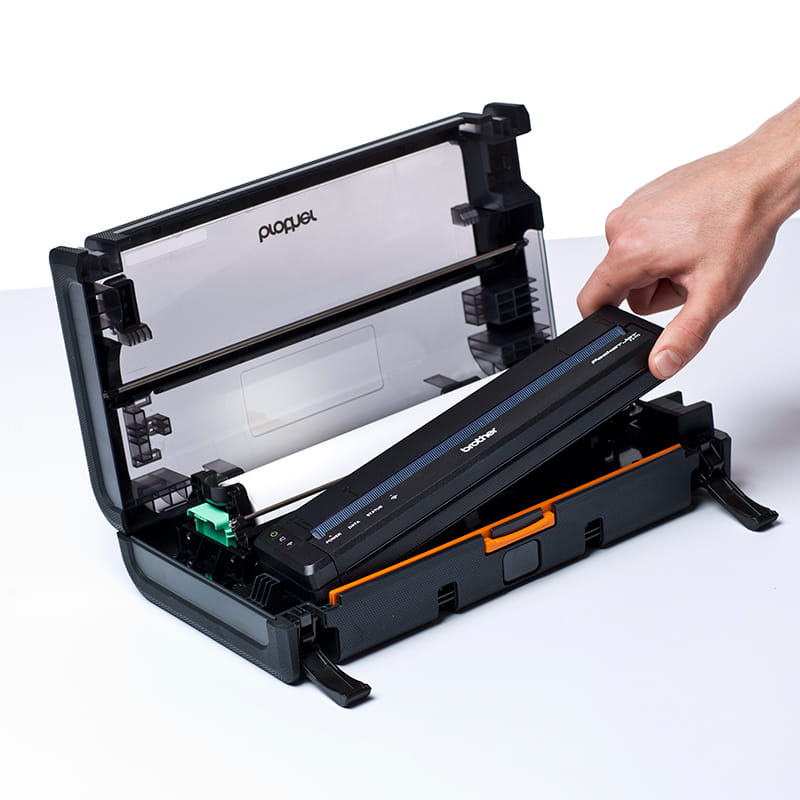

Durable, rugged and dependable, the new 1.2m drop protection (IP54 rated) roll case has been designed for reliable printing in the most hardy conditions
Various power options

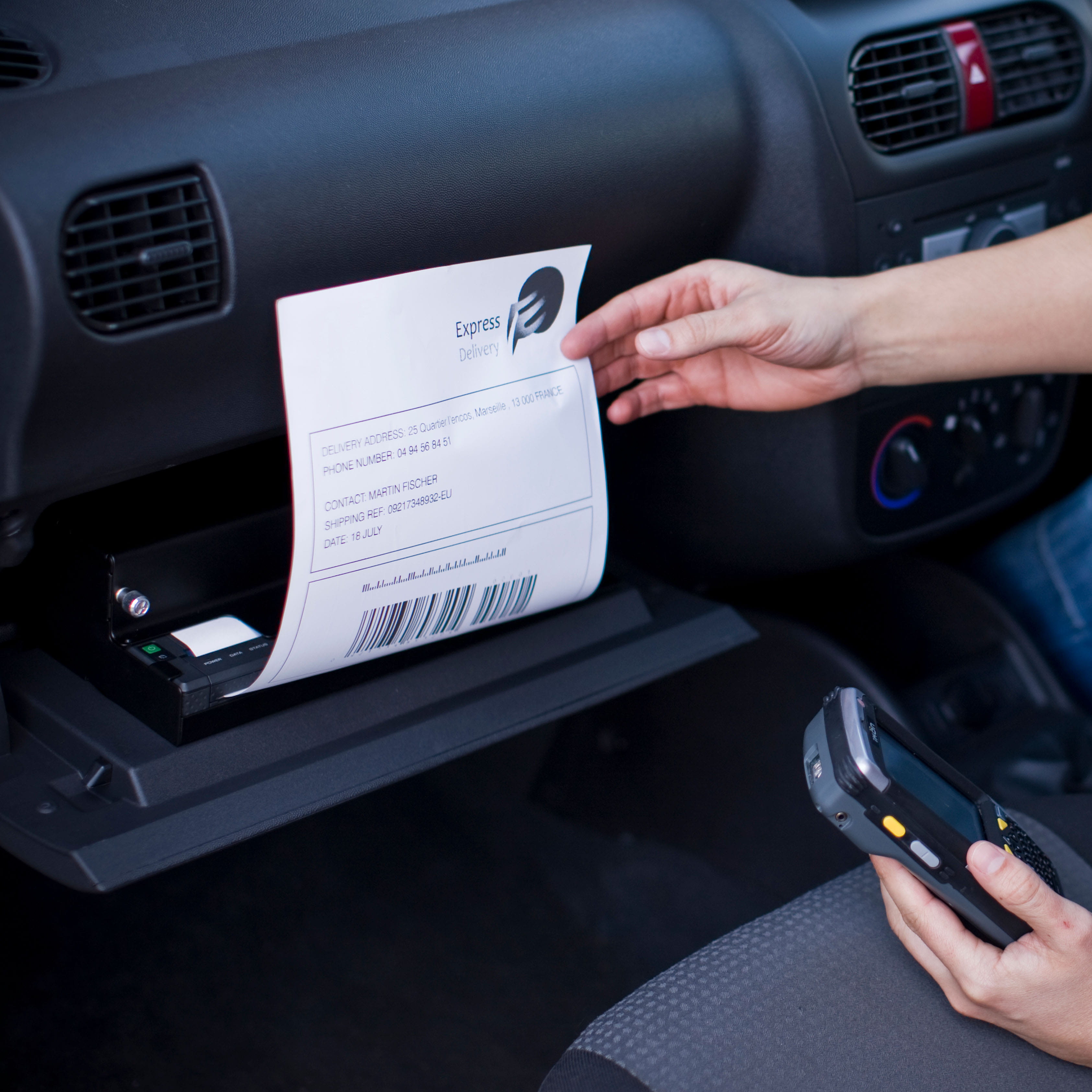

A range of power options to choose from including the standard Li-Ion rechargeable battery, AC adaptors and vehicle power kits

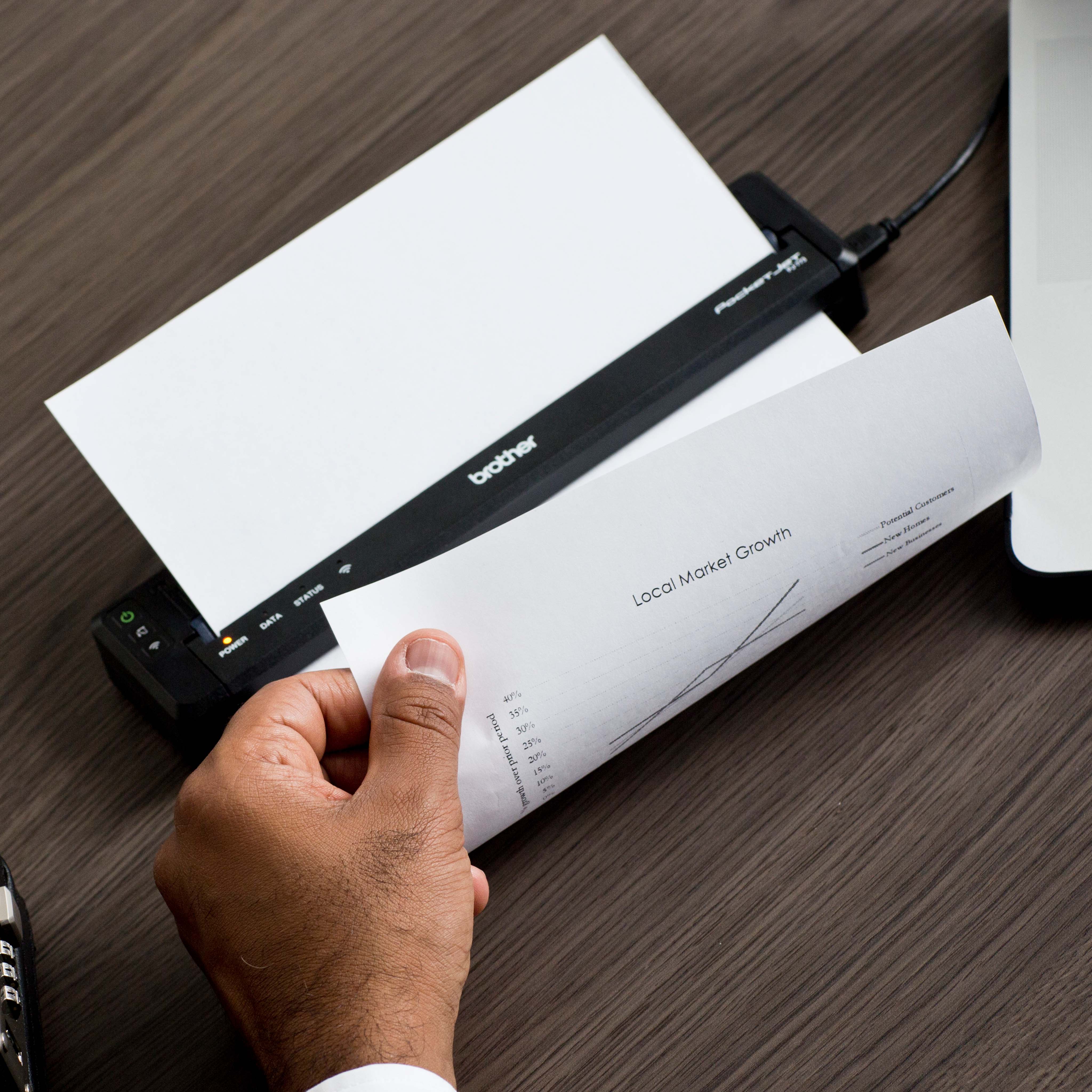

Paper types
Use either A4 cut sheet paper or perforated paper rolls – simply tear the paper once printed
Specifications
Basic Specs
Functions
Printer Type
Portable Thermal Printer
Product Dimensions (Width X Depth X Height)
255 mm × 55 mm × 30 mm
Weight
480 g
Print Speed
8 ppm
Paper Type
Thermal paper
Paper Size
A5, A4, Letter, Legal, Infinite, Custom size: min. 105 mm x 25.4 mm ～ max. 216 mm x 5.49 m
Maximum Paper Capacity
A4 (100 sheet / pack), A4 width x 30M Roll paper (6 pcs / box)
Warranty
1 year Return to Base Warranty
What's in The Box
Machine, Quick Setup Guide, CD-ROM (Including users guide, printer driver), USB cable, Head cleaning sheet, Li-ion battery, AC Adapter, A4 thermal paper
Resolution
300 x 300 dpi
Barcode
Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Postnet
2D: PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec
Connectivity
Connectivity
USB version 2.0 (Full Speed), Bluetooth Connection
Display & Memory
Memory Capacity
32 MB
Operation
Power Source
AC Adapter PA-AD-600, Li-Ion Battery, Car Adapter
Temperature Operating
-10℃ to 50 ℃
Supported Commands
Supported Commands
ESC/P_P, ESC/P_B, Raster_P, P-touch Template
Supported Operating Systems
Supported OS
Windows Vista / 7 / 8 / 8.1 / 10, Windows Server 2008 / 2008 R2, Windows Server 2012 / 2012 R2
OSX 10.4 or greater
Linux deb, rpm
Software and Apps
Included Software
12/21/2023
Windows: Ptouch Editor, Printer Driver, Printer Setting Tool, Transfer Express Mac: Ptouch Editor, Printer Driver, Printer Setting Tool, Transfer Express Linux: Printer Driver
Mobile Apps
12/21/2023
iPrint&Scan, Mobile Transfer Express, Support Center, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
Windows Mobile 6.x Professional / Classic / Standard Windows Mobile 5.0 for Pocket PC Phone Edition /for Pocket PC Windows CE 5.0 / 6.0 Windows XP /Vista /7 /8 /8.1 /10 Android 2.2 or later
Software Development Kit (SDK) Last Updated
12/21/2023
