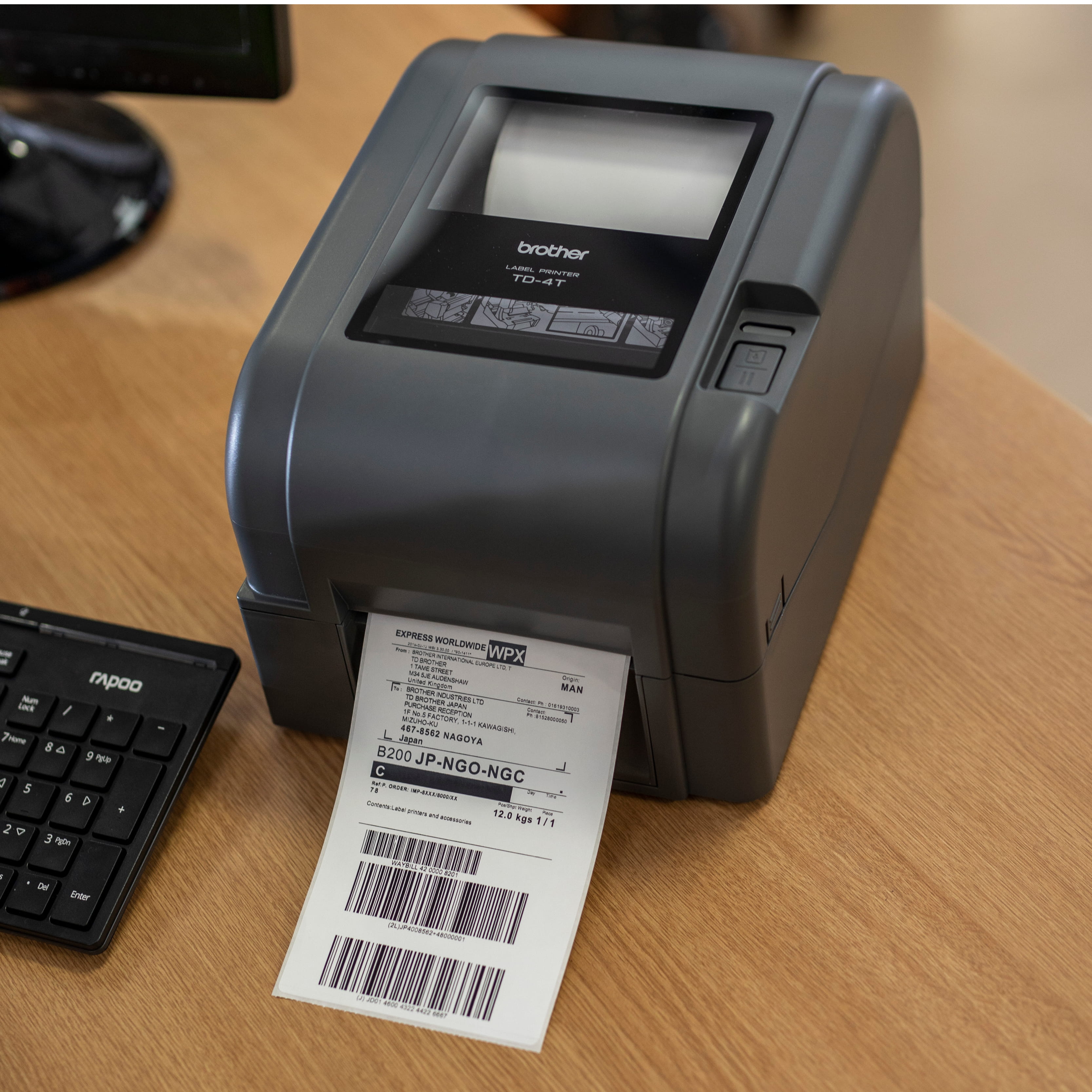

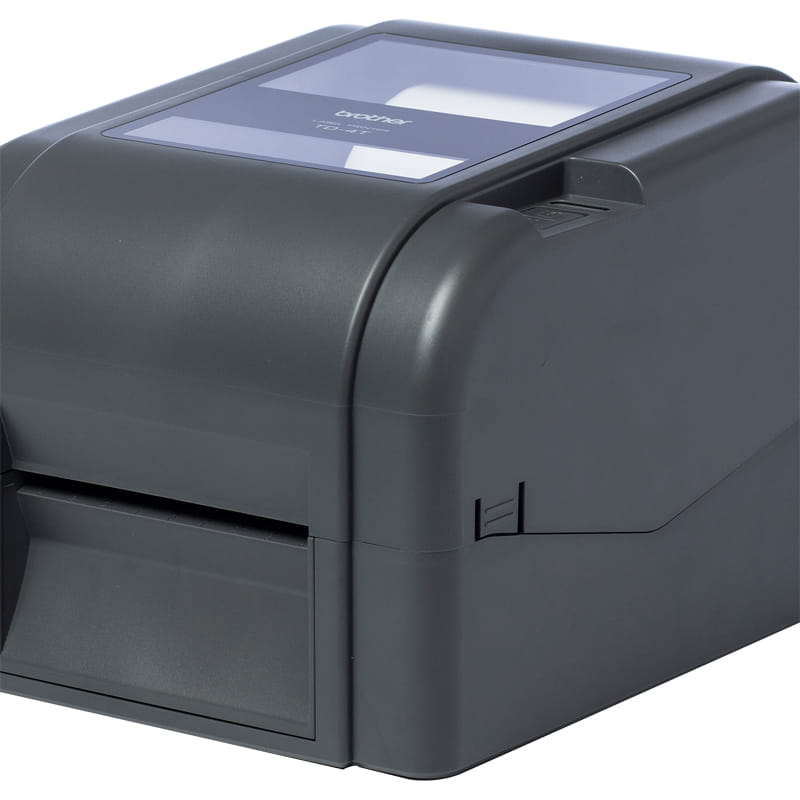

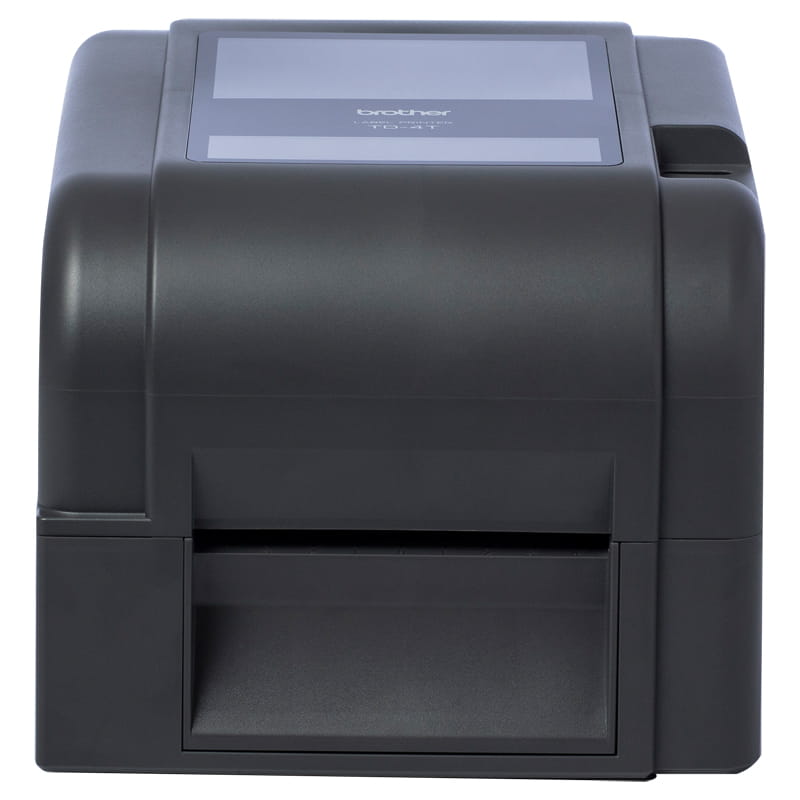

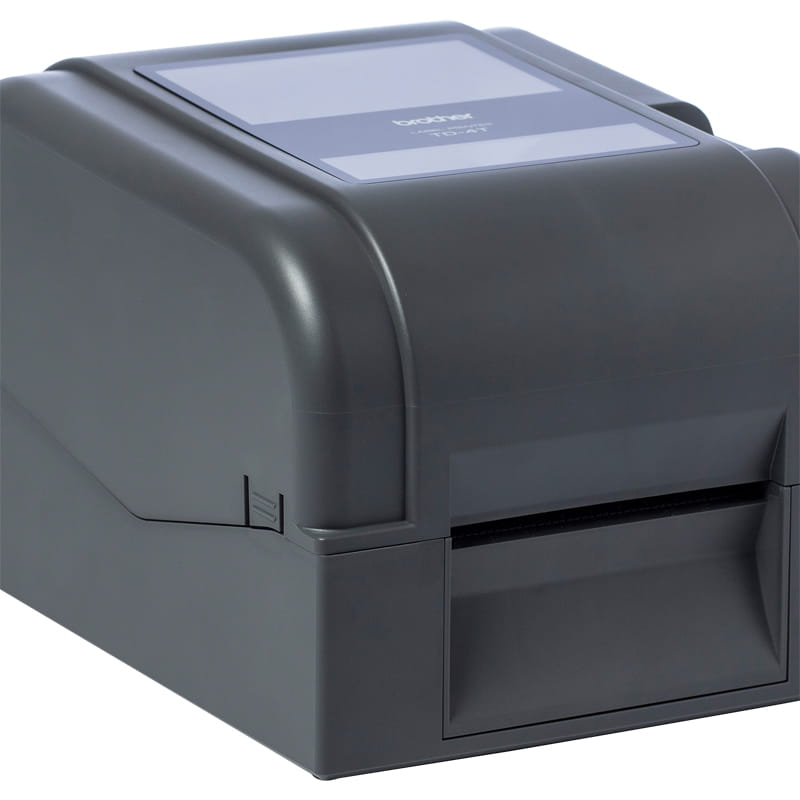

203dpi Thermal Transfer Barcode, Label and Receipt Printer
- Large print width at up to 108mm wide
- 203dpi print resolution
- Max. up to 152.4mm/sec Print Speed
- USB Ver.20 (High Speed), RS232C, 10/100Base-TX Wired LAN
- 2 Year RTB Warranty on hardware
Information
Overview
Effortless Integration
Experience with seamless integration into existing and future workflows utilising b-PAC, SDK’s and the support of printer command systems including ZPLII emulation
Warranty
Delivering peace of mind with a 2 year return to base warranty on hardware and a 6 month return to base warranty on print heads. Rapid exchange is also available as an optional add-on
Reliable technology
Thermal transfer technology provides you with the flexibility to utilise a wide array of label types to meet the needs of your business operations

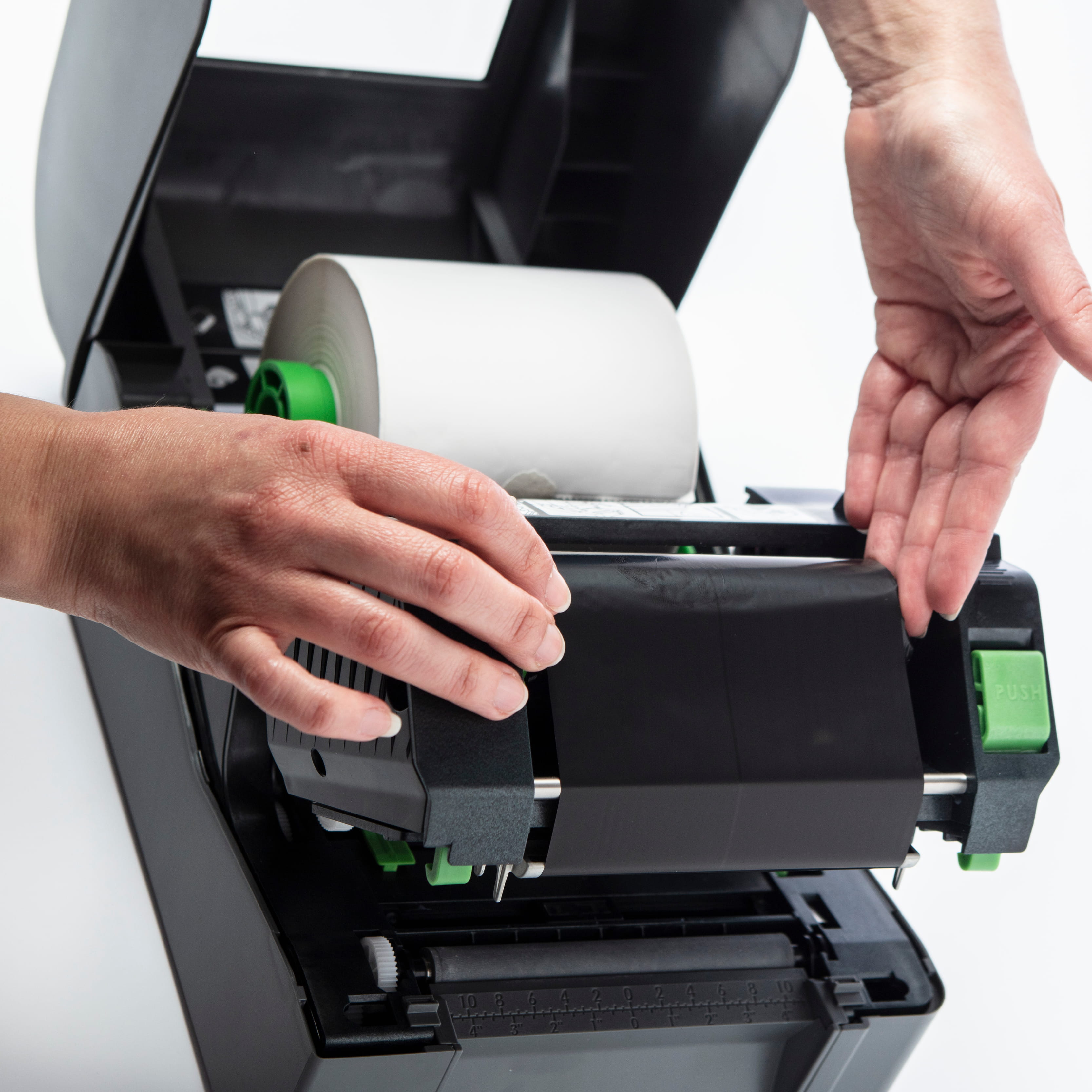

Thermal Transfer Technology
Crisp, durable printing is achieved through a process in which the image is imprinted onto the label or paper via a coated ribbon
Ideal for applications that require robust, harder-wearing labels

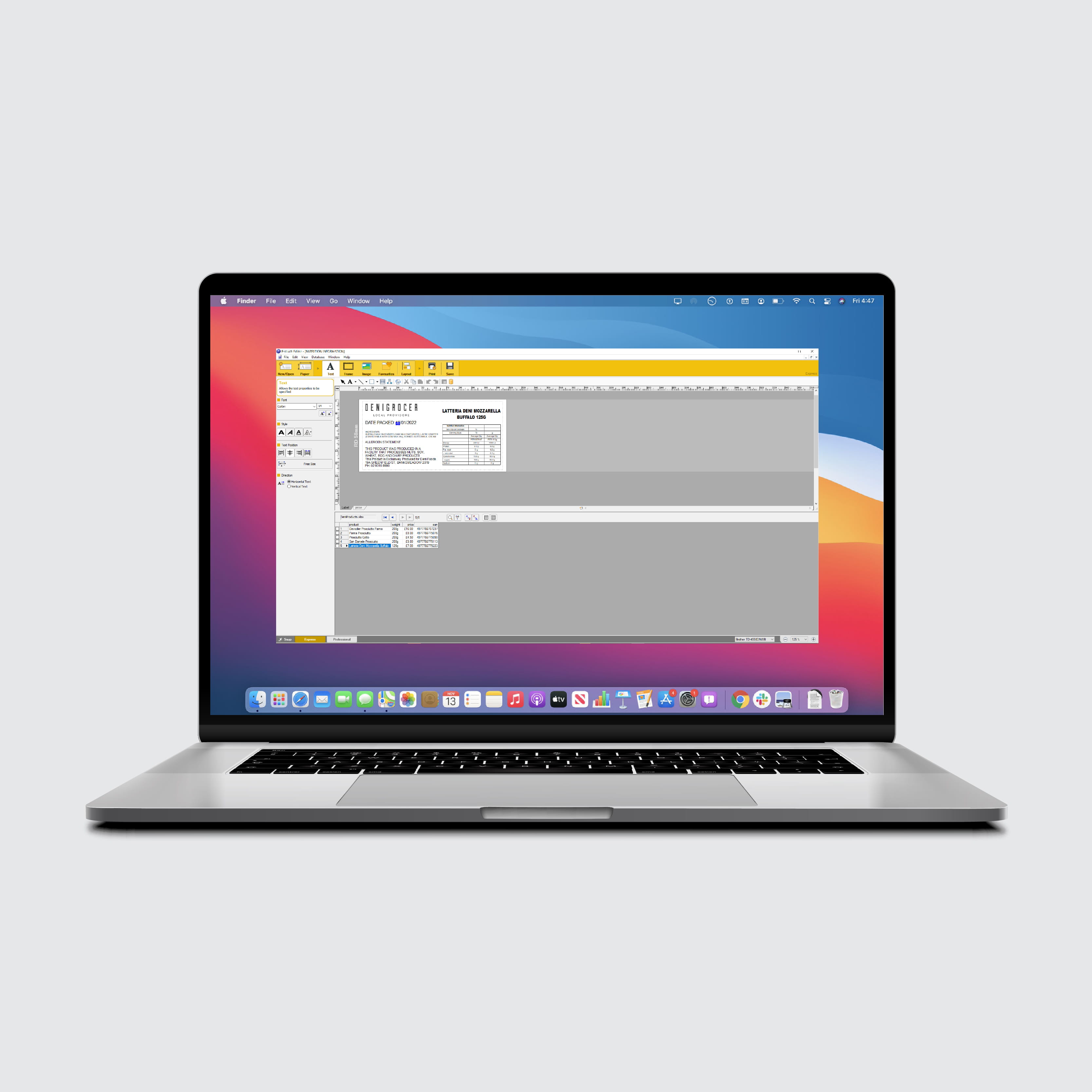

Software Support Features
With label design apps for desktop PC’s and mobile devices, and SDK’s to integrate the TD-4 range into your own applications, you can choose the best option for your label printing needs
Software developers can integrate printing into their applications with printer drivers available for Windows OS, and SDKs to support Windows Mobile, Android and iOS operating systems
Specifications
Basic Specs
Display Type
LED 1 (3 color - Green, Red, Orange)
Media Type
Continuous, die-cut, black mark, fan-fold, notch
Available Tape Widths
20 ~ 112 mm (0.79 inch to 4.41 inch)
Product Dimensions (Width X Depth X Height)
204 mm × 280 mm × 177.5 mm
Weight
2.5 kg
Print Speed
MAX Up to 152.4mm/sec
Warranty
3 years Return to Base Warranty
What's in The Box
Printer, Quick Start Guide, USB cable, AC adaptor, Product Safety Guide, A pair of 1in Ribbon spindles for 300M ribbon, 1in ribbon paper core
Resolution
203 dpi
Barcode
Bar Code
Connectivity
Connectivity
USB
Media
Maximum Roll Width
up to 102mm
Printing Width
Up to 108 mm
Functions
Cutter
Auto Cut
Mirror Printing
Yes
Memory
File Storage
99 Templates
Memory Buffer Size
64MB SDRAM
Power
Power Source
Input: AC 100-240V, 2.0A, 50-60Hz
Software and Apps
Included Software
12/21/2023
Windows: Ptouch Editor, BarTender Ultra Lite Edition, BPM(Brother Printer Management Tool), CommTool (Brother Communication Tool) (Windows Only)
Mobile Apps
12/21/2023
Support Center
Supported Commands
Supported Commands
FBPL-EZD (FBPL, EPL2.ZPL2,DPL)
