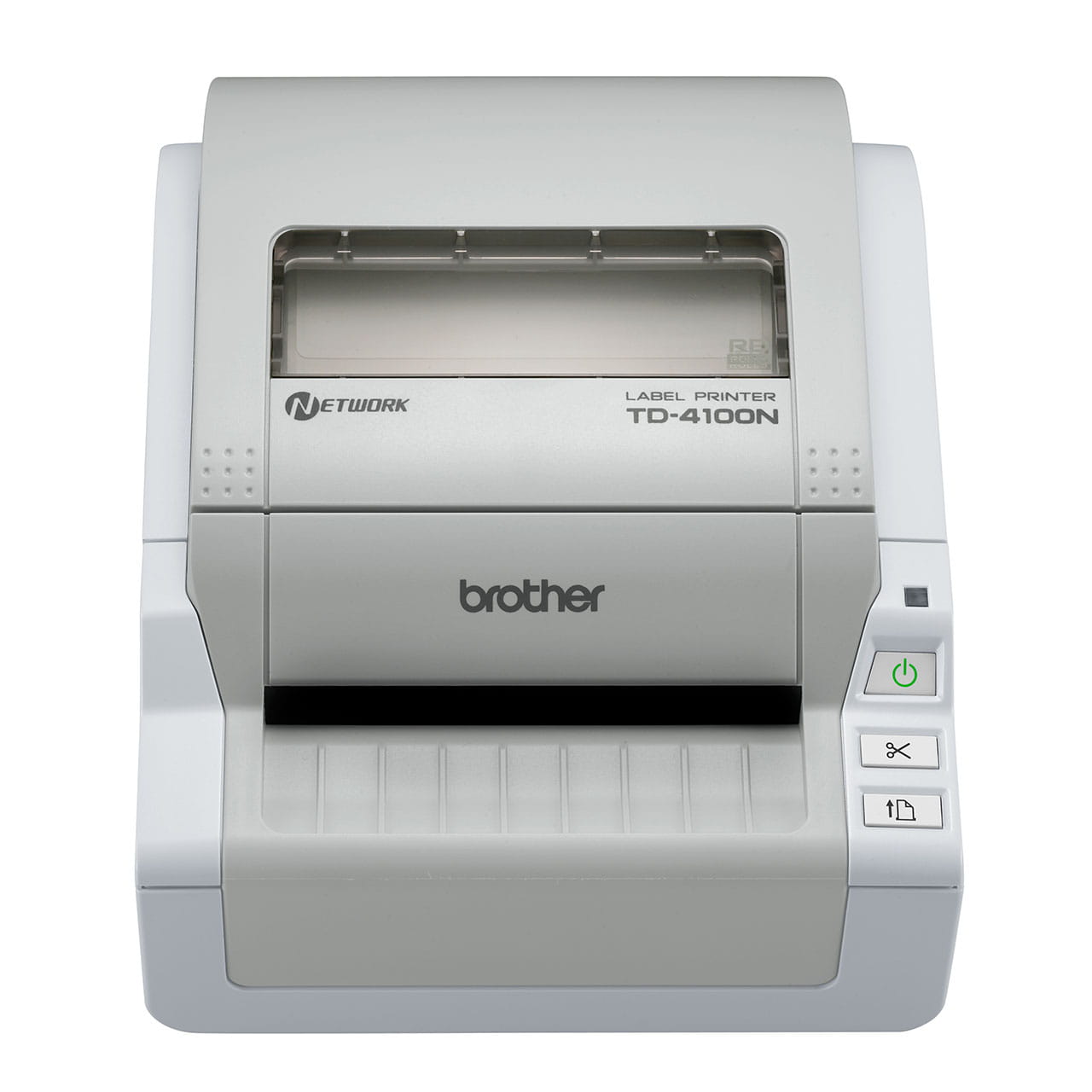

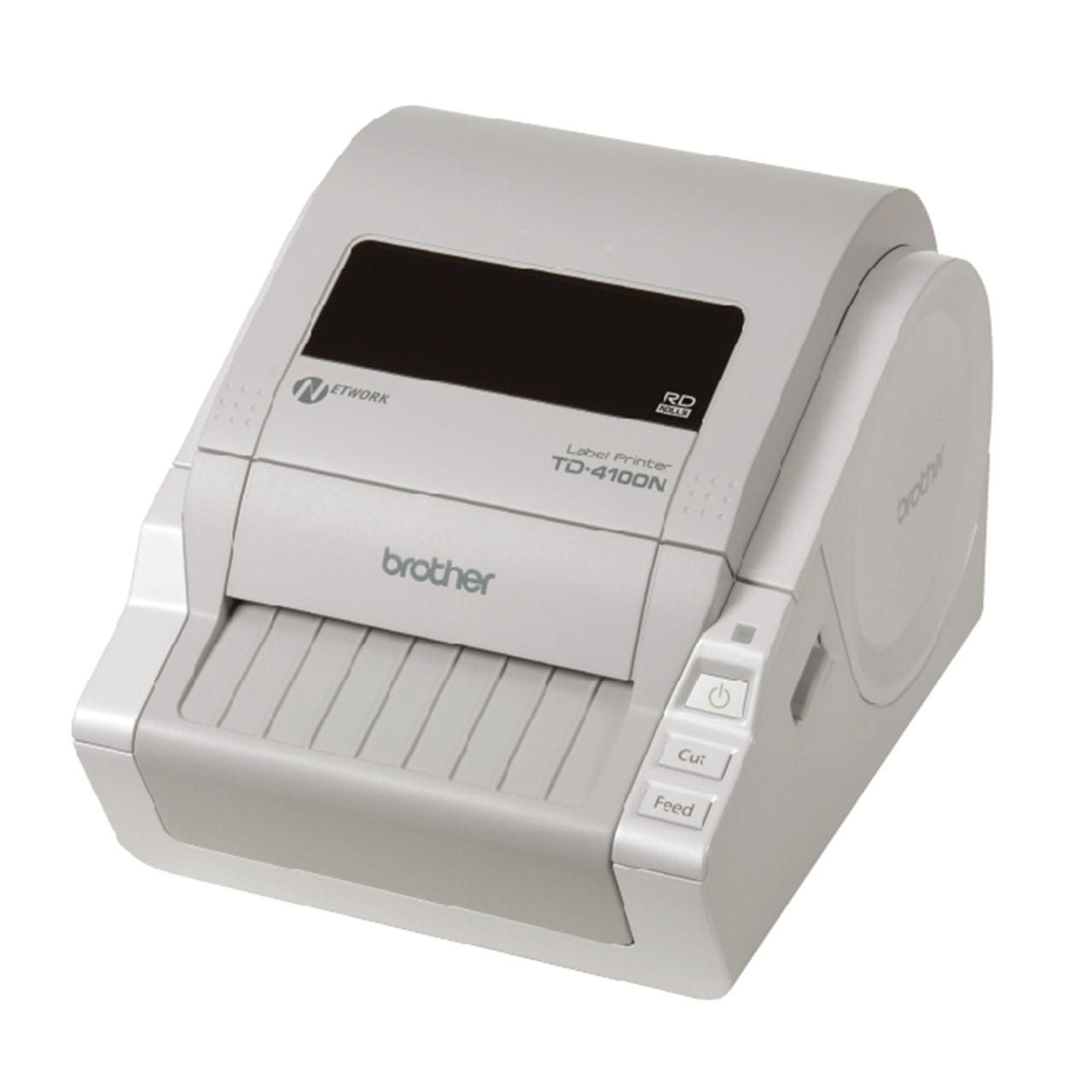

TD-4100N Professional Label Printer
Discontinued Product
Discontinued Product
Commercial Label Printer
- Max. 110 mm / sec. or 73 standard address labels / min.
- USB(Full Speed), RS-232C, 12/100 Base-TX Wired LAN
- Durable Auto cutter (user unreplaceable)
The Brother TD-4100N commercial thermal printer for labels, receipts, tags, and barcodes represent great value at an affordable price. Featuring 102mm extra-wide labels, high resolution 300dpi printing, fast 110mm per second print speed and built-in automatic cutter, all of which make this printer an excellent choice for many vertical market applications. The TD-4100N features a built-in Ethernet interface, allowing multiple users to connect to and use one shared printer. This printer is able to print from non-Windows applications via the USB, serial and Ethernet interfaces using ESC/P emulation or ASCII data.
Information
Overview
Specifications
Basic Specs
Media Type
Brother RD Rolls / Receipt Rolls
Available Tape Widths
up to 102mm
Product Dimensions (Width X Depth X Height)
173 mm × 229 mm × 158 mm
Weight
1.83 kg
Print Speed
Max. 110 mm / sec. or 73 standard address labels / min.
Warranty
3 years Return to Base Warranty
What's in The Box
TD-4100N, CD-ROM (Software/Driver/User's / Network Guide), Quick Start Guide, RD Rolls Line-up Guide, USB cable, 102mm continuous black on white label roll (2 metre starter roll), Diecut 51mm x 26mm Labels (60 Labels)
Resolution
300 dpi / 720 dots
Barcode
21 barcode protocols via P-touch Editor
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN
Media
Maximum Roll Width
102 mm
Functions
Cutter
Durable Auto cutter (user unreplaceable)
Power
Power Source
240V
Software and Apps
Included Software
12/21/2023
Windows: P-touch Editor , Office Add-in (Word, Excel, Outlook), P-touch Address Book ver. 1.1, BarTender printer Drivers by Seagull¹
Mobile Apps
12/21/2023
Support Center, Print SDK Demo
Software Development Kit (SDK)
Windows CE 6.0, Windows Mobile5.0/6.X, Android 2.2 or later
Template Transfer to Machine
2048KB / Max 99 templates
