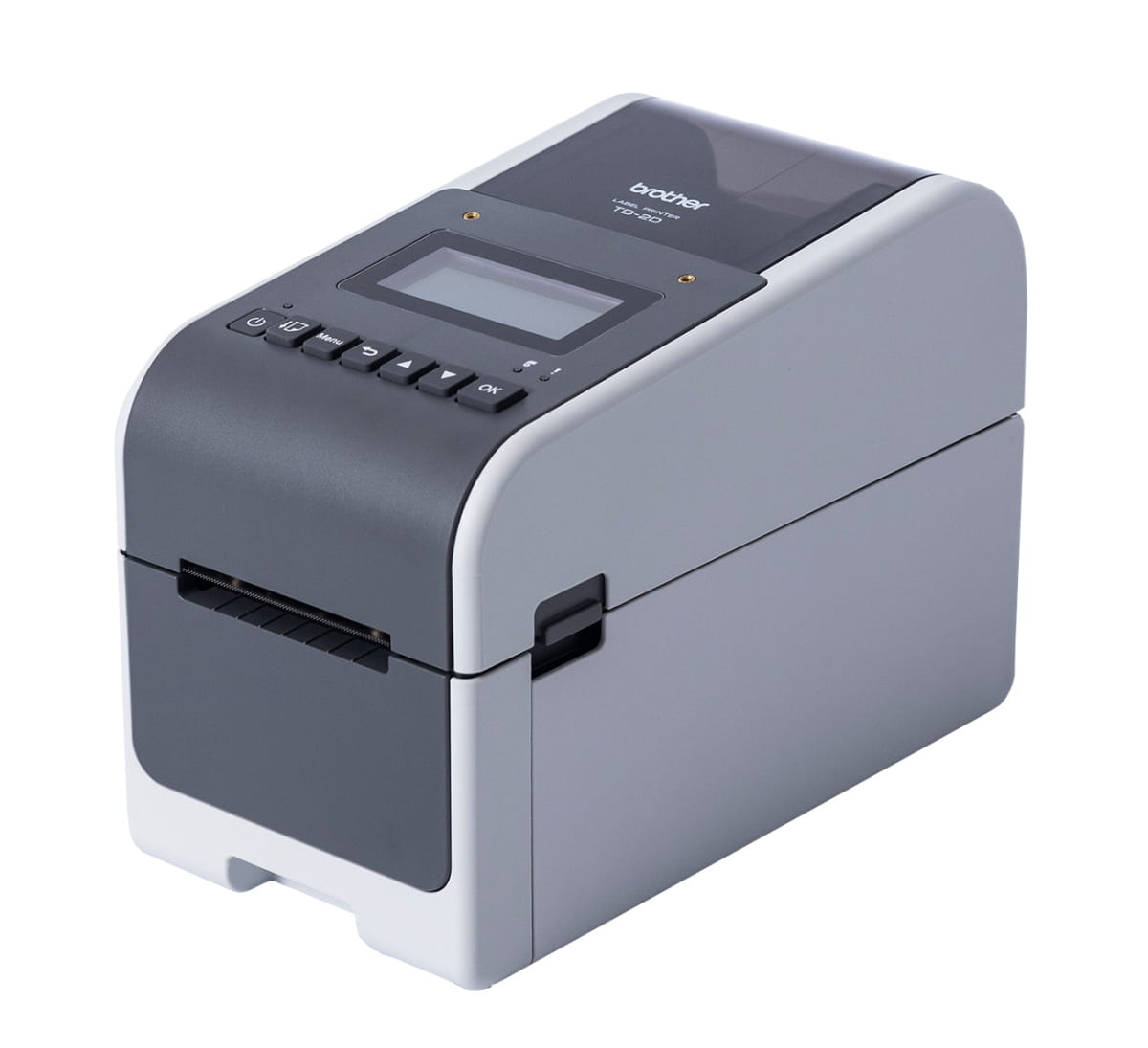

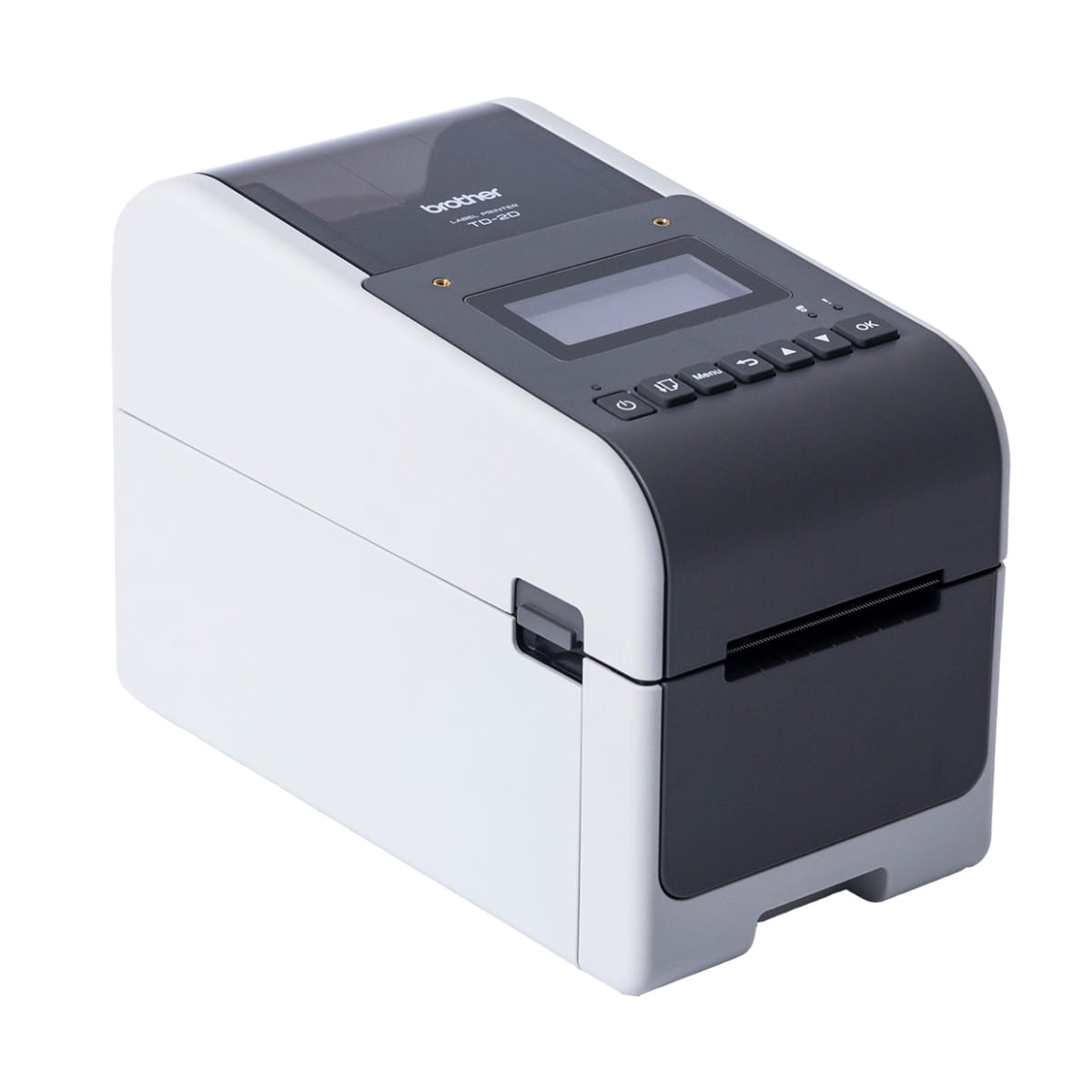

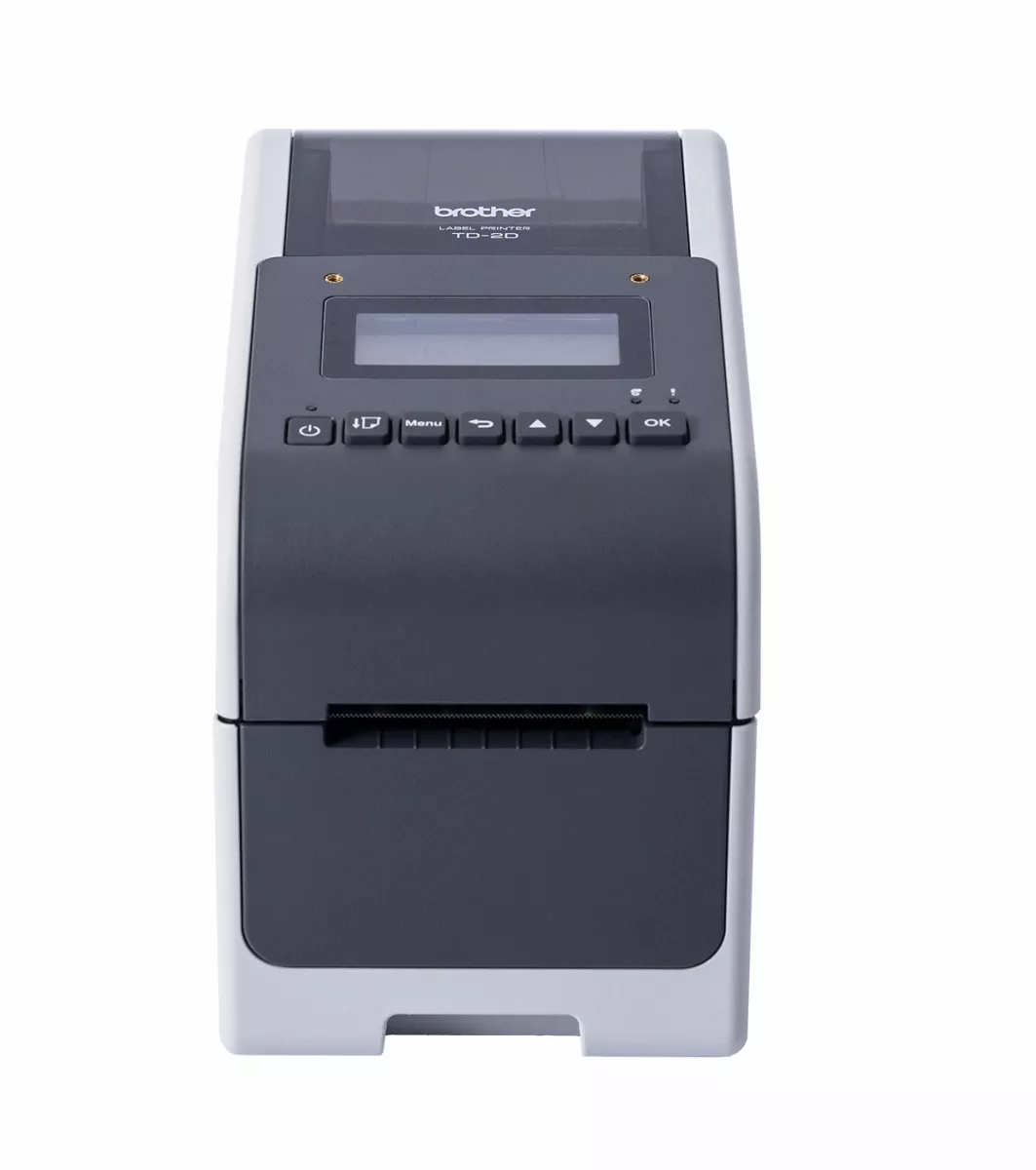

Commercial Label and Wristband Printer
- Supports Raster, ESC/P, ZPL2, CPCL, EPL & DPL
- Comes with our powerful P-Touch Editor software
- Print Labels, Receipts, Tags and Wristbands
- USB-C, USB host, Bluetooth, Serial, Wired LAN and Wireless connection
- Versatile, compact and modular with optional accessories
- Mobile Deploy, AirPrint and MFi
Information
Overview
Powerful integration
The TD-2350D’s is designed to work with your existing infrastructure, supporting a variety of desktop and mobile operating systems. It also supports printer command languages, including ZPL2, EPL2 & DPL emulation and MFi. This makes it a flexible solution for businesses looking to upgrade or expand printing capabilities without extensive system overhauls.

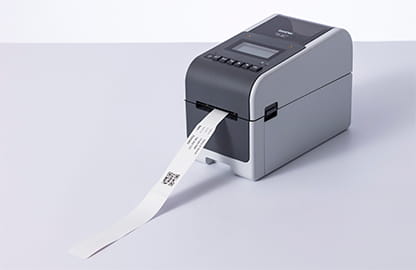

Simple and efficient
Uses direct thermal printing technology, eliminating the need for traditional printing ribbons and ink. This reduces maintenance costs and ensures reliable, on-demand printing, making it ideal for high-volume tasks.

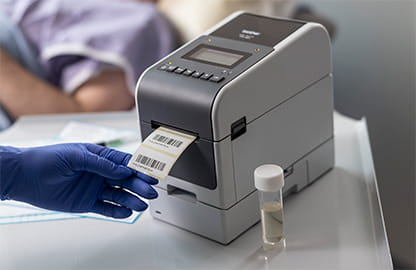

Versatile applications
The versatility of the TD-2350D makes it ideal to the demanding requirements of many verticals such as the retail and healthcare industries. It allows you to print a wide range of labels, wristbands, receipts, tags and barcodes with ease, meaning that you only need one printer for a variety of applications.
Modular to fit your needs
The printer’s (TD-2350D) compact design allows for easy placement in any workspace, and can be customised based on specific needs with versatile types like Ethernet, WiFi, Bluetooth or AirPrint and optional features like a label peeler, automatic cutter, and rechargeable battery add flexibility, making it easy to move and use the printer.
Fast and crisp outputs
Whether you’re printing large batches or single items, the TD-2350D printer delivers sharp, clear outputs every time. With print speeds of 152.4 mm per second and a resolution of 203 dpi, your printing tasks are completed quickly and to a polished, professional standard.
At your side support
Wherever you are in Australia, Brother offers complimentary support for the lifetime of your product. Our team of experts are also at your side for a personalised assessment to make sure that this is the right product for your requirements and/ or current infrastructure. Click here to enquire.

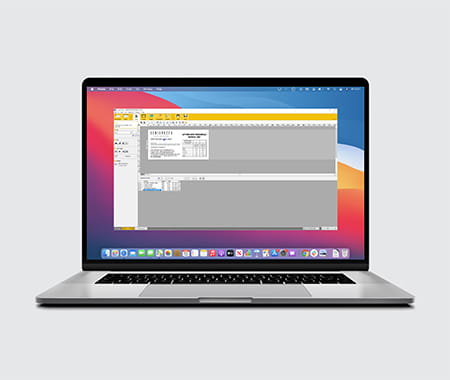

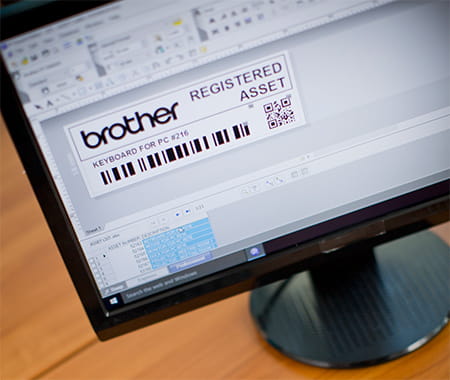

P-touch Editor
Supplied as standard, you can create your own custom labels with pixel precision by using this powerful software solution.
With features such as support for over 15 barcode protocols or the ability to link to a database for batch printing of labels, any label design is possible.
Software development kits (SDK’s)
Brother can also supply a selection of free of charge Software Development Kits.
This gives you an easy method of incorporating label printing directly from within your own software programs.
Mobile deploy
Cloud-based app for mobile devices (iOS and Android™), which allows IT administrators to remotely update and configure multiple Brother mobile printers.
Using Mobile Deploy, the administrator can easily upload new update packages to an online location, and then share the URLs with the users.
Specifications
Basic Specs
Keyboard
N/A

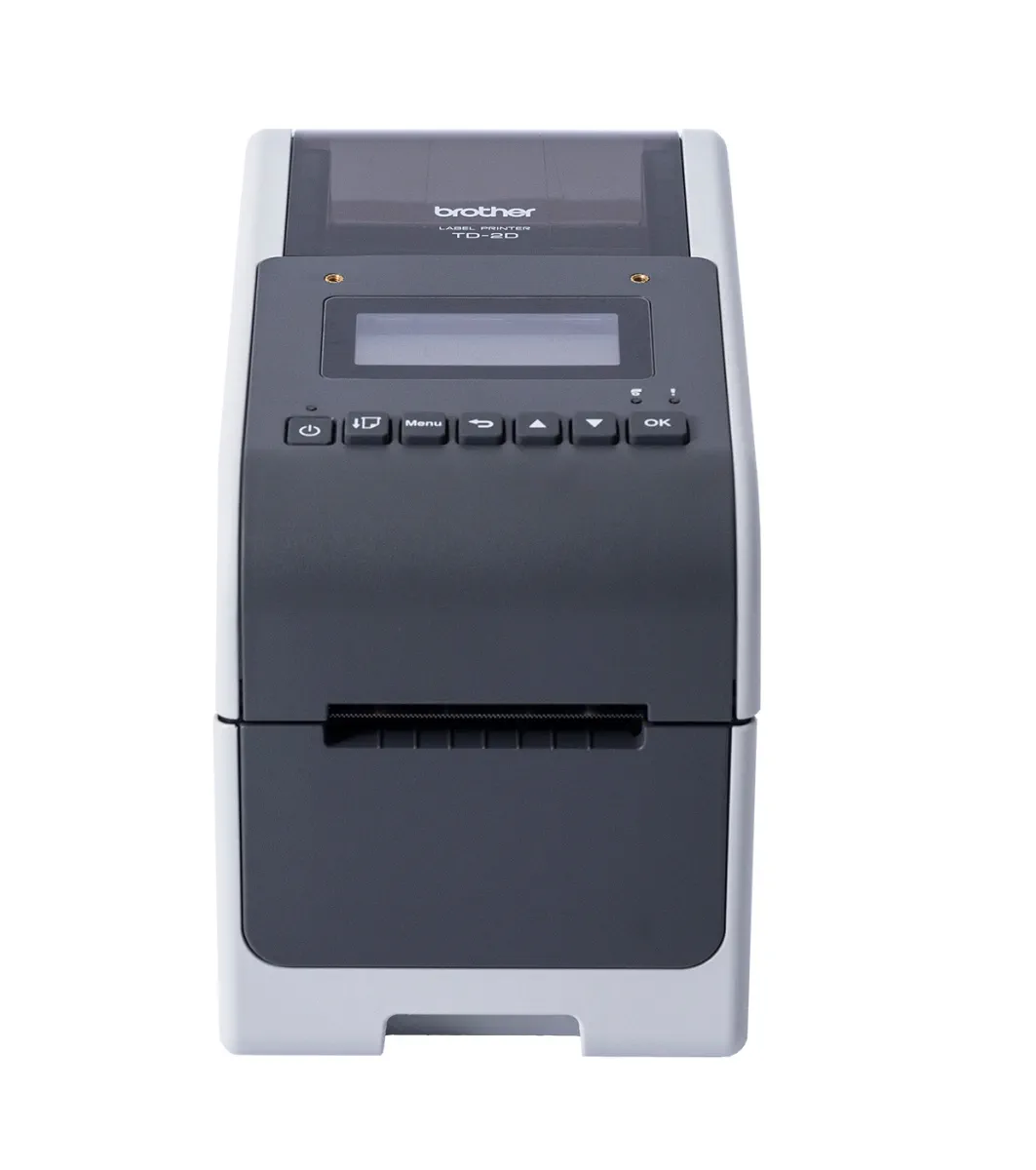

Display Type
Monochrome LCD, 3 LED, 7 buttons (Power / Feed / Menu / Return / Up / Down / OK)
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated,Tag
Available Tape Widths
15 mm ~ 63 mm (0.59" to 2.48" )
Product Dimensions (Width X Depth X Height)
119 mm × 224 mm × 158 mm
Weight
1.53 kg
Print Speed
Up to 152.4 mm/sec (6 ips)
Warranty
3 years Return to Base Warranty
Resolution
203 dpi (only for Australia), 300 dpi
Barcode
Linear:
CODE 39, ITF (I-2/5), EAN-8(JAN8), EAN-13 (JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128 (UCC/EAN 128), POSTNET, GS1 Databar (RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection), GS1 Databar (RSS Limited), GS1 Databar (RSS Expanded、RSS Expanded Stacked)
2-dimensional:
QR Code (model 1, model 2, micro QR), Maxicode, PDF417 (Standard, Truncate, MicroPDF417), Data Matrix (ECC200 Square, ECC200 Rectangular), Aztec
Connectivity
Connectivity
USB version 2.0-Full Speed-Type C, USB version 2-0-Full Speed-Type A, Bluetooth, Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode), Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode/2.4GHz), Wireless LAN IEEE 802.11 a/n (Infrastructure Mode)-5GHz, Ethernet 10/100BASE-TX, Serial Connection
Media
Maximum Roll Width
Up to 63 mm (2.48")
Printing Width
Up to 59 mm (2.32")
Functions
Cutter
Option
Memory
File Storage
Up to 255 templates
Memory Buffer Size
64MB
Power
Power Source
Standard AC adapter (100 - 240 V 50/60Hz)
Auto Power-Off
Yes
Supported Operating Systems
Supported OS
Windows 10 (x86,x64), Windows 11, Windows Server 2016, Windows Server 2019, Windows Server 2022
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation (CPCL page print mode / CPCL line print mode), EPL2 emulation, DPL emulation
