Thermal Label Printer
- Fast 152.4 mm per second print speed
- Wired and Optional Wireless Network
- Die Cut Rolls
- Ideal for retail and healthcare applications
- USB, Optional Wi-Fi with AirPrint, Wired Ethernet and Optional Bluetooth connectivity for easy connection to mobile devices
Information
Overview
Specifications
Basic Specs
Display Type

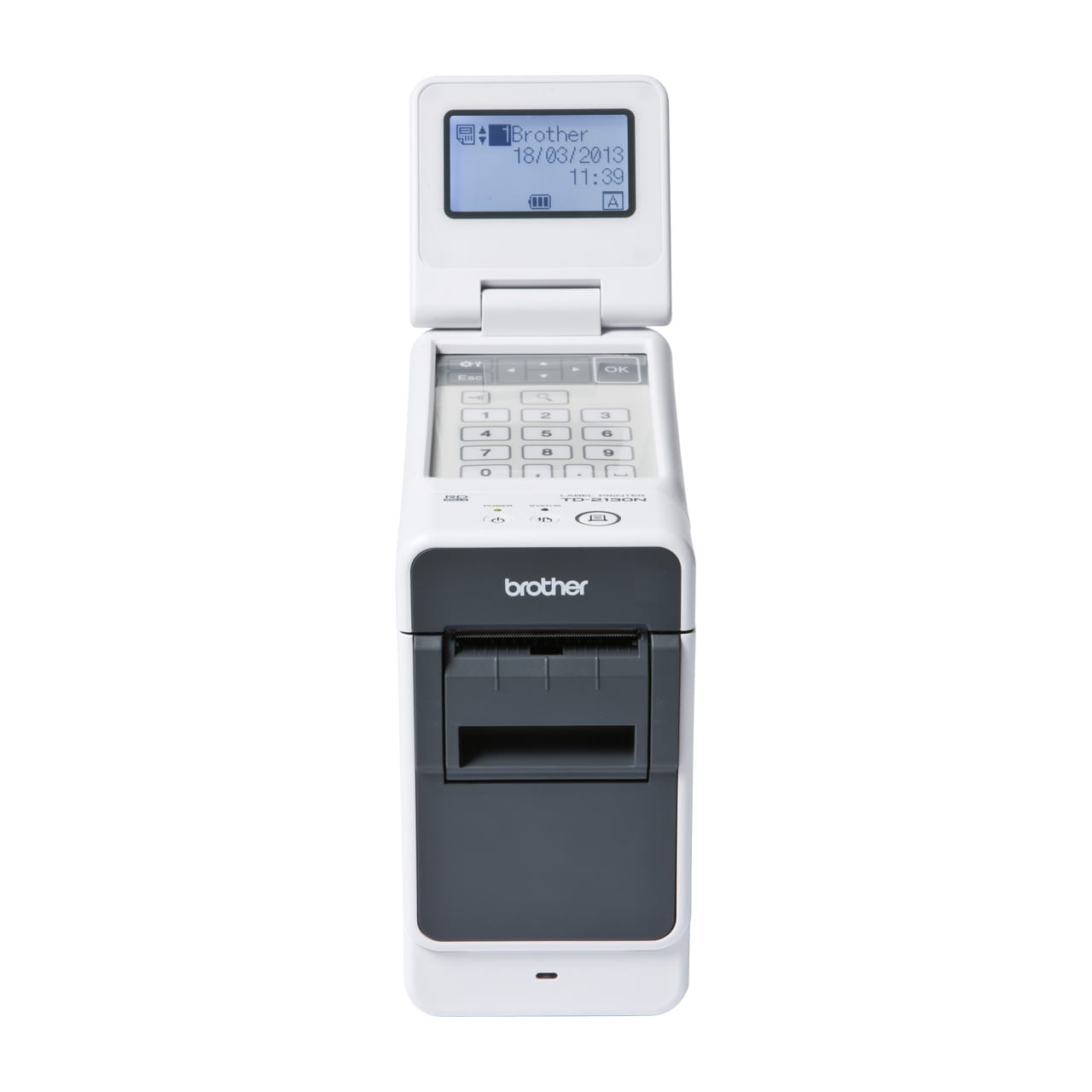

Optional Touch Display Unit
Media Type
Brother RD rolls / Non-proprietary die-cut or continuous rolls
Available Tape Widths
Up to 63mm
Product Dimensions (Width X Depth X Height)
110 mm × 215 mm × 172 mm
Weight
1.34 kg
Print Speed
152.4mm/sec (AC adapter)
76.2mm/sec (Li-ion battery)
Warranty
3 years Return to Base Warranty
What's in The Box
Printer, CD-ROM (Software/Driver/User's Guide), Quick Start Guide, USB cable, External S/W Power Supply (PA-AD-001)
Resolution
203 dpi
Barcode
21 barcode protocols on P-touch Editor 5.1
Numbering
Yes
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN (Optional), Bluetooth
Media
Maximum Roll Width
up to 63mm
Printing Width
Up to 56 mm
Functions
Cutter
Die-cut labels / Tear off
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
max 99 templates
Memory Buffer Size
6MB
Power
Power Source
100 - 240 V 50/60 Hz
Auto Power-Off
Yes
Software and Apps
Included Software
12/21/2023
Windows: P-touch Editor, P-touch Transfer Manager, Office Add-in (Word, Excel, Outlook), P-touch Address Book, BarTender printer Drivers by Seagull
Mobile Apps
12/21/2023
Mobile Transfer Express, Support Center, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
Windows CE 6.0, Windows Mobile5.0/6.X, Android 2.2 or later, iOS 4.3 or later
Template Transfer to Machine
6Mb / Max 99 templates
Supported Commands
Supported Commands
P-touch Template2.0 , ZPLII compatible, Raster, ESC/P
