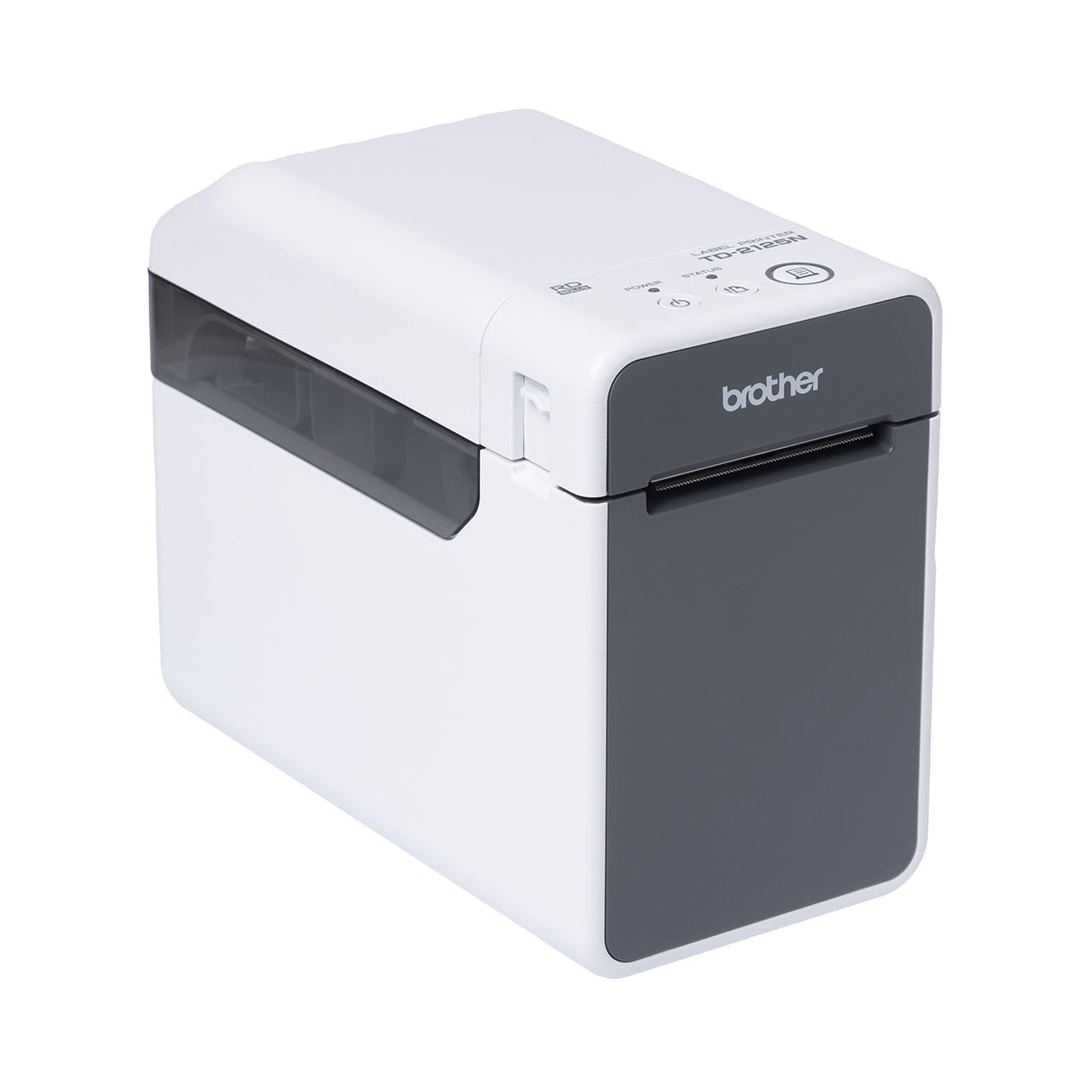

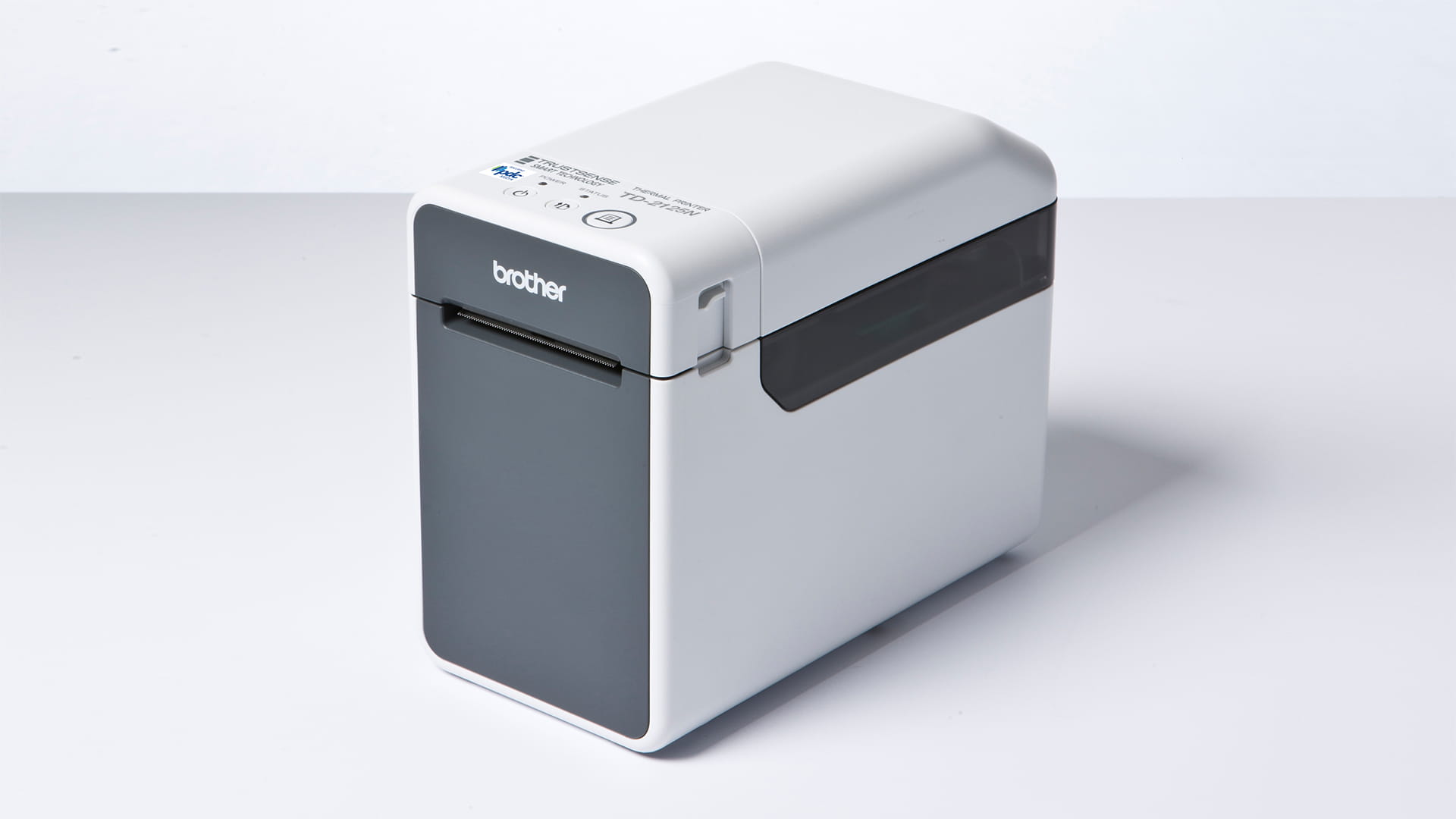

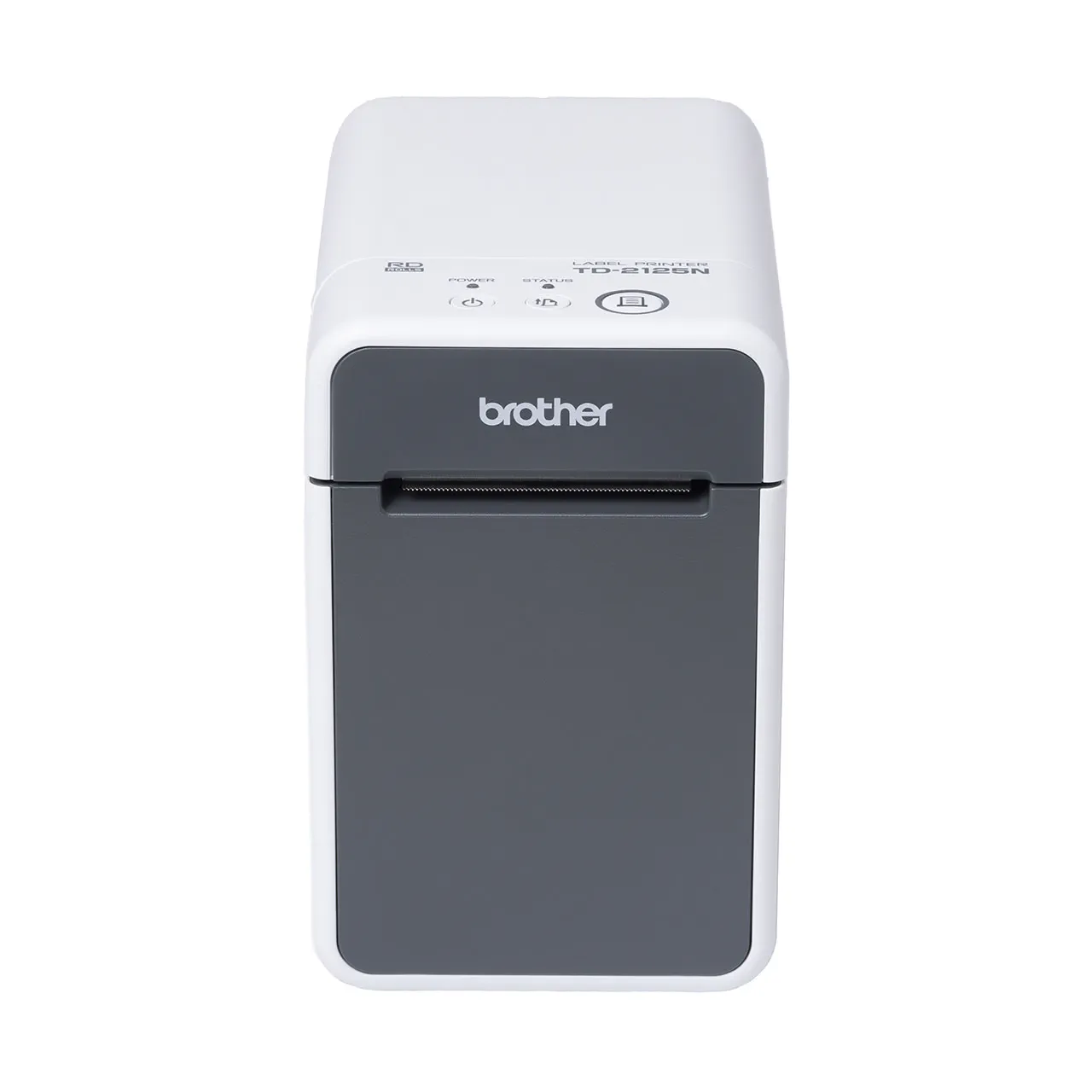

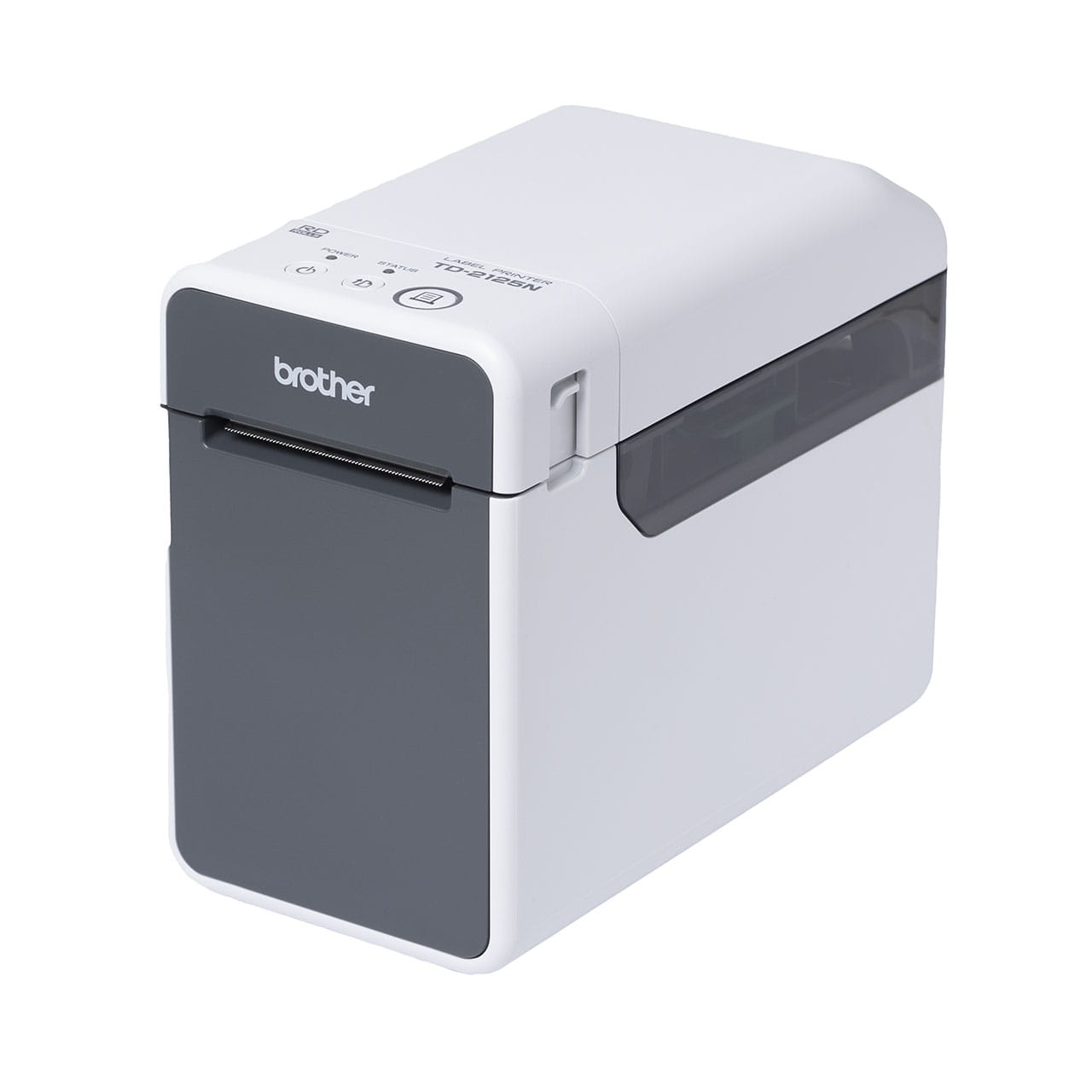

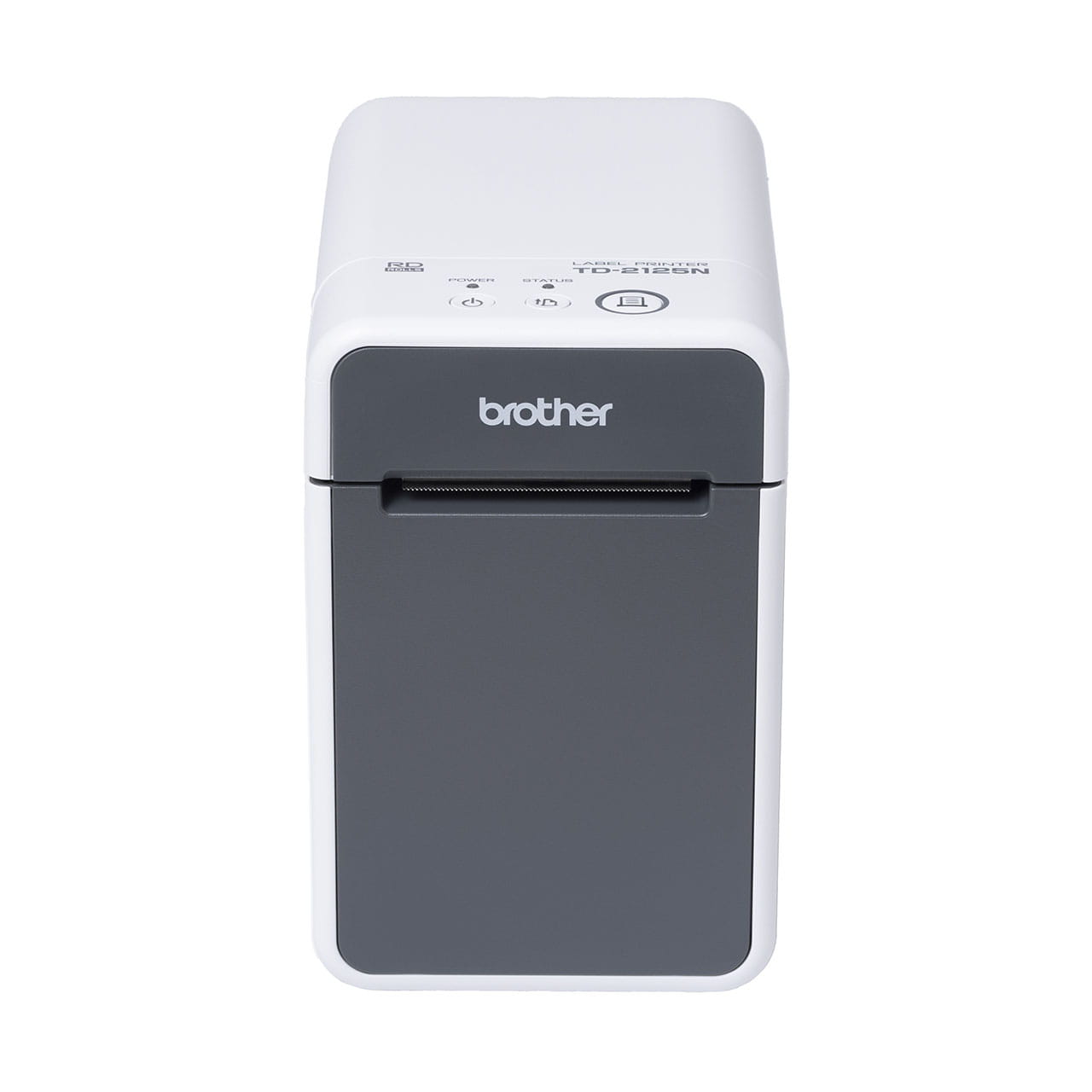

Thermal Label Printer
- USB and serial connectivity
- 203dpi print resolution
- Up to 152.4mm per second print speed
- Ideal for retail and healthcare applications

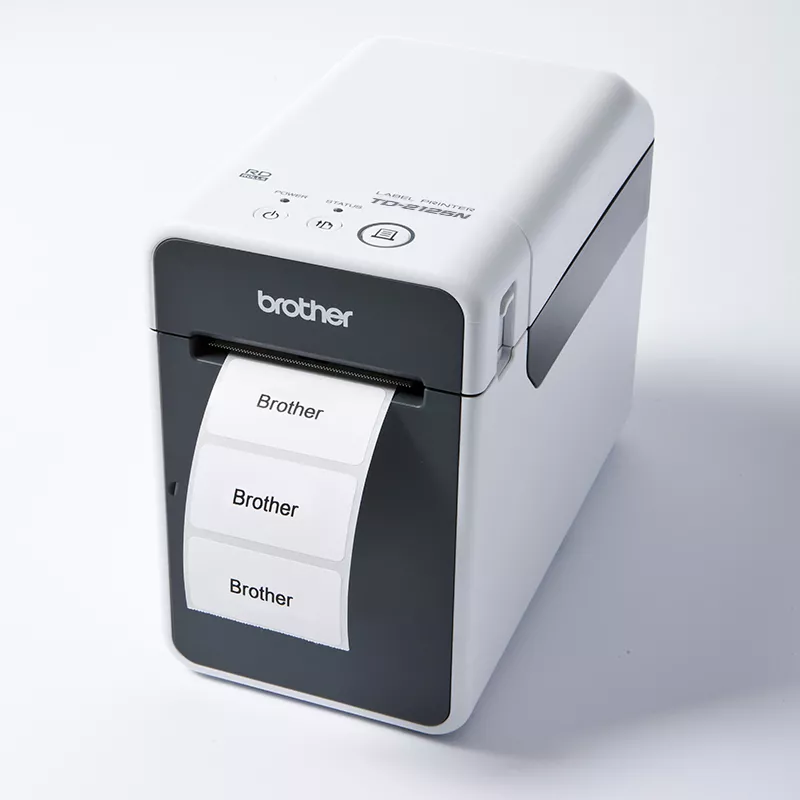

- Compatible with continuous, die cut labels & wristbands
- Create custom labels, including barcodes on demand
Information
Overview
Reliable printing anywhere
Thermal printing is the most reliable technology for mobile printing, letting you print in any environment
Network connectivity
Connect via USB, LAN or serial (optional accessory required) to print your labels
Fast print speed
Fast 152.4 mm per second print speed
Ideal for retail and healthcare applications

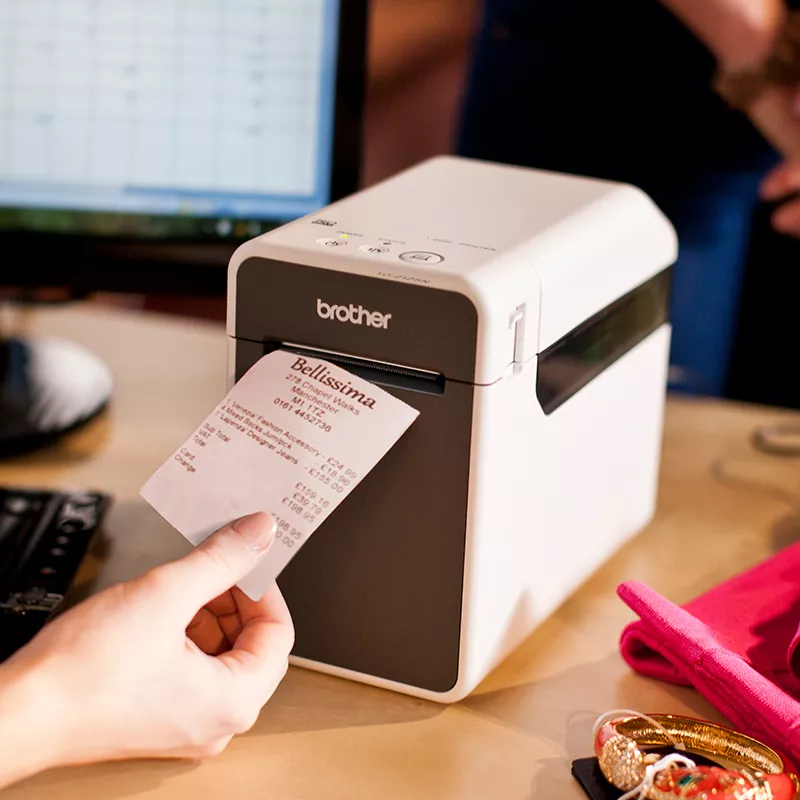

Print labels, wristbands, receipts, tags and barcodes with ease
Crisp outputs
Experience clear, professional 203dpi outputs
At your side support
Wherever you are in Australia, Brother offers free customer care for the lifetime of your product
Versatile and efficient
Customise your device with a range of optional accessories

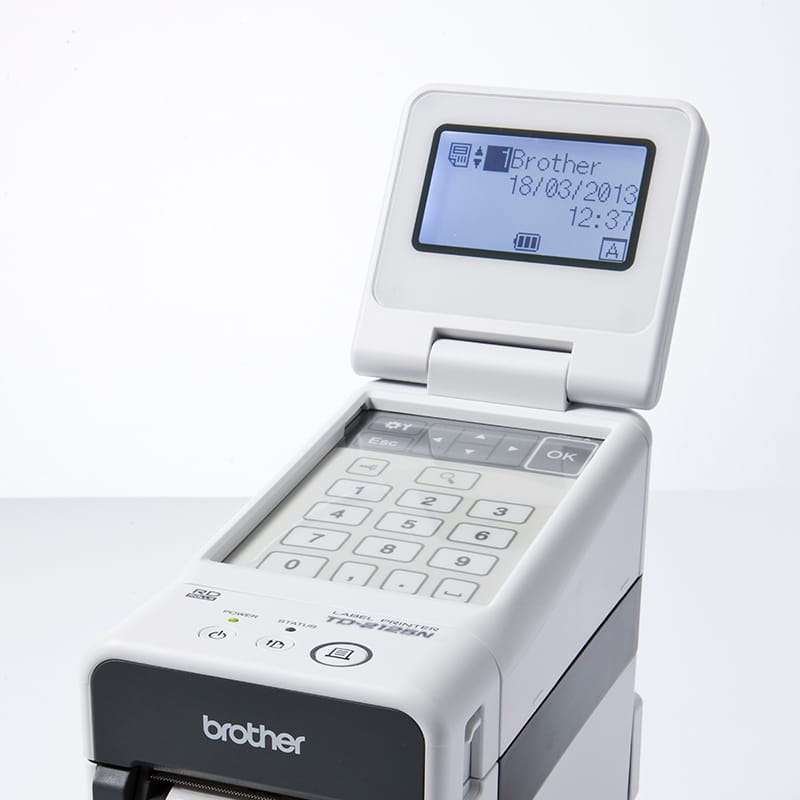

Install an optional touch panel LCD display, label peeler or serial adaptor to tailor your device to your business' needs
Effortless integration
Experience with seamless integration into existing and future workflows utilising b-PAC, SDK’s and the support of printer command systems including ZPLII emulation

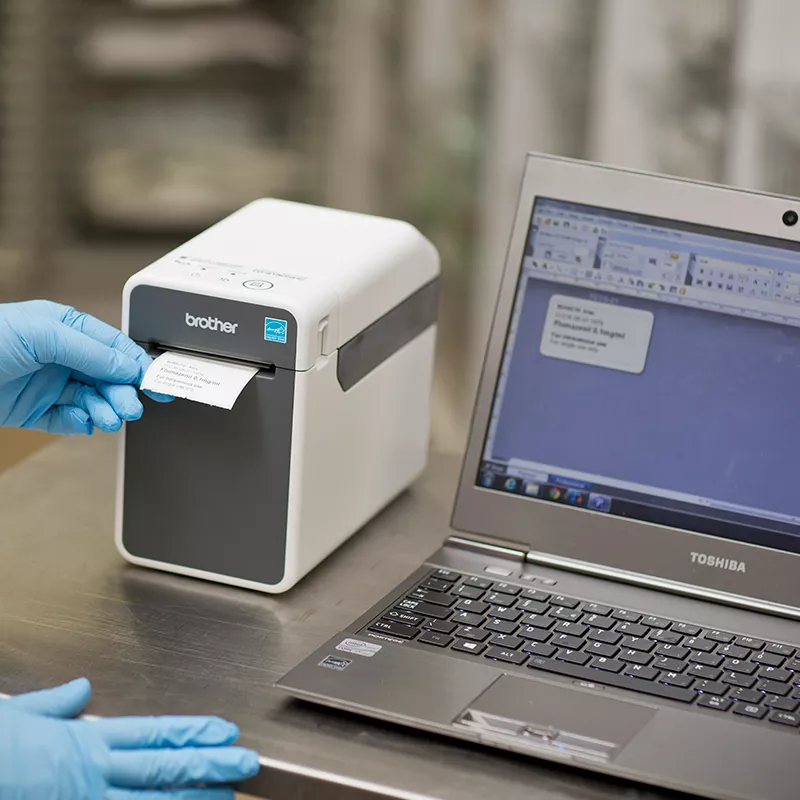

Free mobile apps and software
Create label templates using P-touch Editor 5 to maximise efficiency
Powerful Windows barcode label design/print software application included as standard
Specifications
Basic Specs
Display Type
SVGA/High Color or more
Media Type
Brother RD rolls / Non-proprietary die-cut or continuous rolls
Available Tape Widths
Up to 63mm
Product Dimensions (Width X Depth X Height)
110 mm × 215 mm × 172 mm
Weight
1.334 kg
Print Speed
152.4 mm/sec (6ips)
What's in The Box
Printer, Quick Start Guide, USB cable, External S/W Power Supply (PA-AD-001)
Resolution
203 dpi
Barcode
21 barcode protocols on P-touch Editor 5.4
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B)
Media
Printing Width
Up to 56 mm
Functions
Cutter
Die-cut labels / Tear off / Peeler
Mirror Printing
Yes
Memory
File Storage
Up to 99 templates
Memory Buffer Size
20MB
Power
Power Source
100 - 240 V 50/60 Hz
Auto Power-Off
Yes
Software and Apps
Included Software
12/21/2023
Windows: P-touch Editor, P-touch Transfer Manager, Office Add-in (Word, Excel, Outlook), P-touch Address Book, BarTender printer Drivers by Seagull
Mobile Apps
12/21/2023
Mobile Transfer Express, Support Center, Mobile Deploy, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
Windows CE 6.0, Windows Mobile5.0/6.X, Android 2.2 or later, iOS 4.3 or later
Template Transfer to Machine
20Mb / Max 99 templates
Supported Commands
Supported Commands
P-touch Template2.0 , ZPLII compatible, Raster, ESC/P, CPCL compatible
