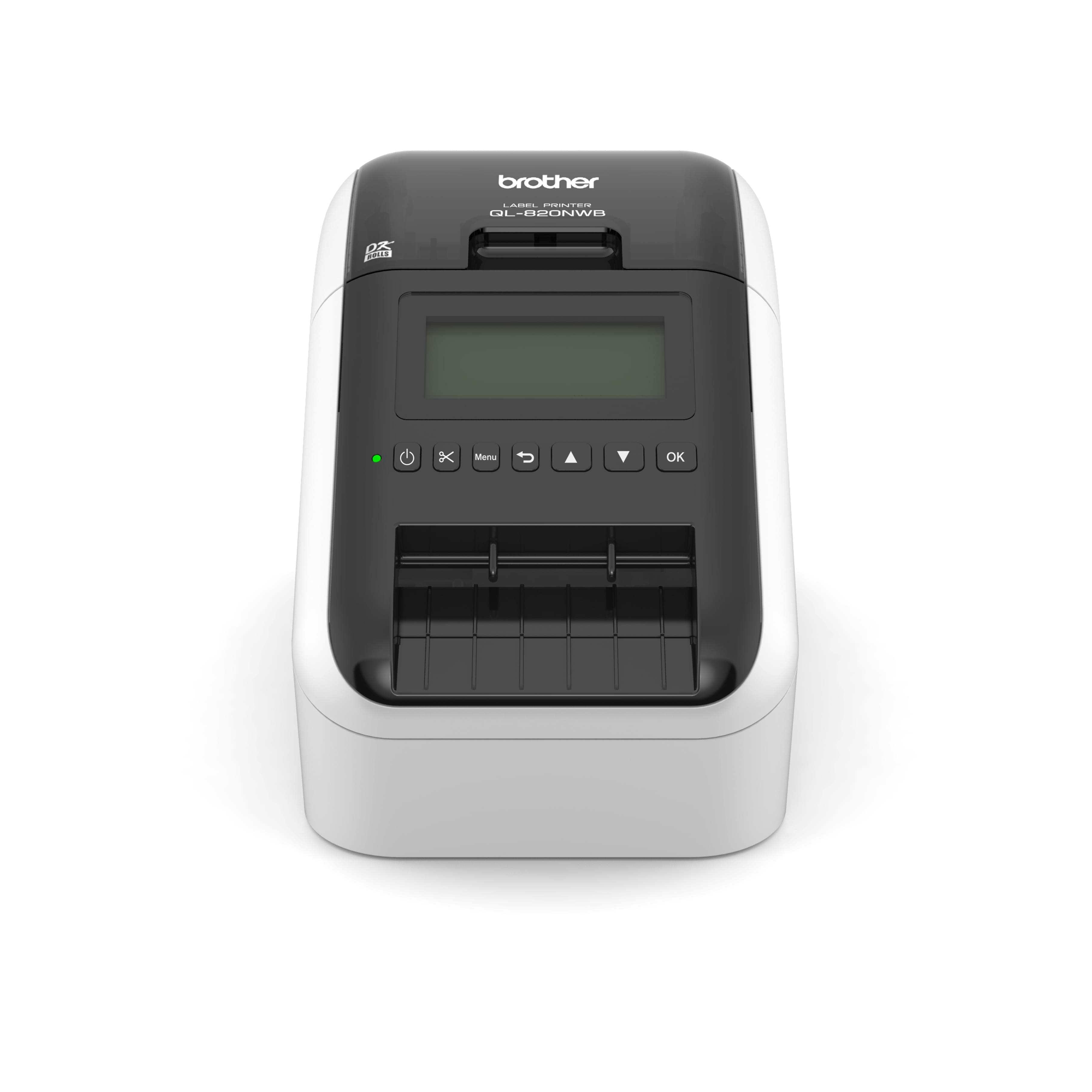

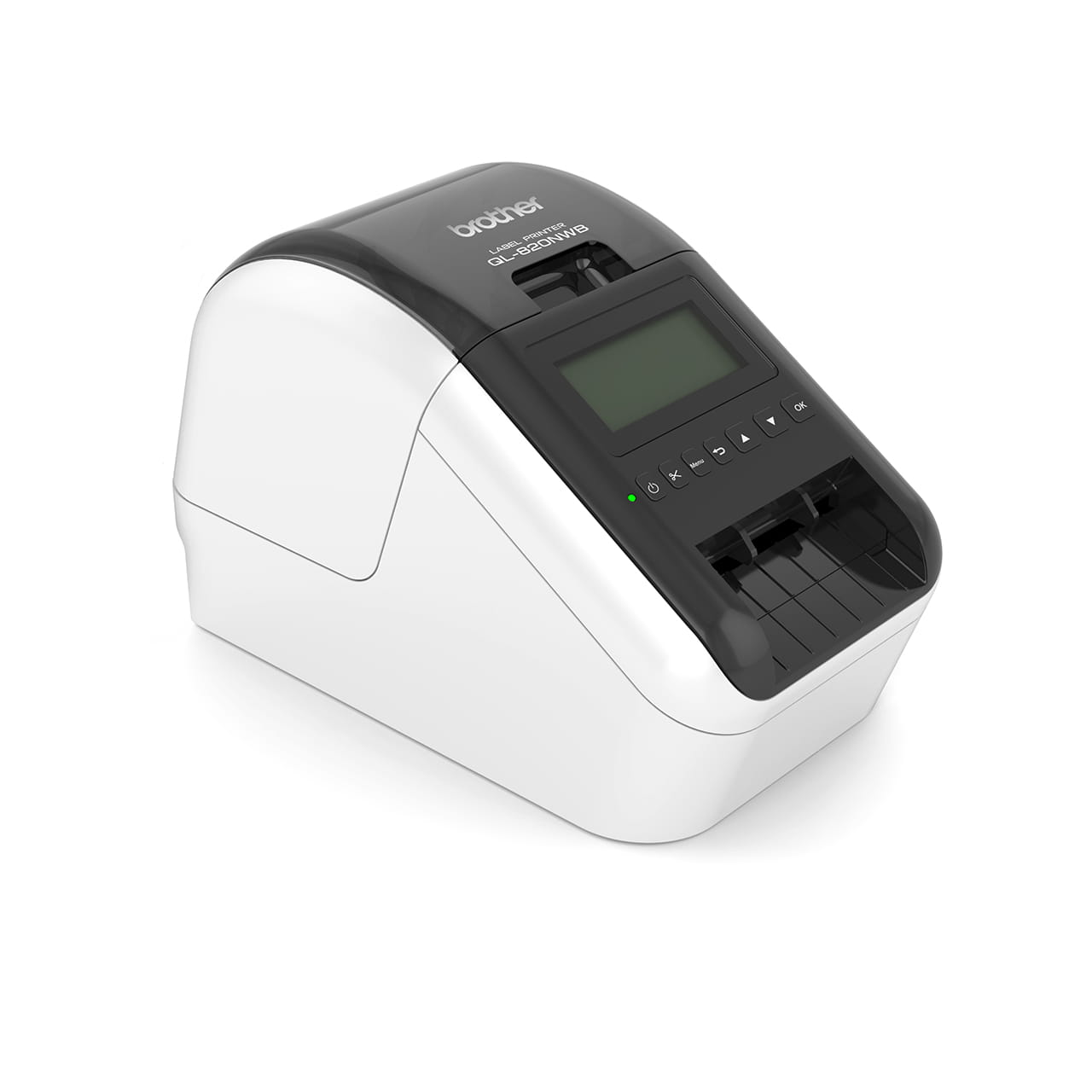

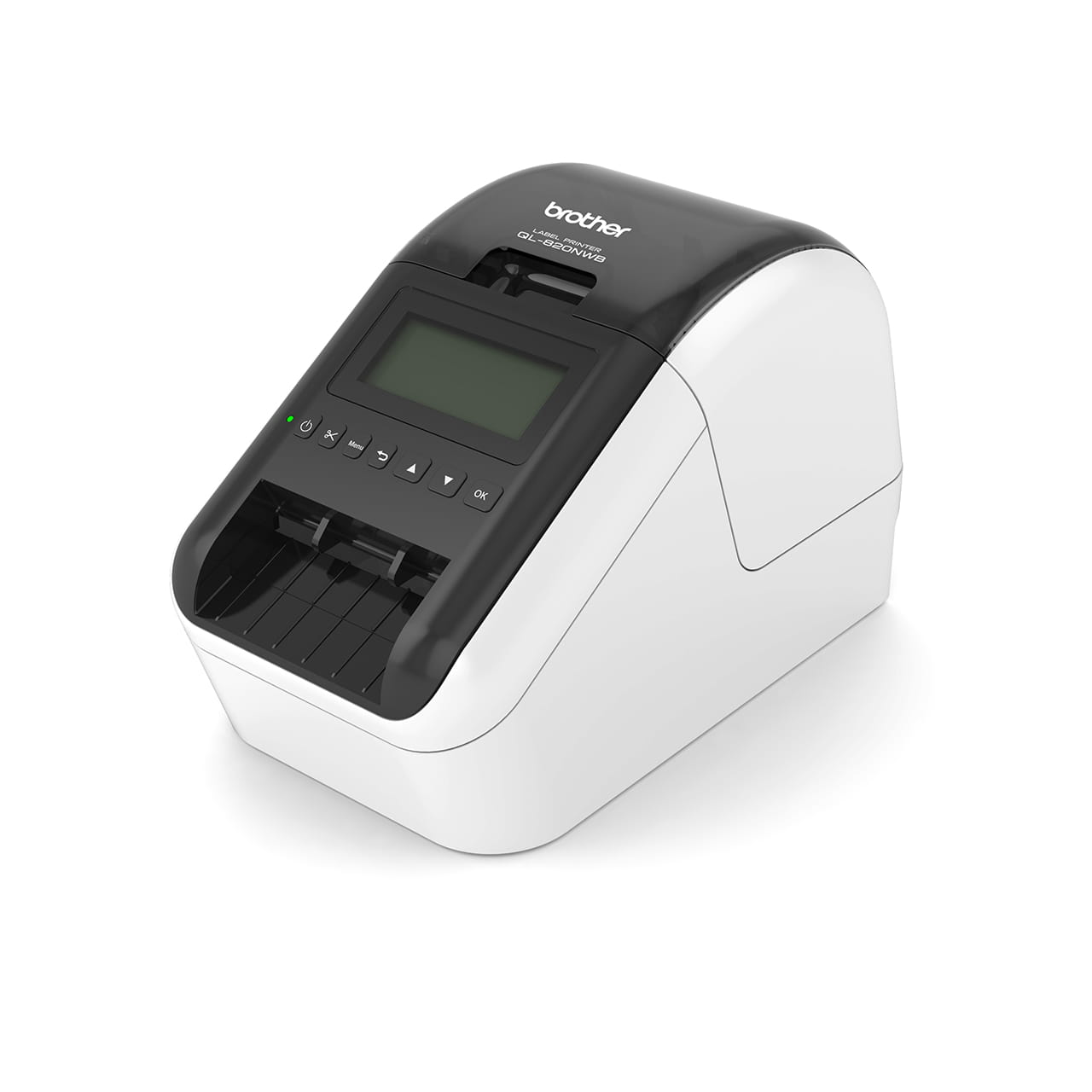

High Speed Professional Wireless Label Printer
$349.00
- High-resolution printing (up to 300 x 600 dpi)
- Convenient, drop-in rolls. No ink or toner needed
- Print labels in both red and black text**
- Software Development Kits available
- USB, Wi-Fi with AirPrint, Wired Ethernet and Bluetooth connectivity for easy connection to mobile devices
Information
Overview
Mobile and Flexible
Stand-alone printing function where no PC is required. Use the integrated control panel and backlit LCD display

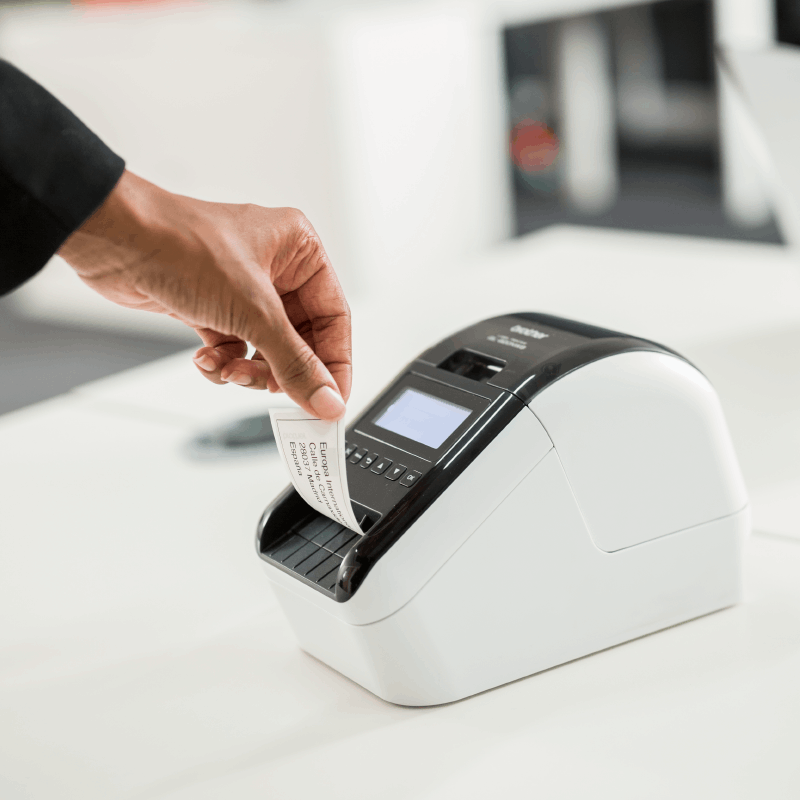

Speedy Printing
High speed printing of up to 110 labels per minute
Stay Connected
Wide range of connectivity options, with PC, Mac, iOS and Android compatibility
Various Label Options
Choose from a variety of die-cut or continuous labels and use the built-in cutter to trim your label to the precise length needed (up to one metre)

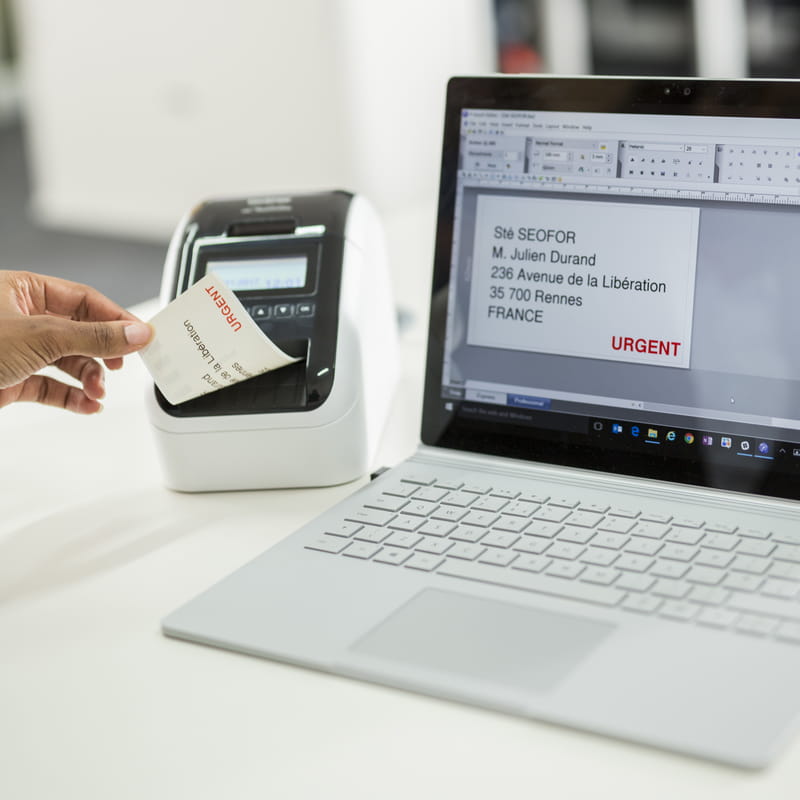

Colour it Your Way
Print in black and red** text to highlight important information
Advanced Functionality
Stand-alone print function and remote FTP template update allows label printing directly from the control panel
No Additional Devices Needed!

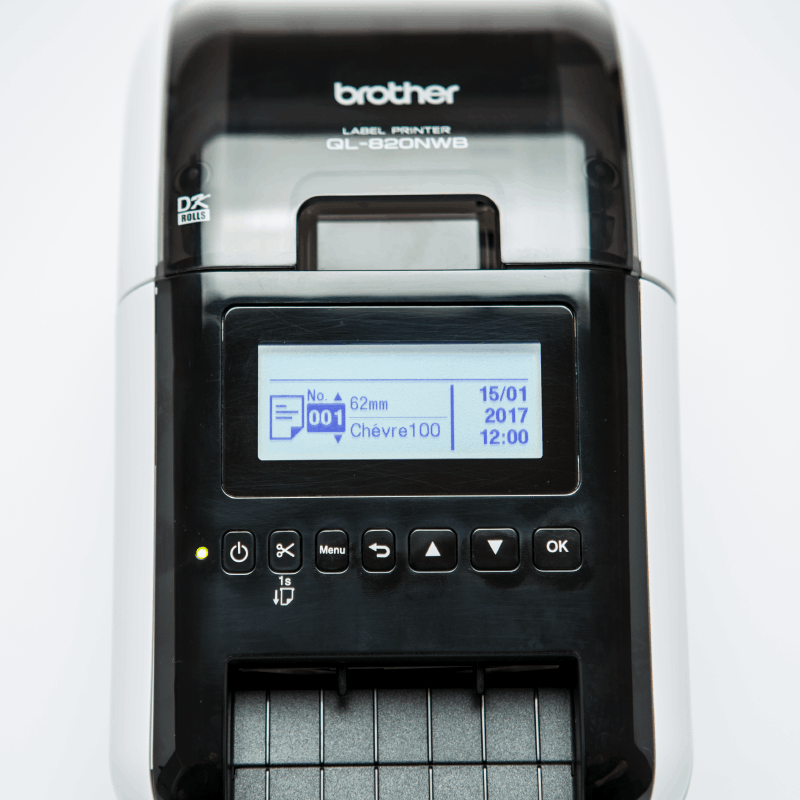

The QL-820NWB has a large memory to store label templates designed in P-touch Editor. Label templates can be uploaded to the printer's memory, and accessed using the integrated control panel and backlit graphic LCD display.

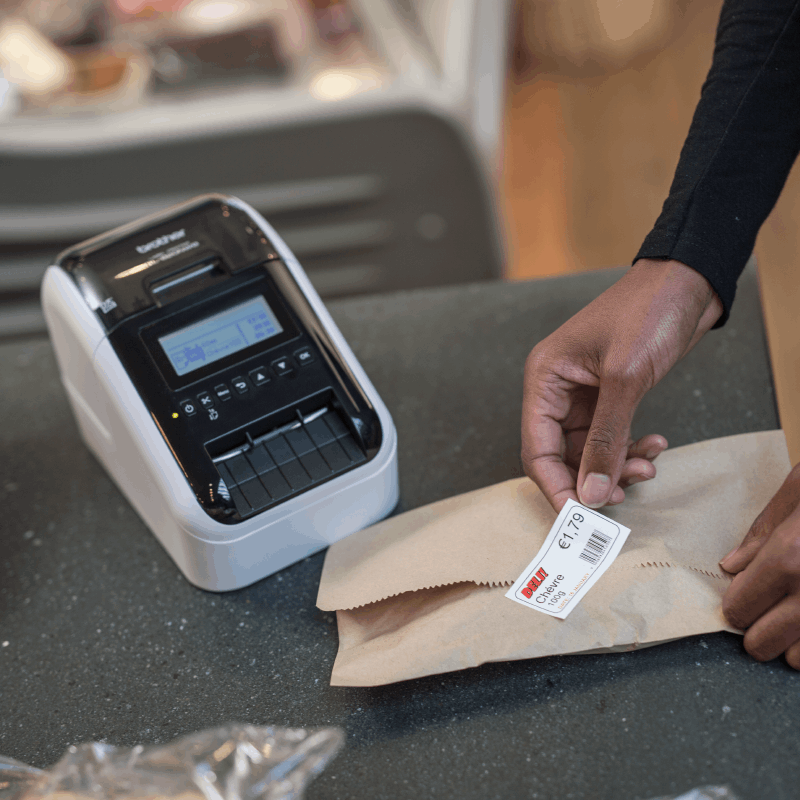

Ideal for printing current or future date/time on labels in the food and retail industries

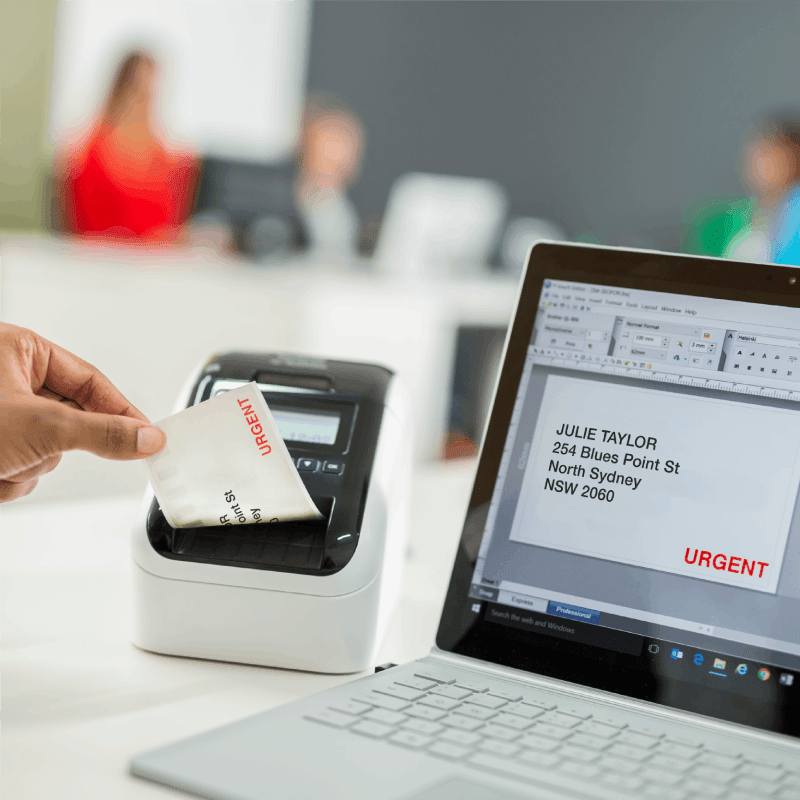

Custom Label-Making Software
Design professional labels with the P-touch Editor software - a Microsoft Office add-in. Customise your designs with images, logos, barcodes and frames.
The Microsoft Office add-in allows you to highlight, click, print and link to data contained in Excel, Word or Outlook.

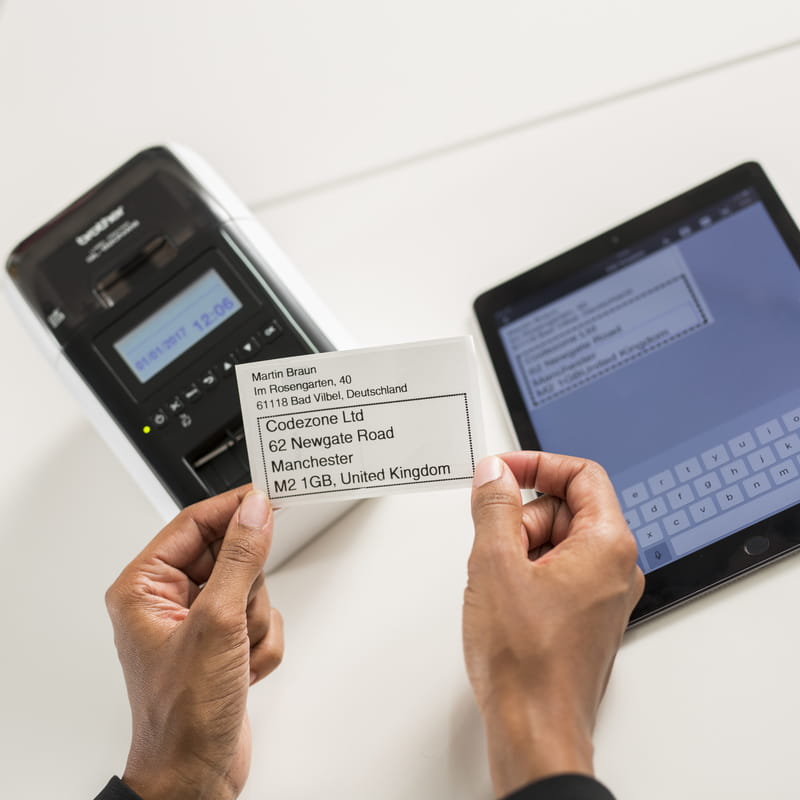

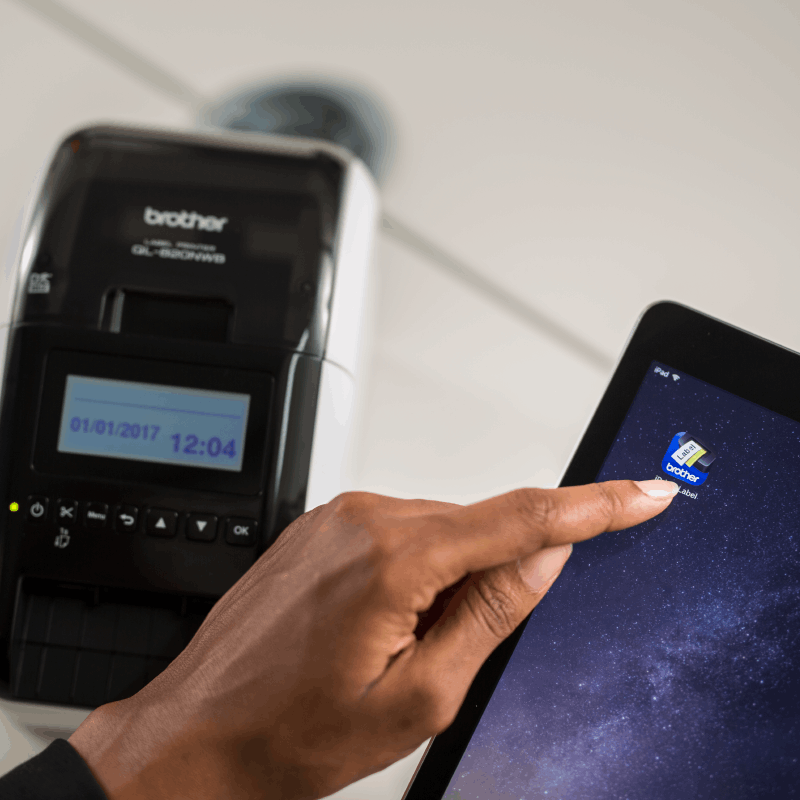

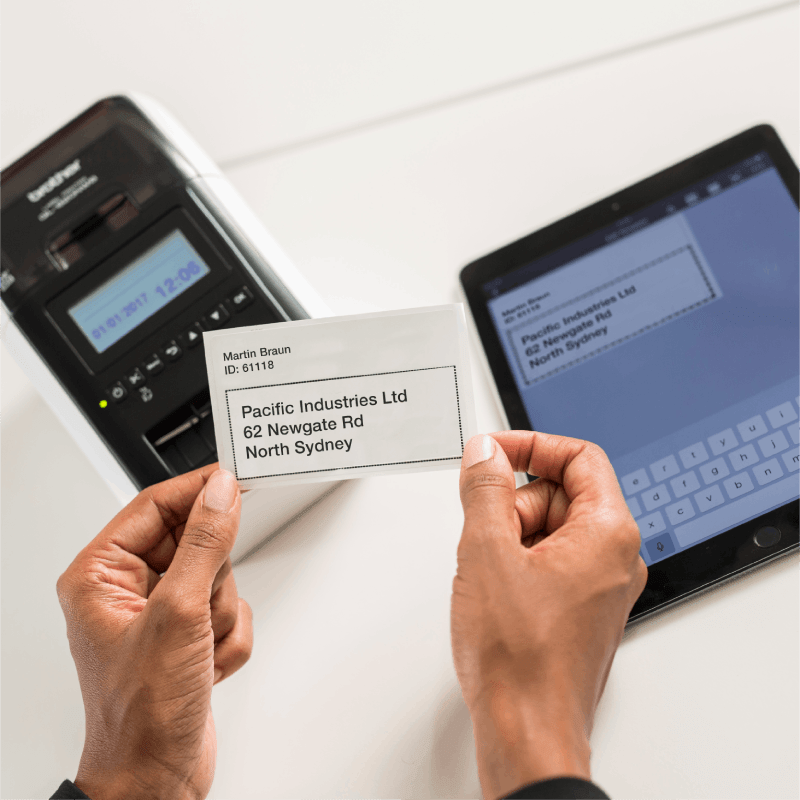

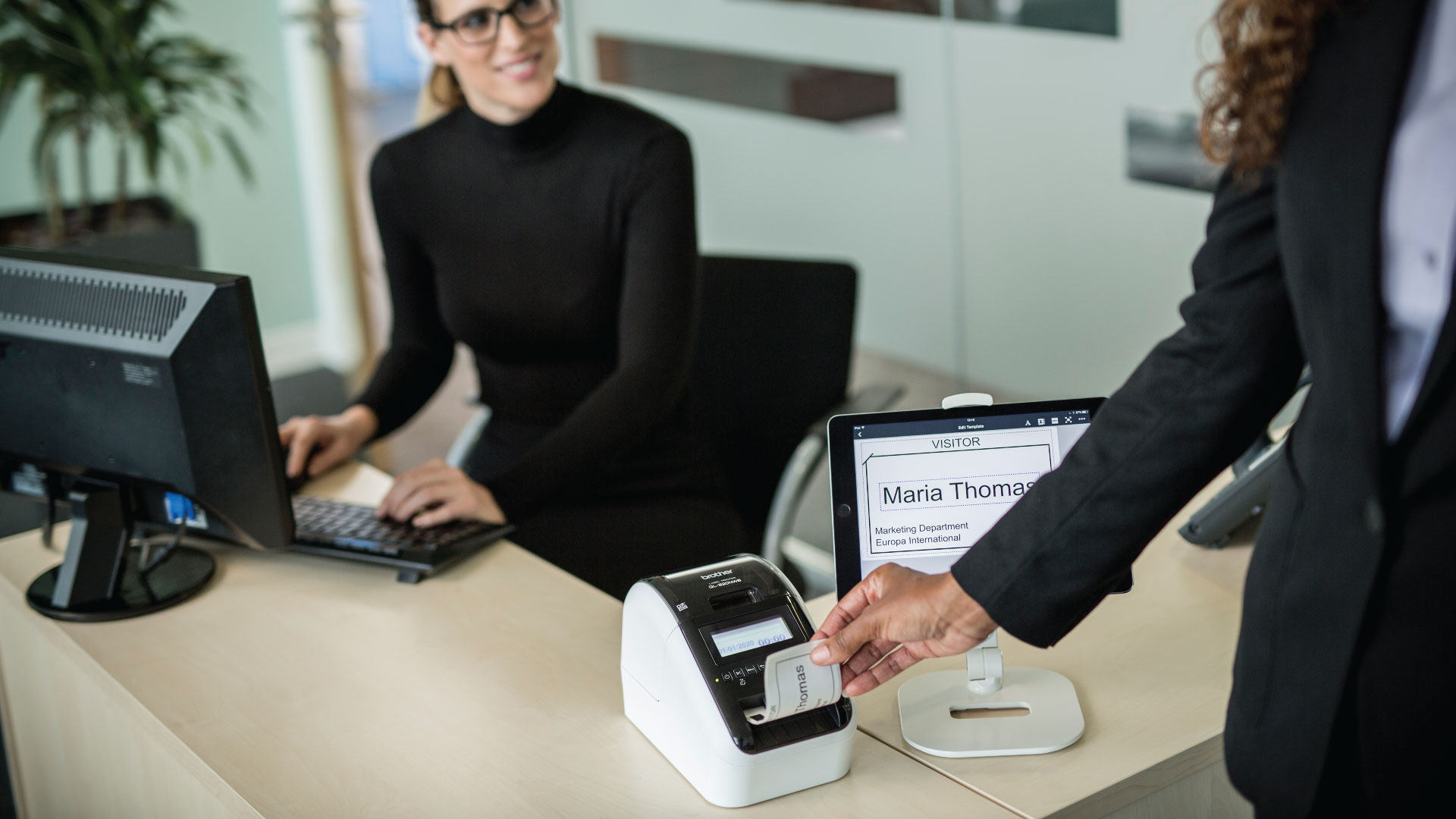

Advanced Connectivity Options
Made for iPod, iPhone and iPad with Apple Airprint*, supported to enable printing from compatible apps on iOS devices and Mac.
*iOS and macOS only supports black print when using the default AirPrint function, however red print capability is available from iOS devices when using AirPrint with apps developed using the Brother Software Development Kit
Additionally, the QL-820NWB offers Bluetooth connectivity to easily connect iOS and Android devices to the printer
**Requires DK-22251 continuous roll to print in black and red.
Specifications
Basic Specs
Display Type
320x120 dot graphic LCD with backlight
Media Type
DK roll
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.16 kg
Print Speed
Max 176mm/sec
Warranty
3 years Return to Base Warranty
What's in The Box
Labeler, CD-ROM (Software/Driver/User's Guide/Network Guide), Quick Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label (Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length Paper Tape (Starter roll, 5m), Power Cord and Adaptor
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN, Bluetooth
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Yes (full auto cut / guillotine type)
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
6MB, 255 templates
Power
Power Source
240V AC external adapter
Auto Power-Off
Yes
Software and Apps
Included Software
12/21/2023
Windows: P-touch Editor, Office Add-in (Word, Excel, Outlook), P-touch Address Book, Printer Setting Tool, BarTender printer Drivers by Seagull¹ Mac: P-touch Editor
Mobile Apps
12/21/2023
iPrint&Label, Mobile Transfer Express, Support Center, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
iOS/Android
Template Transfer to Machine
255 Templates or 6MB
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template
