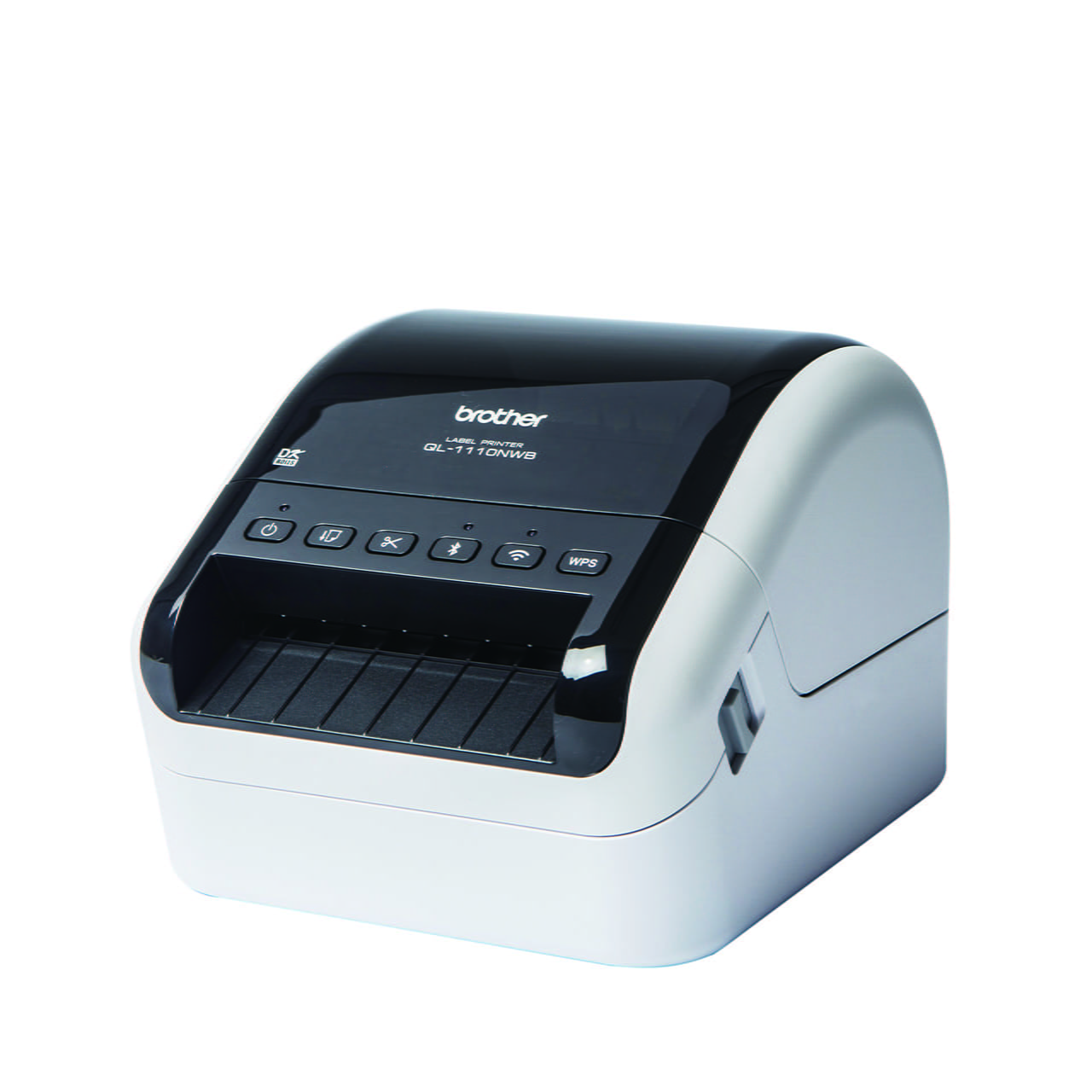

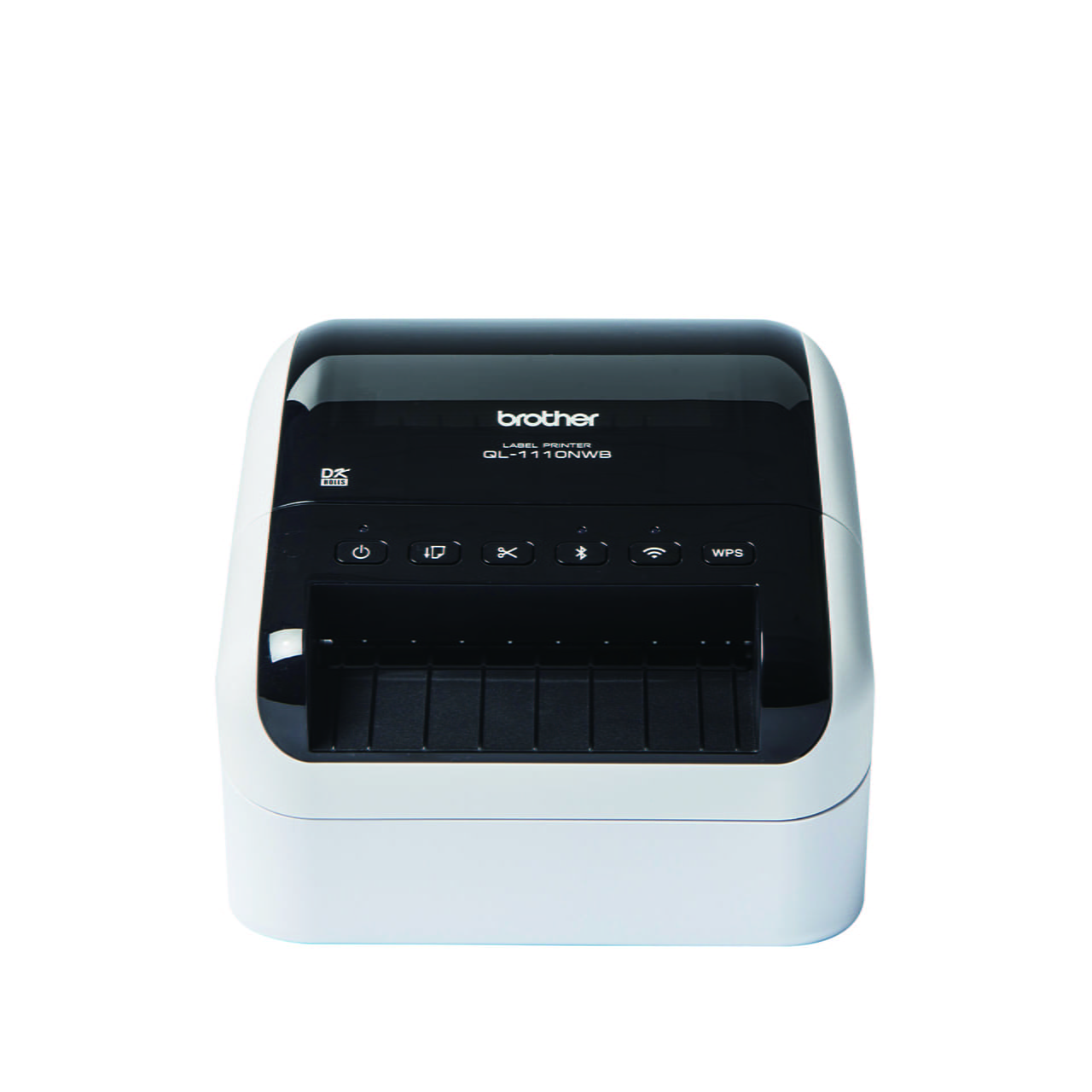

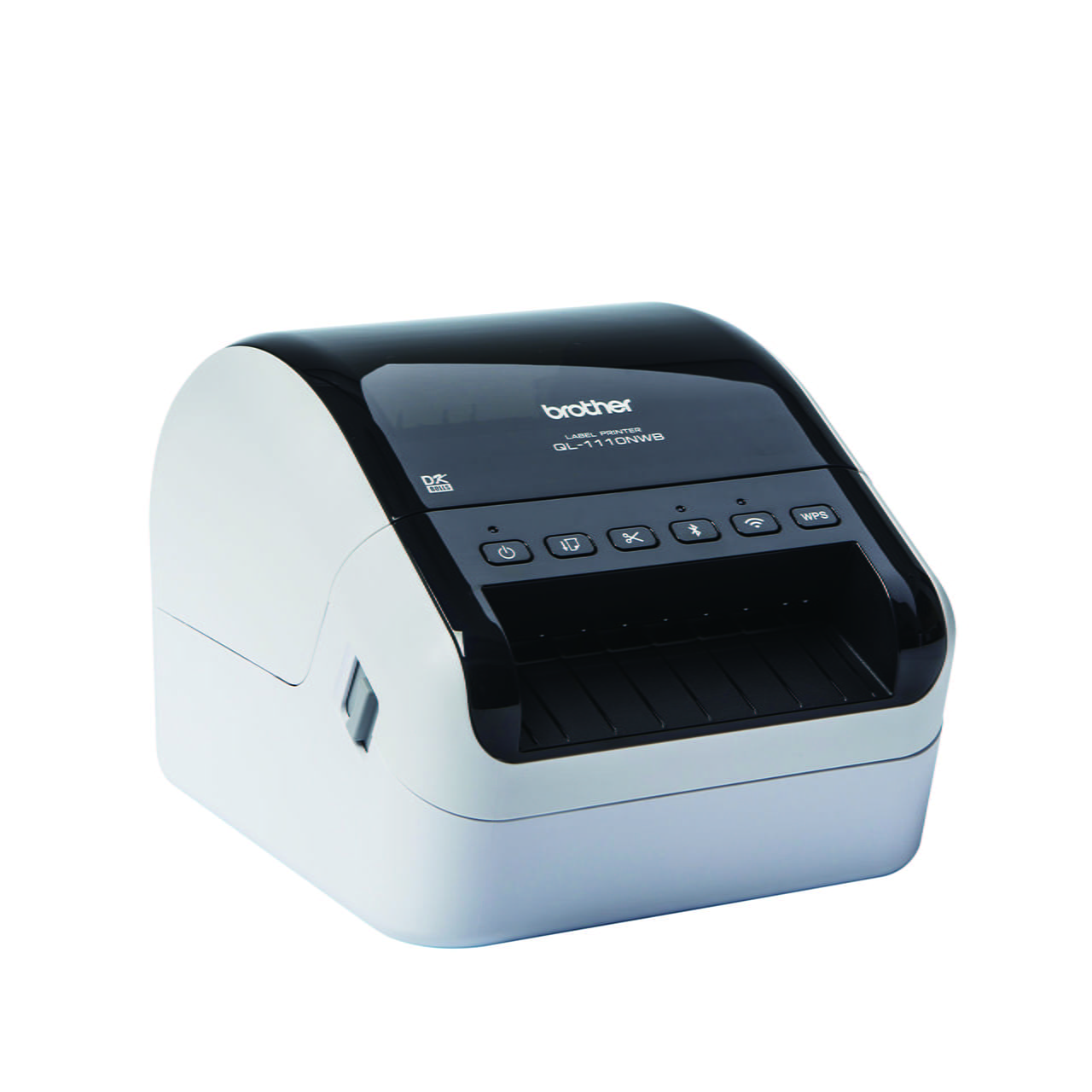

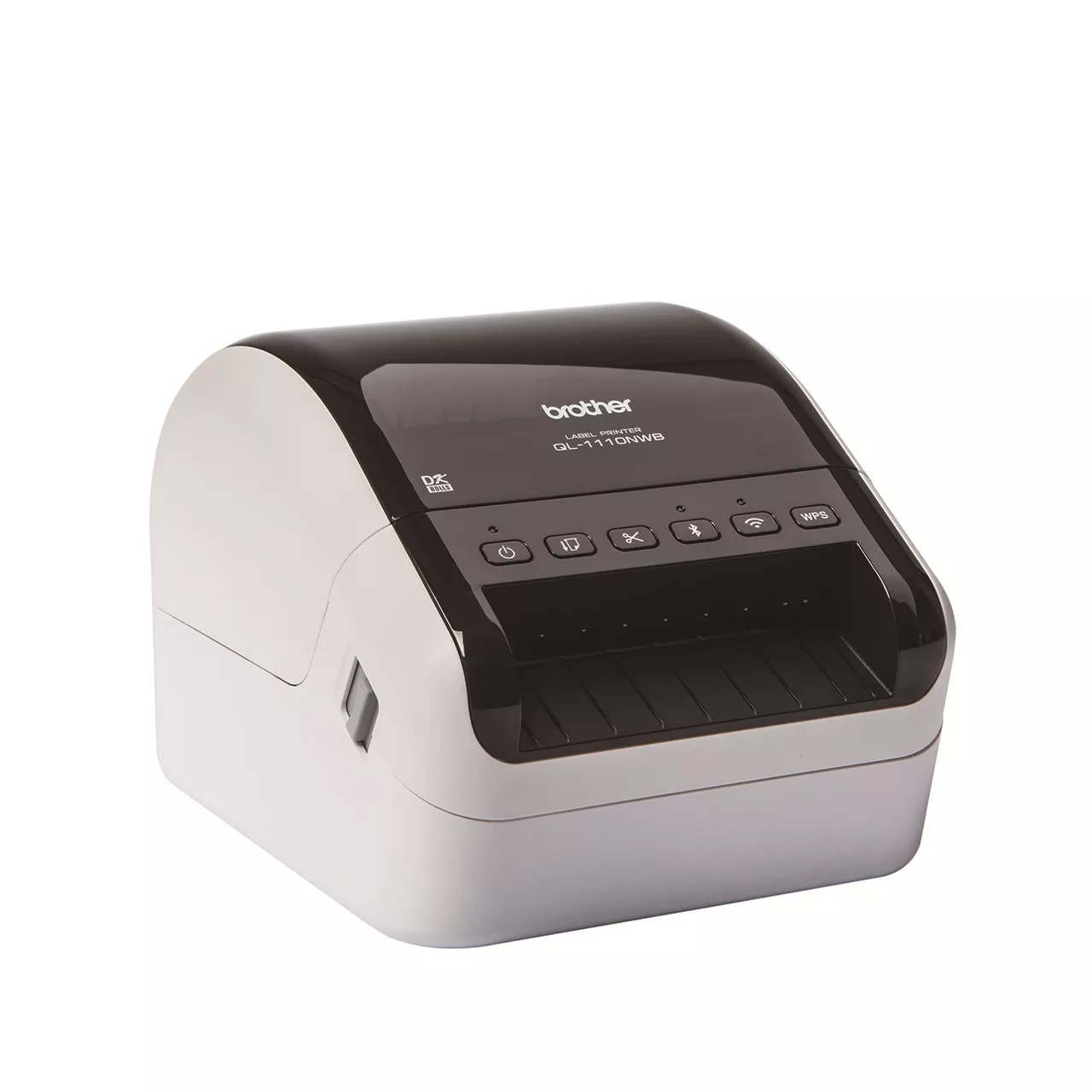

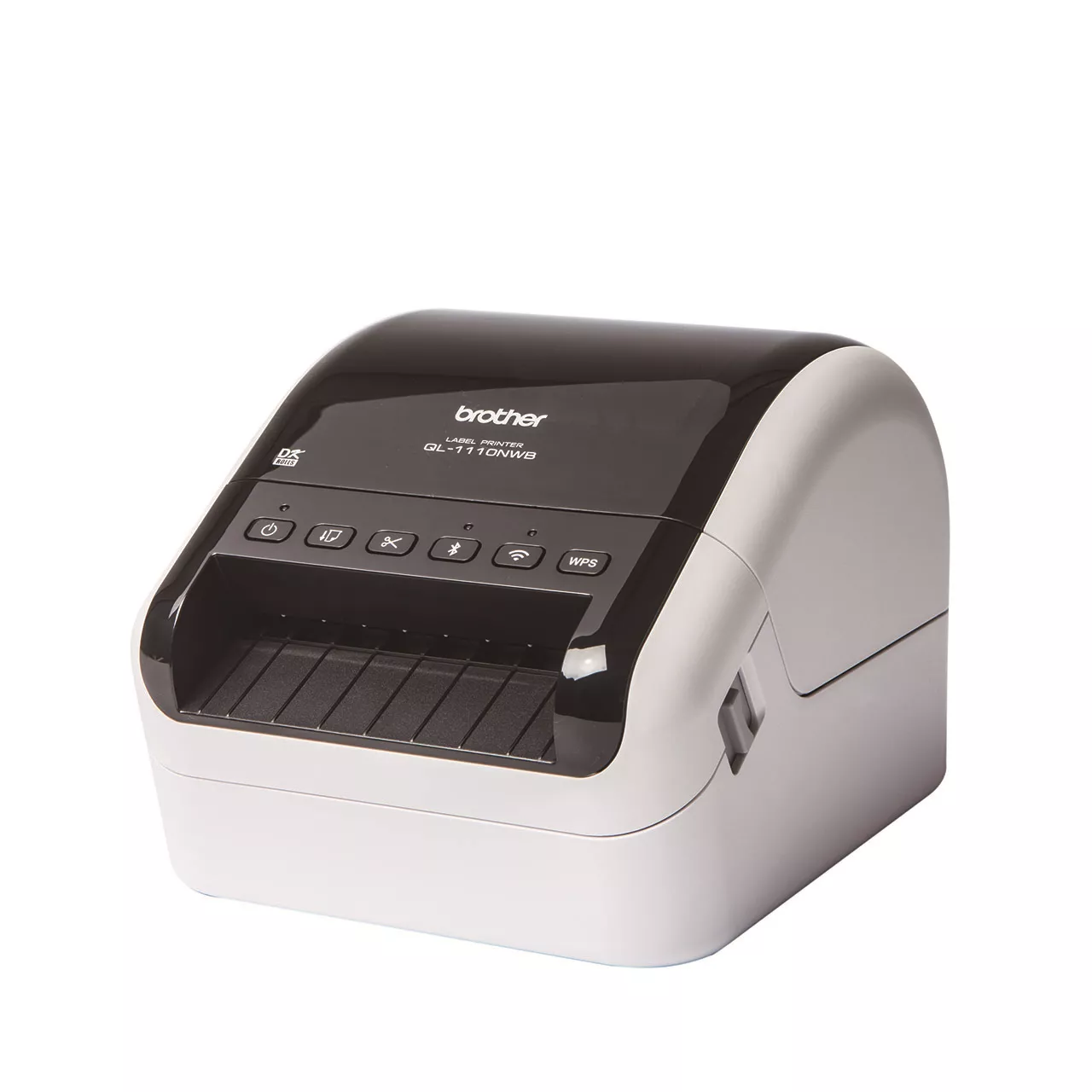

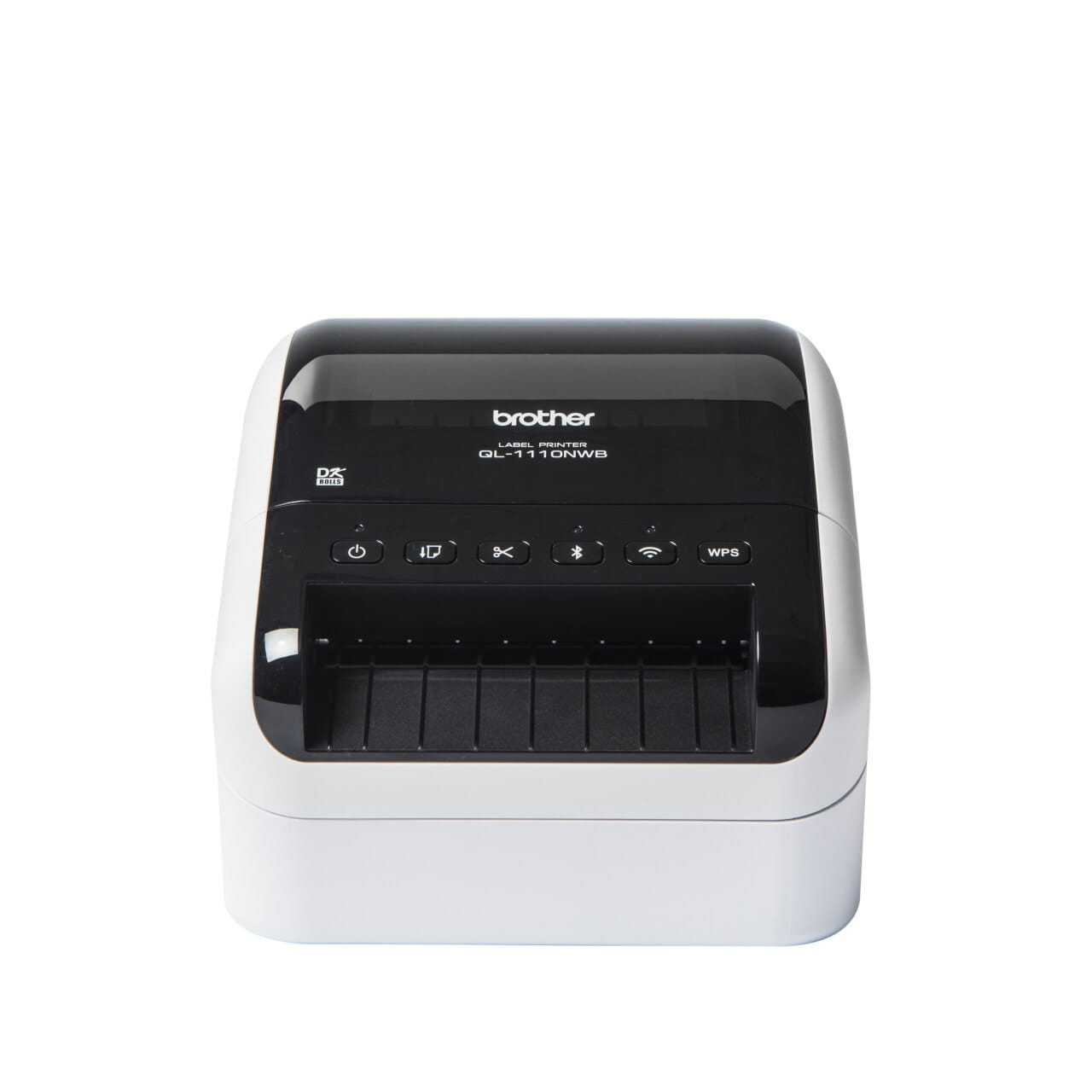

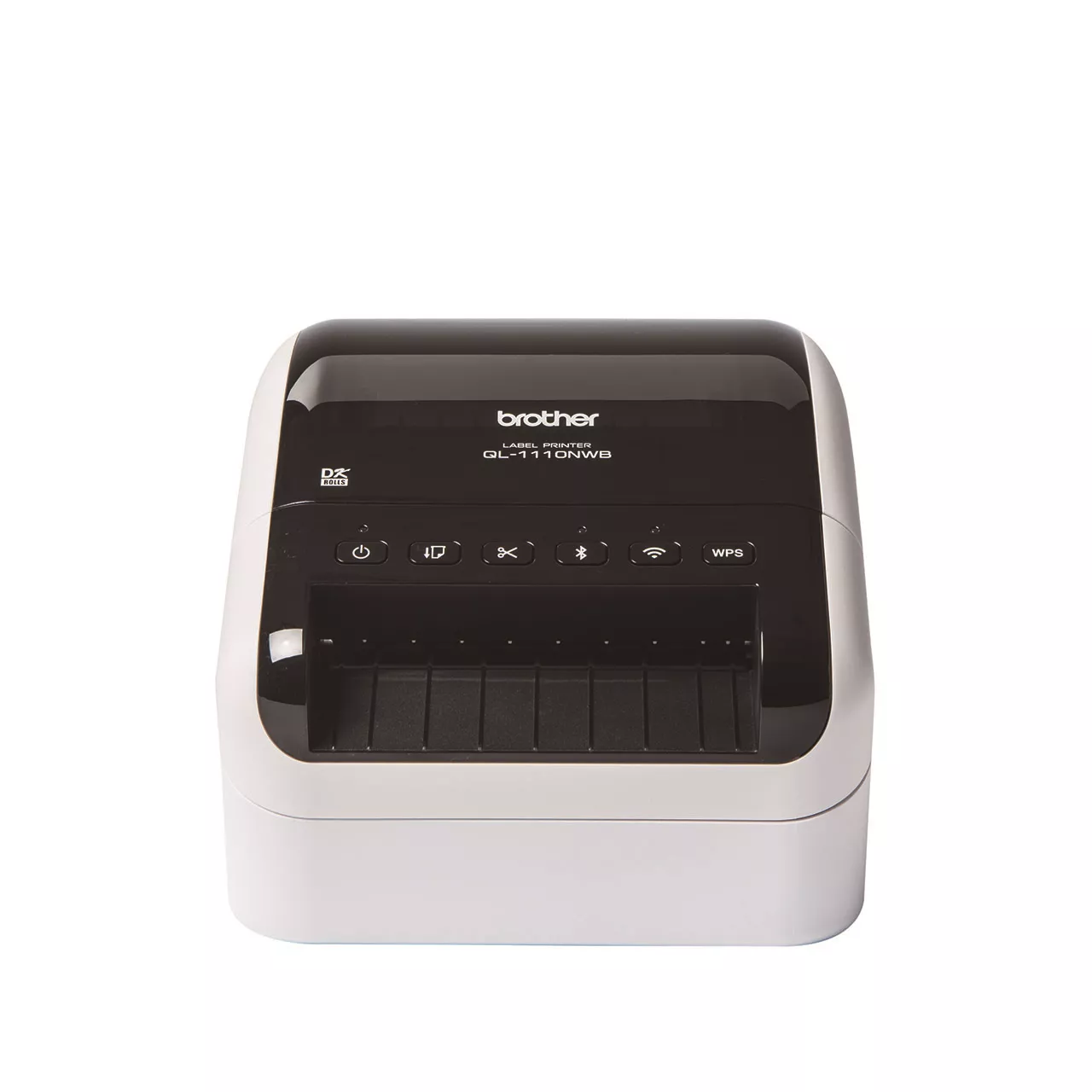

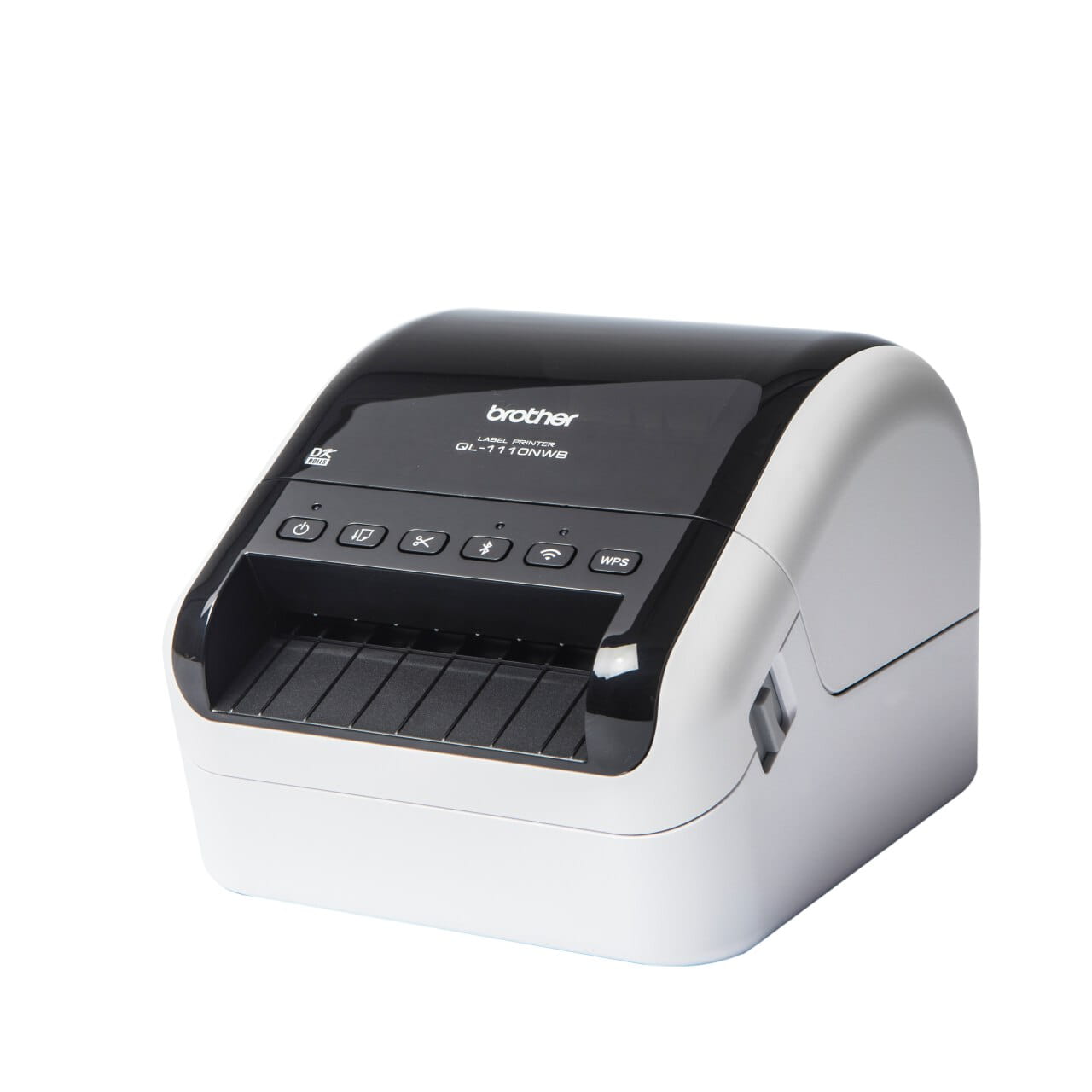

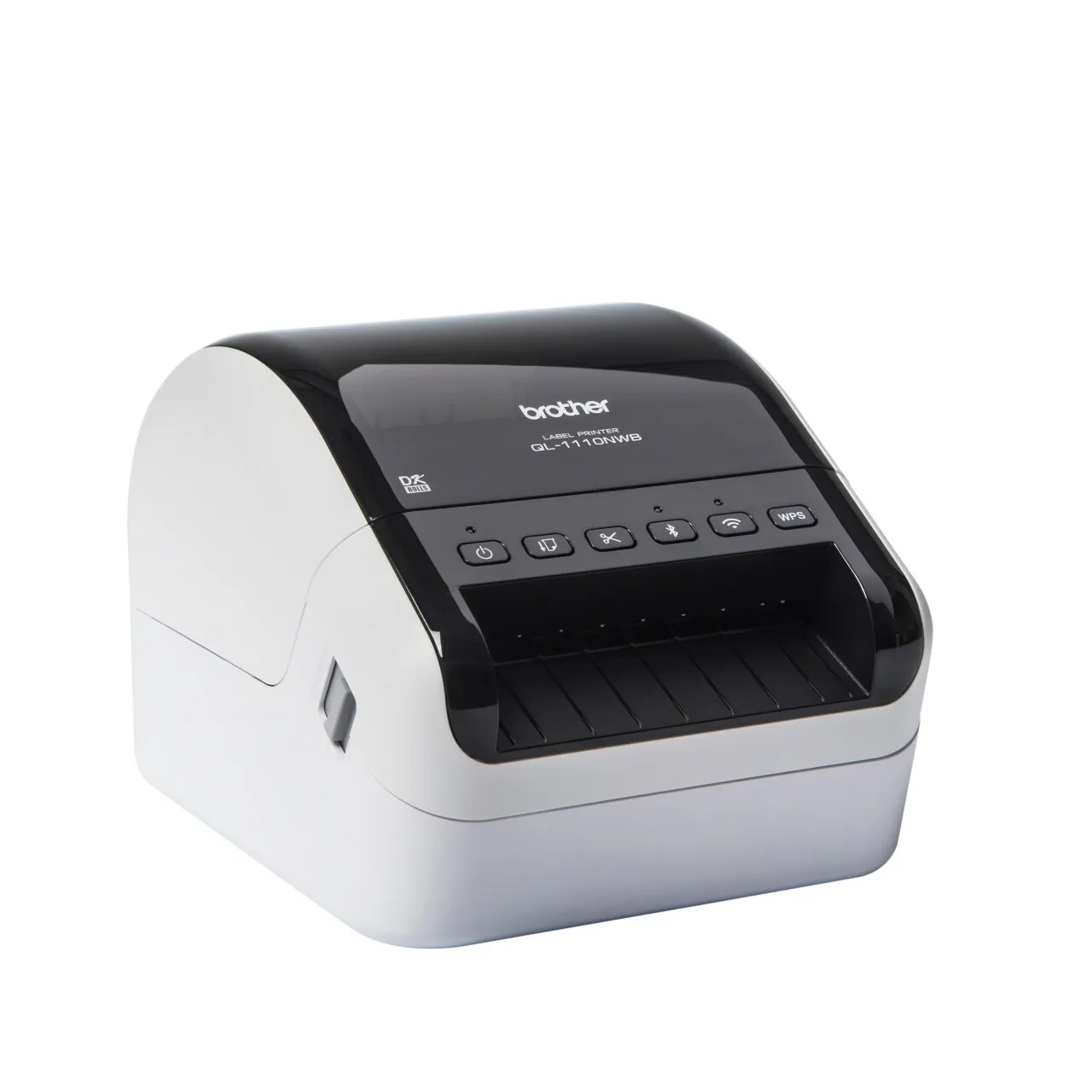

Professional wide format label printer with wireless networking
$599.00
- Maximum label width up to 103mm
- Wide range of connectivity options
- Template printing through USB host connected devices
- Print from desktop and mobile devices
- Print shipping labels from popular ecommerce platforms like Woocommerce, shopify, eBay and more
- Software Development Kits (SDKs) for Windows, iOS and Android
Information
Overview
Wide-format printing
Prints on labels up to 103mm
wide, capable of printing shipping postage labels for packages
Speedy printing
High speed printing of up to 69 labels per minute
Various Connectivity Options
PC, Mac, iOS+ and Android compatibility via USB, wireless, Ethernet and Bluetooth connectivity

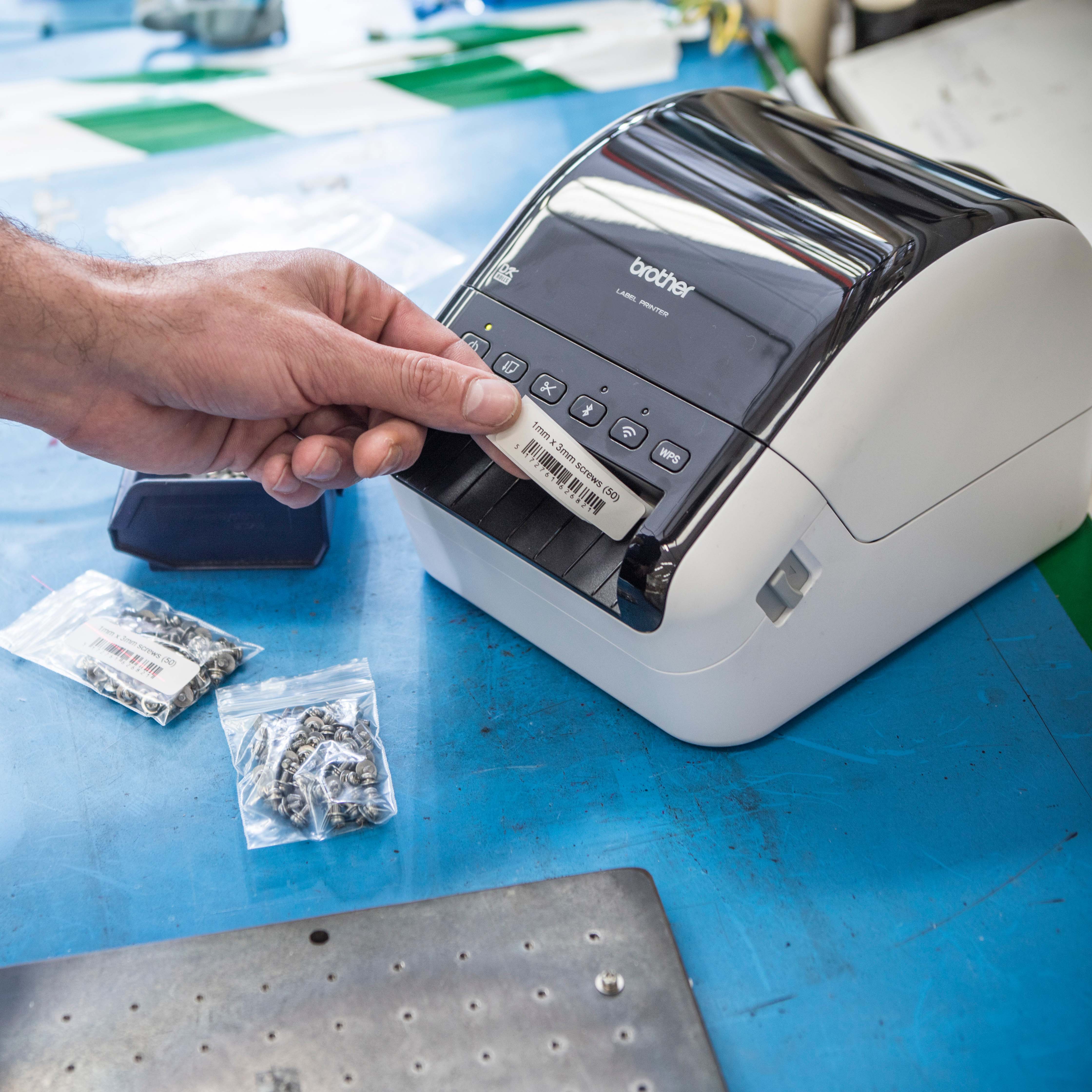

Various Label Options
Choose from a variety of die-cut or continuous labels and use the built-in cutter to trim your label to the precise length needed (up to three metres)
iPrint&Label App
Choose one of the pre-defined templates or quickly design your label from scratch using this free app - connect via Wi-Fi or Bluetooth
Software Development Kits
Compatible with Microsoft Windows, you can use our SDK’s to add label printing to your own solutions
Reduce Wastage
The Barcode Label Crop and Print feature automatically identifies and crops individual labels from an A4 sheet and prints each label or barcode one by one
Print an entire sheet of labels individually or select a section of labels using the snapshot feature

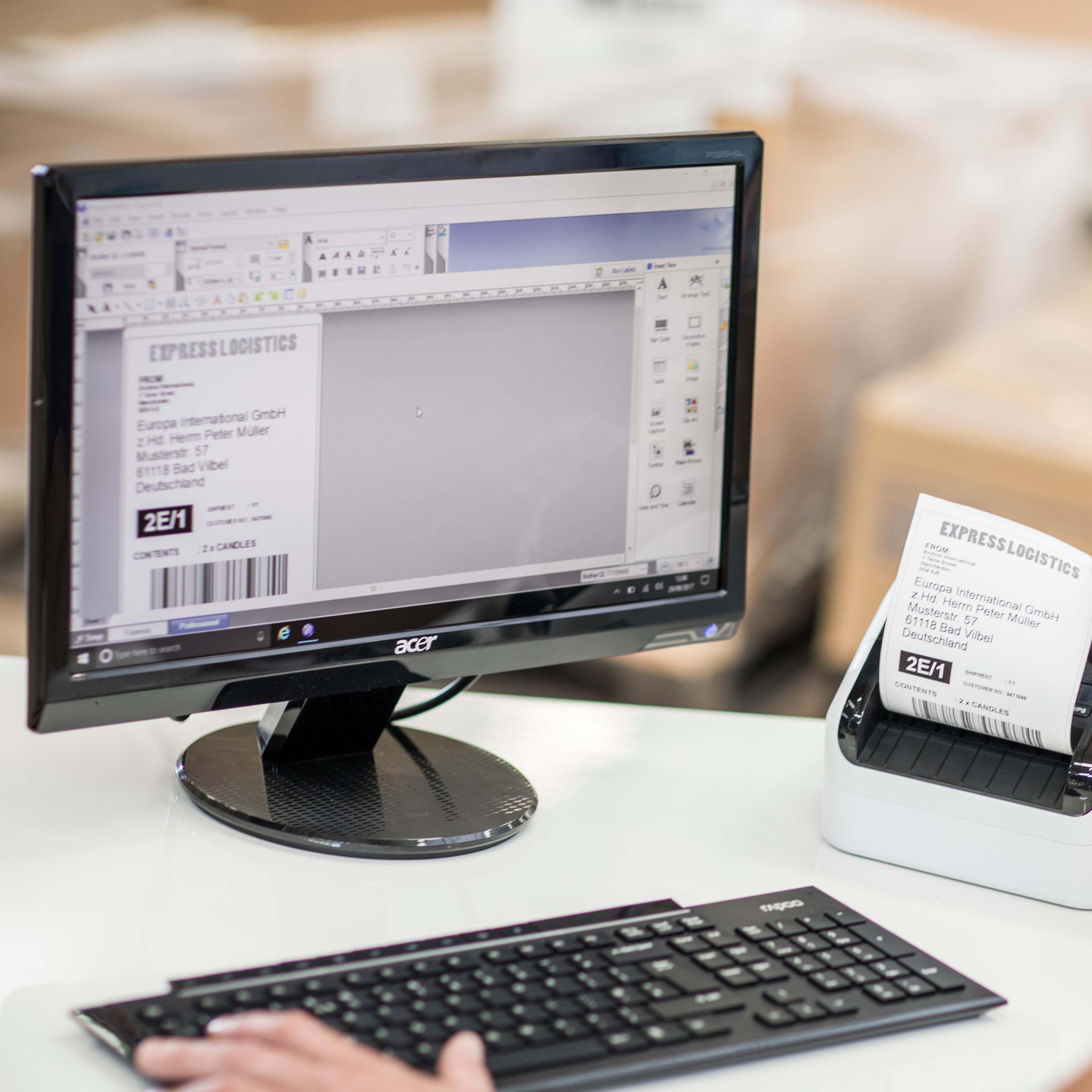

Professional Label Design
For advanced label design, download the FREE P-touch Editor software for barcodes, graphics and other information on your labels
Offering integration with Microsoft Word, Excel and Outlook, you can print labels directly from these applications
Specifications
Basic Specs
Display Type
LED: green, red and orange
Media Type
DK roll
Available Tape Widths
12 - 103.6mm
Product Dimensions (Width X Depth X Height)
222 × 170 × 151
Print Speed
Max 110mm/sec.
69 standard address labels / min
Warranty
3 years Return to Base Warranty
What's in The Box
Labeler, CD-ROM (Software/Drivers/User's Guide, ESC/P tools), USB cable, DK-11247 Starter roll (41 labels), DK-22205 (62mm Continuous Length Paper Tape) Starter roll (8 m), AC Power cord
Resolution
300 dpi / 1296 dots
Barcode
Yes
Numbering
Yes
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN IEEE 802.11b/g/n, Bluetooth
Media
Maximum Roll Width
12 - 103.6mm
Printing Width
Up to 101.6 mm
Functions
Cutter
Auto
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
7.8MB
255 templates
Power
Power Source
240V AC internal power supply
Auto Power-Off
Yes
Software and Apps
Included Software
12/21/2023
Win: P-touch Editor, P-touch Address Book, Printer Setting Tool, P-touch Update Software, P-touch Editor Lite, BarTender printer Drivers by Seagull¹ Mac: P-touch Editor, Printer Setting Tool, P-touch Update Software
Mobile Apps
12/21/2023
iPrint&Label, Mobile Transfer Express, Support Center, Print Service Plugin, Print SDK Demo
Software Development Kit (SDK)
iOS/Android
Template Transfer to Machine
7.8MB or 255 templates
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
