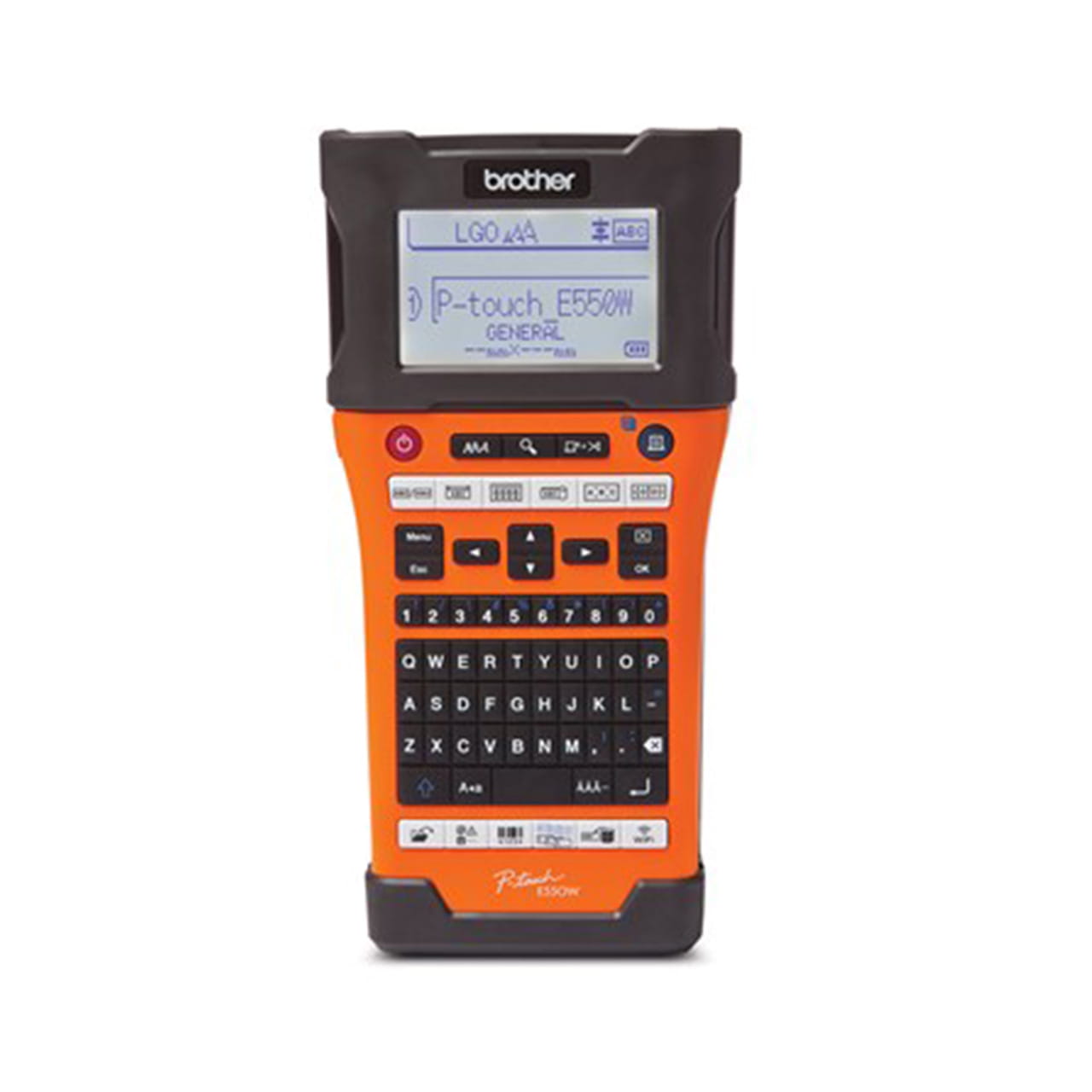

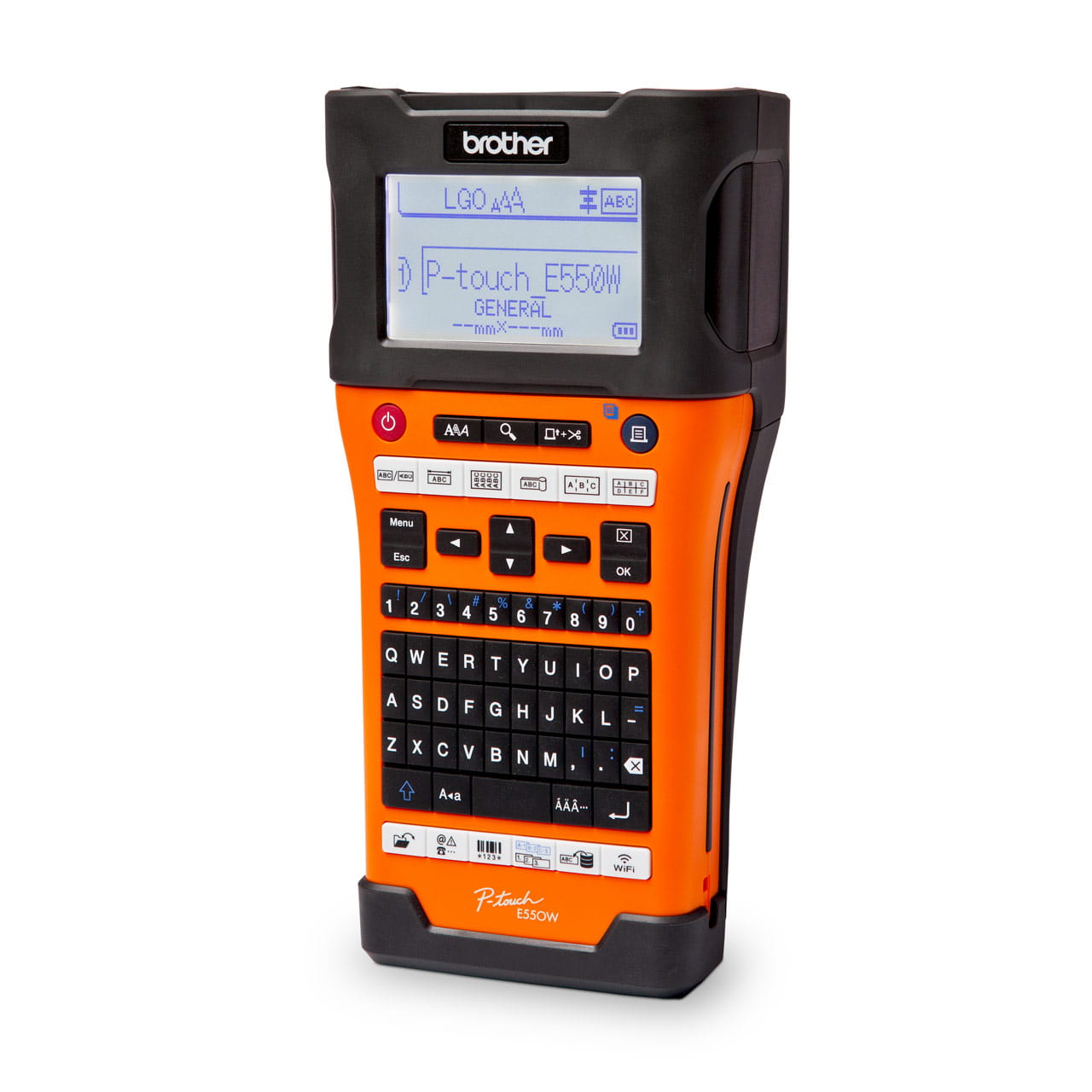

Wireless label printer for electrical industry
- 384 symbols including common electrical/datacom symbols
- PC connectable with USB and Wireless (Wi-Fi) capability
- Dedicated functions to create the most common electrical/datacom labels

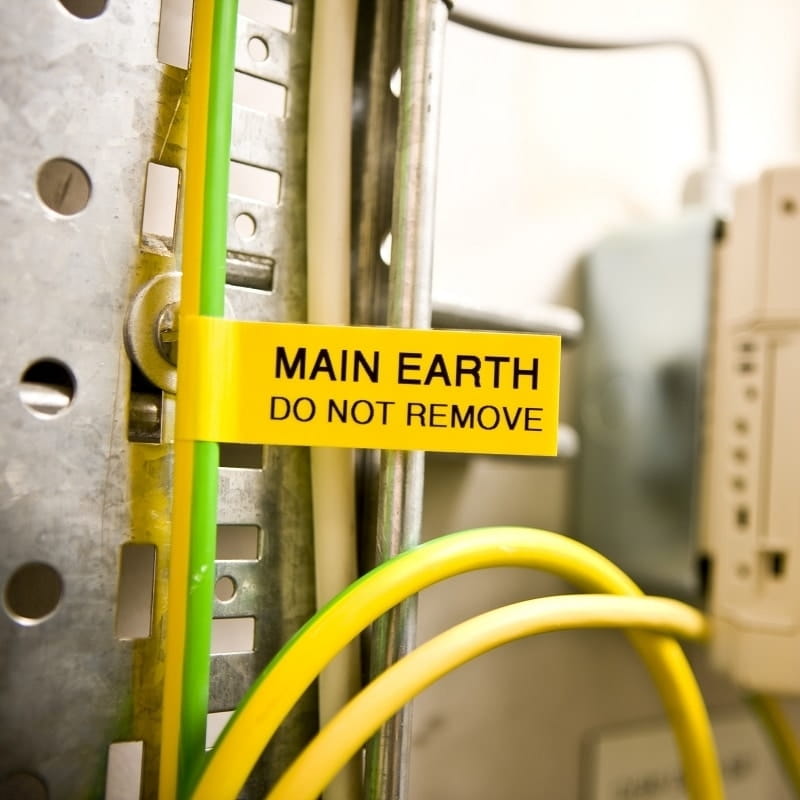

- Create professional, durable, laminated labels for cables, faceplates, consumer units and other electrical and datacom installations
Information
Overview

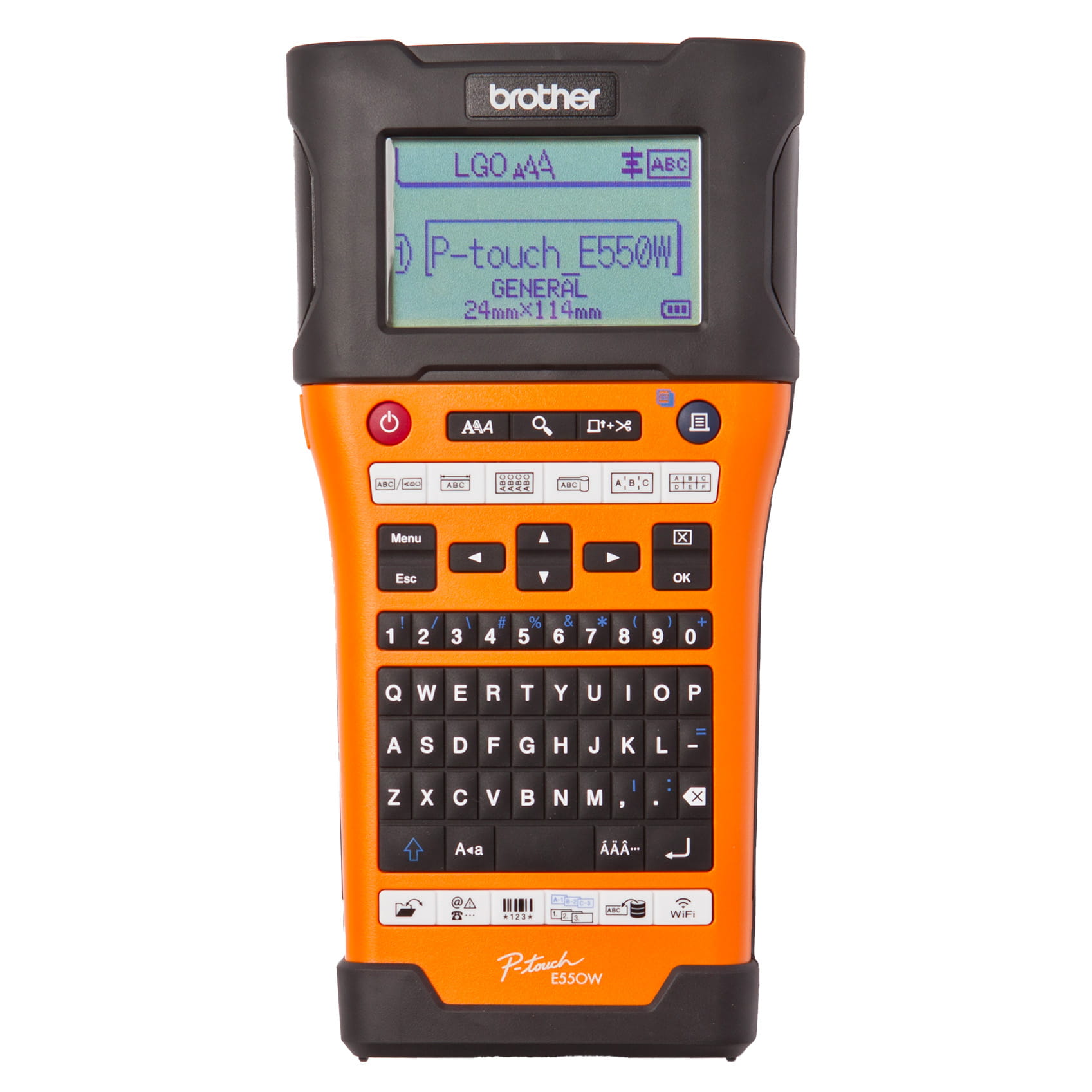

Sophisticated keypad with dedicated functions
300+ symbols including common electrical, datacom, AV, security and safety symbols

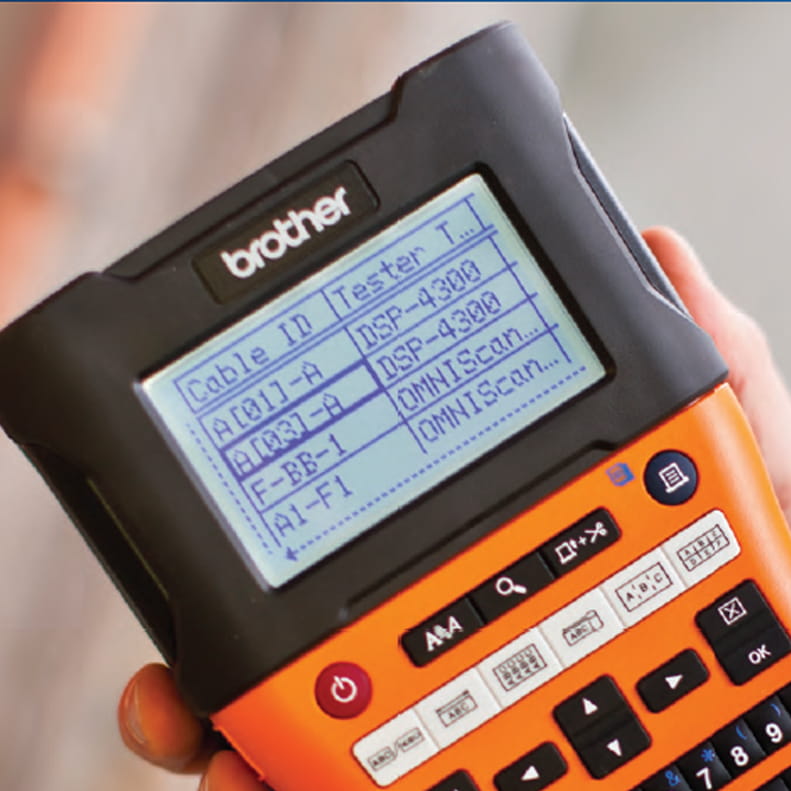

Preview before printing
Using the large, backlit graphic display, you can ensure your labels are exactly how you want them before you print

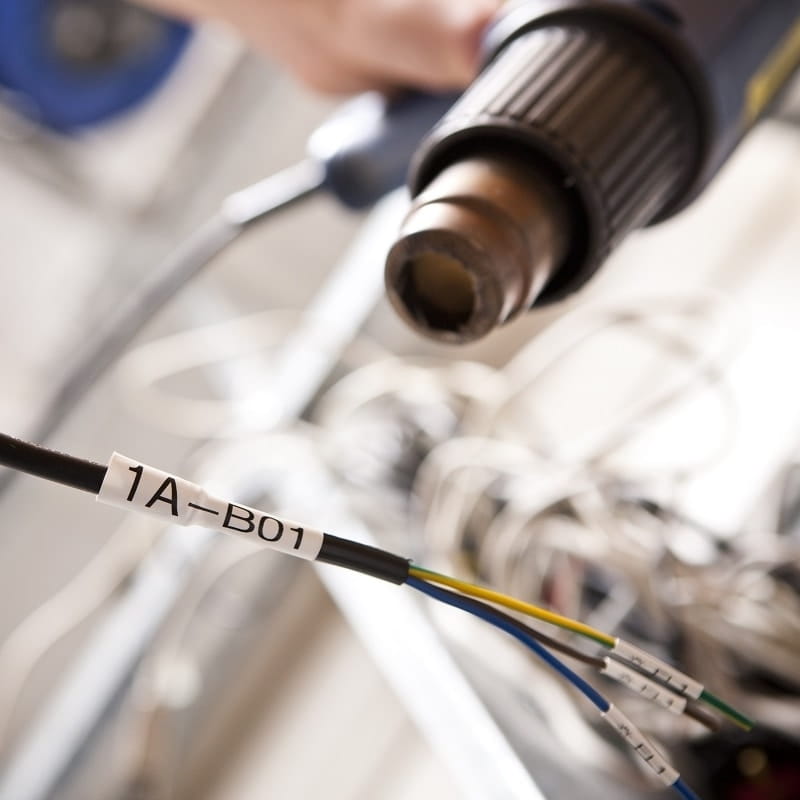

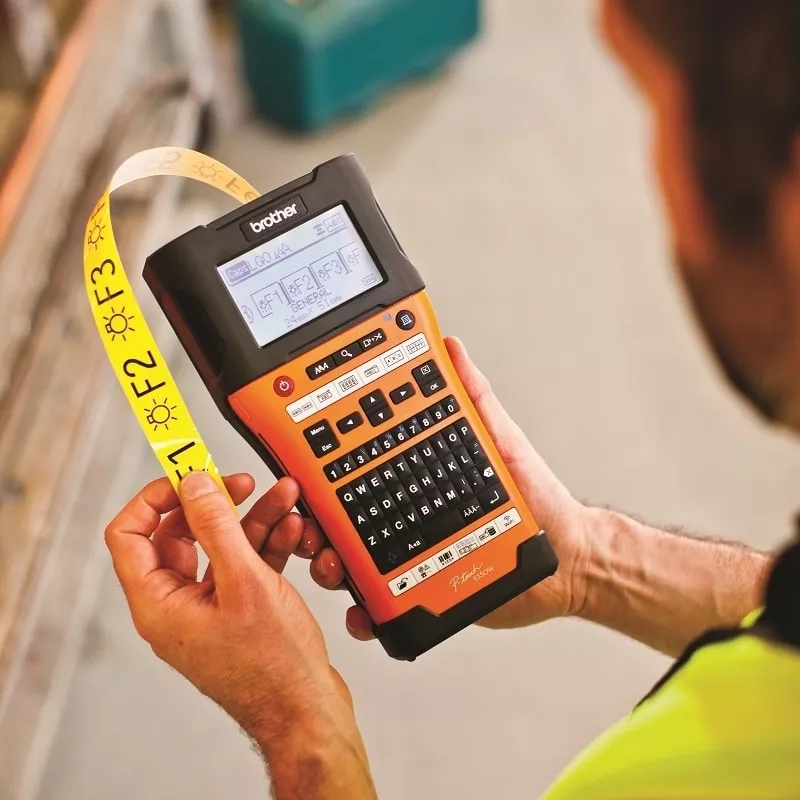

Label electrical components with ease

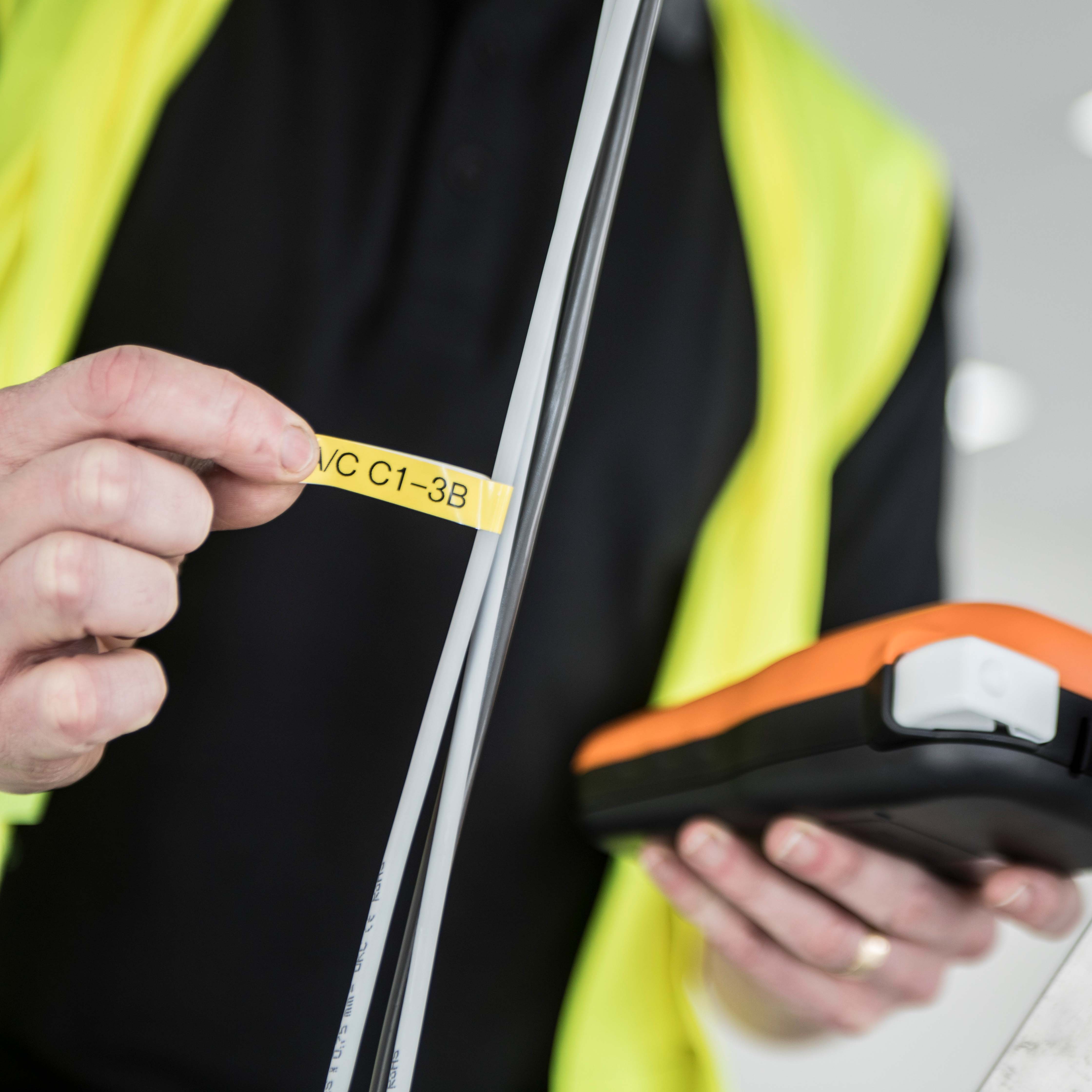

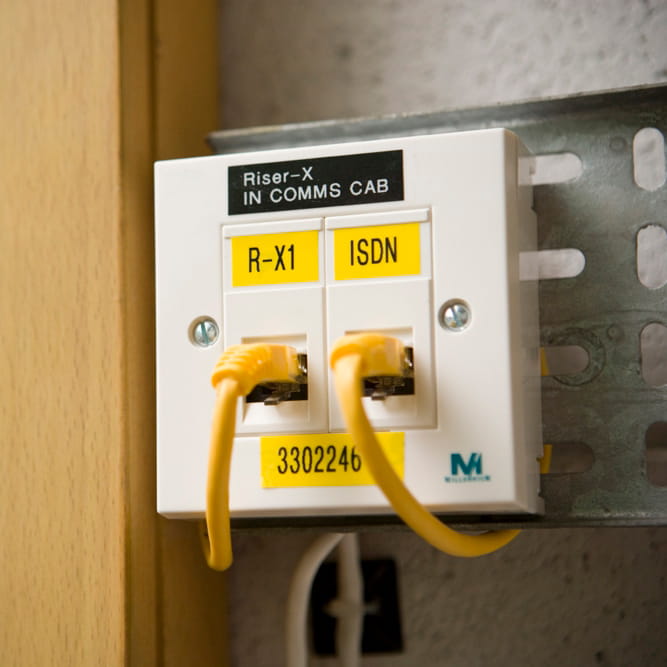

Easily create general, faceplate, cable flag/wrap, patch panel and punch down block labels

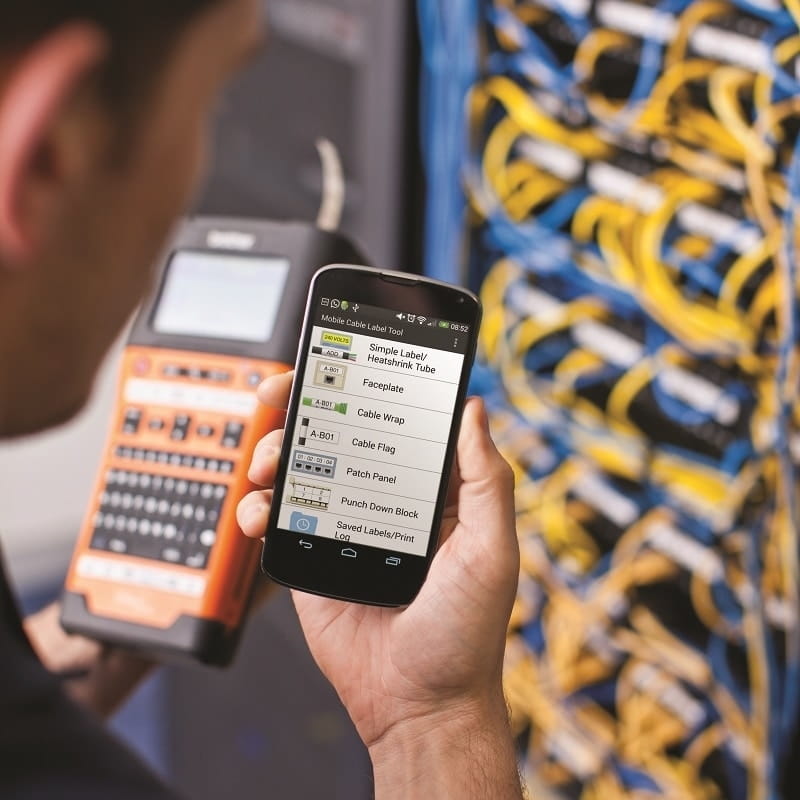

Multiple connectivity options
Upload data from your PC to print labels on-site, or print wirelessly from your smartphone or tablet using Wi-Fi and iLink&Label

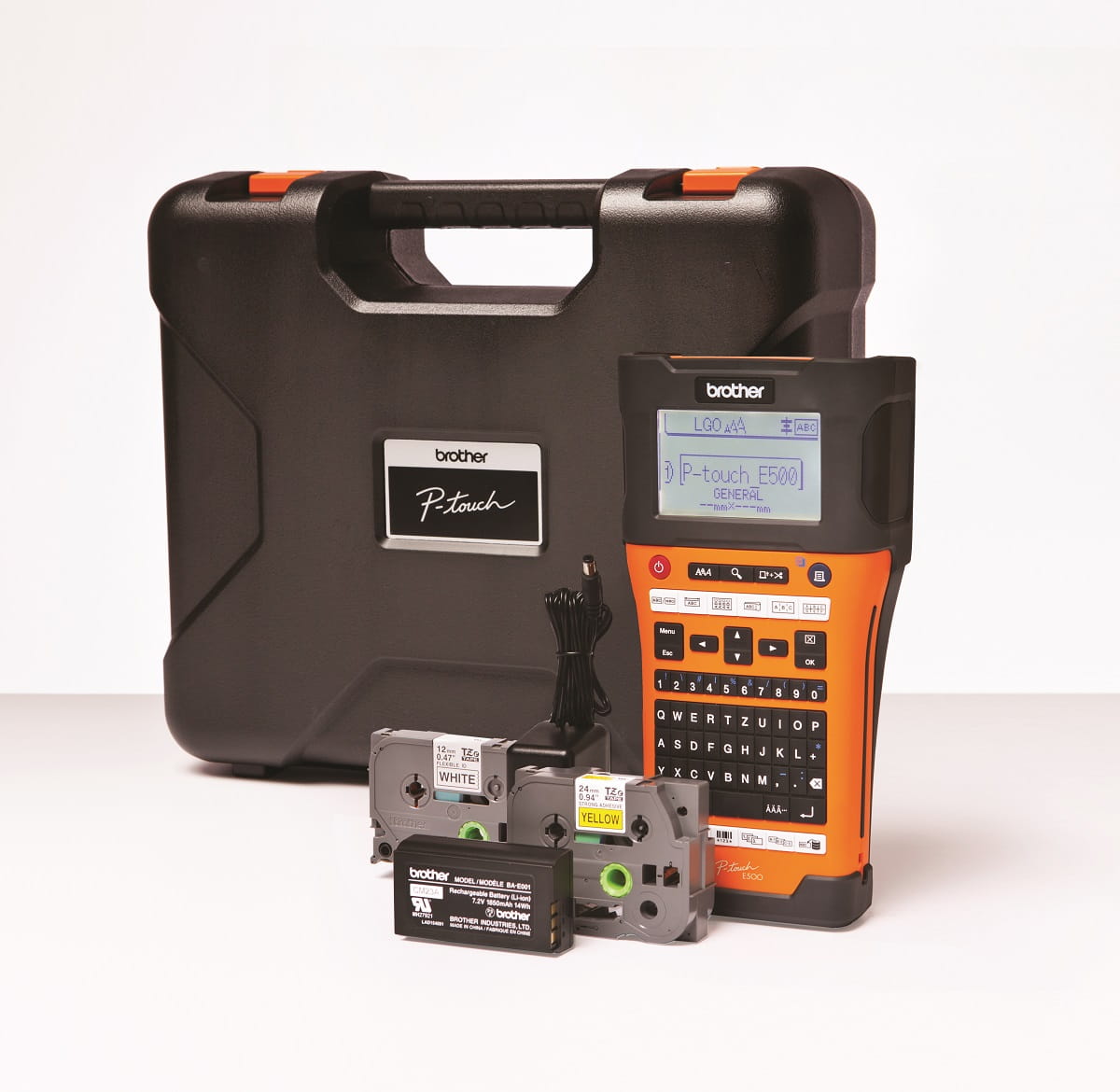

Handy accessories to get you started
With the availability of the starter cassette, AC adapter and electricians guide, the PT-E550WVP is ready to work straight out of the box
Super high speed printing
Fast thermal label printing with 30mm/sec print speeds
Fade resist labels made to last
Tested to the extreme, you can be confident that the TZe tape range will deliver a professional quality label that has been designed to last
Compatible with 3.5, 6, 9, 12, 18 and 24mm labels, the PT-E550WVP is a versatile asset to your worksite

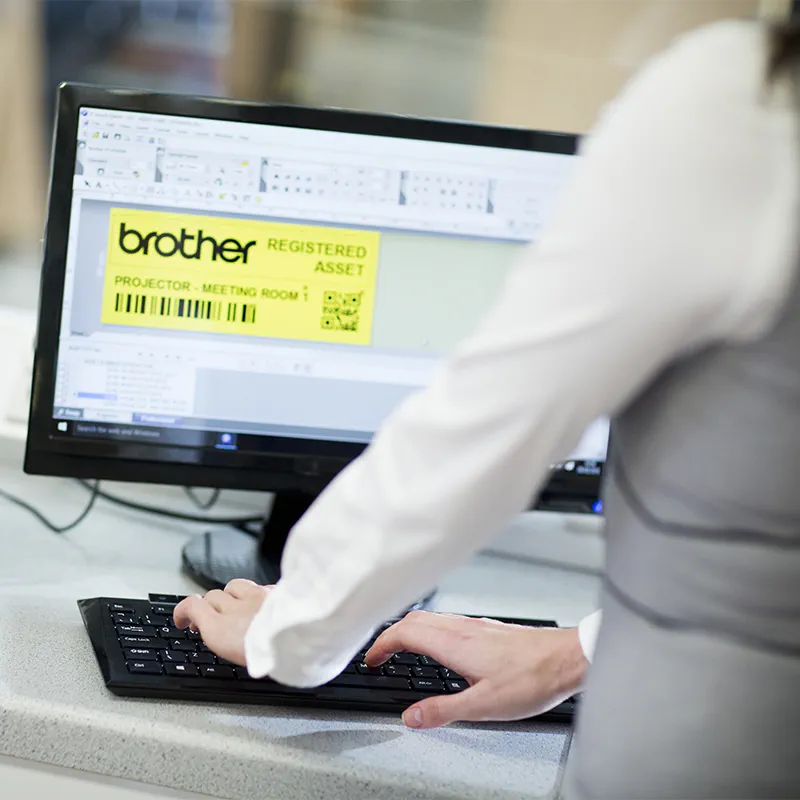

Professional Label Design

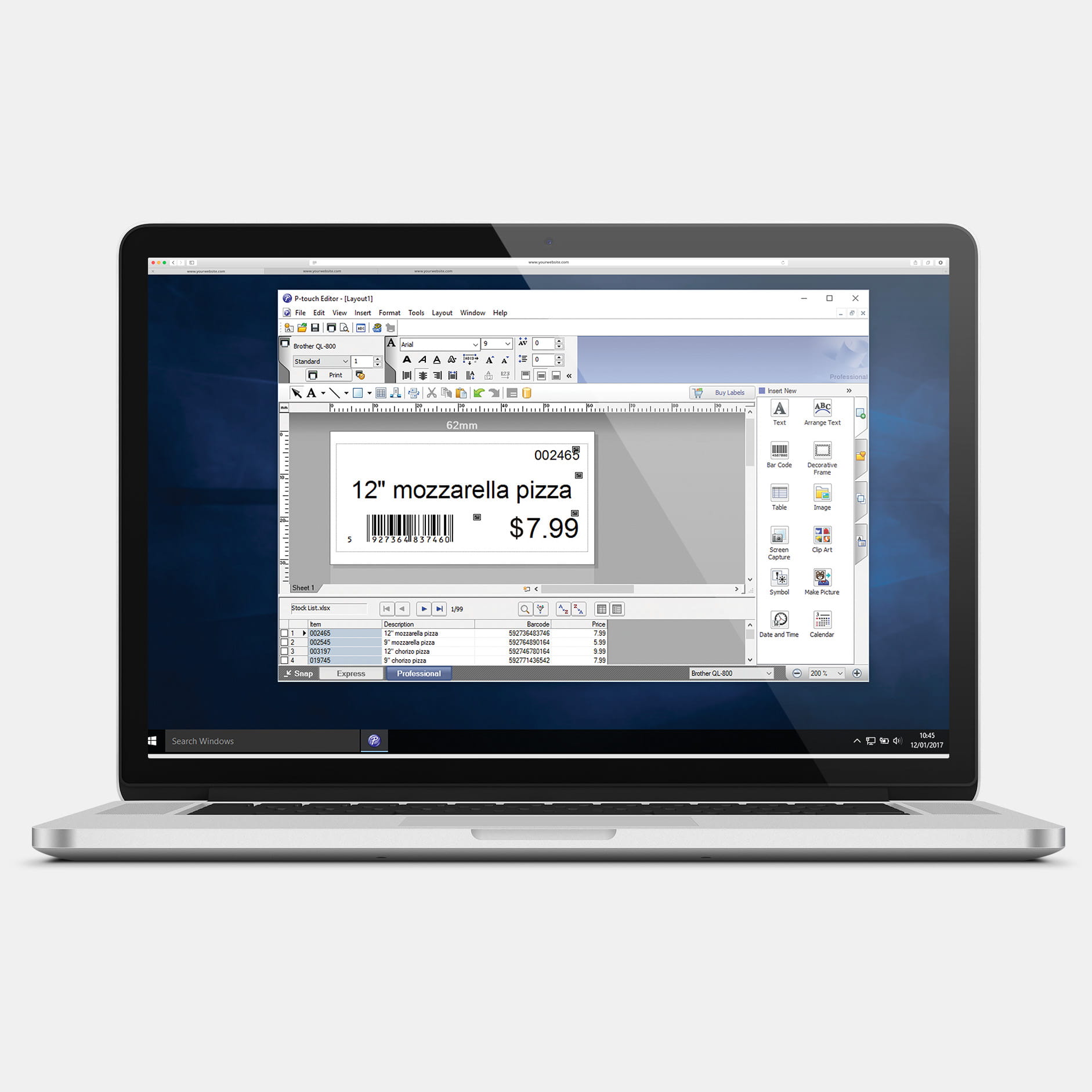

For more advanced label design, download the FREE P-touch Editor software for barcodes, graphics and other information on your labels
Offering integration with Microsoft Word, Excel and Outlook, you can print labels directly from these applications
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
15 characters x 2 lines and guidance area
(128 dots x 64 dots)
Media Type
TZe tape, HSe tape
Available Tape Widths
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm
Product Dimensions (Width X Depth X Height)
125.8 mm × 94.1 mm × 249.9 mm
Weight
0.92 kg
Print Speed
30 mm/sec
Warranty
3 years Return to Base Warranty
What's in The Box
PT-E550W, TZe-Tape 12mm (Black on White Flexible ID, 8 Mtrs), AC adapter, Li-ion battery pack, USB mini cable, Wrist strap, Software CD, Quick labeling guide, and/or patch panel ruler, Protective carry case
Resolution
180 dpi
No. Of Printable Lines
24 mm tape: 1 - 7 lines;
18 mm tape: 1 - 5 lines;
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines;
3.5 mm tape: 1 line
Number of Characters
591
Number of Symbols
384
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
Yes
Connectivity
Connectivity
USB, Wireless LAN
Media
Maximum Tape Width
Up to 24 mm
Maximum Roll Width
3.5mm up to 36mm
Functions
Cutter
Auto (half and full)
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Maximum 99 files (local)
Maximum 99 templates, databases, and images each (total of 6MB)
Memory Buffer Size
Maximum 18,297 characters
Power
Power Source
6 AA alkaline batteries (LR6), 6 AA Ni-MH
rechargeable batteries (HR6), Li-ion Battery (BA-E001), or AC
adapter (AD-E001)
Auto Power-Off
6 AA alkaline batteries (LR6)/6 AA Ni-MH rechargeable
batteries (HR6): 20 min;
Li-ion battery (BA-E001): 30 min;
AC adapter (AD-E001): 60 min
Software and Apps
Included Software
12/12/2023
Windows: P-touch Editor 5, Printer Setting Tool, Driver Mac: P-touch Editor 5, Printer Setting Tool, Driver
Mobile Apps
12/12/2023
iPrint&Label, Mobile Transfer Express, Support Center, Pro Label Tool, iLink&Label, Print SDK Demo
