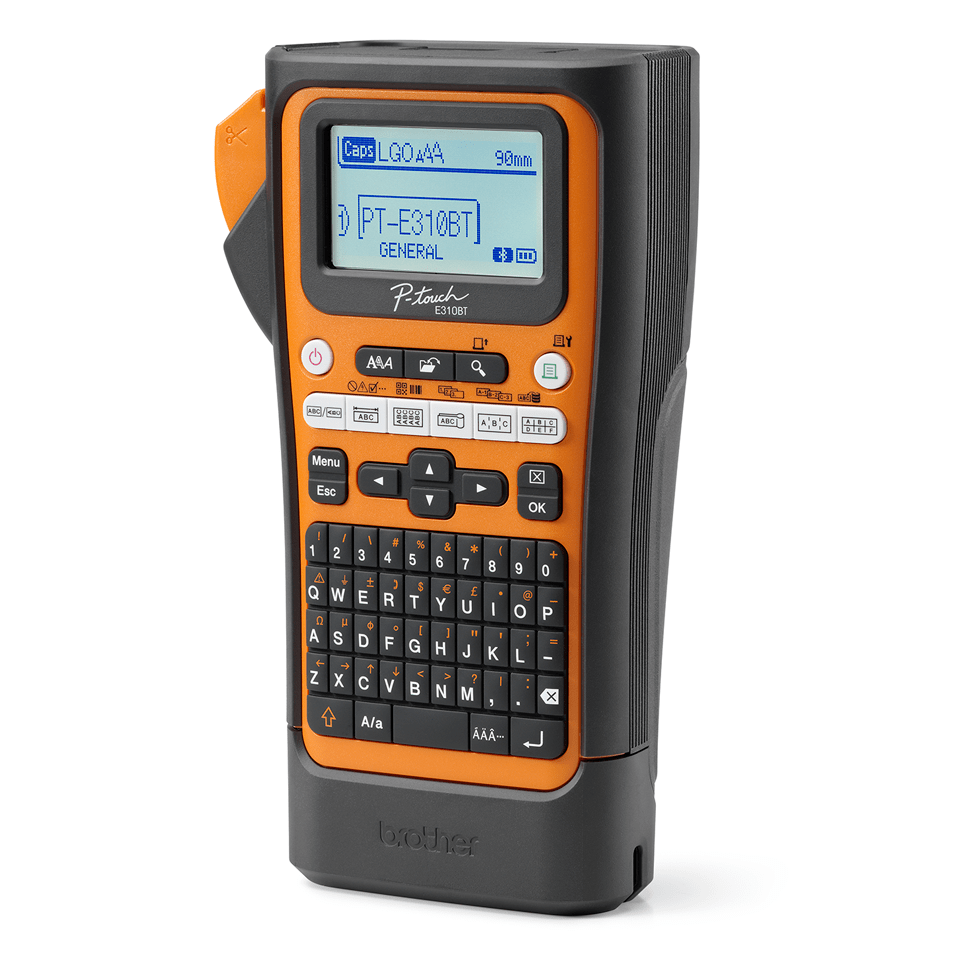

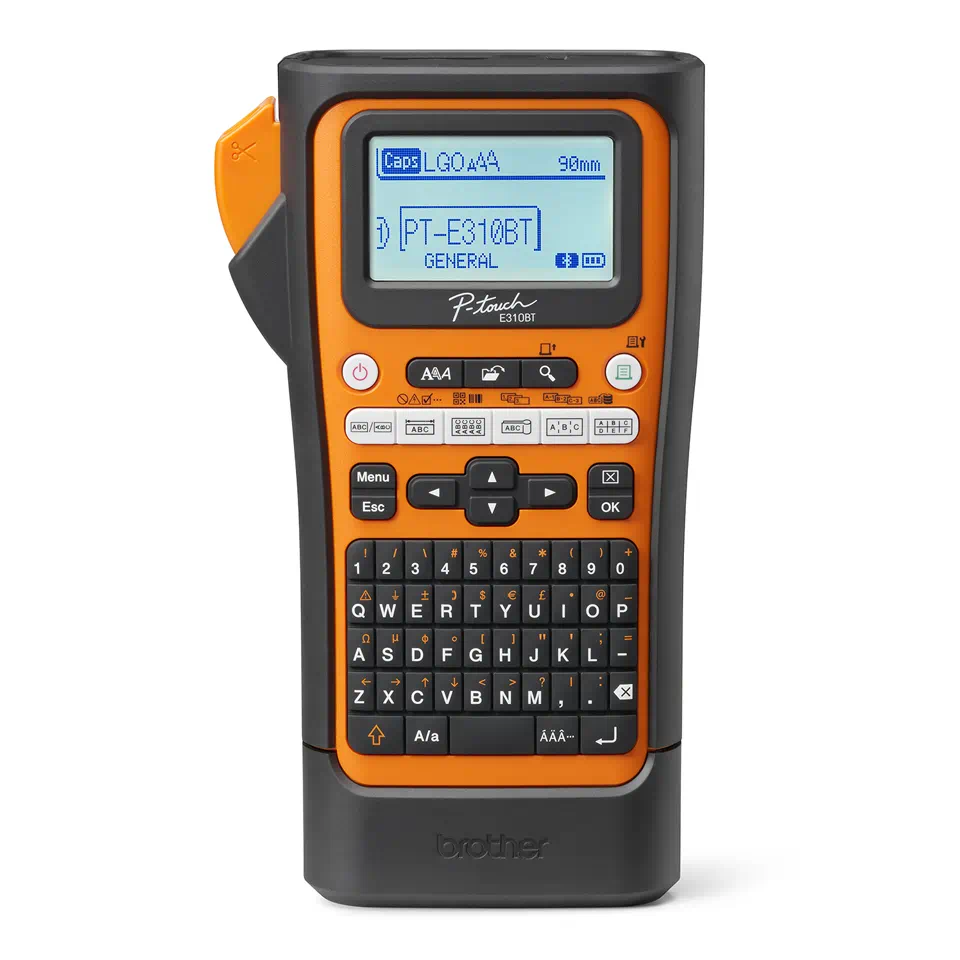

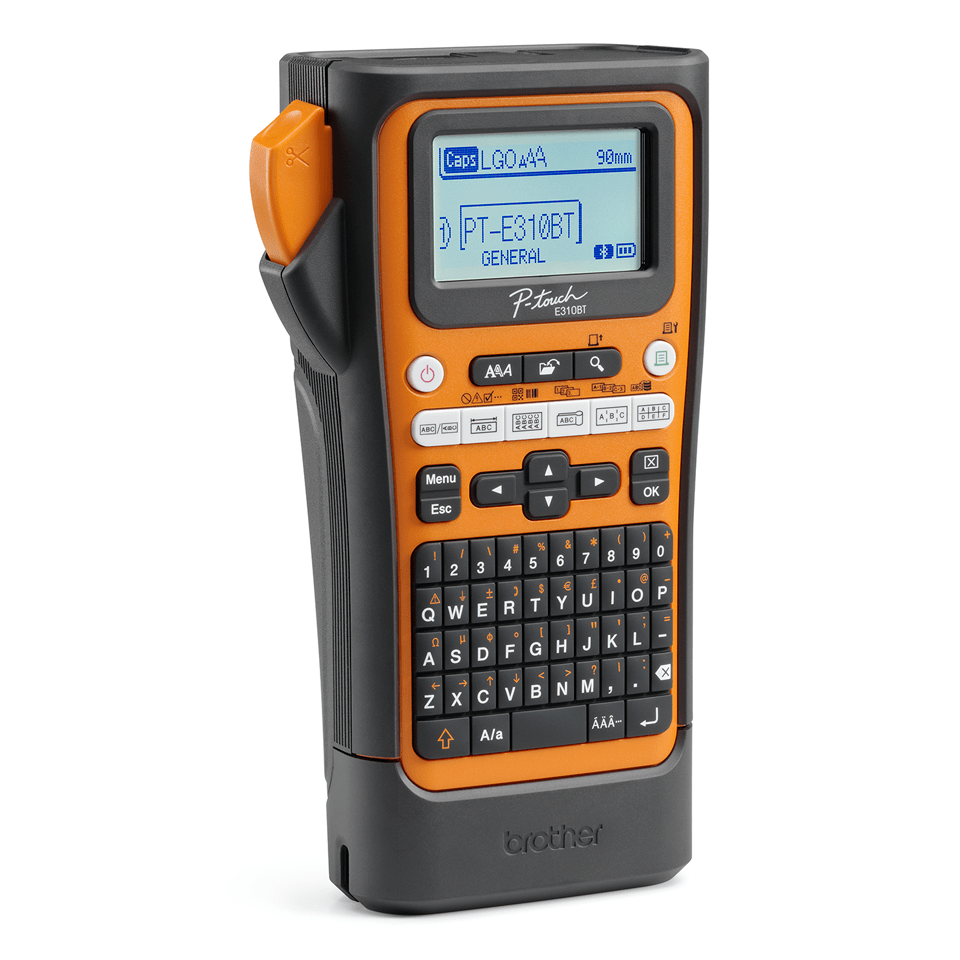

Handheld Pro Labelling Machine
- 6x one-touch industry application keys for general, faceplate, cable flag/wrap, punch down block and patch panel identification
- Fast print speeds of up to 20mm/sec and and built-in industrial strength cutter with cut/pause to help reduce waste
- Pro tapes available including strong adhesive, flexible ID, heat shrink tubing and self-laminating
- USB connectable for PC printing, Bluetooth connectivity for mobile devices
- Comes with Rechargeable Li-ion Battery, USB A to C cable, 1x 18mm TZe tape, hand strap and hard carrying case
- Print up to 18mm wide durable labels
Information
Overview
Reliable and efficient labelling partner
Your go-to, no-nonsense labelling for your everyday electrical and network tasks. The PT-E310BTVP is a reliable workhorse that gets the job done right, every time, with essential features and Brother’s trusted durability.

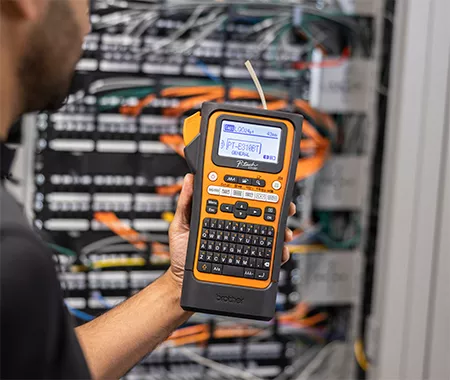

Compact & portable on-the-go
Built for the Aussie tradie on the move. The PT-E310BTVP is compact and easy to carry, making it perfect for on-site labelling wherever the job takes you. Grab it and go, knowing you’ve got a reliable labelling solution in your kit.
Built-in industrial strength cutter
Built tough for the worksite. The PT-E310BTVP features a robust, manual cutter design for industrial use. Get clean cuts and minimise waste with the cut/pause function, making your label tape go further.

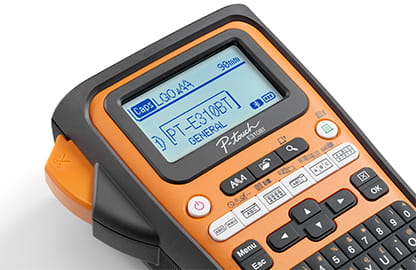

Intuitive and easy to use
Labelling at your fingertips. The Brother PT-E310BTVP is designed to be easy to use, right out of the box. With built-in features and dedicated one-touch functions, spend less time fiddling with settings and more time getting the job done - you’ll be labelling like a pro in minutes.
Versatile TZe laminated tapes
From scorching heat to pouring rain, your labels need to endure all extremes. Brother’s TZe range of laminated tapes are waterproof, abrasion and chemical-resistant - built and tested to withstand any conditions they're thrown into. It’s even compatible with our HSe heat shrink tubes to make cable labelling a breeze.
At your side support
Wherever you are in Australia, Brother offers free customer care for the lifetime of your product. Our team of experts are also at your side to ensure this is the right product for your requirements. Click here to enquire.

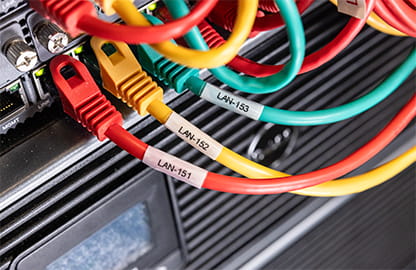

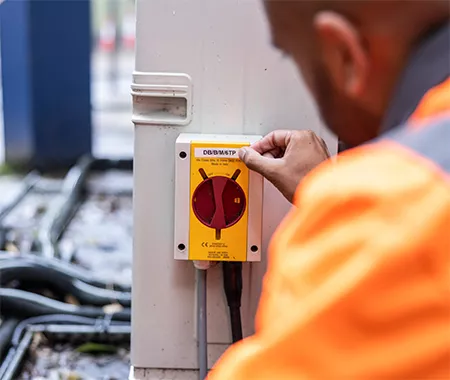

Industry-compliant labels
Safety and identification are critical for any electrical or datacom installation that want to stay compliant.
This includes danger & warning signs, switch gear, electrical wires, consumer units, patch panels, racks & cabinets, CAT5E / CAT6A network cabling and more.
Pro Label Tool app
Design and create labels made for industrial work, right from the palm of your hand using the conveniently built-in Bluetooth connectivity.
Easily access industry-standard templates or create, customise and serialise, all with one easy-to-use mobile app. In the field, on-the-go, and anywhere the job takes you.

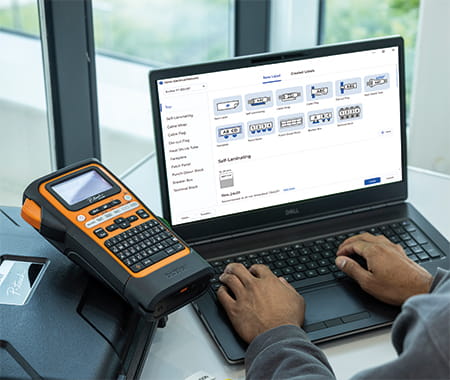

P-touch Editor 6.0
Supplied as standard, you can create your own custom labels with logos and barcodes using our powerful, easy-to-use label design software.
With newly upgraded features, increased functionality and an overall user interface refresh, P-touch Editor 6.0 provides a truly connected solution.

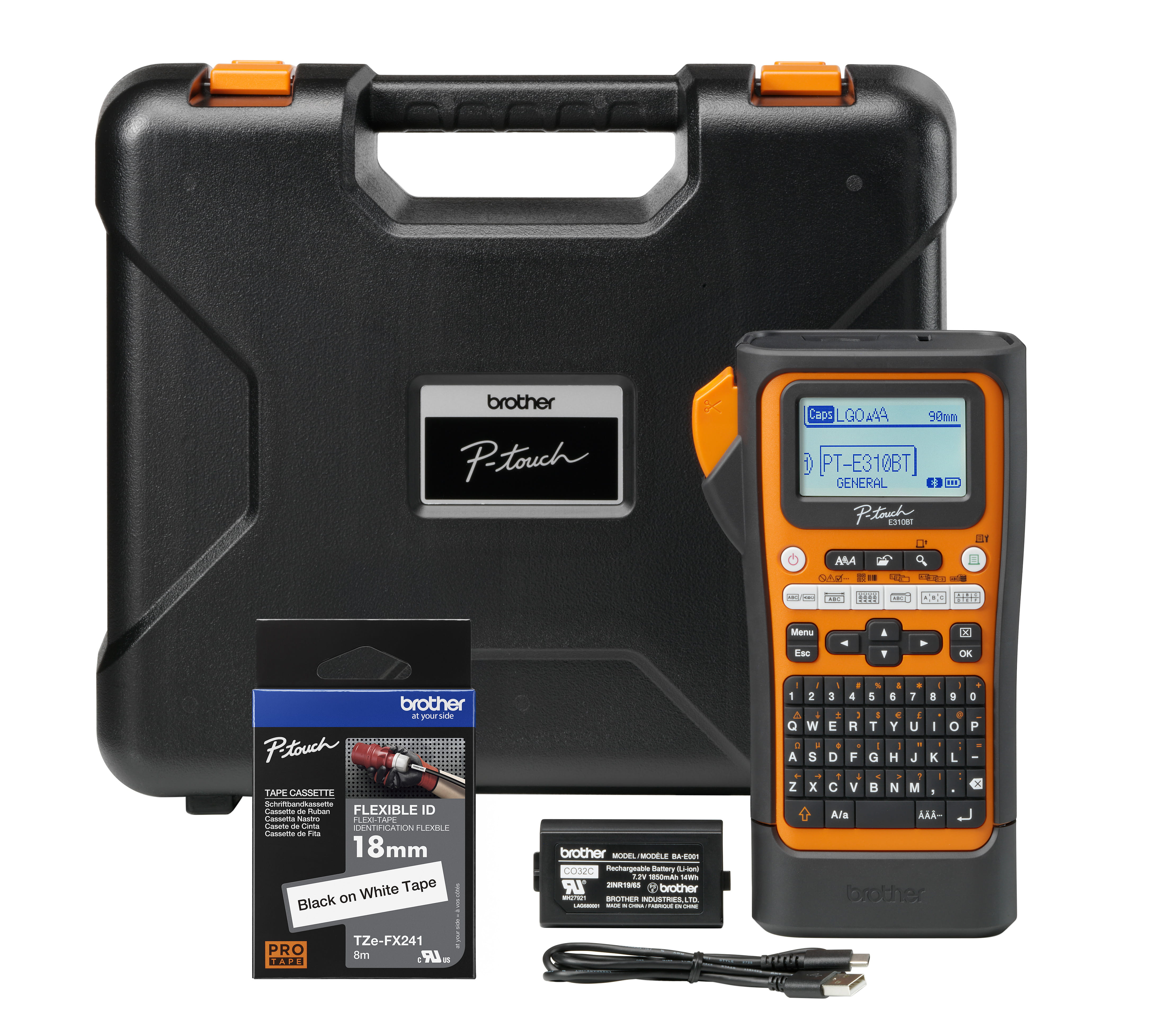

What is included?
- Carry case
- Hand strap
- Rechargeable Li-Ion battery
- USB Type A-C cable (1m, black)
- 1x 18mm black on white flexible adhesive tape
- Ruler card & sleeve
- Documentation
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 3 lines
(128 x 56 dots)
Media Type
TZe, HSe (Heat-shrink Tube)
Available Tape Widths
TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm
Product Dimensions (Width X Depth X Height)
135 mm × 235.5 mm × 70.3 mm
Weight
0.785 kg
Print Speed
Using AC Adapter: Up to 20 mm/sec, Using Battery: Up to 20 mm/sec
Resolution
180 dpi / 112 dot
No. Of Printable Lines
18 mm tape: 1 - 5 lines
12 mm tape: 1 - 3 lines
9 mm tape: 1 - 2 lines
6 mm tape: 1 - 2 lines
3.5 mm tape: 1 line
Number of Characters
684 characters
Number of Symbols
476
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code(moder 1,model 2,micro QR,GS1)
11. Datamatrix
※GS1 QR codes will be transferred as micro QR codes.
1D barcodes only for transferred templates:
1.ISBN-2
2.ISBN-2
3.POSTNET
4.Laser Bar Code
5.GS1 DataBar(RSS)
6.Inteligent Mail Barcode
2D barcodes only for transferredtemplates:
1. PDF417
2.MaxiCode
3. AztecCode
4.GS-1 Composite
Numbering
Yes (1 - 99)
Connectivity
Connectivity
USB version 2.0 (Full Speed), Bluetooth 5.0 (SPP/iAP)
Media
Maximum Tape Width
Up to 18 mm
Printing Width
Up to 15.8 mm
Functions
Cutter
Manual
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Up to 99 files
Memory Buffer Size
Up to 1800 characters
Power
Power Source
Rechargeable Li-ion Battery (BA-E001)
Optional: AC Adapter for USB Type-C (PA-AD-004)
Auto Power-Off
Li-ion Battery (BA-E001): 20 minutes
AC Adapter for USB Type-C (PA-AD-004): 20 minutes
Supported Operating Systems
Supported OS
Windows 10, 11
