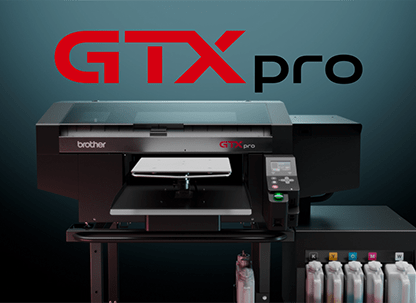

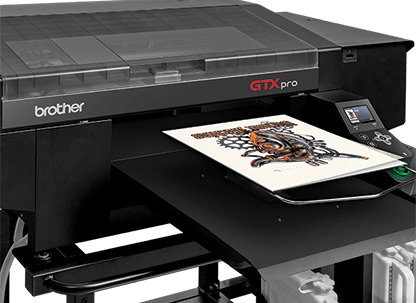

High-Volume Hybrid DTG with DTF Printing
- Direct to garment and direct to film printing
- User friendly operation
- 40.6cm x 53.3cm maximum print size
- Adjustable platen height system
- Brilliant colour reproduction
- OKEO-TEX® certified Innobella Textile Inks
Information
Overview

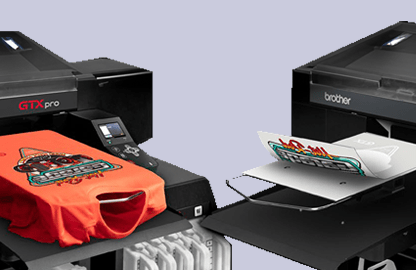

Versatile Printing
Take advantage of bothe Direct to Garment (DTG) and Direct to Film (DTF) technology for various applications. Print on natural fibres with ease and let your designs shine - even the harder to reach placements!

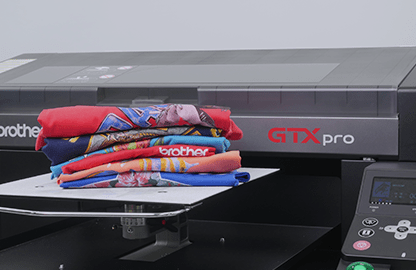

Go to Market with Speed
Boost productivity with the high-speed print mode. With an increase in print speed of up to 20% compared to standard mode, you can enjoy a quicker turnaround time for your orders.
.png?rev=e917526478ae443f879a97153622dd34)

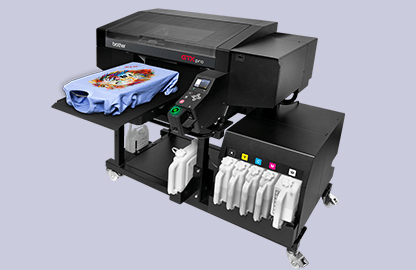

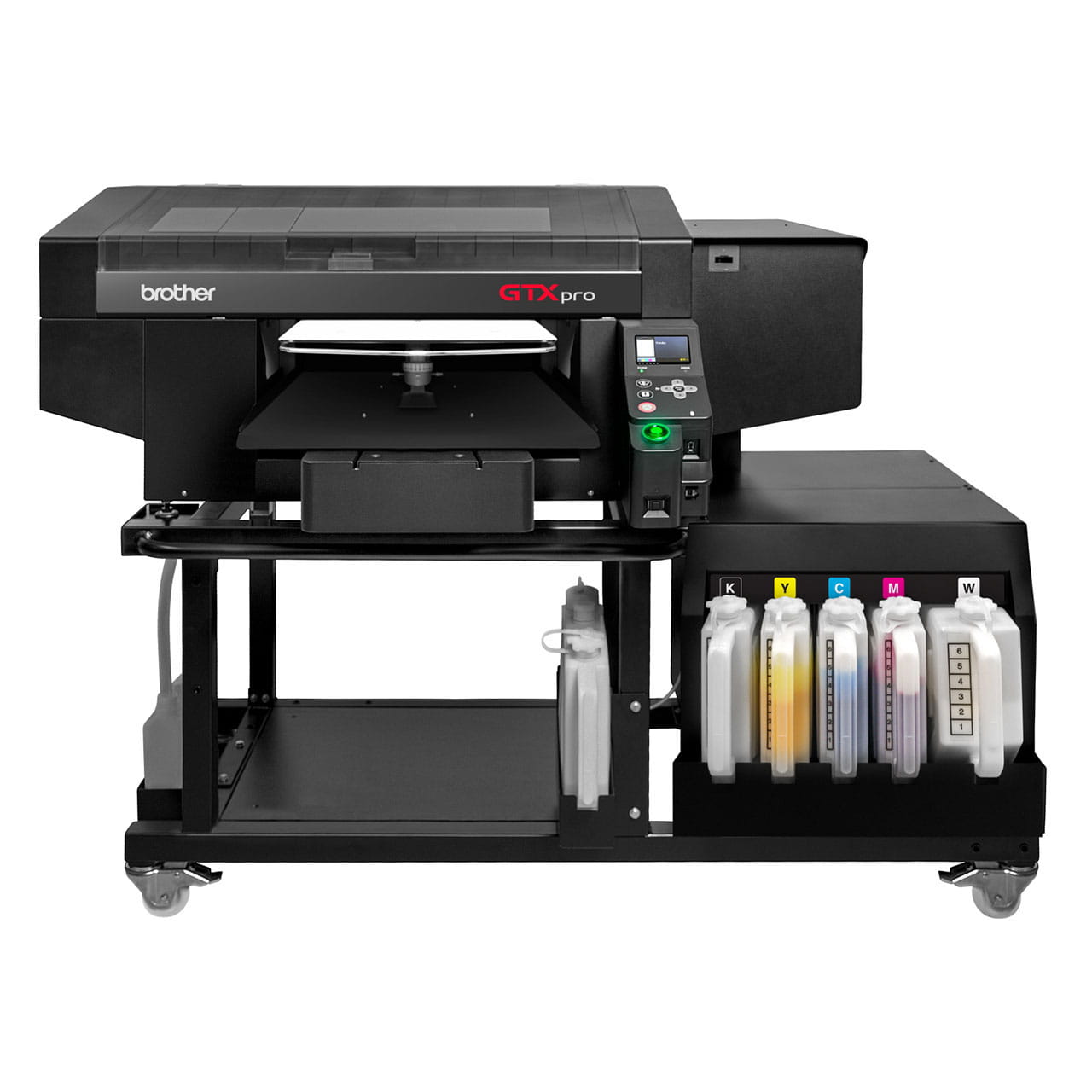

Efficient Ink Management

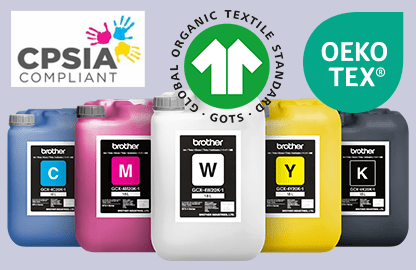

Manage ink efficently with our bulk ink tanks. Available in 1.8l and 18l sizes, our solutions are designed to match your printing volume and reducing the frequency of ink refills.

Scheduled Operations
Maintain consistent workflow with the intelligent ink system that makes sure that your printer is always ready for operation. The intellegent ink system keeps large volumes of ink in a constant state of readiness.

Reduced Maintenance

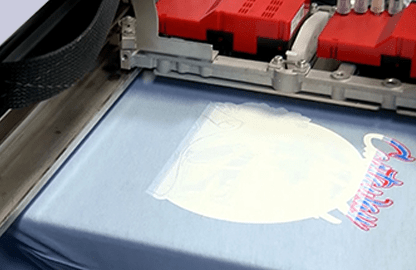

Experience fewer issues and spend more time on your business with an enhanced maintenance station and automation designed to minimise clogged nozzles.

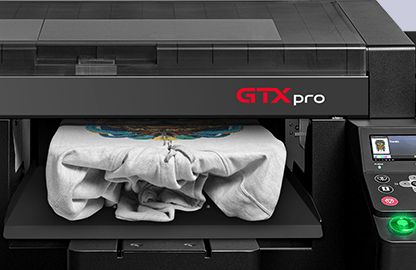

Print with Precision
Achieve optimal priting clarity with high and low platen sensors. Experience precise and accurate printing - even on the most intricate designs.

Efficient Queue Management
Improve efficiency with our print reservation system and send new files during operation to enhance your productivity.

Scale your Production
Prepare for future growt. the Brother GTXpro B gives you the flexibility to scale up in short order to meet the demands of your growing business, but not before you have the volume to justify it.

Confident Printing
Ensure lasting results with Innobella Textile inks, proven durable and washable with scores of 4.0 or higher on AATCC wash tests, backed by Brother's comprehensive warranty and expert support.
Specifications
Basic Specs
Printing Method
Direct inkjet garment printer
Machine Size
1780mm x 1300mm x 1210mm (with stand)
Machine Weight
appox. 165kg, include Platen, not include stand
Platen Sizes
Maximum Print Size is 16” x 21” / 40,6cm x 53,3cm For a list of all available platen sizes, contact a Brother DTG Specialist.
Included Platen Size
14” x 16” (35,6cm x 40,6cm)
Ink Type
Water-based pigment ink | C, M, Y, K, W
Ink-Head Type
On demand piezo head
Number of Ink-Heads
2 print heads / 8 ink channels
Print Resolution
1200 dpi x 1200 dpi
Print Mode
Single or double for CMYK. Underbase and highlight for white.
Data output
Printer driver (USB, File output)
Power supply
AC 100V-240V, 50/60Hz ± 1Hz
Power consumption
0.8A(average) (Reference: 0.4A - during circulation)
Ink cure
Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320°F (160°C) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.
Pre-treatment
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.
Software
Supported OS
Windows 8.1(32 bit/64 bit), Windows 10(32 bit/64 bit), macOS® 10.14 Mojave, macOS 10.15 Catalina
Interface
USB2.0, LAN(10 BASE-T, 100 BASE-TX), USB Flash Memory(Under 32GB, FAT32 format)
Driver operating conditions
2GHz CPU (minimum recommendation) 4GB RAM
Display resolution
XGA(1024x768) (minimum recommendation)
Recommended applications
Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC,CorelDRAW® 2018/2019 (Windows) GTX Grpahics Lab
