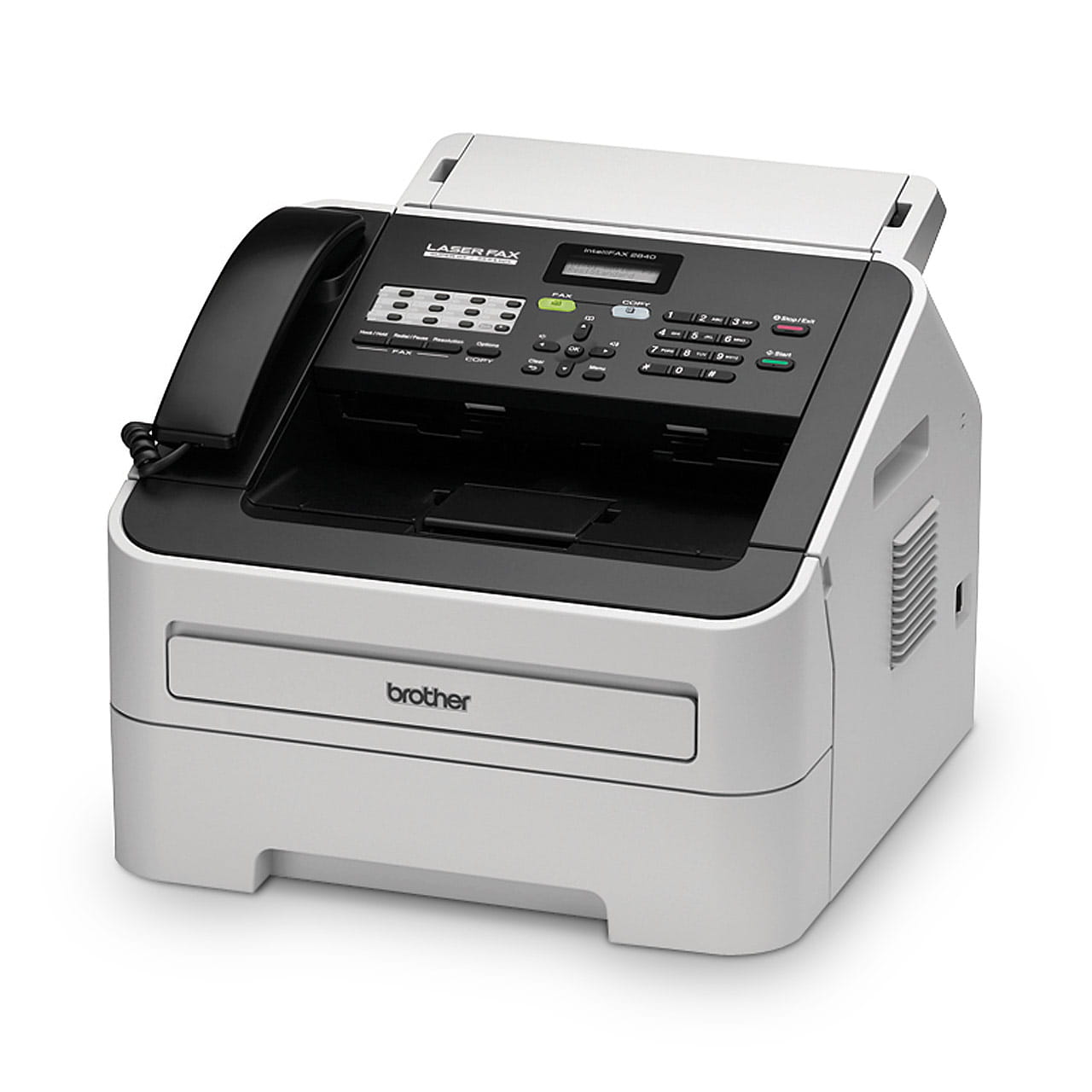

Monochrome Laser Fax Machine with PC connectivity
- Print Speed 20ppm (A4)
- 250 Sheet Paper Capacity
- Energy Star
Brother’s monochrome laser business fax with built-in handset offers fast print speeds of up to 20ppm making it perfect for your professional needs.
Information
Overview
Specifications
Basic Specs
ADF (Automatic Document Feeder)
Max. 20 pages
Speed Dial
200 stations
Product Dimensions (Width X Depth X Height)
368 mm × 311 mm × 360 mm
Weight
9 kg
Warranty
1 year Return to Base Warranty
Fax
Compatibility
ITU-T Super Group 3
Modem Speed
33,600 bps (with automatic fallback)
Scanning Width
Max. 208 mm
Printing Width
Max. 208 mm
Greyscale
8-bit/256 levels
Horizontal Resolution
8 dot/mm
Standard
3.85 line/mm
Fine
7.7 line/mm
7.7 line/mm
Superfine
15.4 line/mm
One Touch Dial
22 stations
Groups
Max. 8
Broadcasting
272 locations
Automatic Redial
3 times at 5-minute intervals
Memory Transmission
Max. 400 pages
Out of Paper Reception
Max. 400 pages
Document Size
Document Size (Single-sided) - Width
147.3 mm to 215.9 mm
Document Size (Single-sided) - Length
147.3 mm to 355.6 mm
Display & Memory
Memory Capacity
16 MB
Copy
Colour / Monochrome
Monochrome
Copy Width
Max. 204 mm
Multiple Copies
Stacks up to 99 pages
Reduce/Enlarge
25% to 400%
First Copy Out Time
Less than 12 seconds
Printer
Resolution
2,400 dpi × 600 dpi, 600 dpi × 600 dpi
Print Speed
Max. 20 pages/minute (A4 size)
First Print Out Time
Less than 10 seconds
Print Method
Electrophotographic laser printer
Copy Resolution
Max. 300 dpi × 600 dpi
Paper handling
Paper Tray - Paper Type
Plain, thin or recycled paper
Paper Tray - Paper Size
Letter, A4, B5 (ISO/JIS), A5, A5 (Long Edge), B6 (ISO), A6, Executive (legal or folio for Asia)
Paper Tray - Paper Weight
60 gsm to 105 gsm
Paper Tray - Maximum Paper Tray Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Paper Type
Envelope, labels, thin paper, thick paper, recycled paper, bond paper or plain paper
Manual Feed Slot - Paper Size
Width: 76.2 mm to 216 mm
Length: 116 mm to 406.4 mm
Manual Feed Slot - Paper Weight
60 gsm to 163 gsm
Manual Feed Slot - Maximum Paper Tray Capacity
One sheet at a time, 80 gsm plain paper
Face-Down Output Tray
Max. 100 sheets of 80 gsm plain paper
Face-Up Output Tray
One sheet (face-up print delivery to the face-up output tray)
Operation
Power Source
220 - 240 V AC 50/60Hz
Power Consumption (Average) - Peak
Approx. 1,080 W at 25°C
Power Consumption (Average) - Copying
Approx. 420 W at 25°C
Power Consumption (Average) - Ready
Approx. 55 W at 25°C
Power Consumption (Average) - Deep Sleep
Approx. 1.5 W
Noise level - Sound power - Operating (Printing):
L wa d = 6.18 dB (A)
Noise level - Sound power - Standby
L wa d = 4.25 dB (A)
Noise level - Sound pressure - Operating (Printing)
L pa m = 53 dB (A)
Noise level - Sound pressure - Standby
L pa m = 30 dB (A)
Temperature Operating
10°C to 32.5°C
Temperature - Storage
0°C to 40°C
Humidity - Operating
20% to 80% (without condensation)
Humidity - Storage
10% to 90% (without condensation)
