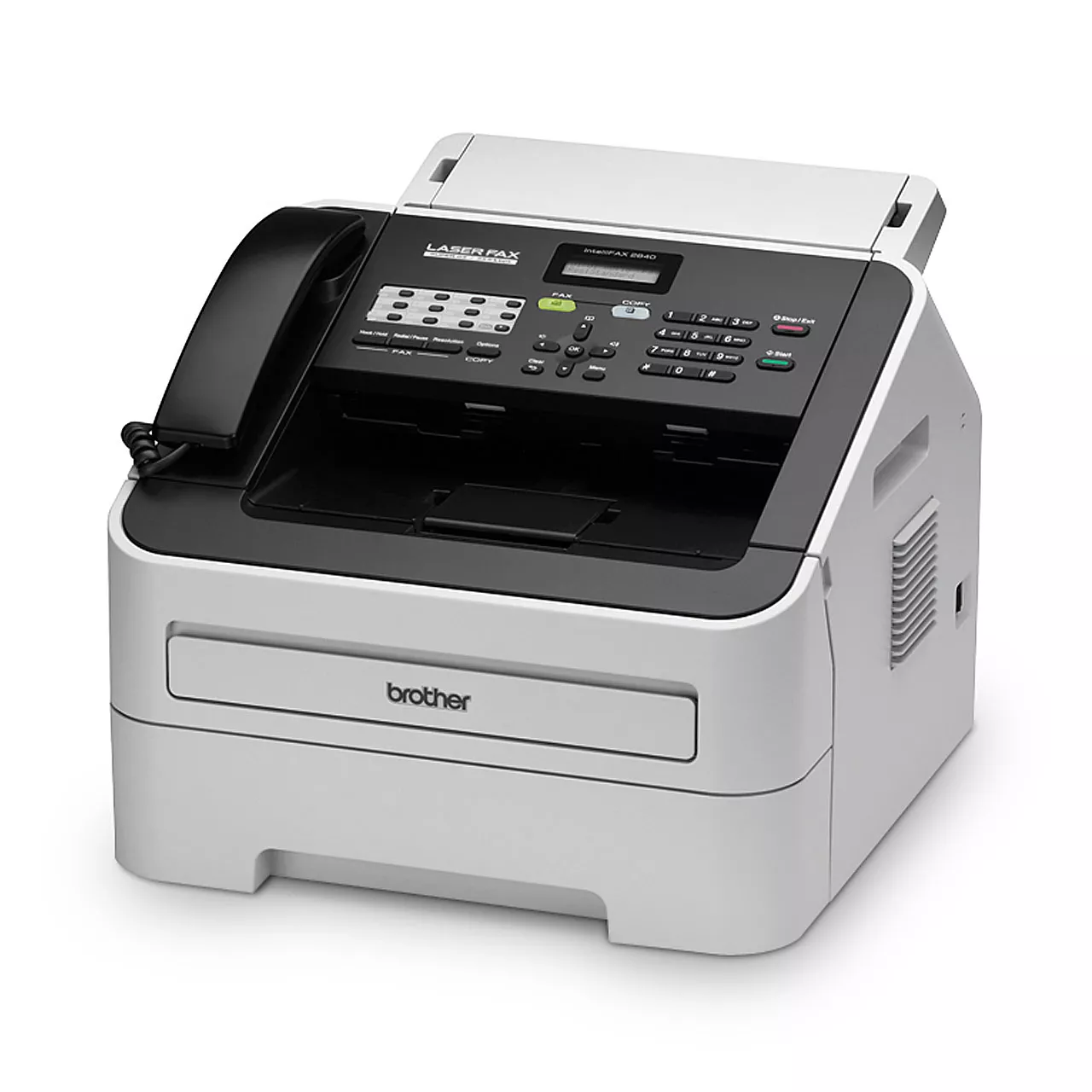

Monochrome Laser Fax Machine with PC connectivity
- Print Speed 20ppm (A4)
- 250 Sheet Paper Capacity
- Energy Star
Information
Overview
Specifications
Basic Specs
ADF (Automatic Document Feeder)
Max. 20 pages
Speed Dial
200 stations
Product Dimensions (Width X Depth X Height)
368 mm × 311 mm × 360 mm
Weight
9 kg
Warranty
1 year Return to Base Warranty
Fax
Compatibility
ITU-T Super Group 3
Modem Speed
33,600 bps (with automatic fallback)
Scanning Width
Max. 208 mm
Printing Width
Max. 208 mm
Greyscale
8-bit/256 levels
Horizontal Resolution
8 dot/mm
Standard
3.85 line/mm
Fine
7.7 line/mm
7.7 line/mm
Superfine
15.4 line/mm
One Touch Dial
22 stations
Groups
Max. 8
Broadcasting
272 locations
Automatic Redial
3 times at 5-minute intervals
Memory Transmission
Max. 400 pages
Out of Paper Reception
Max. 400 pages
Document Size
Document Size (Single-sided) - Width
147.3 mm to 215.9 mm
Document Size (Single-sided) - Length
147.3 mm to 355.6 mm
Display & Memory
Memory Capacity
16 MB
Copy
Colour / Monochrome
Monochrome
Copy Width
Max. 204 mm
Multiple Copies
Stacks up to 99 pages
Reduce/Enlarge
25% to 400%
First Copy Out Time
Less than 12 seconds
Printer
Resolution
2,400 dpi × 600 dpi, 600 dpi × 600 dpi
Print Speed
Max. 20 pages/minute (A4 size)
First Print Out Time
Less than 10 seconds
Print Method
Electrophotographic laser printer
Copy Resolution
Max. 300 dpi × 600 dpi
Paper handling
Paper Tray - Paper Type
Plain, thin or recycled paper
Paper Tray - Paper Size
Letter, A4, B5 (ISO/JIS), A5, A5 (Long Edge), B6 (ISO), A6, Executive (legal or folio for Asia)
Paper Tray - Paper Weight
60 gsm to 105 gsm
Paper Tray - Maximum Paper Tray Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Paper Type
Envelope, labels, thin paper, thick paper, recycled paper, bond paper or plain paper
Manual Feed Slot - Paper Size
Width: 76.2 mm to 216 mm
Length: 116 mm to 406.4 mm
Manual Feed Slot - Paper Weight
60 gsm to 163 gsm
Manual Feed Slot - Maximum Paper Tray Capacity
One sheet at a time, 80 gsm plain paper
Face-Down Output Tray
Max. 100 sheets of 80 gsm plain paper
Face-Up Output Tray
One sheet (face-up print delivery to the face-up output tray)
Operation
Power Source
220 - 240 V AC 50/60Hz
Power Consumption (Average) - Peak
Approx. 1,080 W at 25°C
Power Consumption (Average) - Copying
Approx. 420 W at 25°C
Power Consumption (Average) - Ready
Approx. 55 W at 25°C
Power Consumption (Average) - Deep Sleep
Approx. 1.5 W
Noise level - Sound power - Operating (Printing):
L wa d = 6.18 dB (A)
Noise level - Sound power - Standby
L wa d = 4.25 dB (A)
Noise level - Sound pressure - Operating (Printing)
L pa m = 53 dB (A)
Noise level - Sound pressure - Standby
L pa m = 30 dB (A)
Temperature Operating
10°C to 32.5°C
Temperature - Storage
0°C to 40°C
Humidity - Operating
20% to 80% (without condensation)
Humidity - Storage
10% to 90% (without condensation)
