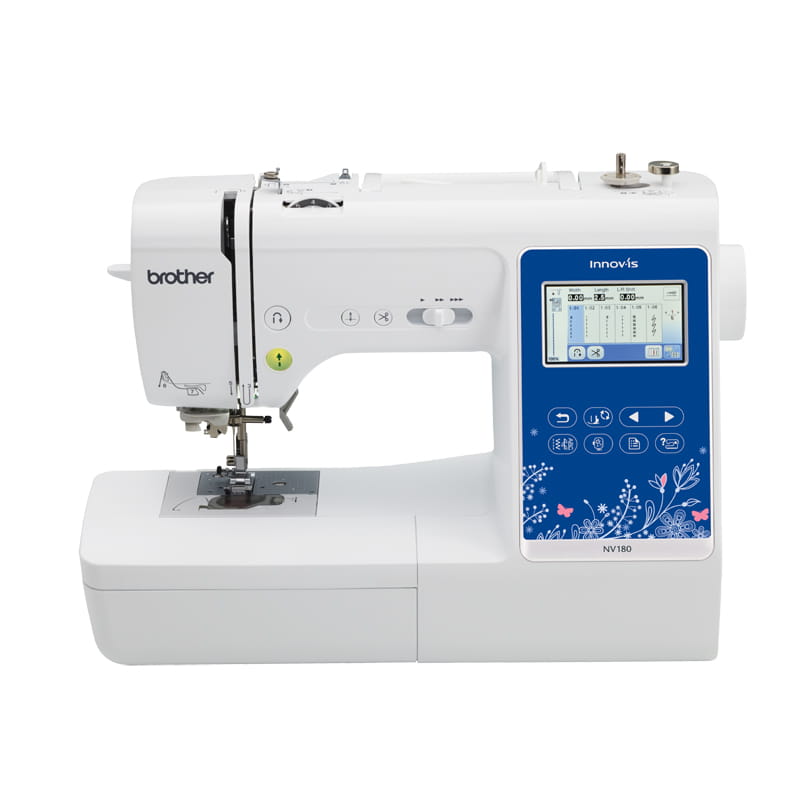

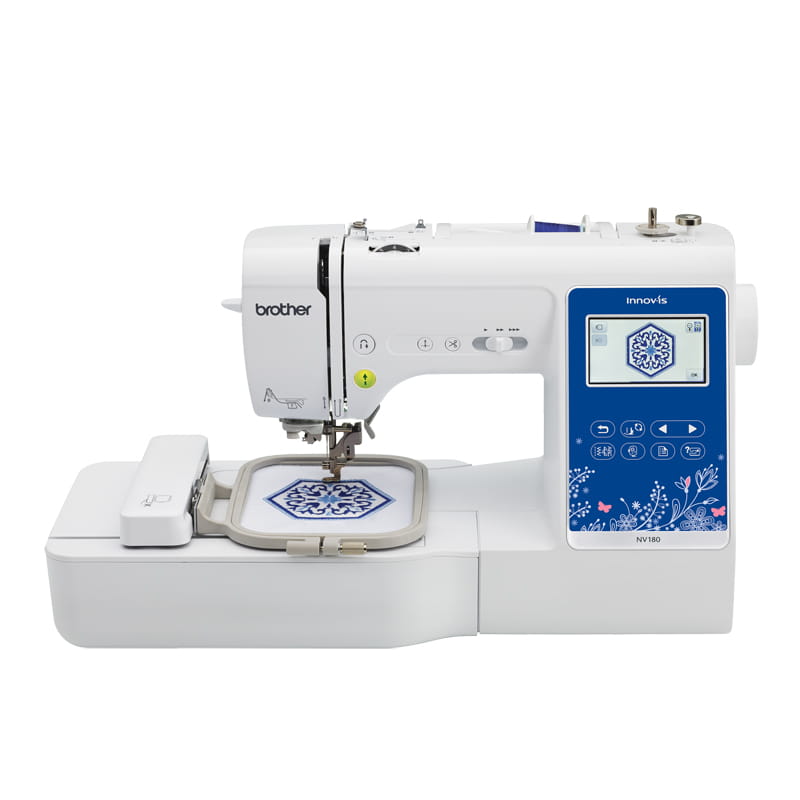

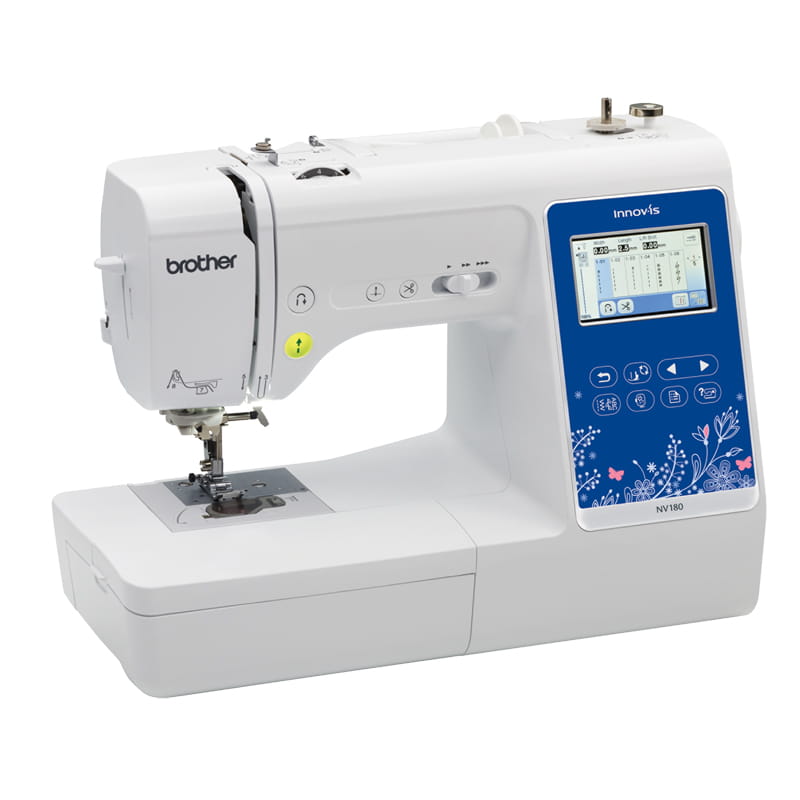

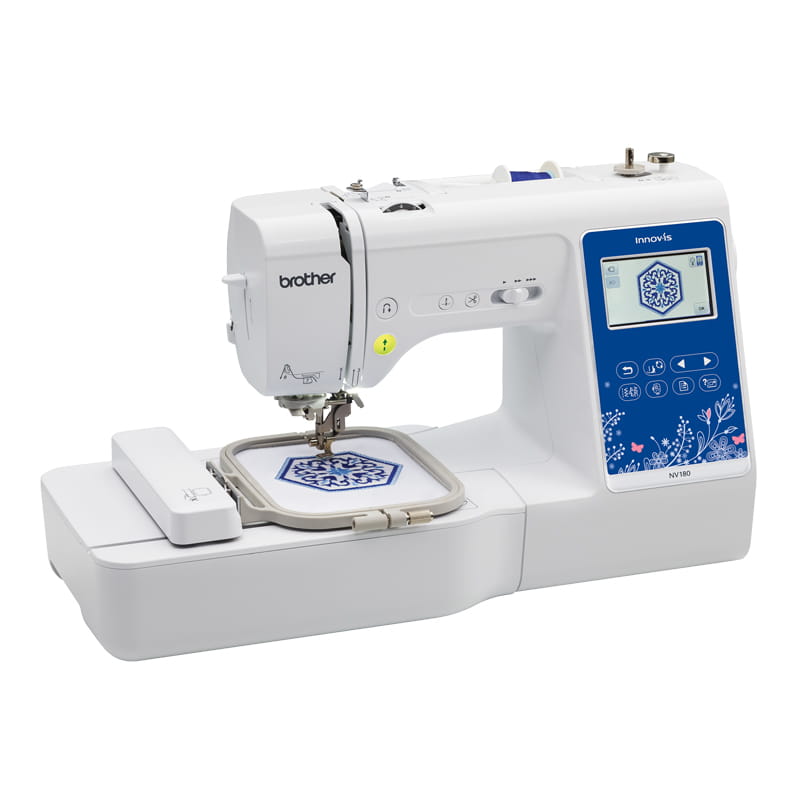

Innov-is NV180 Sewing & Embroidery Machine
It sews, it quilts and it embroiders. And it does all three brilliantly.
- 80 Built-in Embroidery Patterns
- Built-in Utility and Decorative Stitches
- Embroidery Lettering Fonts
- Colour Touch Screen for editing
- Advanced Needle Threading System
- Thread Trimming
Exclusive to (click below to view latest offer):
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Yes
Thread Cutter
Yes
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Case
Hard cover
Wide Table
Optional
Warranty
5 years on electrical and electronic parts (excludes Foot Control) and 3 year on mechanical parts
What's in The Box
Machine, Standard presser feet 8, Needle Set / Twin needle, Bobbin (on machine), Pre-wound bobbin - (60 weight white emb bobbin thread), Bobbin clip, Seam ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver, Disc-shaped screwdriver, Extra spool pin, Spool cap - small / medium / large, Thread spool insert (mini king thread spool), Bobbin case (on machine), Spool net, Foot controller, Embroidery Frame (100 x 100mm), Accessory bag, Grid sheet set, Operation manual, Quick reference guide, Embroidery Design Guide.
Sewing Features Spec
Stitch No
181
Sewing Speed
850 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
one-step
Number of Buttonholes
10
Lettering
4
Drop Feed
manual
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
No
Feed Dog
7 (longer ver.)
Embroidery Features Spec
Embroidery Speed (Max)
400 spm
Embroidery Area Max
100 mm x 100 mm
Built In Embroidery Patterns
80
Build In Embroidery Font
10
On Screen Editing
Yes
USB
Yes
Needle number for Embroidery
1
Show More
Show Less
