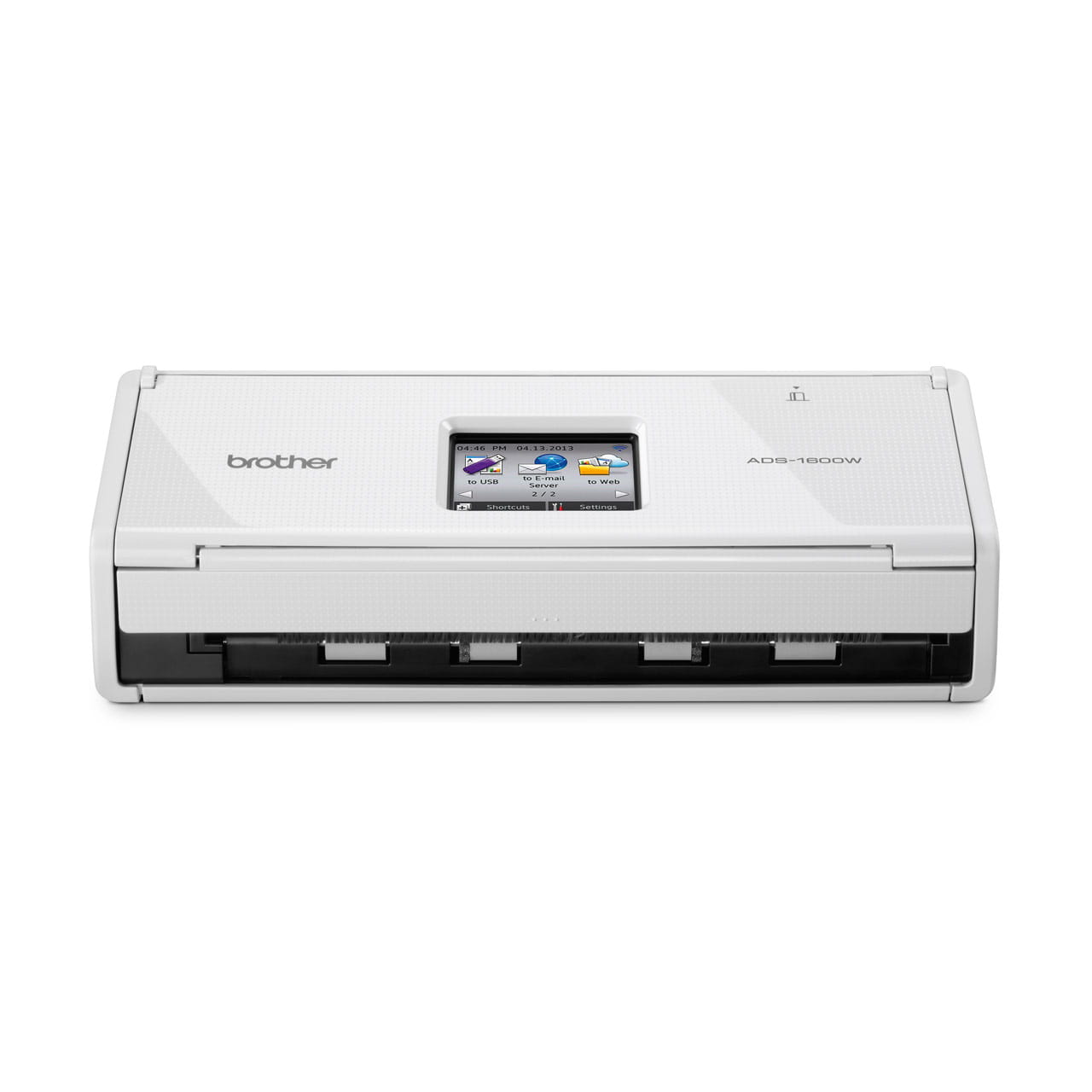

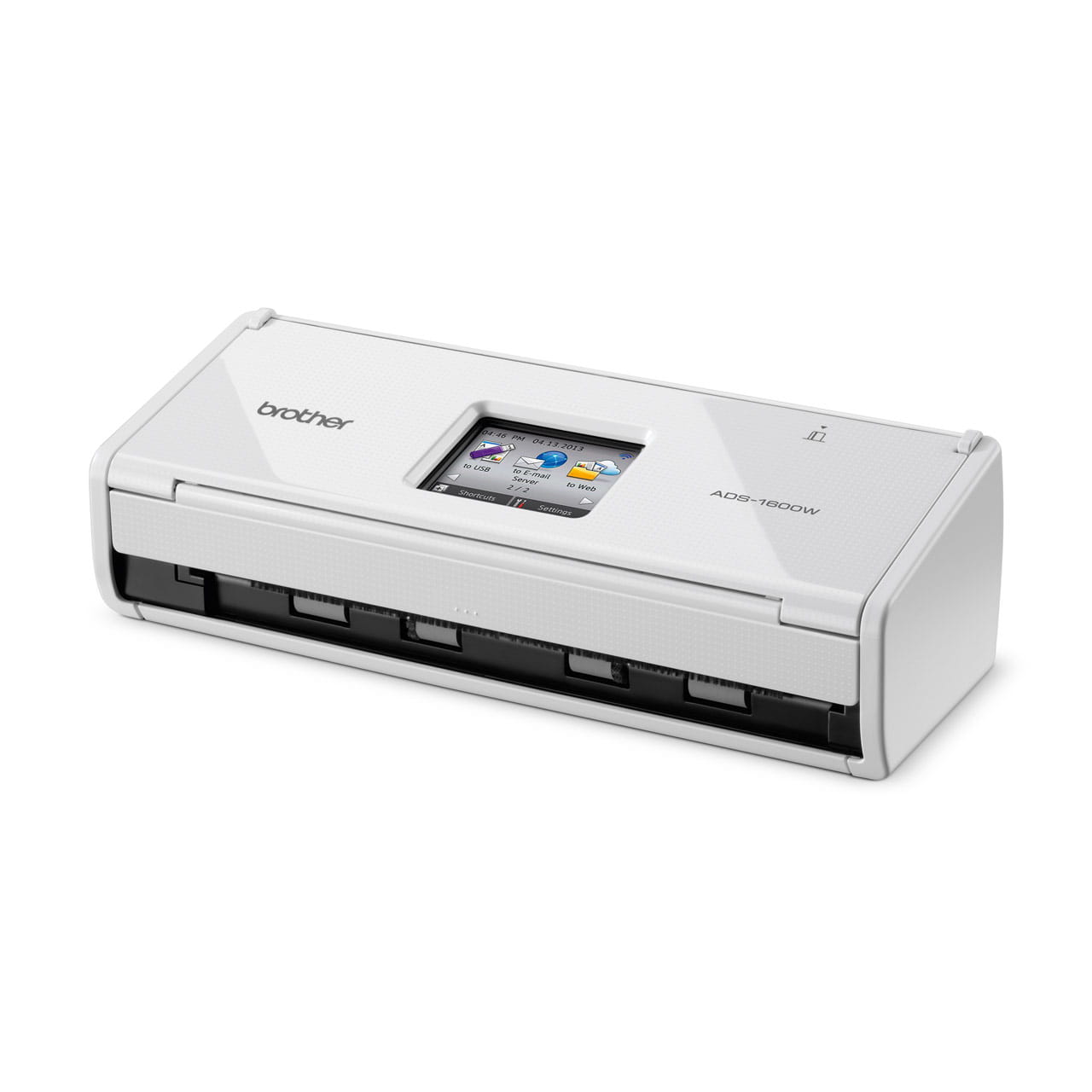

Compact Wireless Desktop Scanner
- Compact space-saving design
- Wi-Fi connectivity
- Achieve optimum performance with TWAIN, WIA, ICA, SANE drivers
- Scan directly to the cloud or your mobile device
Compact Document Scanner that offers high speed 2-sided (duplex) scanning with wireless connection and a 20 page Automatic Document Feeder (ADF). Scan a wide range of documents including ID Cards and send your documents wirelessly without the need to connect the machine to your PC.
Information
Overview
Specifications
Basic Specs
Scanning Speed
18 ppm＠300dpi※ (A4) All image processing is OFF
Document Size - Multiple Sheets - Width
51 mm to 215.9 mm
Document Size - Multiple Sheets - Length
70 mm to 297 mm
Document Size - Single Sheet - Width
51 mm to 215.9 mm
Document Size - Single Sheet - Length
70 mm to 863 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
30-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Max. 212 mm
Product Dimensions (Width X Depth X Height)
285 mm × 231 mm × 255 mm
Weight
1.6 kg
ADF (Automatic Document Feeder)
Up to 20 pages (Paper: 80 g/m²)
Memory Capacity
256 MB
Warranty
1 year Return to Base Warranty
What's in The Box
Scanner, Quick Setup Guide, User's Guide, Network Guide, CD-ROM, Power Cord, USB cable
Network
Wireless Network Security
SSID (32 characters), WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Setup Support Utility
AOSS™, WPS
Display Type
Touchscreen LCD
2.7 inches (67.5 mm), TFT colour LCD screen
Operation
Power Source
AC: 220 - 240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 14W
Power Consumption - Ready
Approx. 4.0W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.5W
Power Consumption - Power OFF
Approx. 0.25W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Compliance
TWAIN Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7 / Windows® 8
TWAIN Compliant - Macintosh
Mac OS X v10.6.8, 10.7.x, 10.8.x
WIA Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7 / Windows® 8
ICA Compliant - Macintosh
Mac OS X v10.6.8, 10.7.x, 10.8.x
ISIS™ Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7 / Windows® 8
Software and Apps
Included Software
12/21/2023
Windows: Newsoft Presto Biz Card¹, PaperPort¹, Control Centre, Remote setup, Brother Meter Read Tool¹ Mac: Newsoft Presto Biz Card¹, PageManager, Control Centre, Remote setup
Mobile Apps
12/21/2023
iPrint&Scan, Support Center
